System
Specifications

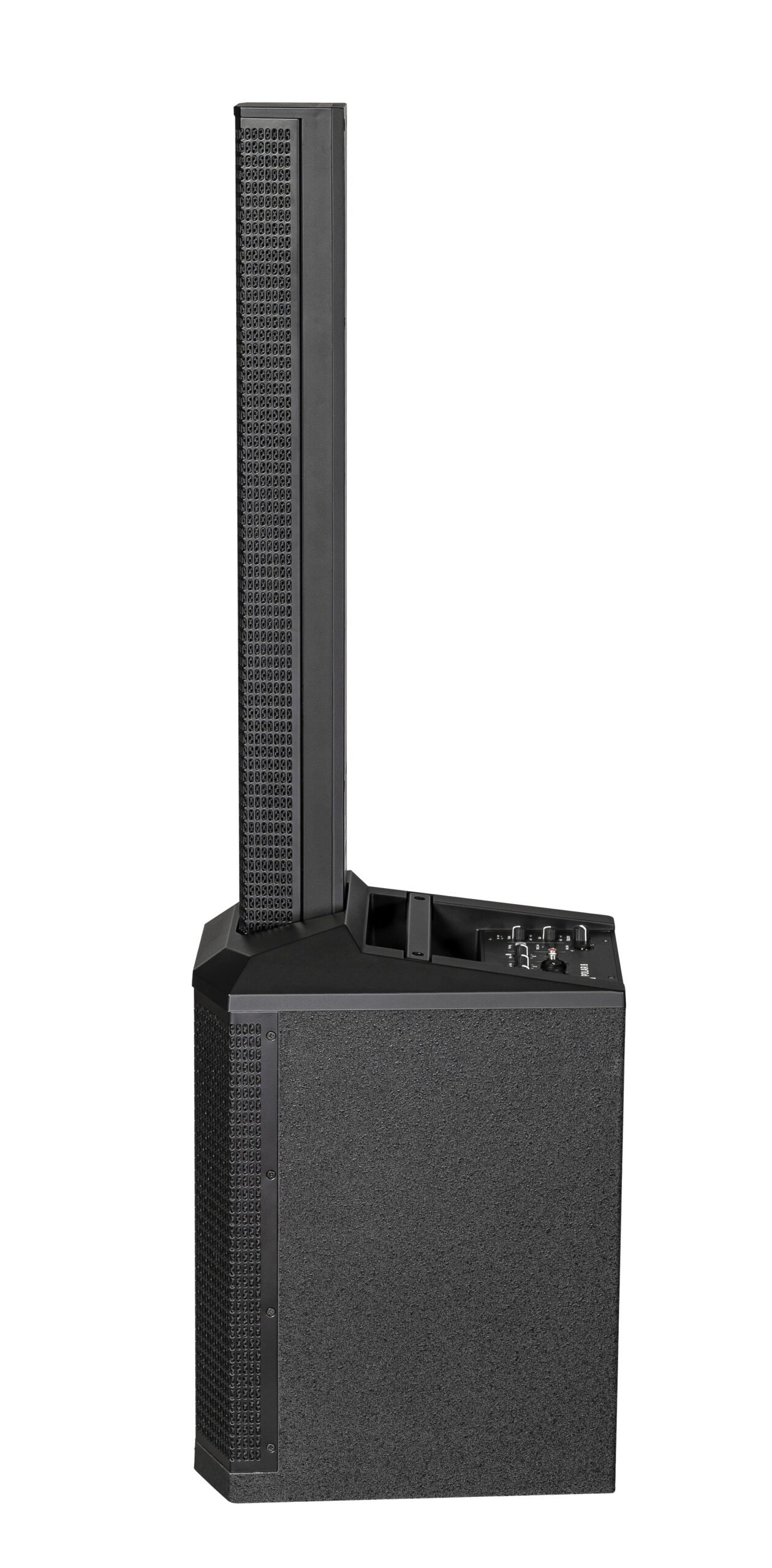

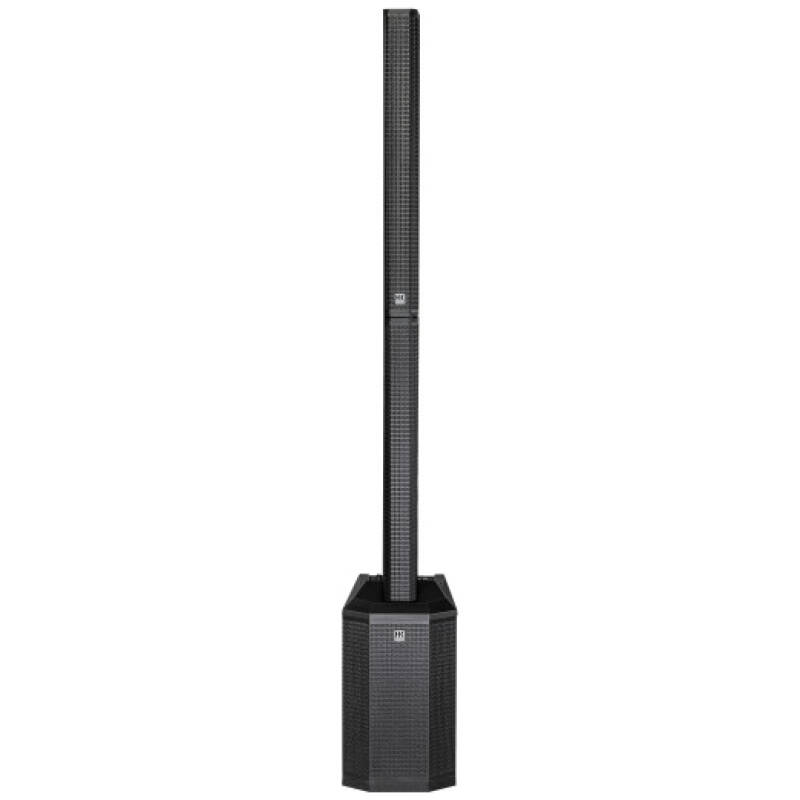

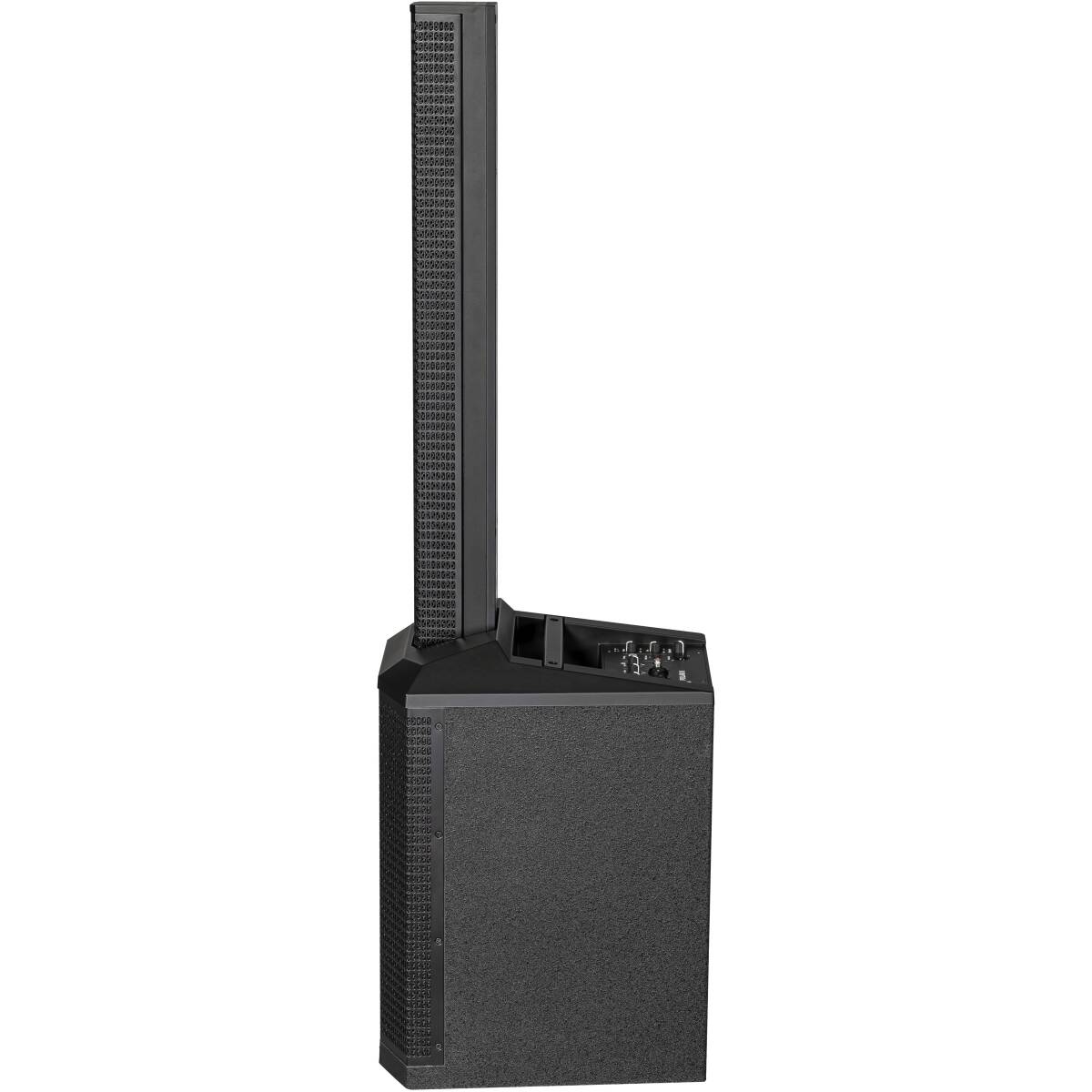

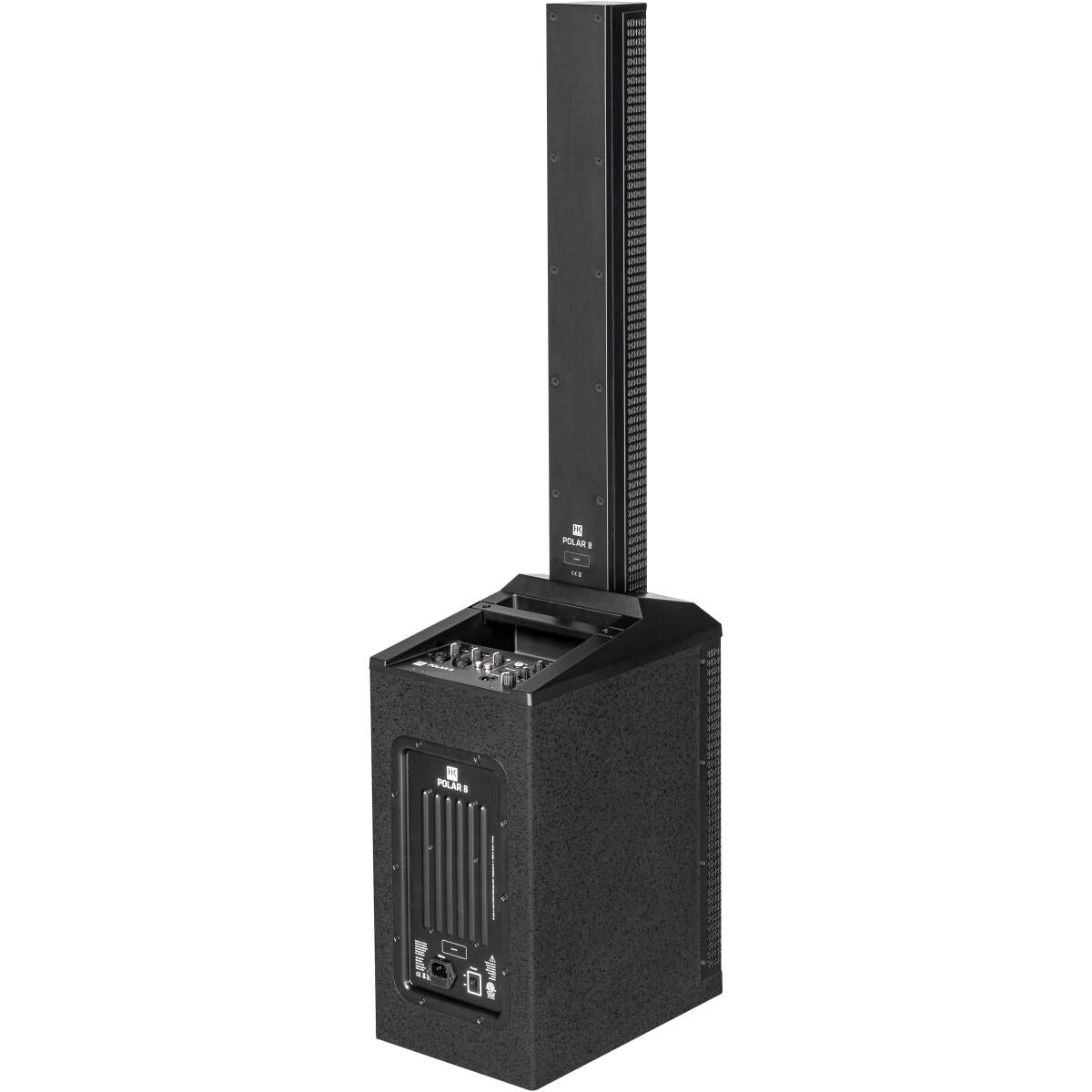

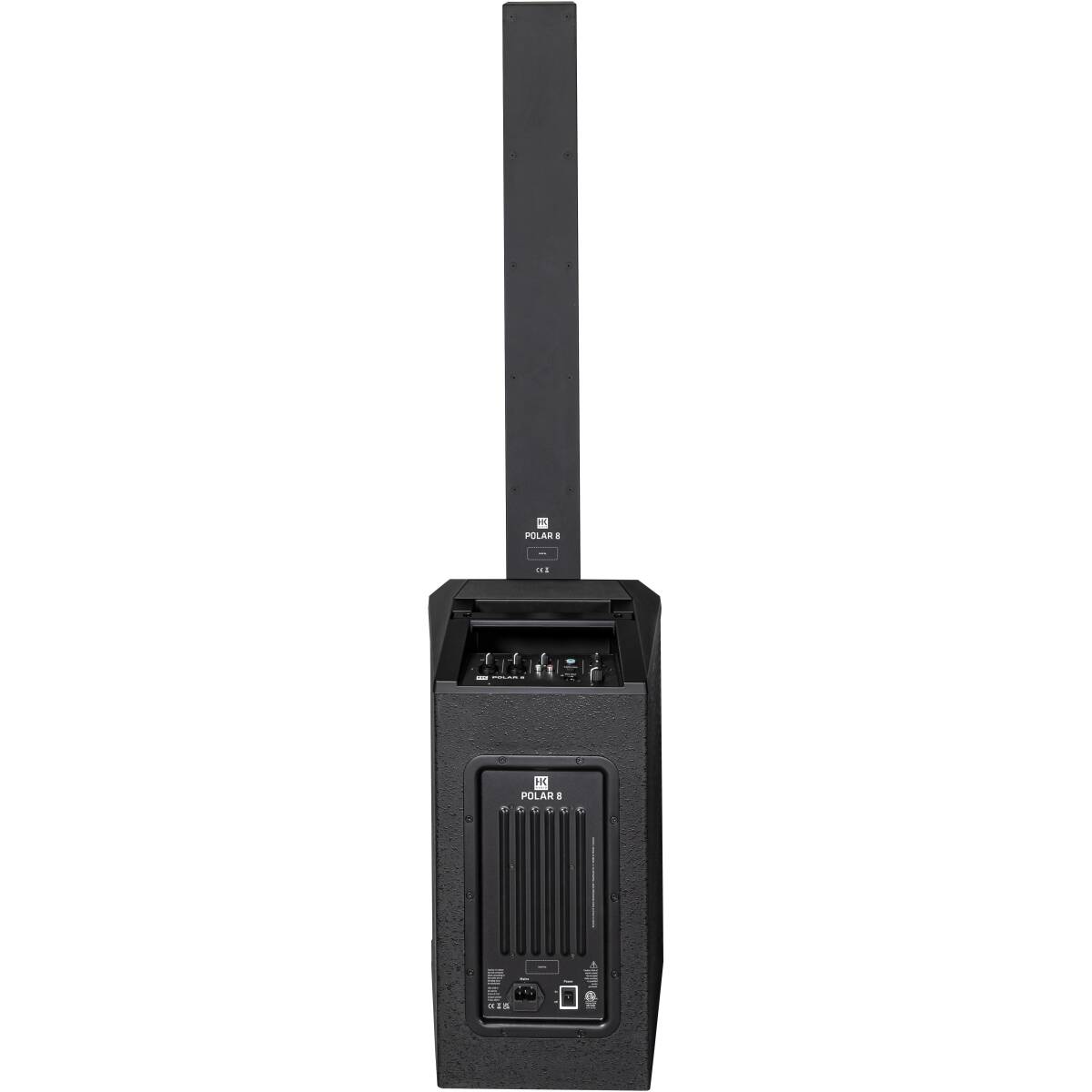

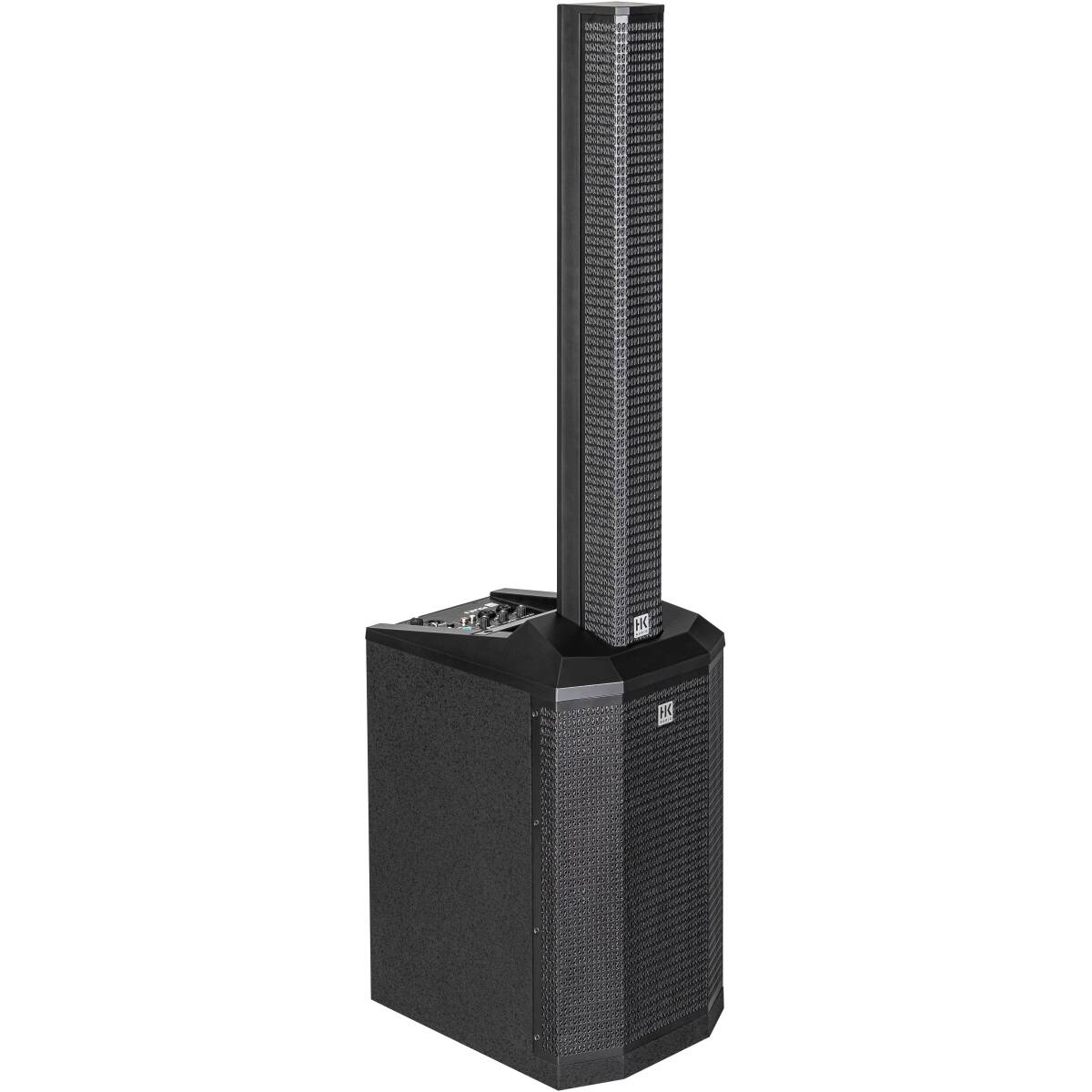

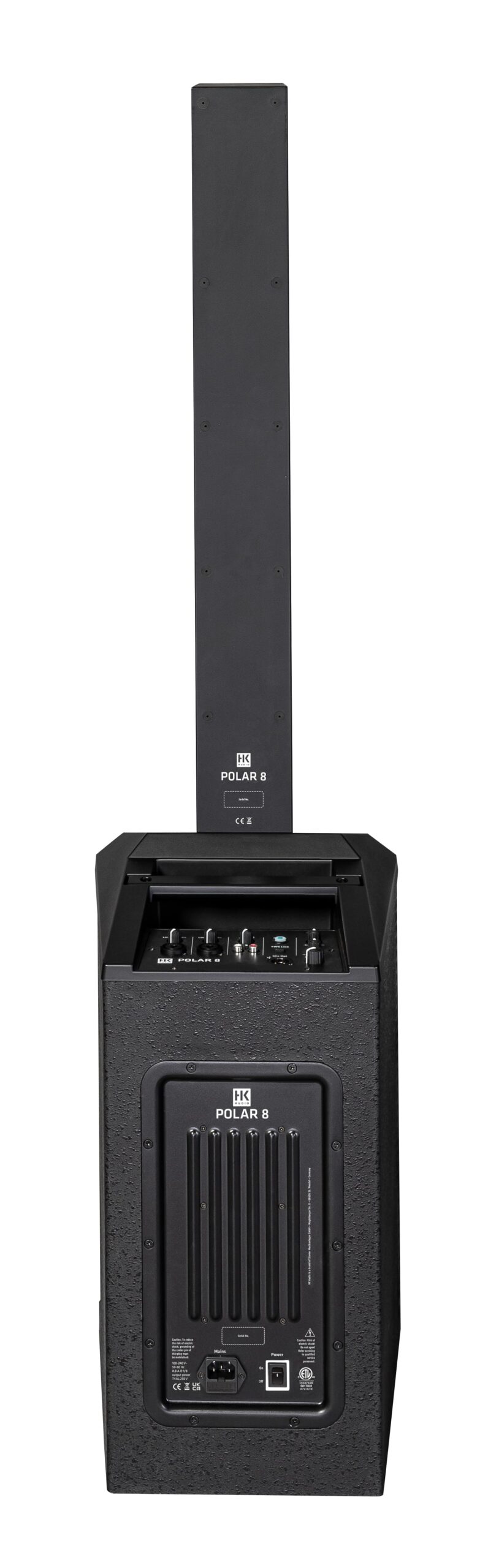

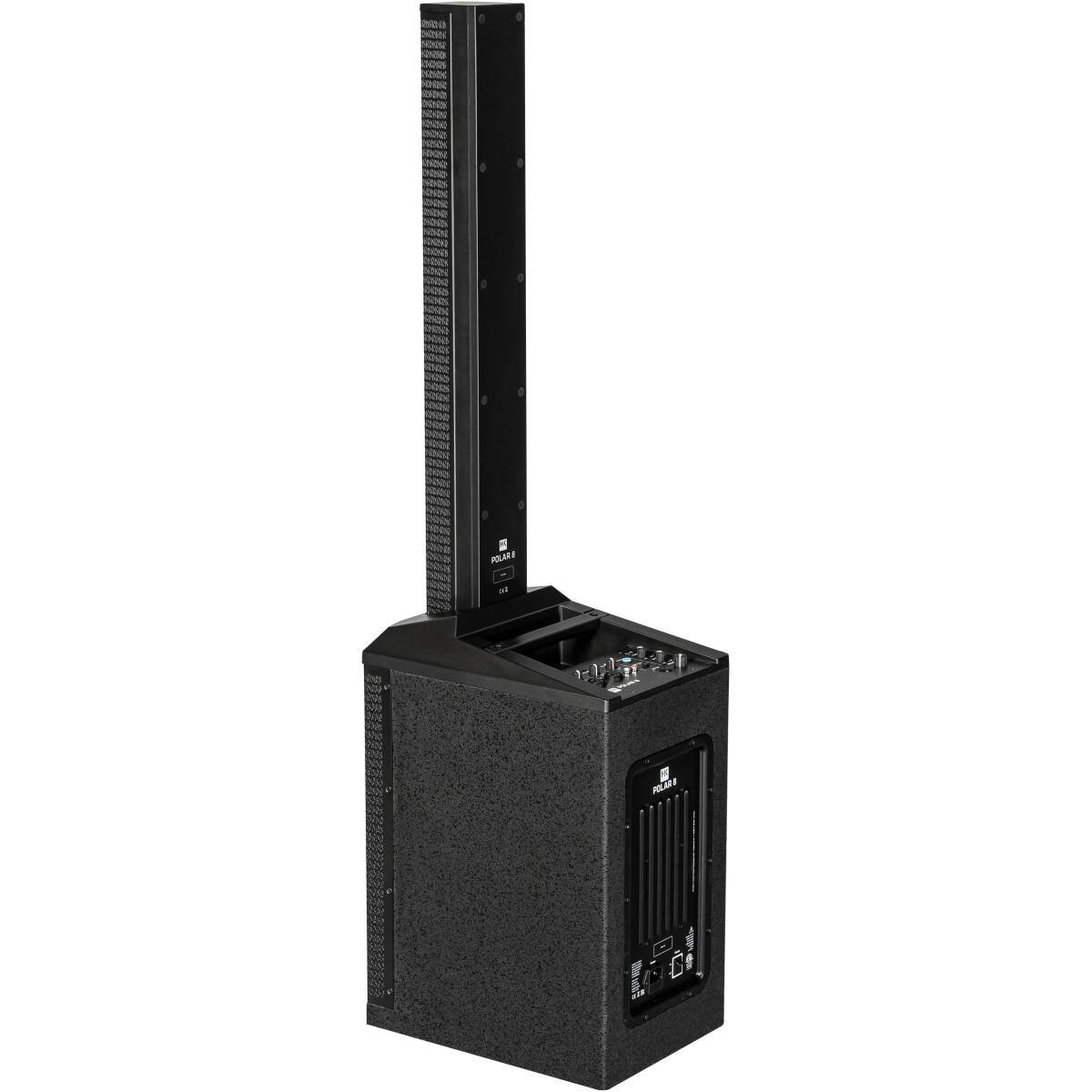

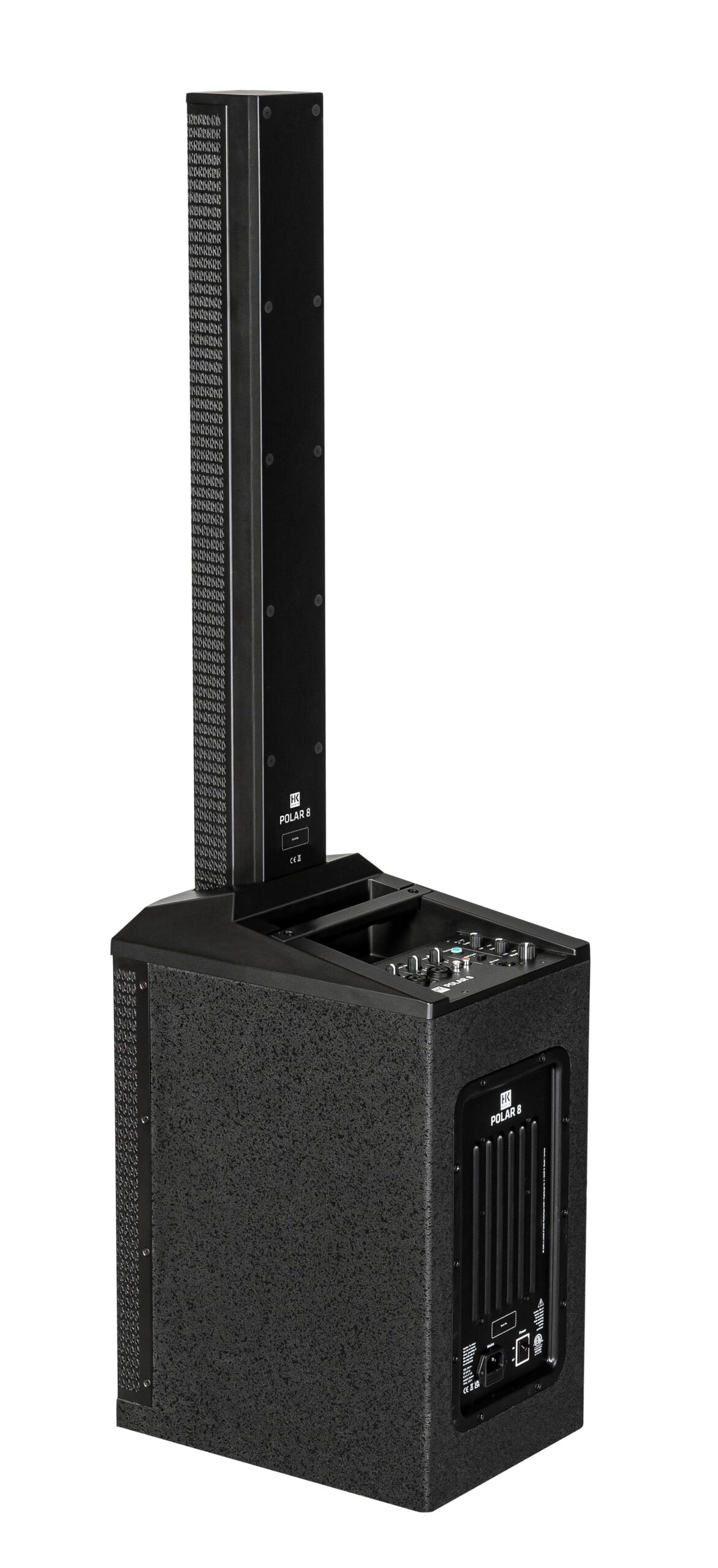

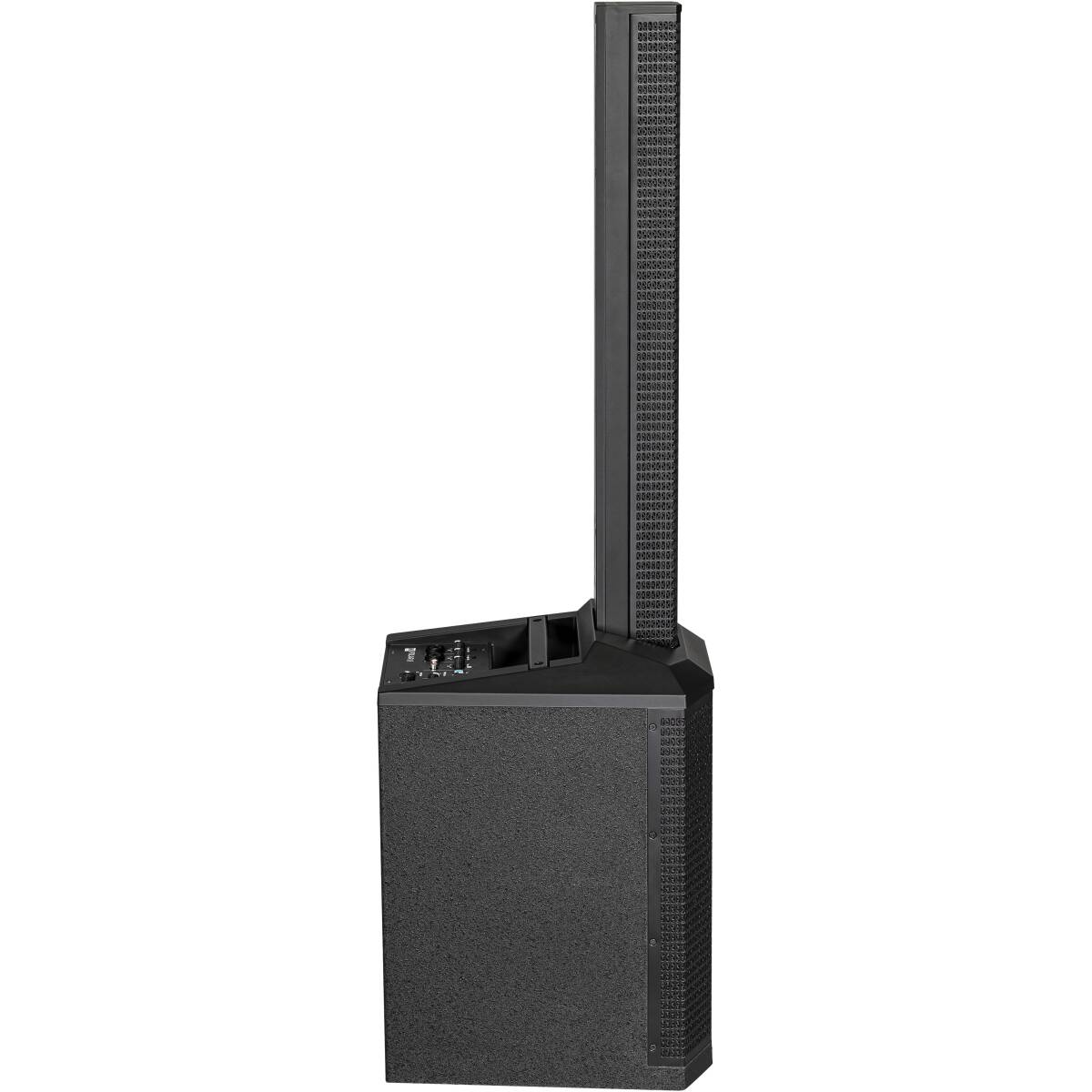

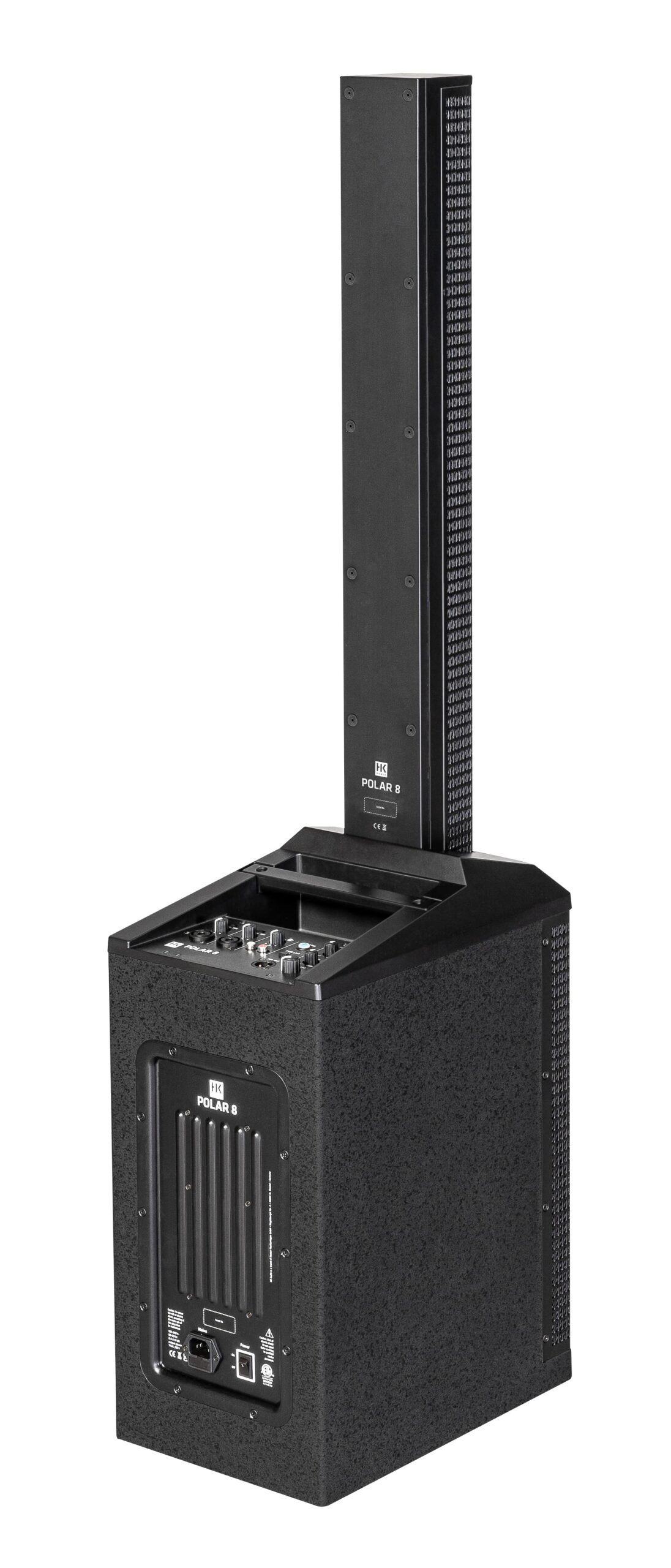

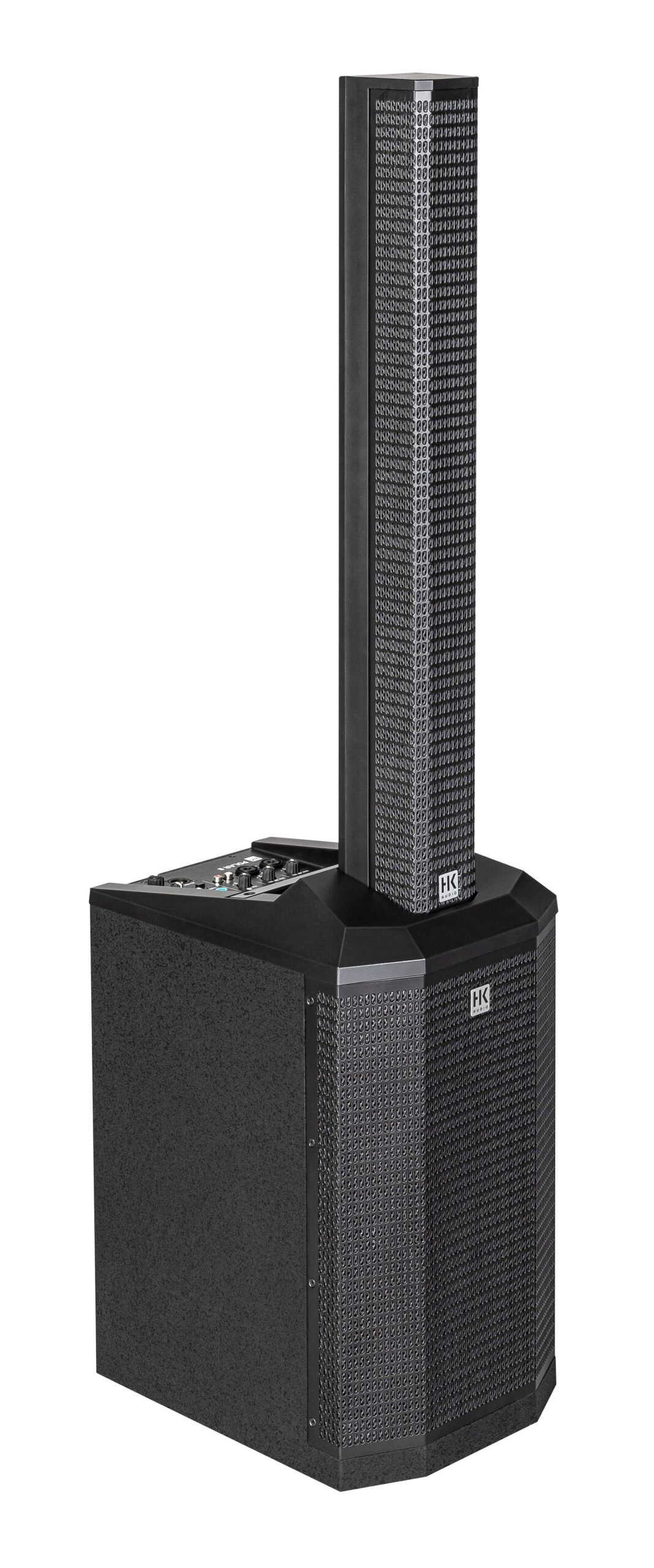

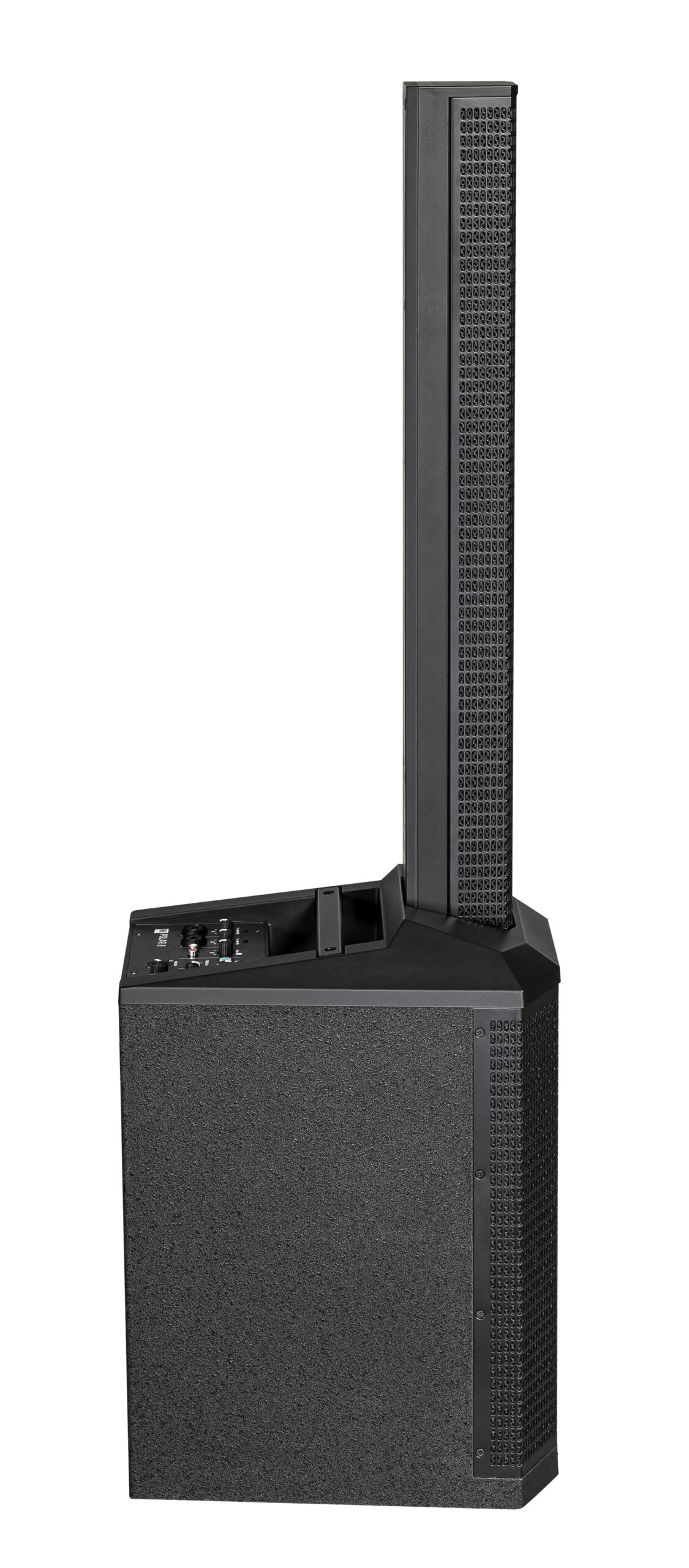

Concept Active column loudspeaker system
System components 1 x Subwoofer, 1 x Spacer, 1 x Mid/High unit
Max. SPL calculated 118 dB
Crossover frequency 220 Hz
Frequency range -10 dB50 Hz – 20 kHz
Dispersion angle -6 dB (horizontal x vertical)120° x 45°

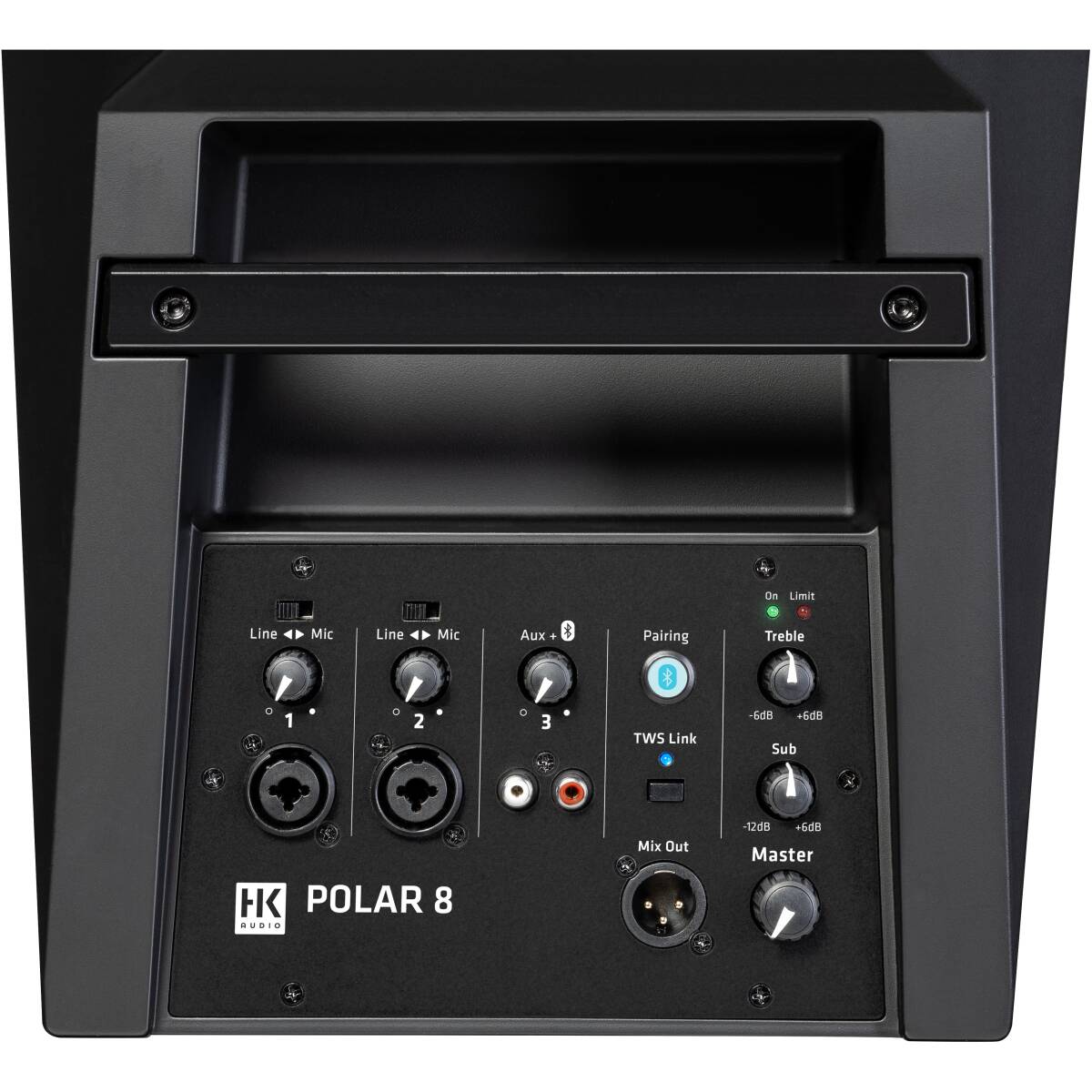

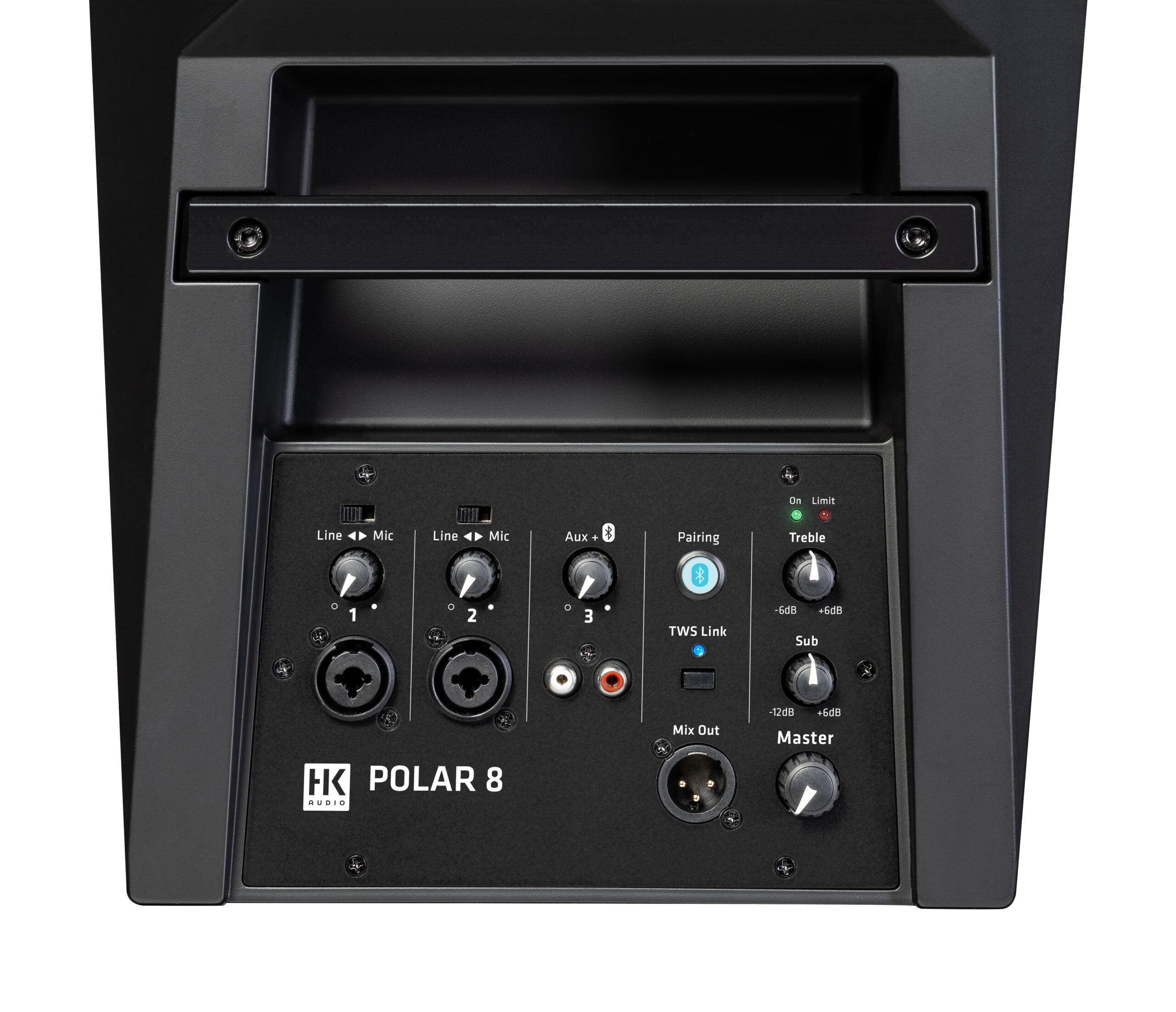

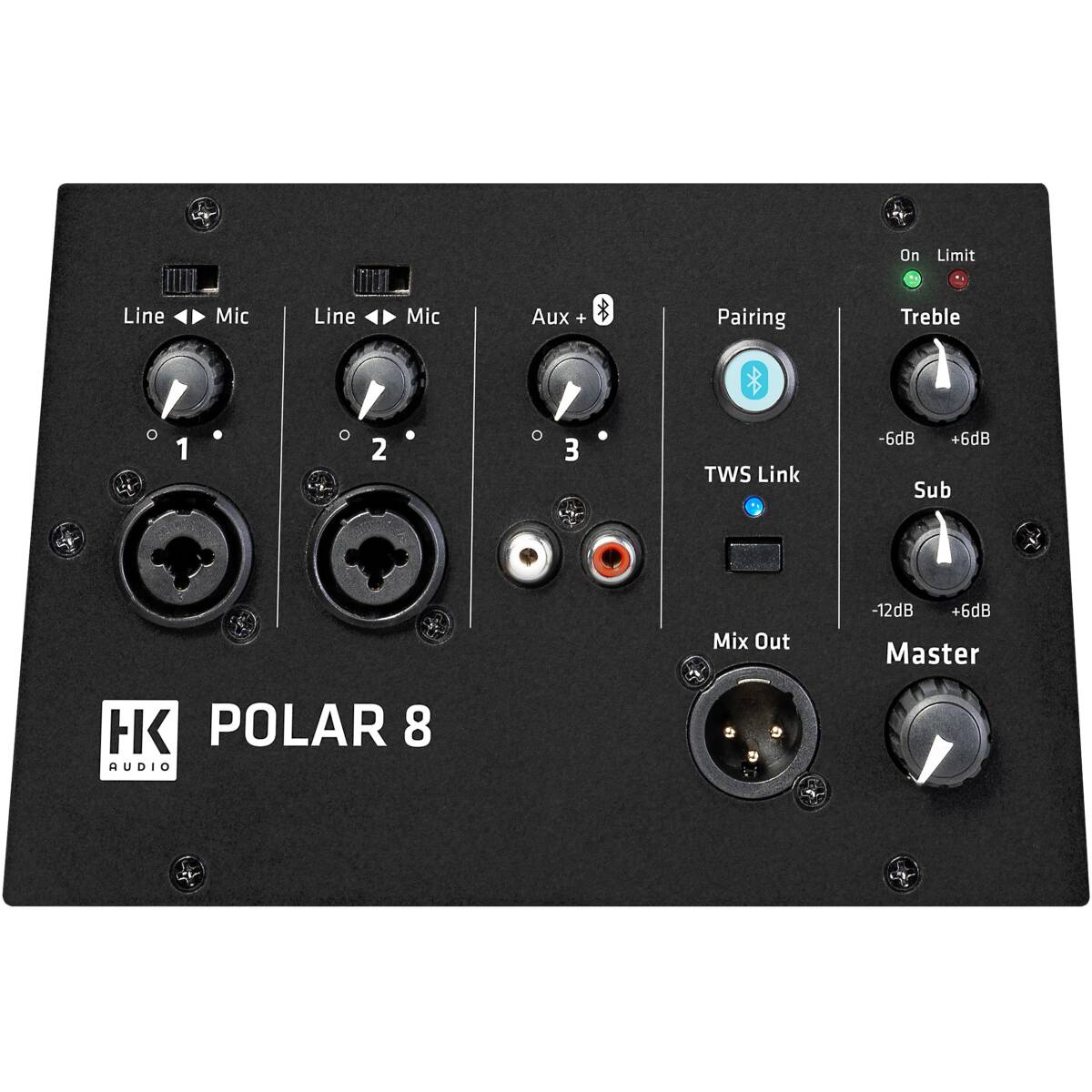

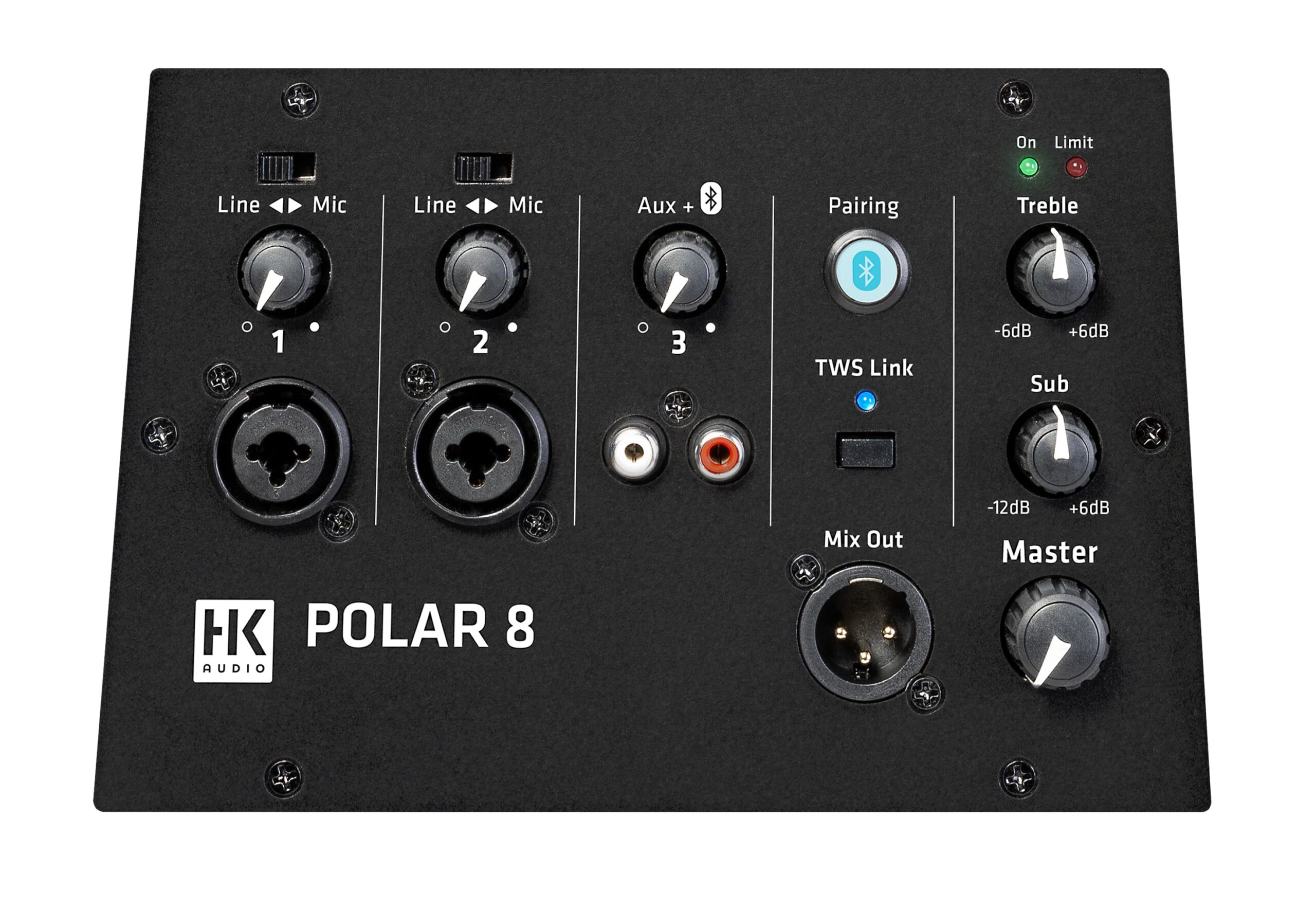

Connections
Analog input2 x XLR/jack combo (Mic/Line), 1 x 6.3 mm (1/4″) jack plug (Instrument), 1 x Chinch Stereo
Mix output1 x XLR
Electronical data
Pre amplifier Analog preamplifier
Power amplifier Class D-B iamped
Power amplifier output peak300 W
Power consumption 0.8 A/100 – 240 V nominal (EN 62368-1)
Maximum input level 19 dBu
Speaker protection RMS-/Peak-Limiter
Bluetooth Yes (5.0), TWS
Mechanical data
Carrying handles 1 x Carrying handle
Cabinet material Birch plywood, plastic
Color Jet black (RAL 9005)
Front grille Steel front grille with anti-corrosive coating and backed acoustic foam
Accessories included Protection cover (Sub), transport bag (Mid/High unit)
Dimensions (W x H x D), metric30.2 x 202.9 x 39 cm
Dimensions (W x H x D), imperial11-7/8 x 79-7/8 x 15-11/32 inch
Weight, metric19.3 kg
Weight, imperial42.5 lbs
Subwoofer
Characteristics and components
Concept Active subwoofer
Cabinet principle Bass reflex
Low frequency1 x 8″ cone speaker
Crossover High pass: 24 dB/oct., Low pass: 24 dB/oct.
Mechanical data
Cabinet material Birch plywood
Cabinet surface diamond sand coating
Carrying handles1 x Carrying handle
Front grille Steel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric 30.2 x 54 x 39 cm
Dimensions (W x H x D), imperial 11-7/8 x 21-1/4 x 15-11/32 inch
Weight, metric 13.8 kg
Weight, imperial 30.4 lbs
