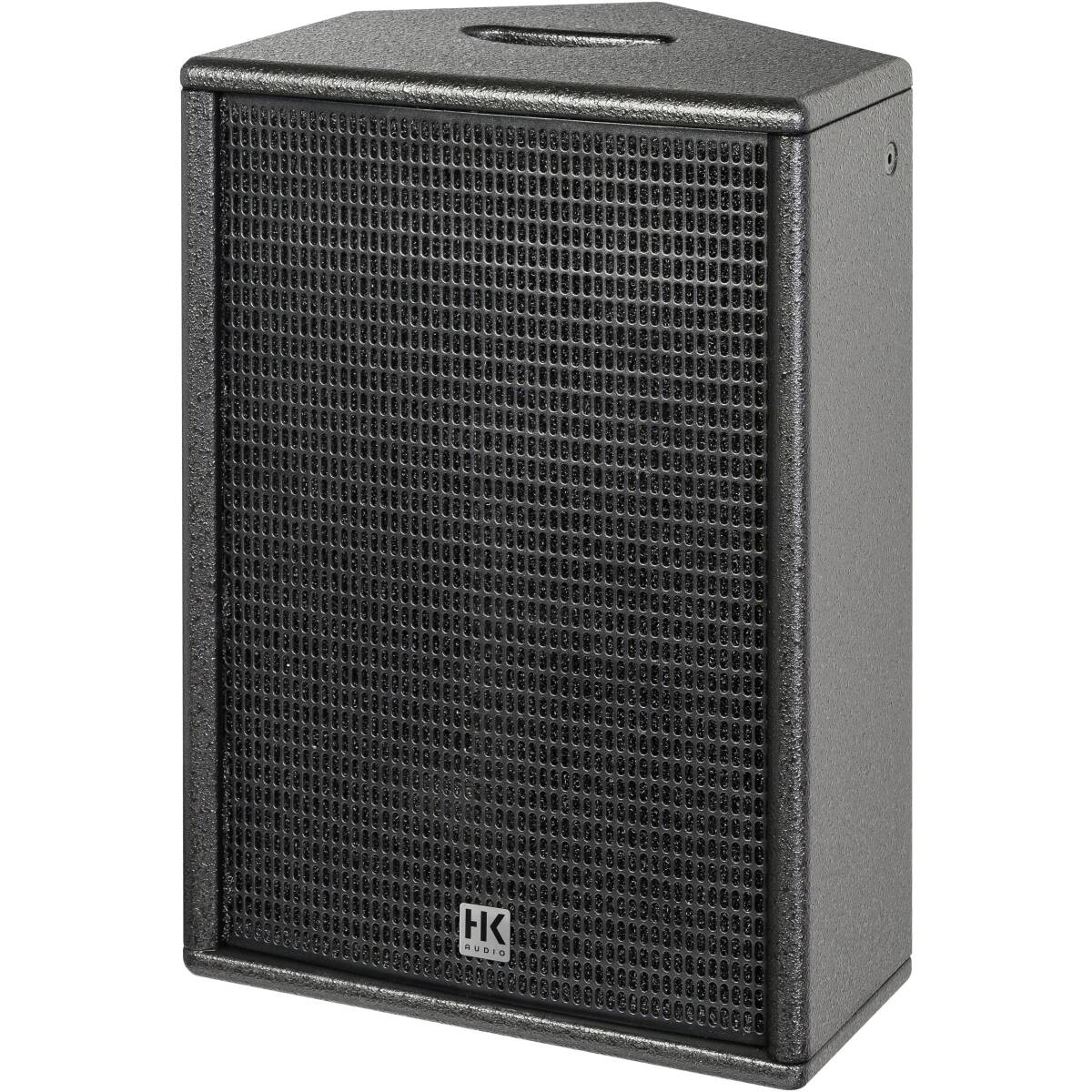

Concept Active 2-way loudspeaker
Cabinet principle Bass reflex
Max. SPL average2 122 dB
Max. SPL peak3 131 dB
Max. SPL calculated5 133 dB
Crossover frequency 2.5 kHz
Frequency range -6 dB81 Hz – 16 kHz
Frequency range -10 dB69 Hz – 18 kHz
Dispersion angle -6 dB (horizontal x vertical) 90° x 55°
Index
Index 2)1 x unit @ 1 m, 10 % THD, 100 Hz – 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD @ 2.5 kHz, half space
Index 5)Calculated with 120 W and measured peak of 106 dB (1W/1m), half space
Components
Mid/high frequency 1 x 10″ cone speaker
High frequency 1 x 1″ compression driver
Horn Constant directivity horn

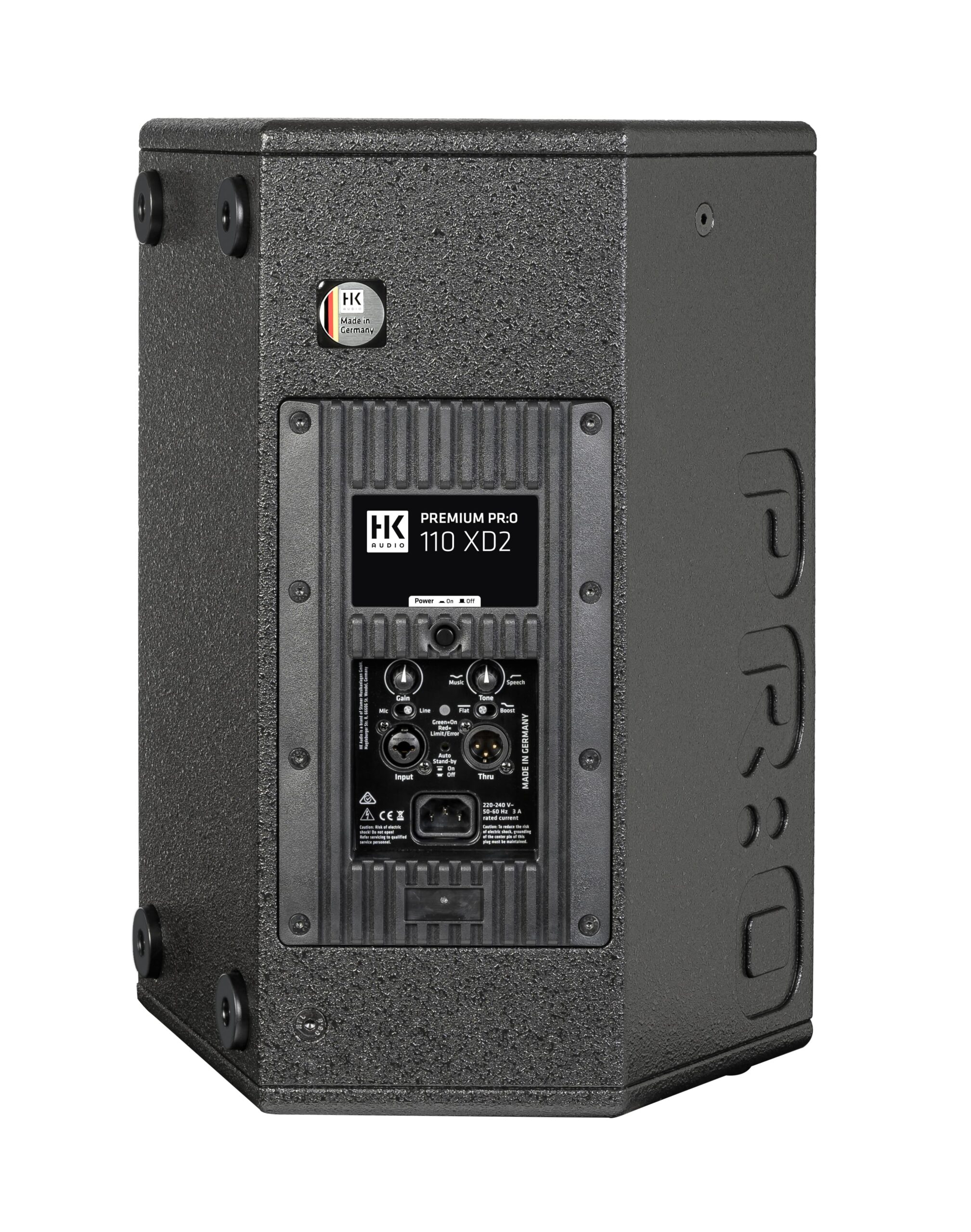

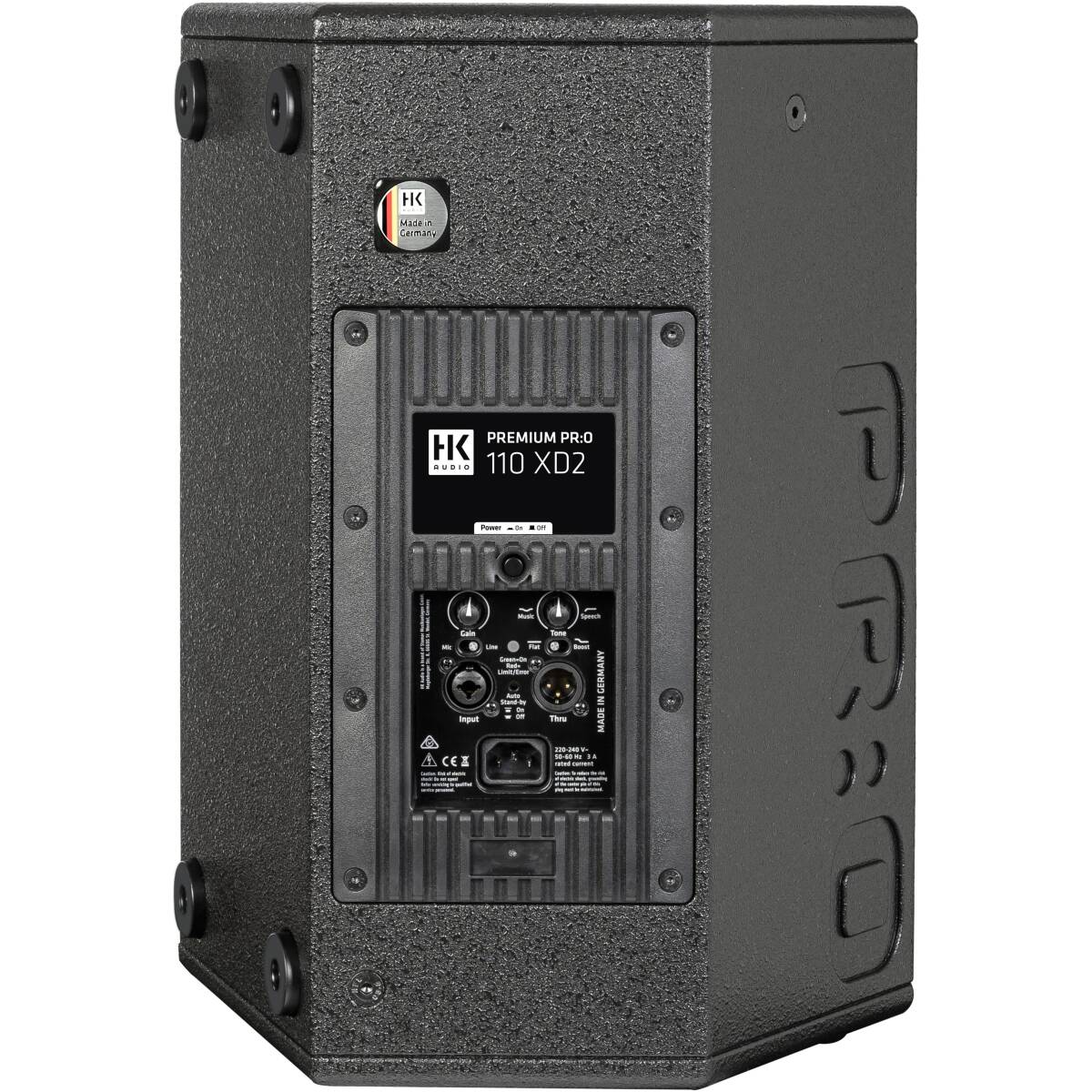

Connections
Analog input 1 x XLR/jack combo symm. (Mic/Line)
Analog output 1 x XLR-Thru symm
