Specifications

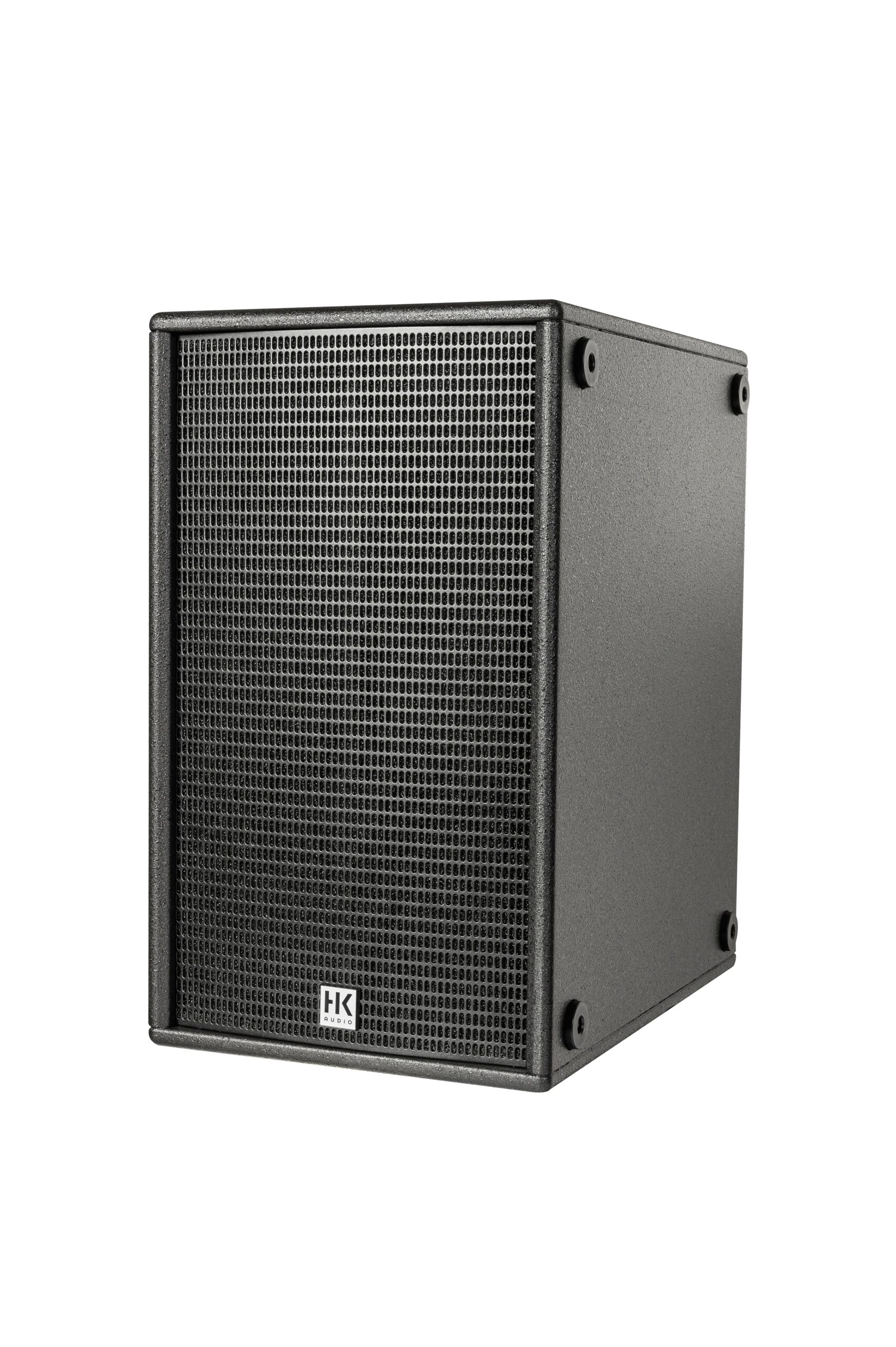

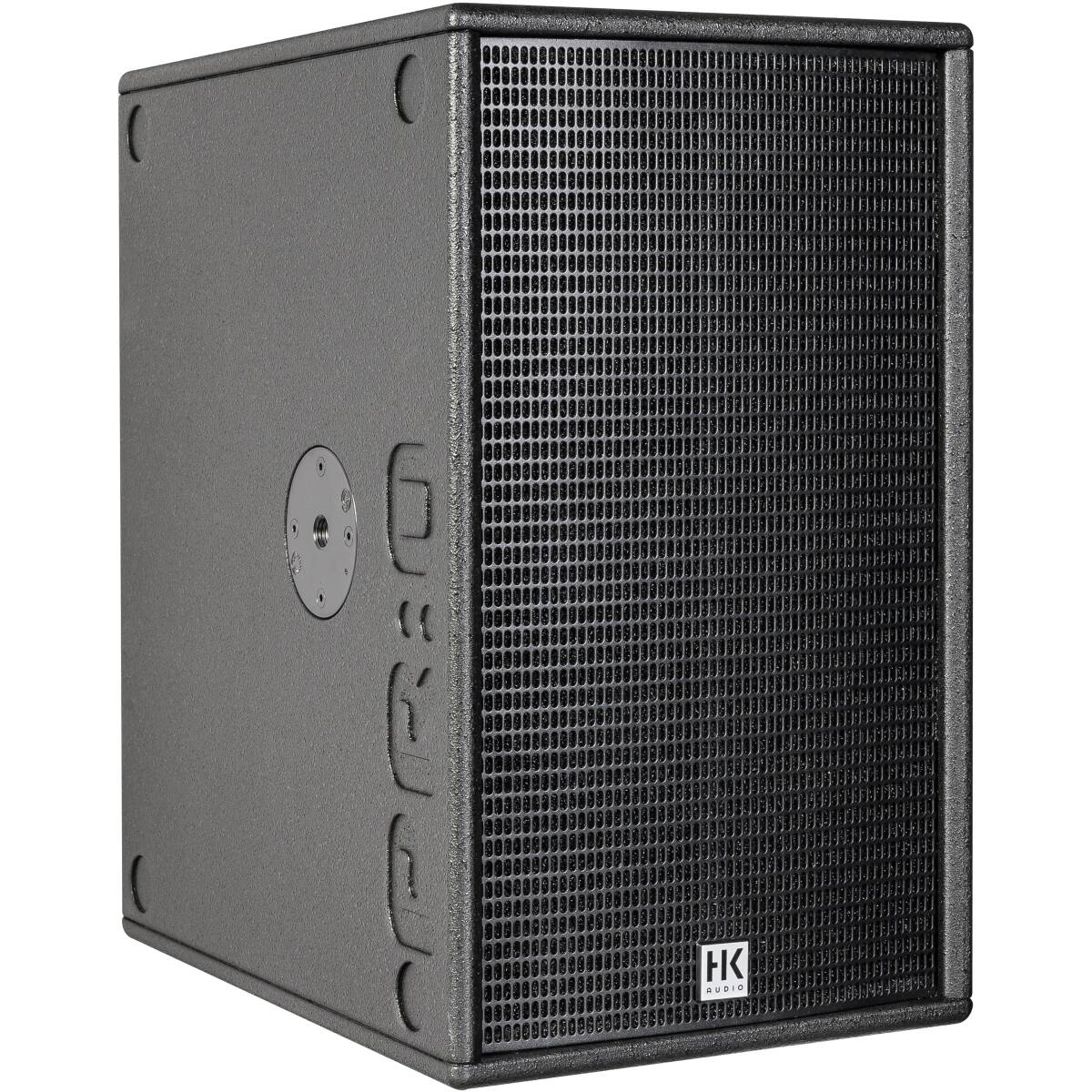

Concept Active subwoofer
Cabinet principle Bass reflex
Max. SPL average2123 dB
Max. SPL peak3126 dB
Crossover frequency75 Hz – 150 Hz, selectable
Frequency range -6 dB60 Hz – 150 Hz
Frequency range -10 dB40 Hz – 150 Hz
Index
Index 2)1 x Subwoofer @ 1 m, 10 % THD, 42 Hz – Crossover, (EN 60268-21), half space
Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space
Components
Low frequency 2 x 10″ cone speaker

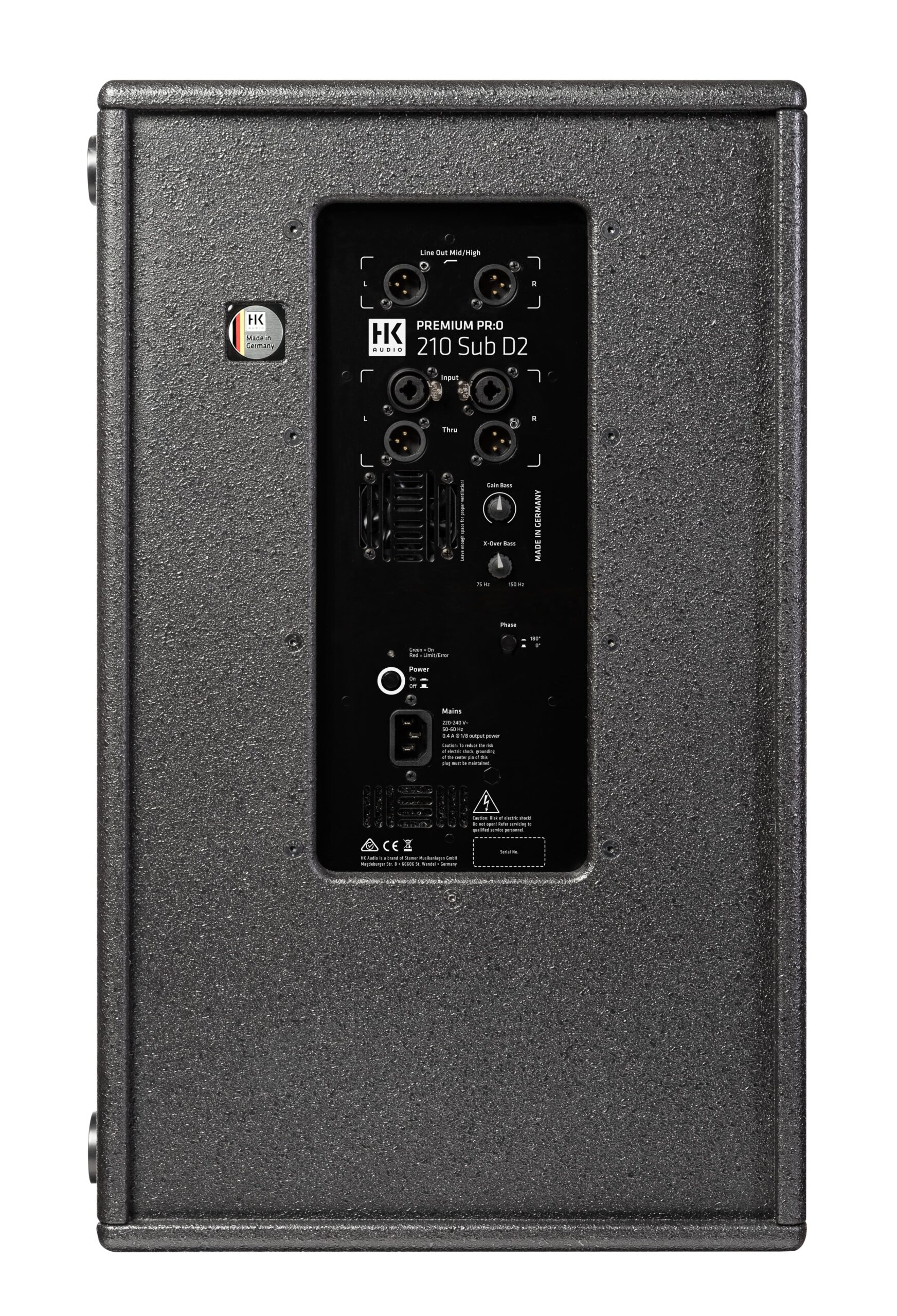

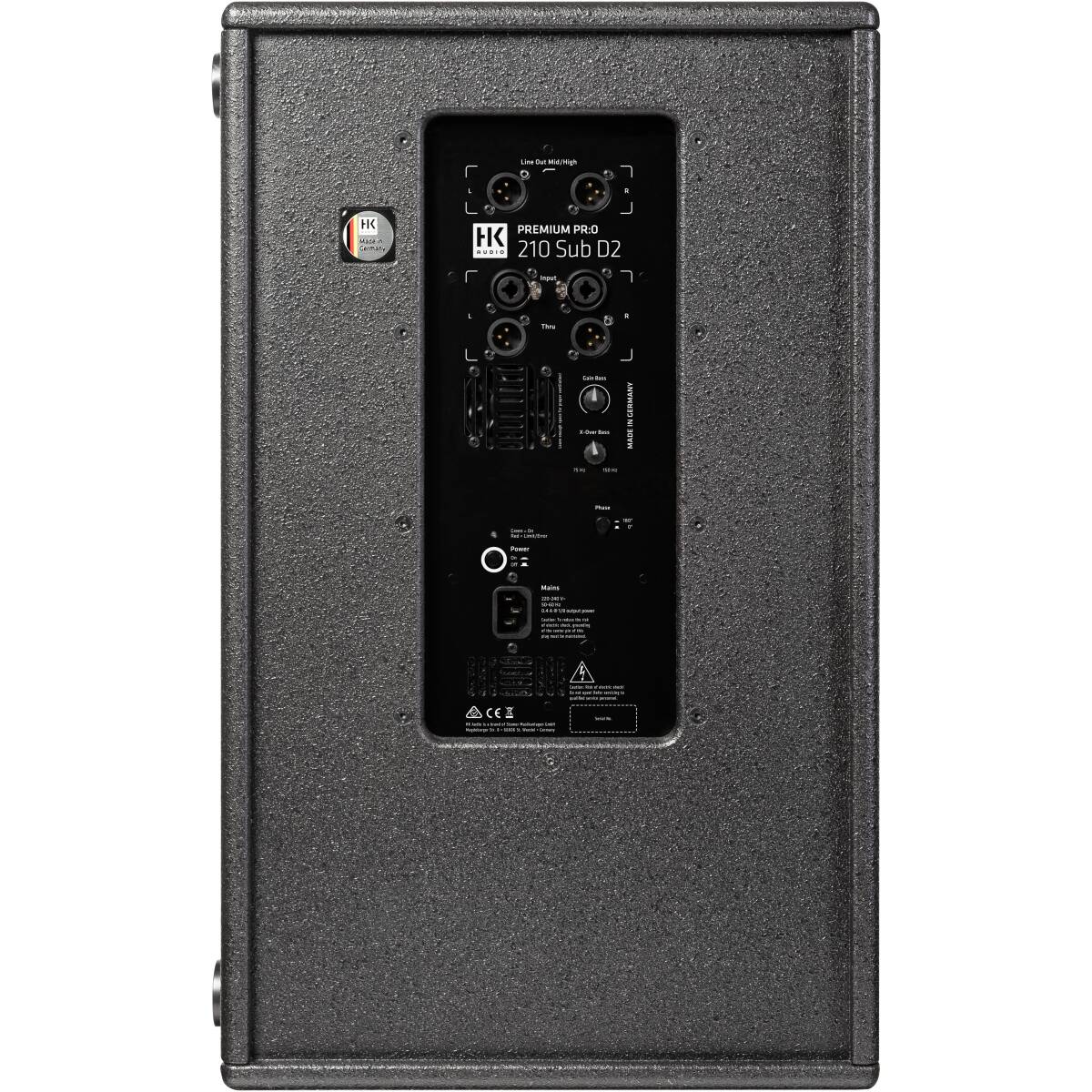

Connections
Analog input 2 x XLR/jack combo symm.
Analog output 2 x XLR L/R Out Mid/High symm., 2 x XLR Thru symm.
Electronical data
Power amplifier Class D
Power amplifier output peak600 W
Speaker protection Subsonic-Filter, Peak-Limiter
Mechanical data

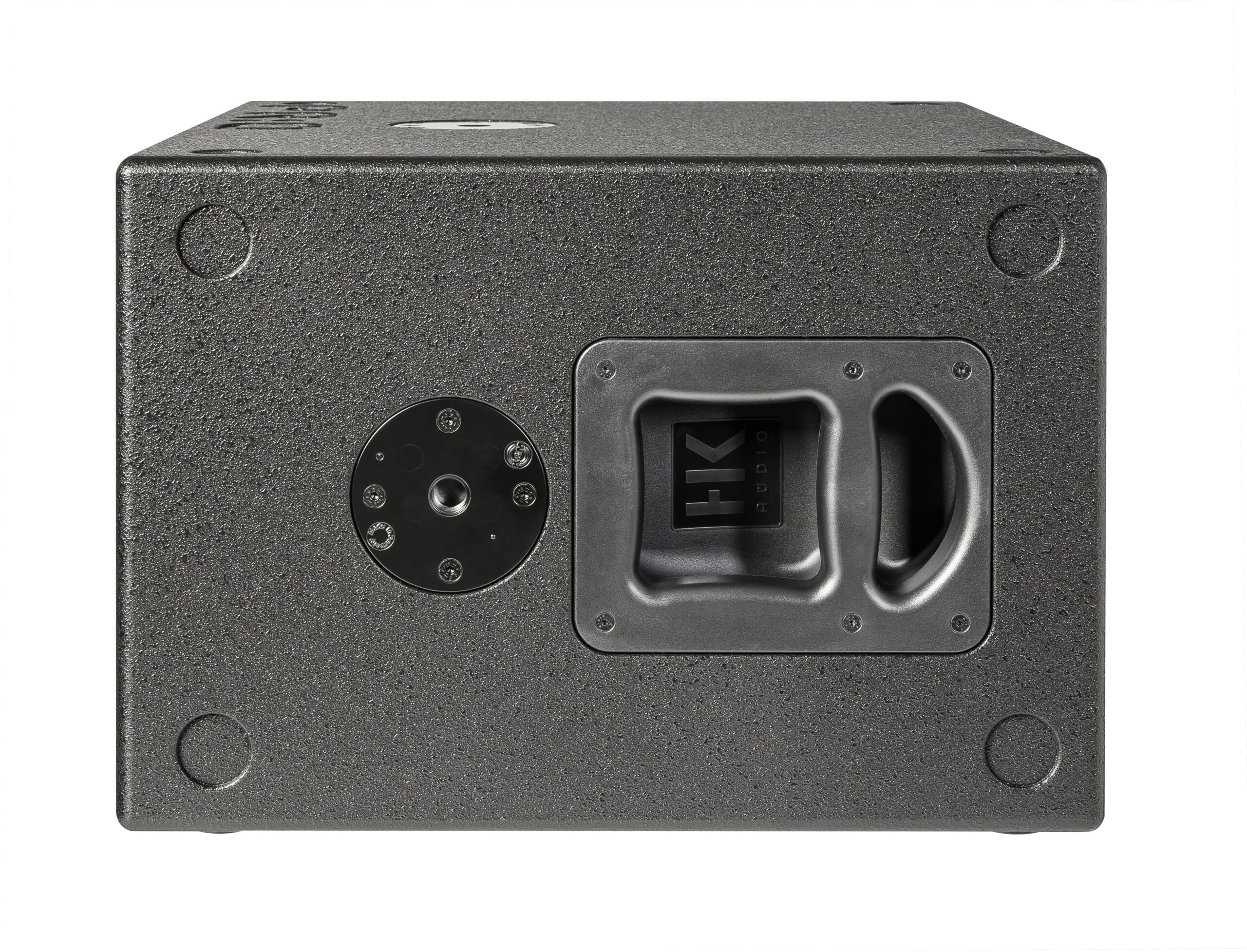

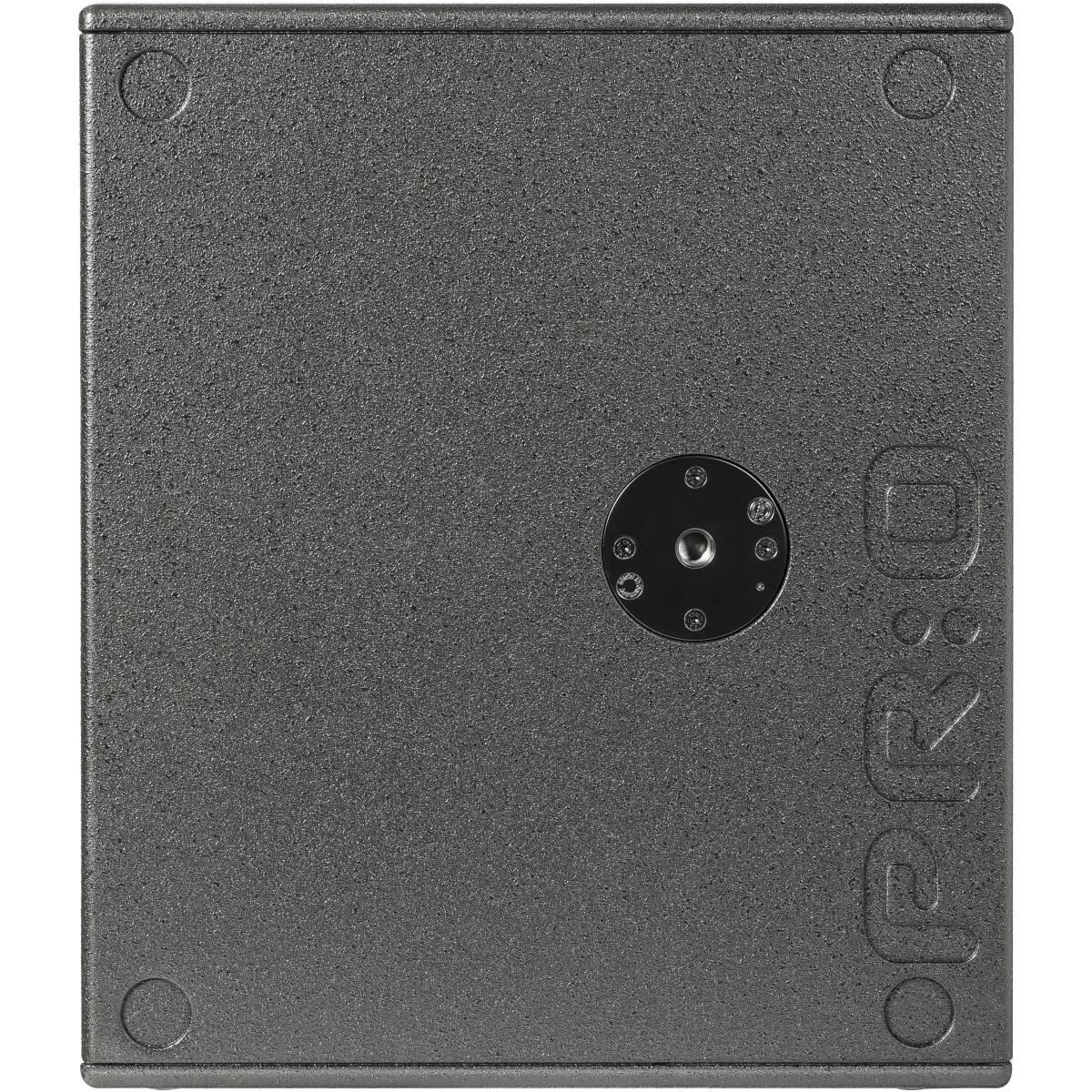

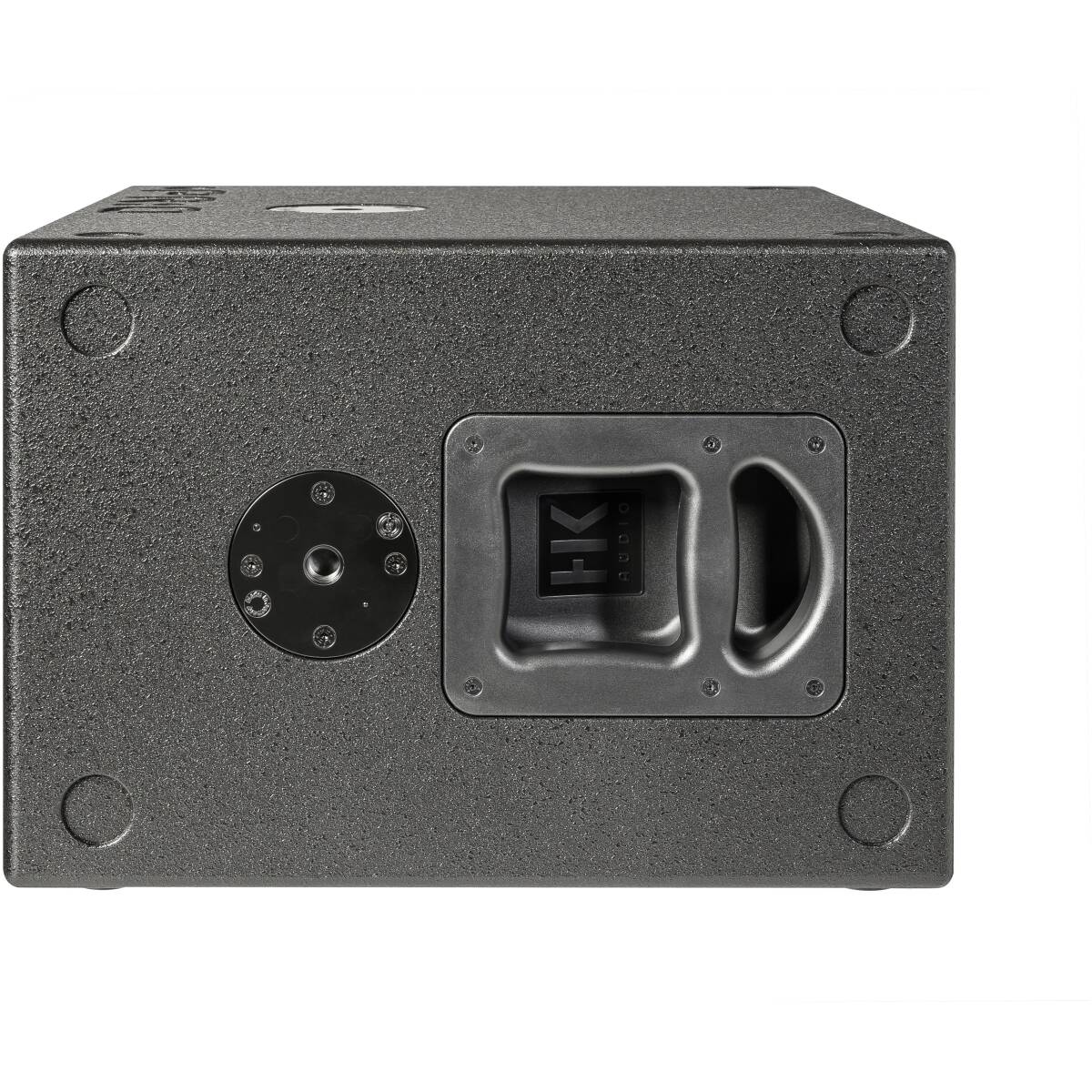

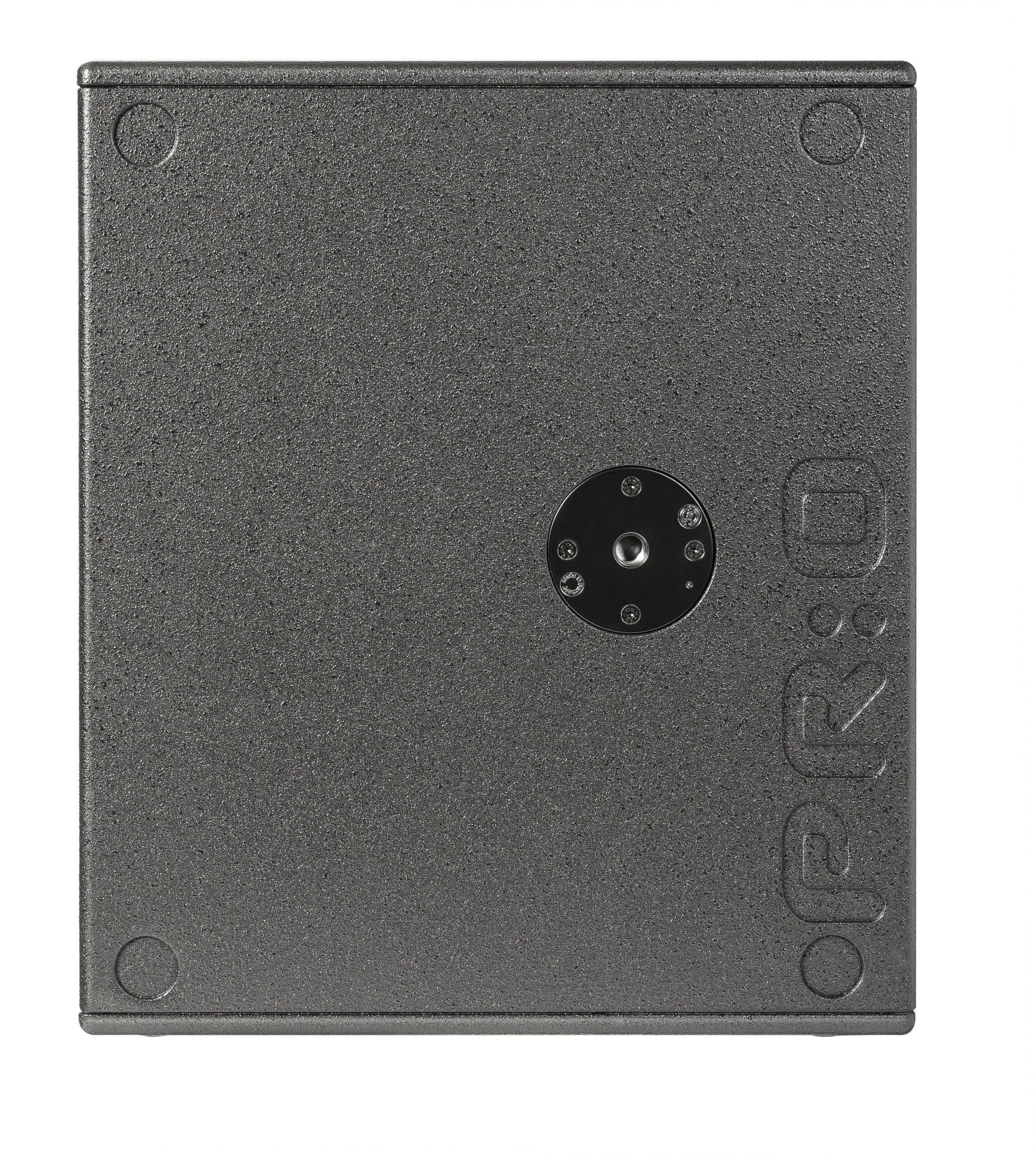

Cabinet features/rigging2 x M20 pole mount

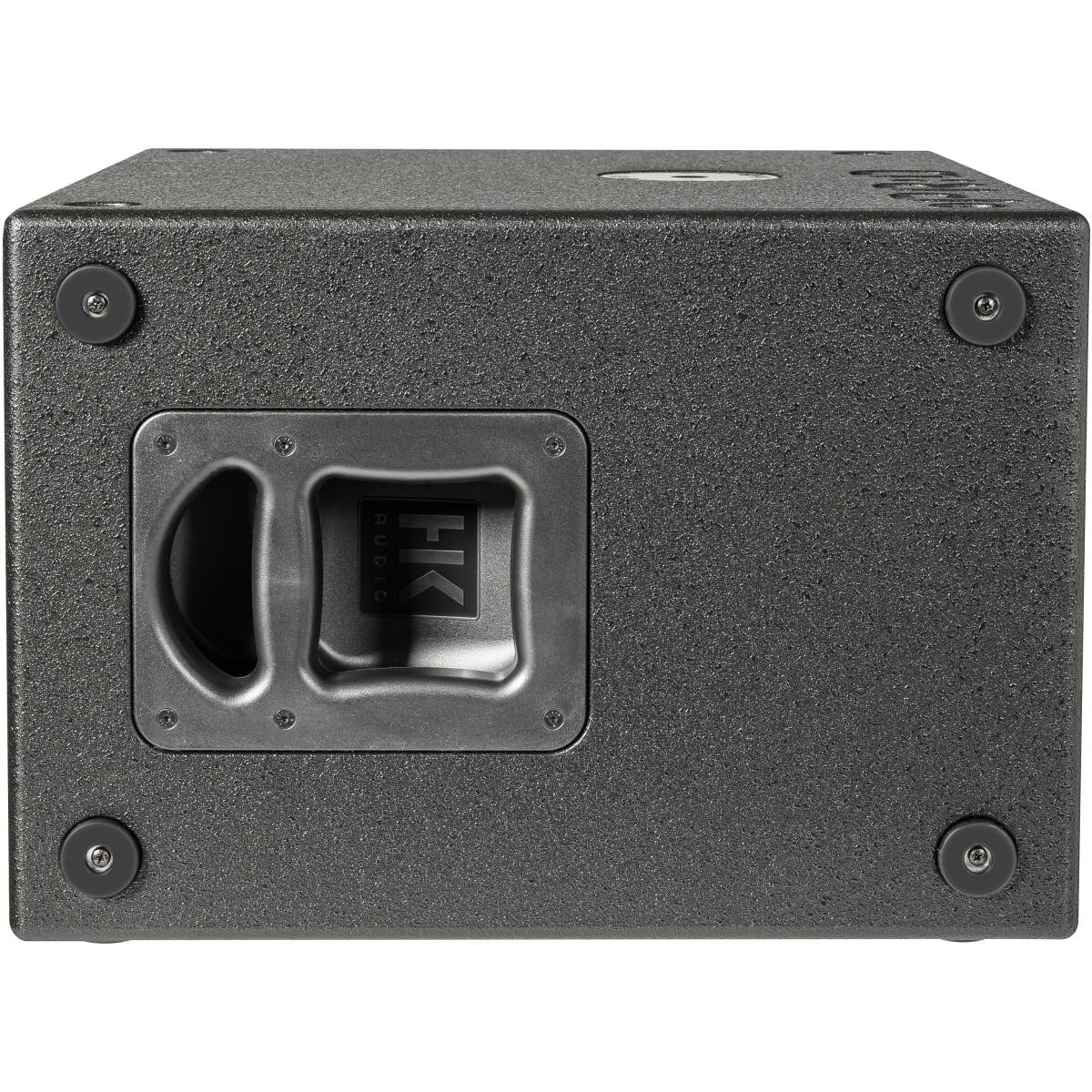

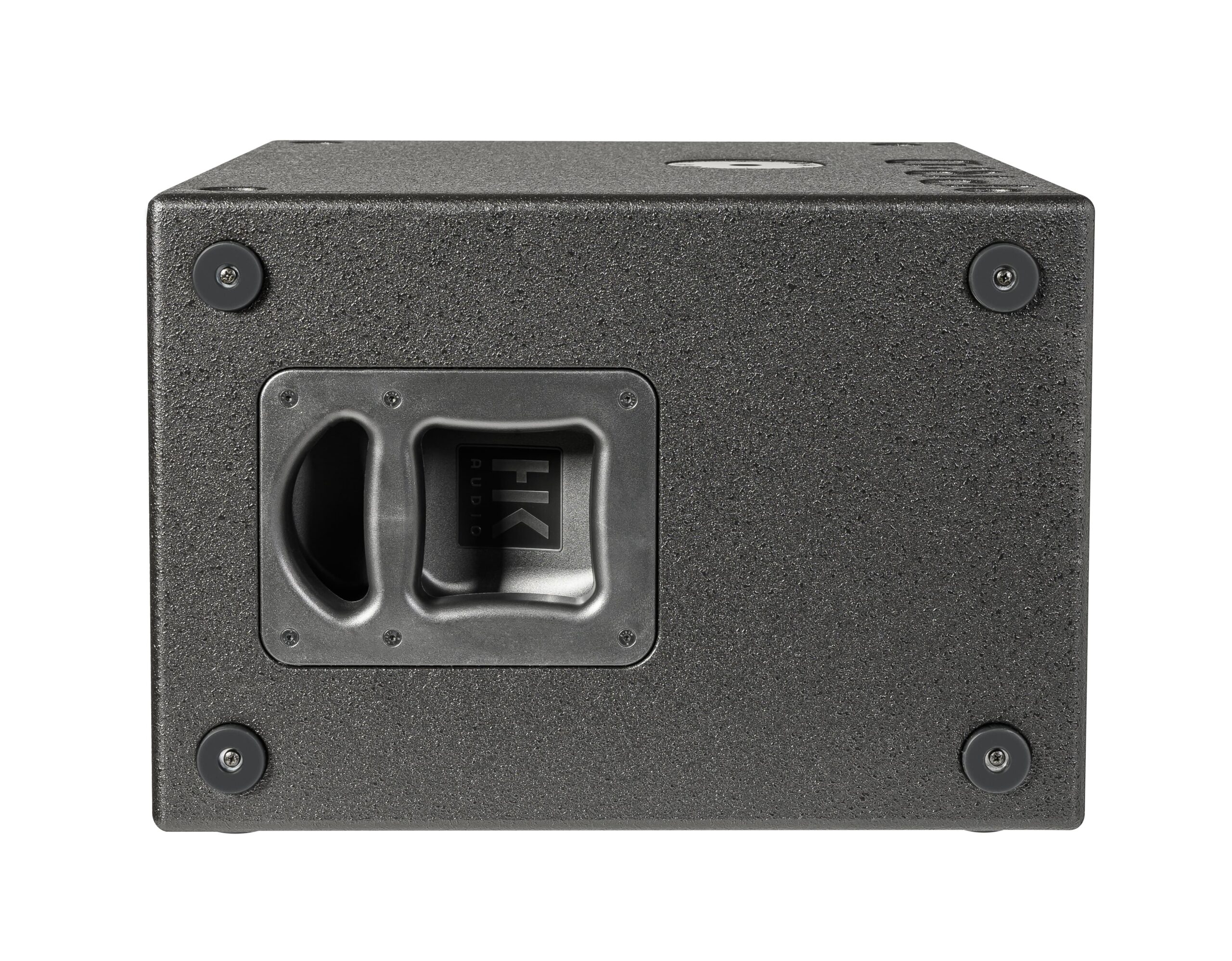

Carrying handles2, MultiGrip
Cabinet material MDF
Cabinet surface acrylic enamel
ColorJet black (RAL 9005)

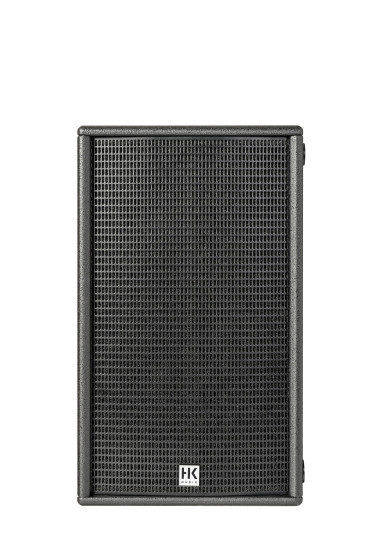

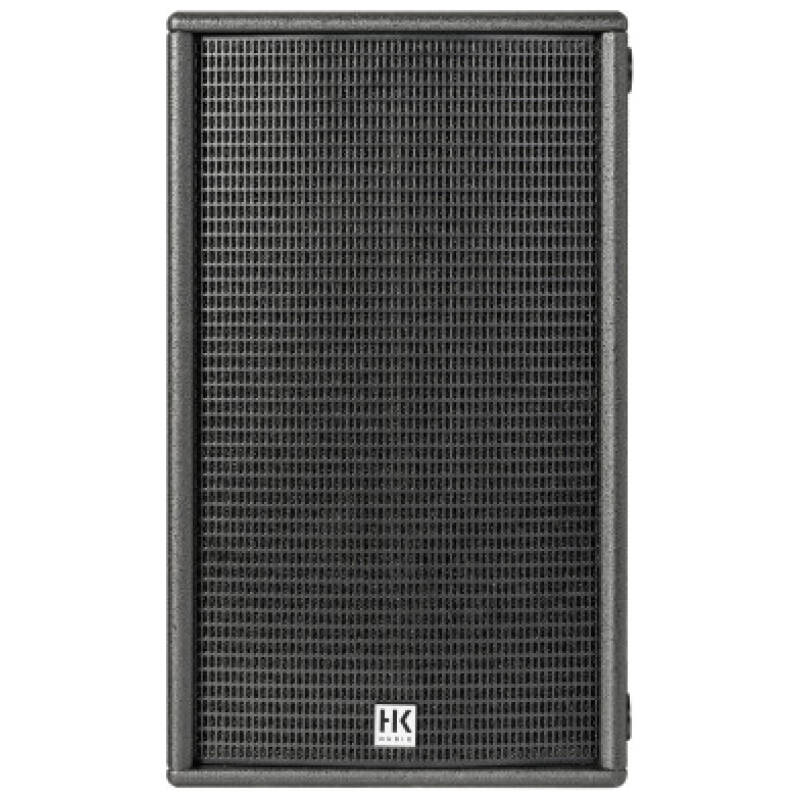

Front grille Steel front grille, backed with acoustic foam
Dimensions (W x H x D), metric 37 x 62 x 53 cm
Dimensions (W x H x D), imperial 14-9/16 x 24-13/32 x 20-7/8 inch
Weight, metric 27.2 kg
Weight, imperial 60.0 lbs
