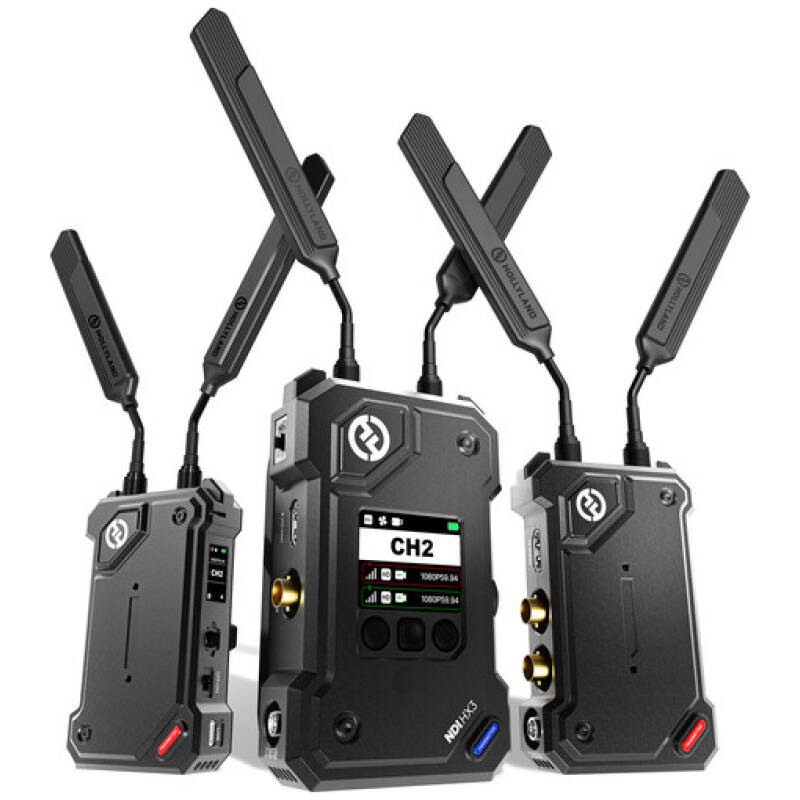

The Hollyland Cosmo C2 HDMI/SDI Wireless Video Transmission System enables you to wirelessly transmit high-quality video resolutions up to 1080p60 over longer distances of up to 915m. This allows for maximum flexibility in video monitoring and distribution for your studio or field production.
The Hollyland Cosmo C2 HDMI/SDI Wireless Video Transmission System comprises one transmitter and a receiver to communicate over the 5.1 to 5.85 GHz wireless frequency range. Additional improvements to the series include HEVO 2.0 technology, UVC/RTMP/NDI|HX streaming support, and expanded power options.
Features:
- Wireless Video Transmitter/Receiver Set
- Transmitters: HDMI/SDI In, SDI Loop Out
- Receiver: 2 HDMI/SDI Outputs
- 3000′ Line-of-Sight 1080p60 Transmission
- 5.1 to 5.85 GHz Frequency Bands
- Supports UVC, RTMP & NDI|HX Streaming
- FPS Booster Converts Frame Rates
- HEVO 2.0 Technology, 33 ms Latency
- DC Input, L-Series/V-Mount Battery Plate
Specifications:
Inputs/Outputs
| Antenna I/O |
Transmitter/Receiver: 2x RP-SMA
|
| Video I/O |
Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x HDMI 1.4b Output Receiver: 2x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
No
|
| Power I/O |
Transmitter/Receiver: 1x Barrel Input
|
| Other I/O |
Transmitter/Receiver: 1x USB-C
Receiver: 1x RJ45 (10/100 Ethernet) |
| Encryption |
No
|
Wireless
| Wireless Range |
914.4 m
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
5.1 to 5.85 GHz
|
| Latency |
33 ms
|
| RF Power |
< 23 dBm
|
| RF Sensitivity |
-90 dBm
|
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Cellular Support |
No
|
Format Support
| Video Format |
HDMI/SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format |
Not Specified by Manufacturer
|
| Timecode Support |
No
|
Power
| Input Power |
6 to 16 VDC
|
| Battery |
Receiver: 1x V-Mount on Fixed Plate
Transmitter: 1x L-Series Mount on Fixed Plate |
| Power Consumption |
Transmitter: 10 W
Receiver: 11 W |
Mounting
| Tripod/Accessory Mounting |
Receiver/Transmitter, Bottom
1x 1/4″-20 Female |
General
| Status Display |
On Receiver Only
|
| Environmental Resistance |
No
|
| Dimensions |
Transmitter: 114.8 x 69 x 35.5 mm
Receiver: 142 x 87.2 x 33.2 mm |
| Weight |
Transmitter: 210.00 g
Receiver: 440.00 g |
