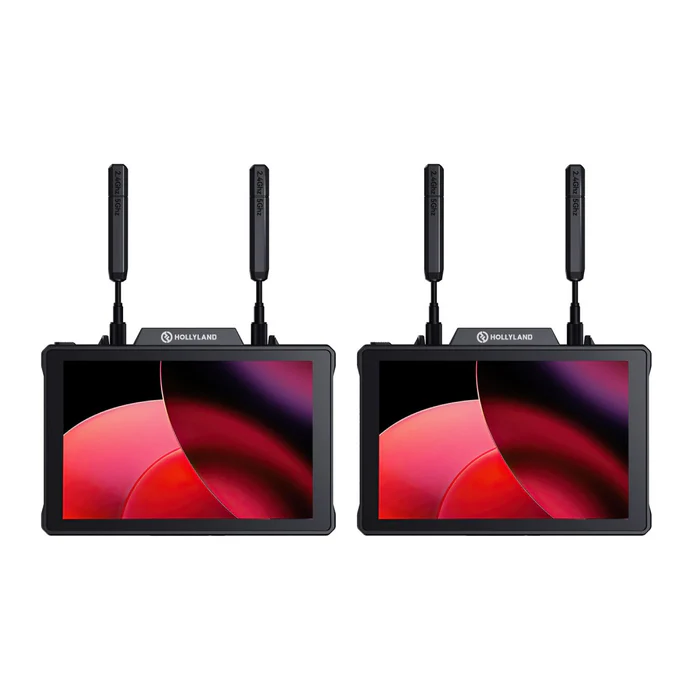

Hollyland Pyro 7 Wireless Transceiver Monitor Kit (Set of Two 7-Inch)

The Hollyland Pyro 7 Wireless Transceiver Monitor combines transmitter, receiver and monitor functions in one powerful device designed for professional video production. Its 7-inch display with 1500 nit brightness provides a clear monitoring experience even in bright outdoor conditions. With a wireless transmission range of up to 400 metres and ultra-low latency of only 60 milliseconds, it delivers reliable real-time monitoring on set.

Pyro 7 uses dual-band 2.4 GHz and 5 GHz transmission with Auto Dual Band Hopping technology to automatically select the clearest channel for stable signal performance. It can connect one transmitter to up to four receivers, which gives crews more flexibility when additional monitoring is required.

• Monitor Wireless Video up to 400m Away
• 7″ Touchscreen 1920 x 1200 Display
• Transmitter & Receiver Mode Switching
• One Transmitter Can Send to 4 Receivers
• 1080p SDI Input; Up to UHD 4K30 via HDMI
• Built-In Dual L-Series Battery Plate

Features:

• 1TX & 4RX – Offers more flexibility when additional monitoring needs emerge on set.
• 400m & 0.06s Latency – Ultra-long range wireless transmission capability.
• 2.4 GHz & 5 GHz Dual Band – Provides better signal transmission performance and efficiency.
• Auto Frequency Hopping – Guarantees reliable and uninterrupted wireless video transmission.
• TX, RX, and Monitor – All in One, One device to meet your diverse needs
• Dual-View Quick Monitoring Switch – Conveniently switch to the desired view.
• 7-Inch & 1500 nits – 7-inch, better monitoring experience. 1500 nits, clear and visible even in outdoor or strong lighting conditions.
• Precise Image Analysis – More precise and advanced image analysis features for you.
• SDI & HDMI Loopout – Satisfies the diverse requirements of different user groups.
• RTMP Streaming – Convenient for live streaming and video conferencing.

Specifications:

Panel Type: LCD
Display Size: 17.8 cm
Native Resolution: 1920 x 1200
Aspect Ratio: 16:9
Touchscreen: Yes
Maximum Brightness: 1200 cd/m²
Contrast Ratio: 1000:1
HDR Support: No
LUT Support: Yes
Image Controls: Focus Peaking, Waveform
Antenna I/O: 2x RP-SMA Male
Video I/O: 1x BNC (3G-SDI) Input, 1x BNC (3G-SDI) Output, 1x HDMI 1.4b Input, 1x HDMI 1.4b Output
Embedded Audio: HDMI/SDI: 8-Channel
Audio I/O: 1x 3.5 mm Headphone Output
Built-In Speaker: No
Power I/O: 1x Barrel Input
Other I/O: 1x USB-C (Firmware) Input
Media/Memory Card Slot: Single Slot SD/SDHC/SDXC [Supports Recording]
Encryption: No
Wireless Range: 396 m (Line-of-Sight), 198 m
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range: US: 5.1–5.8 GHz, 2.412–2.484 GHz
Latency: 60 ms
RF Power: 23 dBm
RF Sensitivity: -80 dBm
Wi-Fi: No
Bluetooth: No
Mobile App Compatible: Yes (Android & iOS)
App Name: HollyView
App Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed
Video Format Support: HDMI UHD 4K: 30/29.97/25/24/23.98 fps, 1080p: 60/59.94/50/30/29.97/25/24 fps, 1080i: 60/59.94/50 fps, 720p: 60/59.94/50 fps
SDI: 1080p: 60/59.94/30/29.97/24/23.98 fps, 1080i: 60/59.94/50 fps, 720p: 60/59.94/50 fps
Audio Format: 4-Channel
Wireless Video Compression: Compressed
Timecode Support: Yes
Pulldown Conversion: No
Camera Trigger: No
Pre-Roll Record: No
Closed Caption Support: No
Reference Input: No
Phantom Power: No
Input Power: 10–18 VDC at 2.5 A
Battery: 2x L-Series Mount on Included, Interchangeable Plate
Power Consumption: 22 W (Maximum)
Tripod/Accessory Mounting: Bottom/Left/Right, 1x 1/4″-20 Female Environmental Resistance: No
Operating Conditions: -10 to 45°C
Storage Conditions: -40 to 60°C
Material of Construction: Aluminium, Magnesium
Dimensions: 180 x 127 x 32 mm (Excluding Antenna)
Weight: 0.545 kg (Excluding Antenna)
