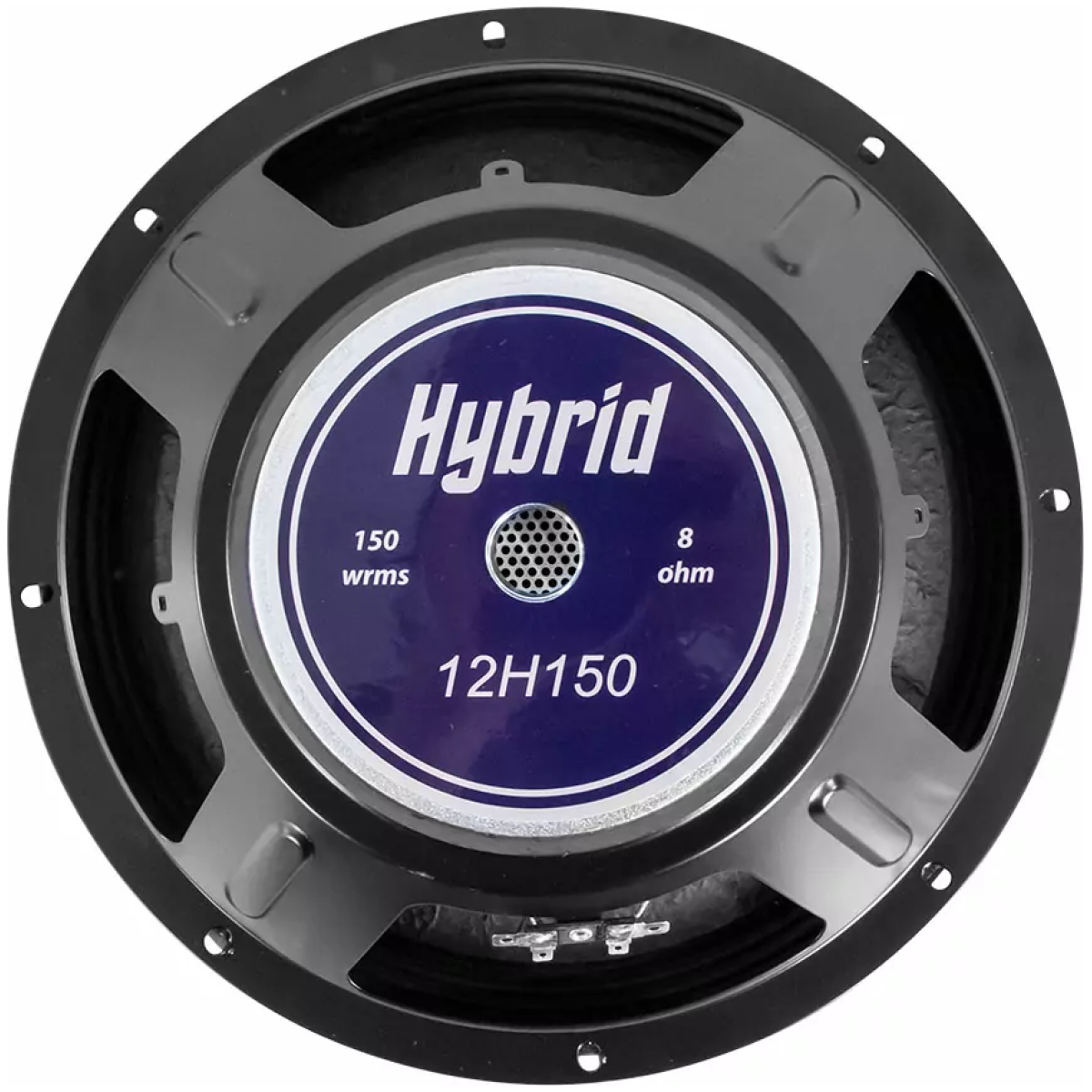

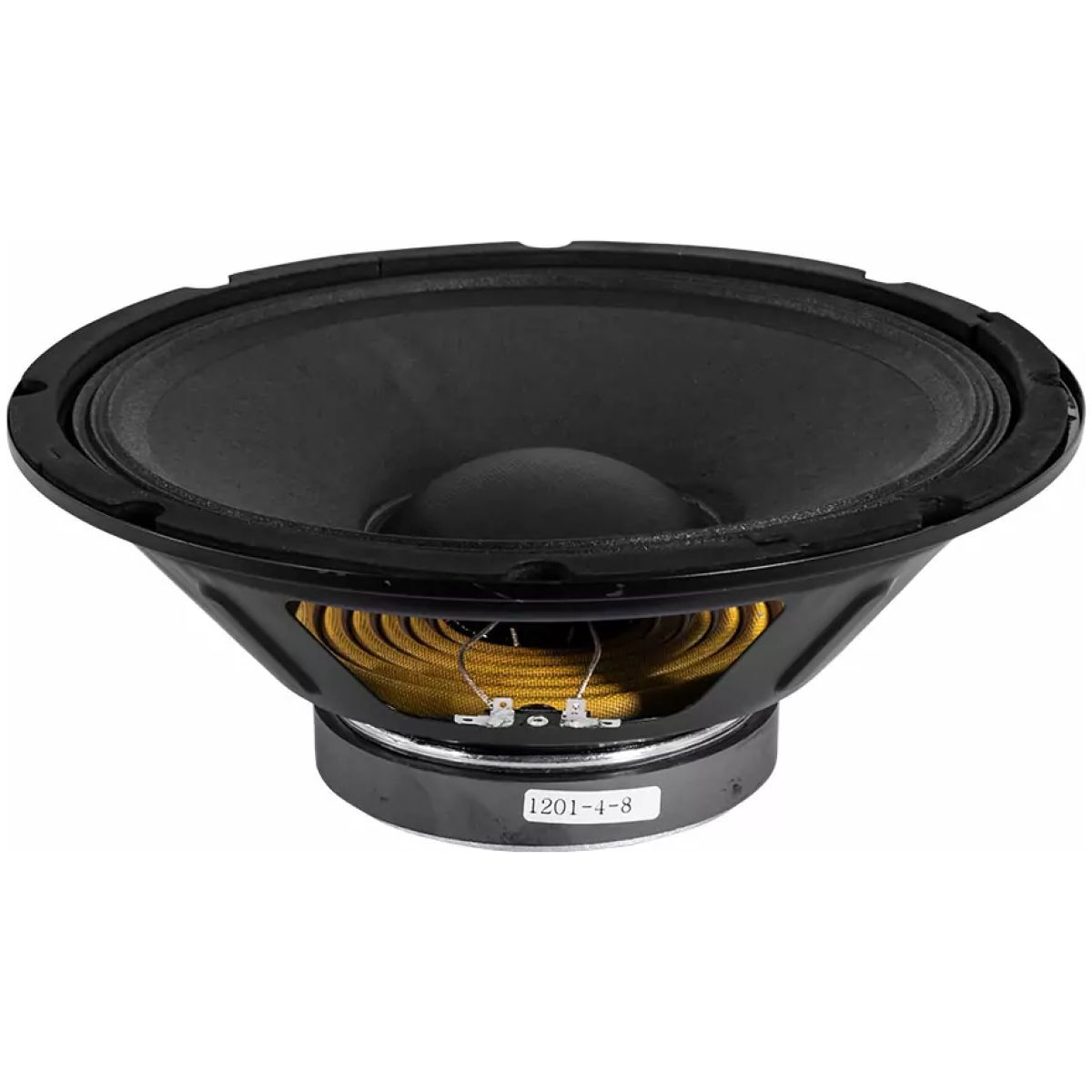

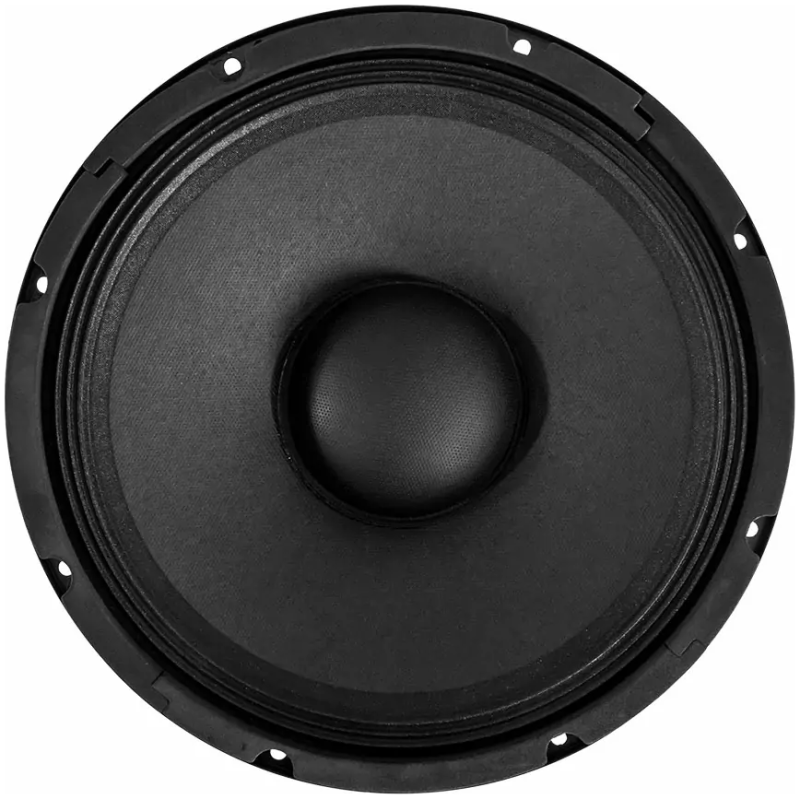

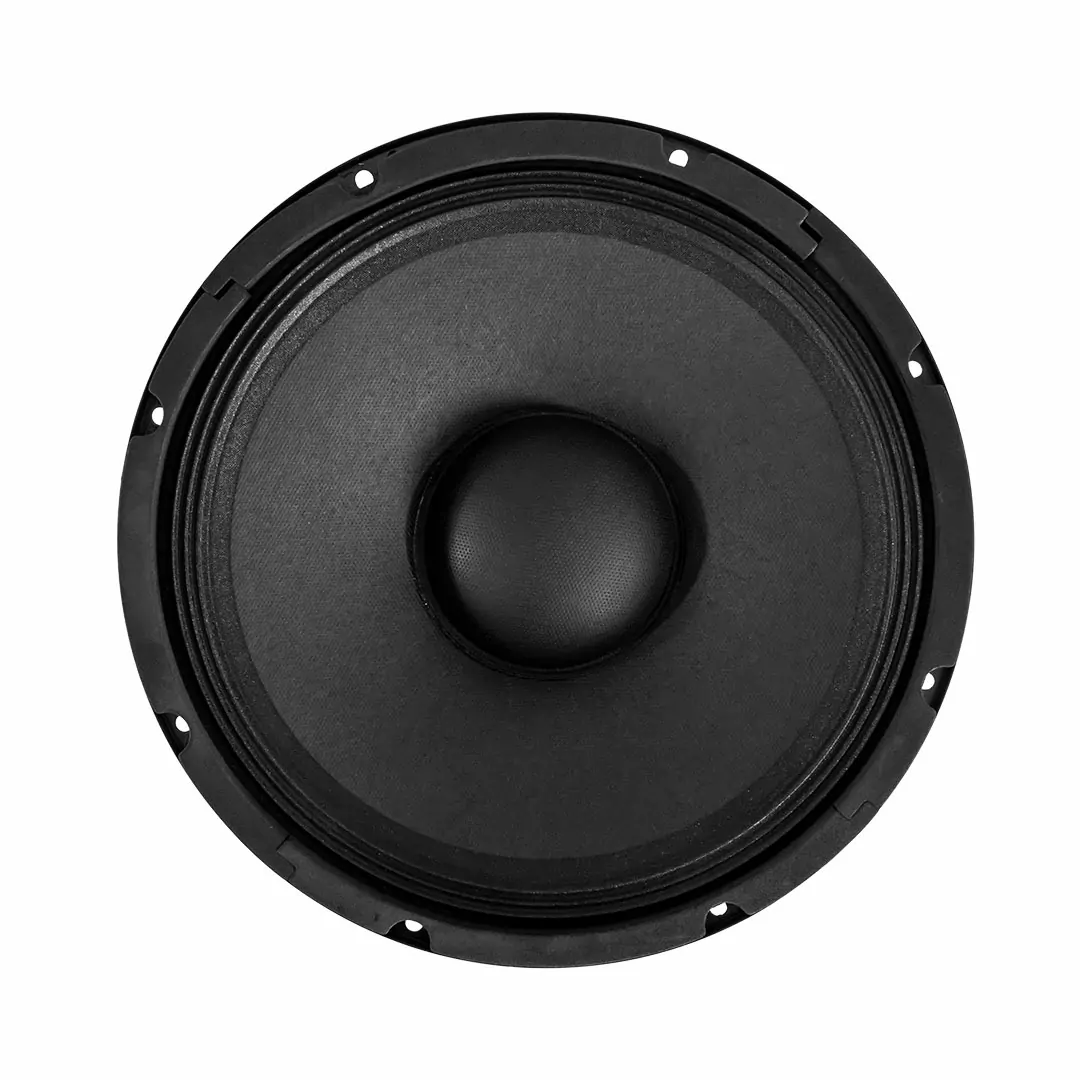

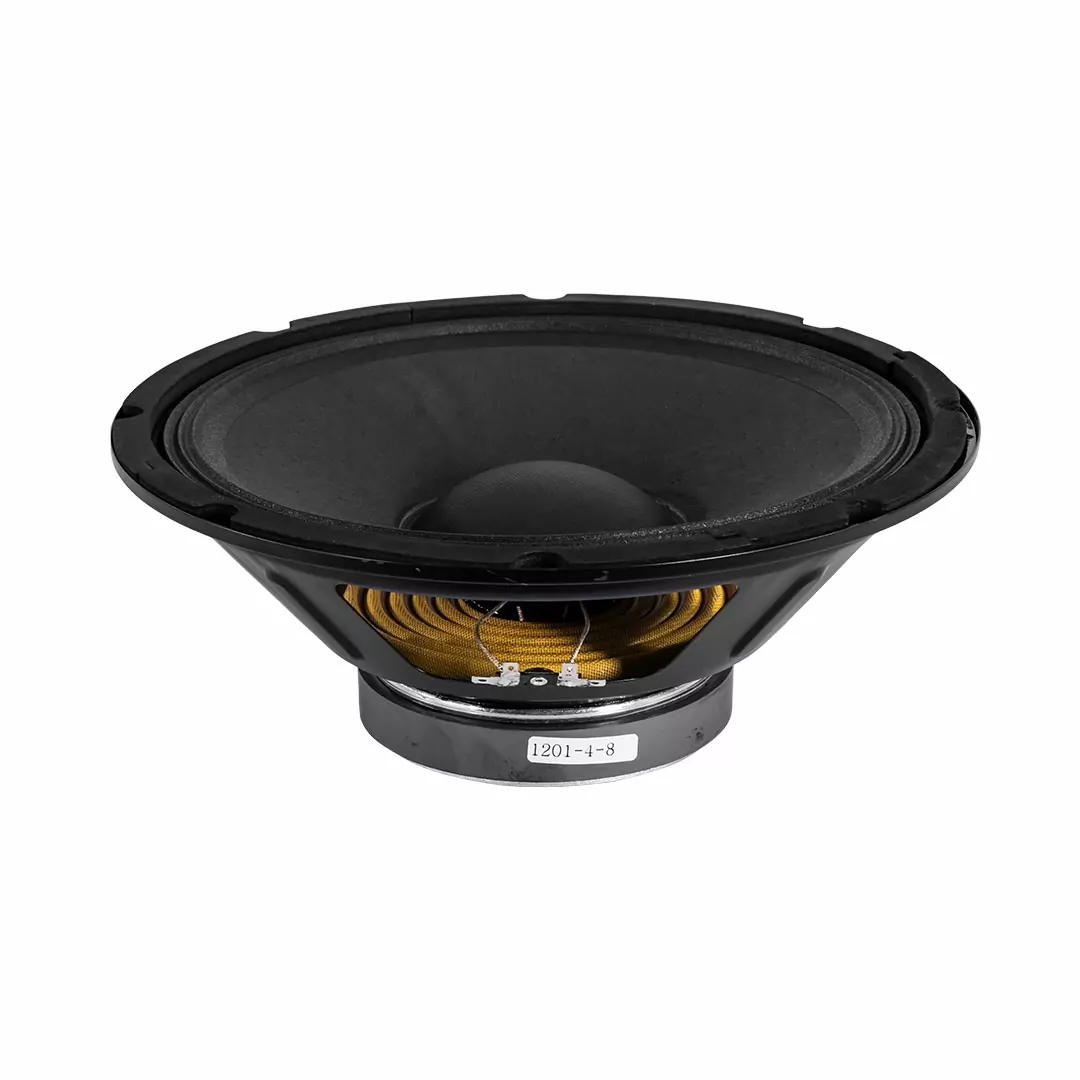

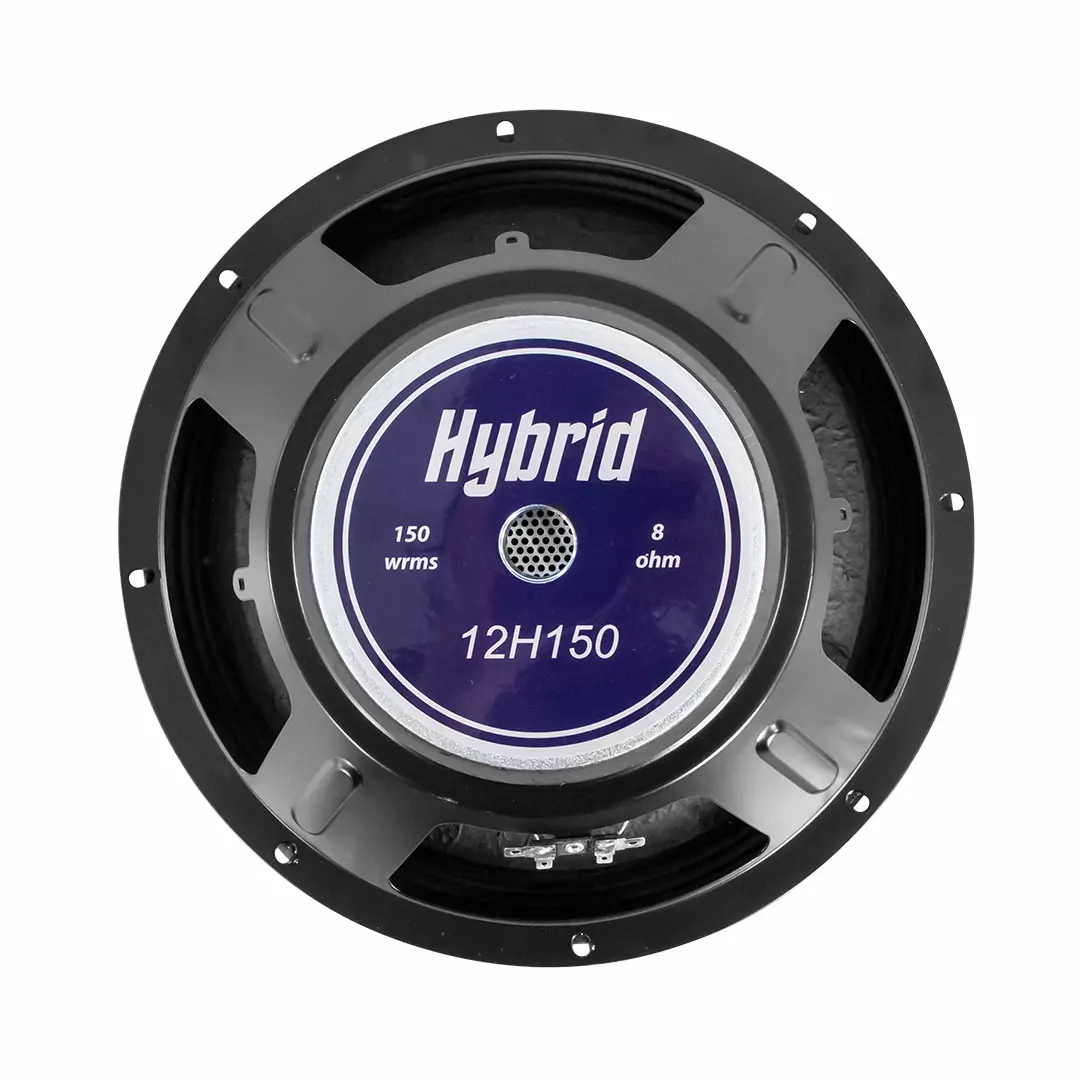

The Hybrid 12H150 is a 12-inch low-frequency loudspeaker designed for use in PA speakers, stage monitors, and custom enclosures. With a rugged ferrite magnet, pressed steel frame, and efficient paper cone, it delivers reliable bass and midrange performance. Ideal for both replacement and new cabinet builds.
Specifications
-
Driver Size: 12″ (300 mm)
-
Power Handling: 150W RMS / 300W Peak
-
Impedance: 8Ω
-
Voice Coil: 2″ (50 mm) copper
-
Magnet Type: Ferrite
-
Frequency Response (usable): 50 Hz – 4 kHz (enclosure dependent)
-
Sensitivity (1W/1m): ~95 dB
-
Basket: Pressed steel
-
Cone Material: Reinforced paper cone with cloth surround
-
Termination: Spade connectors
Features
-
Rugged build with ferrite magnet structure
-
Smooth bass and midrange reproduction
-
Drop-in replacement for 12″ PA speakers
-
Suitable for stage monitors, portable cabinets, and installations
Applications
-
Replacement driver for 12″ Hybrid PA speakers
-
DIY and custom-built loudspeakers
-
Stage monitors and general sound reinforcement
