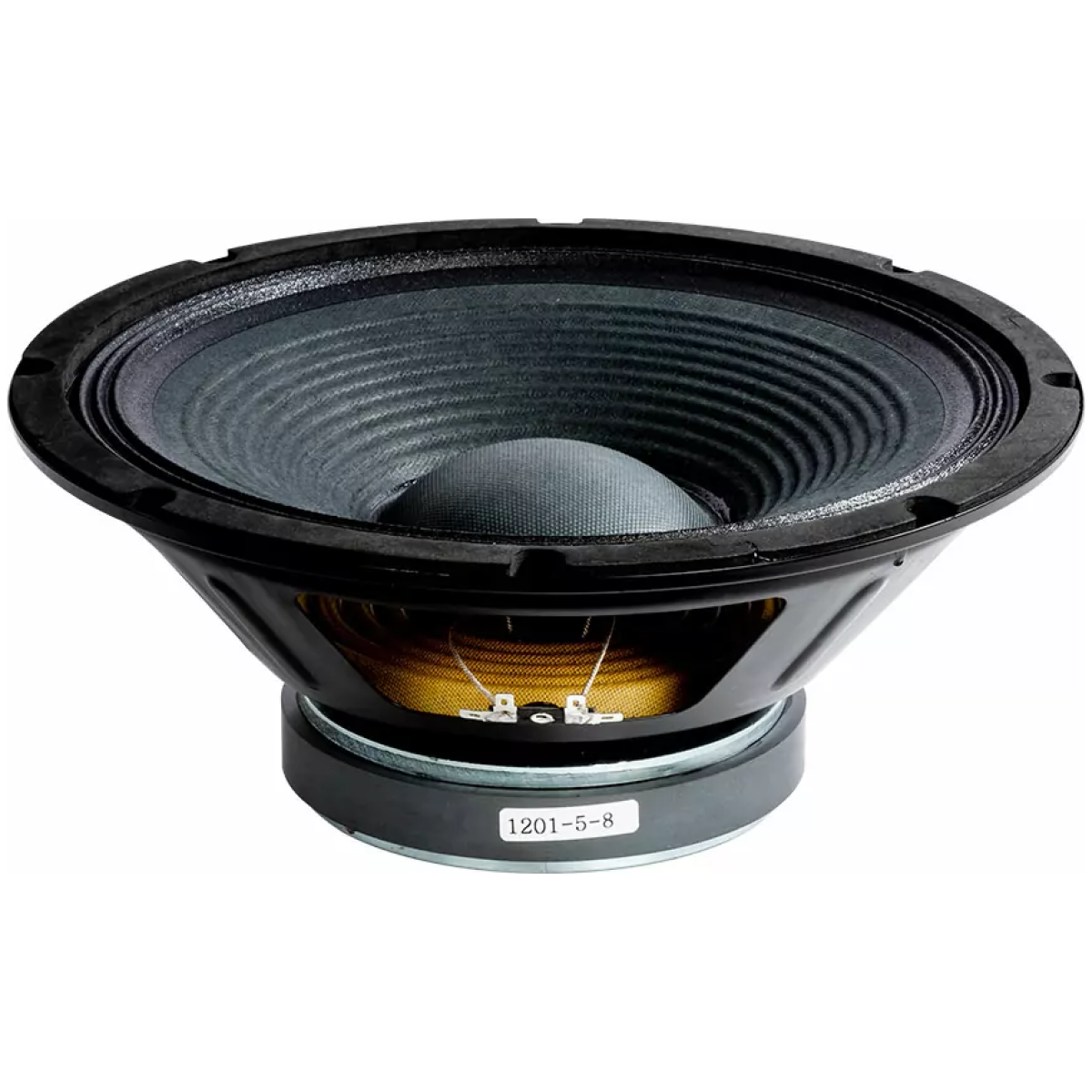

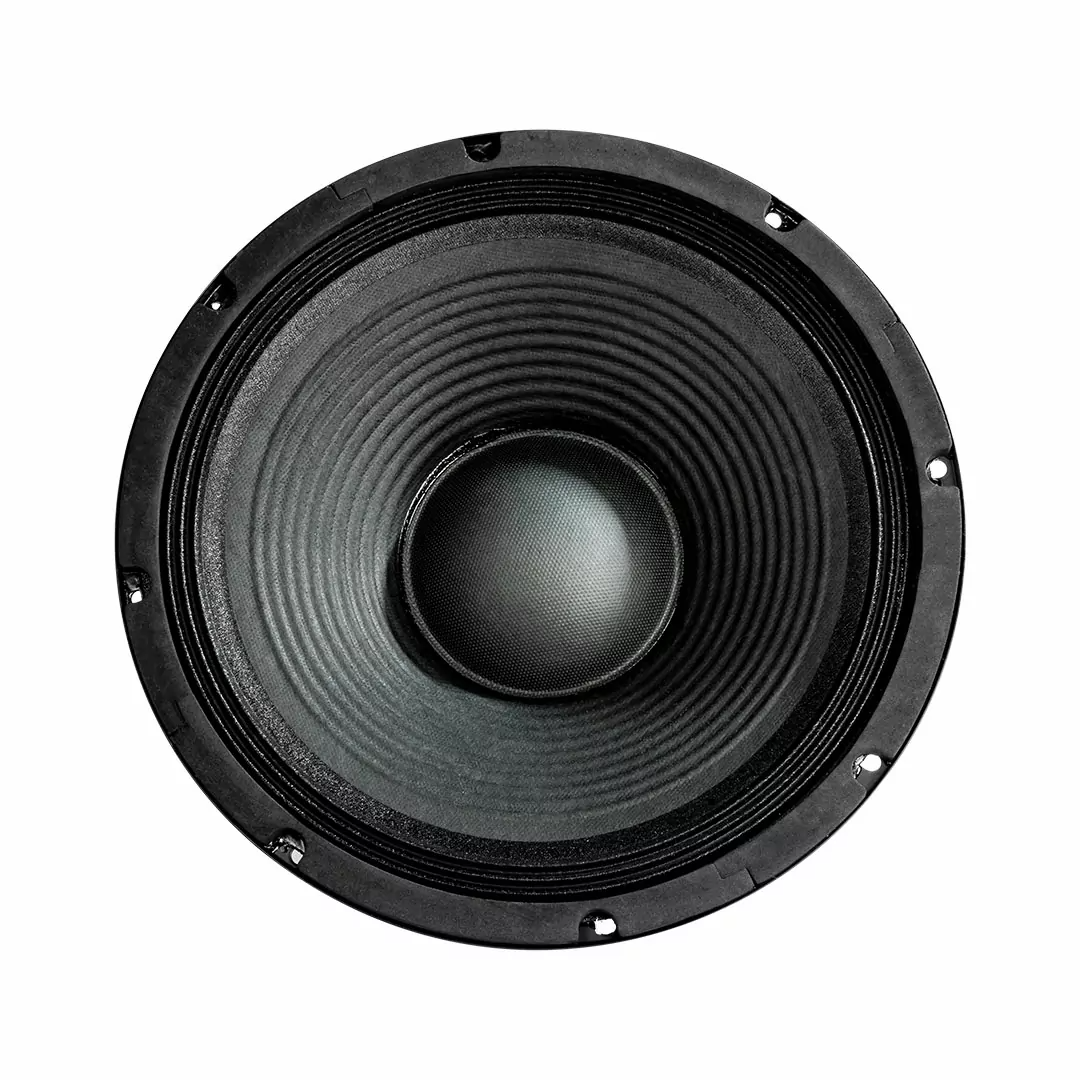

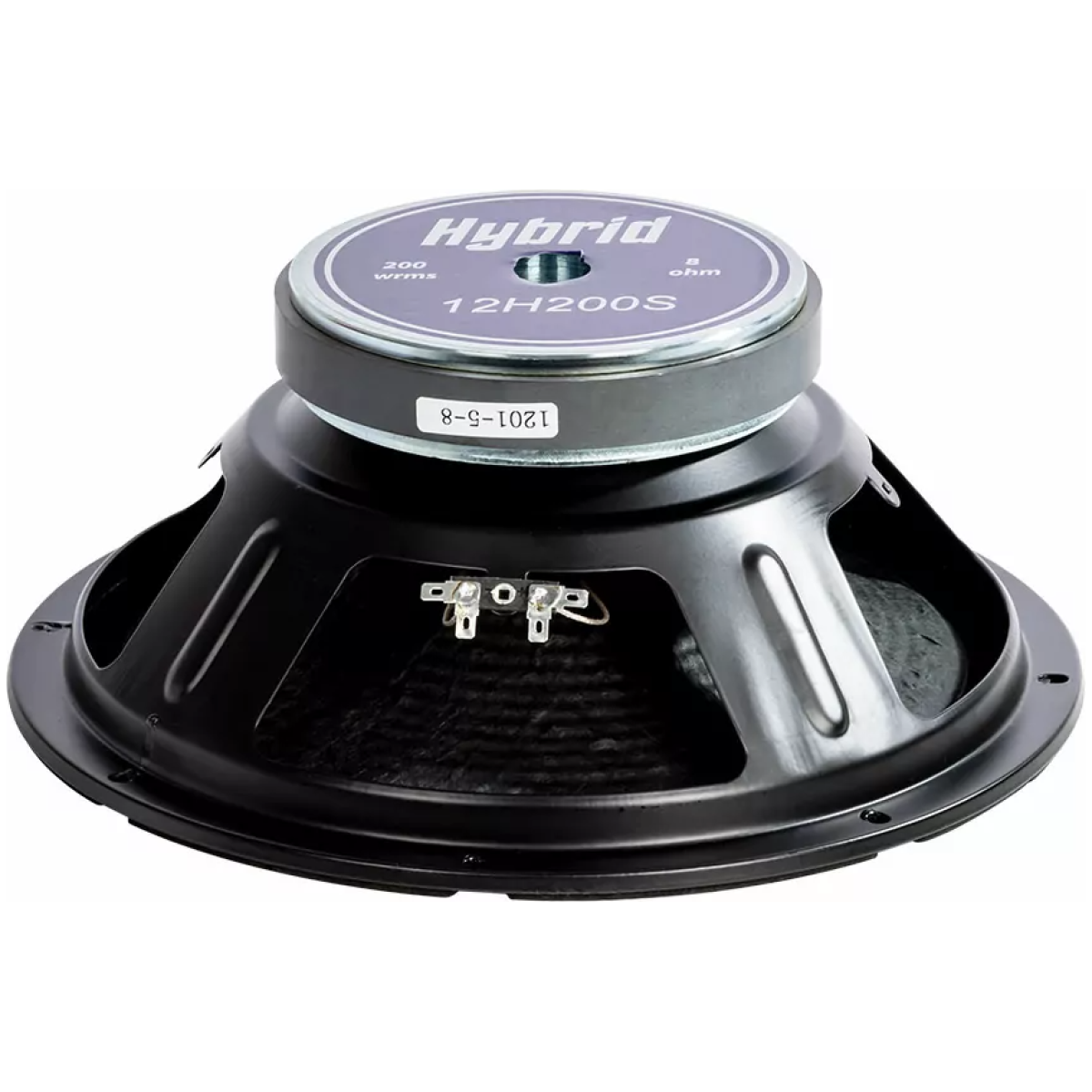

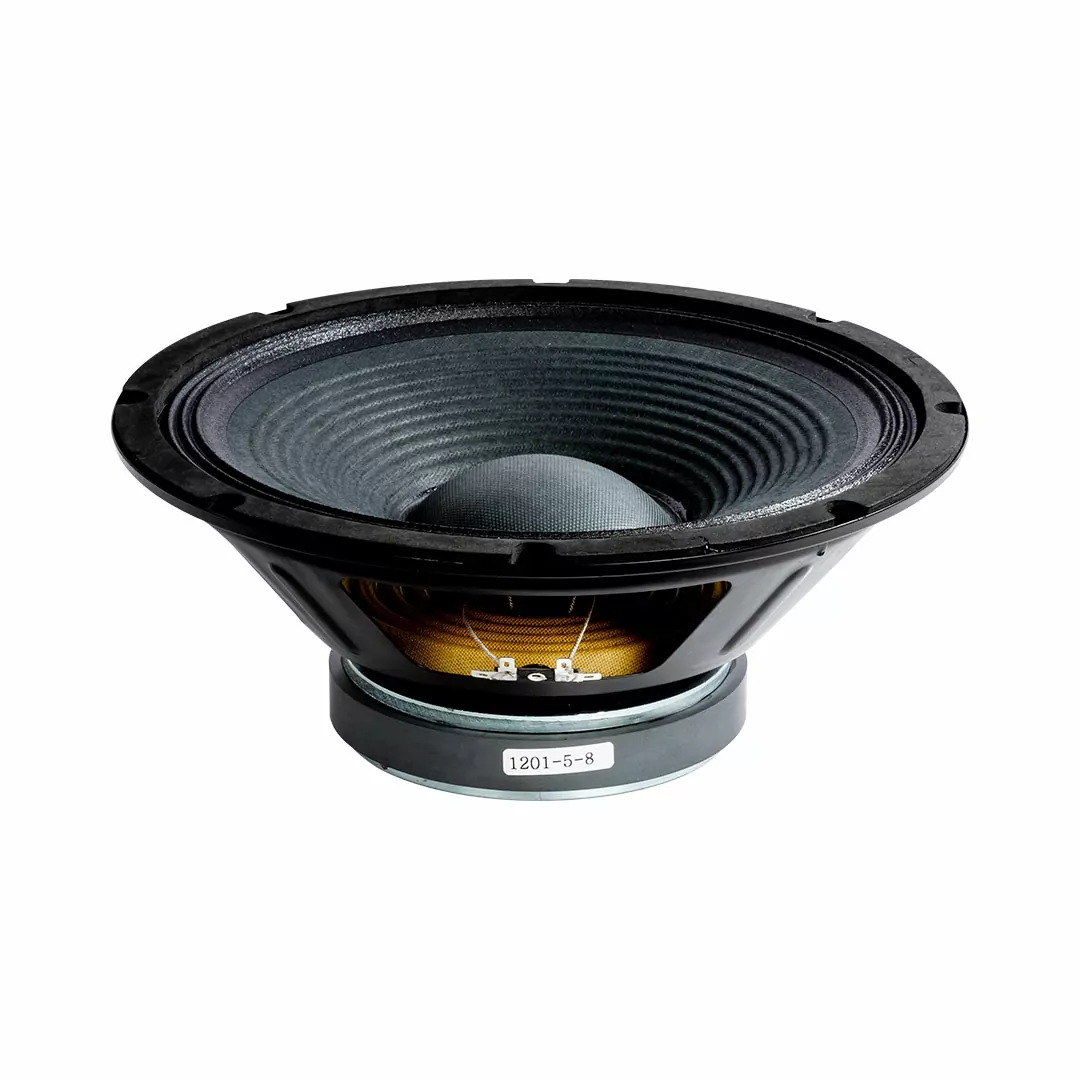

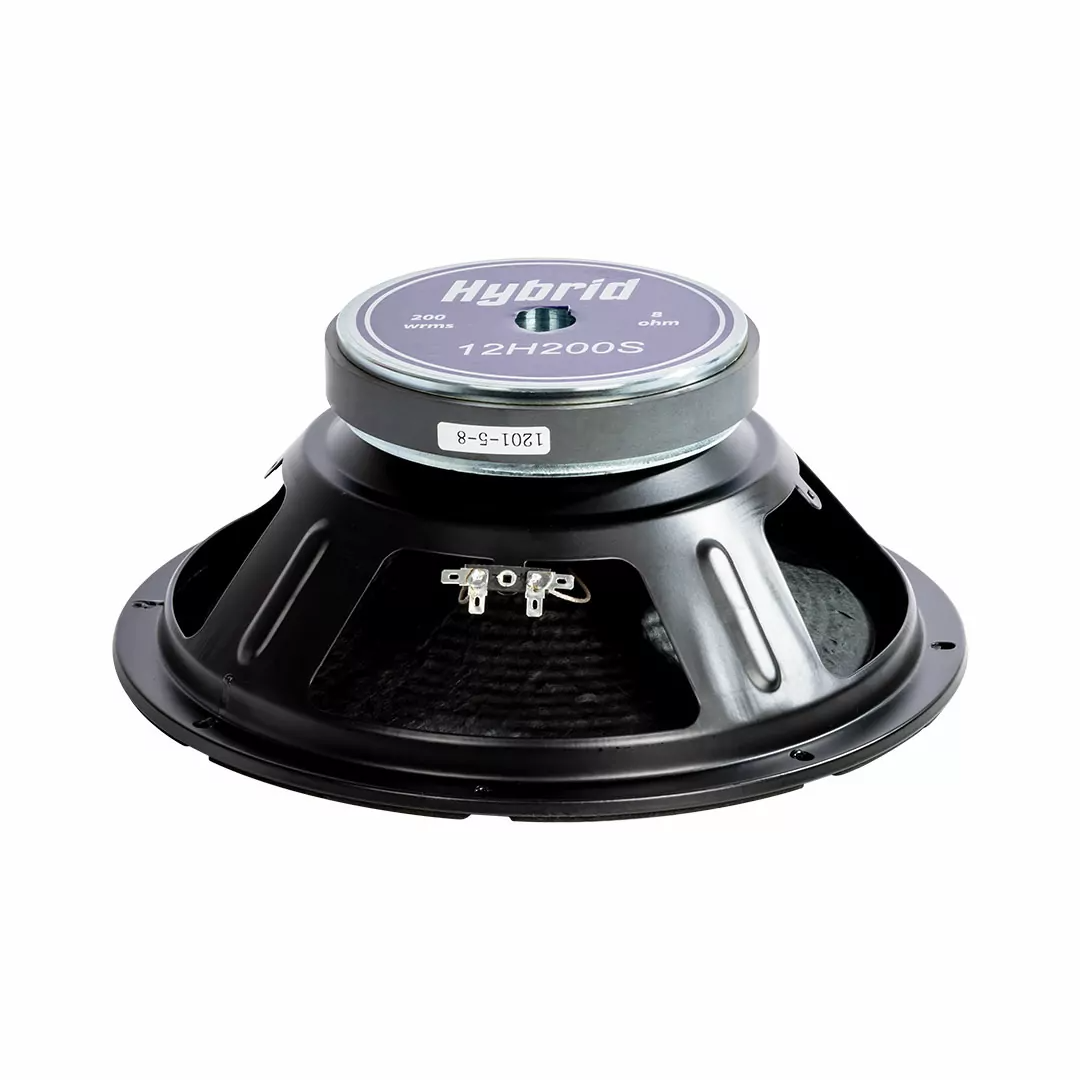

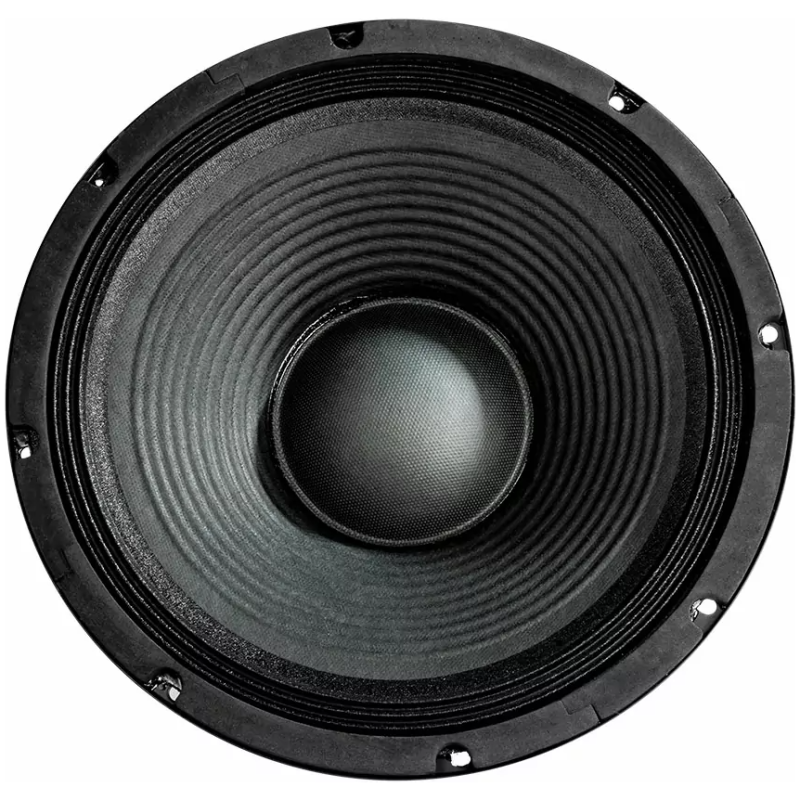

The Hybrid 12H200S is a 12-inch low-frequency woofer designed for compact subwoofers, portable PA systems, and bass reinforcement cabinets. With a robust ferrite magnet, pressed steel basket, and reinforced paper cone, it delivers deep bass response with durability and reliability. Ideal for replacement or custom cabinet builds where strong low-end is required.
Specifications
-
Driver Size: 12″ (300 mm)
-
Power Handling: 200W RMS / 400W Peak
-
Impedance: 8Ω
-
Voice Coil: 2″ (50 mm) copper
-
Magnet Type: Ferrite
-
Frequency Response (usable): 40 Hz – 3.5 kHz (cabinet dependent)
-
Sensitivity (1W/1m): ~94 dB
-
Basket: Pressed steel
-
Cone Material: Reinforced paper cone with cloth surround
-
Termination: Spade connectors
Features
-
Designed for strong bass reproduction
-
Rugged ferrite magnet with pressed steel chassis
-
Compact size suitable for small PA and subwoofer cabinets
-
Drop-in replacement design
Applications
-
Compact subwoofers
-
Portable PA speakers
-
General replacement for 12″ bass drivers
-
DIY and installation projects
