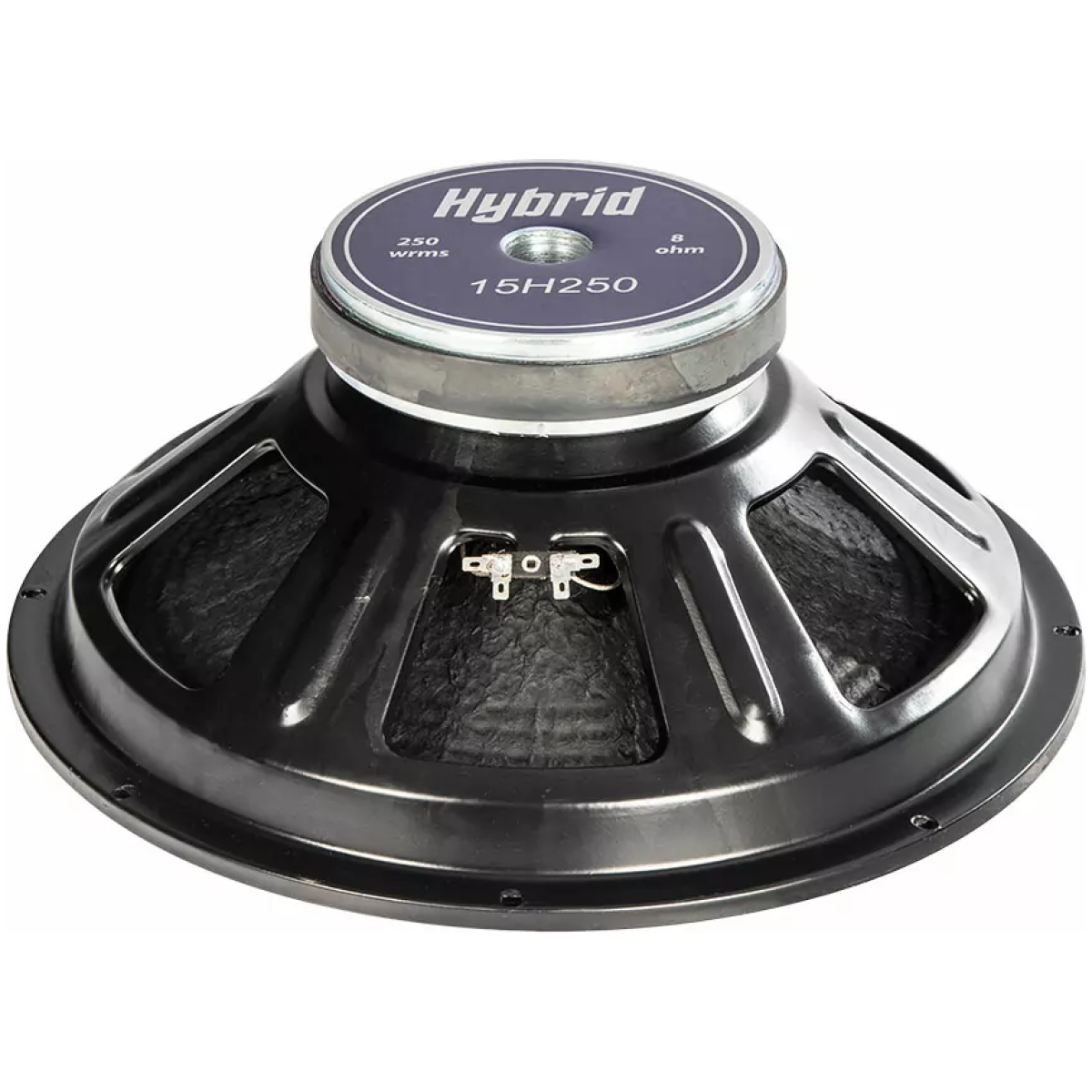

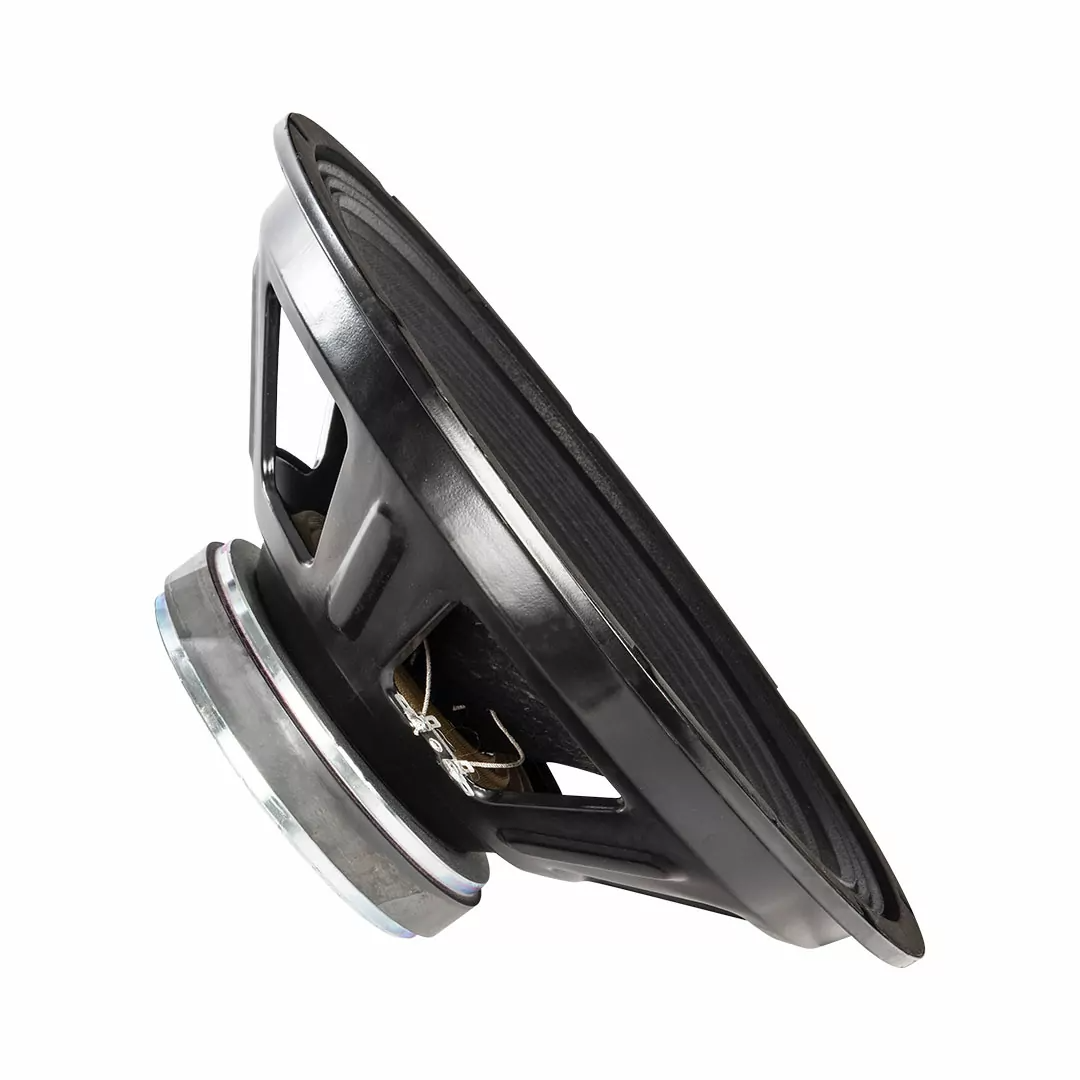

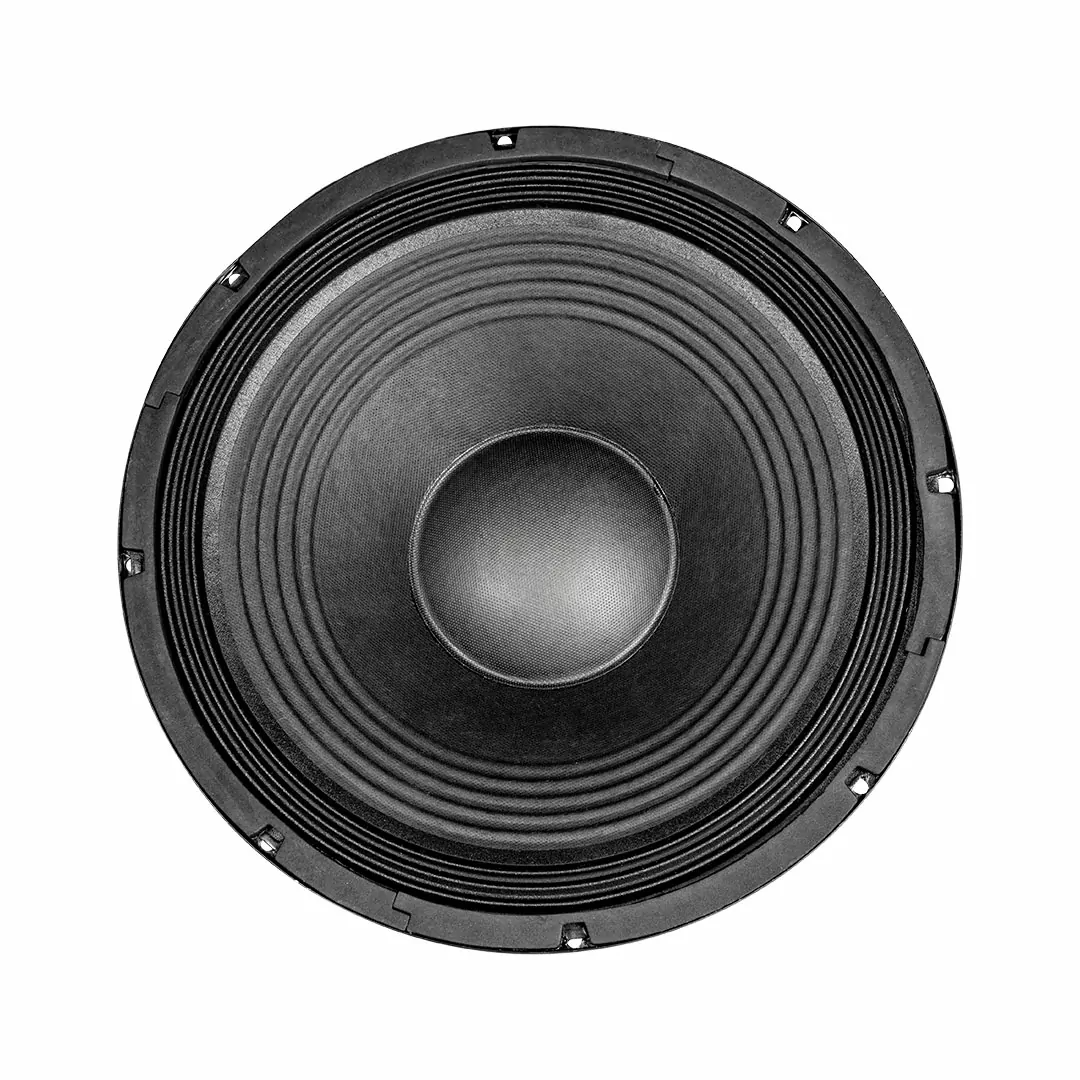

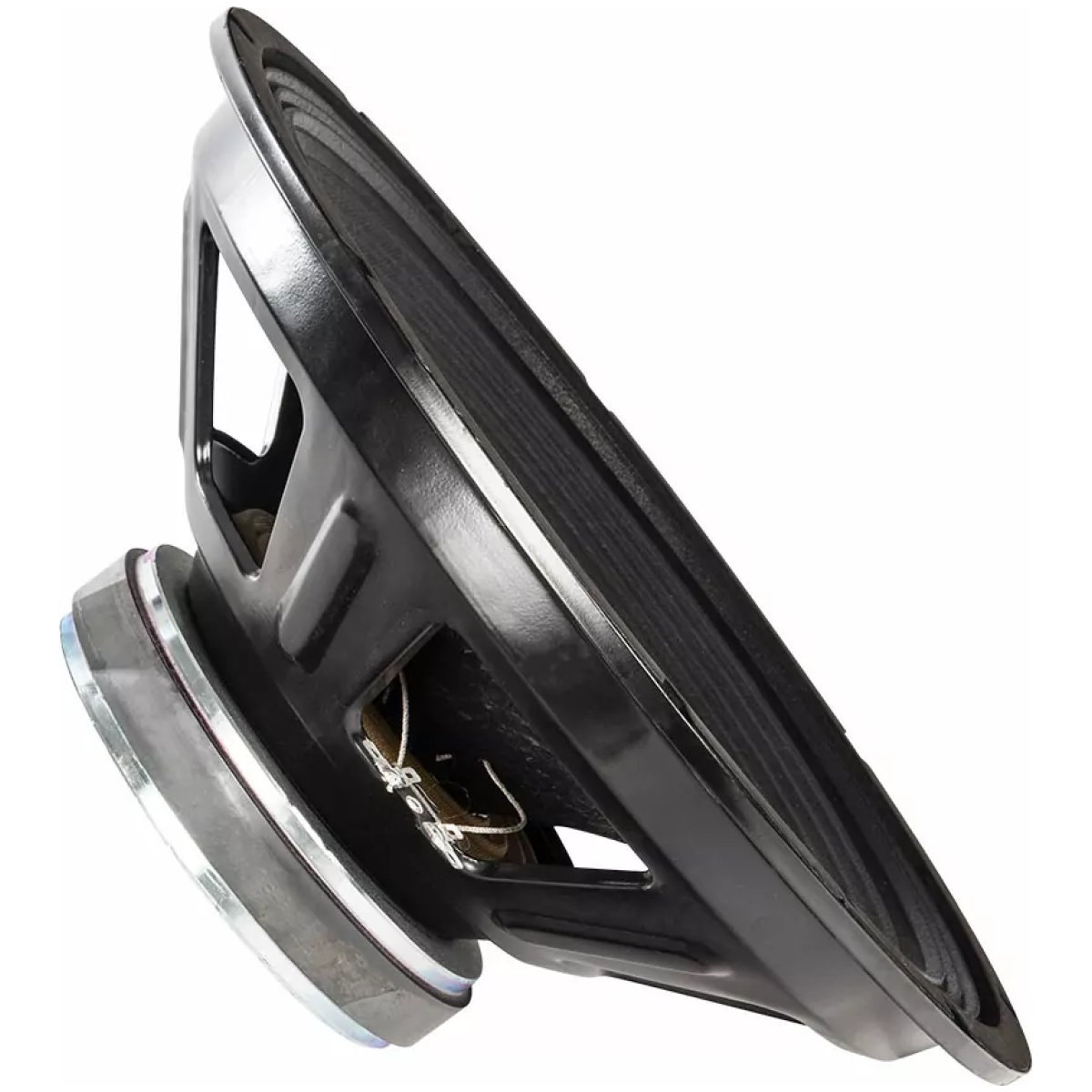

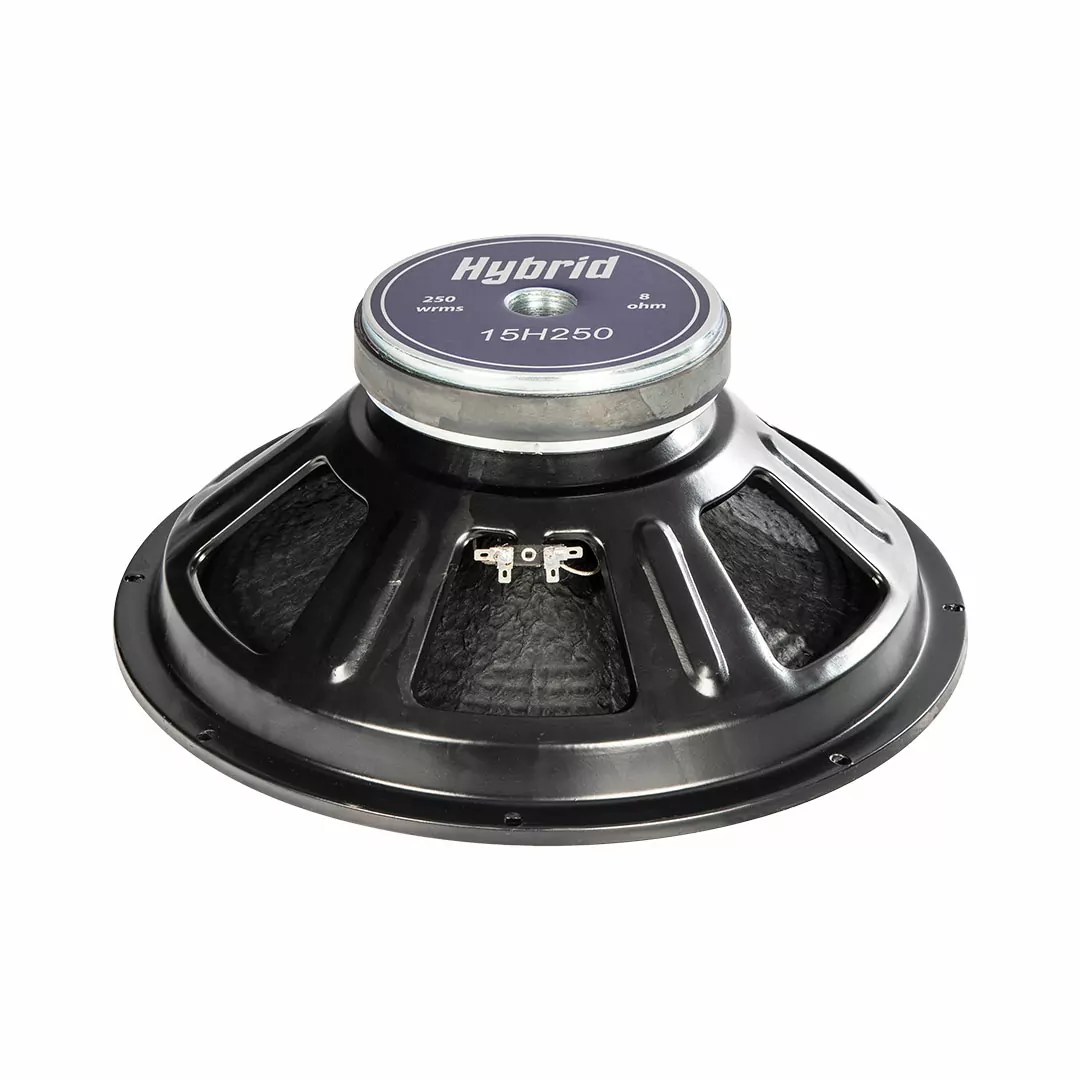

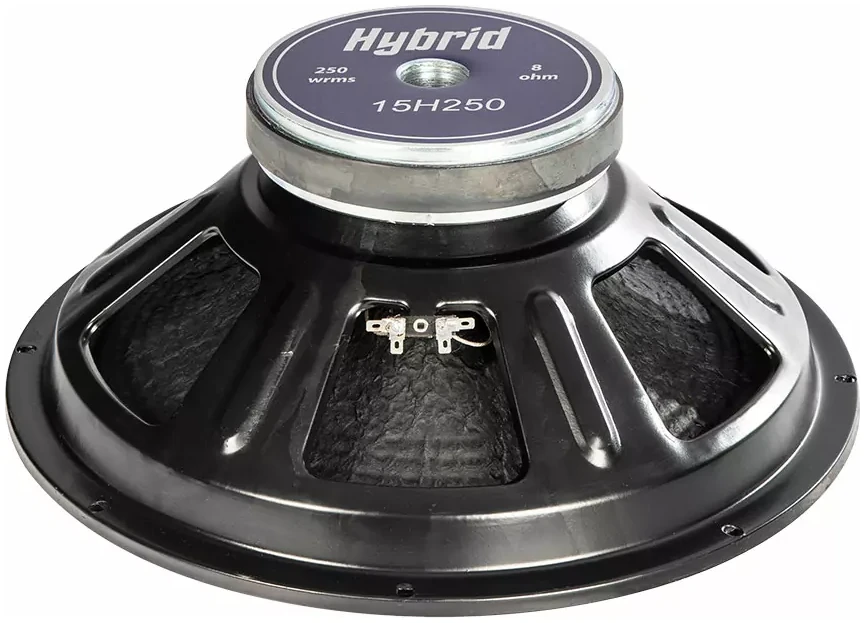

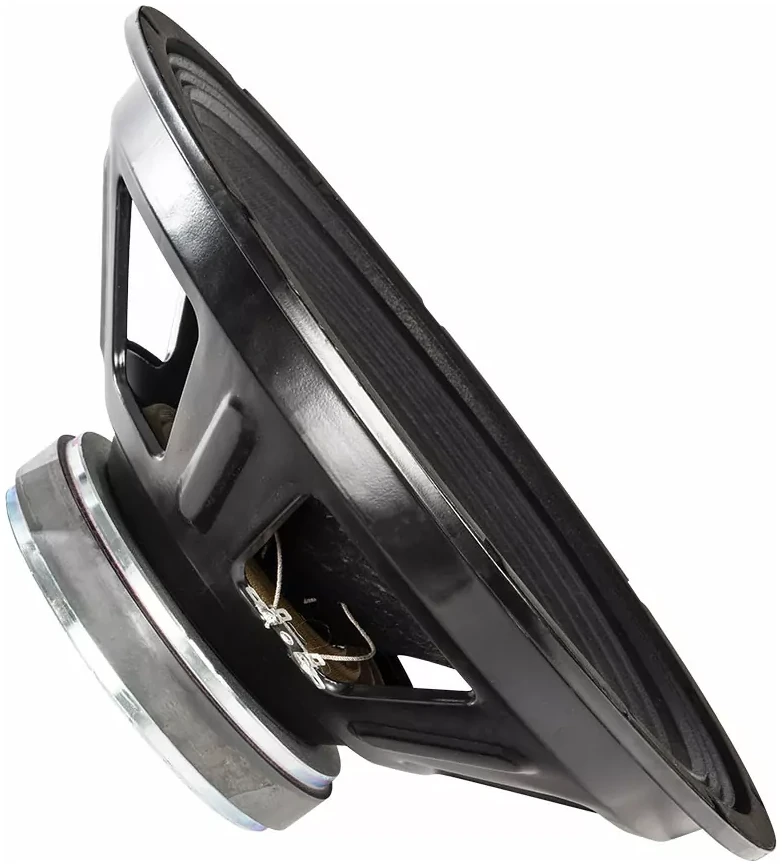

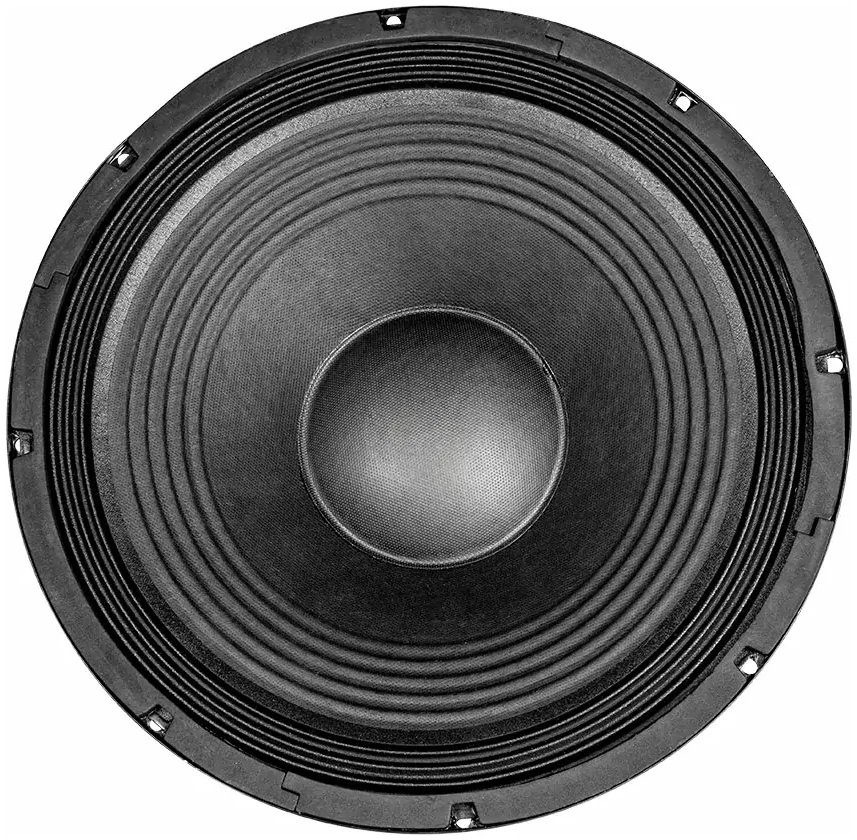

Hybrid 15H250 15″ Low-Frequency Woofer

The Hybrid 15H250 is a 15-inch low-frequency woofer designed for professional PA systems, subwoofers, and custom loudspeaker enclosures. With a stronger ferrite magnet, reinforced paper cone, and higher power handling than the 15H200, it delivers deeper bass and higher output, making it suitable for more demanding sound reinforcement applications.

Specifications

• Driver Size: 15″ (380 mm)

• Power Handling: 250W RMS / 500W Peak

• Impedance: 8Ω

• Voice Coil: 2.5″ (63.5 mm) copper

• Magnet Type: Ferrite

• Frequency Response (usable): 40 Hz – 3.2 kHz (enclosure dependent)

• Sensitivity (1W/1m): ~96 dB

• Basket: Pressed steel

• Cone Material: Reinforced paper cone with cloth surround

• Termination: Spade connectors

Features

• Higher power handling than the 15H200

• Robust ferrite magnet with pressed steel basket

• Smooth bass reproduction with extended low-end response

• Drop-in replacement for 15″ PA cabinets

Applications

• Full-range PA speakers

• Compact subwoofers

• Stage monitors and DJ cabinets

• Replacement driver for Hybrid and similar 15″ enclosures
