Hybrid B1200MK6 Power Amplifier – 2 Channel

The Hybrid B-series power amplifiers have been serving the African audio professionals since the 1990s. Now, 25 years later, the MK6 B-series offers the same value and quality but with better output performance and features compared to its predecessors.

The Hybrid B1200 MK6 is a robust, 19″, 2U rack-space, 2 channel power amplifier with an onboard front panel LCD screen indicating channel gain, channel temperature and mains voltage, as well as front panel LED indication for signal, limit and protection.

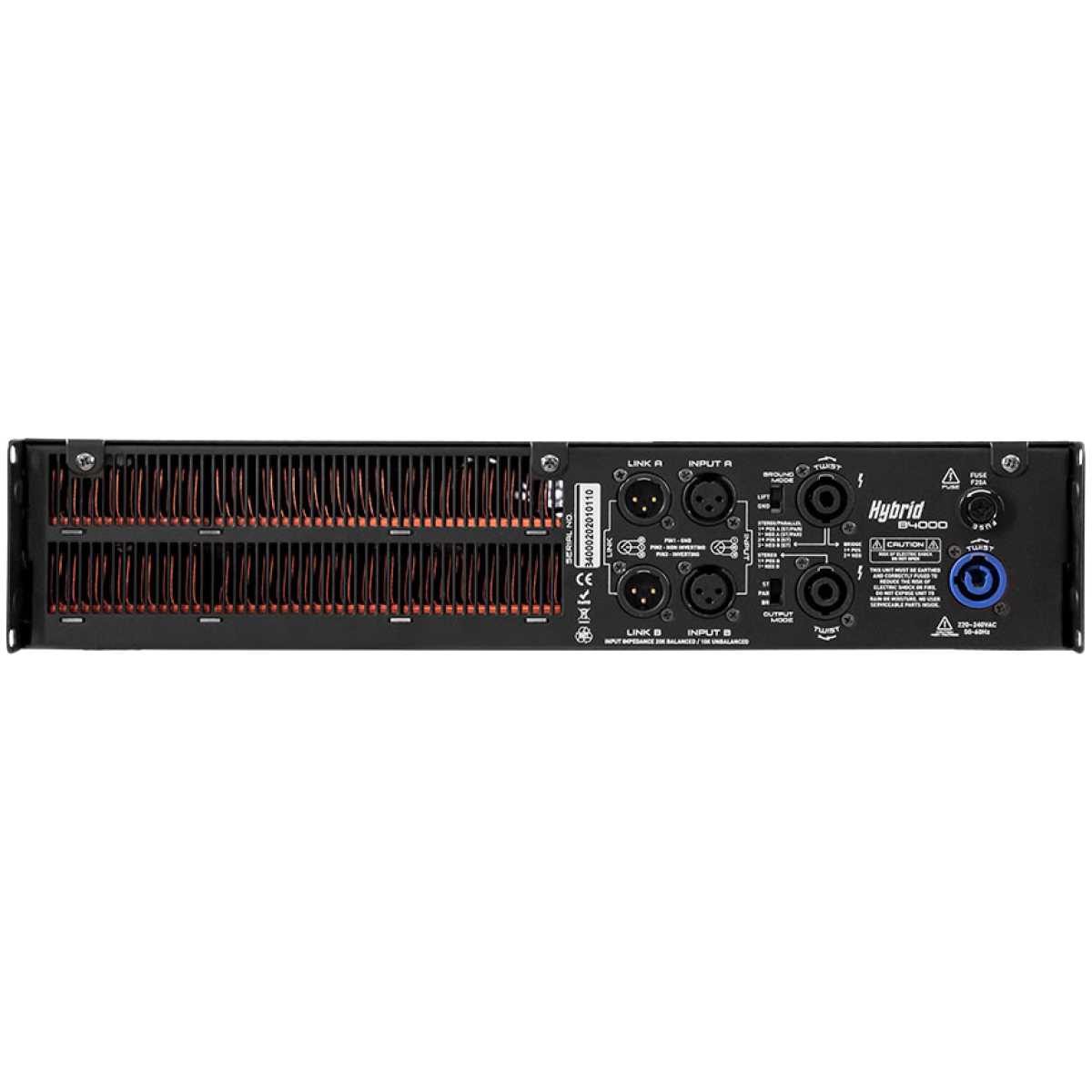

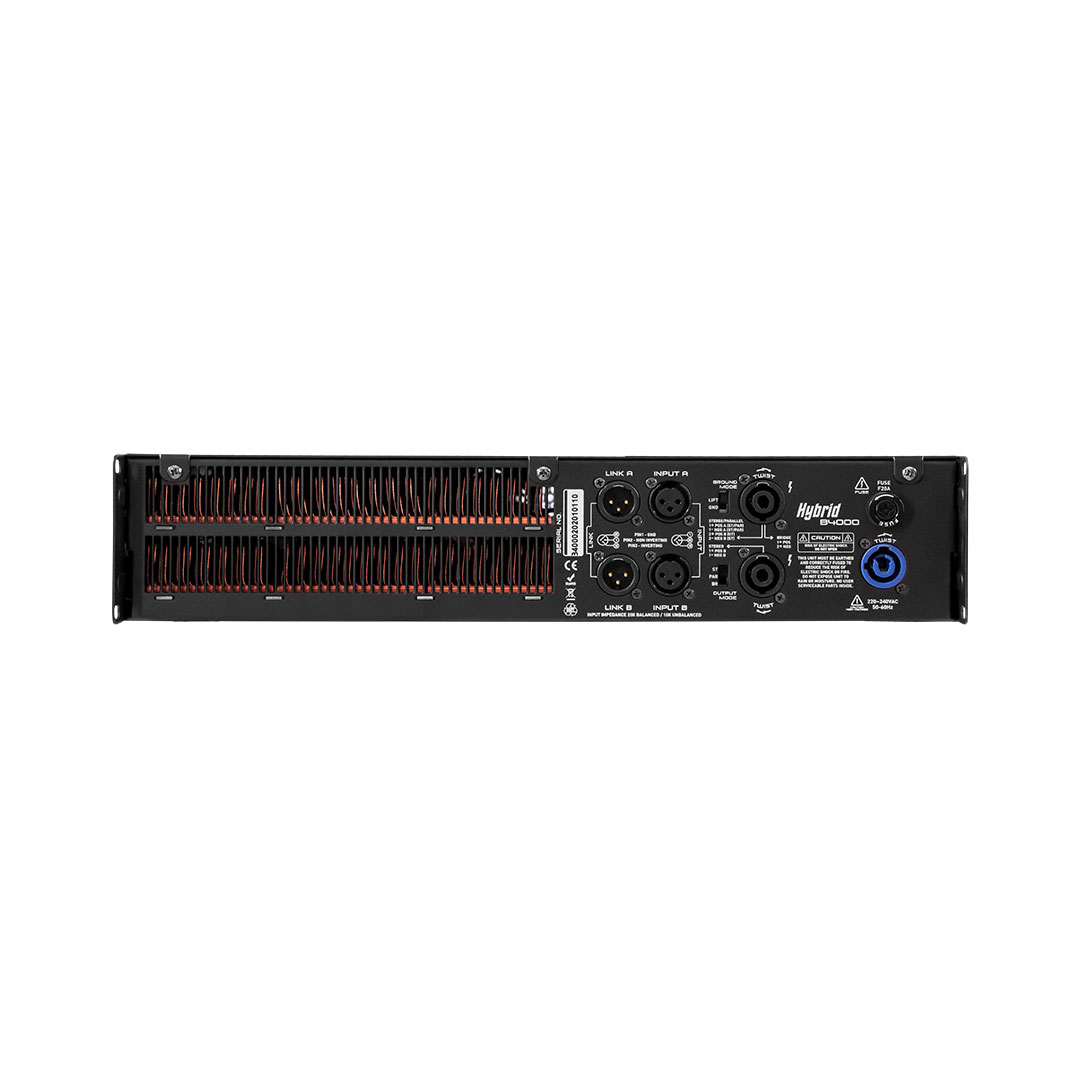

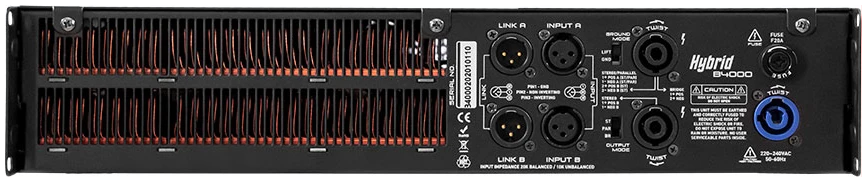

Inputs and signal link-thru are made using the panel mount XLR (Male and Female) connectors located on the rear panel of the amplifier. Similarly, speaker connections are made using the NL4 panel mount connectors. The B1200 MK6 can be used as a stereo, a parallel input or a mono bridged-mode amplifier.

B1200 MK6
Channels: 2
Power: 2 x 600W RMS/4Ω – Stereo mode/Parallel mode
Power: 2 x 400W RMS/8Ω – Stereo mode/Parallel mode
Power: 1 x 1200W RMS/4Ω – Bridged mode
Protection: Active clip limiting, impedance sensing, soft start, thermal protection, DC protection and subsonic frequency limiting
Cooling: Forced air cooling
Controls: Dual rotary gain control, on-off switch, ground lift switch, mode switch
Indicators: LCD screen (Channel gain, channel temperature, main voltage), On LED, Signal LED, Limit LED, Protection LED
Inputs: 2 x XLR Female panel mount connectors
Link-thru: 2 x XLR Male panel mount connectors
Outputs: 2 x NL4 (Speakon)
Dimensions (W x H x D): 487 x 99 x 387mm
Weight: 13.8kg
