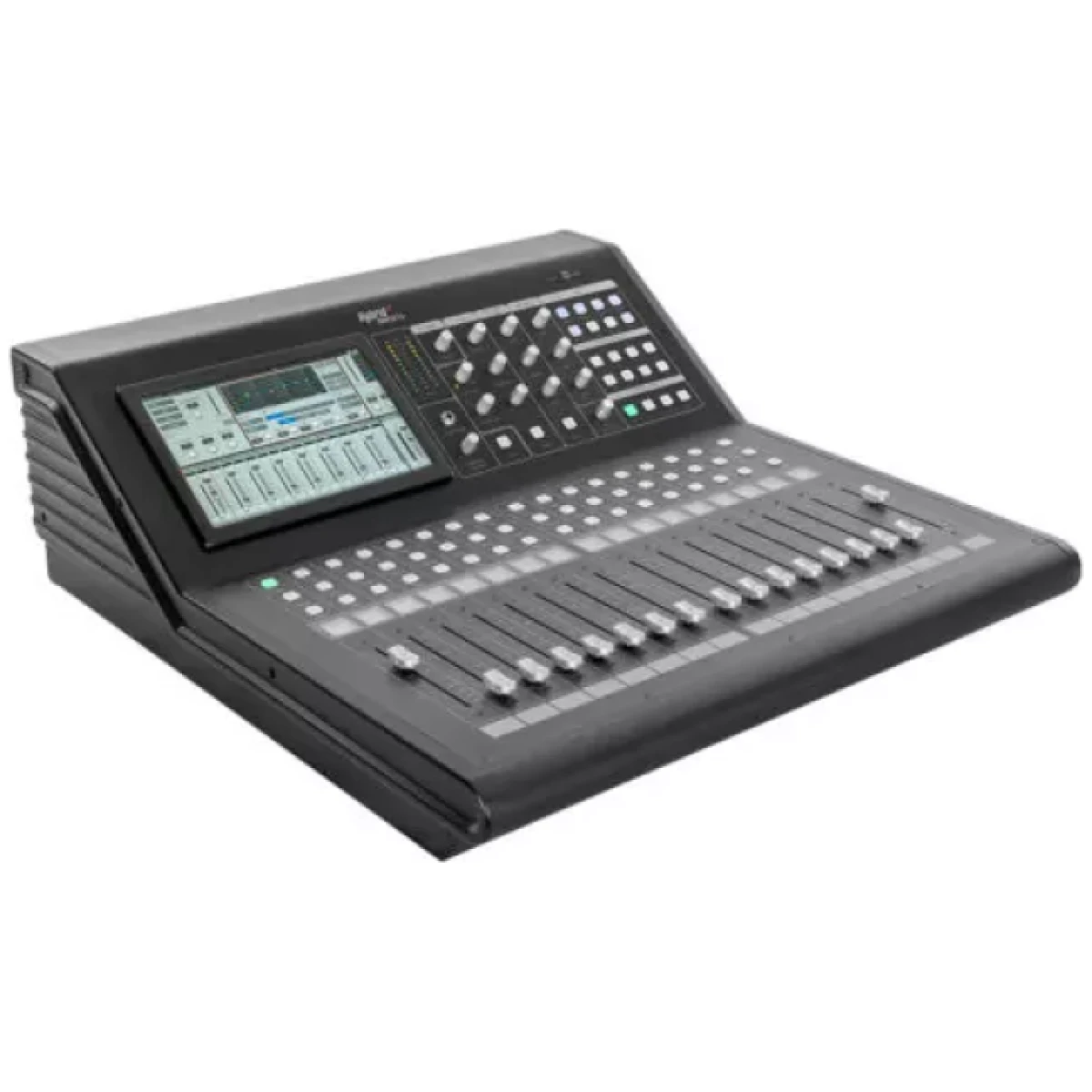

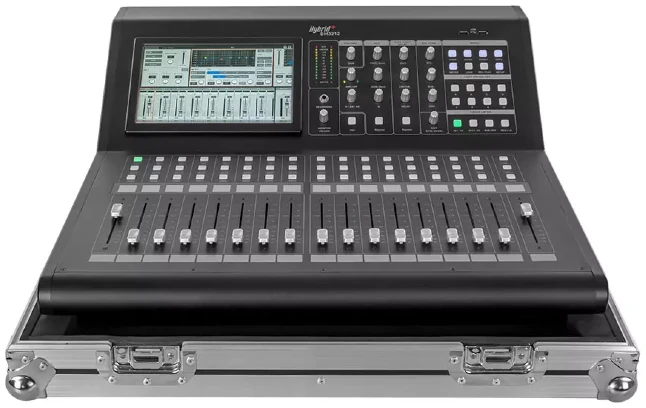

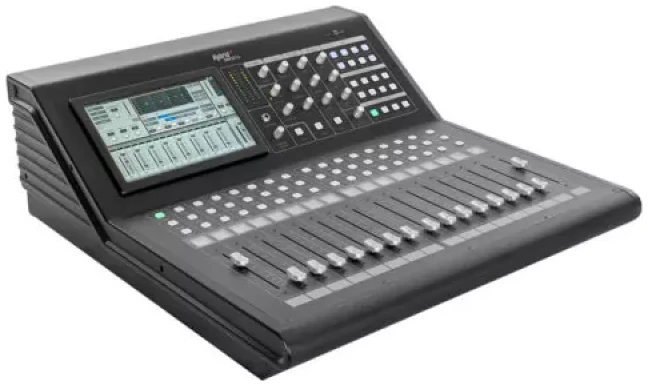

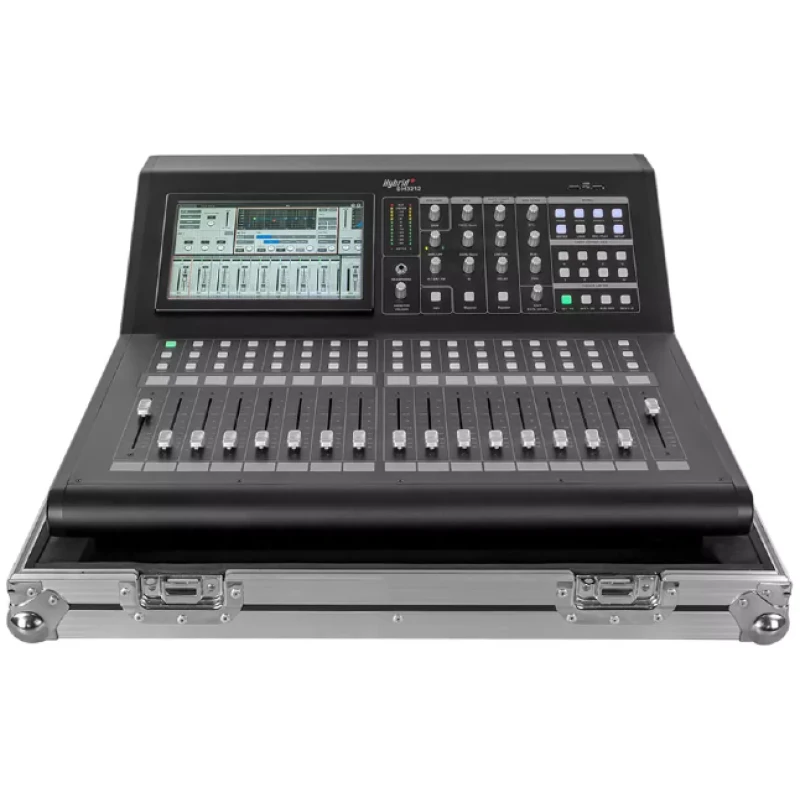

The Hybrid+ DM3212 is a professional 32-channel digital mixing console designed for live sound, touring, studio, and installation applications. Equipped with high-quality preamps, a powerful DSP engine, and flexible digital routing, it delivers pristine sound quality and total control. The DM3212 includes a protective flight case, making it ideal for mobile and professional production environments that demand durability and precision.
Specifications

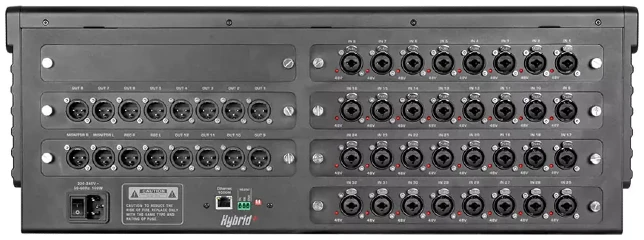

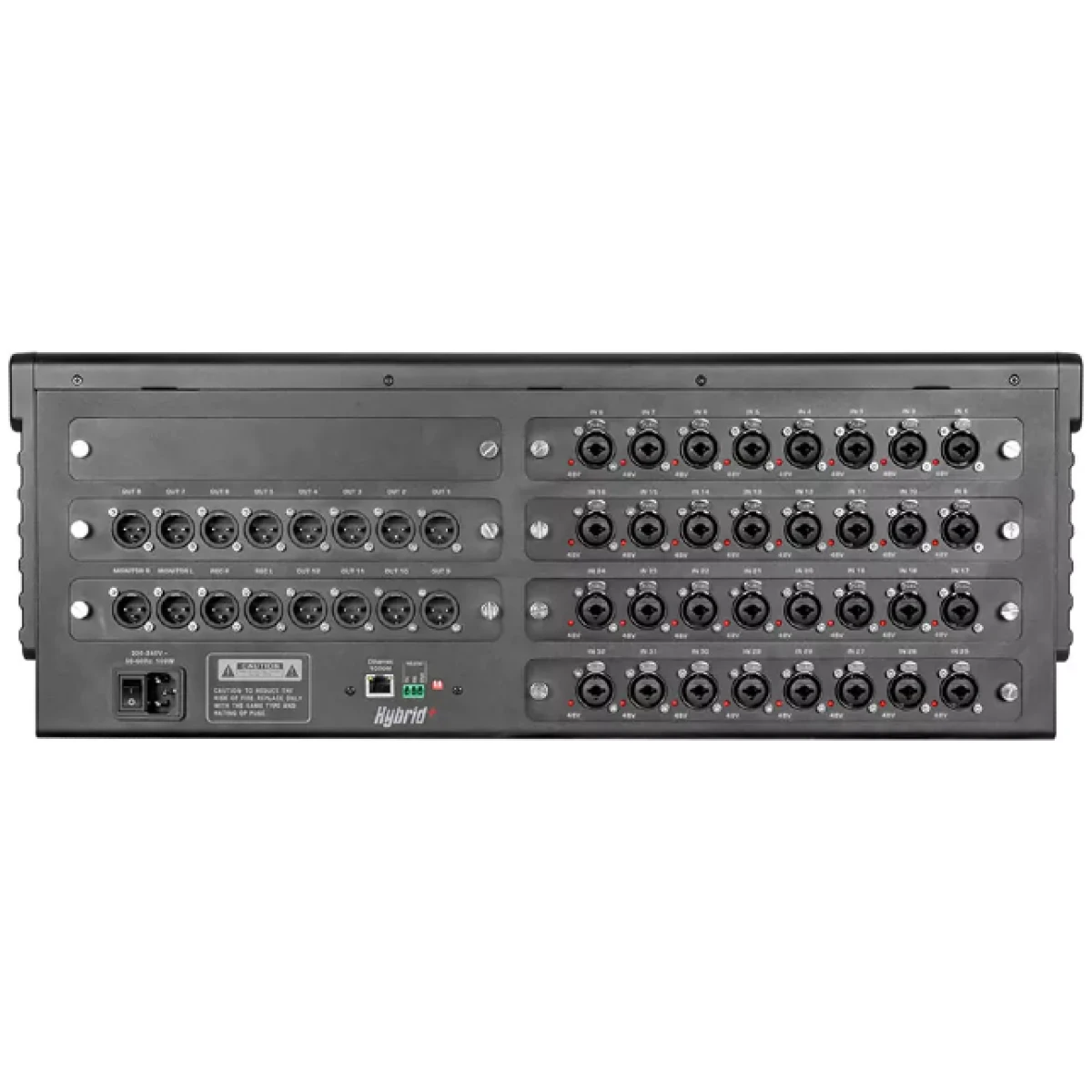

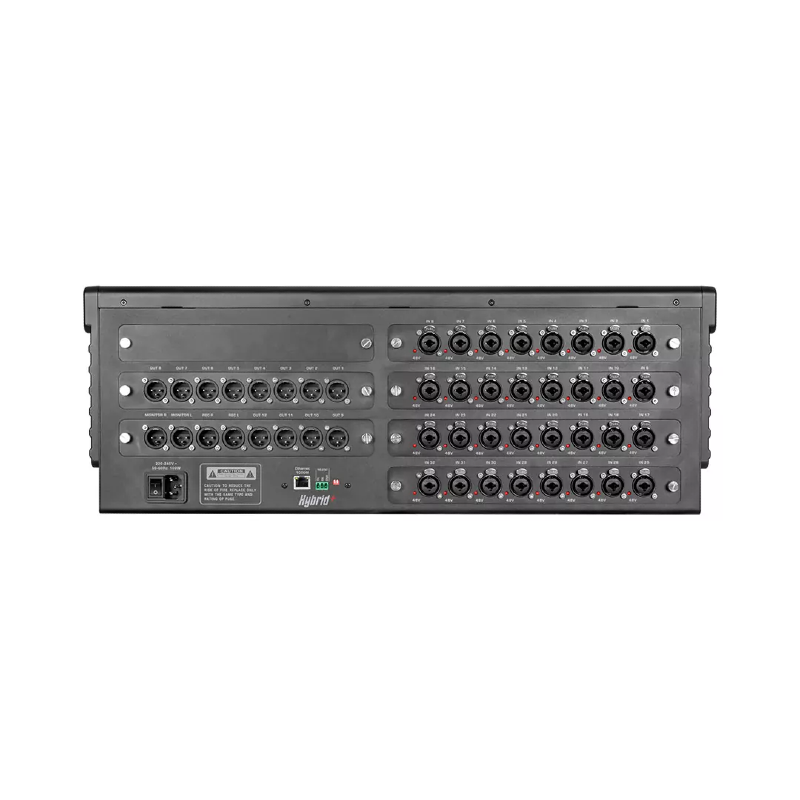

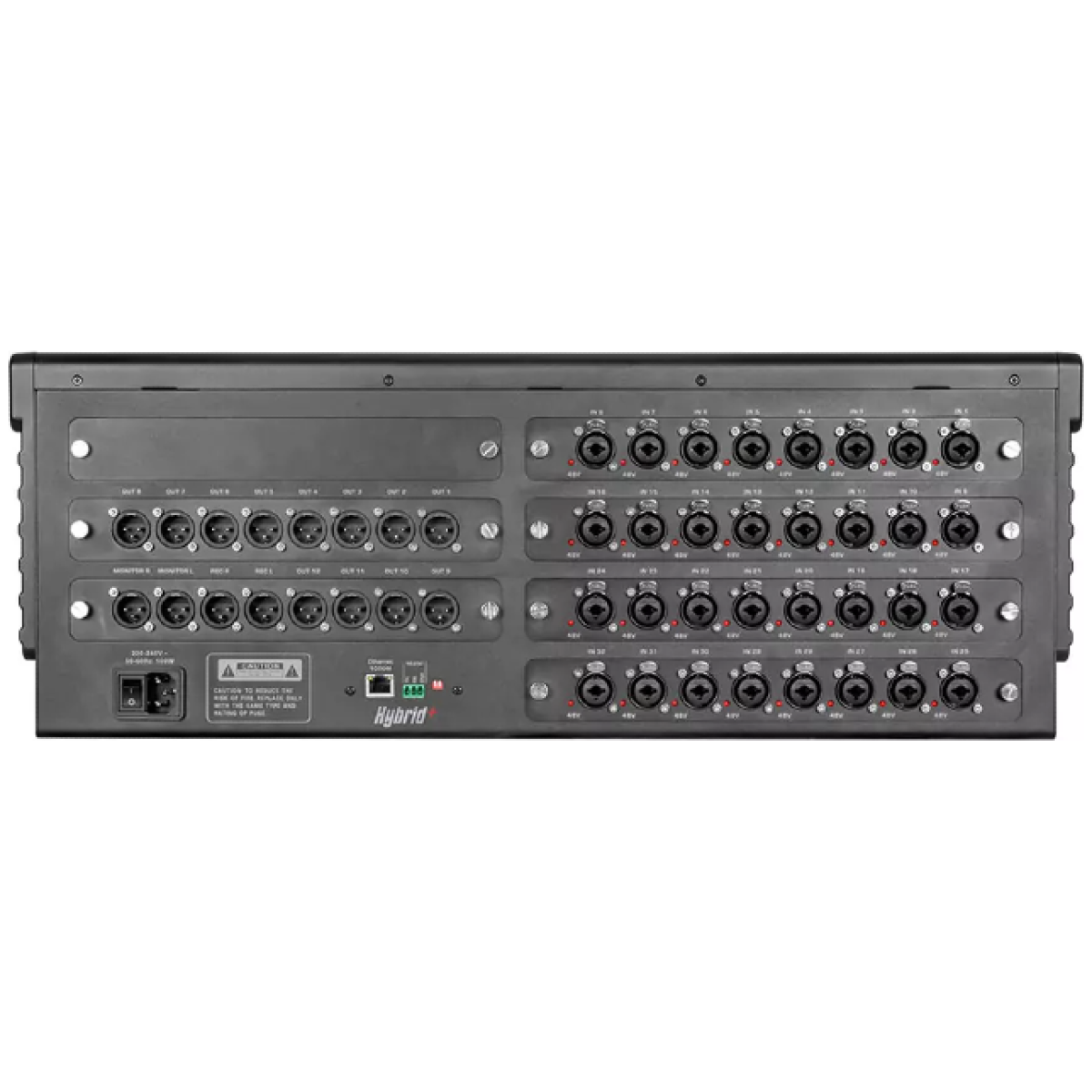

- Inputs:
- 24 × Mic/Line Combo (XLR/TRS)
- 4 × Stereo Line Inputs
- 2 × Digital/USB Inputs
- 1 × Bluetooth Audio Input
- Outputs:
- 16 × Balanced XLR Outputs (Main L/R, AUX, Subgroups)
- Headphone Output (¼″ TRS)
- Digital Processing:
- 40-bit floating-point DSP engine
- Built-in multi-effects (Reverb, Delay, Chorus, Flanger, Compressor, Gate, Limiter)
- 31-band Graphic EQ on mains and auxes
- Scene and snapshot memory recall

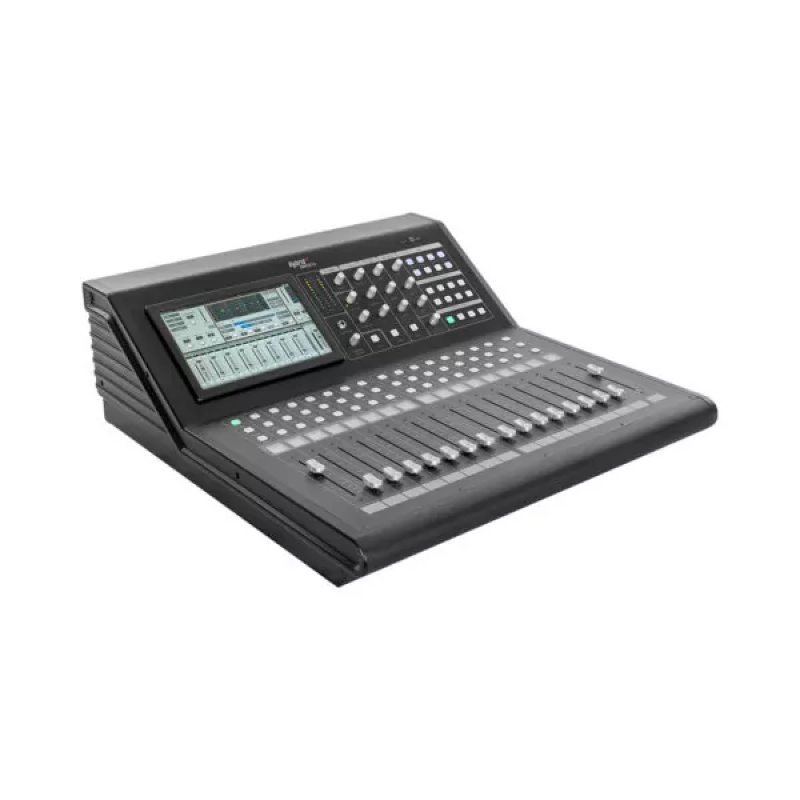

- Control Interface:
- 7″ Full-colour TFT Touchscreen
- 100 mm Motorized Faders
- Dedicated Rotary Encoders for quick parameter control
- Phantom Power: +48V switchable (per channel)
- Connectivity:
- USB Recording & Playback (2×2 interface)
- Ethernet Port (for remote software/iPad control)
- Optional Dante or StageBox expansion (model dependent)
- Bluetooth audio streaming
- Sampling Rate: 24-bit / 48 kHz
- Dynamic Range: ≥110 dB
- Frequency Response: 20 Hz – 20 kHz ±1 dB
- Signal-to-Noise Ratio: ≥105 dB
Features
- 32-channel digital mixing console with touchscreen operation
- Powerful DSP with built-in EQ, dynamics, and effects
- USB recording/playback and Bluetooth streaming
- Scene recall and motorized faders for efficient workflow
- Rugged construction for live and touring applications

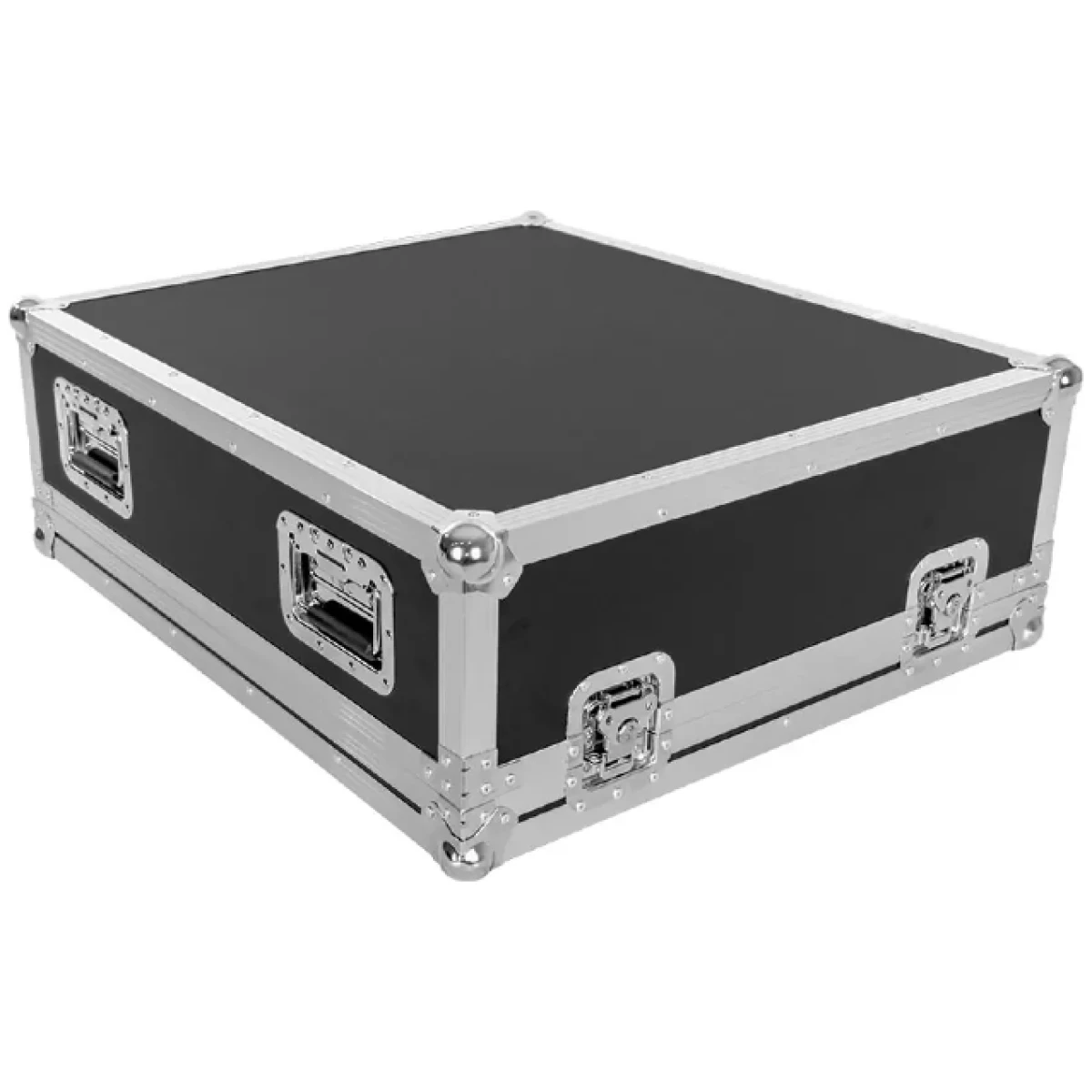

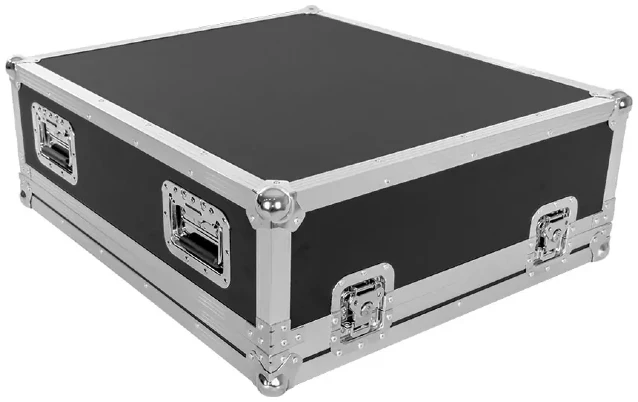

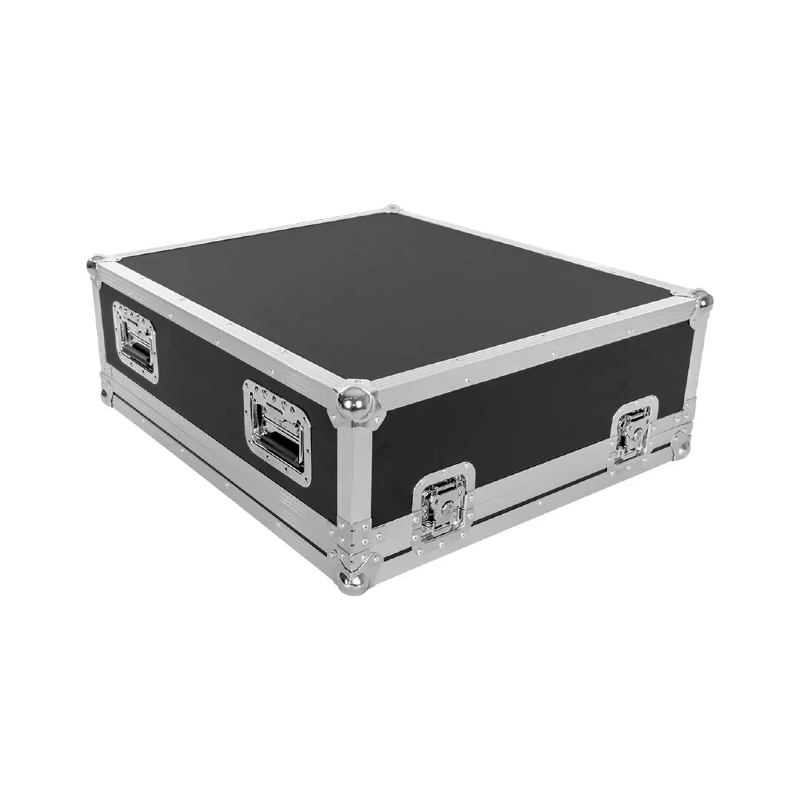

- Includes protective flight case for transport and road use
Applications
- Live concerts and touring productions
- Houses of worship and theatres
- Broadcast and studio environments
- Rental and corporate AV setups
