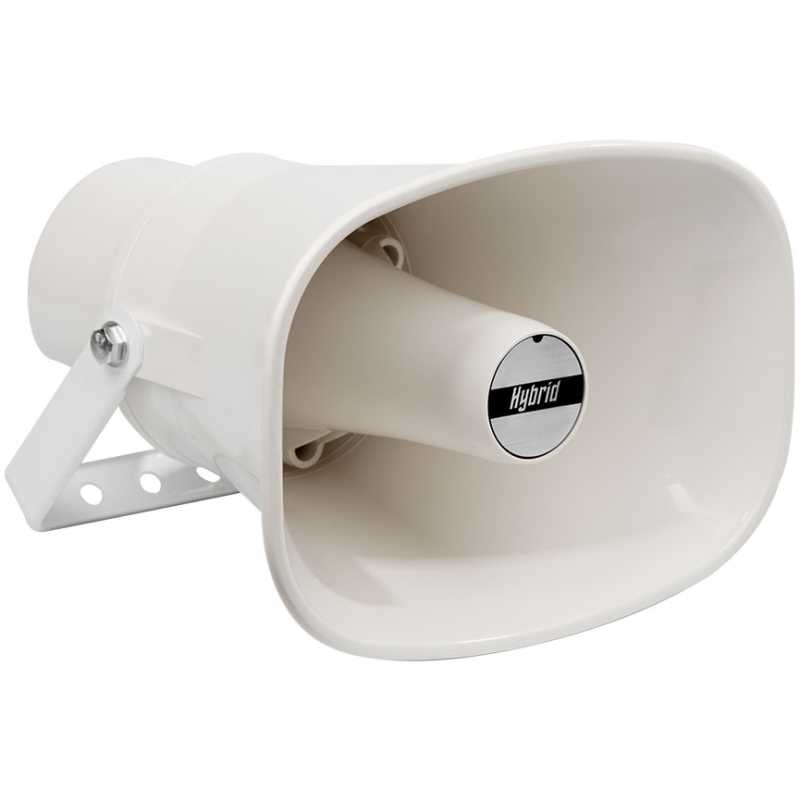

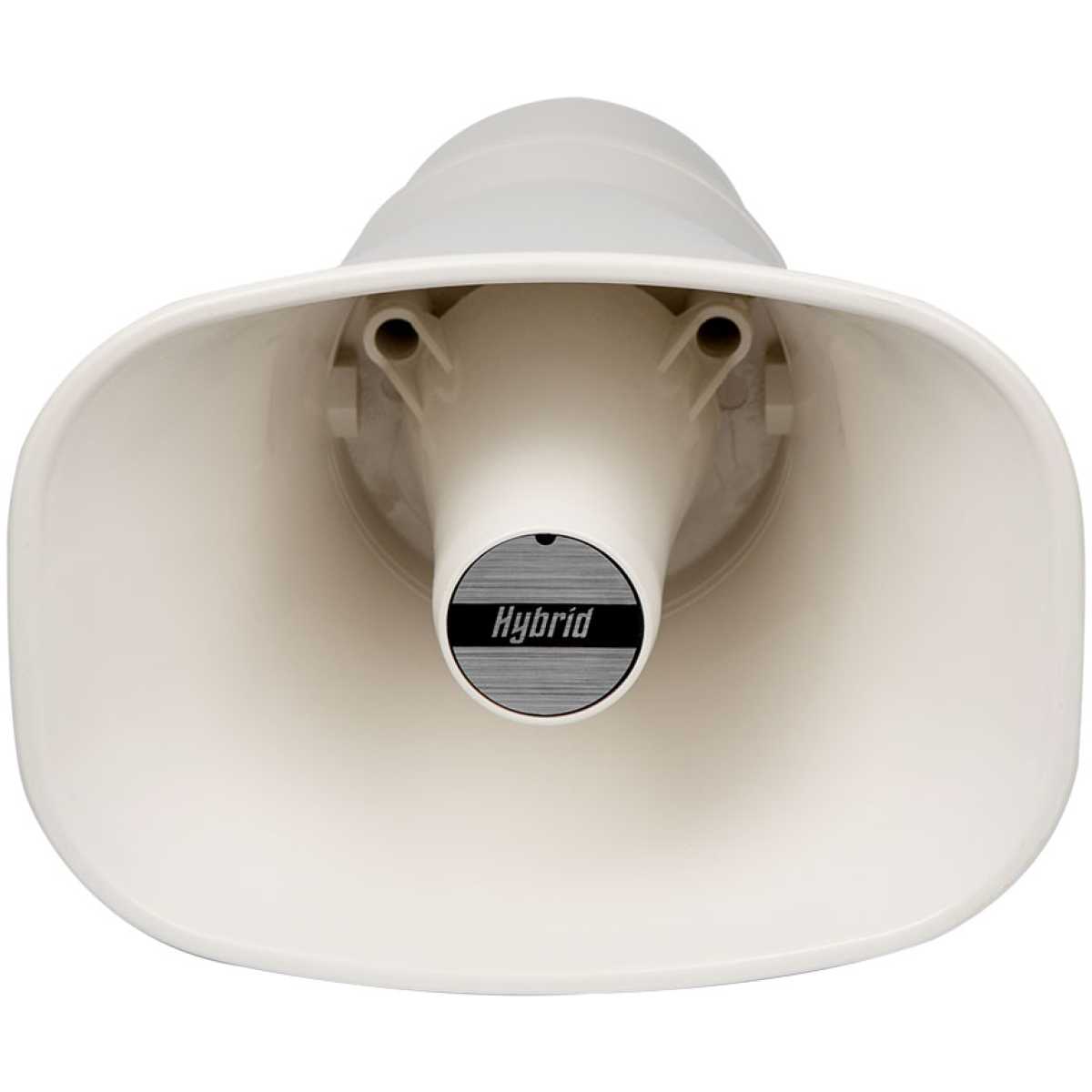

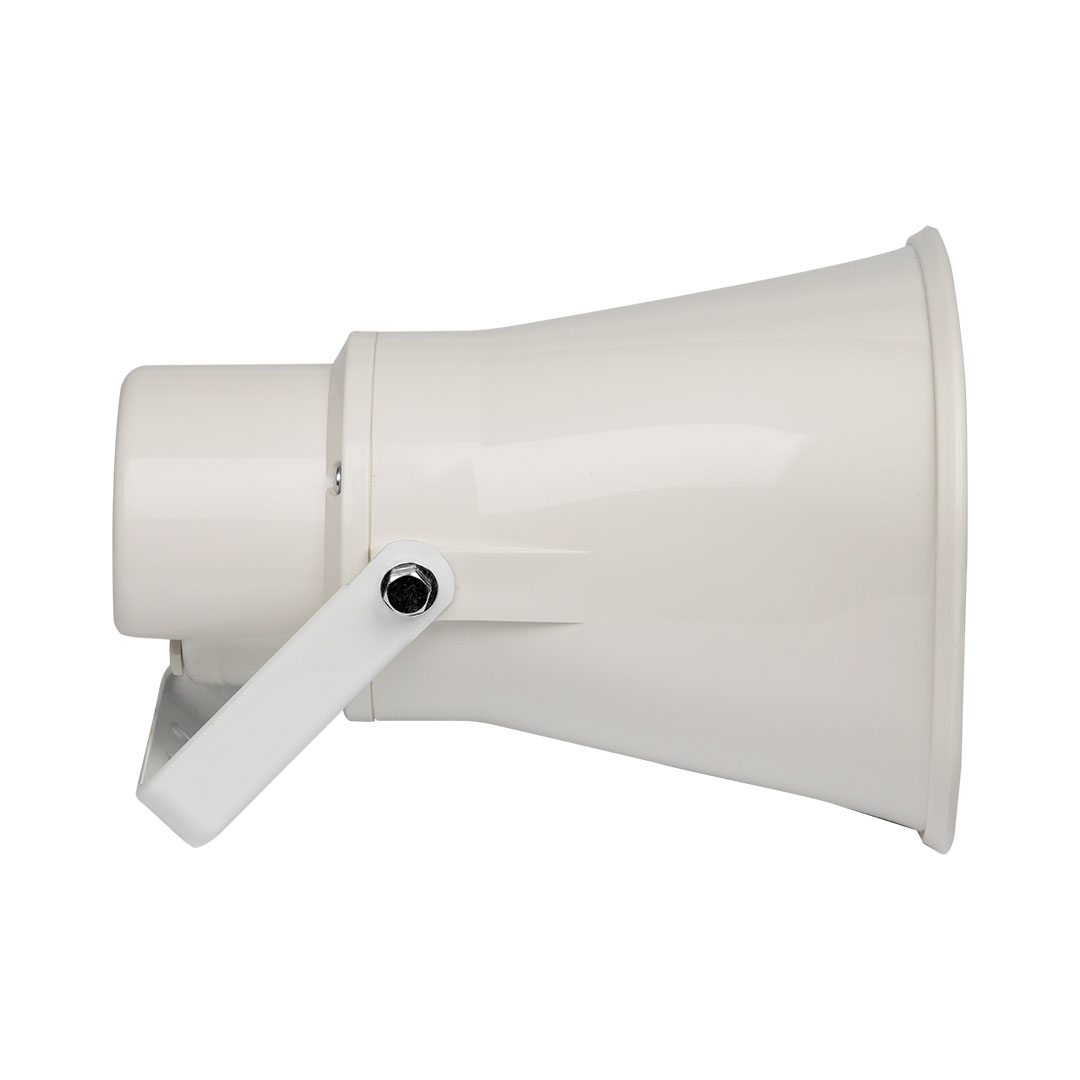

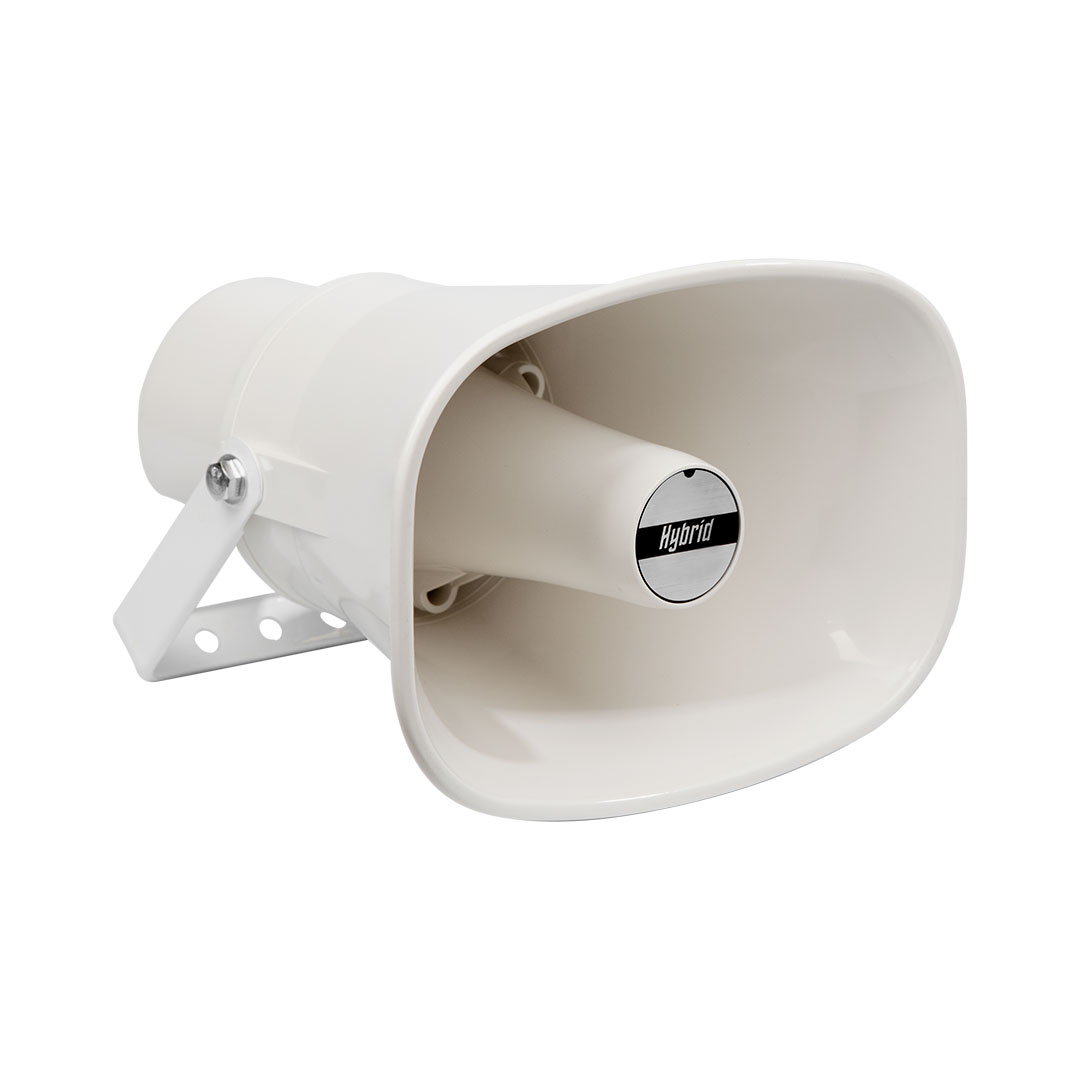

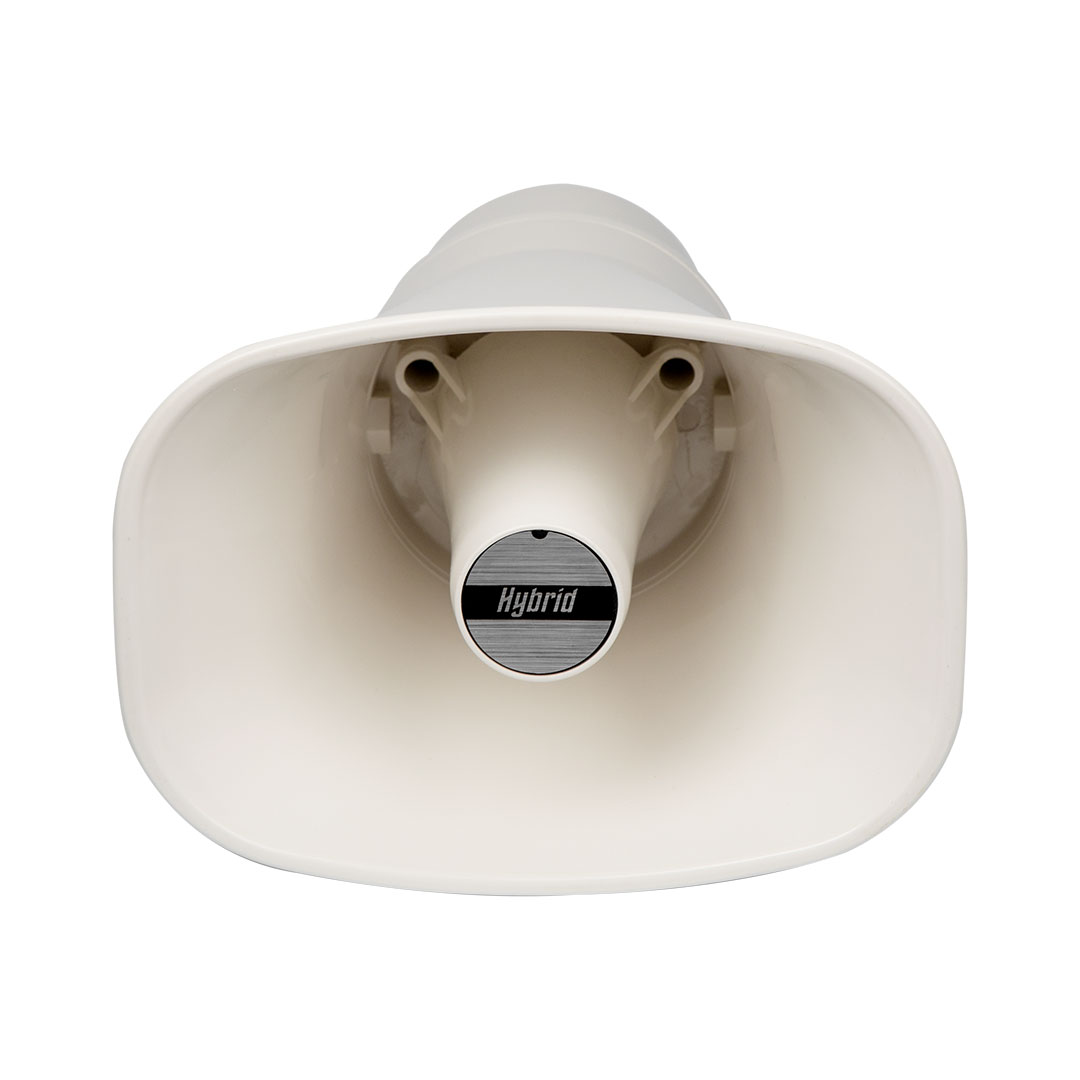

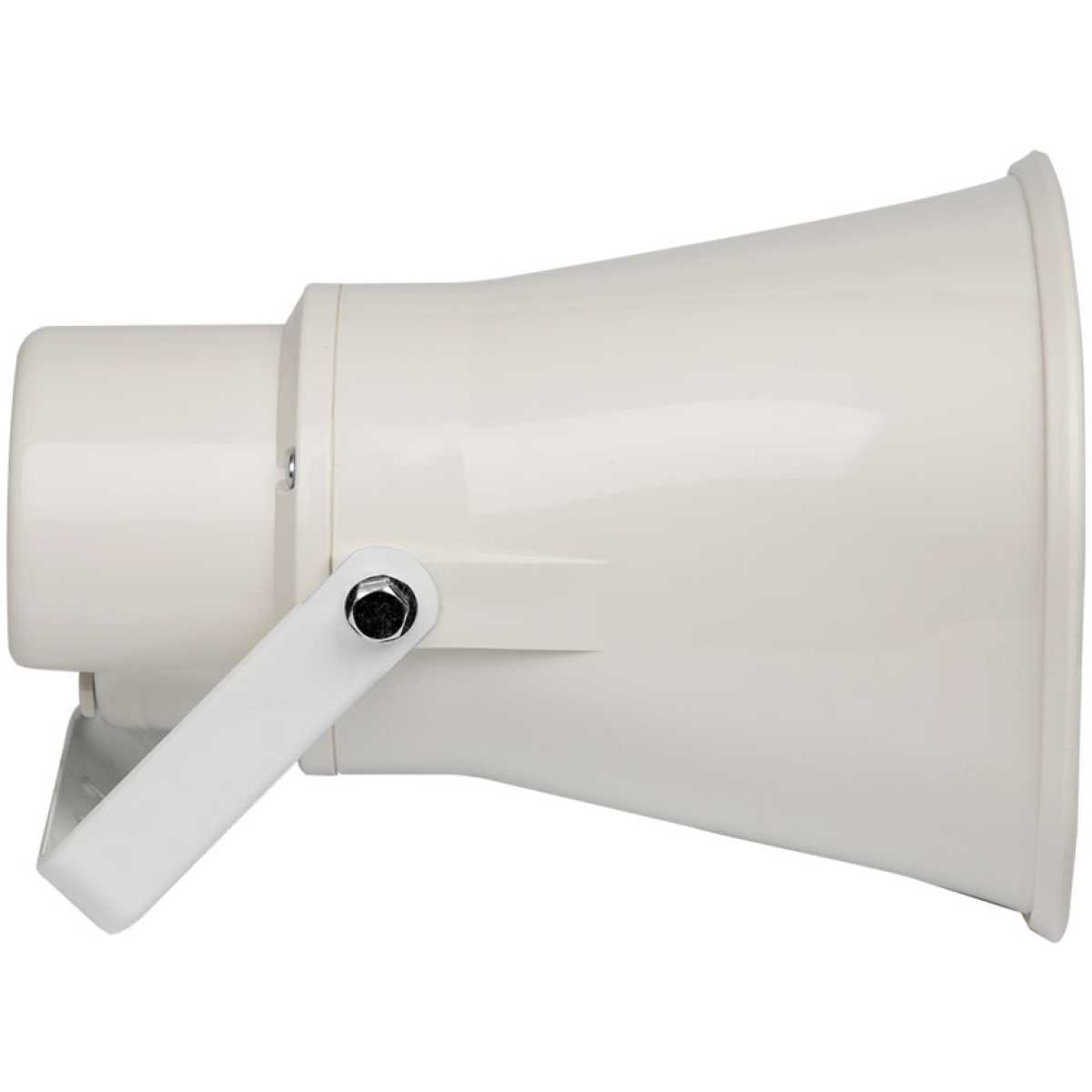

Hybrid H30 Horn Speaker – 30W/100V

Horn Speaker – 30W/100V

The Hybrid H30 is a waterproof (IP65 rated), outdoor horn speaker suitable for speech announcements where long distance coverage is required.
When used as a 100V line horn, multiple H30 horns can be connected easily in parallel without the worry of impedance matching or losses over long cable lengths. With the inclusion of the rotatable selector switch, different power tappings can be chosen to suit the area the H30 needs to cover. The H30 can also be used in the standard 8 Ohm configuration.

The H30 has a rectangular horn flare with a round back cover, both of which are manufactured from weatherproof, hard-wearing ABS material. The securing wall bracket is metal and U-shaped with a powder coated finish. The H30 includes two wall anchor screws, a masonry drill bit and tightening spanner.

Power RMS: 30W
100V Power Tapping: 30/15/7.5/3.8 W
8 Ohm operation : Yes
Sensitivity(1W 1m): 105dB
Frequency response: 350-8KHZ
Wall Mount Bracket: Included, metal U-shape
Installation Kit: Includes drill bit, wall anchors and spanner
Horn Dimension: Rectangular, 285mm (Width) / 205mm (Height)
Dimension (WxHxD): 285 x 205 x 280mm
Unit Weight: 1.8Kg
Color: White
