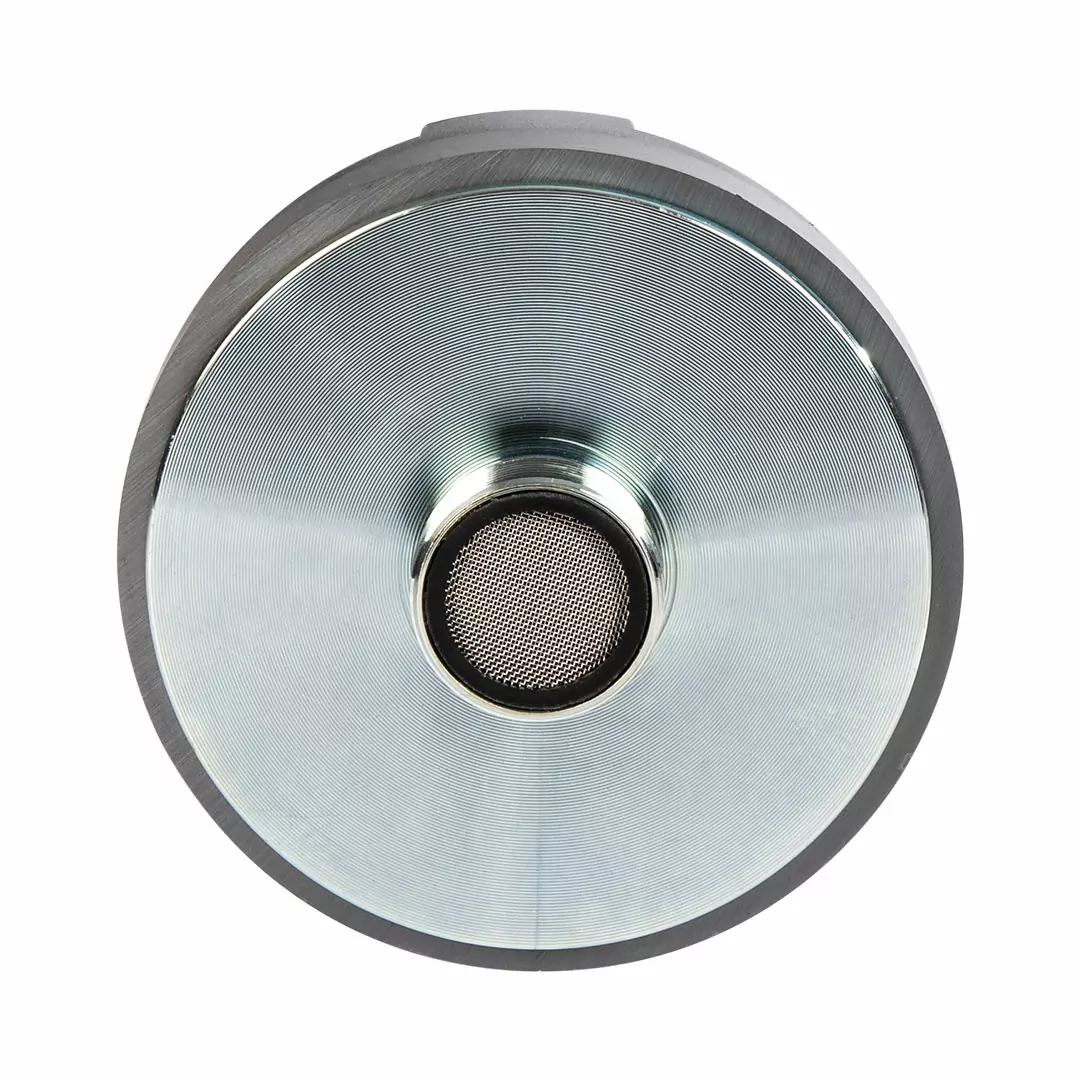

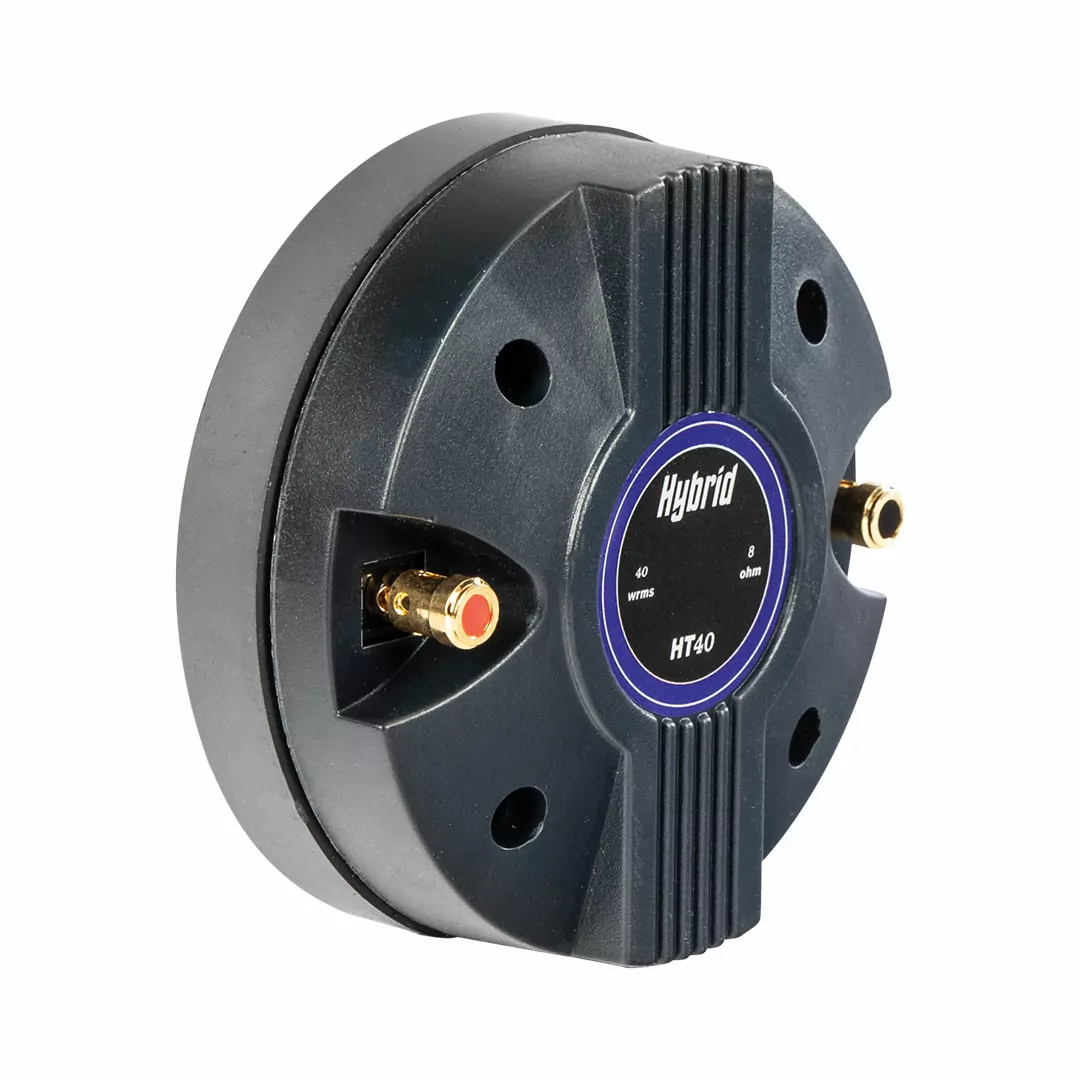

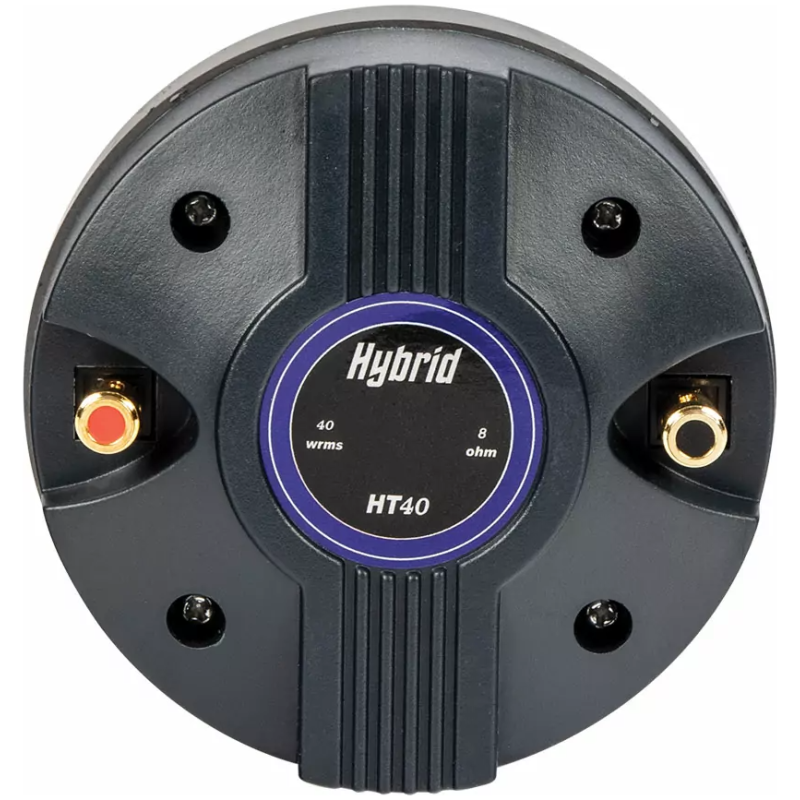

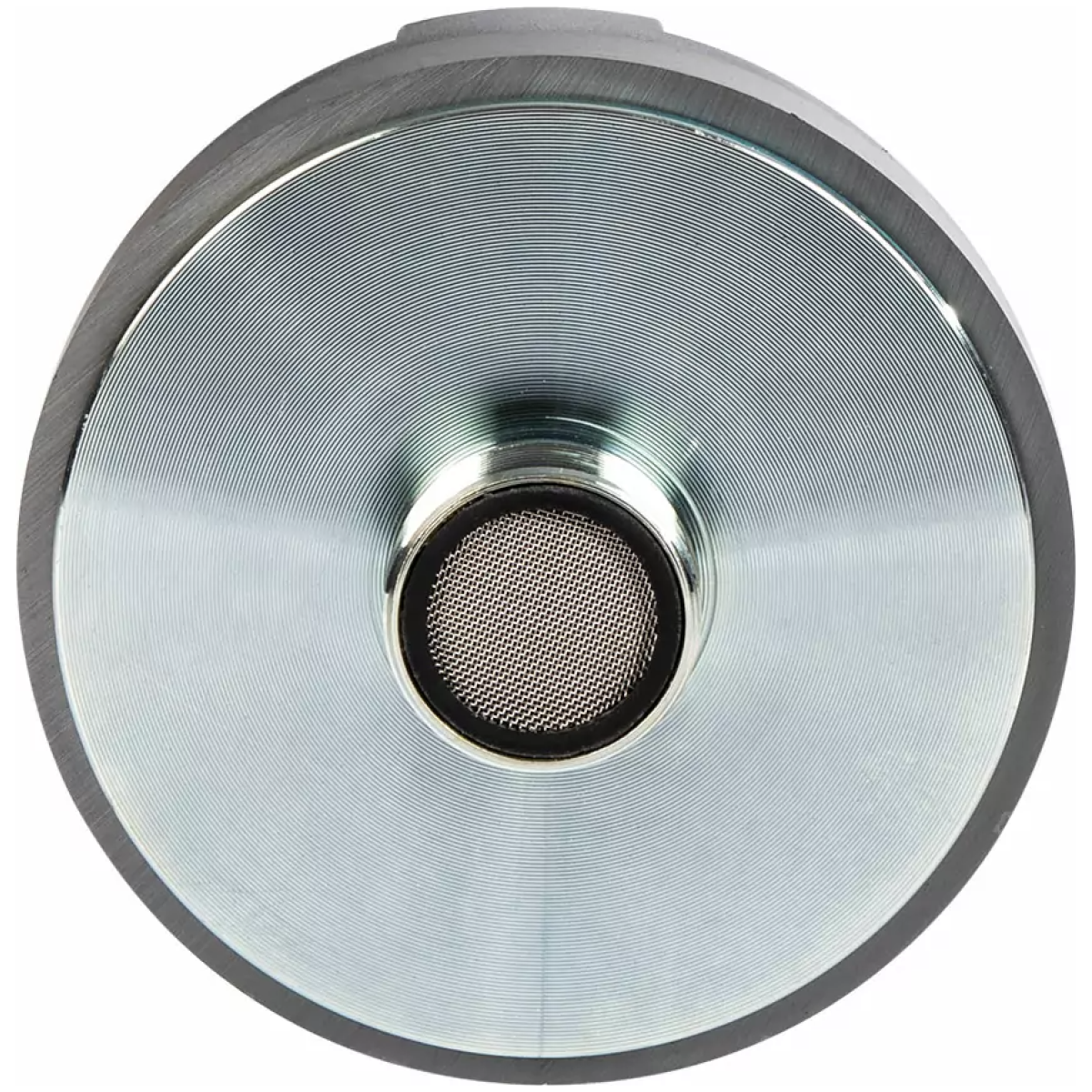

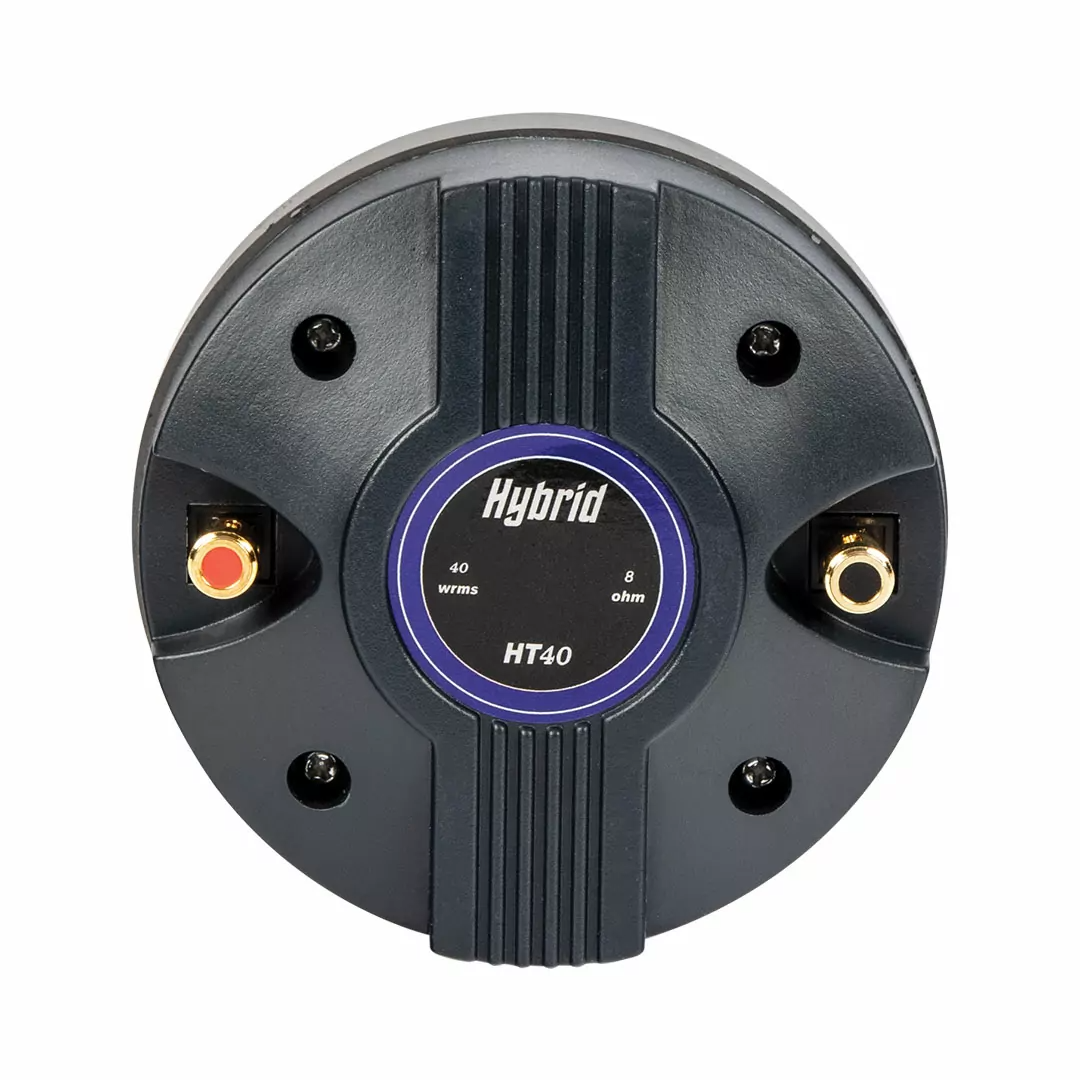

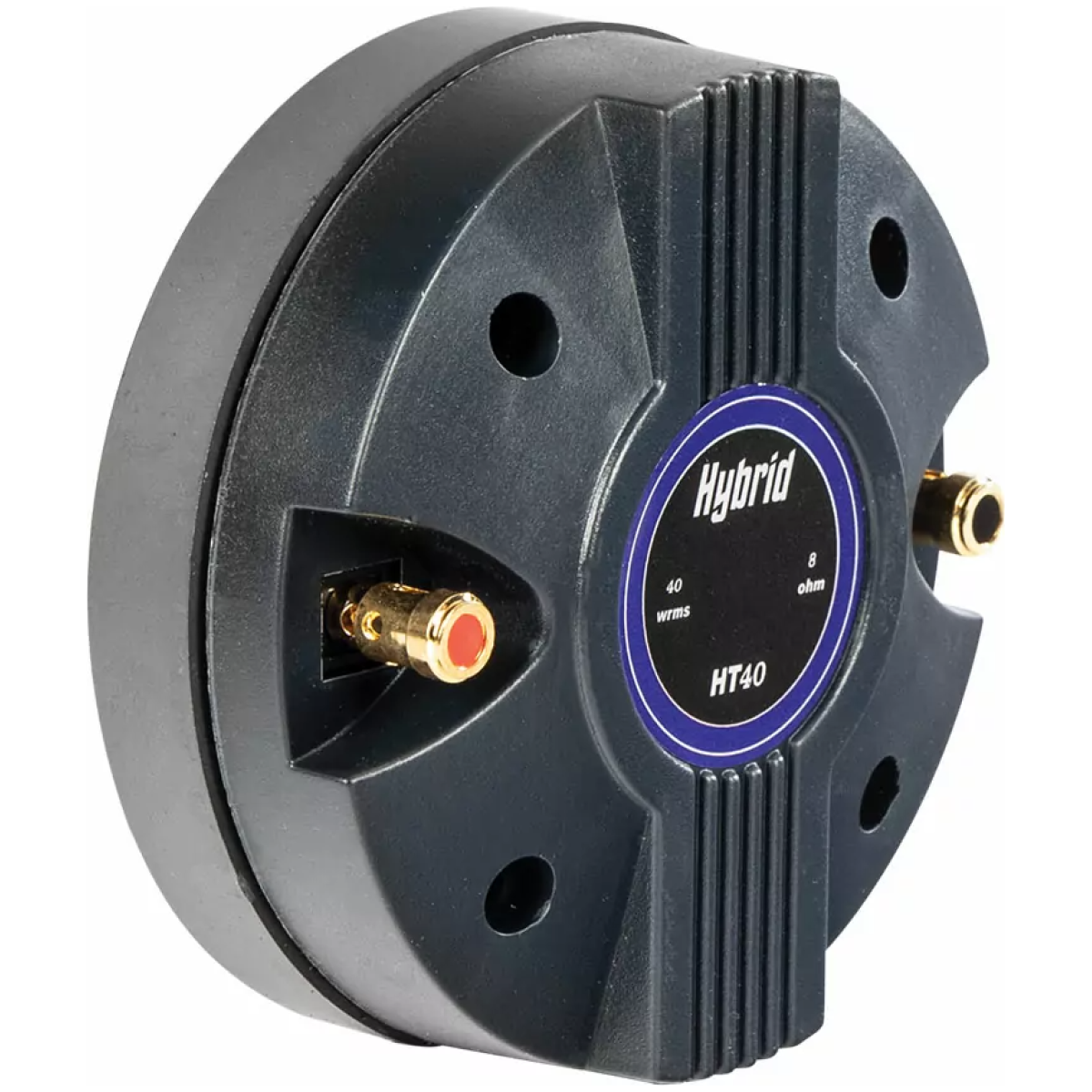

The Hybrid HT40 is a 1″ high-frequency compression driver designed for PA systems, speaker replacements, and custom cabinet builds. With an 8Ω impedance, ferrite magnet, and robust construction, it delivers clear treble and vocal projection, making it ideal for both portable and installed sound systems.
Specifications
-
Throat Size: 1″ (25.4 mm) screw-in
-
Power Handling: 40W RMS / 80W Peak
-
Impedance: 8Ω
-
Voice Coil: 25 mm (1″) copper
-
Magnet Type: Ferrite
-
Frequency Response (usable): 1.5 kHz – 18 kHz (driver dependent)
-
Sensitivity (1W/1m): ~105 dB
-
Mounting: Screw-in thread (standard 1″)
Features
-
Compact, lightweight HF driver
-
Smooth treble reproduction with high sensitivity
-
Screw-in mount for easy installation
-
Rugged ferrite magnet design
Applications
-
Replacement HF driver for PA speakers
-
DIY and custom-built loudspeakers
-
Suitable for tops, monitors, and portable PA systems
-
Compatible with standard 1″ screw-on horn flares
