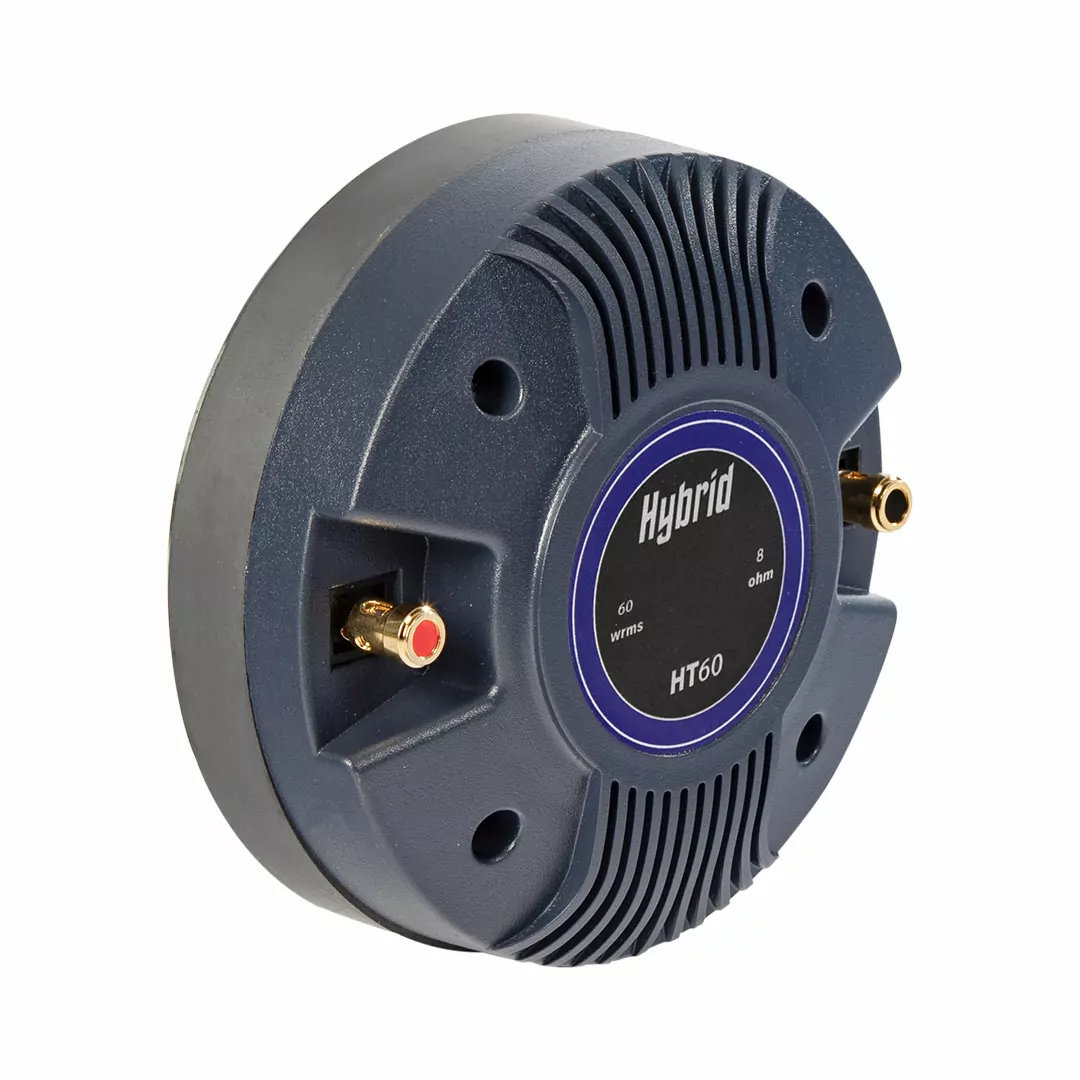

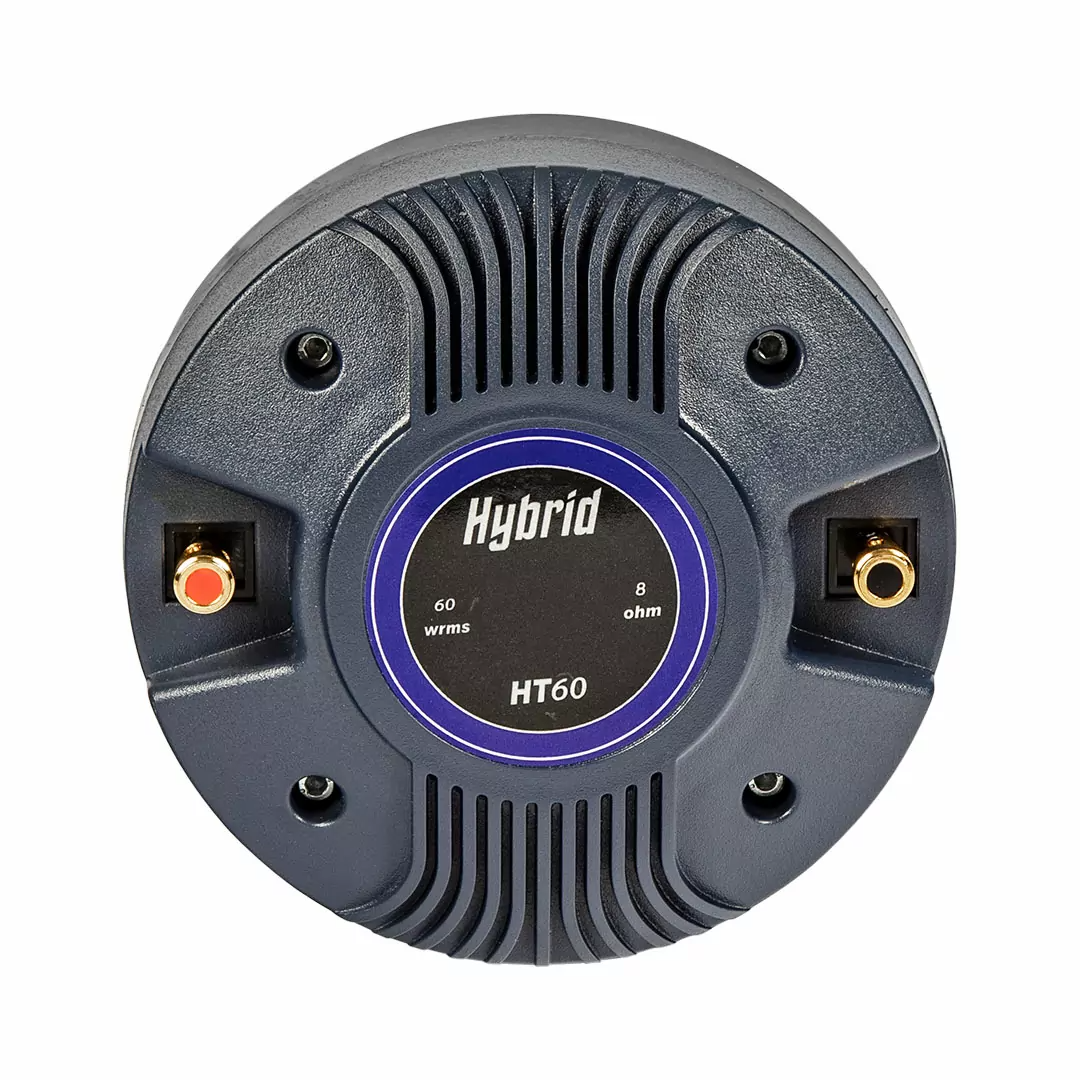

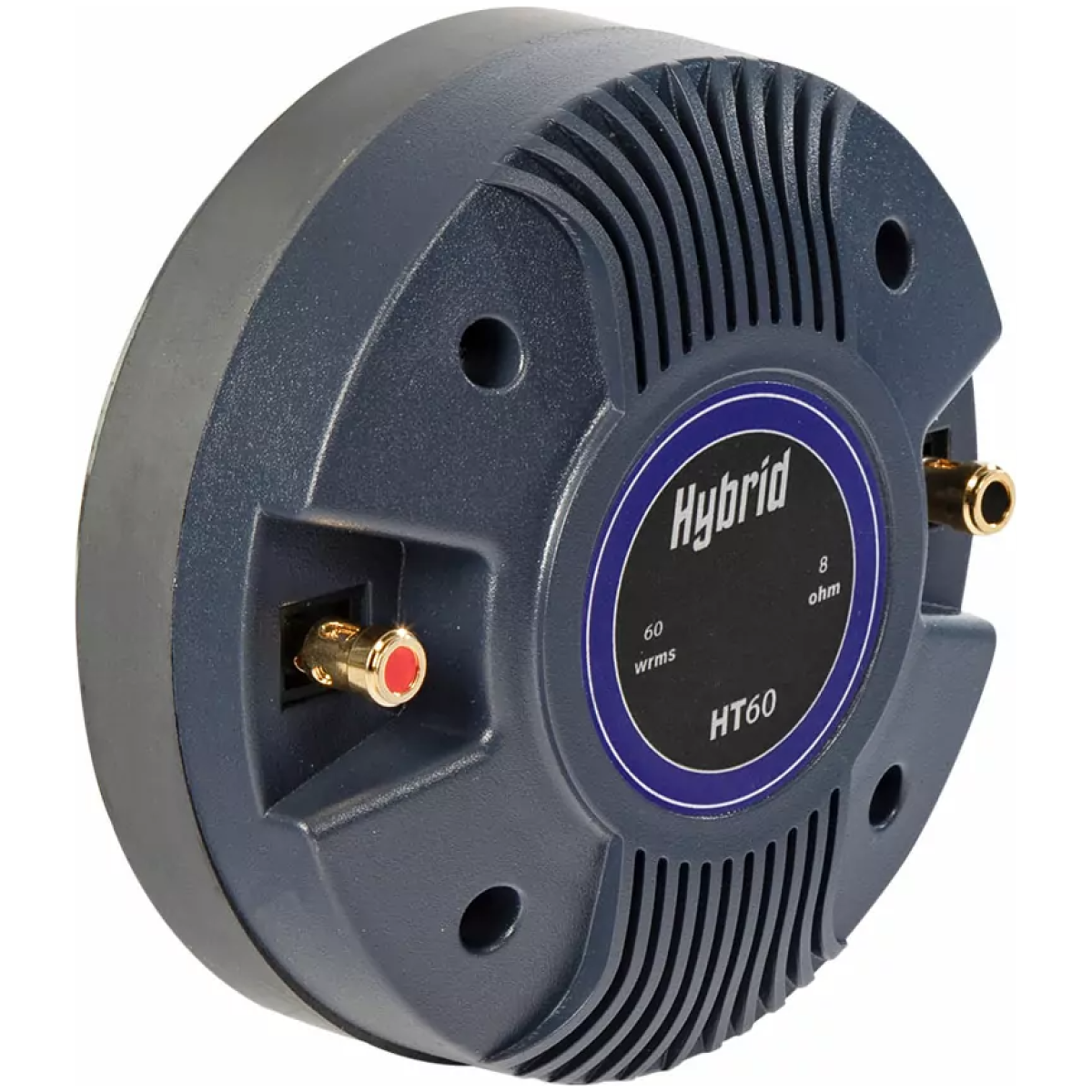

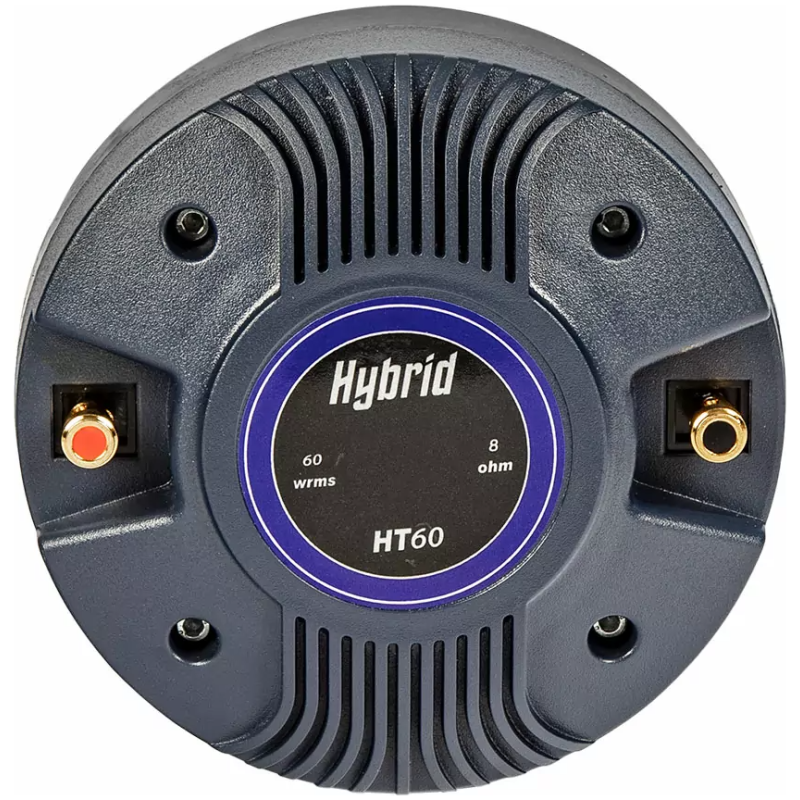

The Hybrid HT60 is a powerful 1″ high-frequency compression driver designed for mid- to large-sized PA systems. With a robust 60W RMS rating and screw-in 1″ throat, it offers high sensitivity and extended treble performance. Built with a ferrite magnet and copper voice coil, it is reliable for demanding live sound, installations, and replacement use.
Specifications
-
Throat Size: 1″ (25.4 mm) screw-in
-
Power Handling: 60W RMS / 120W Peak
-
Impedance: 8Ω
-
Voice Coil: 44 mm (1.75″) copper
-
Magnet Type: Ferrite
-
Frequency Response (usable): 1.2 kHz – 18 kHz (horn dependent)
-
Sensitivity (1W/1m): ~106 dB
-
Mounting: Standard screw-in (1″)
Features
-
High-power 1″ HF driver
-
Clear treble response with excellent sensitivity
-
Rugged ferrite magnet structure
-
Screw-in mounting for easy cabinet integration
-
Suitable for professional PA speakers and top cabinets
Applications
-
Replacement driver for PA tops and monitors
-
Custom speaker builds
-
Clubs, houses of worship, live events
-
Portable and installed PA systems
