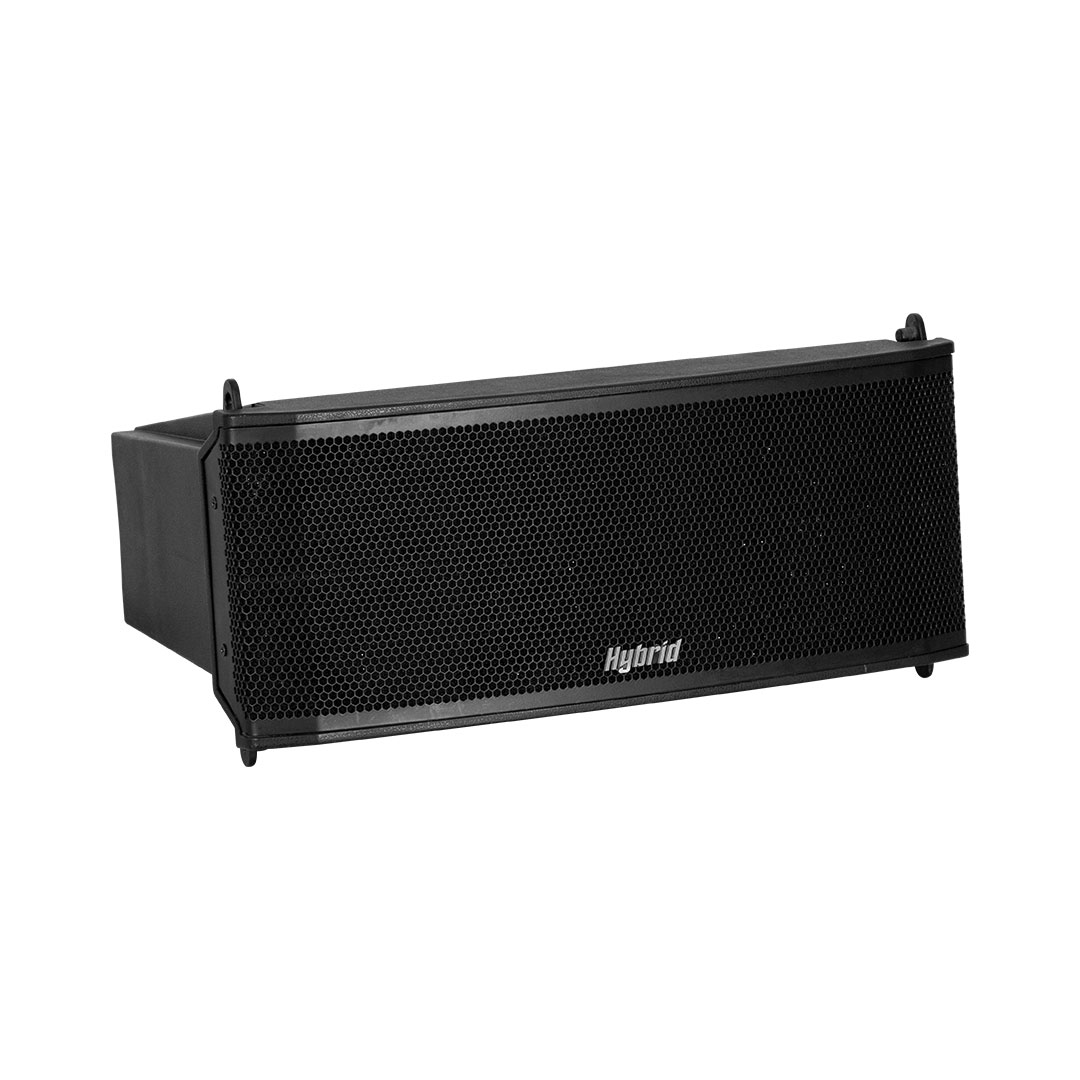

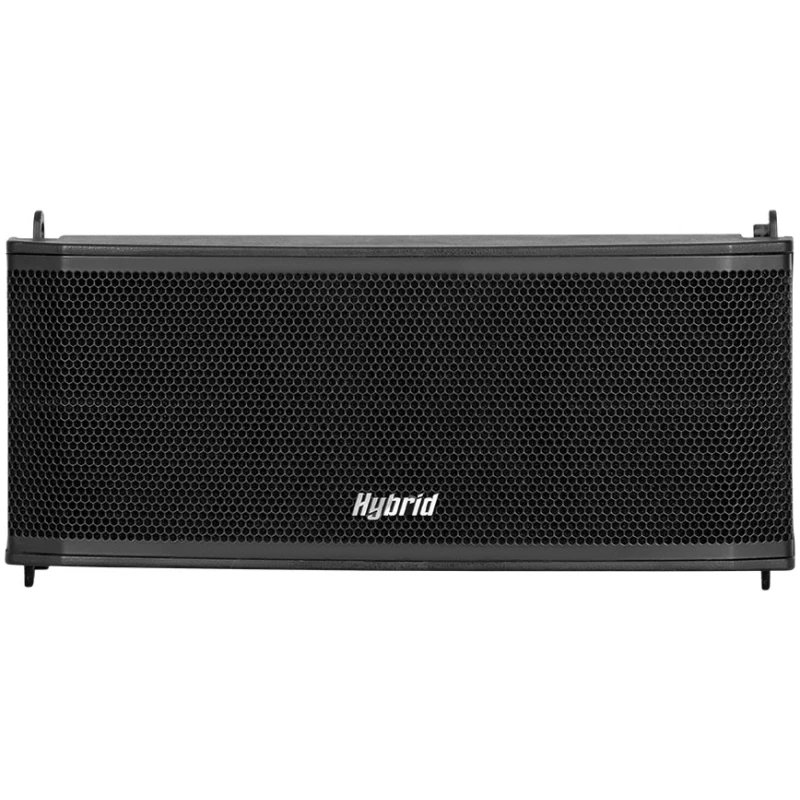

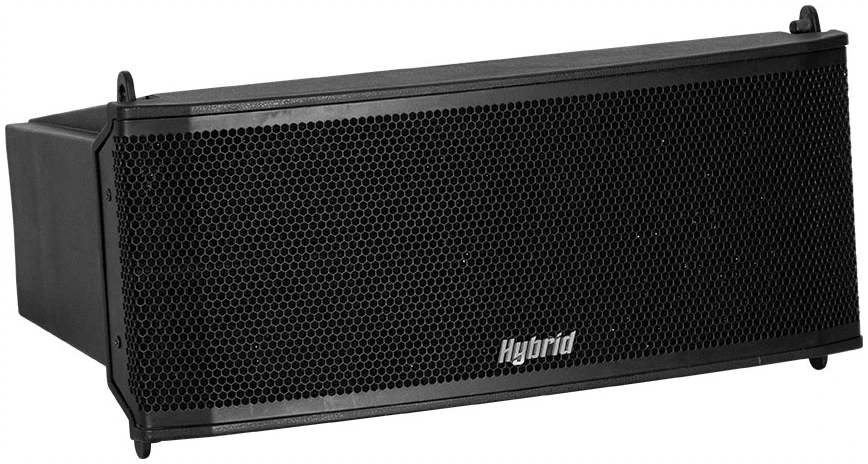

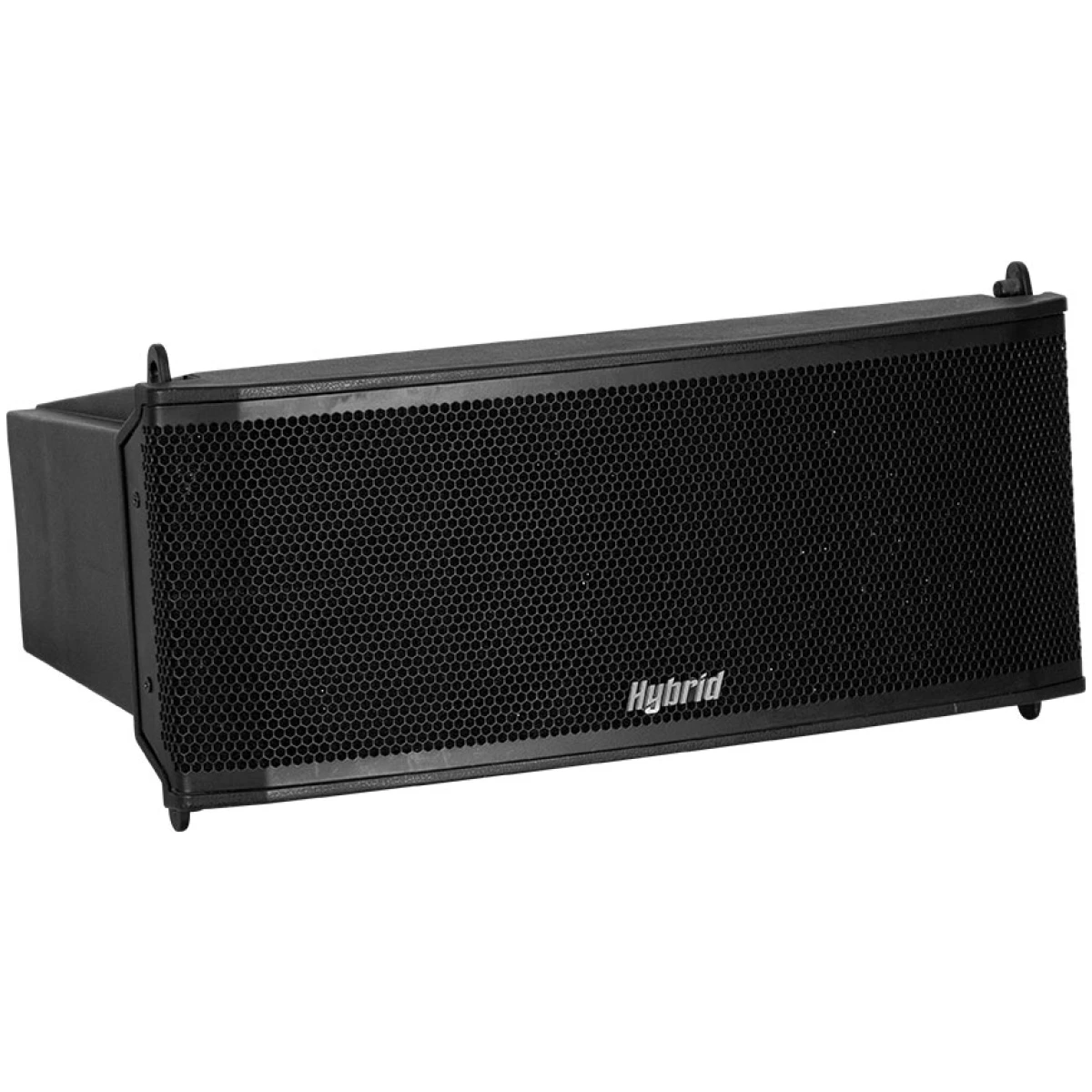

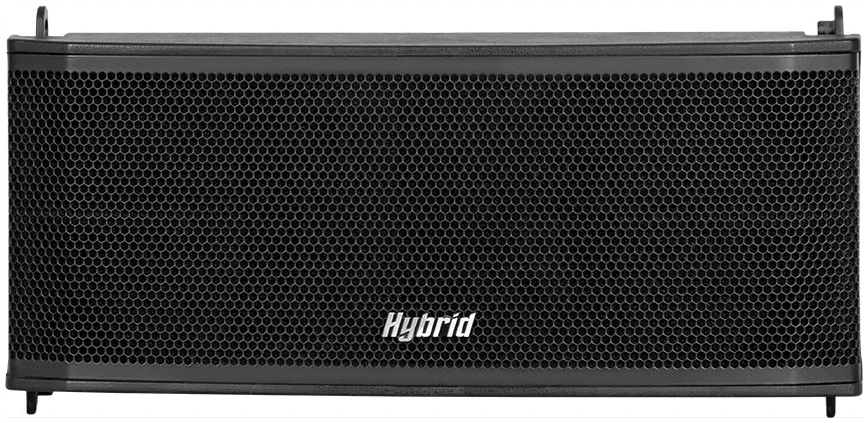

Hybrid L6P Passive Line Array

The Hybrid L6P is a compact passive line array module designed for small to medium venues, churches, schools, conference rooms, event companies, and portable PA systems. With dual 6-inch woofers, a dedicated HF driver with waveguide, and a lightweight enclosure, the L6P provides clear midrange, smooth highs, and wide horizontal coverage—ideal for speech and music reinforcement in scalable array configurations.

Key Features

• Passive line array module

• Dual 6-inch LF drivers for strong vocal projection and mid-bass response

• 1-inch HF compression driver with waveguide for precise high-frequency coverage

• Wide horizontal dispersion for consistent audience coverage

• Lightweight cabinet for easy rigging and transport

• Side-locking hardware for array linking

• Designed for flown arrays, pole-mounted clusters (with brackets), or stacked systems

• Ideal for churches, schools, conferences, small venues, and mobile PA users

Technical Specifications

(Approximate values typical for Hybrid L6P units; can be matched to exact printed specs if you send a box photo)

Acoustic

LF Drivers: 2 × 6″ woofers
HF Driver: 1 × 1″ compression driver
Nominal Impedance: 8 ohm
Power Handling (RMS): approx. 150–200 W
Program Power: approx. 300–400 W
Peak Power: approx. 600–800 W
Frequency Response: approx. 70 Hz – 18 kHz
Sensitivity: approx. 94–96 dB (1W/1m)
Horizontal Coverage: approx. 100°
Vertical Coverage: Array-dependent

Cabinet

Material: Polypropylene or wood composite (depends on batch)

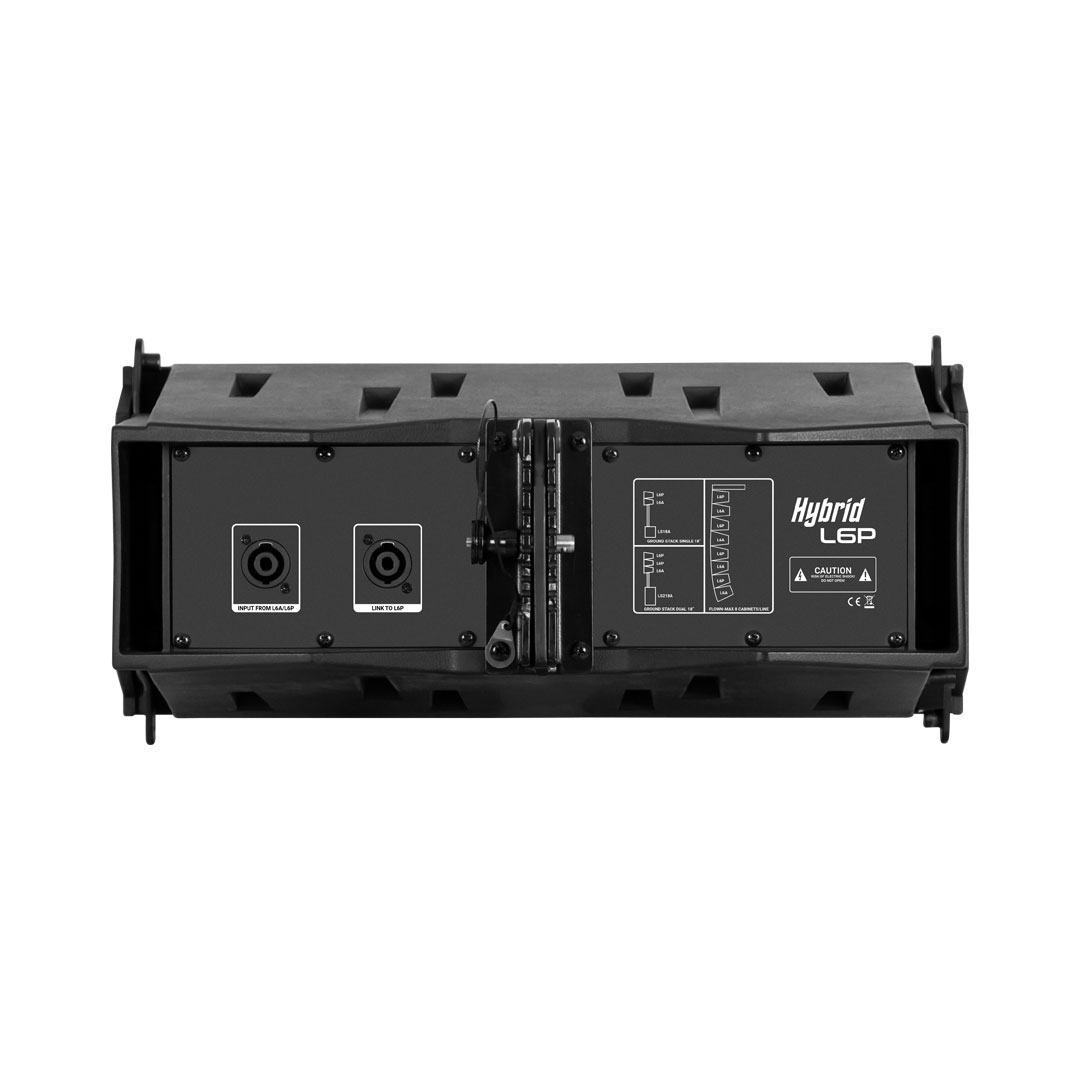

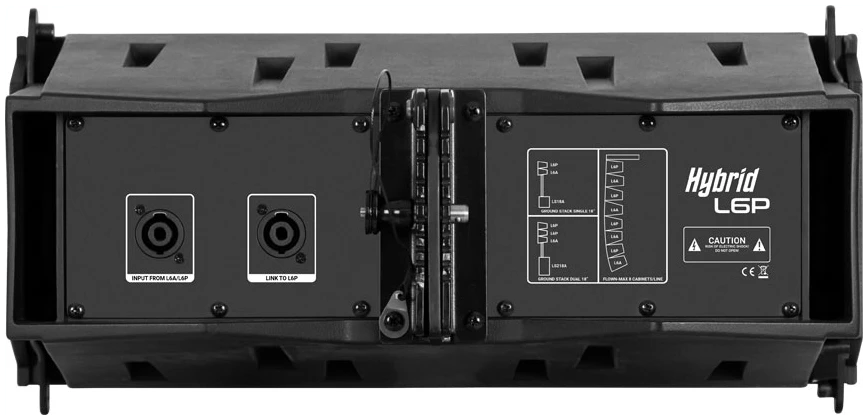

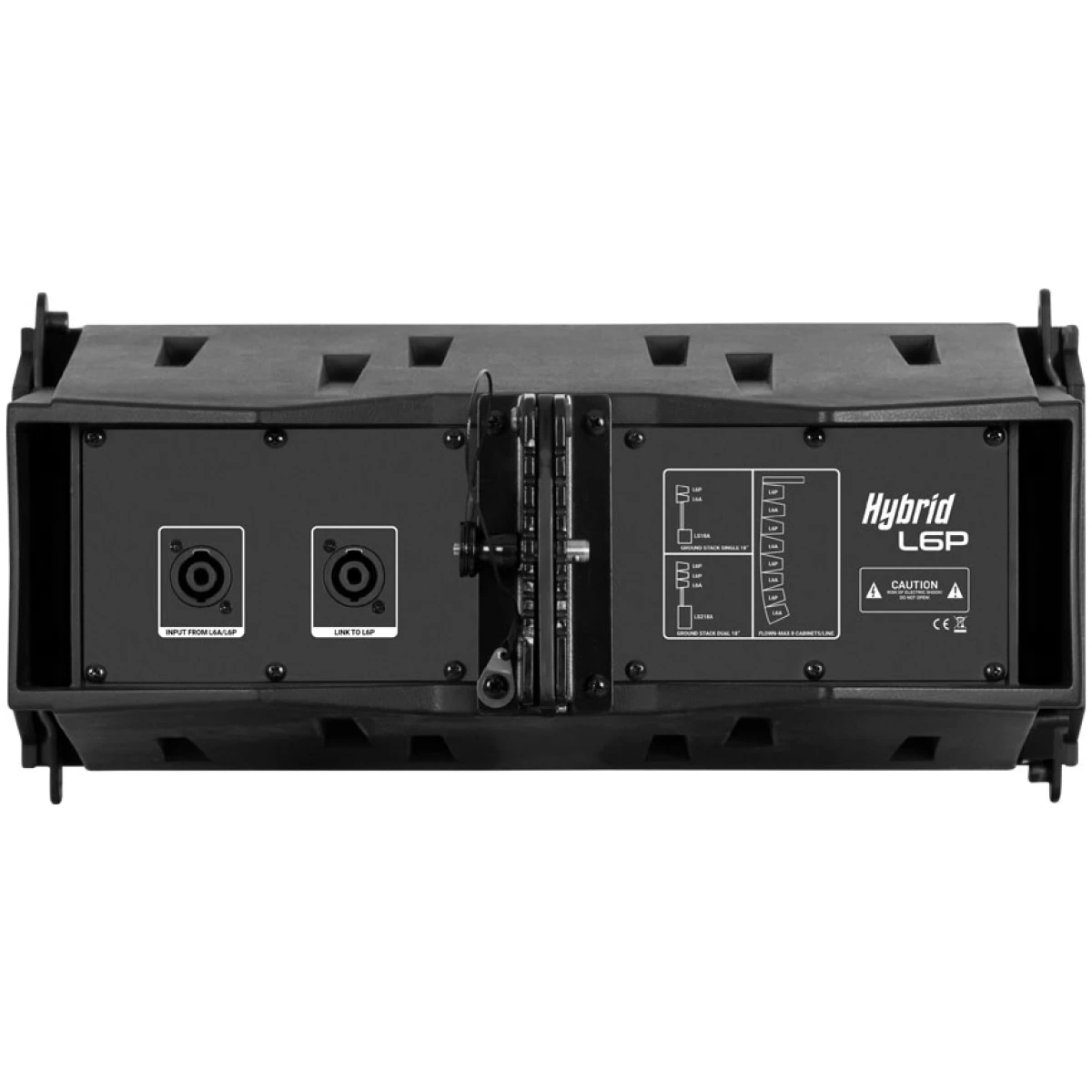

Rigging: Side-locking mechanism
Mounting:

• Flown arrays

• Pole-mount clusters (with adapter)

• Ground-stacked configurations
