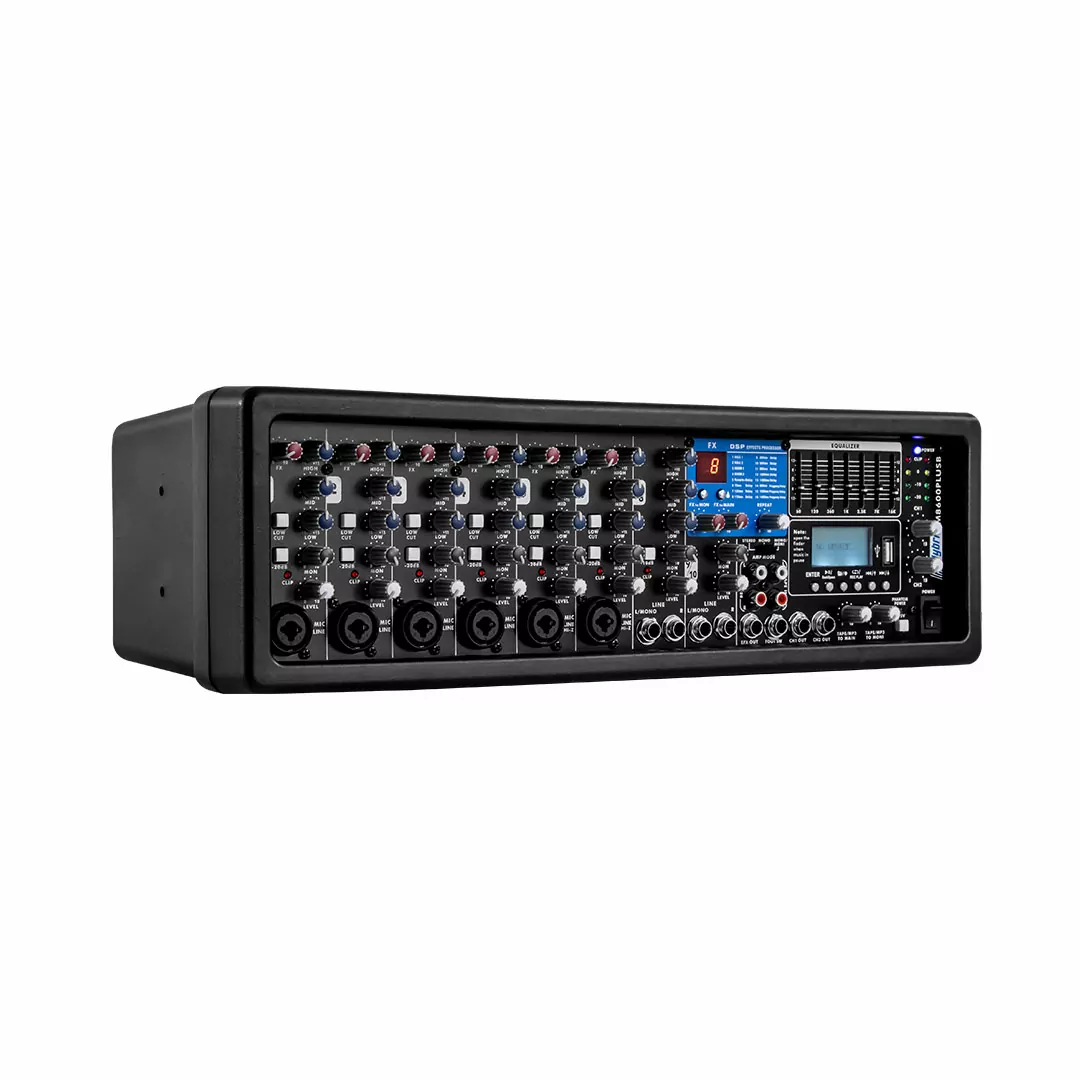

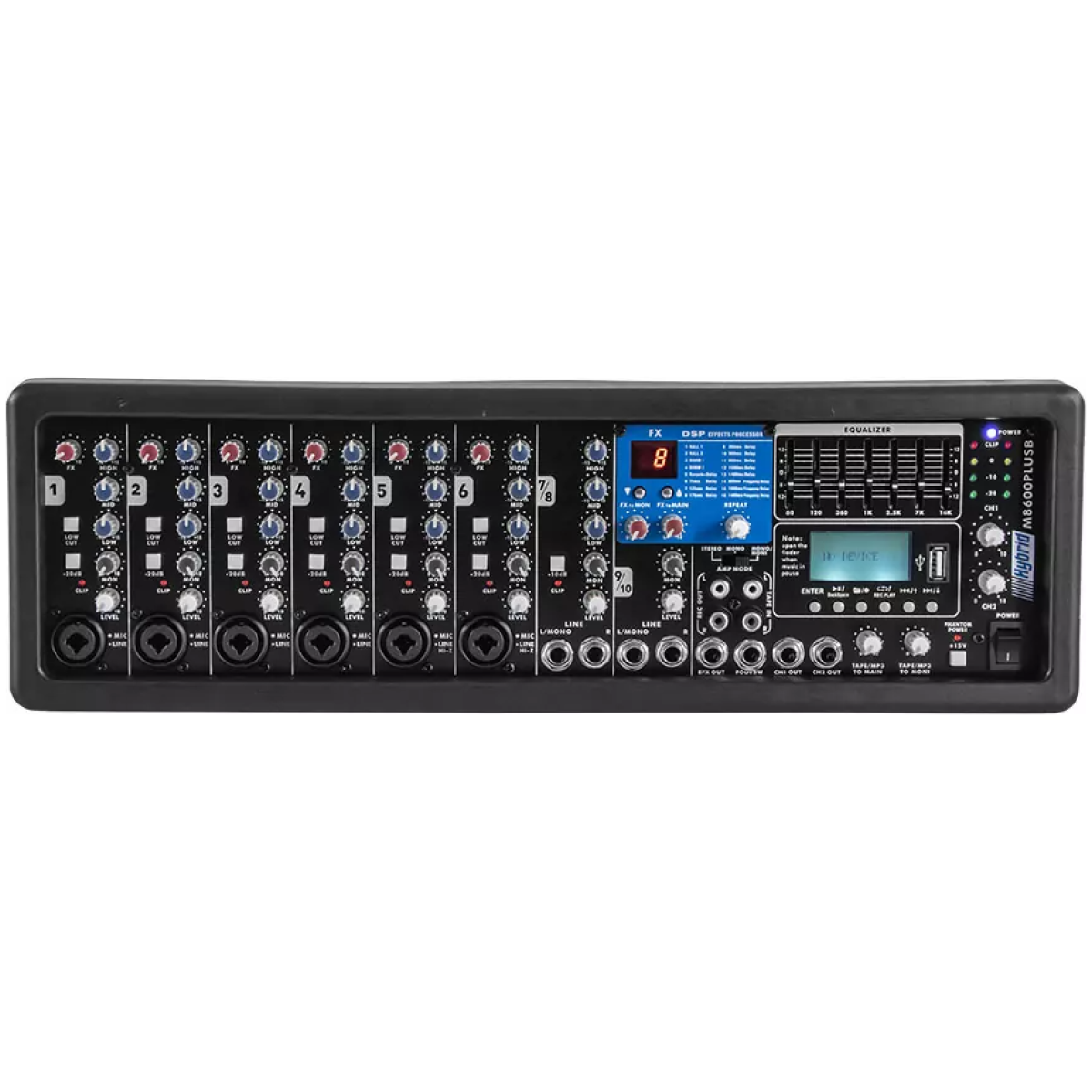

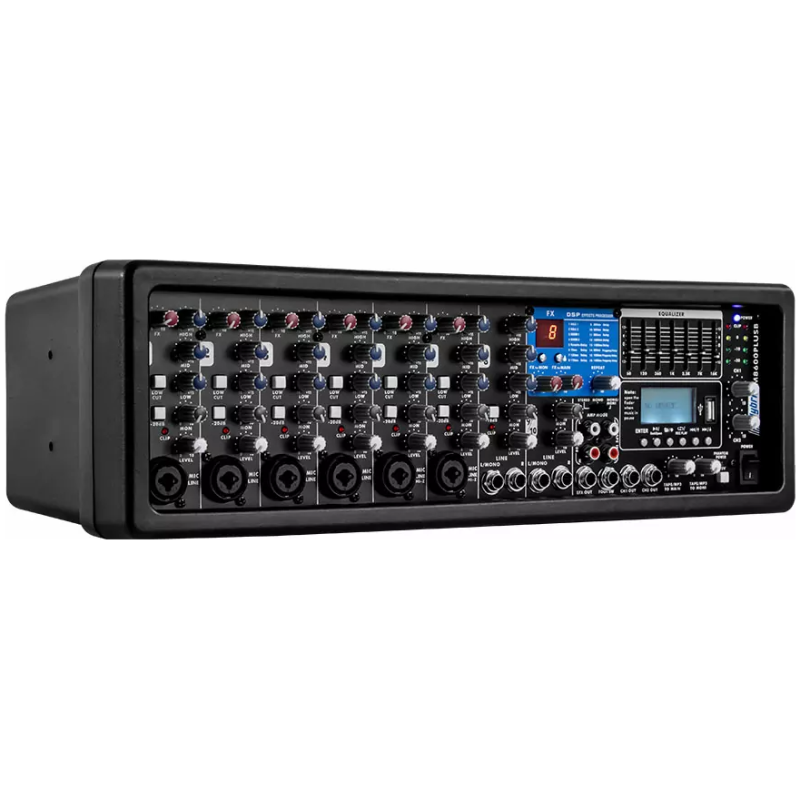

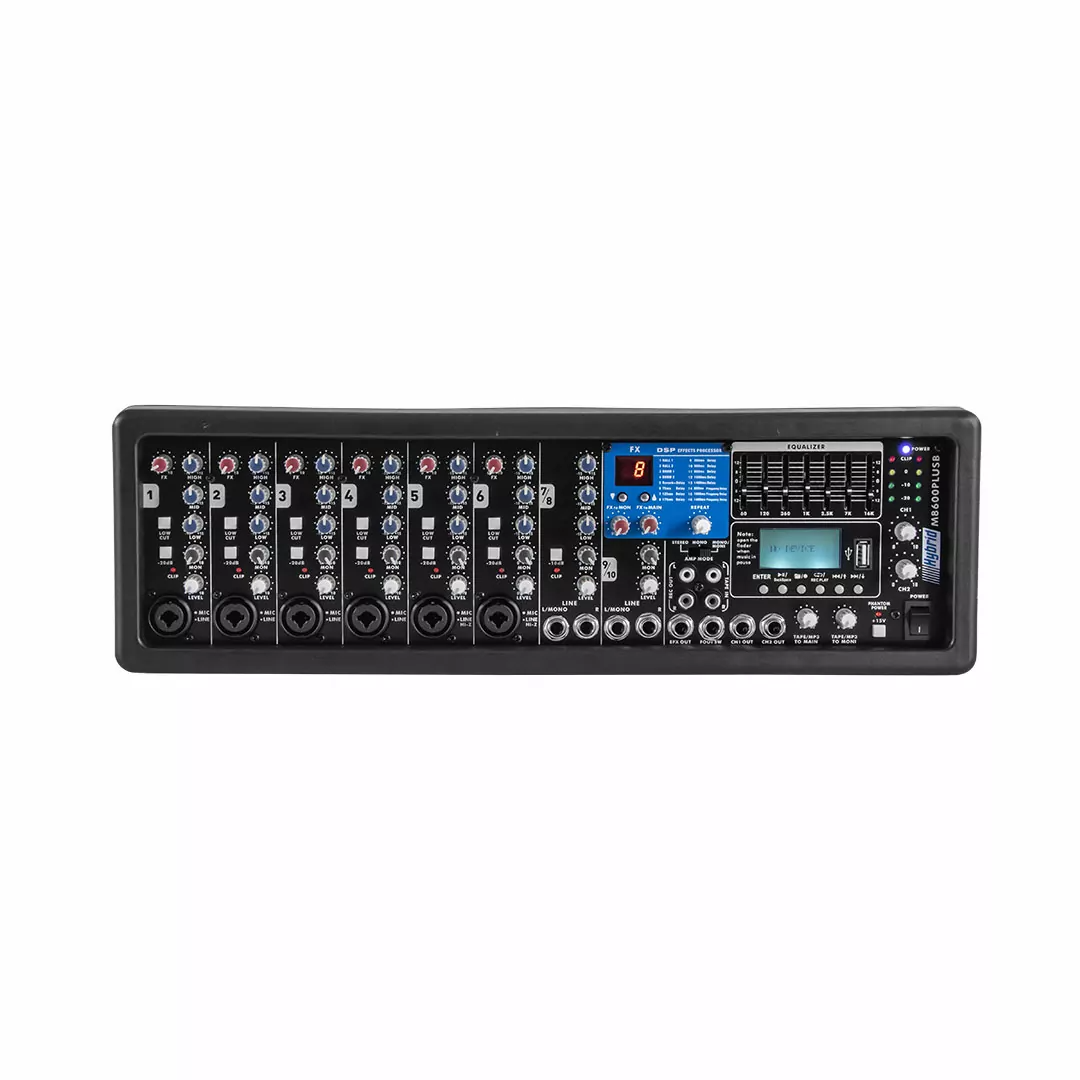

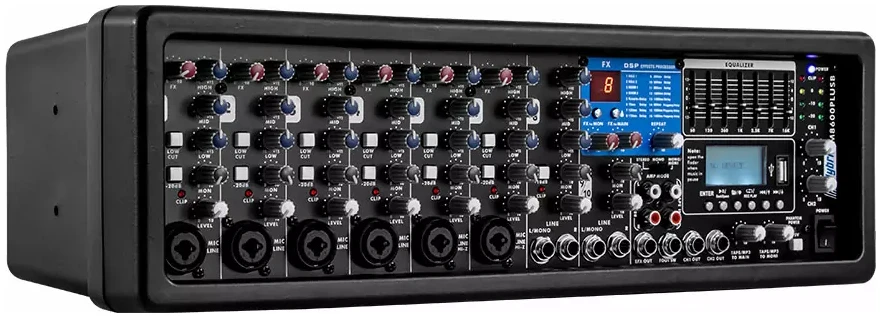

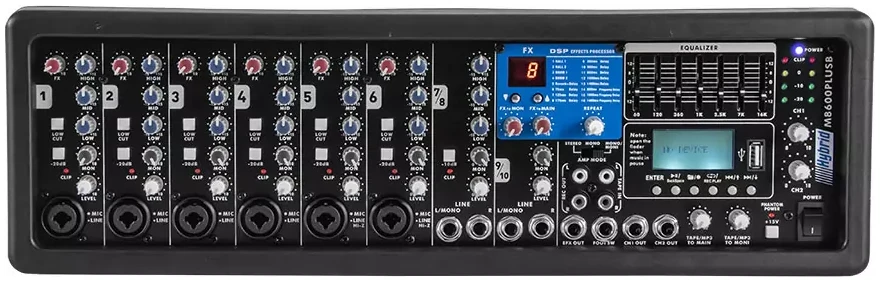

The Hybrid M8600PLUSB is a powerful and versatile 8-channel powered mixer combining a high-quality audio mixer, dual power amplifier, and built-in digital media player. Designed for live performances, mobile DJs, churches, and small venues, it features Bluetooth connectivity, USB/SD playback, and onboard digital effects – all housed in a rugged, portable chassis.
Specifications
-
Channels: 8 total
-
6 × Mono Mic/Line (XLR / ¼″ combo inputs)
-
2 × Stereo Line (RCA / ¼″ inputs)
-
-
Power Output:
-
Per Channel @ 8Ω: 2 × 300W RMS
-
Per Channel @ 4Ω: 2 × 450W RMS
-
Bridged @ 8Ω: 1 × 900W RMS (typical)
-
-
Inputs: XLR, TRS (¼″), RCA, USB, Bluetooth
-

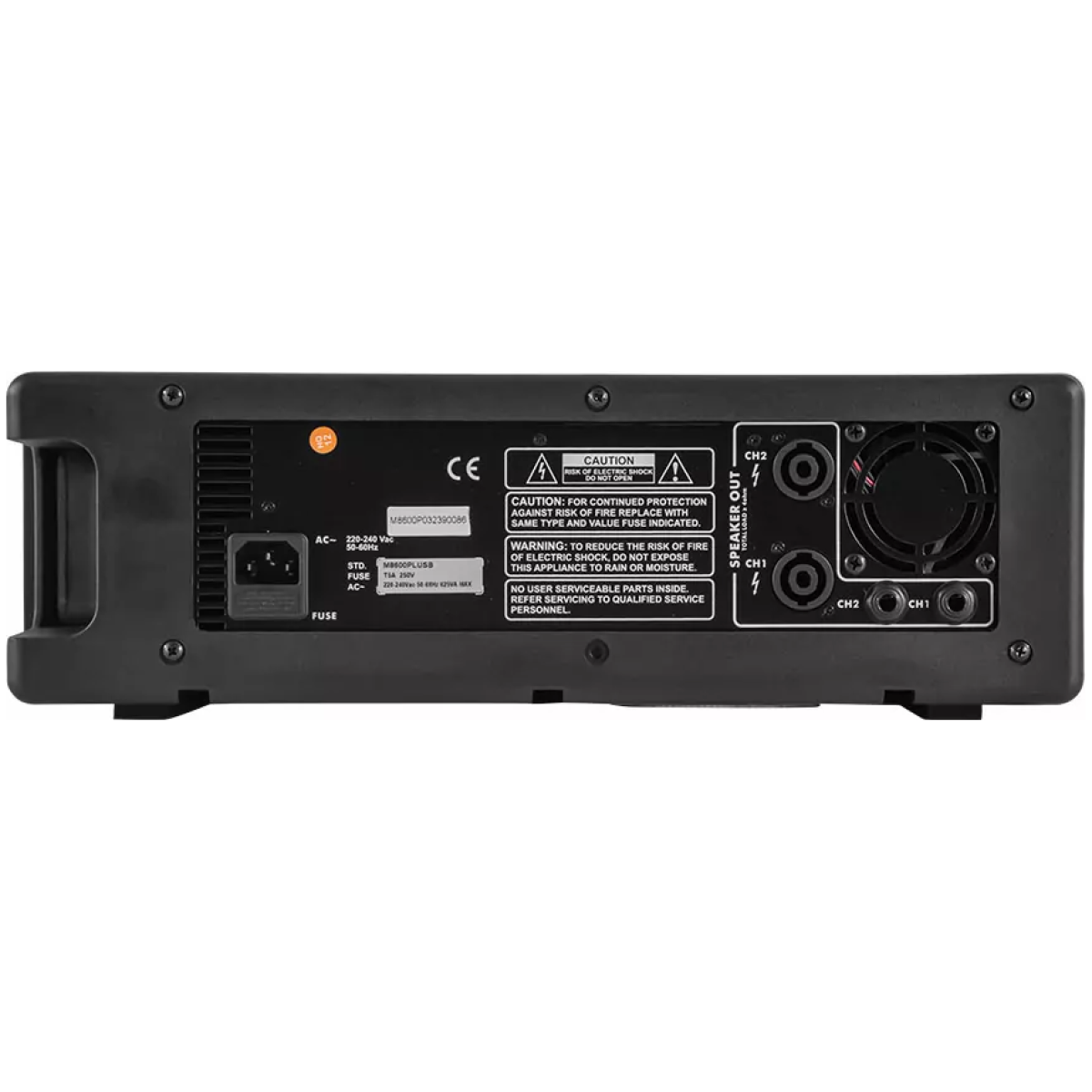

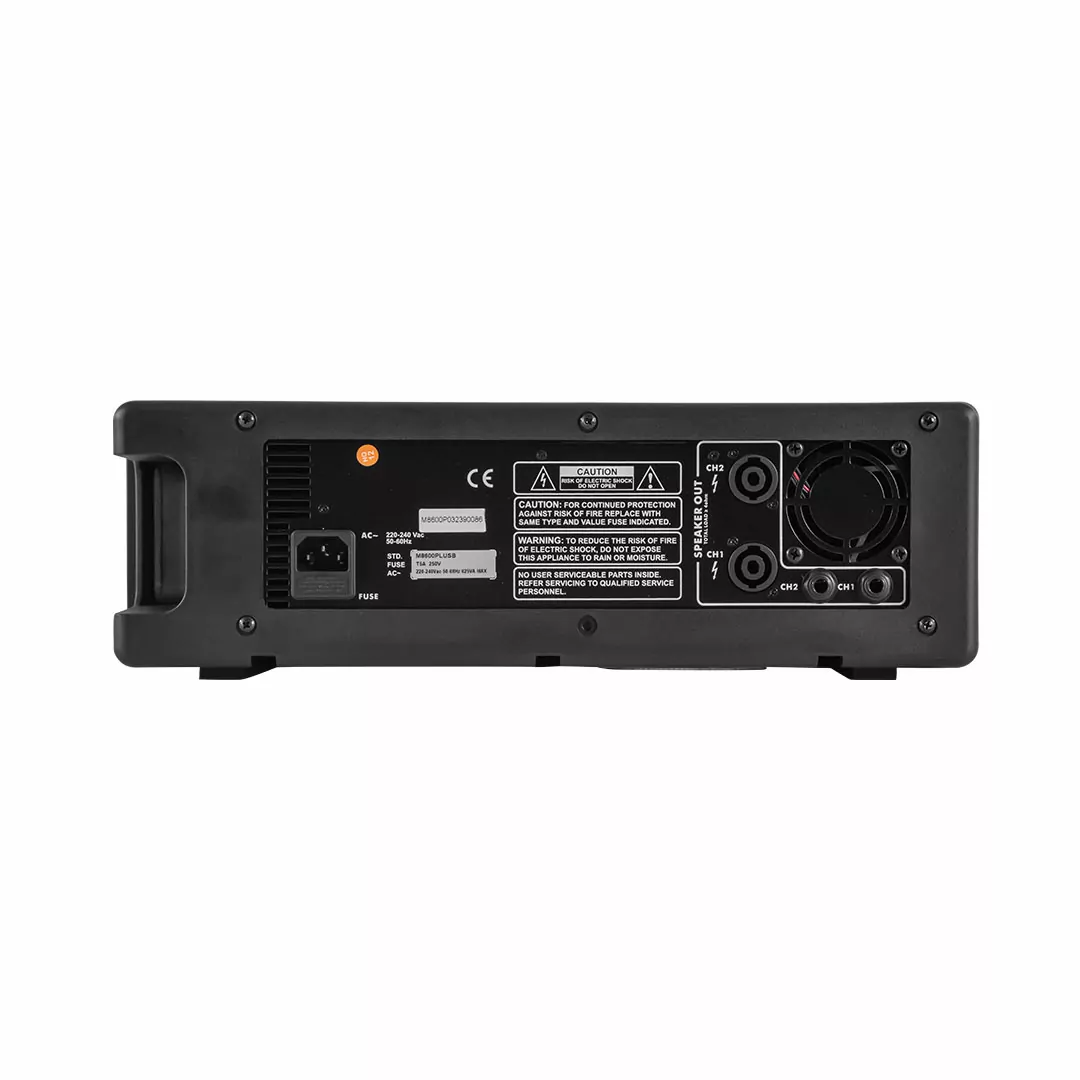

Outputs:
-
Speaker Out (¼″ jack / binding posts)
-
Main Out (¼″ TRS)
-
Rec Out (RCA)
-
Headphones (¼″ TRS)
-
-
Media Player: USB / SD / Bluetooth with LCD display and control buttons
-
Digital Effects Processor: Built-in DSP (Reverb, Delay, Echo, Chorus)
-
Channel EQ: 3-band EQ (High / Mid / Low)
-
Master EQ: 7-band Graphic EQ
-
Phantom Power: +48V switchable
-
Cooling: Fan-cooled amplifier section
-
Construction: Rugged metal housing with top carry handle
-
Power Supply: Internal
Features
-
Dual 300W RMS powered mixer – built for live sound and portable PA
-
Integrated USB/SD media player and Bluetooth streaming
-
Onboard DSP effects with adjustable parameters
-
3-band EQ on all input channels
-
7-band master EQ for room correction
-
Ideal for performers, small bands, DJs, and mobile sound setups
Applications
-
Live sound and events
-
Churches, schools, and conferences
-
Rehearsal and practice spaces
-
Portable PA systems and rental use
