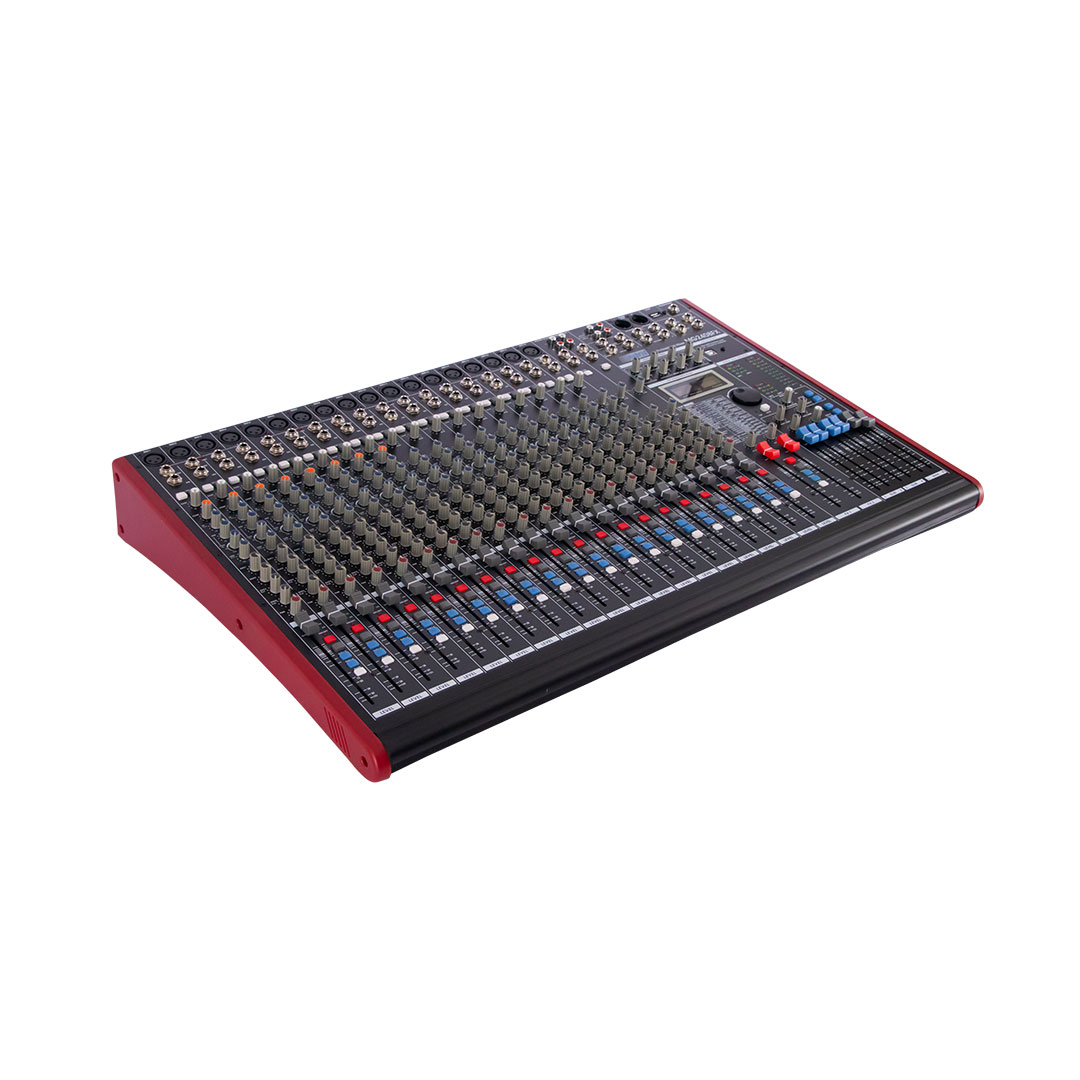

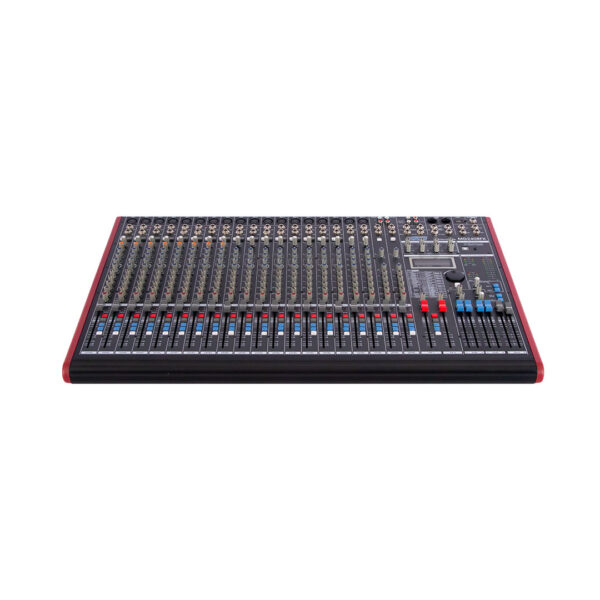

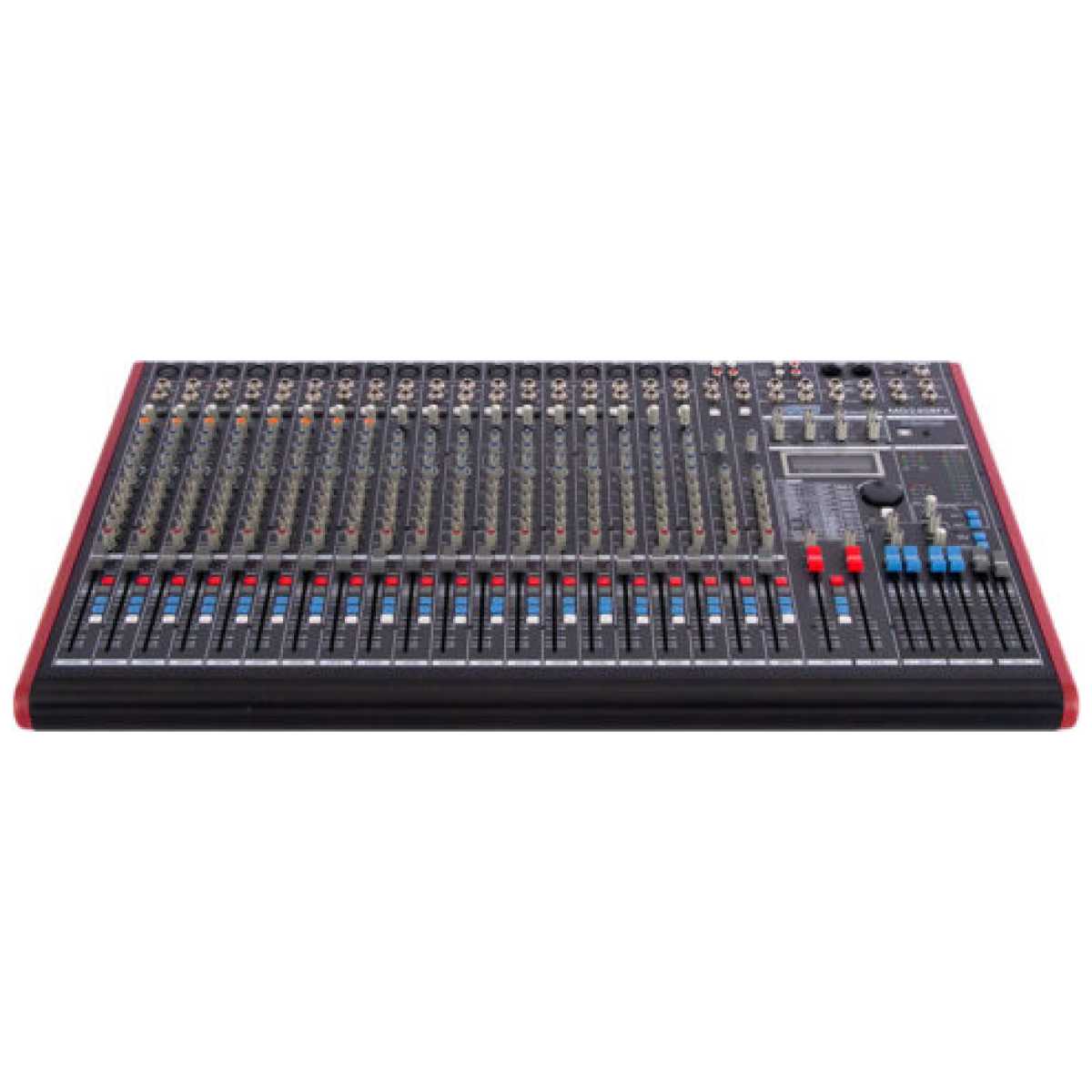

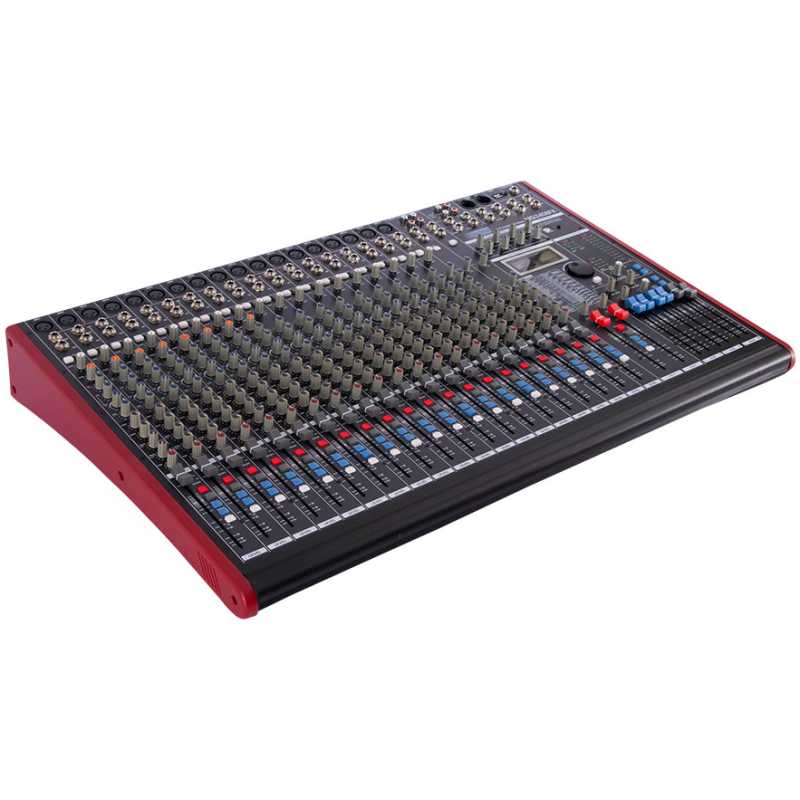

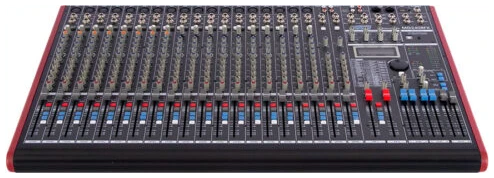

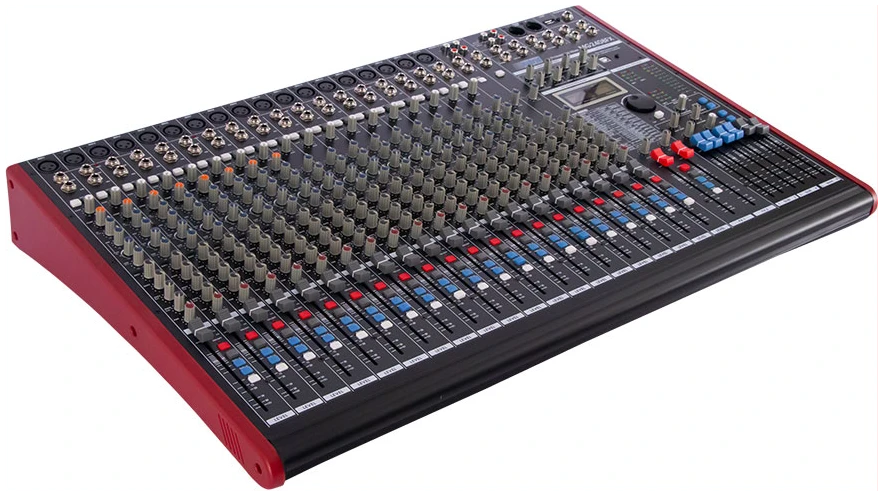

Hybrid MG2408FX 24 Channel Mixer

Mixer – Live, Analogue

The Hybrid MG2408FX is an 18 + 2 channel, large format, analogue live mixer, suited for virtually any large production thanks to its many mono input channels and abundance of features.

MG2408FX
Large Format Analogue Live Mixer
Mono Channels: 18, Mic – XLR, Line -1/4″, Insert – 1/4″ Jack with independent rotary Gain and 100mm Level faders
Stereo Channels: 2, 1/4″ Jack and RCA with independent 100mm Level faders
Mono Channel EQ: 3-band rotary, Low, Parametric Mid and High
Stereo Channel EQ: 2-band rotary, Low and High
Mono Channel Controls CH1-8: Low cut switch, -20dB switch, Compression, Aux 1-4, Effects 1-2, Pan, Sub-group 1-2 switch, Sub-group 3-4 switch, Mute switch with LED, PFL switch, Main switch, Signal and Peak LED
Mono Channel Controls CH9-18: Low cut switch, -20dB switch, Aux 1-4, Effects 1-2, Pan, Sub-group 1-2 switch, Sub-group 3-4 switch, Mute switch, PFL switch, Main switch, Signal and Peak LED
Stereo Channel Controls: -10dB switch, Aux 1-4, Effects 1-2, Balance, Sub-group 1-2 switch, Sub-group 3-4 switch, Mute switch, PFL switch, Main switch, Signal and Peak LED
Effects: 2 Channel, 99 DSP Effects, FX1 100mm fader, FX2 100mm fader, Effects send, Aux, Effects, Sub-group 1-2 switch, Sub-group 3-4 switch, Mute switch, PFL switch, Main switch and Clip LED
Aux Returns (1-4): 8 rotary , Stereo – L&R

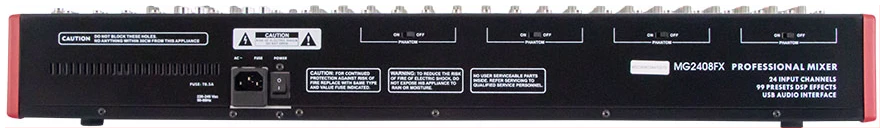

Phantom Power: Back panel switchable, banks of 4, input channels 1-16
Monitor: 1/4″ Jack, Rotary headphone level, Sub-group 1-2 switch, Sub-group 3-4 switch
Master Controls: Sub-group 1-4, Main L&R – 100mm faders, Aux 1 and 2 send, Aux return, Tape in – rotary
Indicators: Dual 12 LED output level, 4 LED Sub-groups 1-4
USB Interface

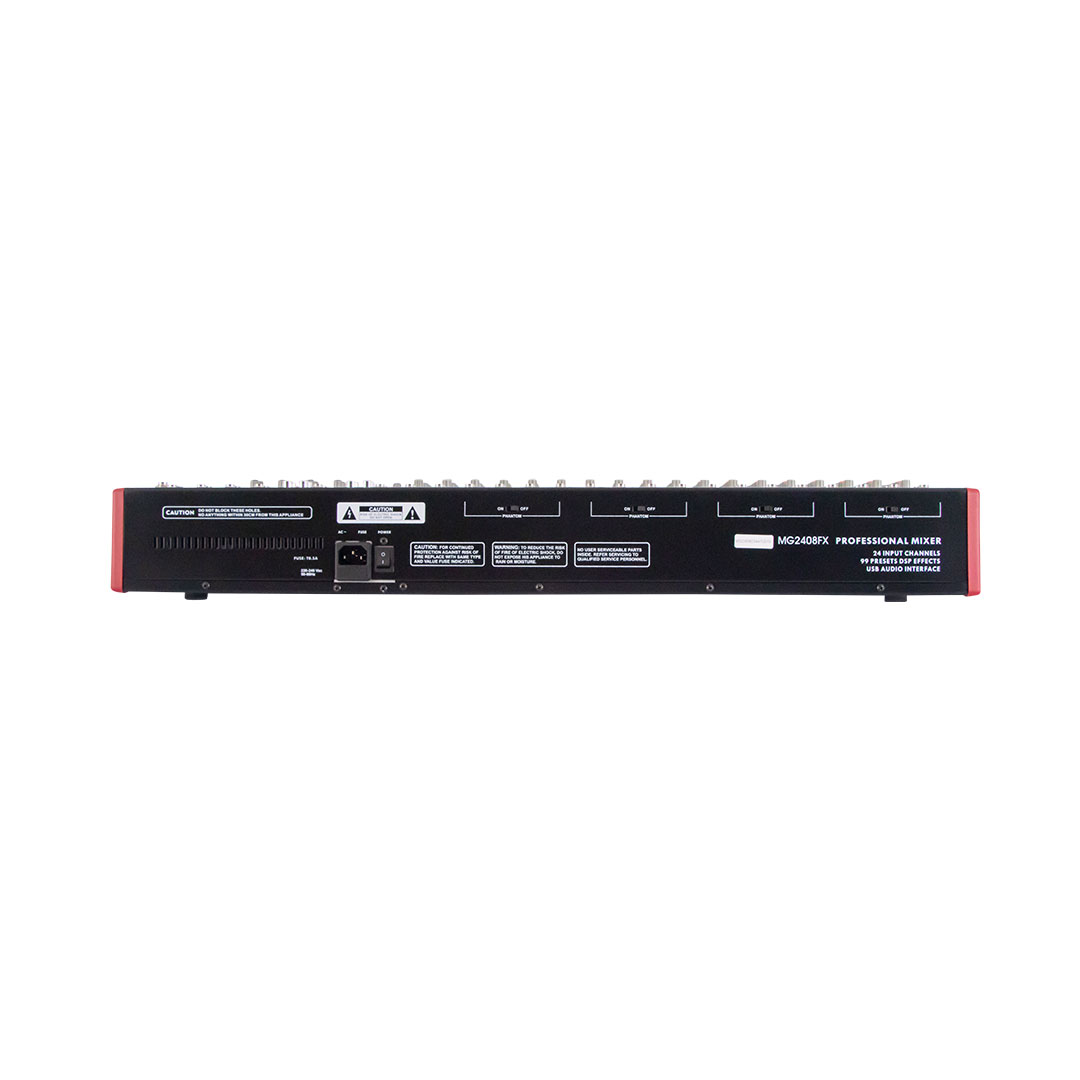

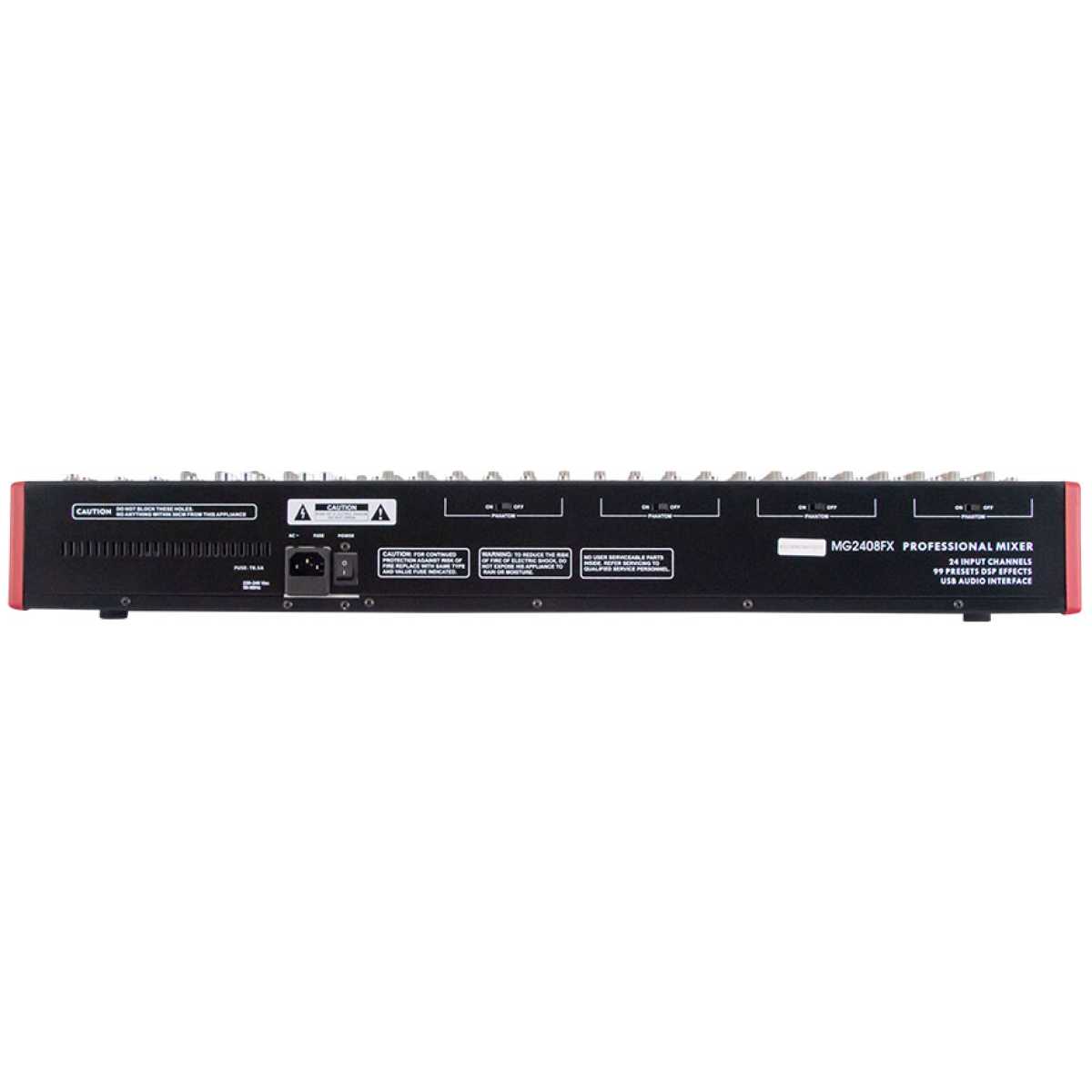

Outputs: Balanced XLR L&R, Unbalanced 1/4″ L&R, RCA Tape-in and record
