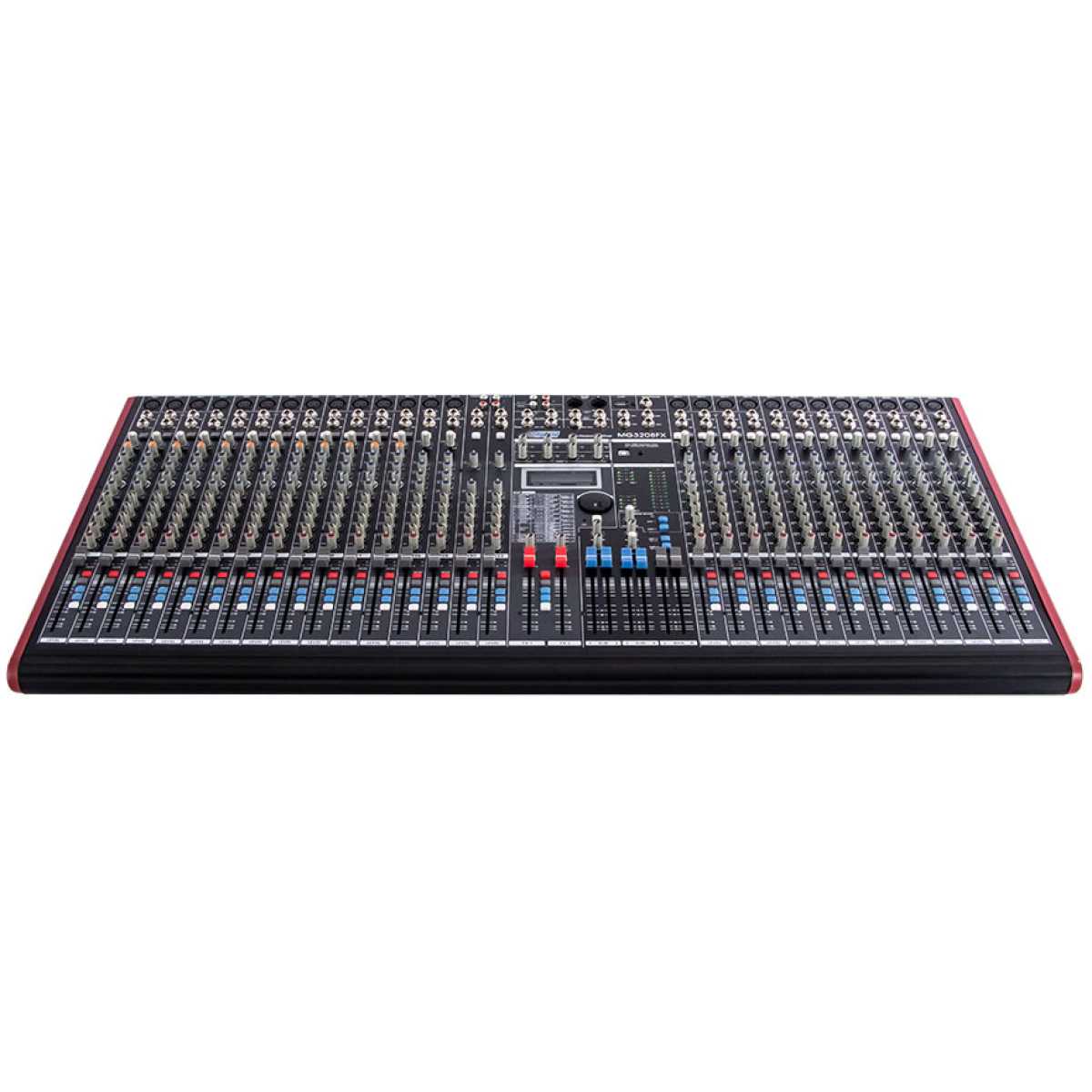

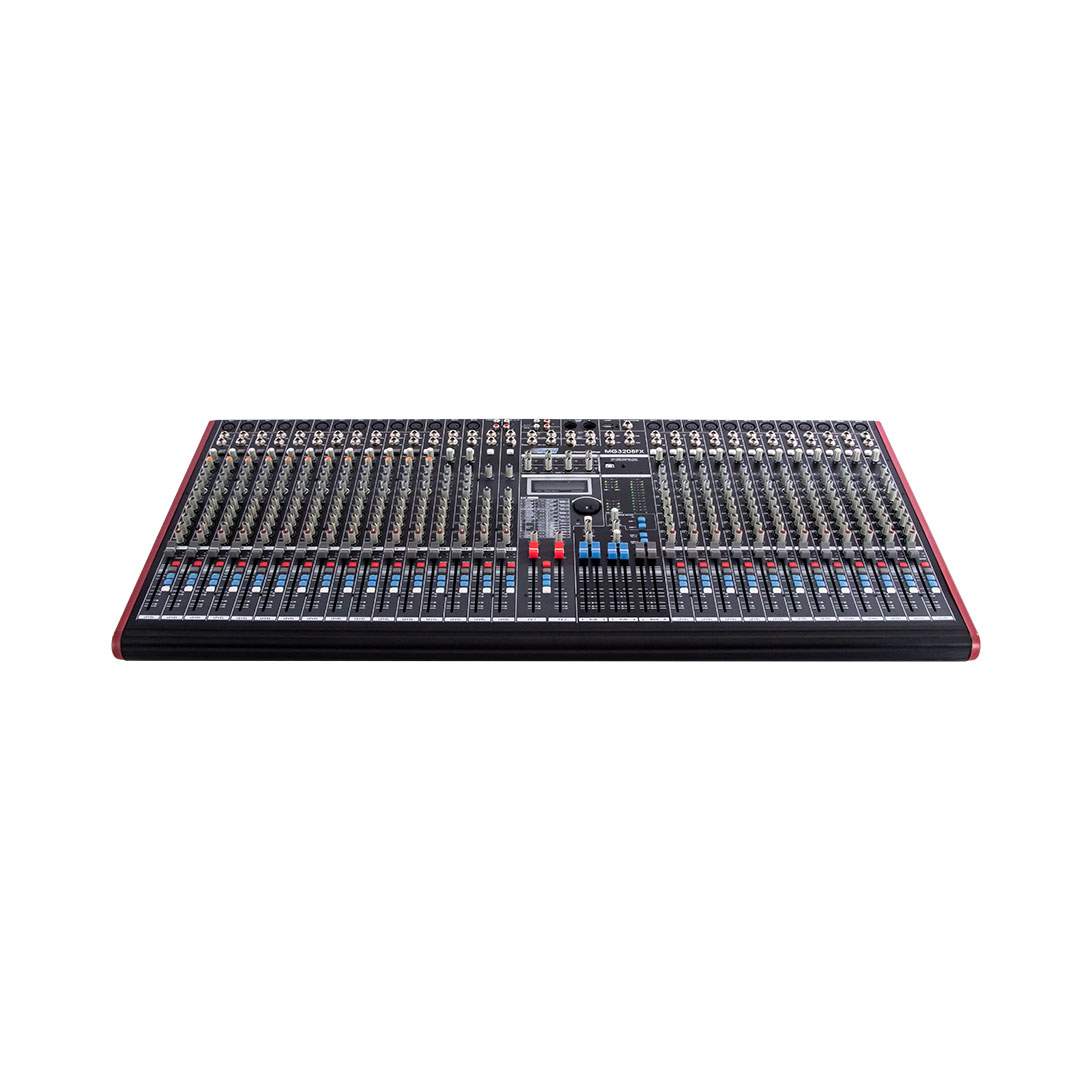

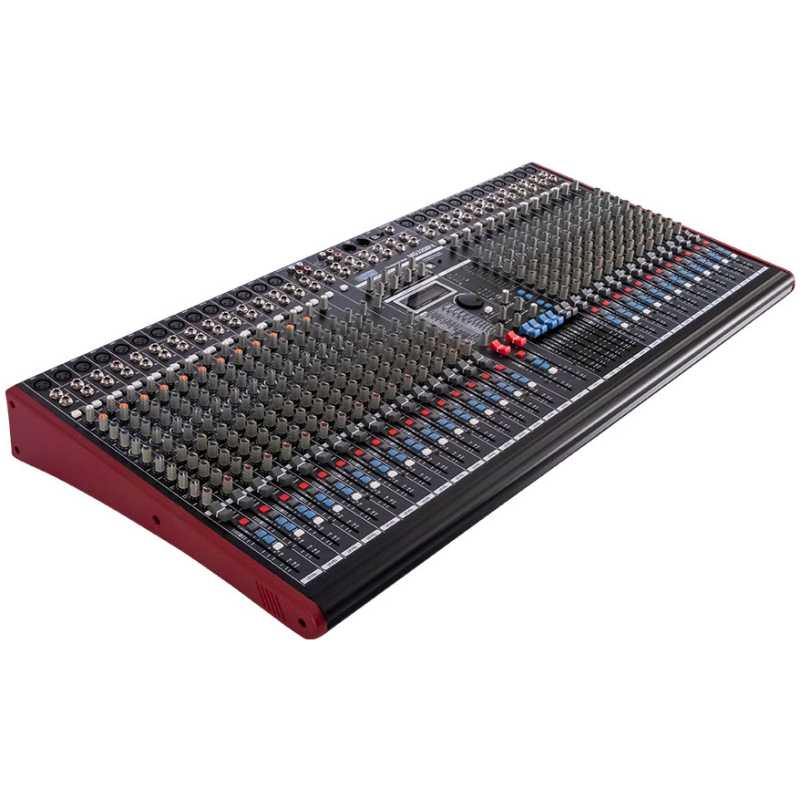

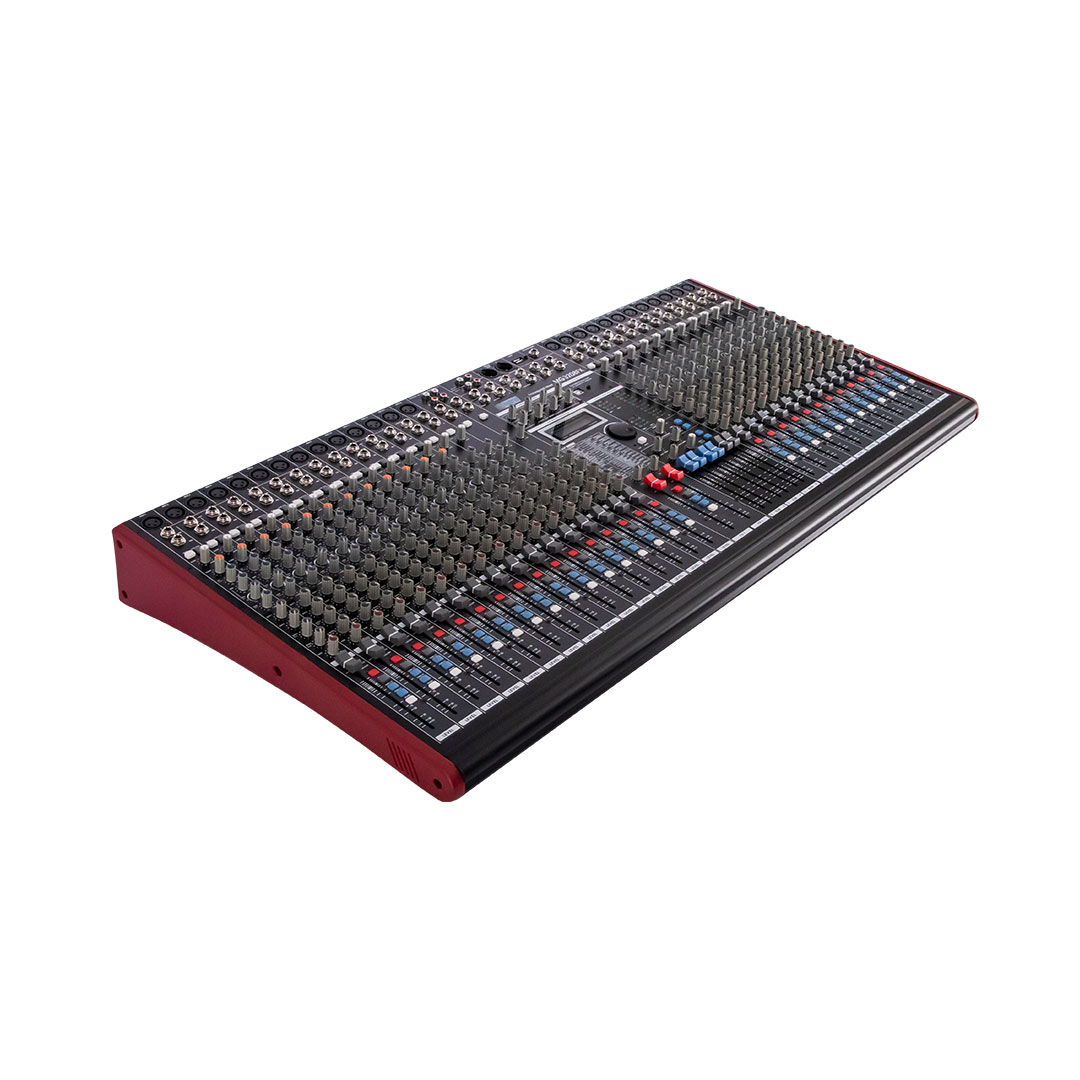

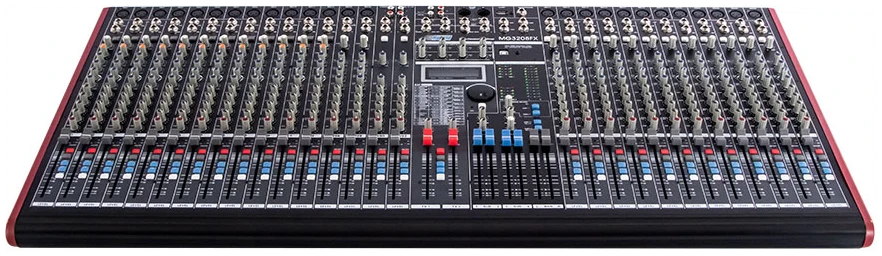

Hybrid MG3208FX 32 Channel Mixer

Mixer – Live, Analogue

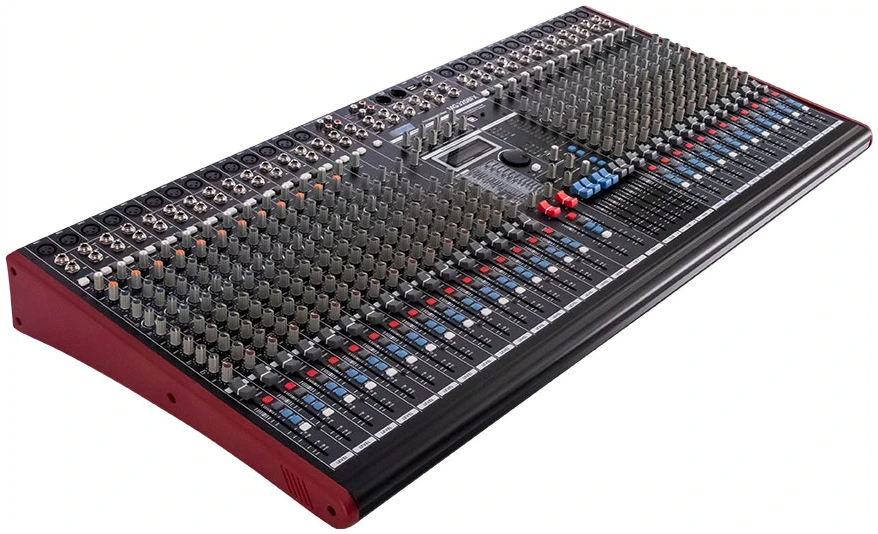

The Hybrid MG3208FX is a 26 + 4 channel, large format, analogue live mixer.
The MG3208FX hosts a number of features such as dual 99 pre-set digital effects processor, a USB audio interface, phantom power for condenser microphones, 4 Sub-groups and many more. This makes it ideal for large productions such as those commonly found in places of worship and stages.

MG3208FX
Large Format Analogue Live Mixer
Mono Channels: 26, XLR (Mic), 1/4″ Jack (Line), 1/4″ Jack(Insert) with independent rotary Gain, Long-travel 100mm Level fader and Compression control on 12 channels
Stereo Channels: 2, 1/4″ Jack with Long-travel 100mm Level fader
Mono Channel EQ: 3-band rotary, Low, Parametric Mid and High
Stereo Channel EQ: 2-band rotary, Low and High
Mono Channel Controls: Low cut switch, -20dB switch, Pan, Aux 1&2 send, FX 1&2 send, Mute switch, PFL switch, Sub-group 1/2 switch, Sub-group 3/4 switch, Main switch, Signal LED, Peak LED
Stereo Channel Controls: -10dB switch, Balance, Aux 1&2 send, FX 1&2 send, Mute switch, PFL switch, Sub-group 1/2 switch, Sub-group 3/4 switch, Main switch, Signal LED, Peak LED
Effects: Dual 99 Digital Effects Processors, FX send, Mute switch, PFL switch, Sub-group 1/2 switch, Sub-group 3/4 switch, Main switch, Clip LED
Audio Interface: USB B
Master Channel Controls: L&R Main 100mm faders, Sub-group 1-4 100mm faders, Aux 1&2 send, Headphone volume, Tape in control, 48V Phantom switch (Groups of 4 channels), Stereo Aux returns 1-4

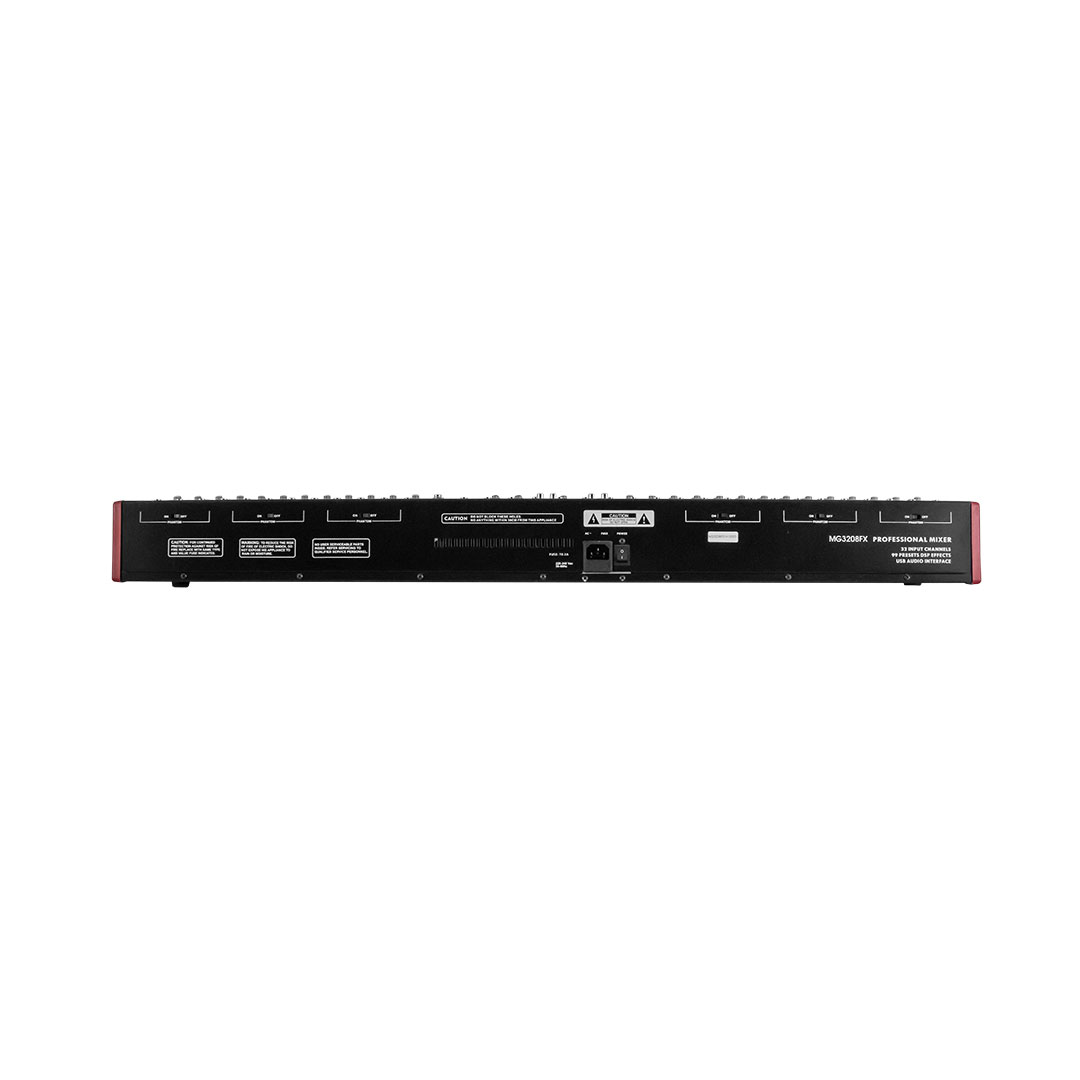

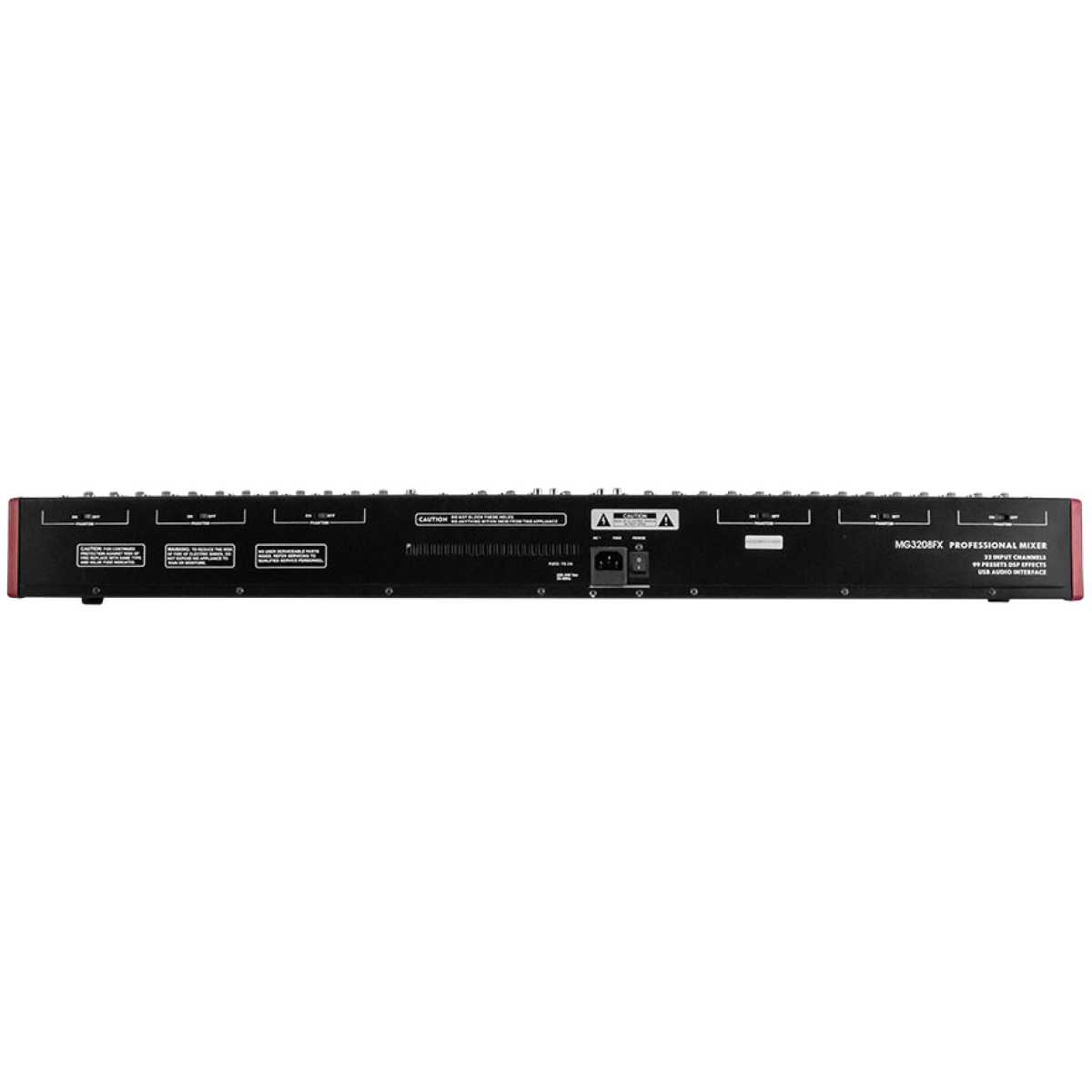

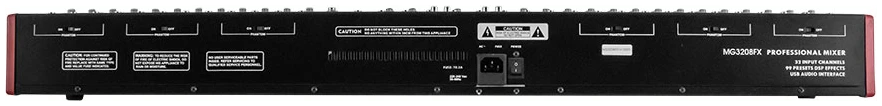

Outputs: Balanced XLR Main, Unbalanced 1/4″ Jack Main
