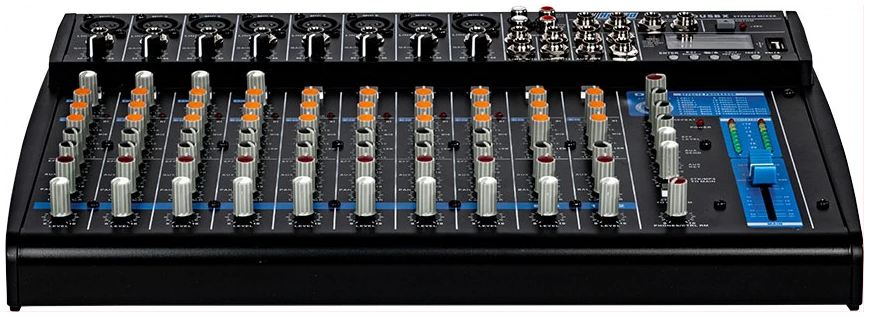

Hybrid ML1202DUSBX 12 Channel Mixer

Analogue Mixer

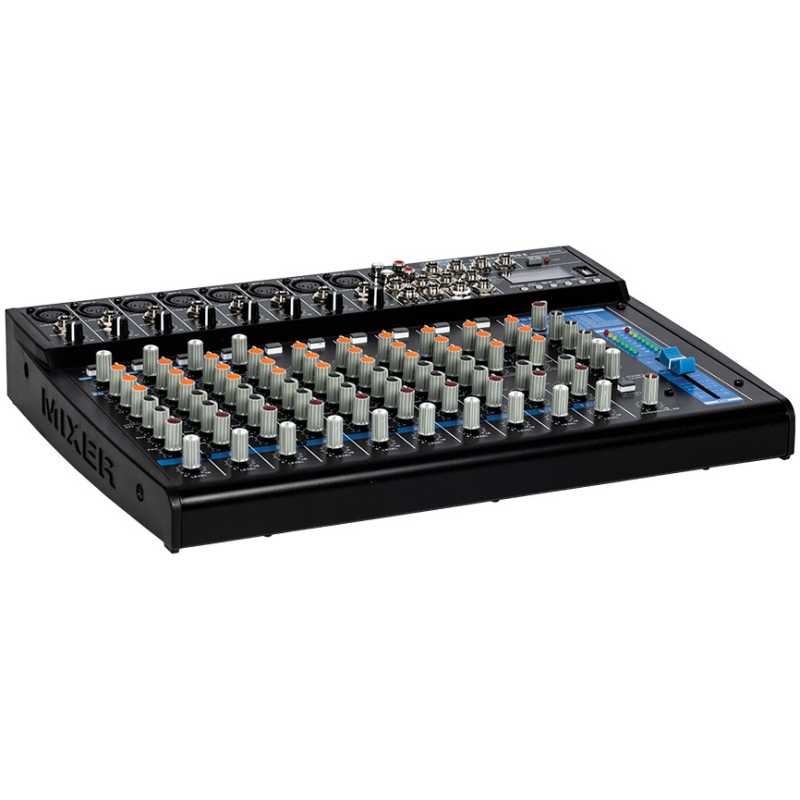

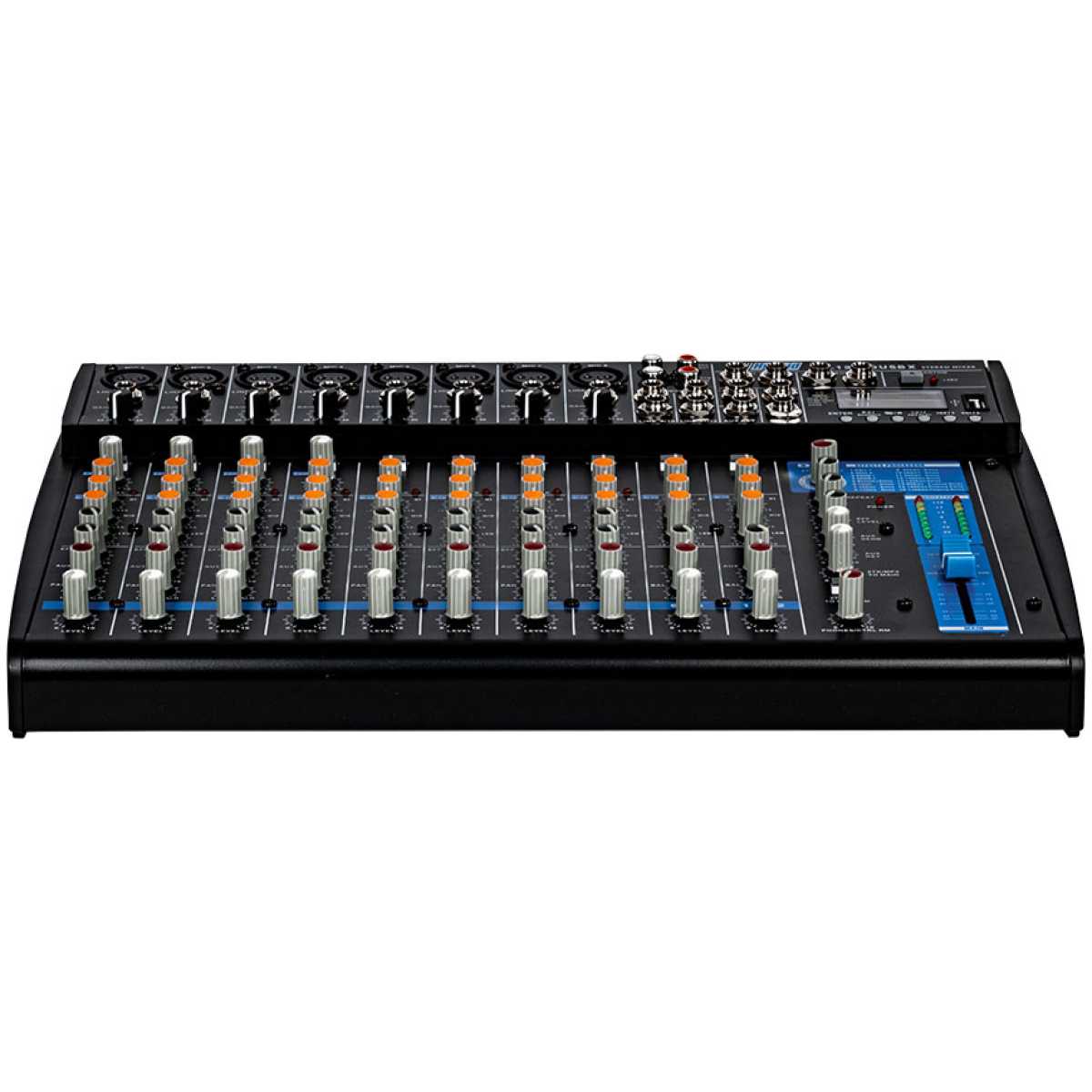

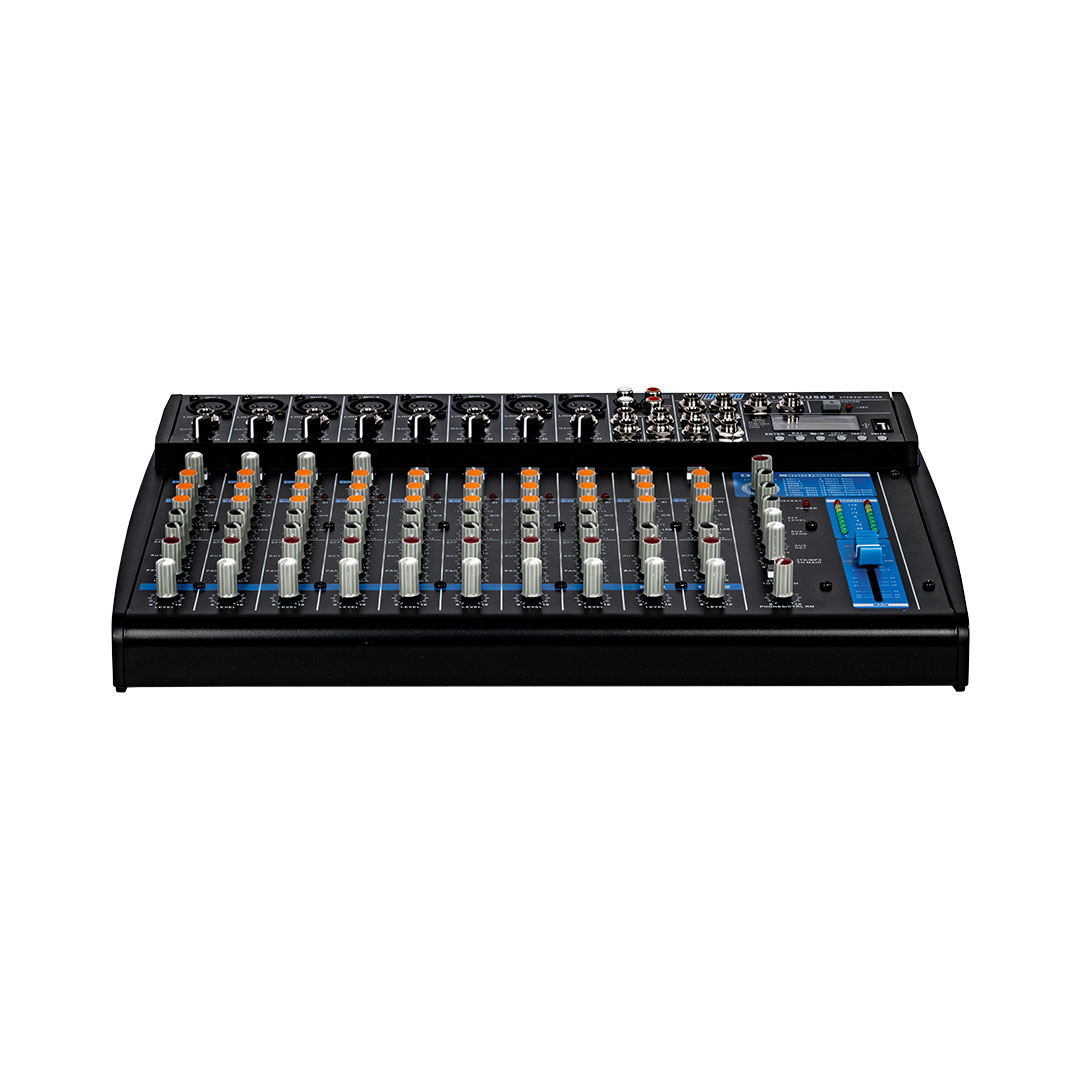

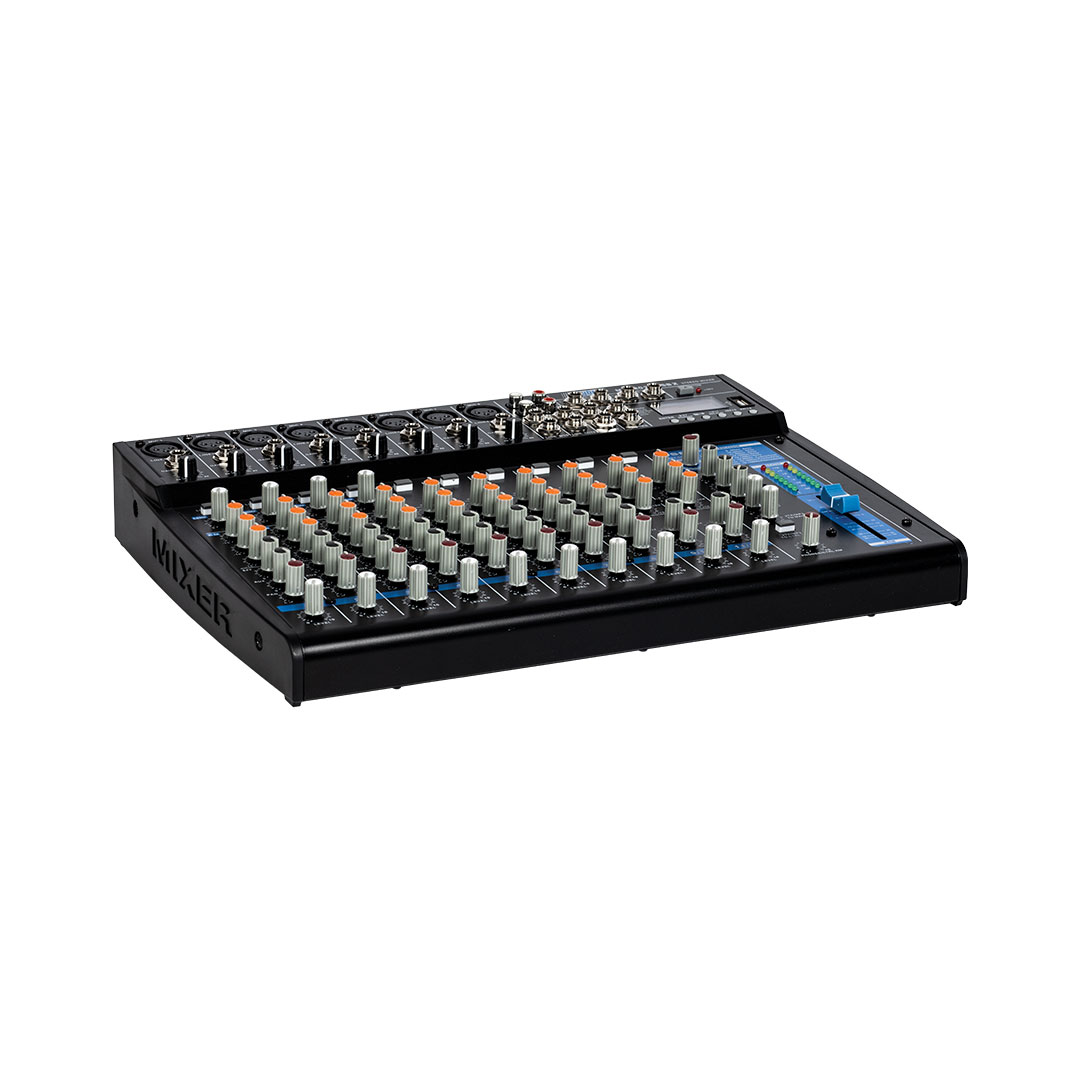

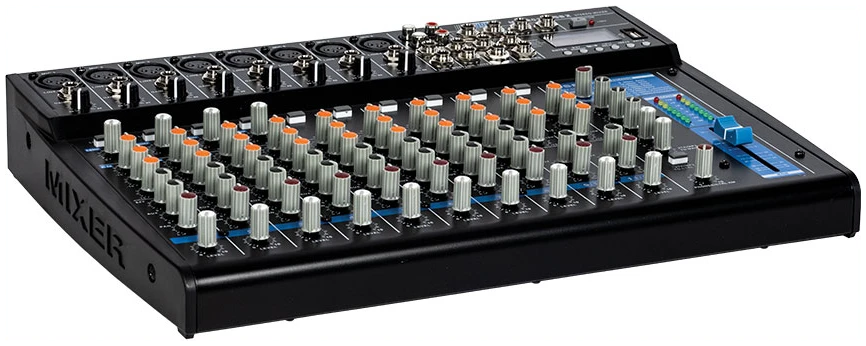

The Hybrid ML1202DUSBX is a 12-channel stereo mixer with 8 × mono mic/line inputs and 2 × stereo line inputs.

This live analogue mixer hosts a number of features, such as a built-in MP3 media player with a record function, a digital effects processor and phantom power for condenser microphones. This makes it ideal for small productions, such as those commonly hosted at schools, smaller places of worship and venues with small stages.

Features

8 Mono Channels: Mic XLR or ¼” jack line input with rotary gain control, a low-cut switch, a peak overload LED, HI, MID and LOW EQ, effects send, auxiliary send, and pan and rotary level control; channels 1–4 have rotary compression control

2 Stereo Channels: 2 × ¼” jack inputs or 2 × RCA line inputs with independent gain control, a peak overload LED, HI, MID and LOW EQ, auxiliary send, and pan and level controls

MP3 Media Player: USB port (play and record)

Master Channel Controls: 16-effect digital processor with repeat control, effects level control, auxiliary send, auxiliary return, a 2-track/MP3 switch, headphones level control, a 60mm main mix output fader, a 48V phantom switch for condenser mics and a dual 8-LED level meter

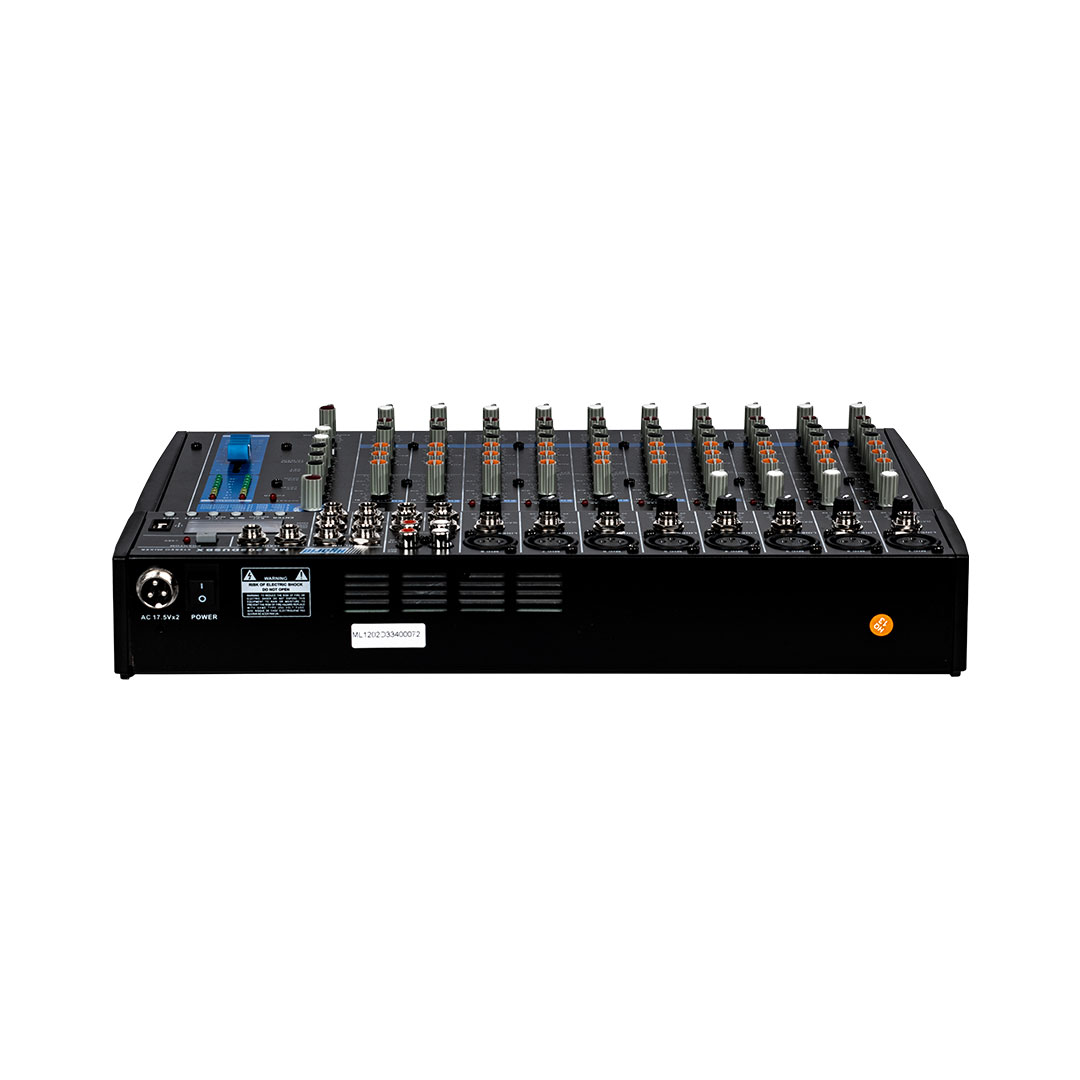

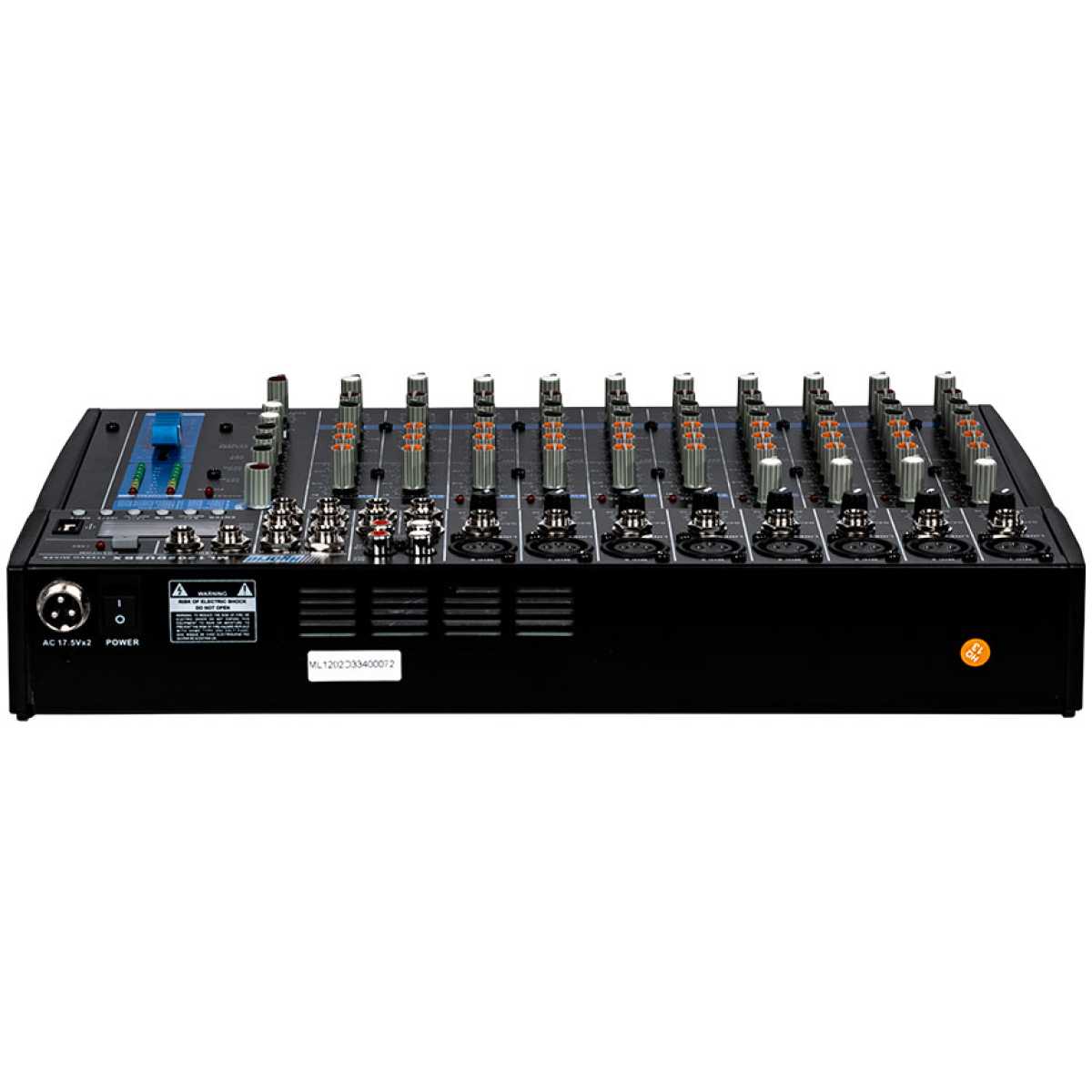

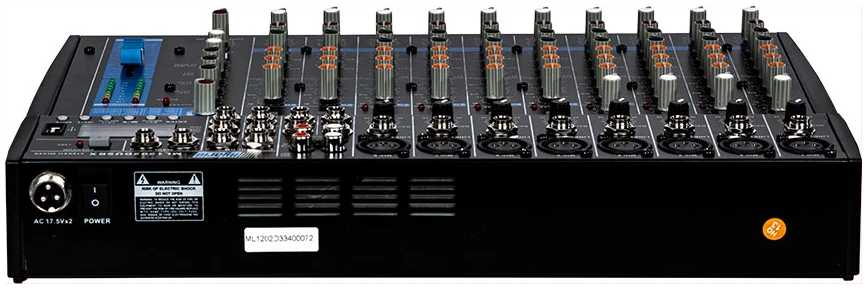

Outputs: (Main) 2 × ¼” jack, ¼” auxiliary send, ¼” auxiliary return, control room, ¼” left/mono jack and RCA record out
