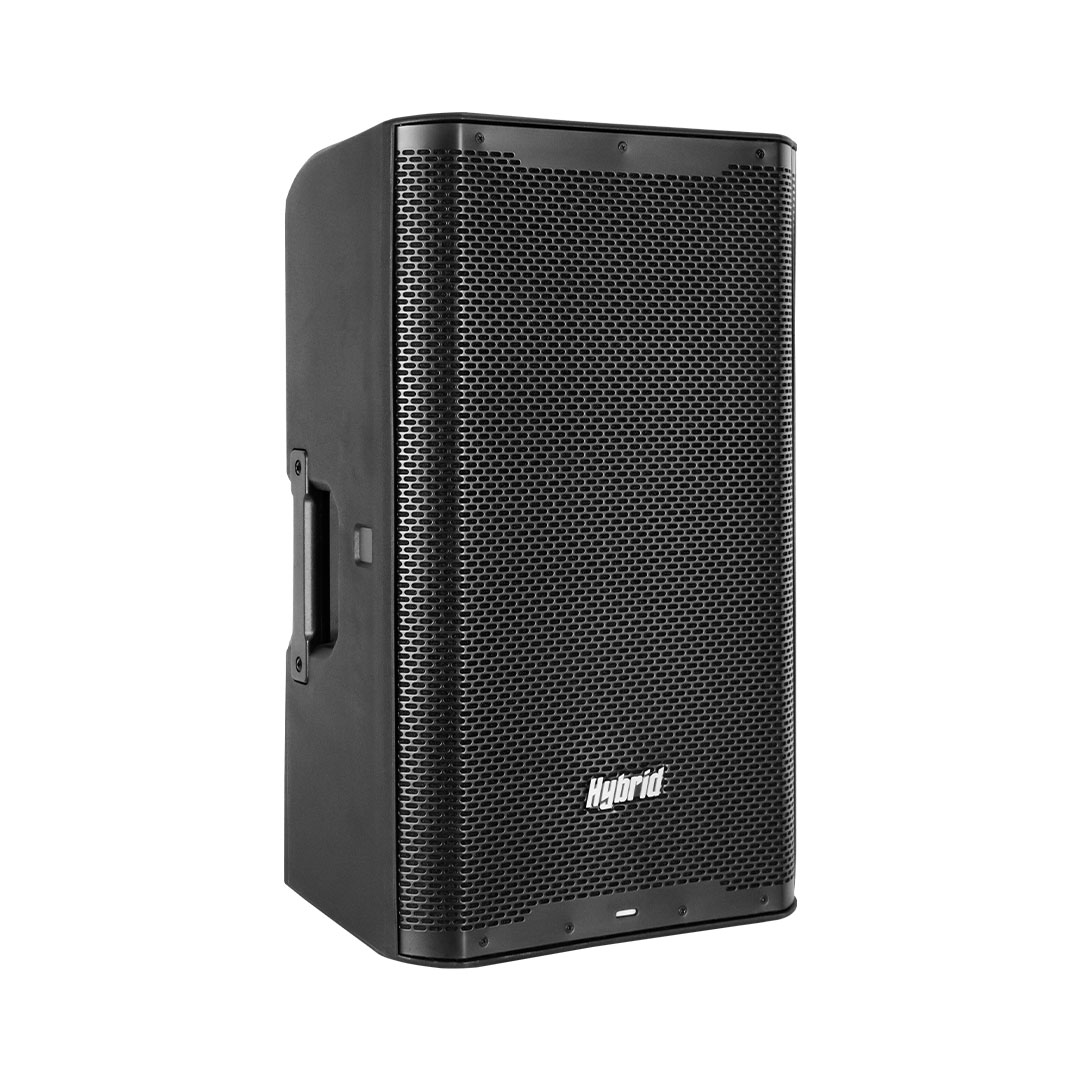

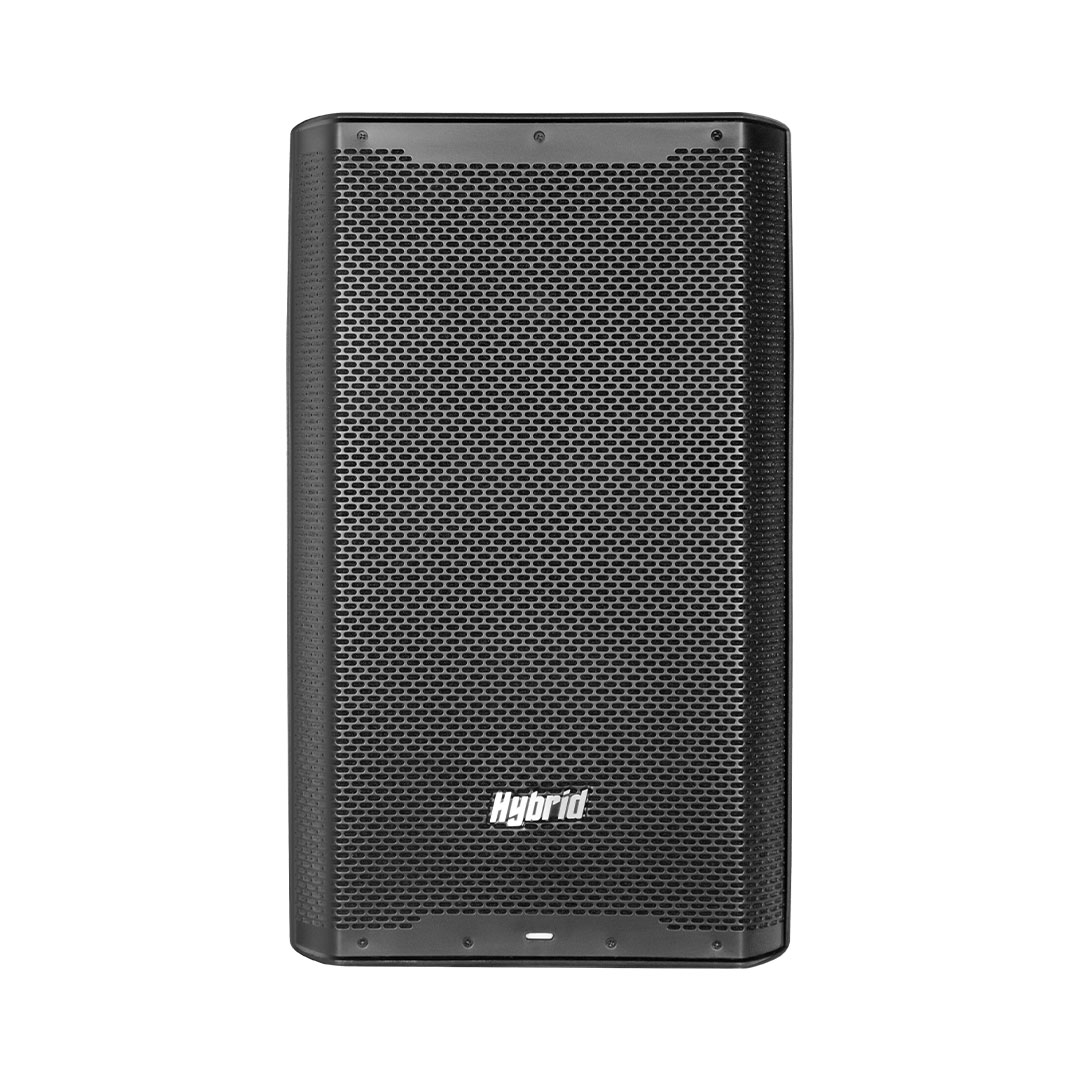

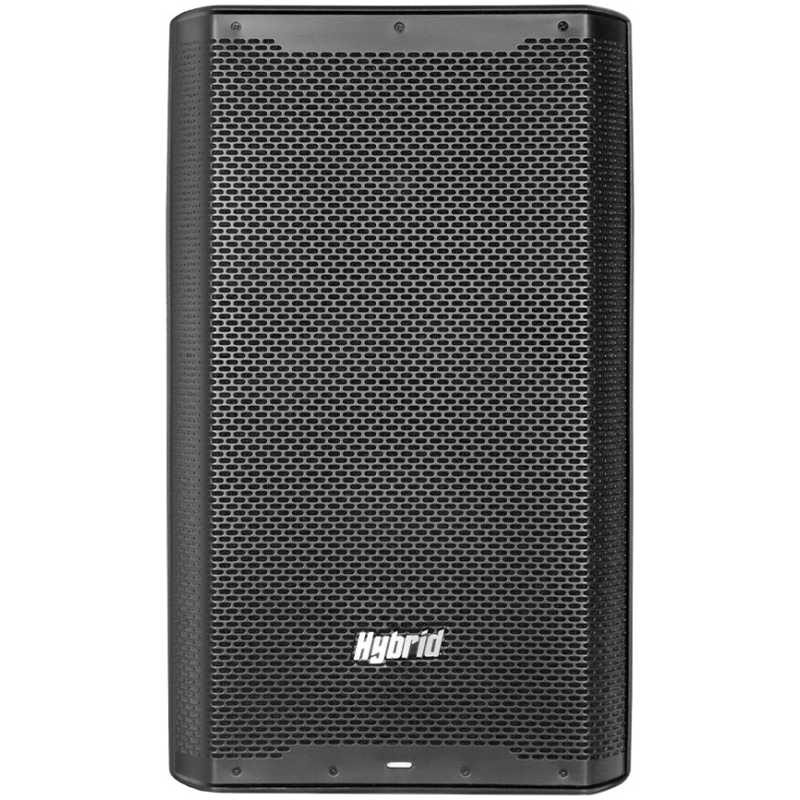

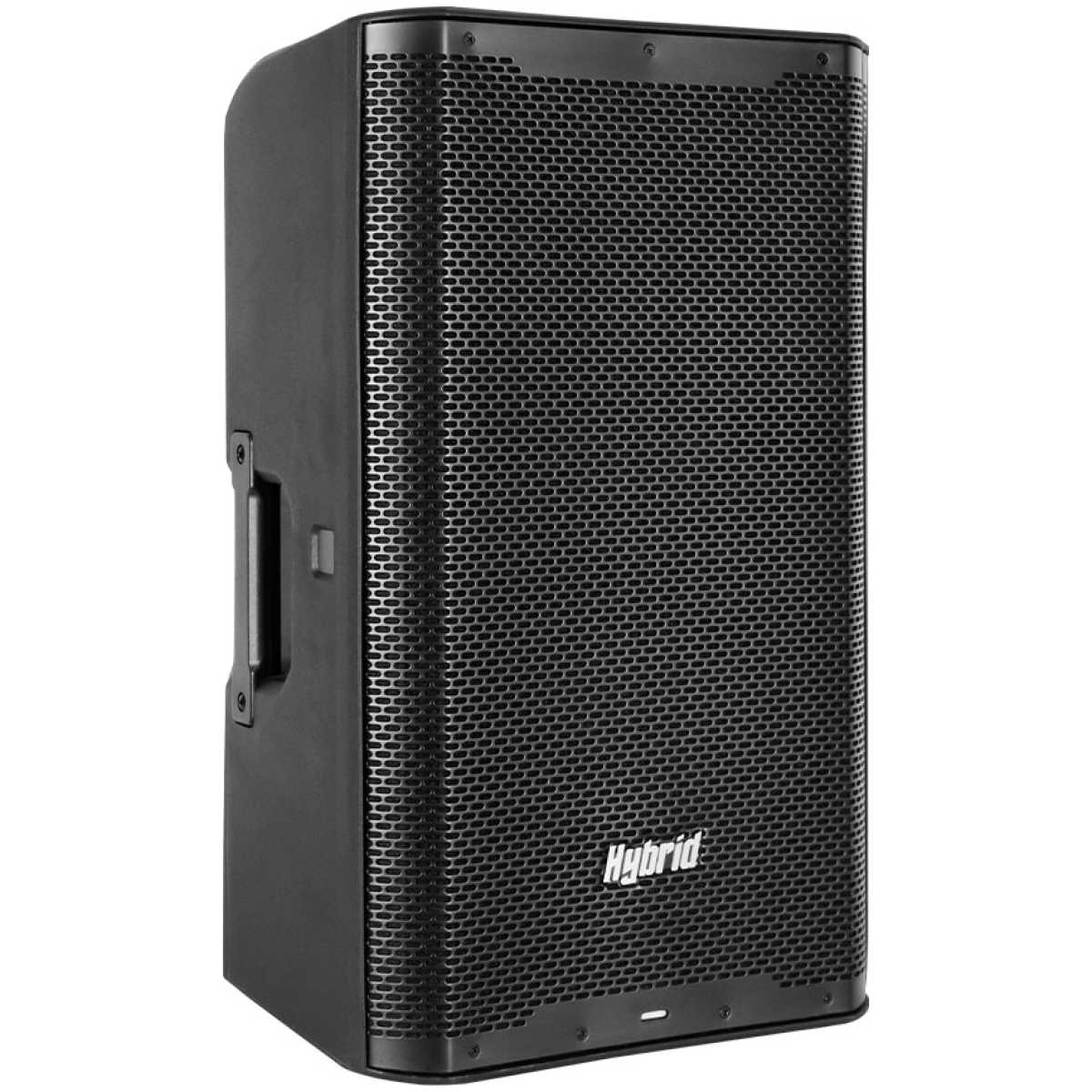

Hybrid PA12DSP 12″ Active Speaker

Hybrid’s new 2-way 12″ powered speaker, the PA12DSP, is the latest generation of speaker technology.

This multi-purpose powered speaker with a plastic enclosure uses the latest Class D amplifier and Digital Signal Processor technology. It can be used as a full-range speaker for a small to medium-sized audience, as a fill-in for larger venues, and as a mid-top reinforced with Hybrid LS18A or LS218A powered bass bins. This new powered speaker includes a 35mm speaker stand hat for mounting on a wall bracket or speaker stand. Additionally, the speaker has two optimally placed recessed cup handles to ensure easy handling.

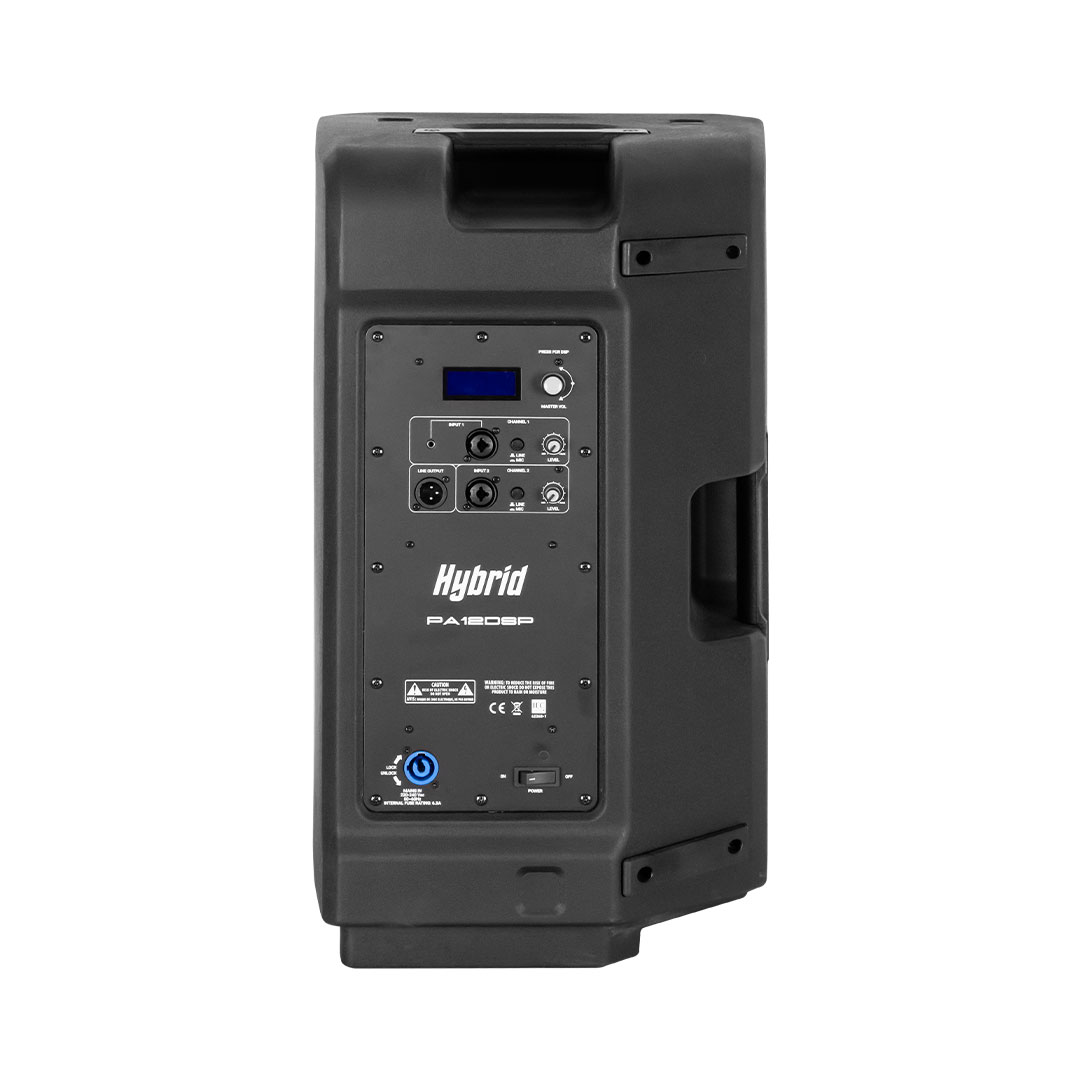

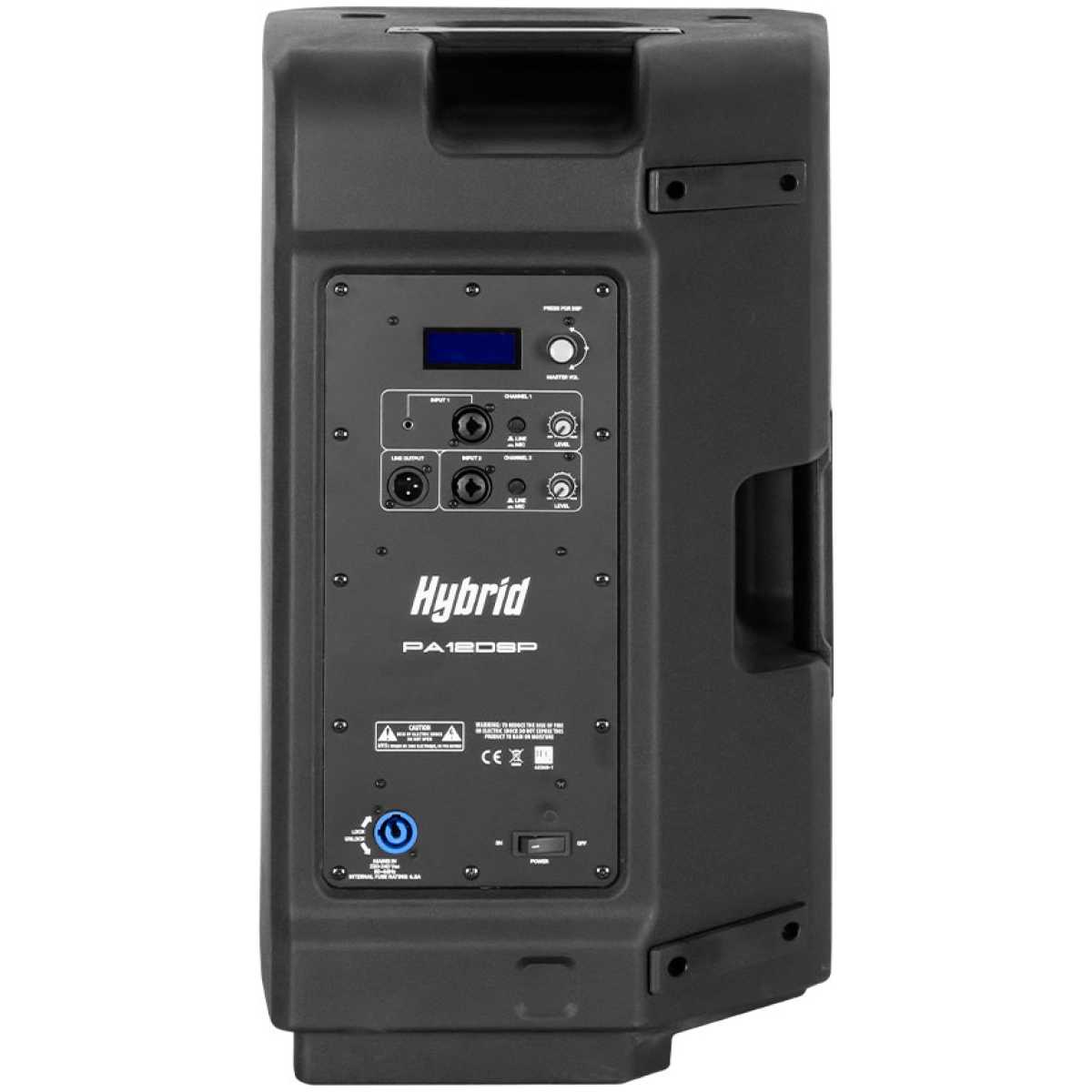

The speaker back panel has a rotary encoder to set the speaker to Bluetooth mode, adjust the Bass, Mid and Treble levels, and select one of the five presets: Flat, Live, DJ, SUB-LS18A and SUB-LS218A.

The PA12DSP has two input channels, each of which has a combo XLR/Jack input, Gain Control and a Line/Mic selector switch. Channel 1 has an additional stereo Mini Jack input, and the speaker also has a Balanced XLR Line output to connect to other powered speakers.

RMS/peak power (AES standard): 400+100W/1600+400W
PSU: SMPS, 90% efficient
Class D, bi-channel amplification
24bit/48KHz digital signal processor

Acoustic

Driver Configuration: 12″ LF + 1″ HF compression driver
Frequency Response: approx. 50 Hz – 18 kHz
Maximum SPL: approx. 122–125 dB

Amplifier

Amplifier Type: Class-D
Rated Power (RMS): approx. 300 W
Peak Power: approx. 600–800 W
DSP Modes: Music / Live / Speech / Flat
Controls: Master Volume, Mic/Line gain, DSP Select

Connectivity

Inputs:

• XLR/Jack combo (Mic/Line)

• RCA stereo
  Outputs:

• XLR Mix Out

Cabinet

Material: ABS/Polypropylene
Mounting: 35 mm pole socket
Cooling: Rear fanless design (heatsink convection)
