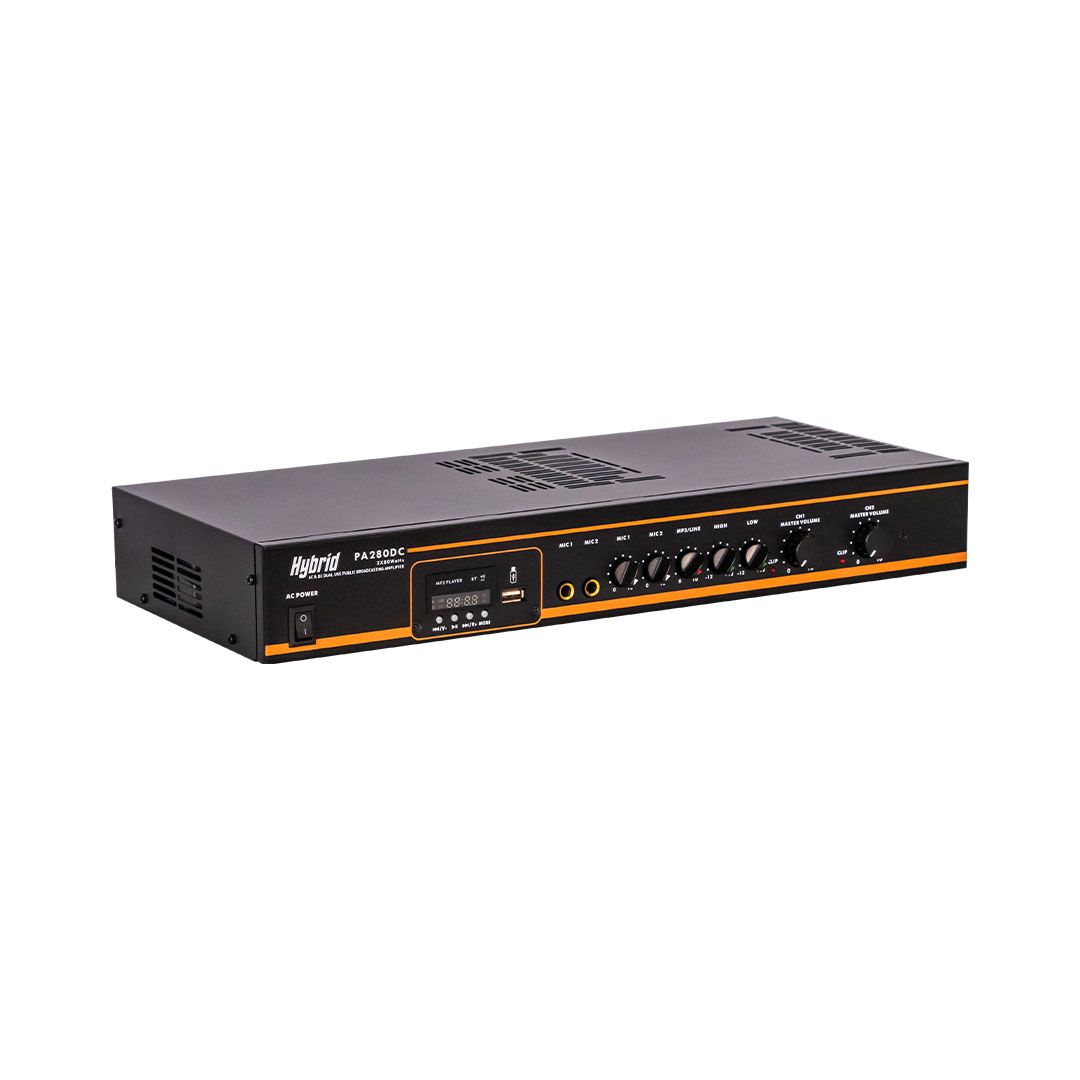

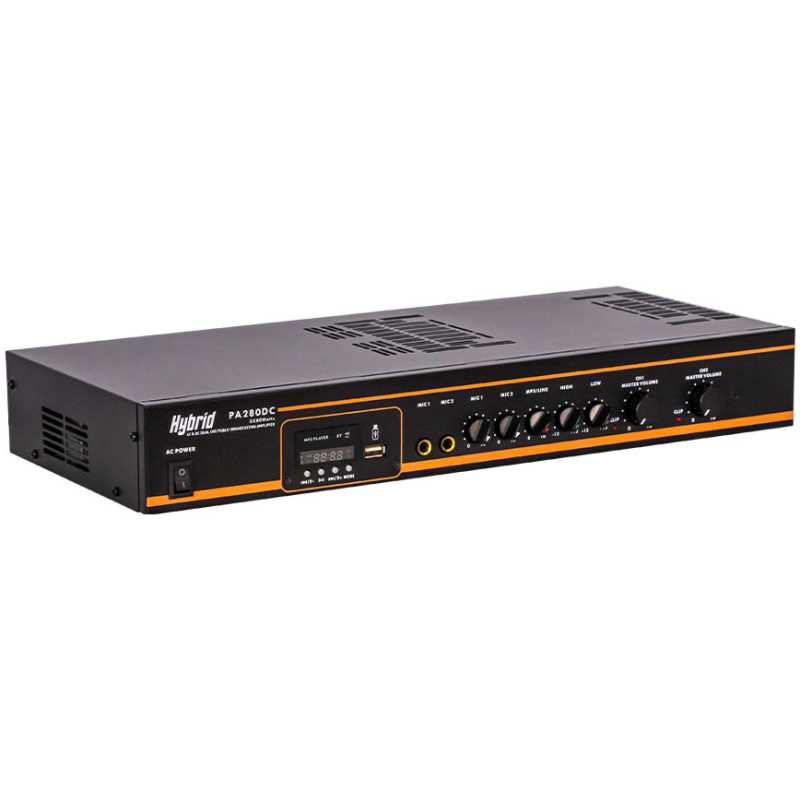

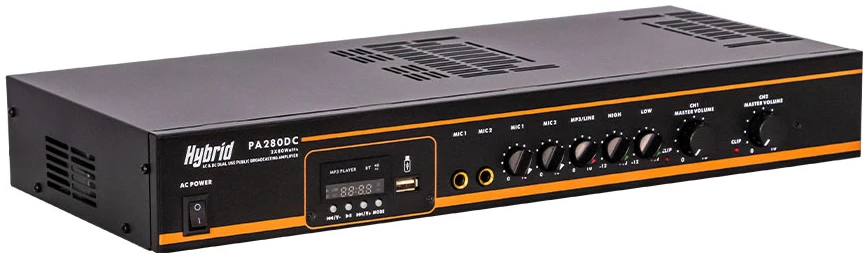

Hybrid PA280DC Public Address Amplifier

Features

• 2MIC inputs, independent input level control
• Stereo line inputs, level control
• High, low frequency equalizer
• CLIP indicator for output
• 2 kinds of output modes: 4~16ohm and 100V
• AC or DC 12v Power supply with power selection switch
• Built-in MP3 player, support USB disk, SD card, FM radio and Bluetooth
• Natural colling without fan noise

Technical Specifications

Rated output power: 2 Output channels, CH1: 65W; CH2; 65W. Please do not connect the 2 AMP outputs in parallel. Otherwise, it will damage the power amplifier
Max output power: CH1: 80W – CH2: 80W
Frequency response: 80Hz-16Khz +-2dB
Rated THD (1KHz): ≤ 2%
S/N radio: >84 dB
MIC input: Unbalanced 10Kohm -45dB
LINE input: Unbalanced 10Kohm -10dB
Equalizer: LOW +/-12Db @80Hz – HIGH +/-12Db @16KHz
AC ~ Power supply: 220 240 Vac – 50-60Hz
DC Power supply: DC 12V
Weight: 3.5Kg
Dimensions L x W x H: 190 x 446 x 63mm
