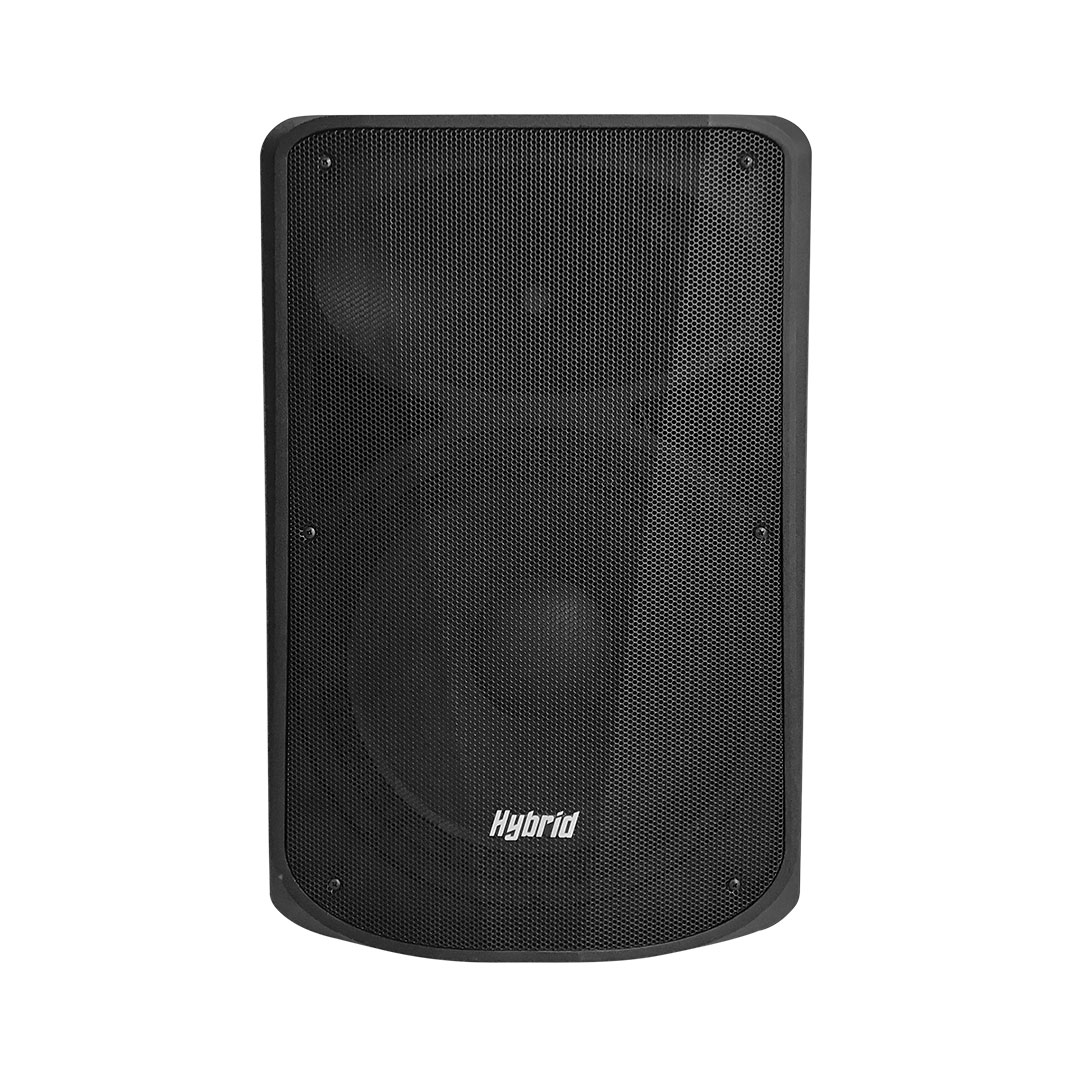

Hybrid PB15/A 15″ Active Speaker

15″ Active full range speaker

The Hybrid PB15A is an active, 2 channel input (15″ low frequency speaker with a 1″ high frequency compression driver) ABS enclosed speaker cabinet.

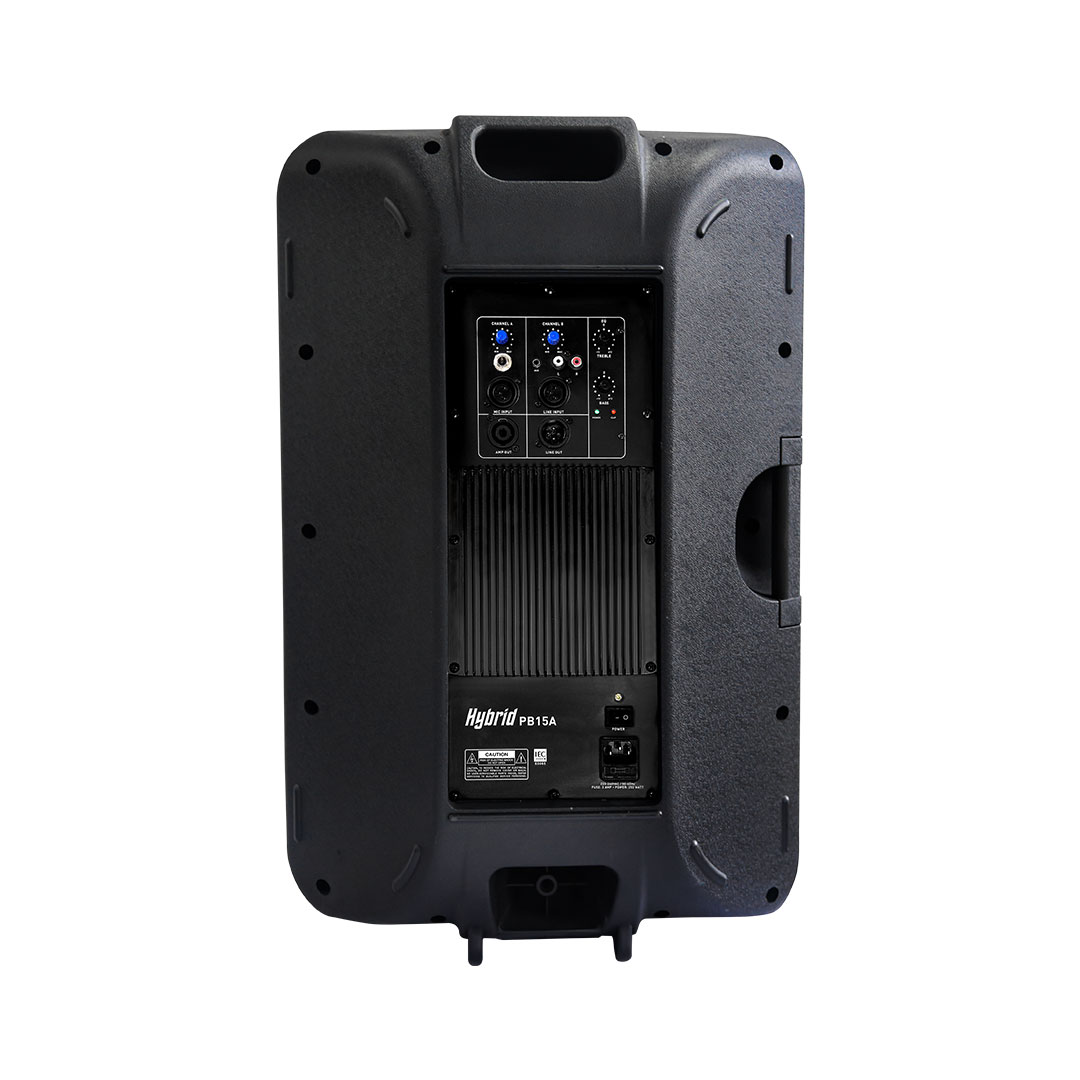

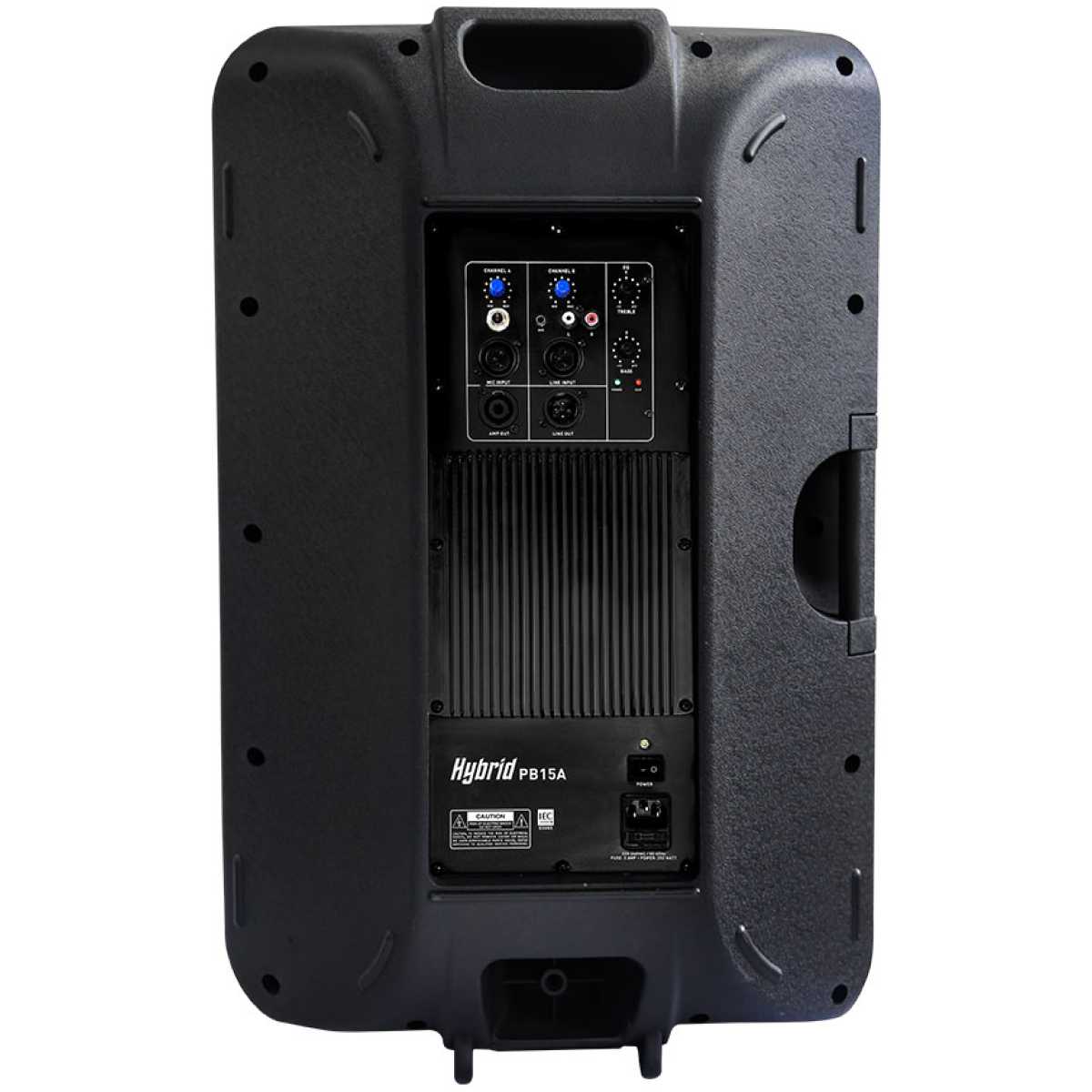

Input to the speaker is made using either of the two XLR female, 1/4″ Jack, 3.5″ Jack or RCA panel mount connectors. It features independent channel volume and master bass-treble EQ rotary potentiometers.
A separate 8Ohm passive speaker can be connected to the PB15A using the in-built speakon NL4 panel mount connector.
The PB15A accepts 35mm speaker stands for pole mount applications and the speaker’s two recessed handles make mobility easy.

15″ Active, 2 channel input, 2-way, full range speaker
Cabinet power handling: 340W AES
Input Channels: 2, Mic and Line
LF: Hybrid 15H250, 8Ohm, 250W RMS, 2.5″ Voice coil
HF: Hybrid HT40, 8Ohm, 40W RMS, 1″ Exit, 1.75″ Voice coil
Frequency response: 50Hz – 18KHz
Sensitivity: 96dB 1W/1m
Passive speaker output: Yes, up to 1 passive speaker, Max load 8Ohm
