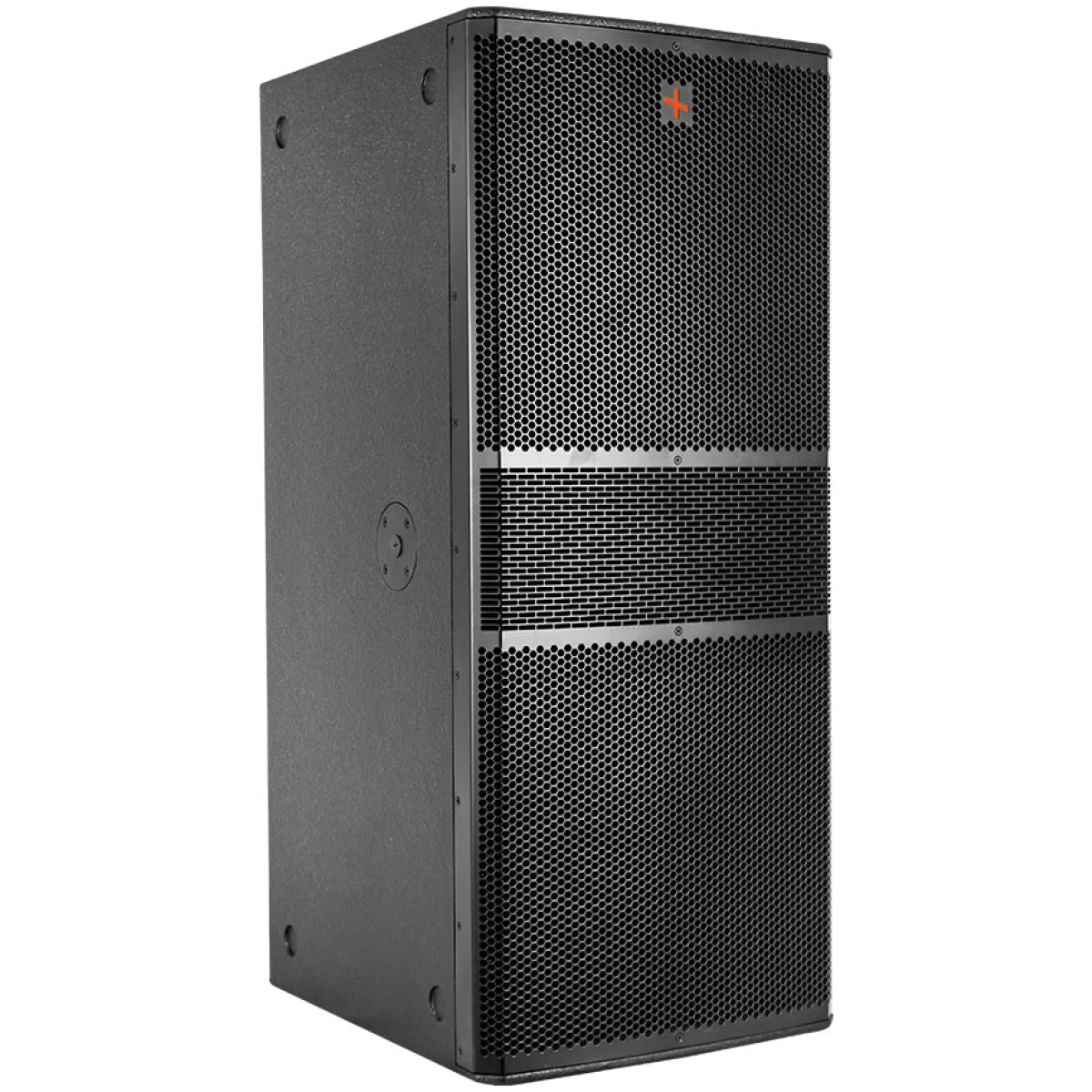

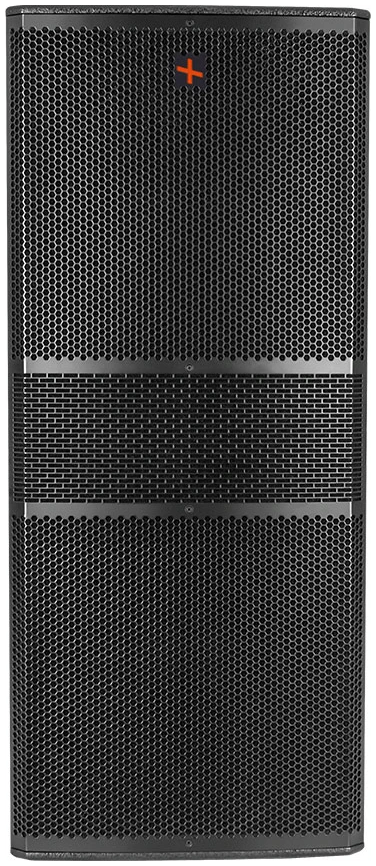

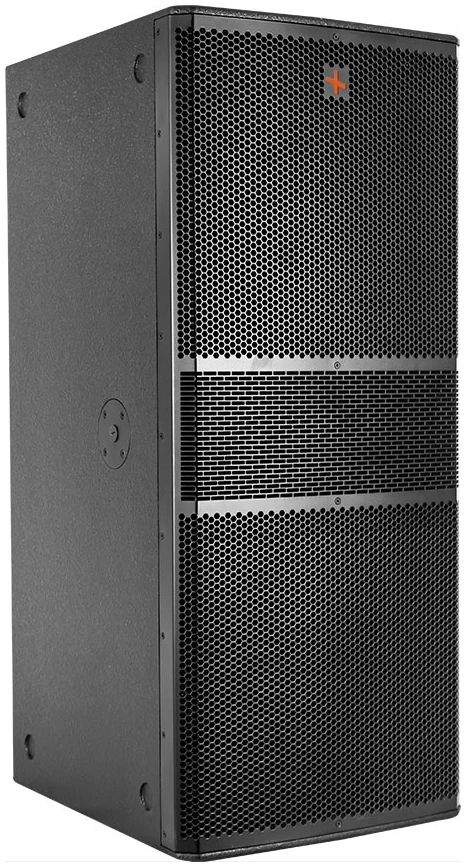

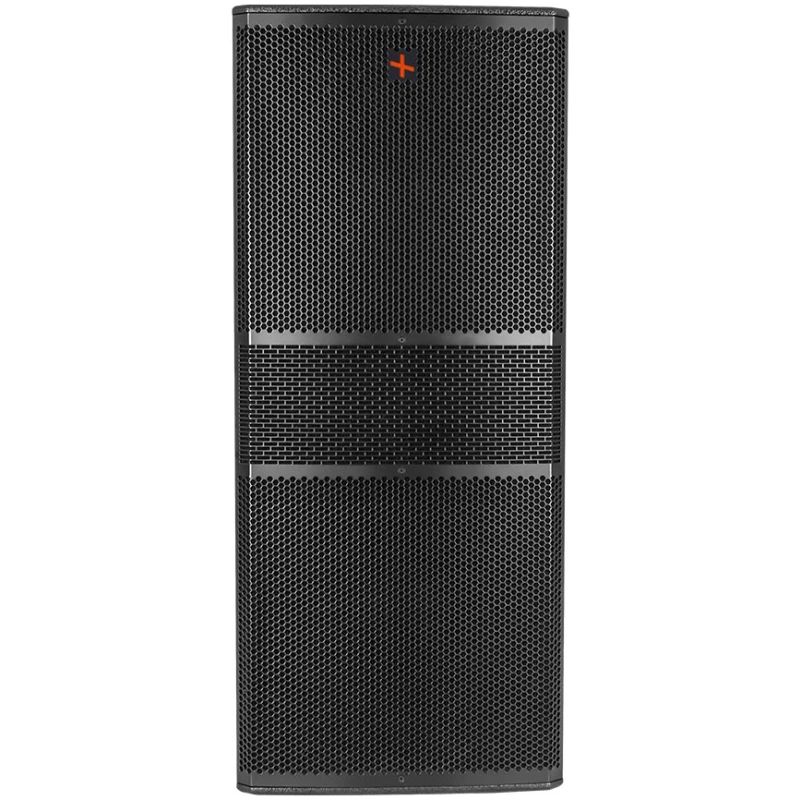

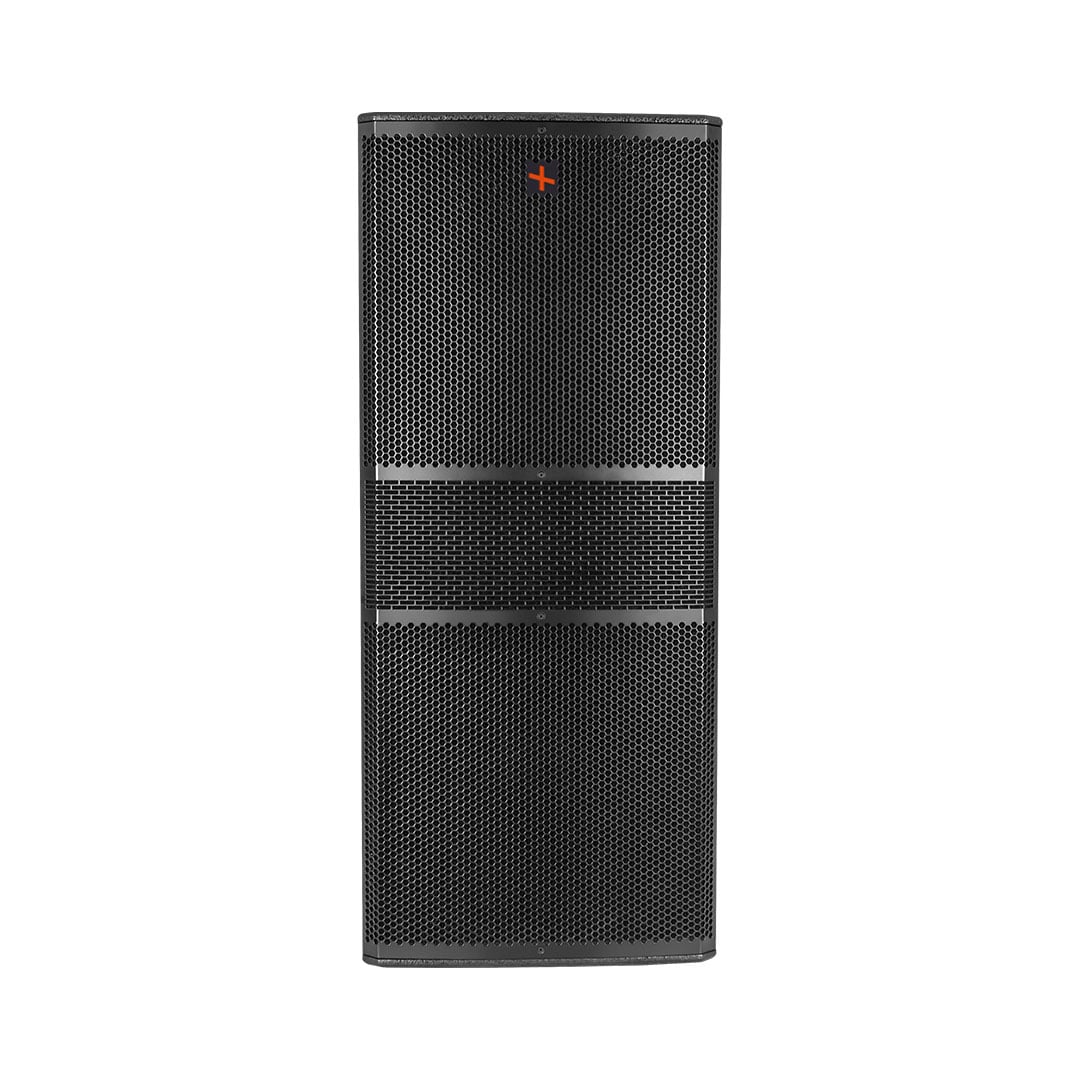

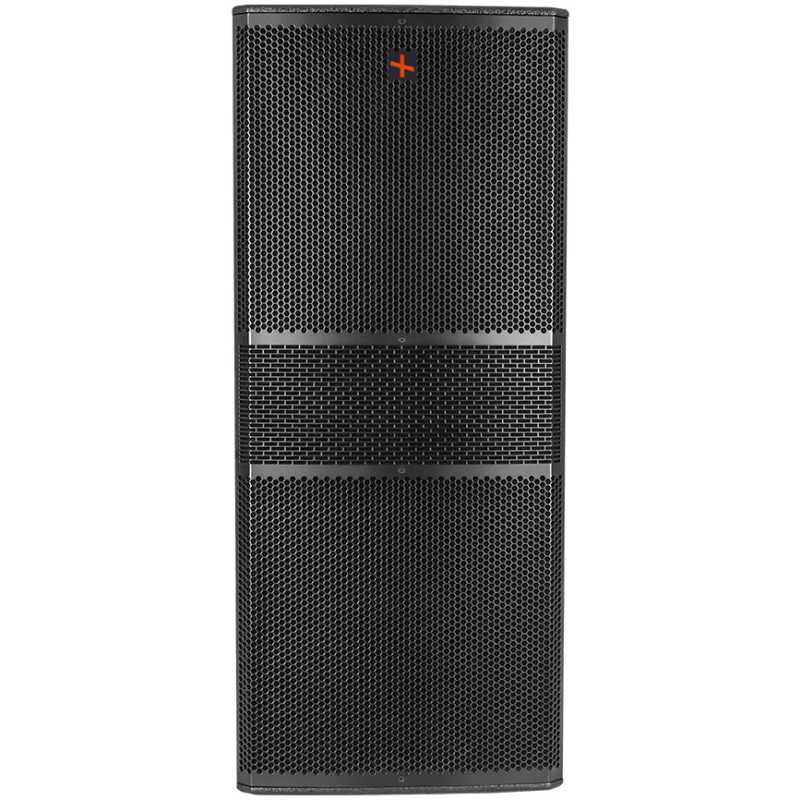

Hybrid+ PK218S UE 18″ Dual Passive Subwoofer

Dual 18″ Passive Subwoofer

The Hybrid+ PK218S UE (Ultimate Edition) is the latest generation of the fast selling PK series. More power, higher SPL and an improved dynamic sounding cabinet is what you can expect from the new PK series.

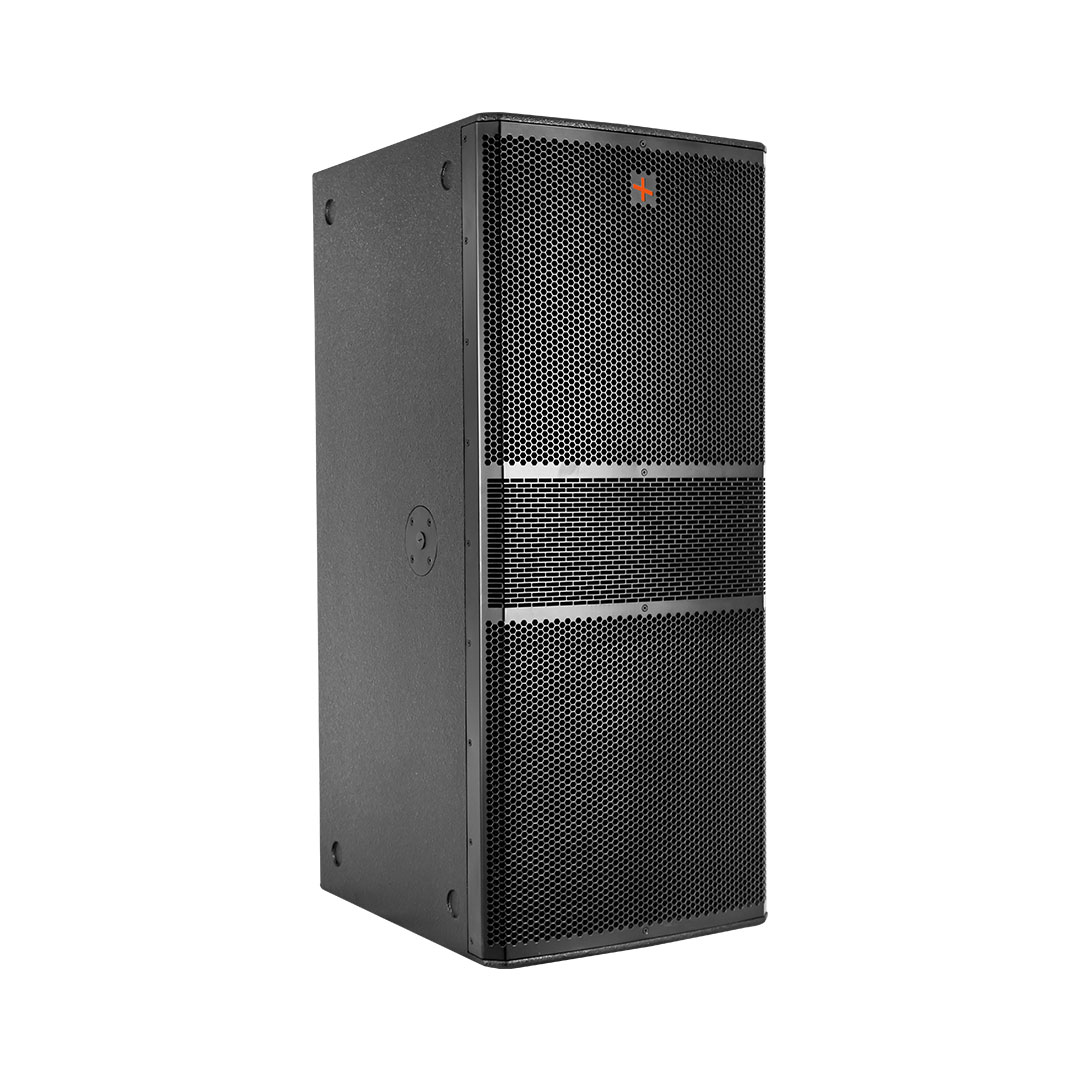

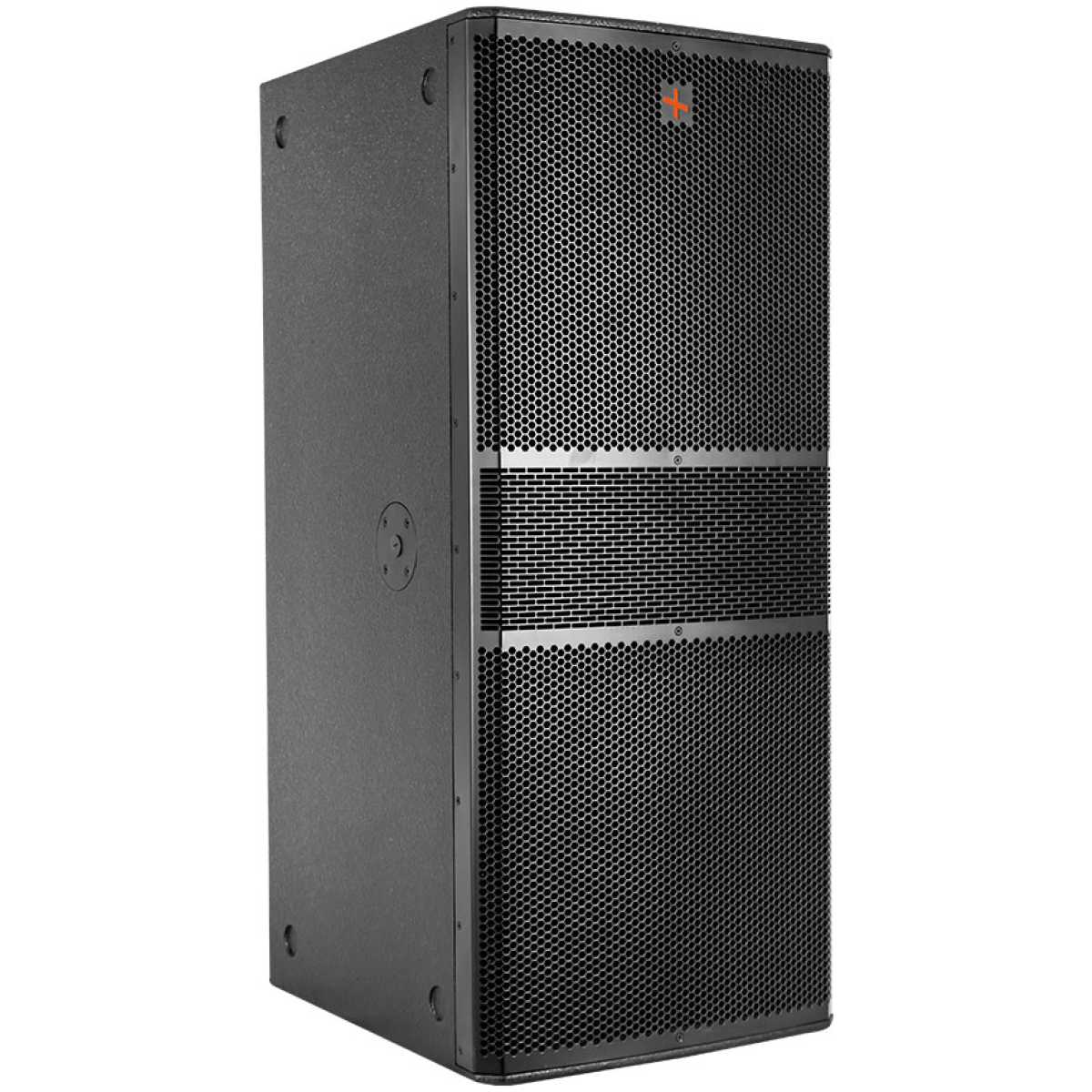

The PK218S UE is a passive dual 18″, birch-plywood enclosed, bass-reflex subwoofer. Physically it is a mid-size cabinet both in volume and weight in comparison to other dual 18″ cabs, allowing it to be used for many applications that require subwoofers, from medium to large size venues, indoor and outdoor.
It features symmetrical recessed footprints allowing for neat and stable vertical or horizontal stacking for multi-bass setups and two M20 mounting sockets for mid-high, pole-mounting cabinet applications.

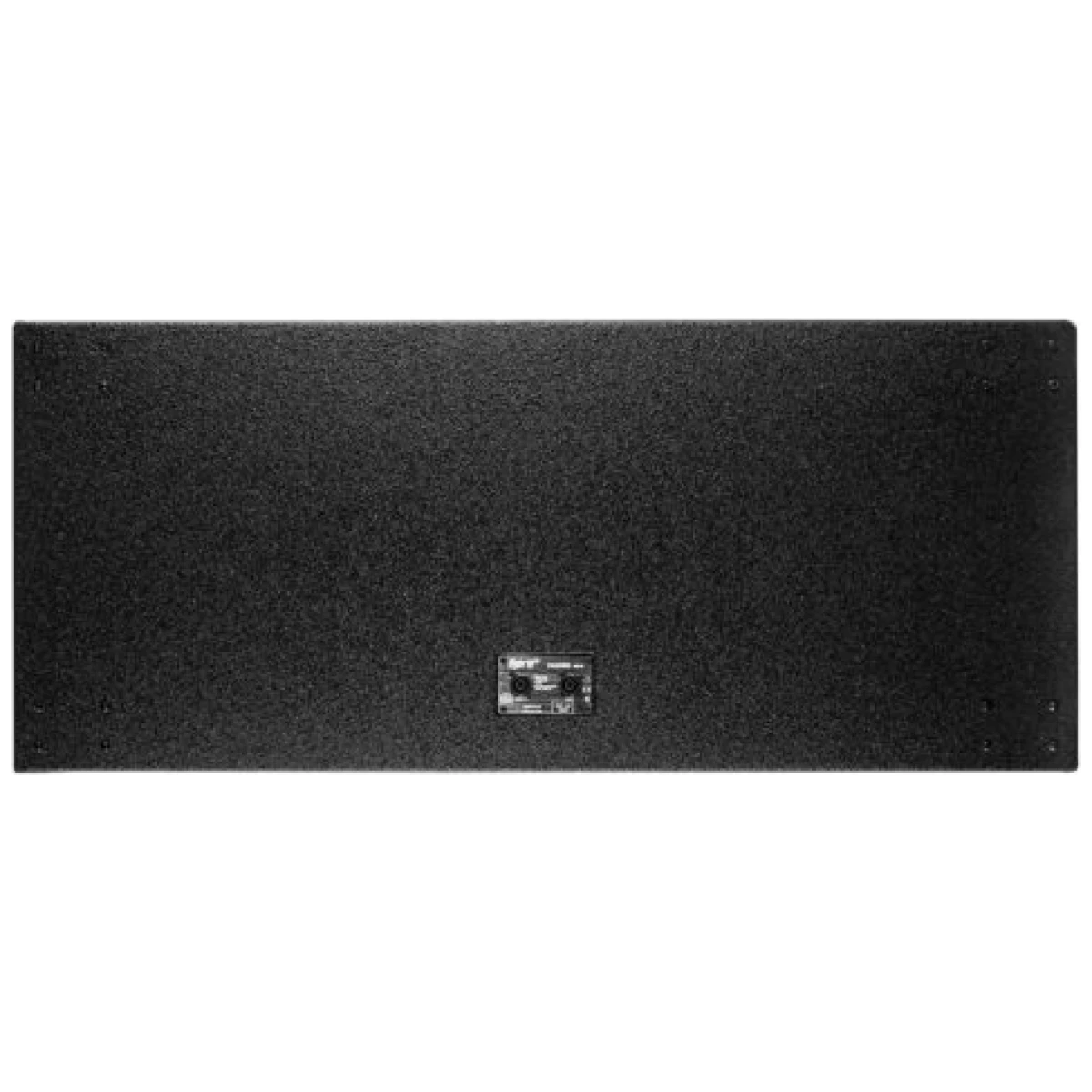

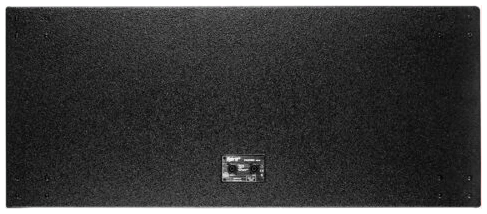

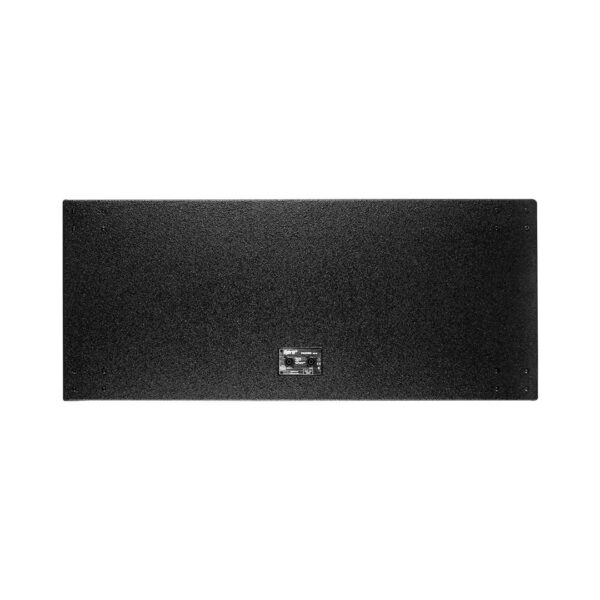

It also includes four strategically placed recessed metal cup handles to allow for easy handling and mobility. Input and speaker loop-thru connections are made using the two NEUTRIK NL4MP panel mount connectors.

The PK218S is protected with a 3-coat, water resistant, hardwearing, environmentally friendly UltraTex (USA) black textured paint. Together with its stylish, two-tone metal grille, it is beautifully finished and adds eye-catching aesthetics to any venue.

Dual 18″ bass reflex subwoofer
RMS/Peak Power (AES standard): 2000W/8000W
Nominal impedance: 4 Ohms
Average sensitivity: 101dB/1W/1m
Maximum SPL (calculated): 134dB RMS/140dB Peak
Frequency response: 38 – 1800Hz
Nominal directivity: Omnidirectional

LF: 2 x CELTO Acoustique 18DCS1000-8
Woofer chassis: Die-cast aluminum
Woofer voice coil diameter: 3.6″/91mm

Cabinet material: Heavily braced birch plywood
Cabinet finish: 3 coats of UltraTex (USA) texture black coating
Grille: Curved, 1.2mm, black powder coated

Mounting hardware: 2 x M20 mounting sockets
Connectors: 2 x NEUTRIK NL4MP
Cabinet size (HxWxD): 1200 x 510 x 600mm
Cabinet weight: 61kg
