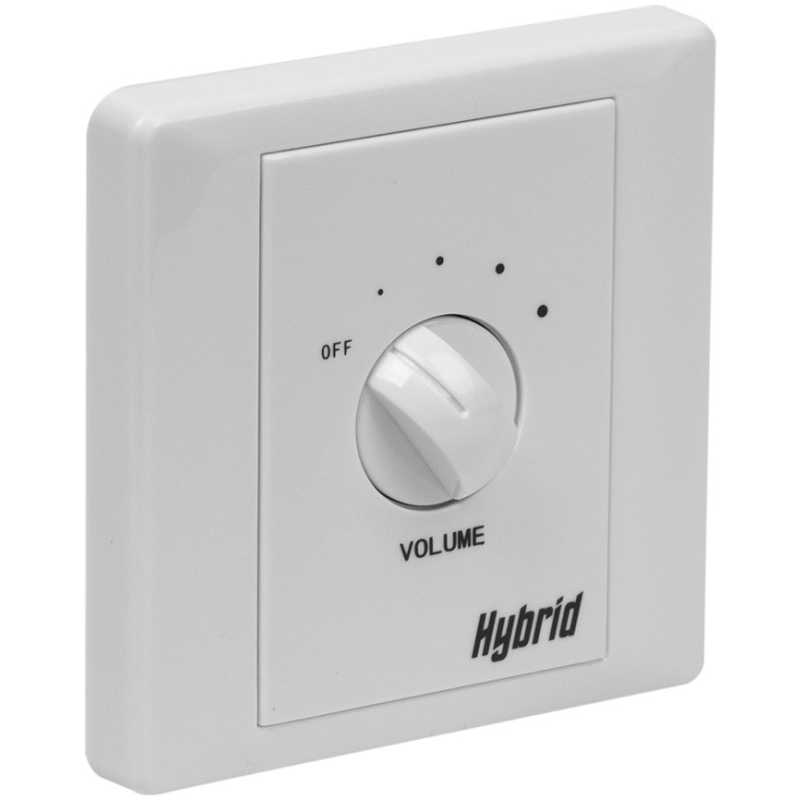

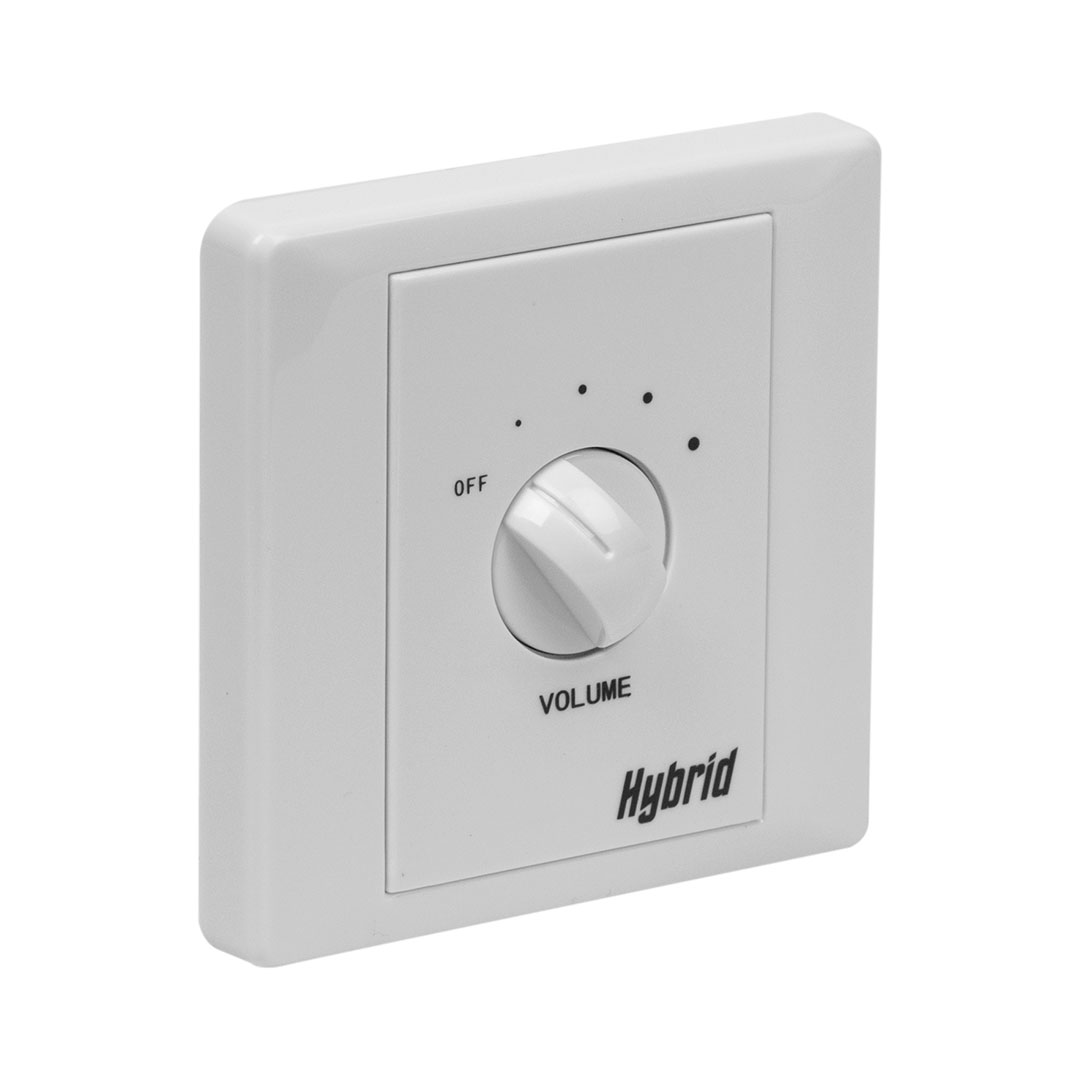

Hybrid V5 Volume Control – Speaker 5W

The Hybrid V5 is a 5Wrms speaker volume control that can be used on any 70V/100V high-impedance installations, allowing for perfect SPL levels to be set up in different zones / rooms of a venue.
The V5 is a wall mounted device, offering a 5 position level control and is manufactured from durable white ABS material.

V5
Speaker Volume Control
Power Handling: 5Wrms
Impedance Matching:70V/100V High Impedance
Volume Control: 4 Position + Off, Rotary Switch
Connections: Screw-in 4 pole connector (2-Input, 2-Output)
Cover Size: 87 x 87mm
Depth: 28mm
Mounting Holes: 2 x M4, Mounting screws included
Mounting Hole Distance: 60mm Apart
Colour: White

PLEASE NOTE, THE V5 IS NOT SUITABLE FOR 4-16Ω SPEAKER SYSTEMS.
