Passive Crossover – 2 Way
The Hybrid X2-1800-400 is a universal, DIY, 2-way passive crossover suitable for enclosure design enthusiasts and it can be used as a replacement crossover for most 8Ω, 2-way speaker cabinets.
The X2-1800-400 features 12dB/Octave filters, with high frequency attenuation and a fused protection. Installing the X2-1800-400 is extremely easy with the quick release spring loaded terminals.

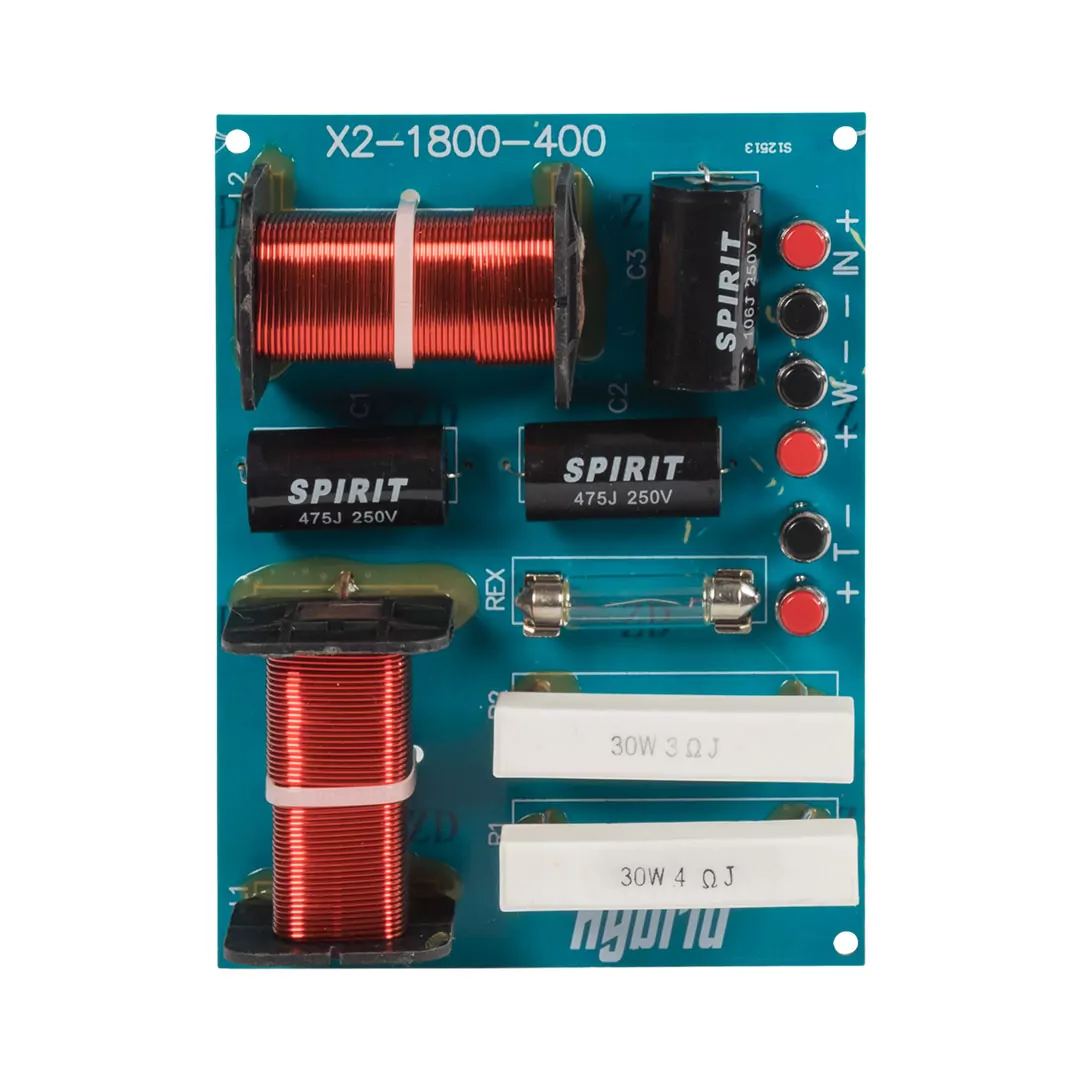

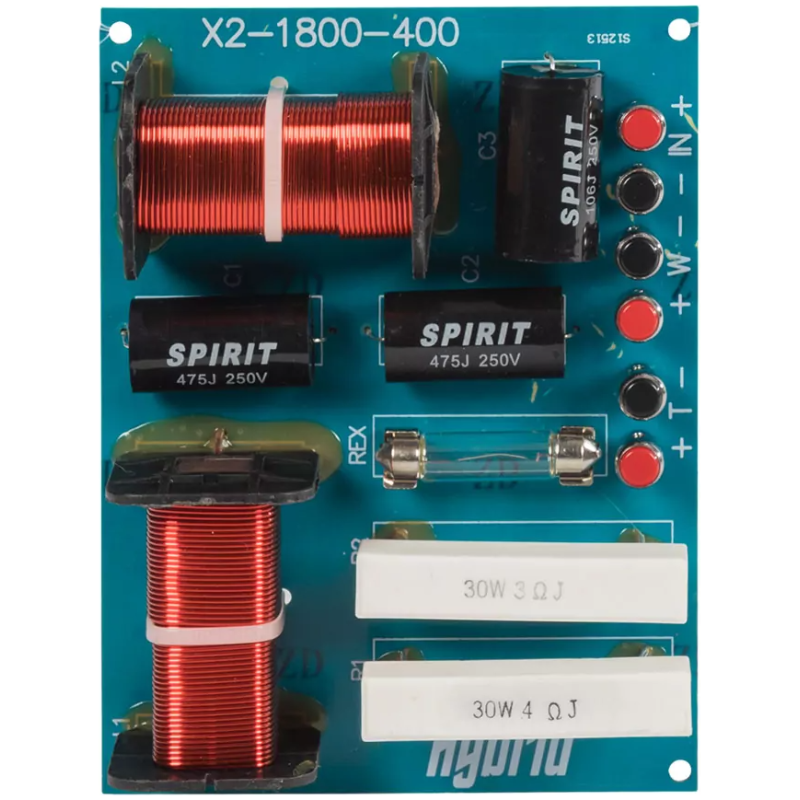

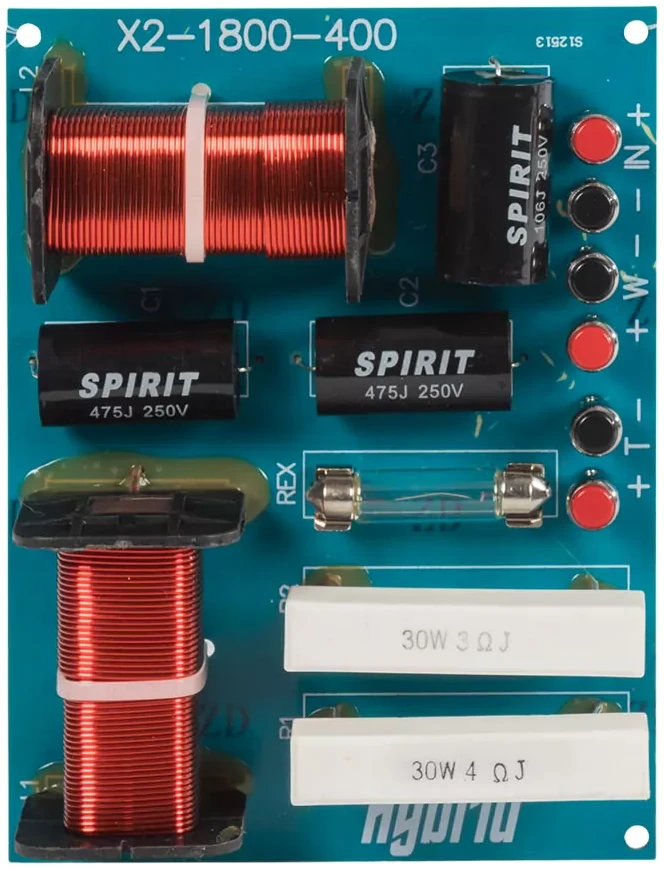

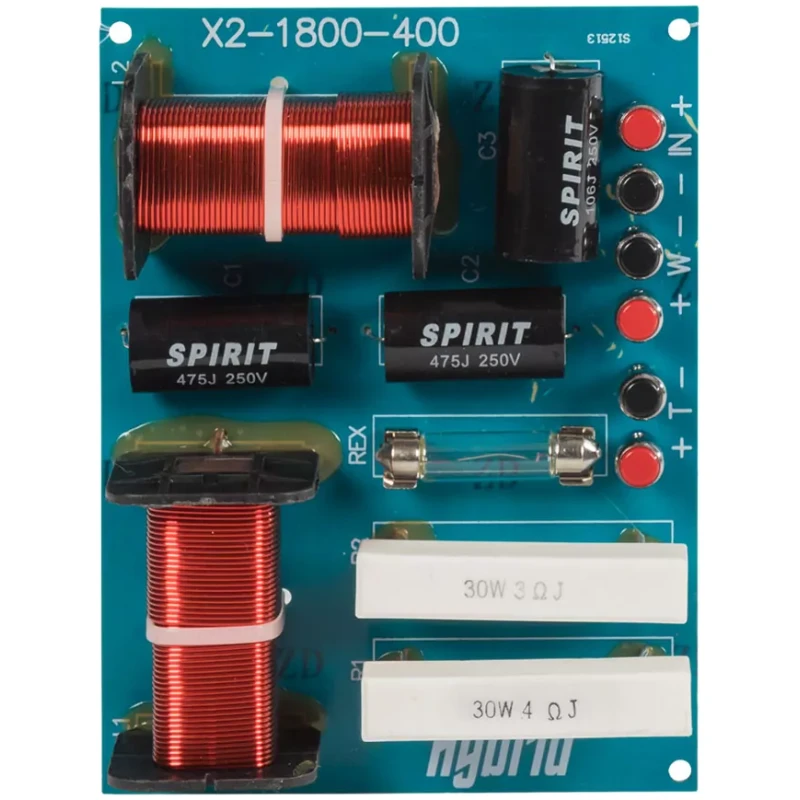

X2-1800-400 2-Way Passive Crossover
8Ω LF – 8Ω HF Crossover
Frequency: 1800Hz
Power Handling: 400W rms LF
Impedance: 6-8Ω HF
Impedance: 6-8Ω LF
Filter: 12dB / Octave HF
Filter: 12dB / Octave HF
Attenuation: Ceramic 30w resistors
HF Protection: Fused
Connectors: Quick release spring loaded
Construction: 1.5mm fiberglass PCB
