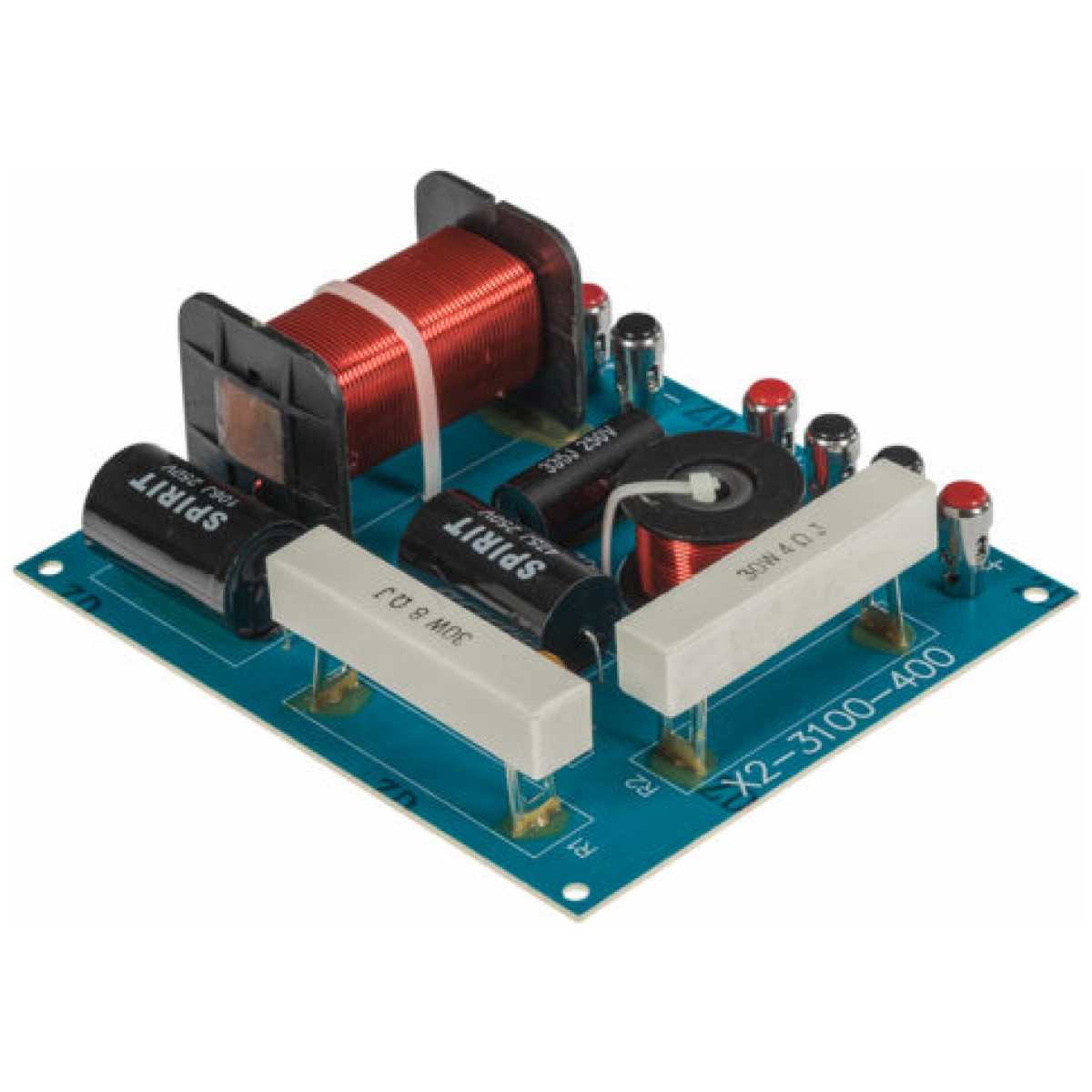

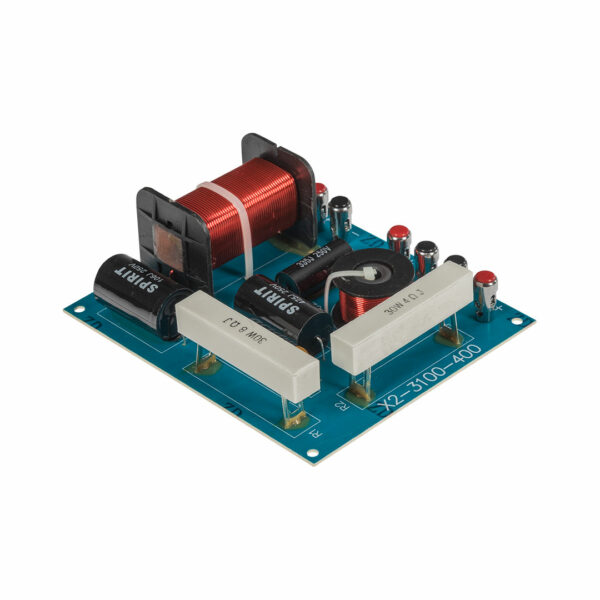

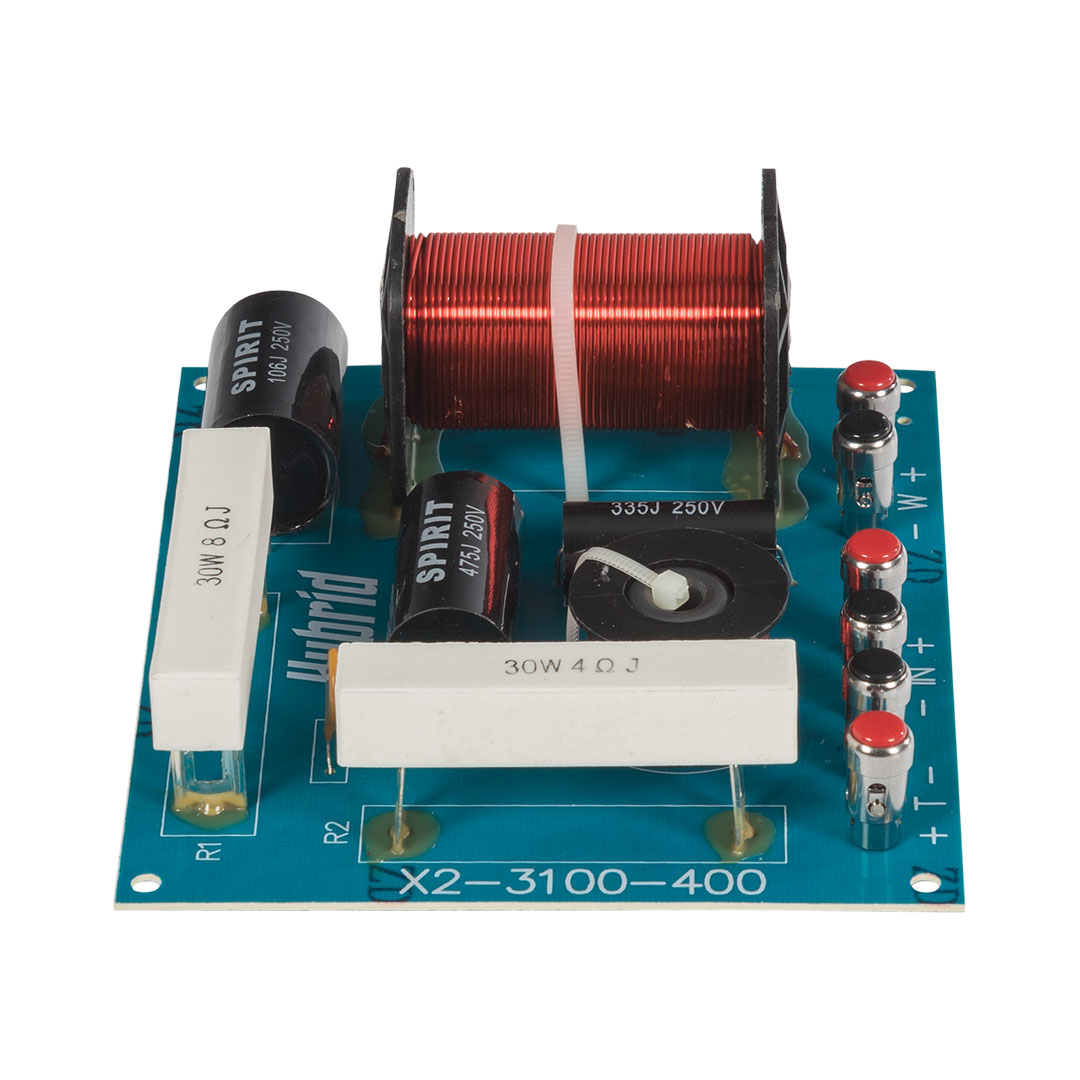

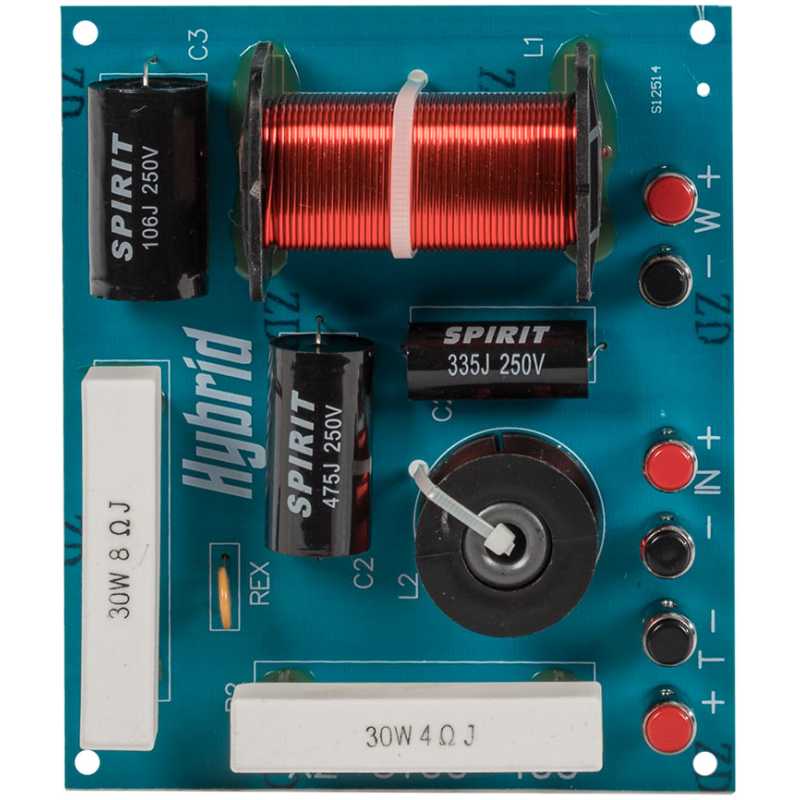

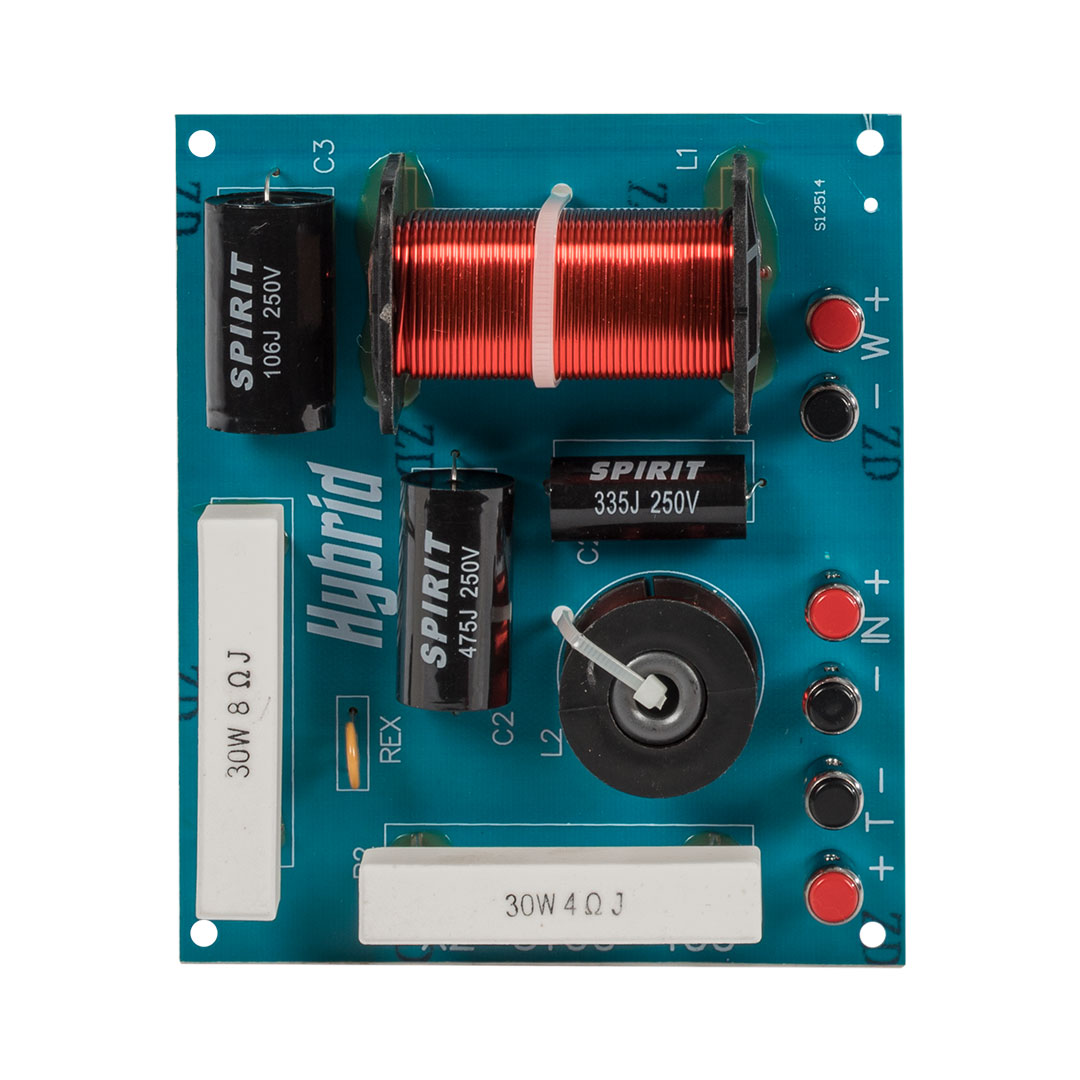

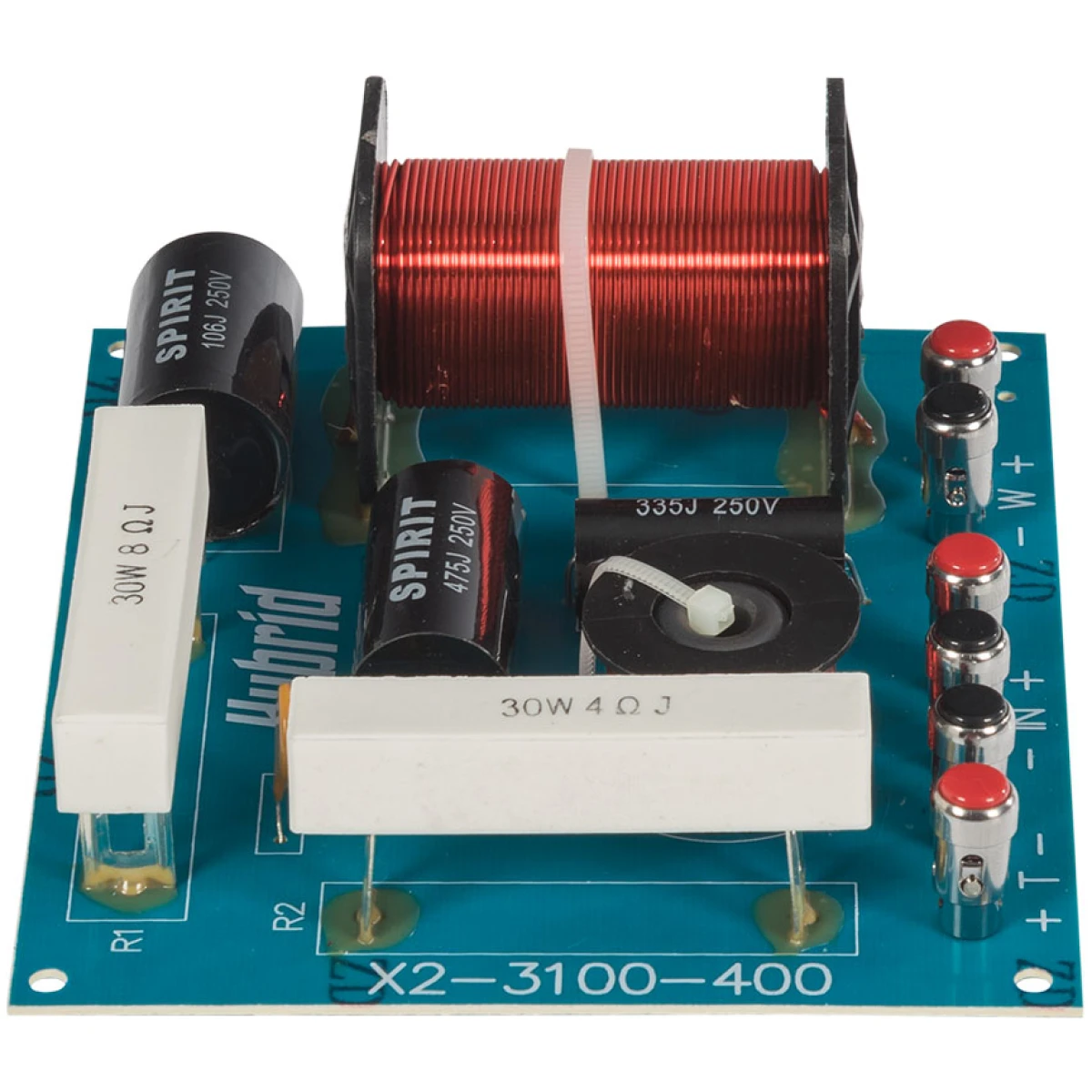

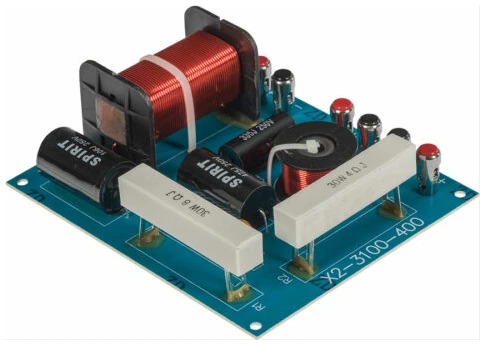

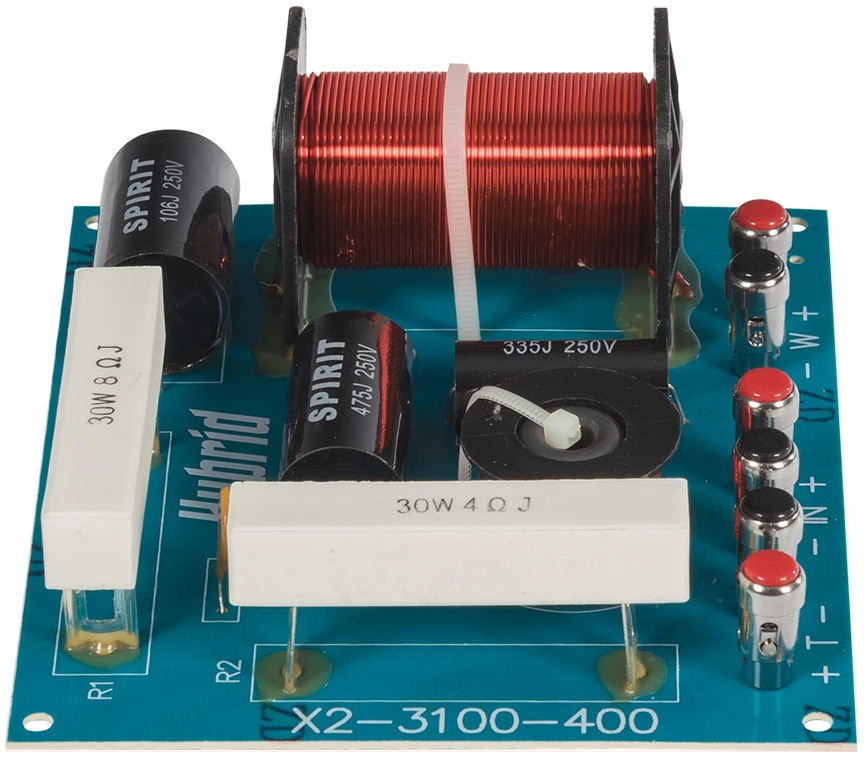

Hybrid X2-3100-400 Passive Crossover – 2 Way

The Hybrid X2-3100-400 is a universal, DIY, 2-way passive crossover suitable for enclosure design enthusiasts and it can be used as a replacement crossover for most 8Ω, 2-way speaker cabinets.
The X2-3100-400 features 12dB/Octave filters, with high frequency attenuation and a PTC protection. Installing the X2-3100-400 is extremely easy with the quick release spring loaded terminals.

X2-3100-400
2-Way Passive Crossover, 8Ω LF – 8Ω HF
Crossover Frequency: 3100Hz
Power Handling: 400W rms
LF Impedance: 6-8Ω
HF Impedance: 6-8Ω
LF Filter: 12dB / Octave
HF Filter: 12dB / Octave
HF Attenuation: Ceramic 30w resistors
HF Protection: PTC (Positve Temperature Control)
Connectors: Quick release spring loaded
Construction: 1.5mm fiberglass PCB
