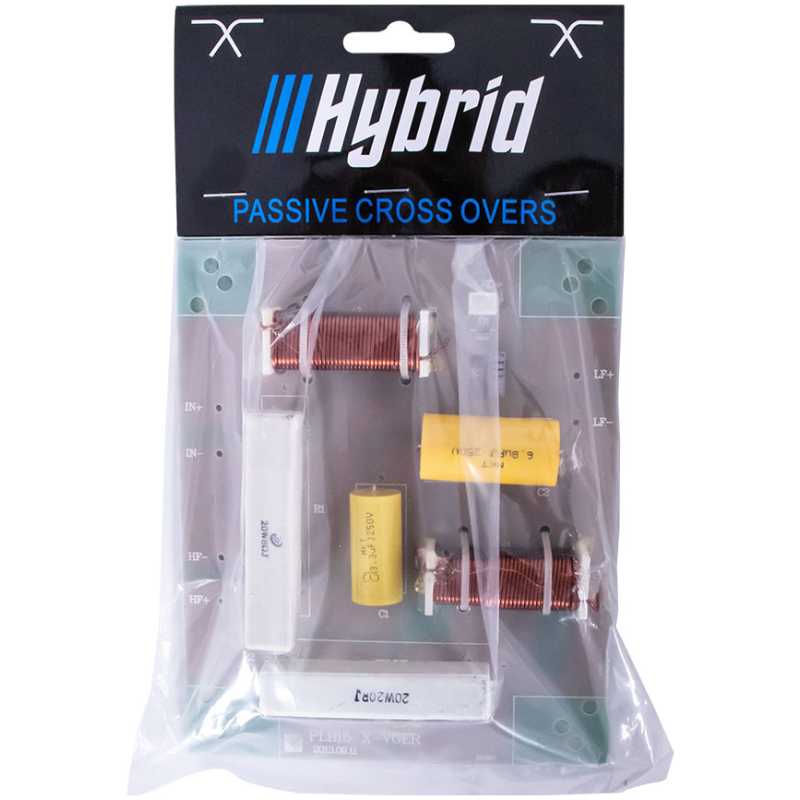

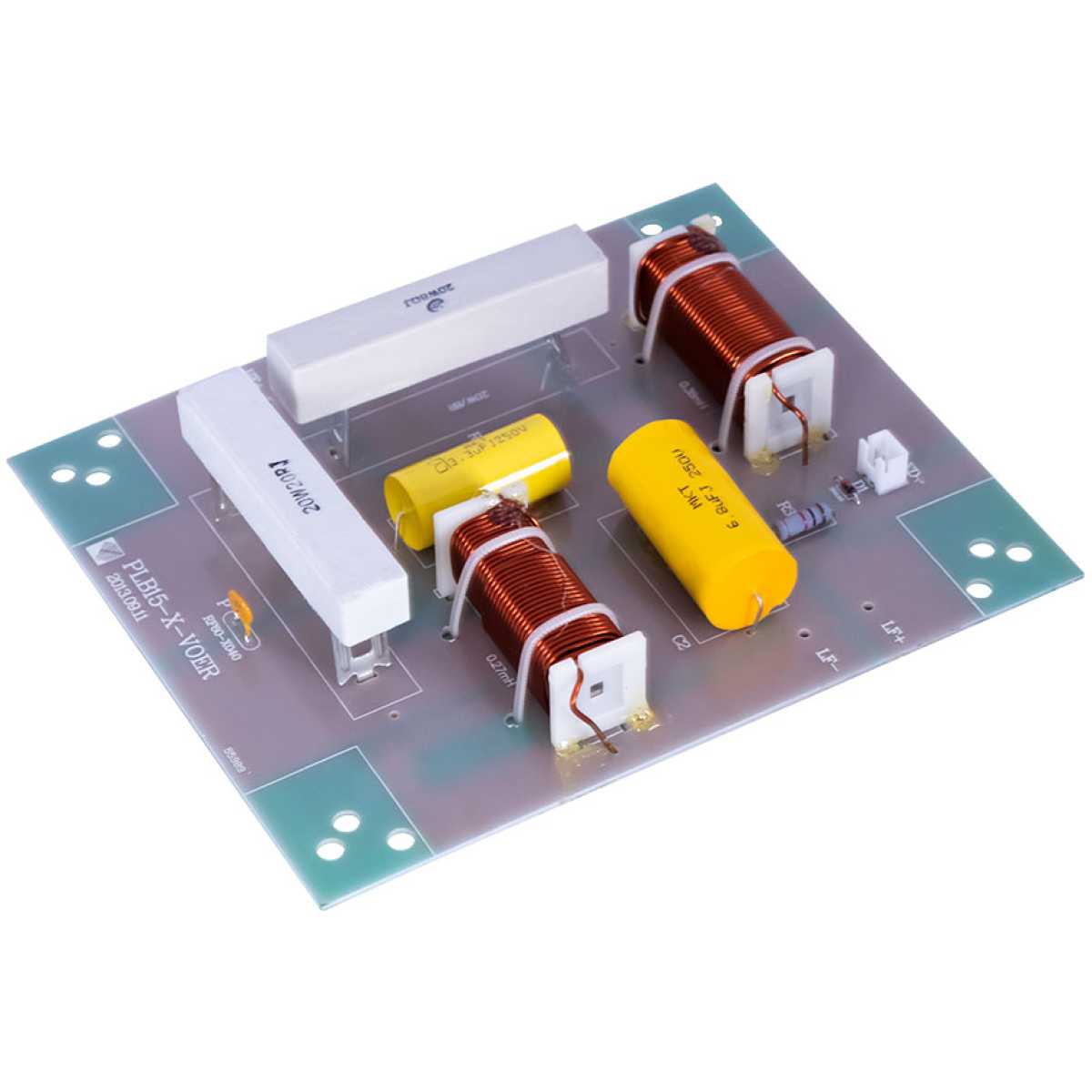

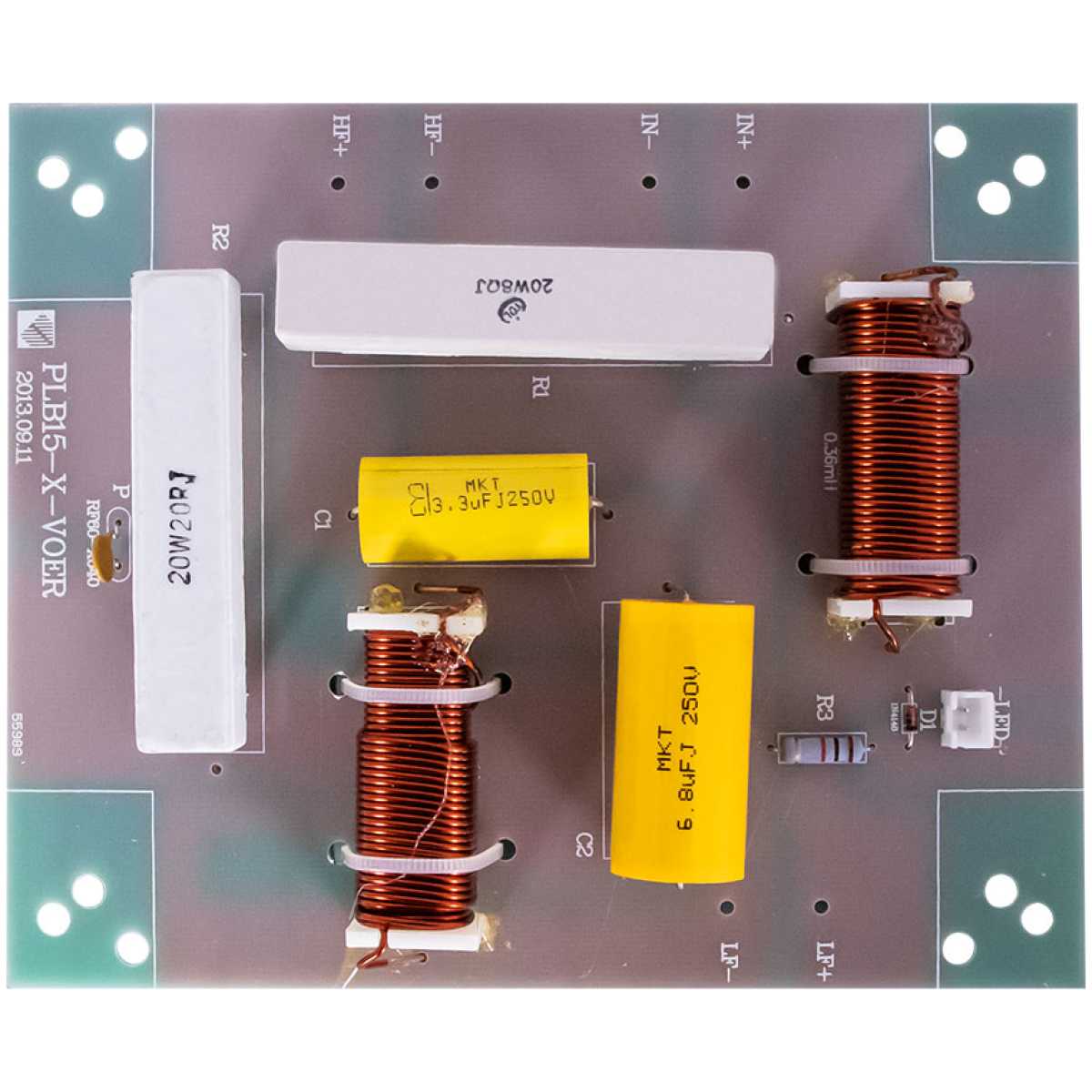

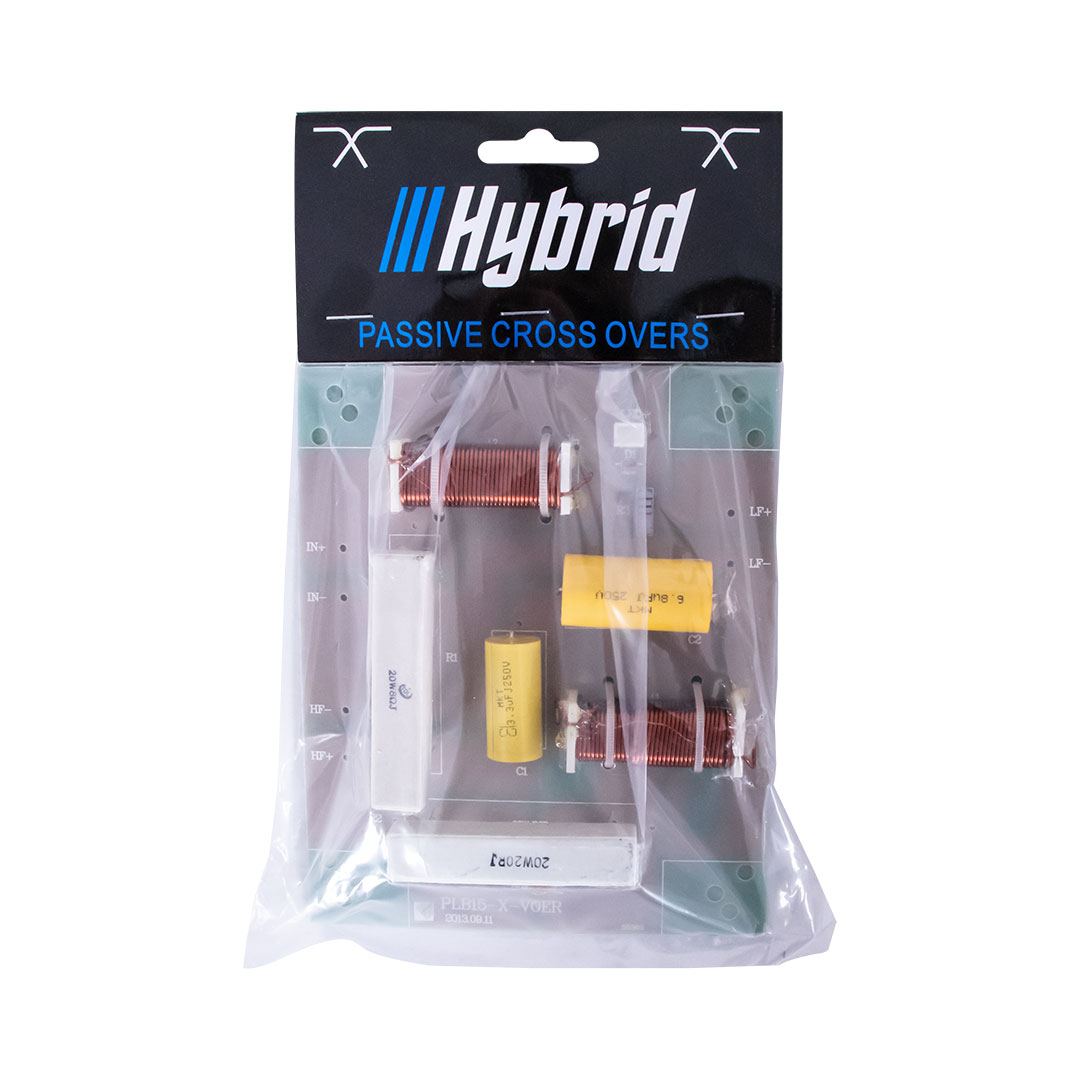

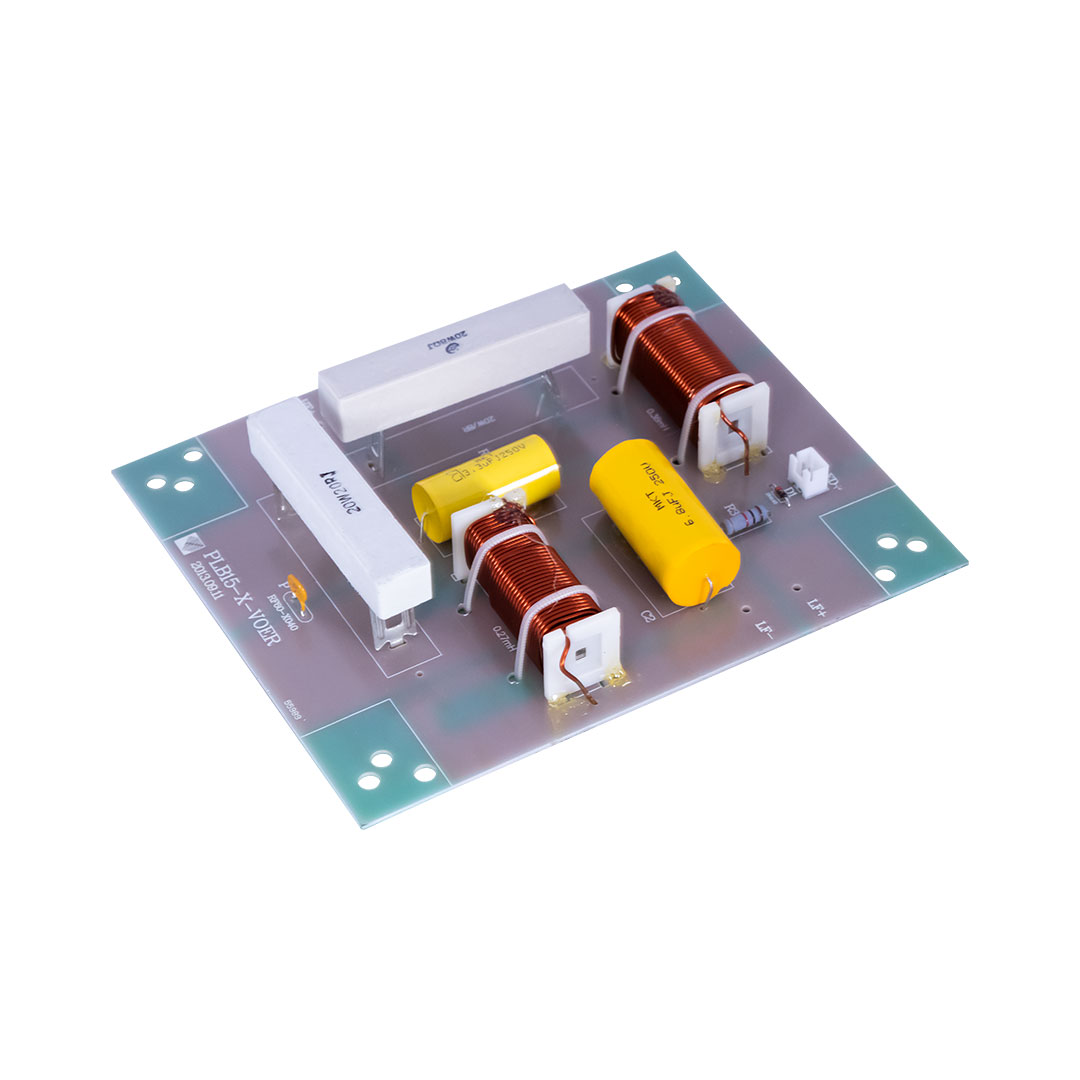

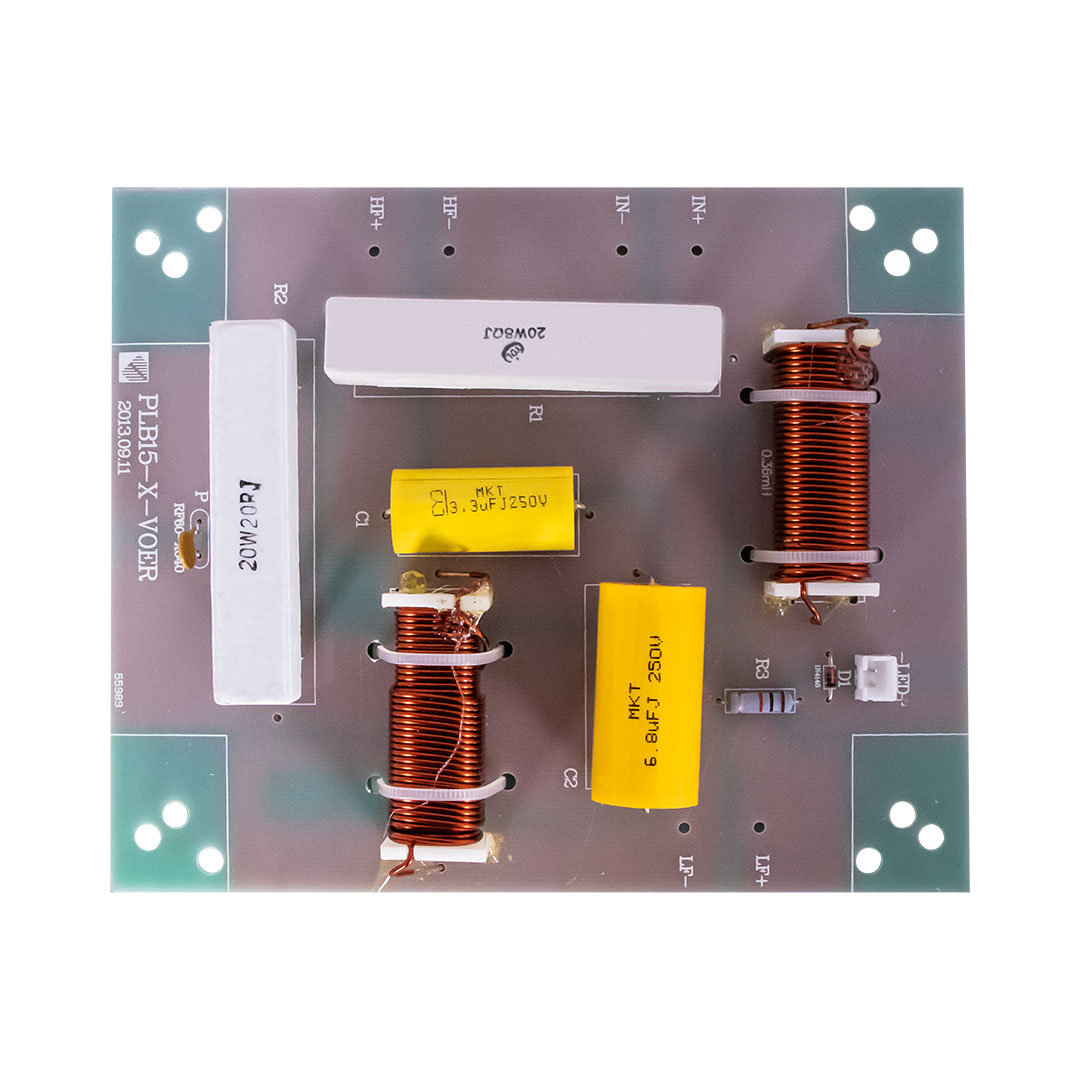

Hybrid X2-PLB15 Passive Crossover – 2 Way

The Hybrid PLB15 X-OVER is a universal, DIY, 2-way passive crossover suitable for enclosure design enthusiasts and it can be used as a replacement crossover for most 8Ω, 2-way speaker cabinets.
The PLB15 X-OVER features a 6dB/Octave filter on the LF and a 18dB/Octave fliter on the HF, with high frequency attenuation and a PTC protection.

PLB X-OVER
2-Way Passive Crossover, 8Ω LF – 8Ω HF
Crossover Frequency: 6000Hz
Power Handling: 250W rms
LF Impedance: 8Ω
HF Impedance: 8Ω
LF Filter: 6dB / Octave
HF Filter: 18dB / Octave
HF Attenuation: Ceramic 20w resistors
HF Protection: PTC
Construction: 1.5mm fiberglass PCB
