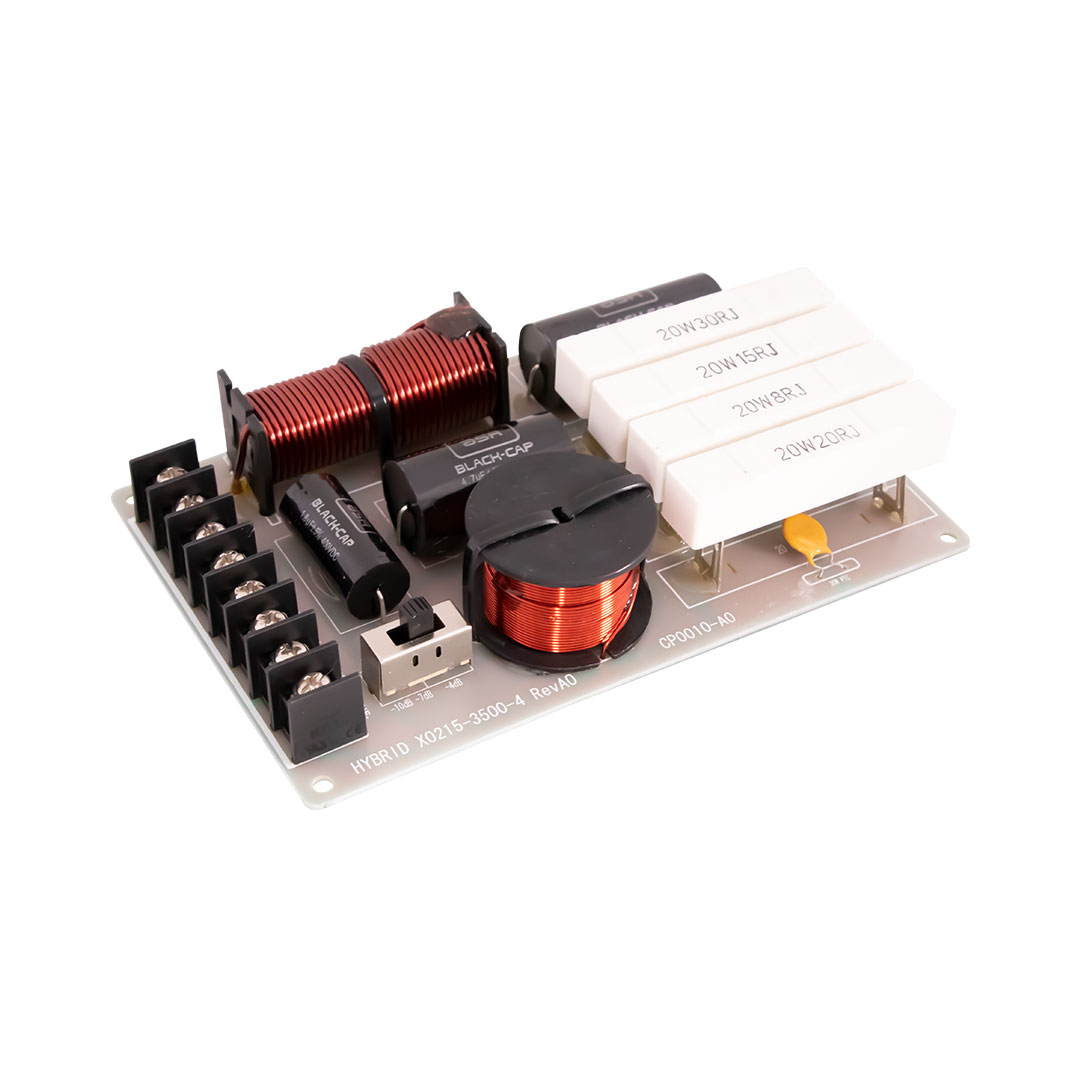

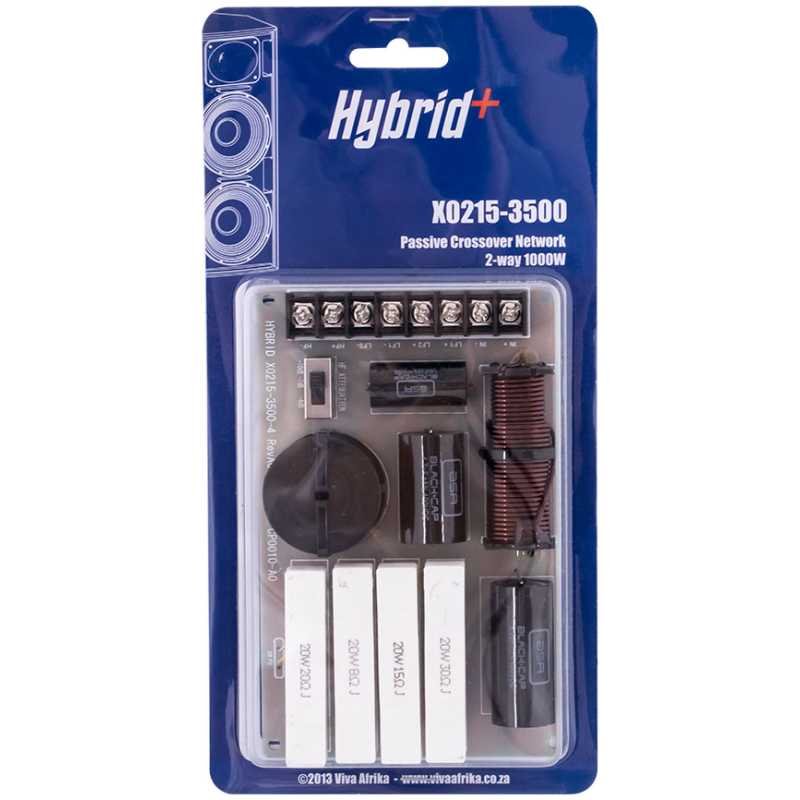

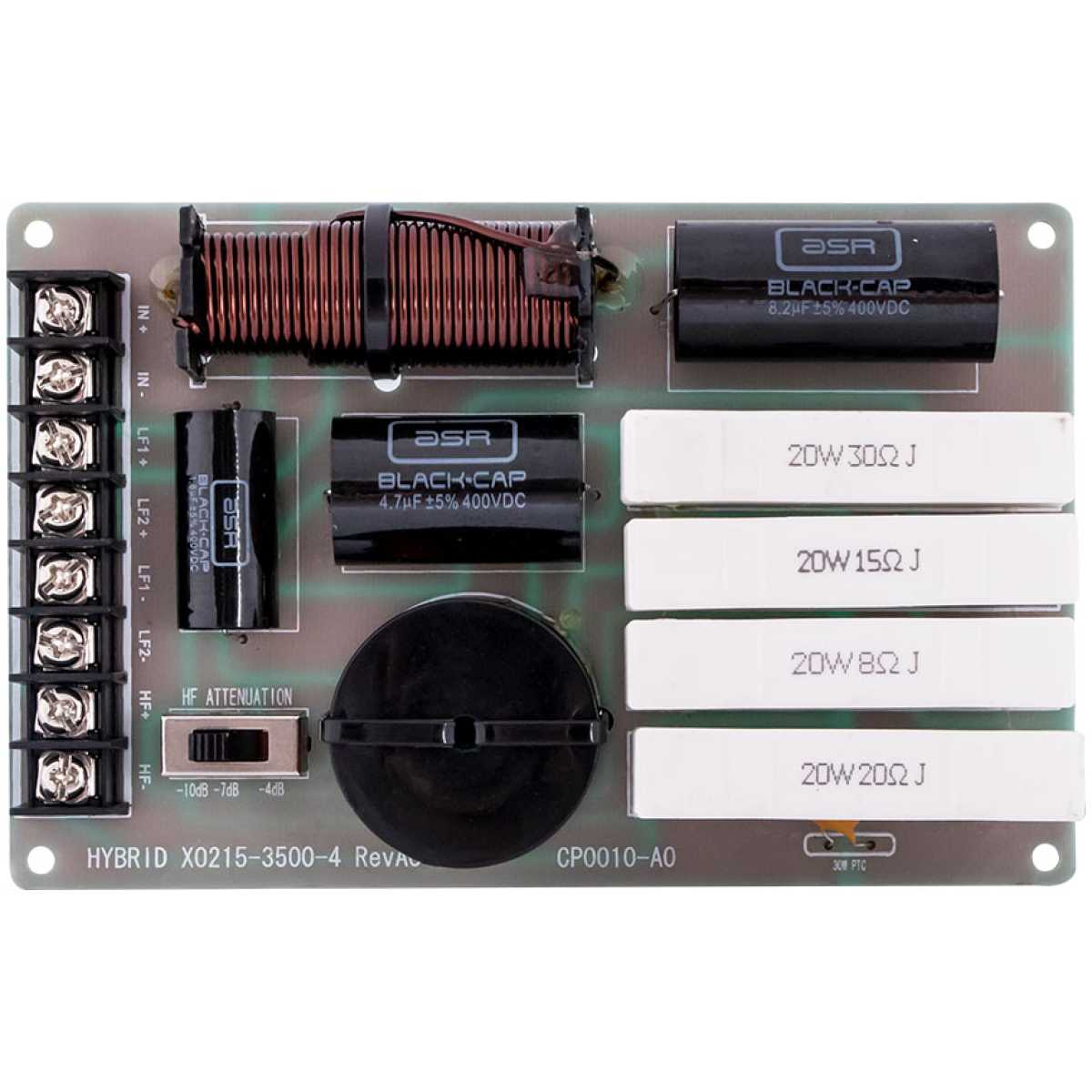

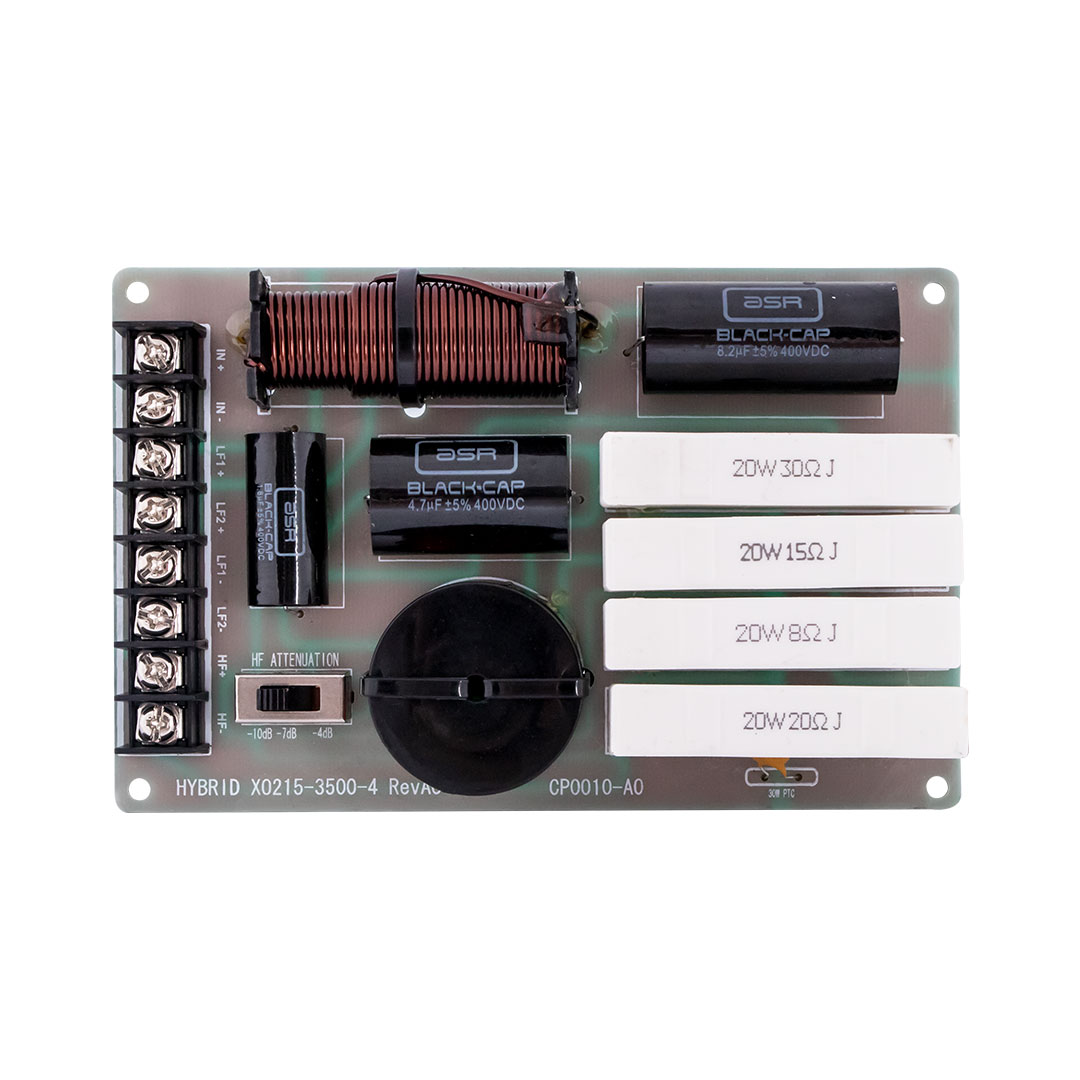

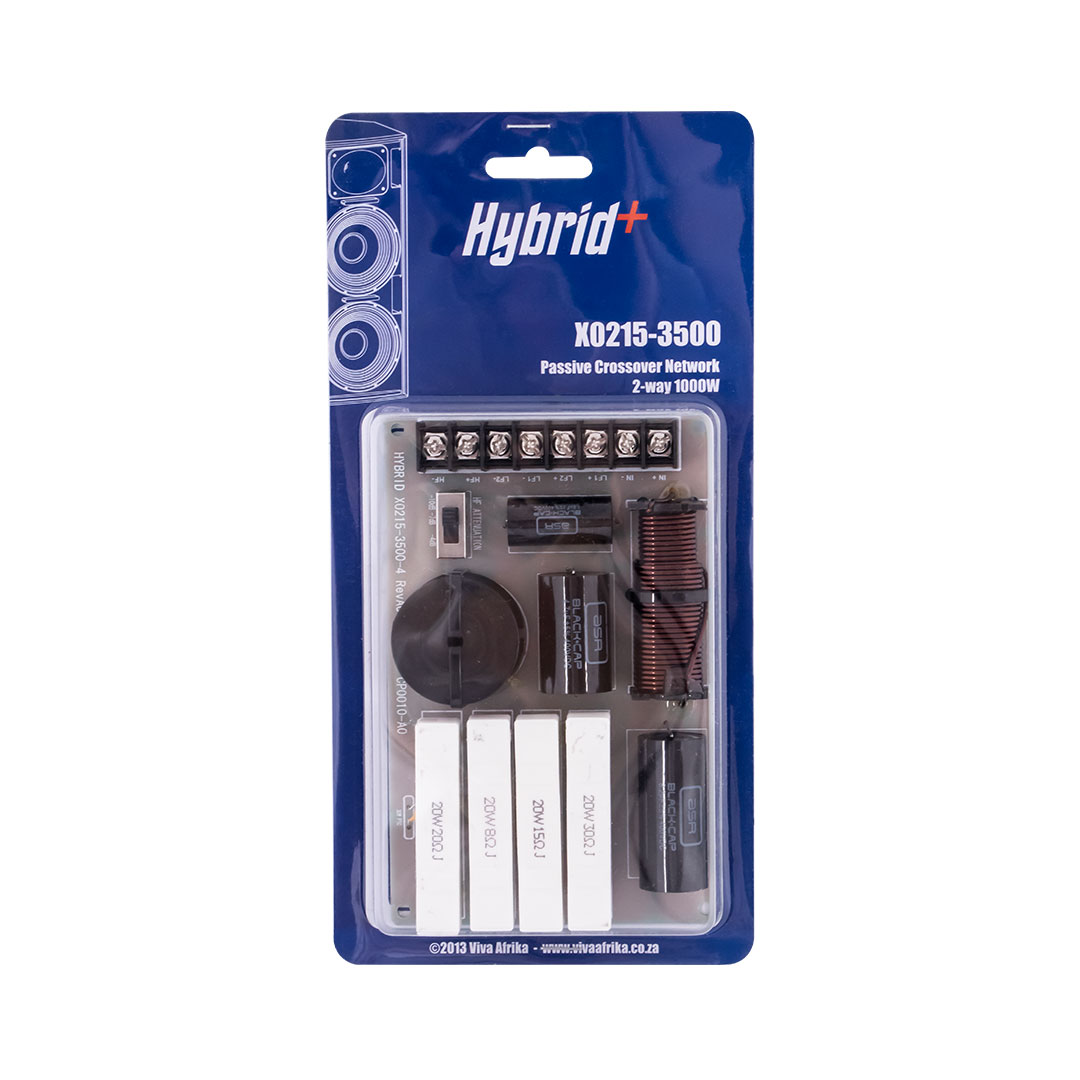

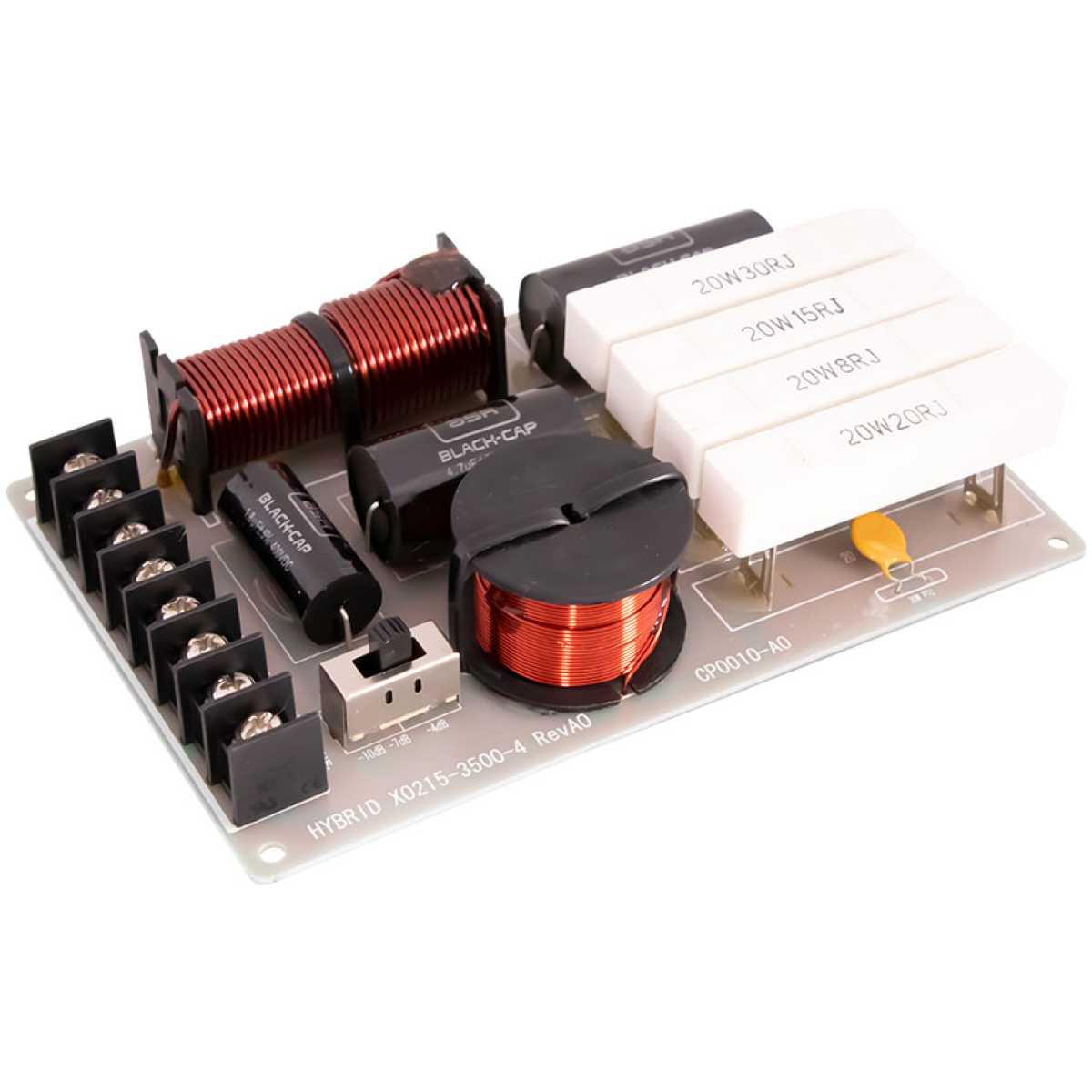

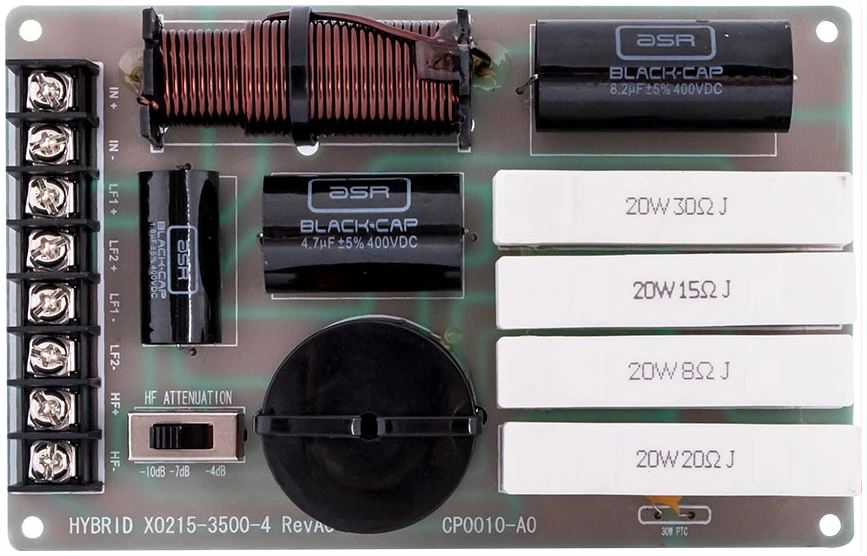

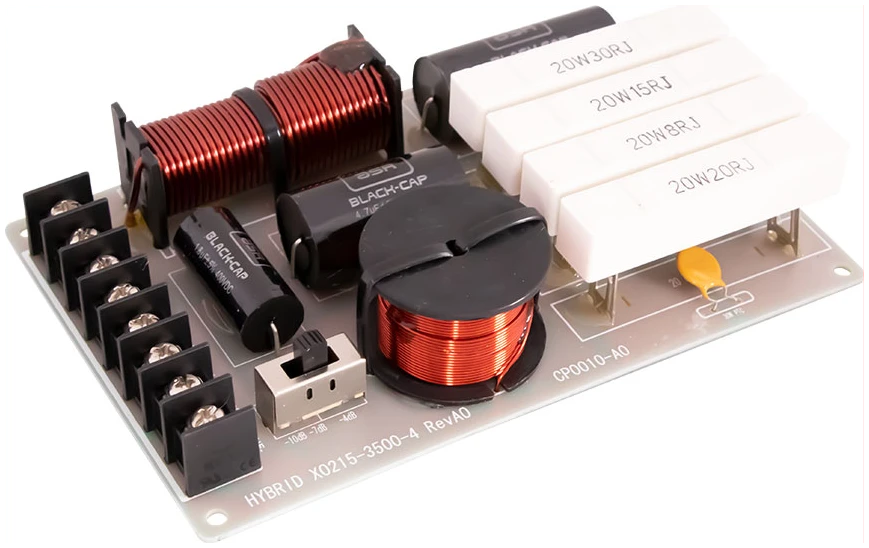

Hybrid XO215-3500-4 Passive Crossover – 2 Way

The Hybrid+ XO215-3500 is a universal, DIY, 2-way passive crossover suitable for enclosure design enthusiasts and it can be used as a replacement crossover for most dual woofer 2-way speaker cabinets, ranging in size from 6″ to 15″.
The XO215-3500 features 12dB/Octave filters, with a switch selectable high frequency attenuation and a PTC protection. Installing the X0215-3500 is extremely easy with the screw-in terminal block connector.

XO215-3500
2-Way Passive Crossover, 4Ω LF – 8Ω HF
Crossover Frequency: 3500Hz
Power Handling: 500W rms
LF Impedance: 4Ω
HF Impedance: 8Ω
LF Filter: 12dB / Octave
HF Filter: 12dB / Octave
HF Attenuation: Switchable, -4dB, -7dB and -10dB
HF Protection: PTC (Positve Temperature Control)
Connectors: Screw-in terminal block connector
Construction: 1.5mm fiberglass PCB
