SPEC
-
SPECS
- body shape
- Cutaway Dreadnought body
- top
- Spruce top
- back & sides
- Okoume back & Okoume sides
- neck
- PFNyatoh neck
- fretboard
- Laurel fretboard
- bridge
- Laurel bridge
- inlay
- White dot inlay
- soundhole rosette
- Acrylic pearl

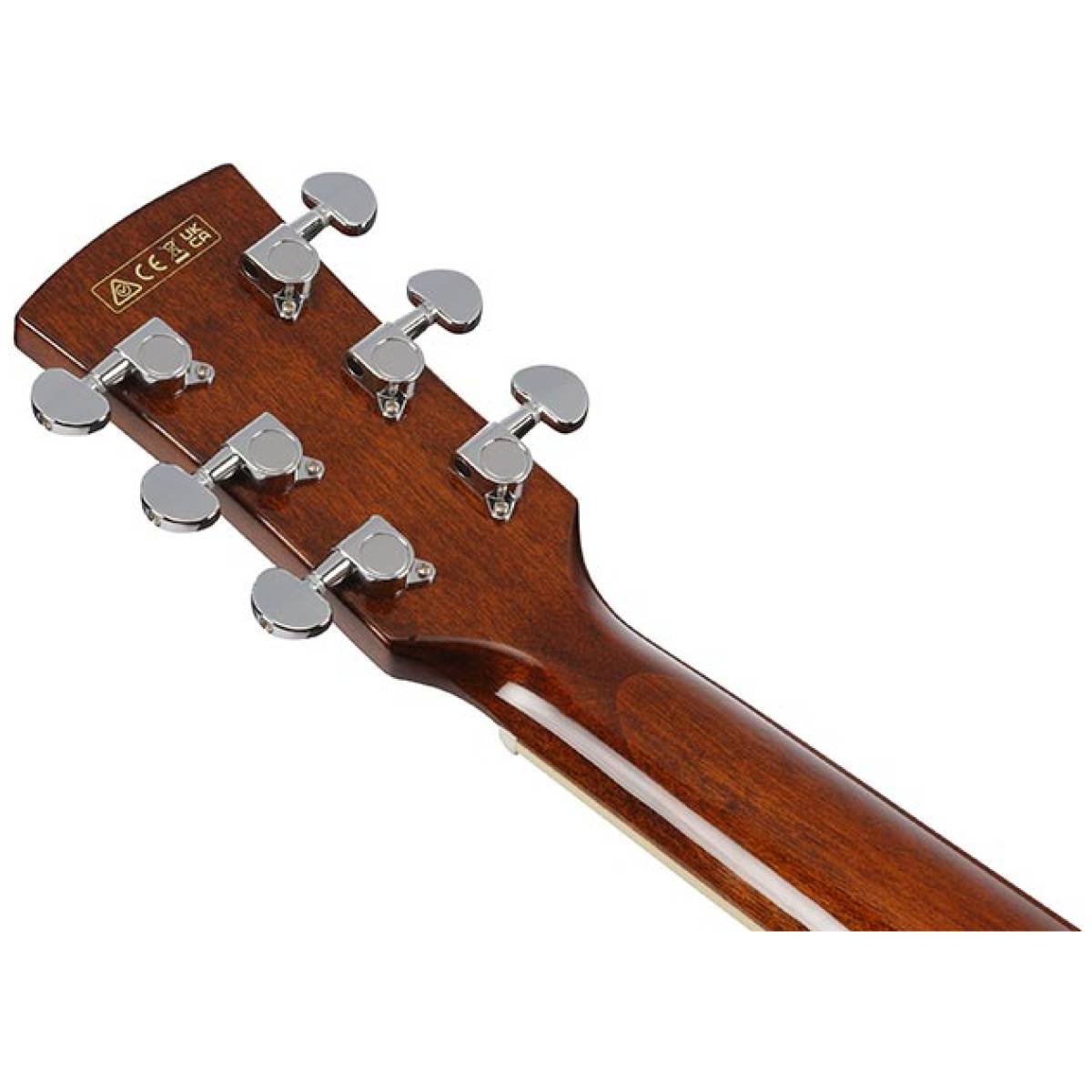

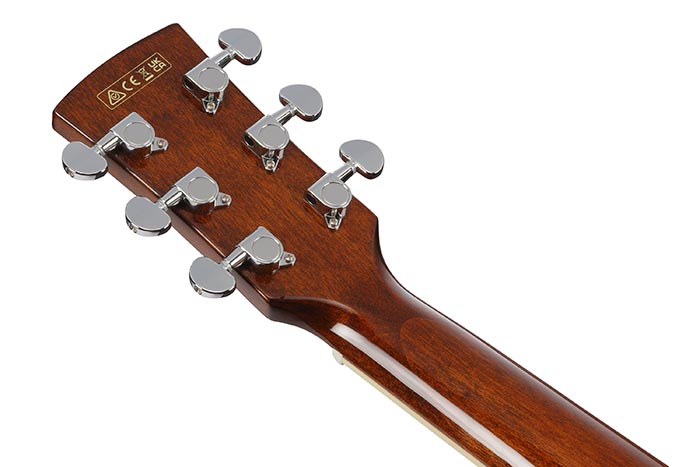

- tuning machine
- Chrome Die-cast tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone
- bridge pins
- Ibanez Advantage™
- strings
- Ibanez IACS6C
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ-2T preamp w/Onboard tuner
- output jack
- 1/4″ output
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 647.7mm/25.5″
- a : Width
- 48mm at NUT
- b : Width
- 60mm at 14F
- c : Thickness
- 22mm at 1F
- d : Thickness
- 23mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8“
- b : Width
- 15 3/4“
- c : Max Depth
- 5“
-
DESCRIPTION
-
-
PREAMP
DESCRIPTION
-
OTHER FEATURES
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Ibanez Undersaddle pickup
The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.
Ibanez AEQ-2T preamp w/Onboard tuner
AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.
Laurel bridge
The Laurel bridge transfers string vibration directly to the body, delivering a natural and warm tone.
48mm Wide Nut
Its wider fretboars (48mm at nut, 60mm at 14ft) gives a more comfortable playing experience to those who have bigger hands and/or are shifting to acoustic guitar from classical guitar with wide neck.
Spruce top
Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.
Laurel fretboard
The Laurel fretboard provides a rich and warm tone.

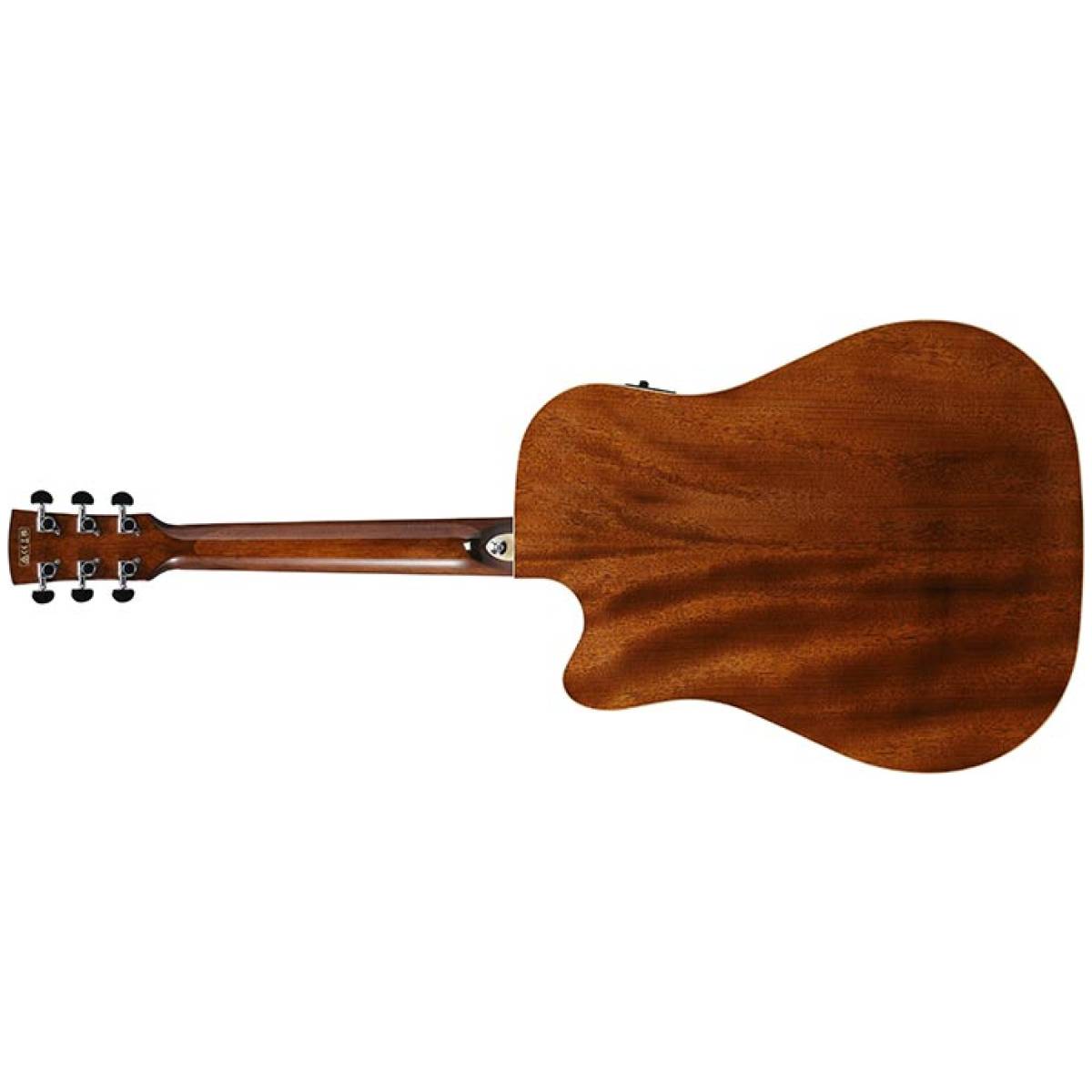

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
