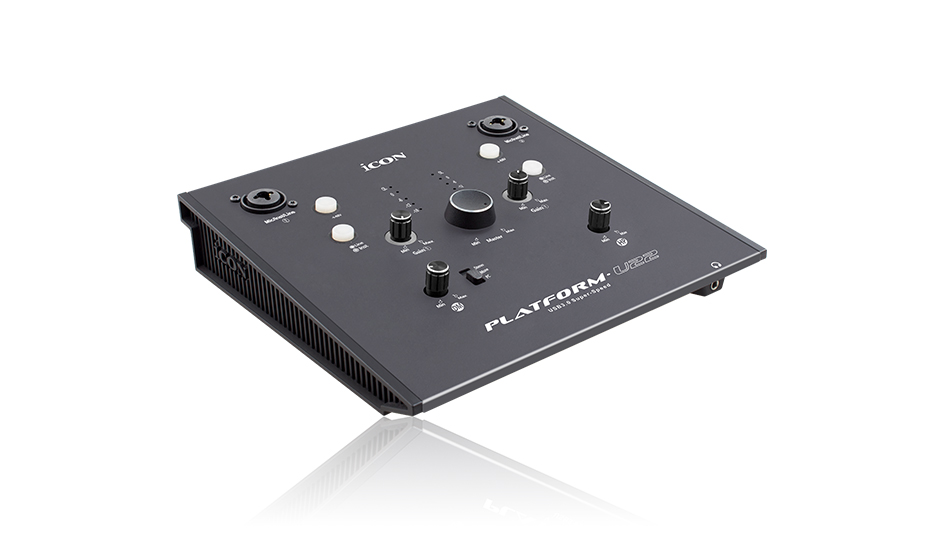

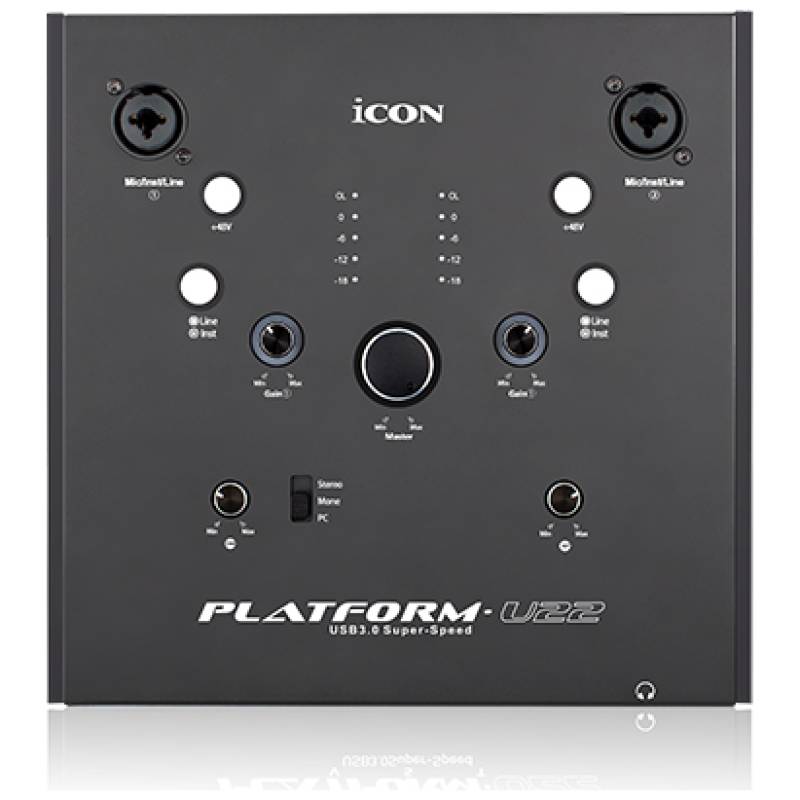

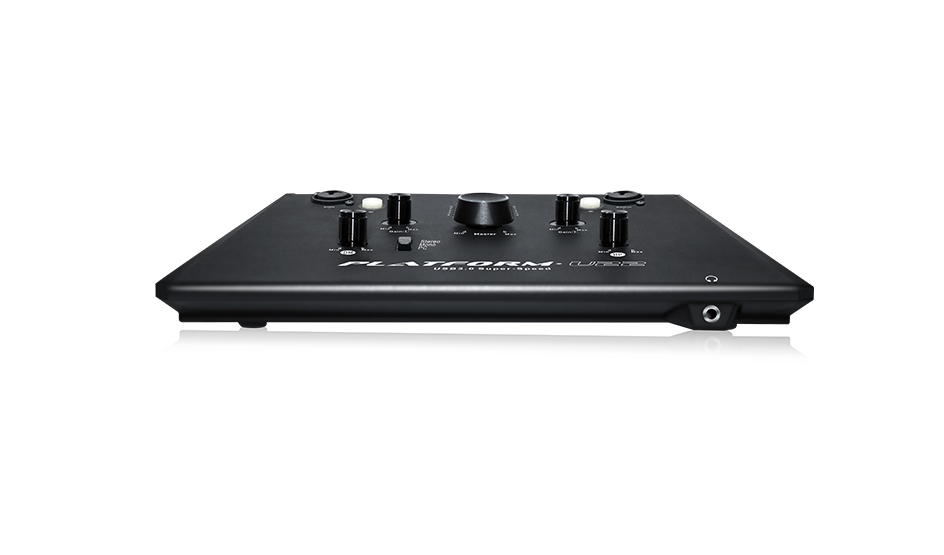

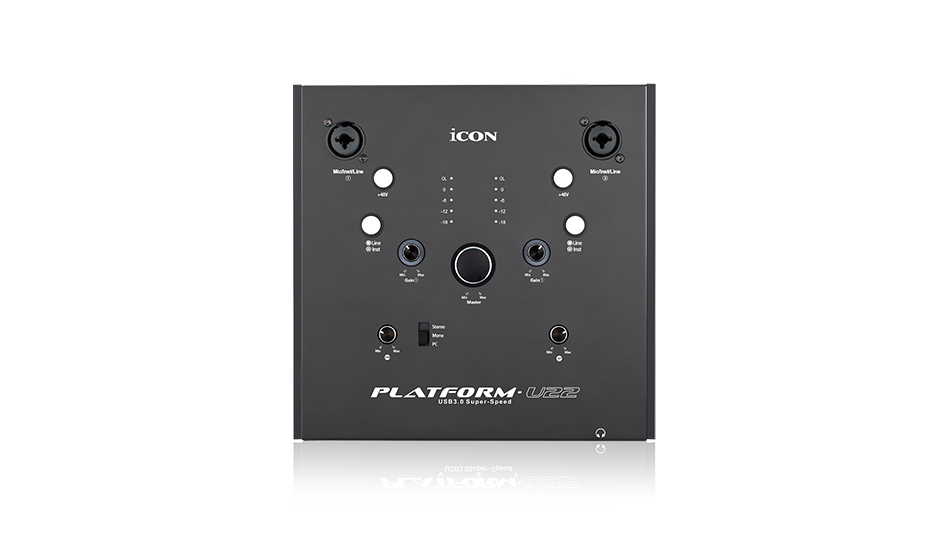

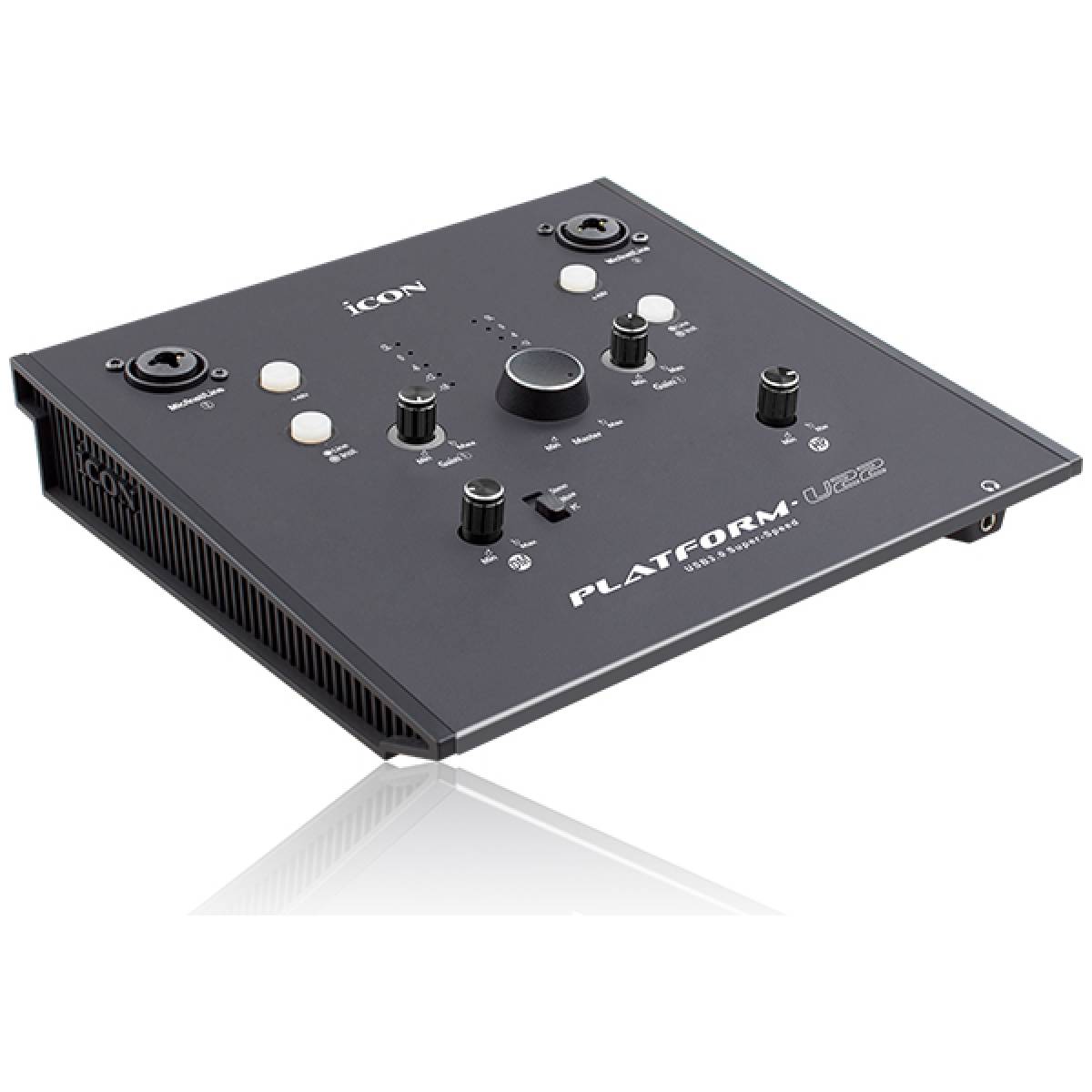

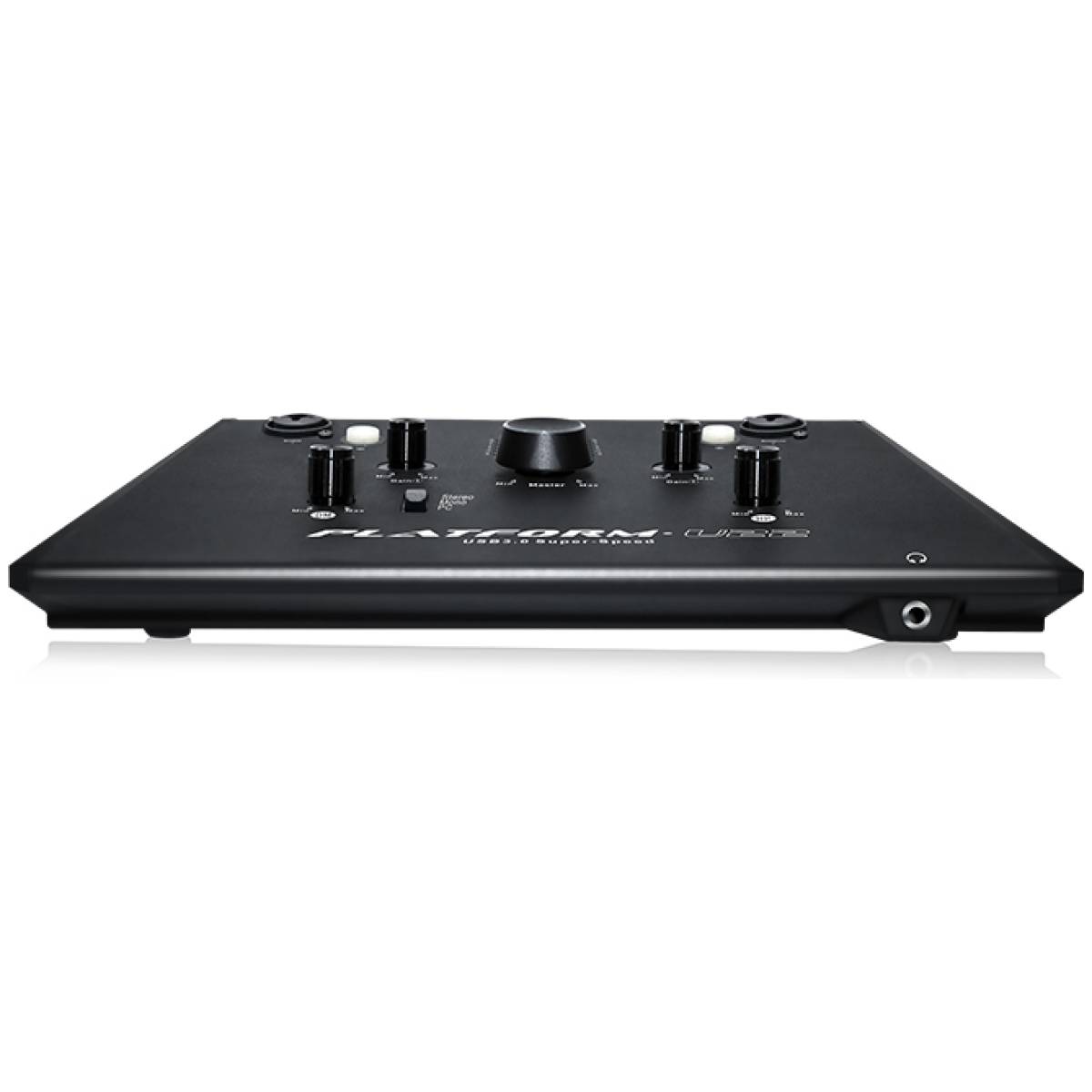

ICON Platform U22 USB Audio Interface 2-In/2-Out

Capture your best performance with the Icon Pro Audio Platform U22 USB 3.0 audio interface. We designed this 24-Bit 96/192KHz 2-In/2-Out audio interface to provide superior sonic quality, a low noise floor, and ultra fast signal processing in a rugged, compact and versatile form factor made specifically for the Platform series. Record two sound sources at once through two high quality preamps each equipped with individual gain, phantom power, and LED level indicators that help you dial in your sound.

The Platform U22 also comes complete with ProDriver, our innovative virtual mixer, plug-in host and signal routing software. Bitwig Studio 8-Track DAW is also included in this package and gives you all the basic tools that you need to get your personal recording system up and running. Platform U22 is also fully compatible with other Platform series control surfaces. Altogether, this powerful bundle provides efficient, economical and high quality composing, recording, streaming, teleconferencing and mixing solutions.

Powered by our world-class D/A and A/D converters, the Platform U22 accurately captures and plays back your vocal and instrument performances with exquisite sharpness, clarity and detail. This is all made possible by professional grade high quality components and robust, reliable build quality.

FEATURES:

• USB 3.0 super-speed connectivity for ultra-low latency
• 24-Bit 96/192KHz 2-In/2-Out USB Recording Interface
• High dynamic range and S/N ratio:
  DAC: THD+N: -112dB; Dynamic Range: 120dB
  ADC: THD+N: -110dB; Dynamic Range: 120dB
• 2×2 analog I/O full duplex recording and playback
• 2 x ICON innovative unique mic/Line/Instrument preamps with individual gain control and phantom power switch

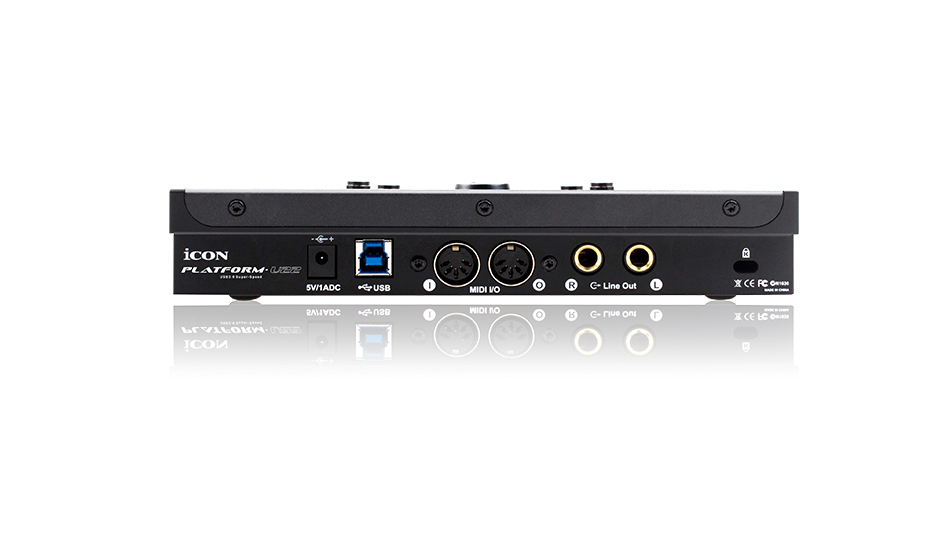

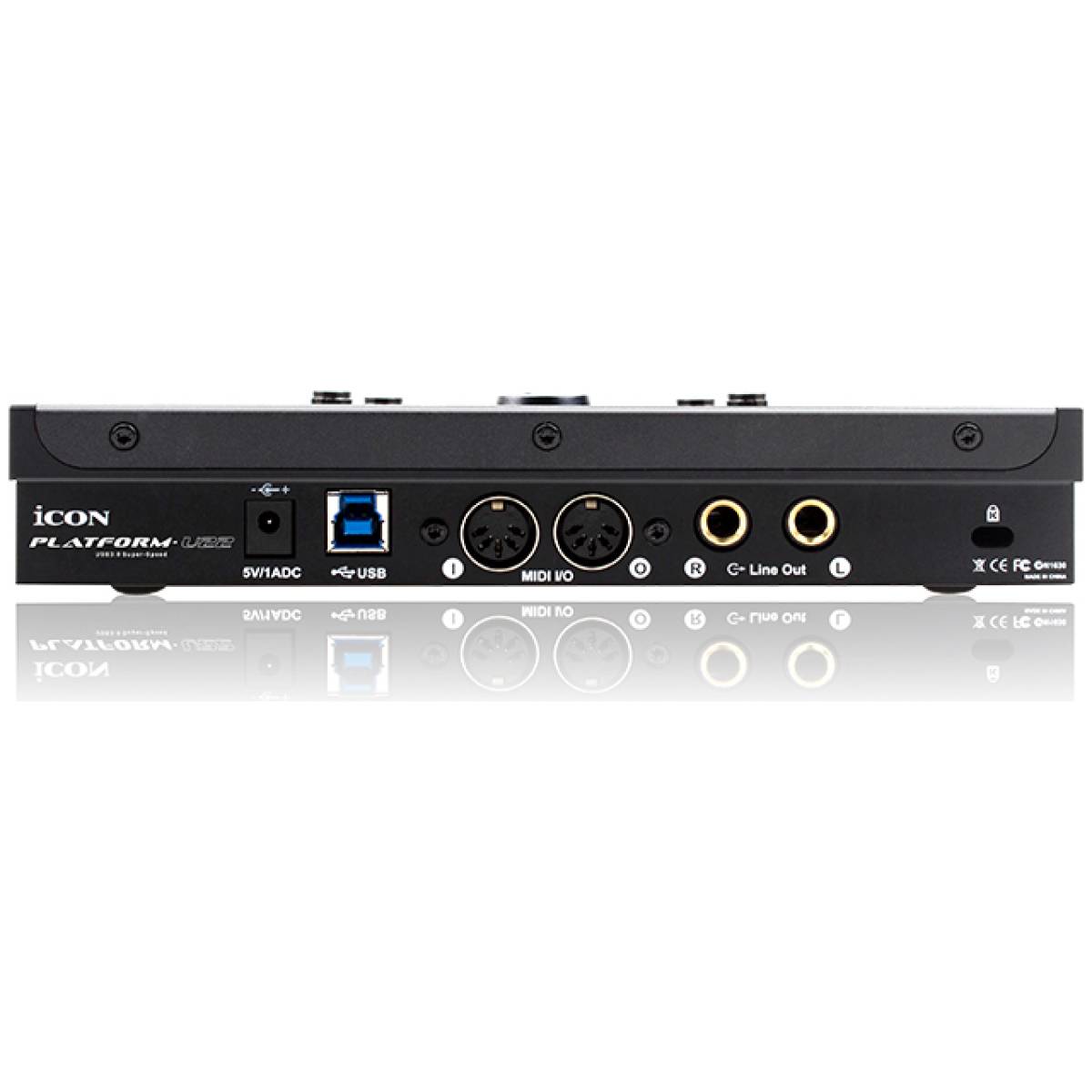

• 2 analog balanced inputs on 1/4” TRS jacks
• 2 analog balanced outputs on 1/4” TRS jacks
• 1 x 1 – 16 channel MIDI I/O
• Headphone output with individual volume control
• Bitwig Studio 8-Track DAW is included
• iCON ProDriver software provides internal virtual routing for inputs and outputs
• iCON ProDriver plugin host and EFX rack included
• Flexible channel routing via the software control panel
• Direct monitoring switch for “Stereo, Mono and PC” with individual volume control
• Supports DirectSound, WDM and ASIO2.0
• Compatible with Mac OS (Intel-Mac) and Windows 7, 8 & 10 (32-bit/64-bit)
• Full duplex, simultaneous record/playback
• Rugged metal construction
• Designed to match other Platform series devices such as Platform M+.
• Bitwig 8Track included
• Dotec audio plugins included
• Tracktion DAW Essentials Collection plugins included
• Kilohearts Toolbox plugins included
• Harrison 32c Vocal Intensity Processor plugin included
