Imix 8x LA2210 2x 2218 Line Array Combo

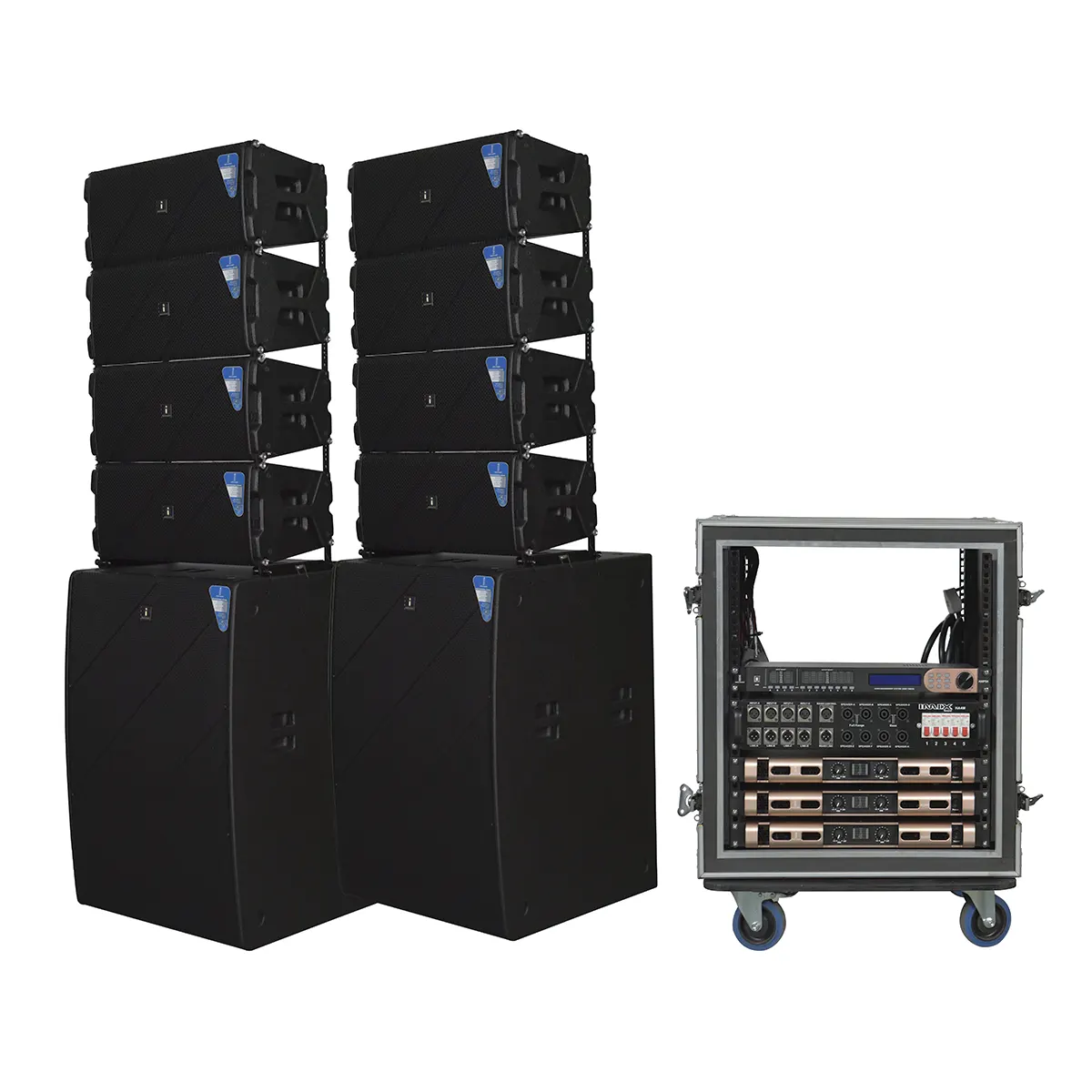

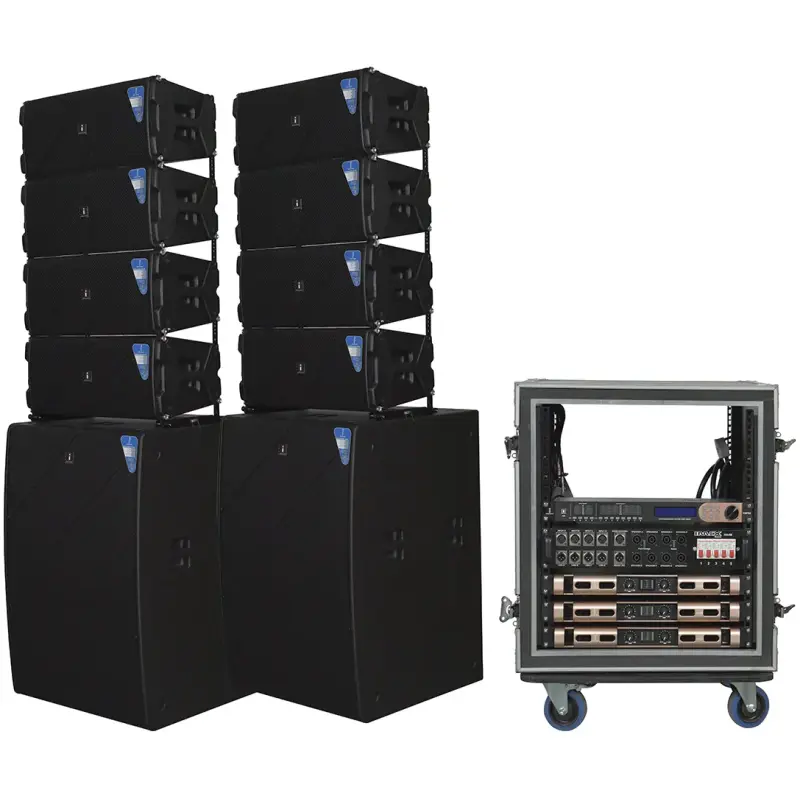

The IMIX LINE ARRAY COMBO is a high-performance professional sound system designed for live events, concerts, and large venues which offers a complete, high-power audio solution with exceptional fidelity and reliability for demanding professional applications. This combo features 8 x LA-2210 MK2 dual 10″ two-way compact line array speakers and 2 x LA-2218 MK2 dual 18″ compact line array subwoofers, delivering powerful, clear, and immersive audio across a wide frequency range.

Key Components:

1. LA-2210 MK2 – Dual 10″ Two-Way Line Array Speaker

• Power Handling: HF: 100W RMS / LF: 400W RMS
• Impedance: 16Ω
• Sensitivity: HF: 109dB / LF: 99dB
• Frequency Response: 70Hz–18KHz
• Dimensions: 300 × 720 × 430mm (W × H × D)
• Weight: 26.8 kg

Ideal for mid-high frequency reproduction, the LA-2210 MK2 ensures crisp vocals and detailed sound dispersion, making it perfect for line array configurations.

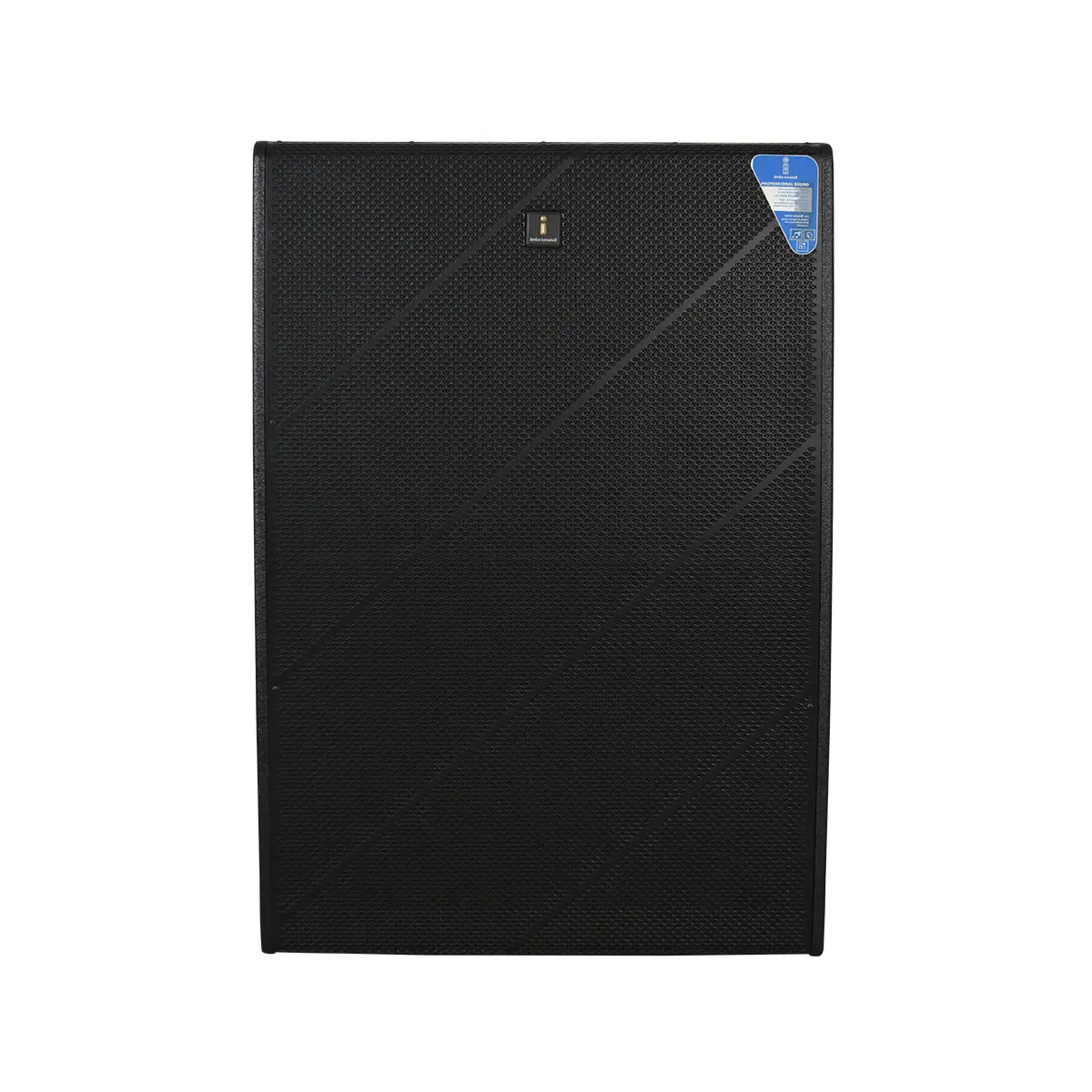

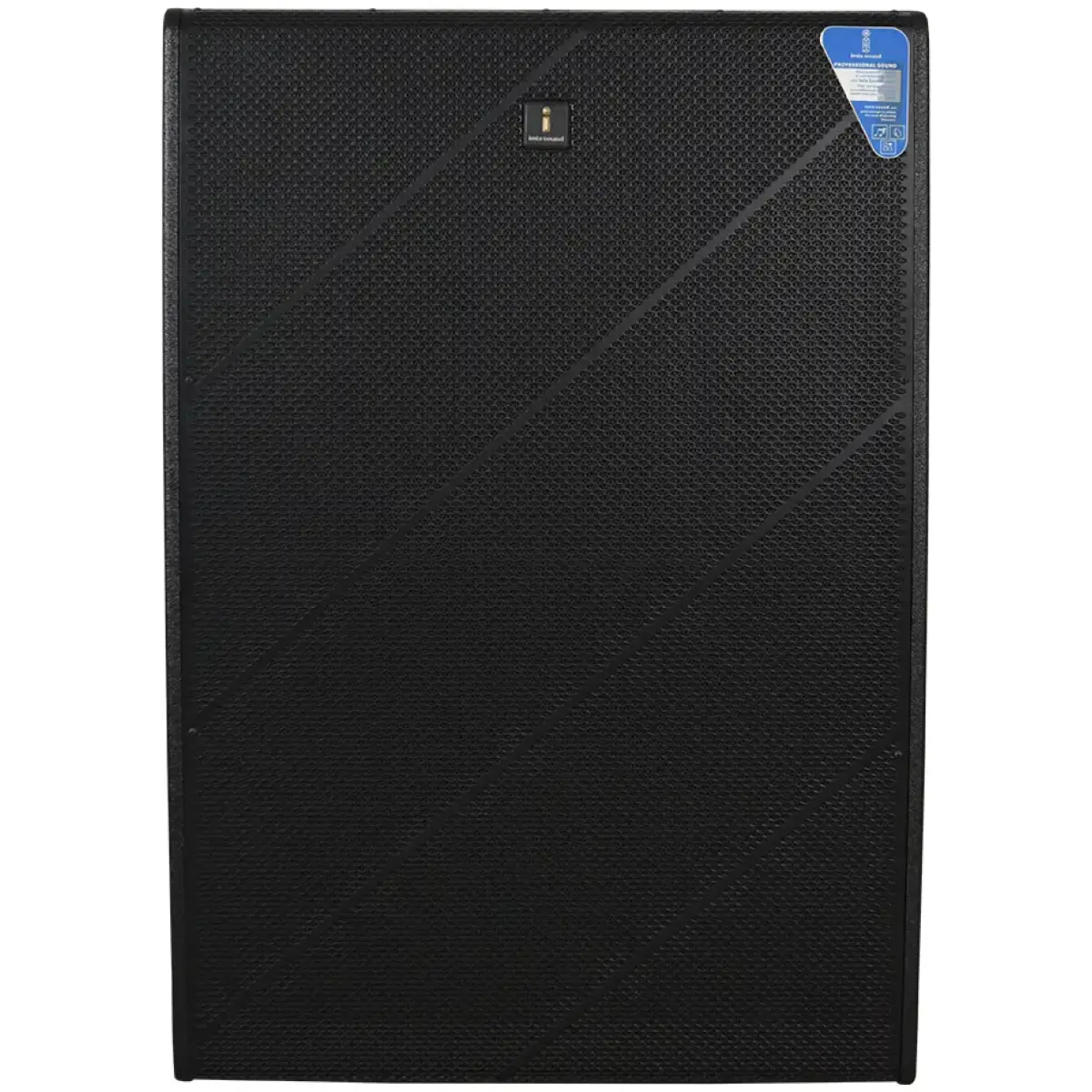

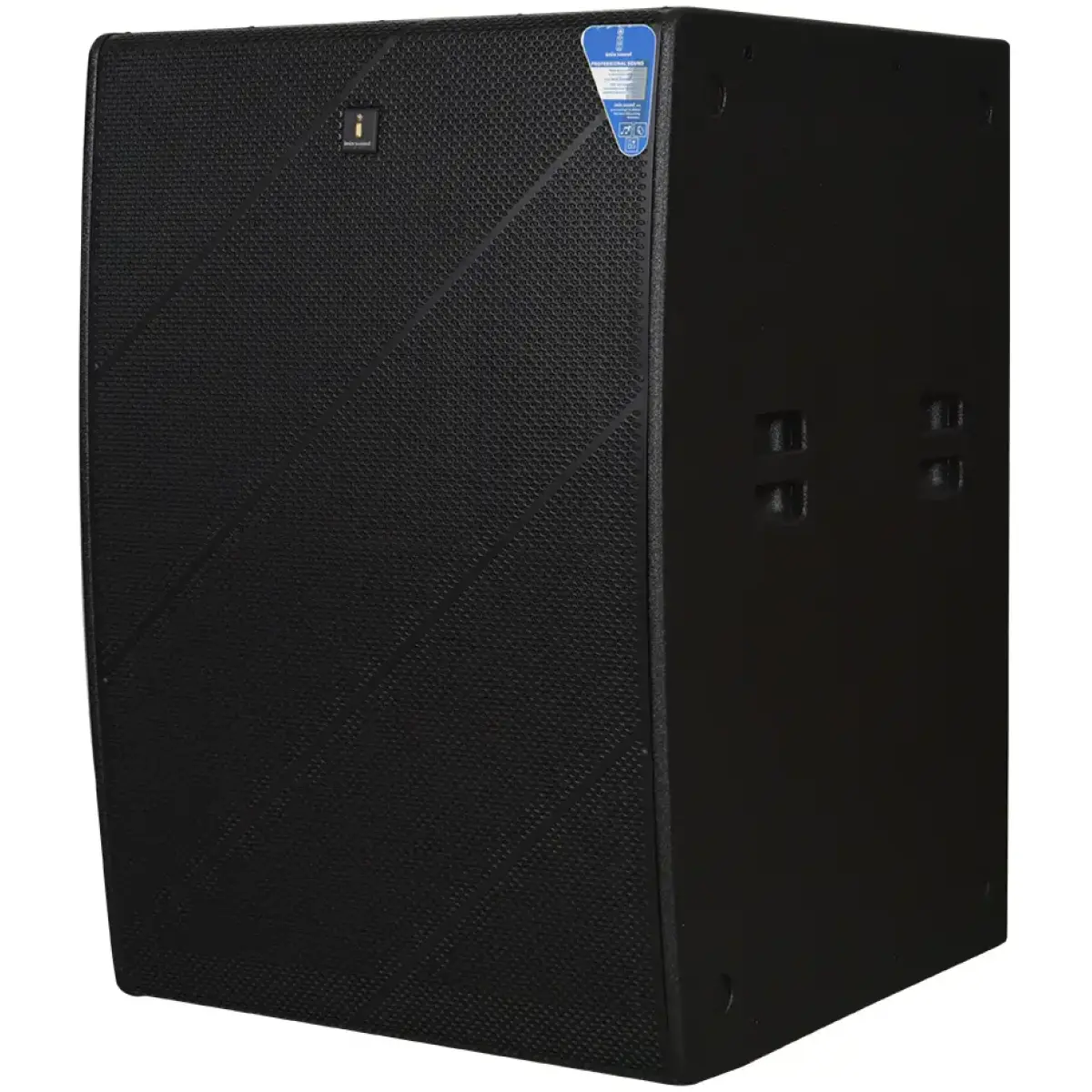

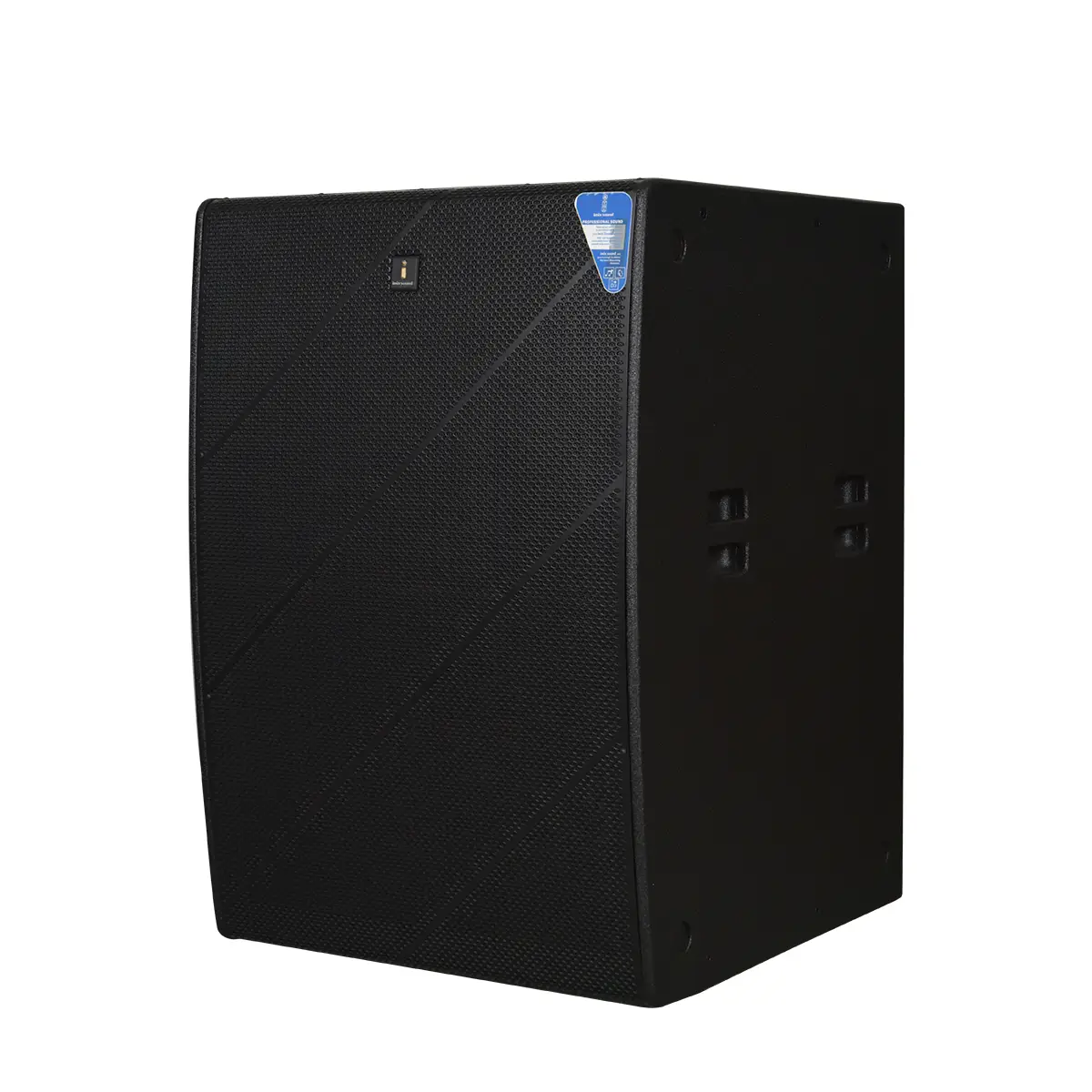

2. LA-2218 MK2 – Dual 18″ Compact Line Array Subwoofer

• Power Handling: 1400W RMS
• Impedance: 4Ω
• Sensitivity: 102dB
• Frequency Response: 30Hz–200Hz
• Dimensions: 720 × 755 × 1030mm (W × H × D)
• Weight: 80 kg

Designed for deep, punchy bass, the LA-2218 MK2 enhances low-frequency performance, ensuring a full and dynamic audio experience.

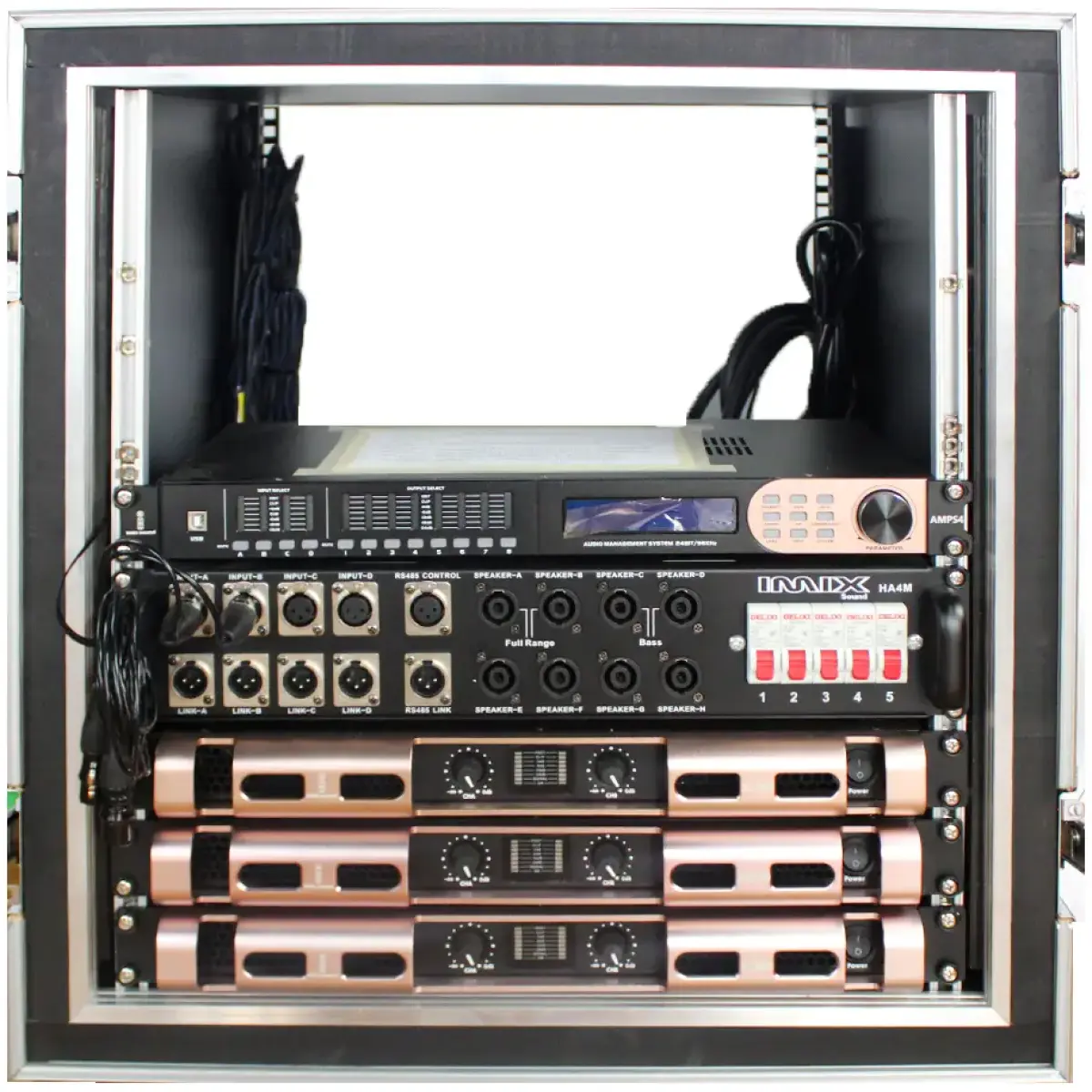

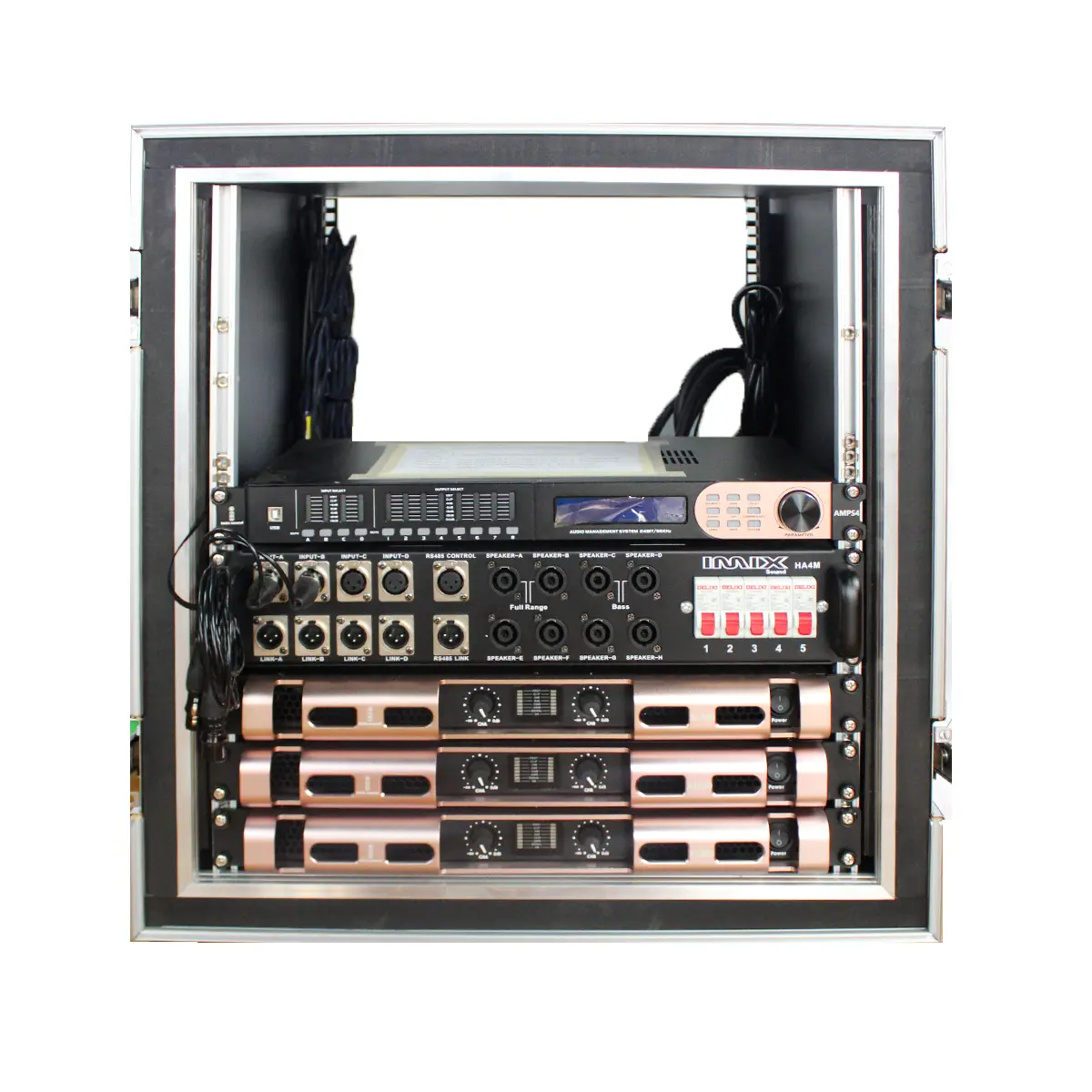

3. Additional System Components

• HA4M Power Distributor:
  • Manages power distribution with independently controlled 16A sockets.
  • Features 4 XLR connectors and RS485 for signal distribution.
  • >Dimensions: 483 × 88 × 368mm.
• AMPS 4 Audio Processor (4-in, 8-out):
  • Advanced DSP with EQ, delay, crossover, and compressor controls.
  • High-resolution 96KHz/32-bit processing for pristine sound.
  • Includes USB and RS485 interfaces for easy configuration.
• X1800 Power Amplifier:
  • Delivers 1800W x 2 (8Ω) or 3600W (bridged mode).
  • Ultra-low distortion (<0.03%) and high damping factor (>650).
  • Neutrik Combo inputs and SpeakON outputs for reliable connectivity.

Download Full Specifications

What’s Included
