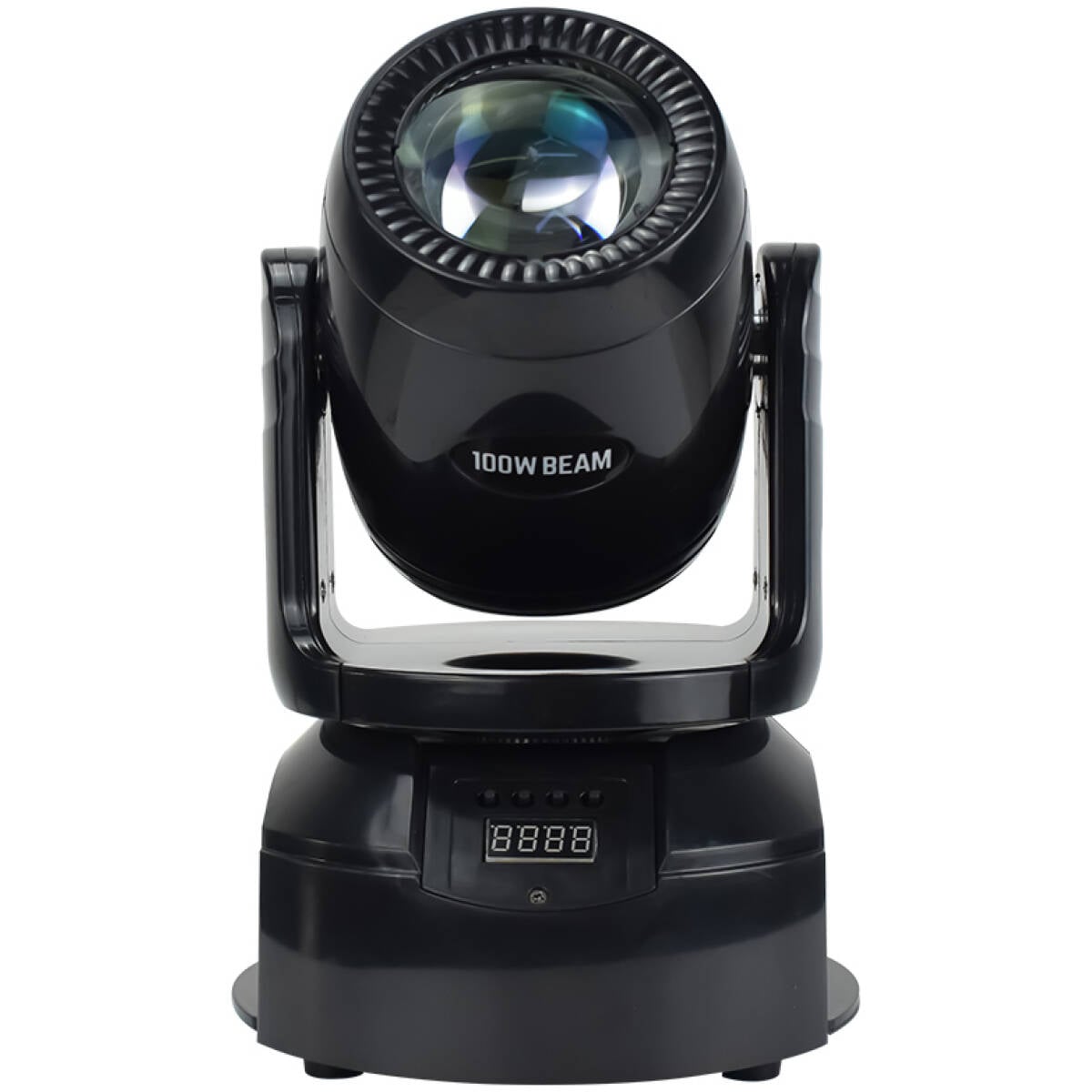

Imix EAGLE 100 Beam Gobo Moving Head Light Set

Key Features

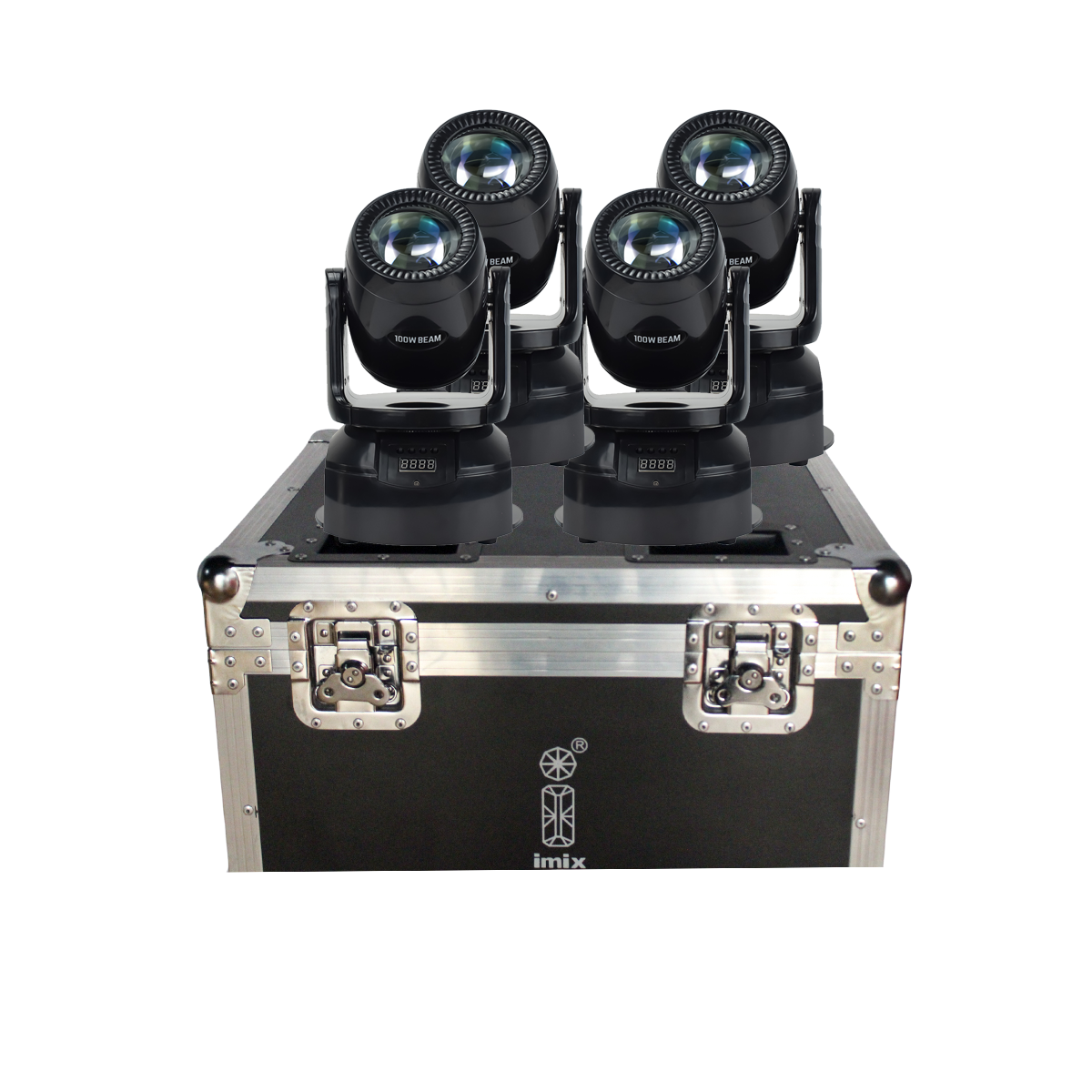

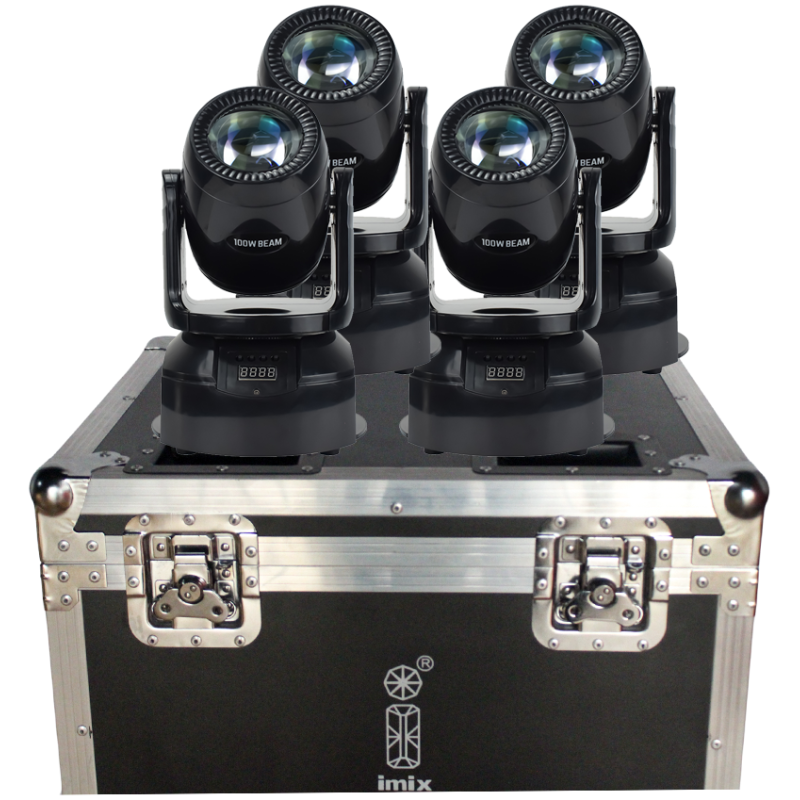

Complete Set

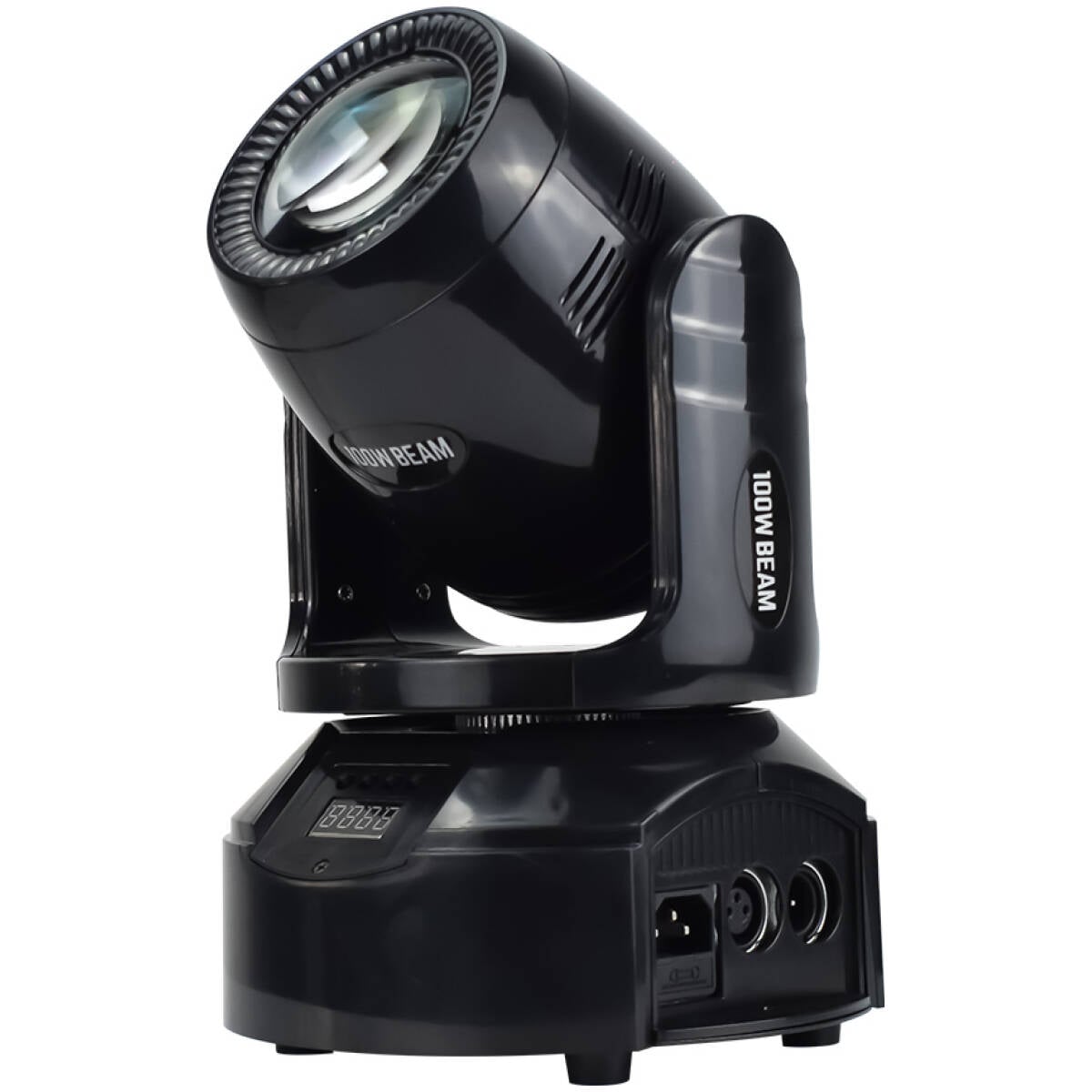

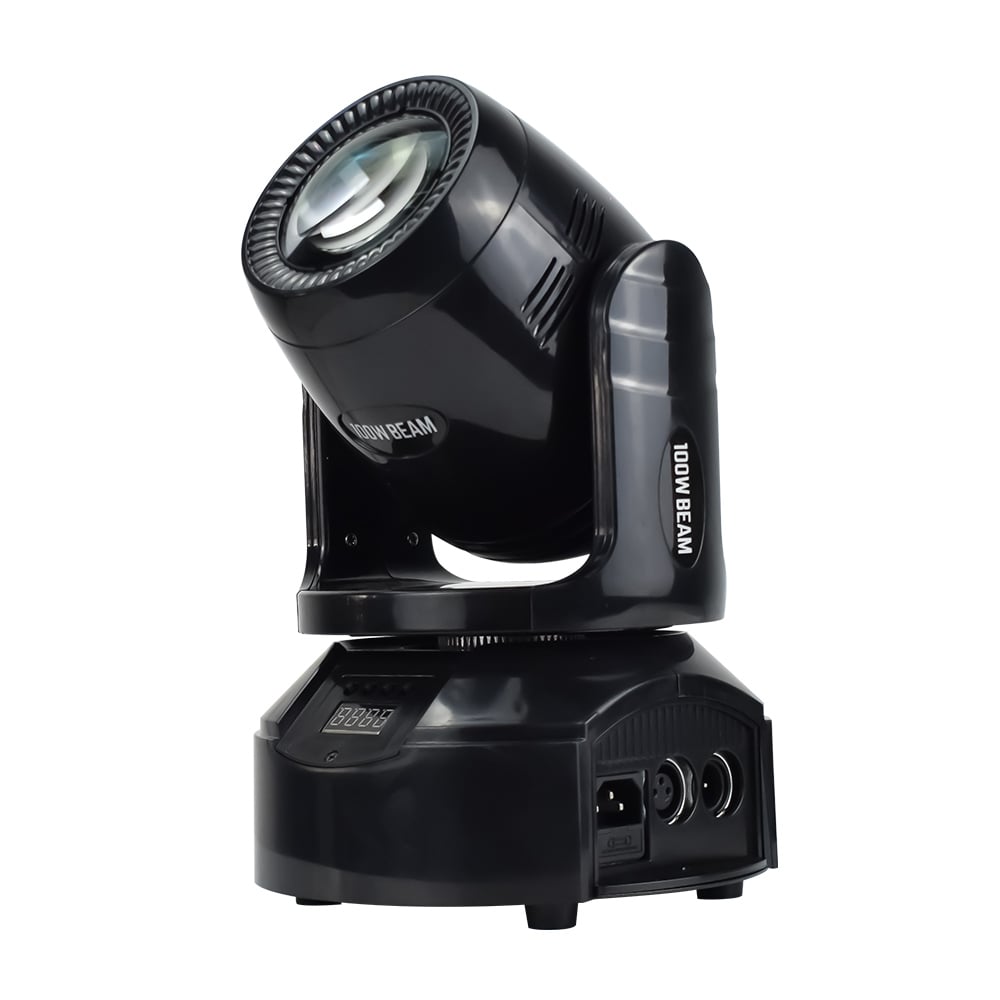

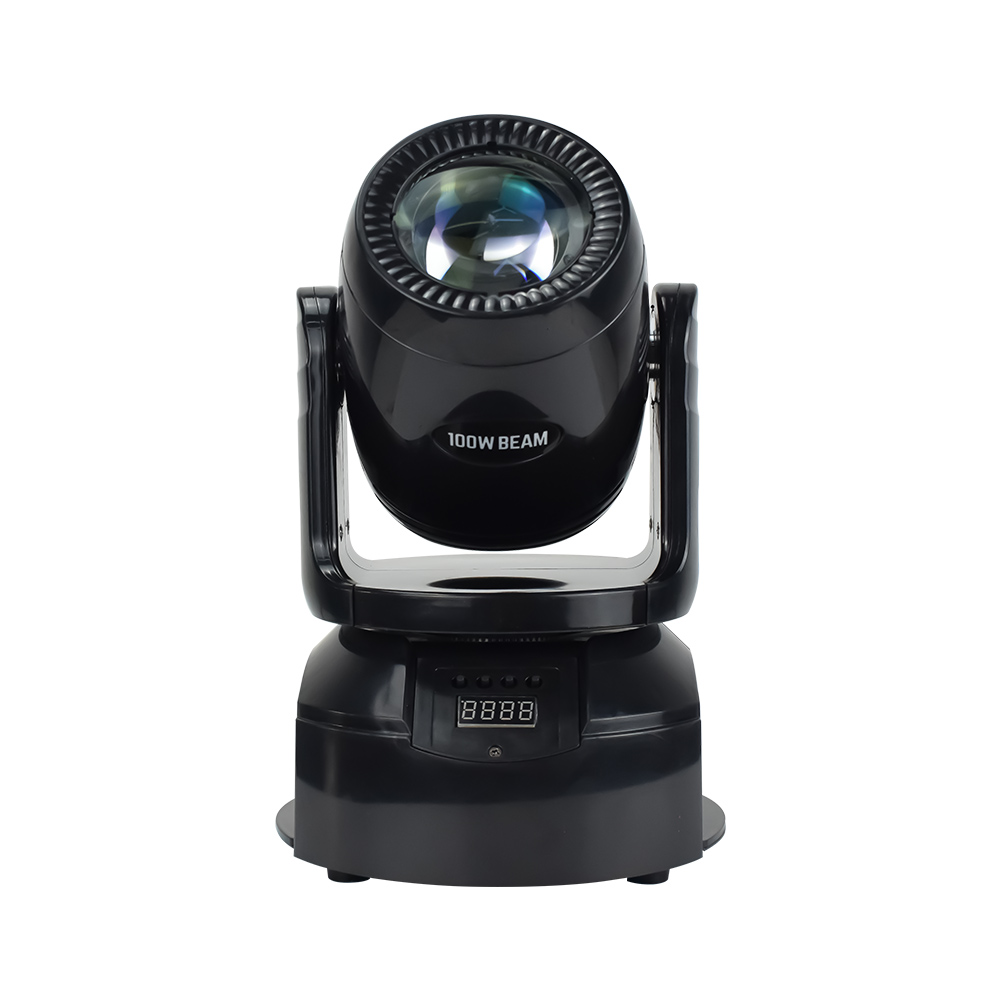

• 4 x 100W Gobo Moving Head Lights

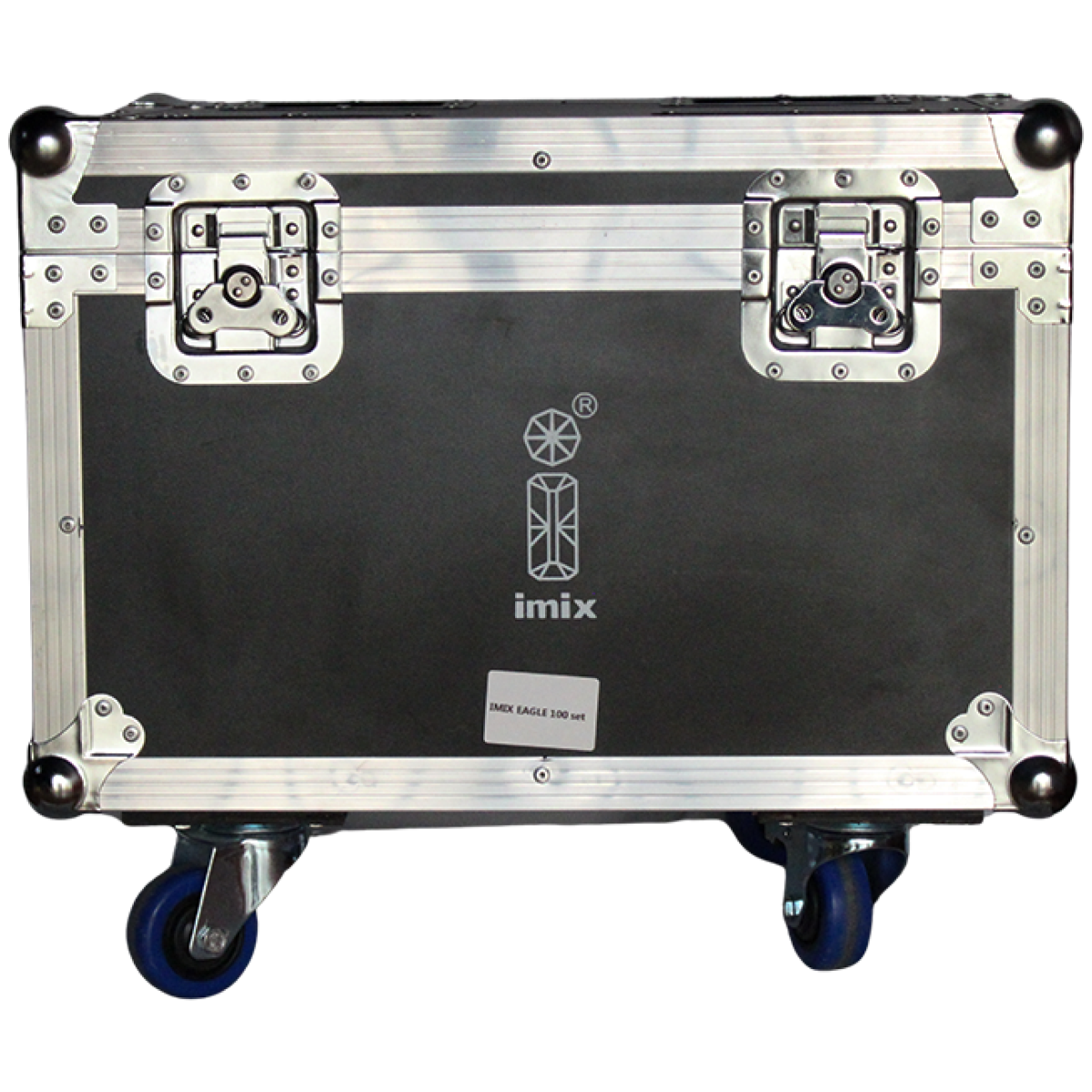

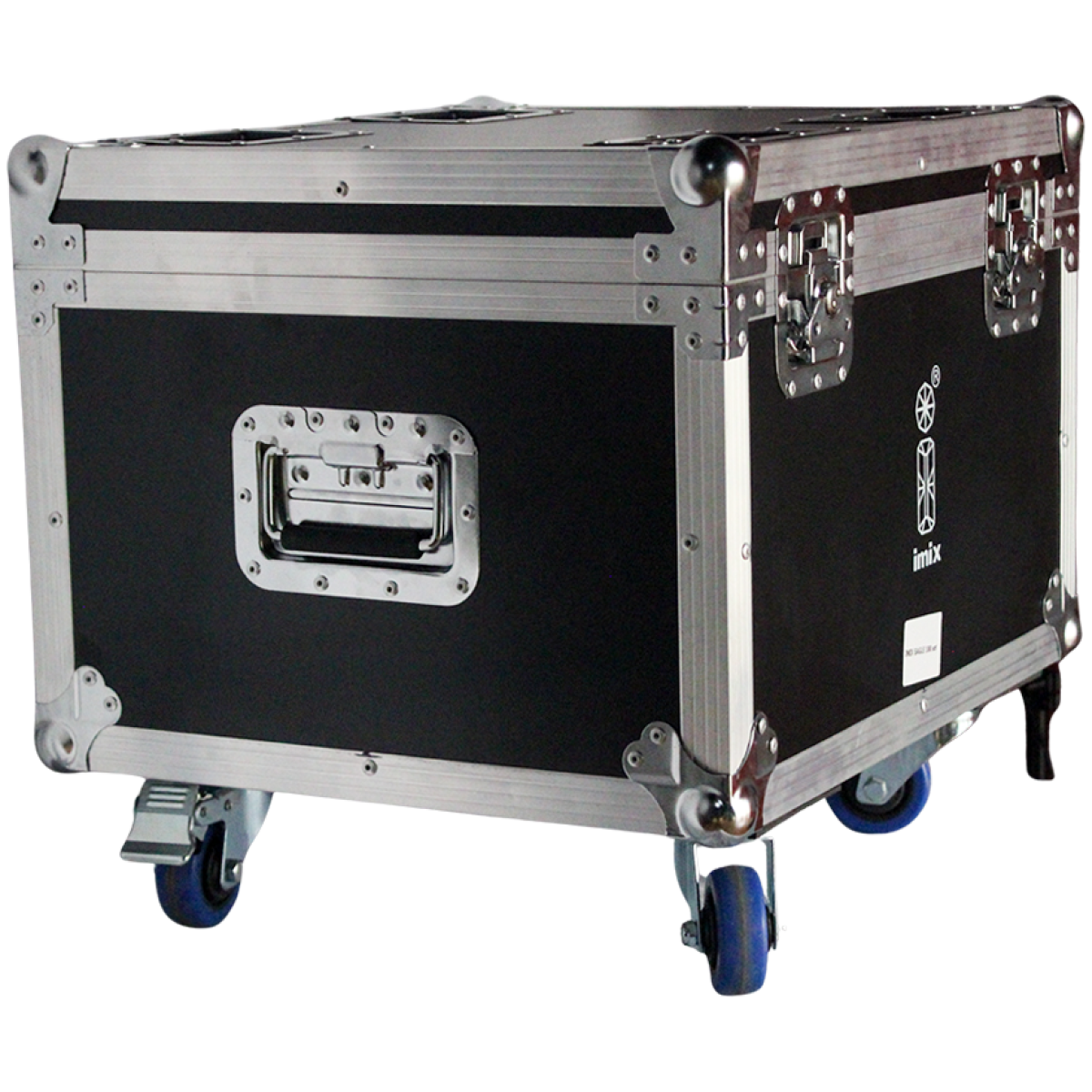

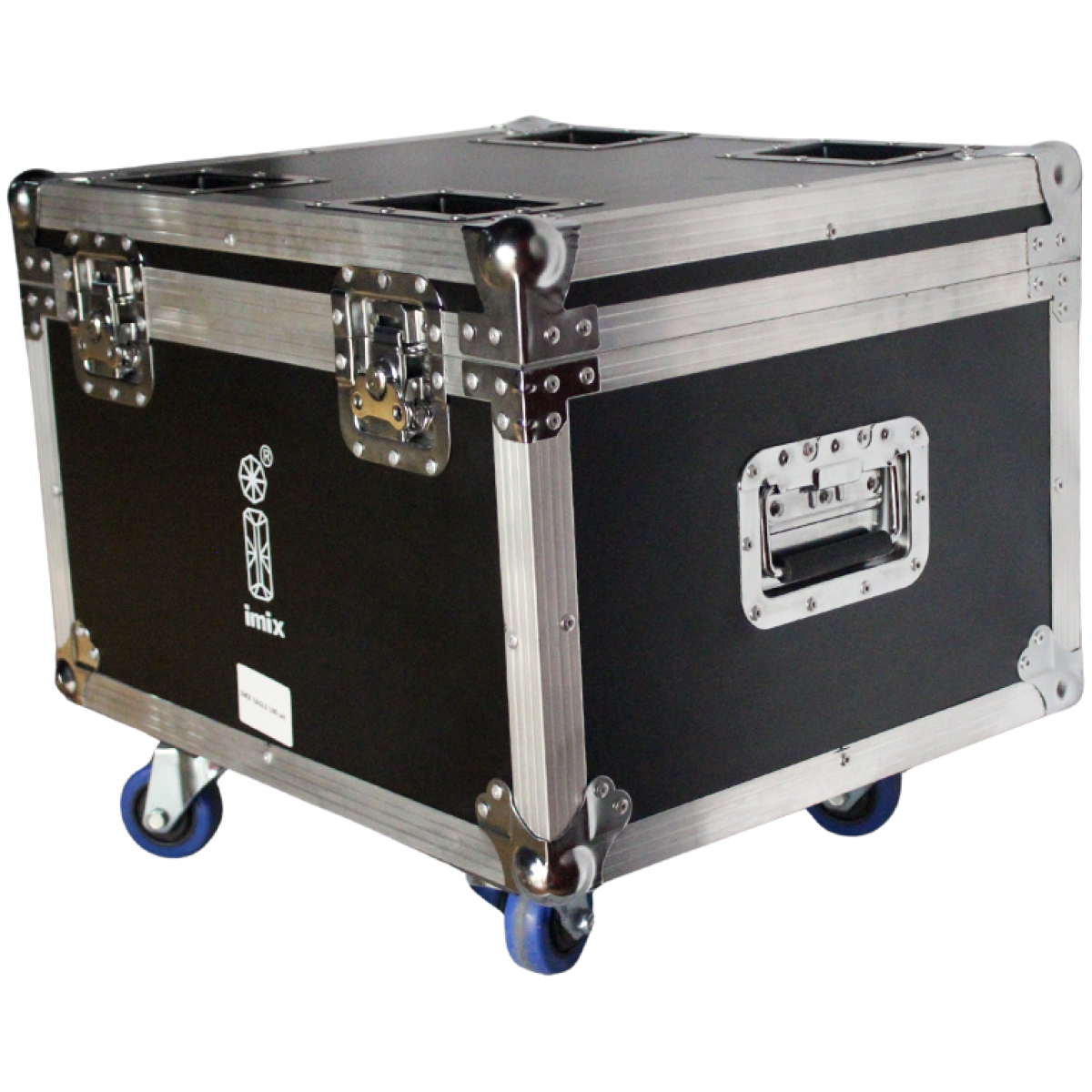

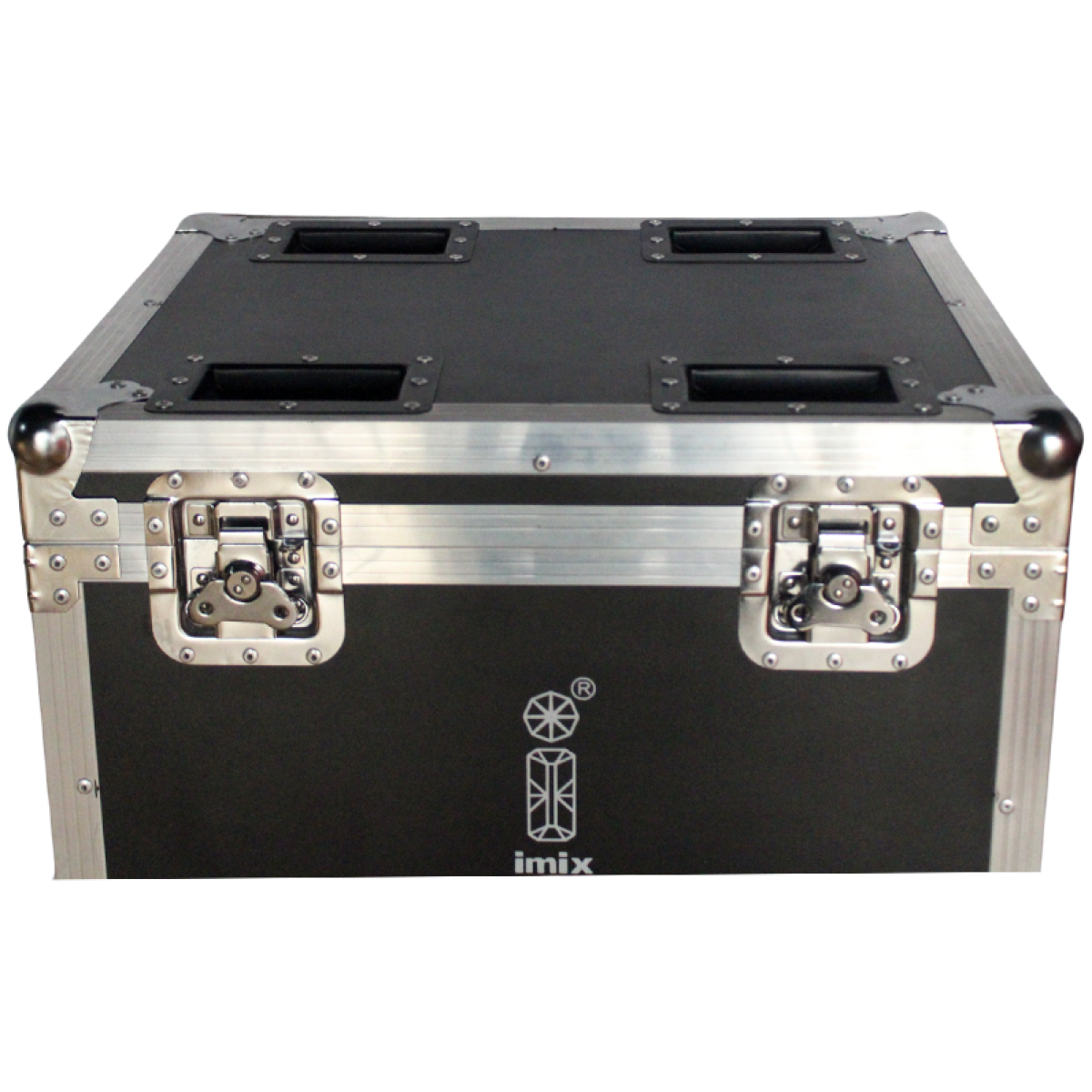

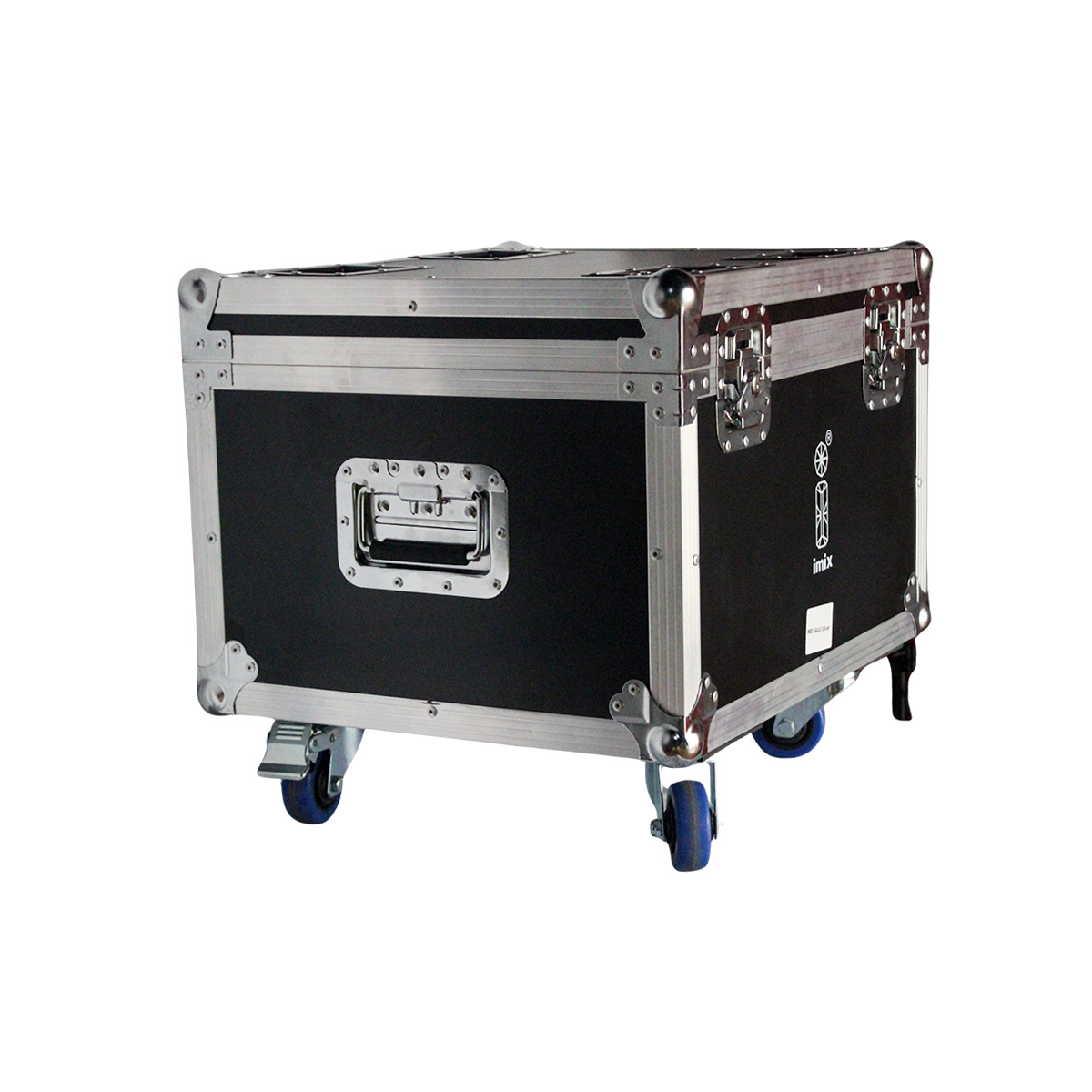

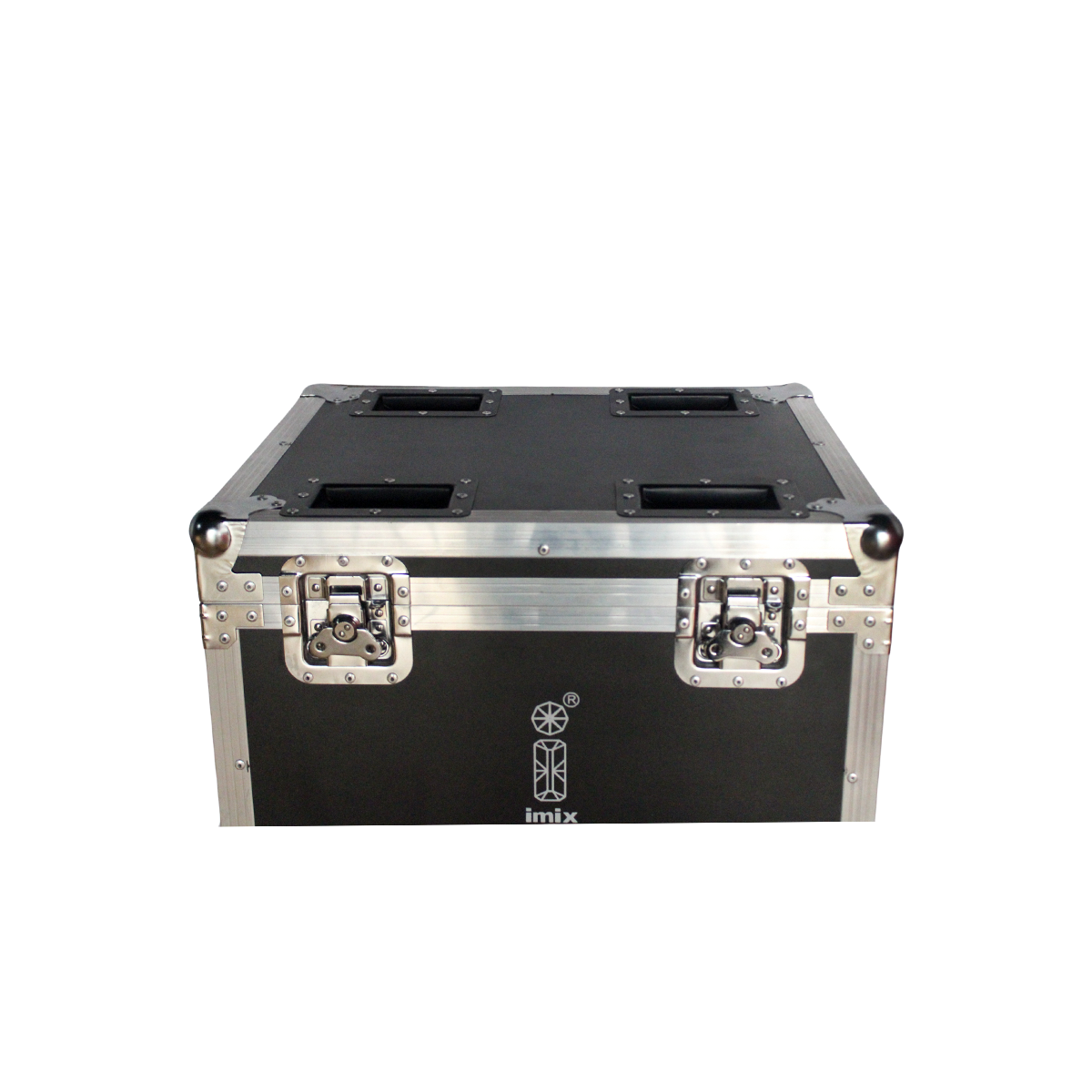

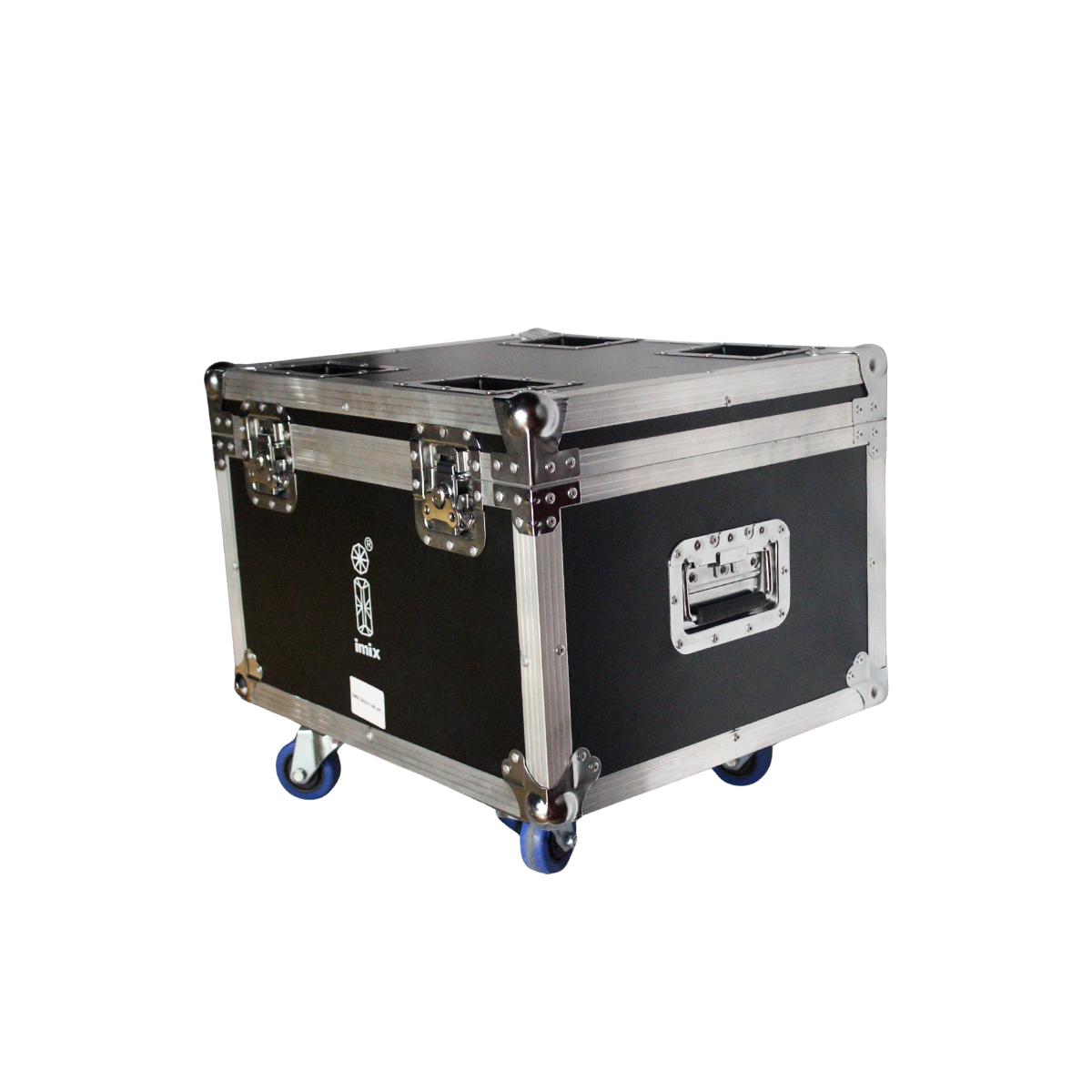

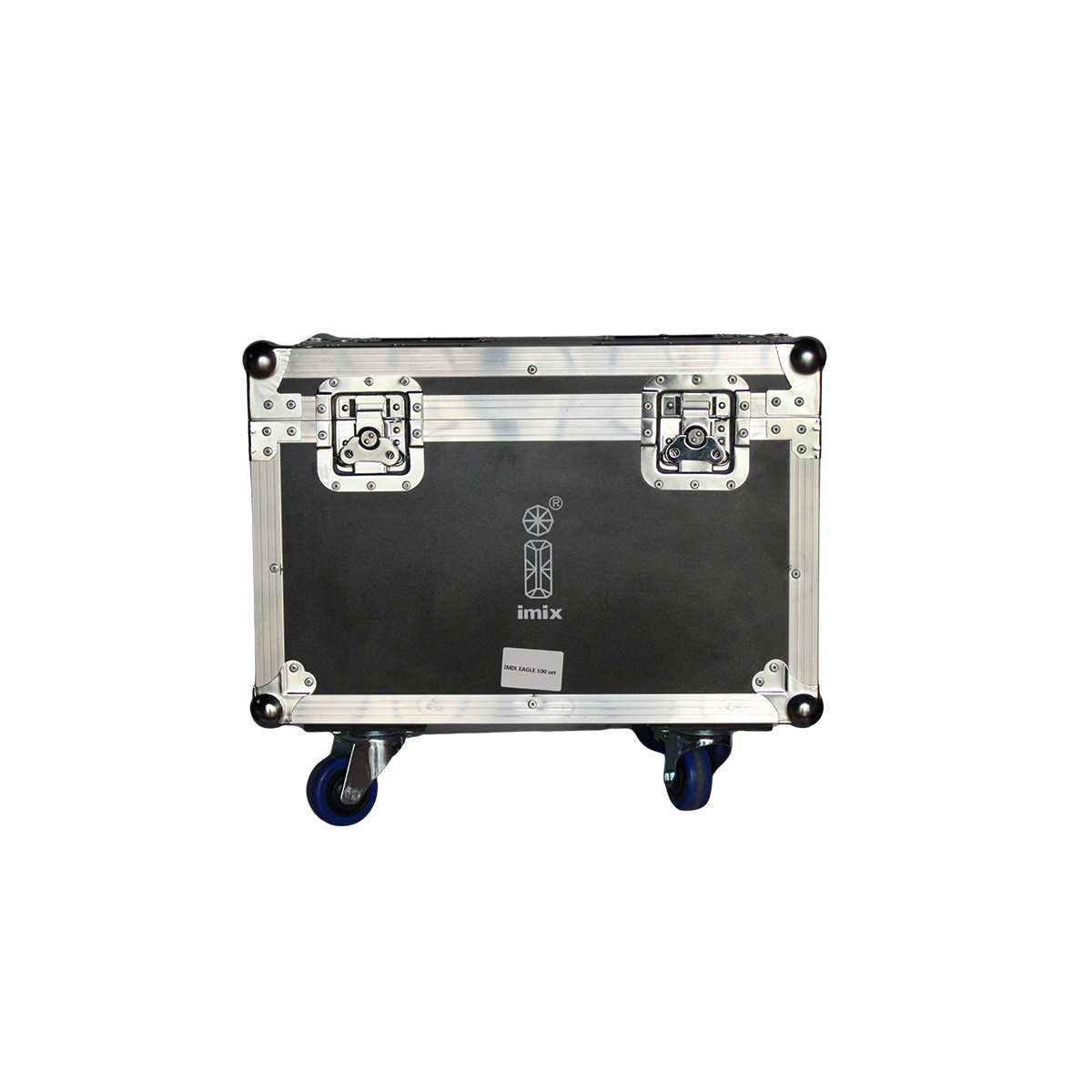

• Heavy-duty flight case for safe storage and transport

• Powerful Illumination:

  • 100W high-brightness white LED lamp bead.

  • Ultra-smooth dimming from 0–100%.

  • Strobe effect up to 20 times/sec.

• Control Modes:

  • DMX512 (12 channels)

  • Master/slave synchronization

  • Auto-run programs

  • Sound-activated mode

• Pan/Tilt Movement:

  • Smooth pan and tilt operation with fine-tuning adjustments.

  • Adjustable forward and reverse direction.

• Color Effects:

  • Multiple fixed colors plus white.

  • Clockwise/counterclockwise color rotation (variable speed).

• Gobo Plate:

  • Multiple gobo patterns (static and jitter effects).

  • Forward and reverse gobo fine-tuning.

• Prism Effects:

  • Open/close prism control.

  • Prismatic rotation with adjustable speed.

• Built-in Programs:

  • Macro functions including auto, sound-activated, and self-propelled effects.

Technical Specifications

• Operating Voltage: AC 220V / 50Hz

• Power Consumption: 100W

• Light Source: 100W white LED

• Control Channels: 12 DMX channels

• Control Mode: DMX512, Master/Slave, Auto, Sound-activated

• Dimming: 0–100% ultra-smooth dimming

• Strobe: 1–20 Hz variable strobe

DMX Channel Functions (12CH)

1. X-axis – Pan (0–255)

2. X-axis Fine Tuning

3. Y-axis – Tilt (0–255)

4. Y-axis Fine Tuning

5. Pan/Tilt Speed – Fast to slow

6. Patterned White Light – Dimming control

7. Strobe – Adjustable speed strobe effect

8. Color Palette – Multiple color selections & rotations

9. Gobo Plate – Multiple patterns with jitter effects

10. Prism Control – Open, close, and rotating prism effects

11. Macro Functions – Auto programs, sound-activated

12. Reset – Fixture reset and protection functions

Ideal Applications

• Stage performances

• Concerts & live shows

• Clubs & DJ events

• Theatrical productions

• Corporate events & presentations
