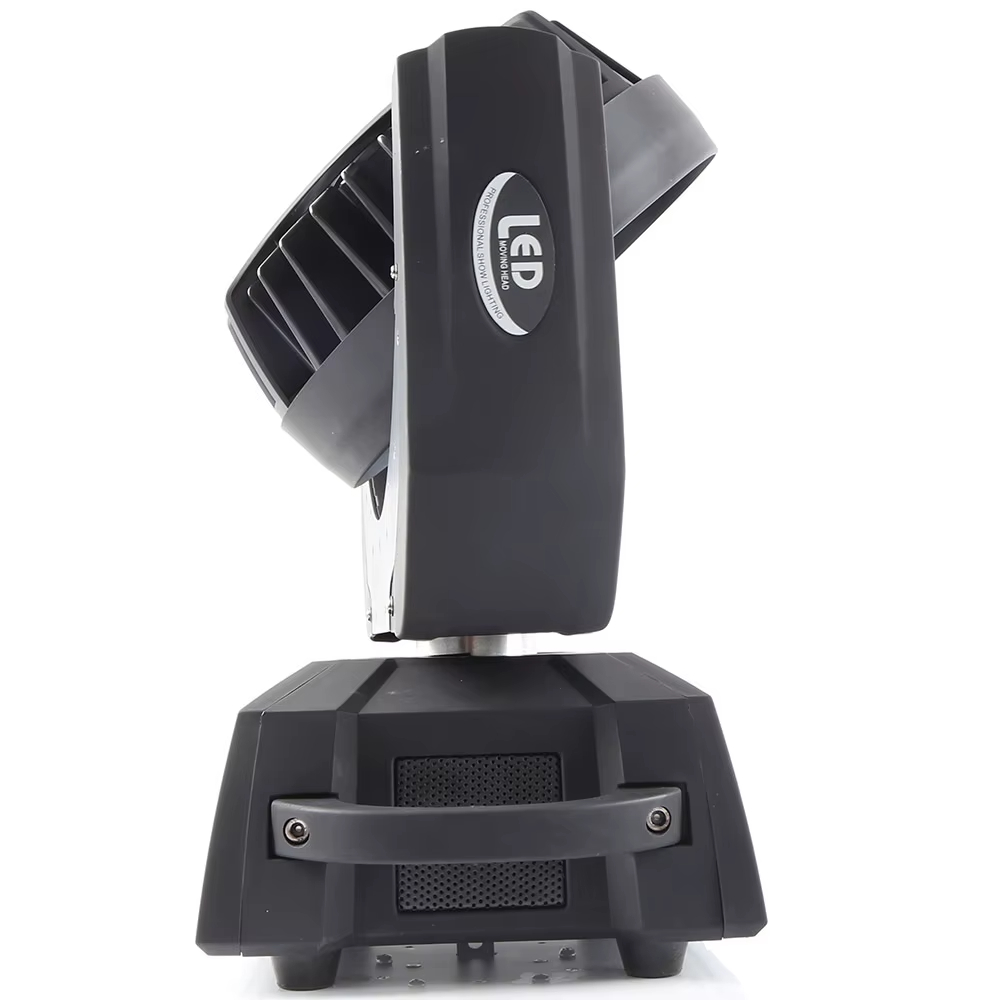

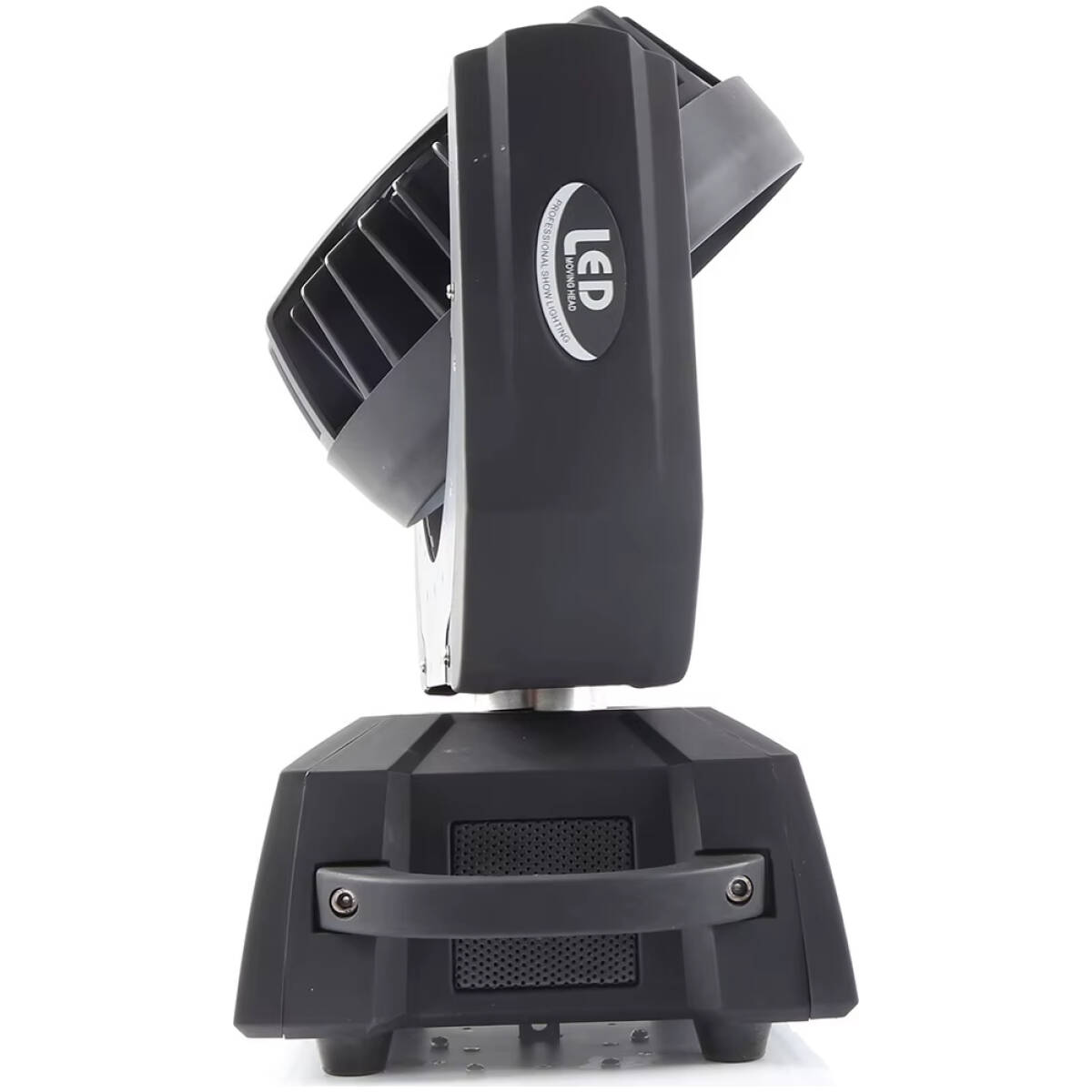

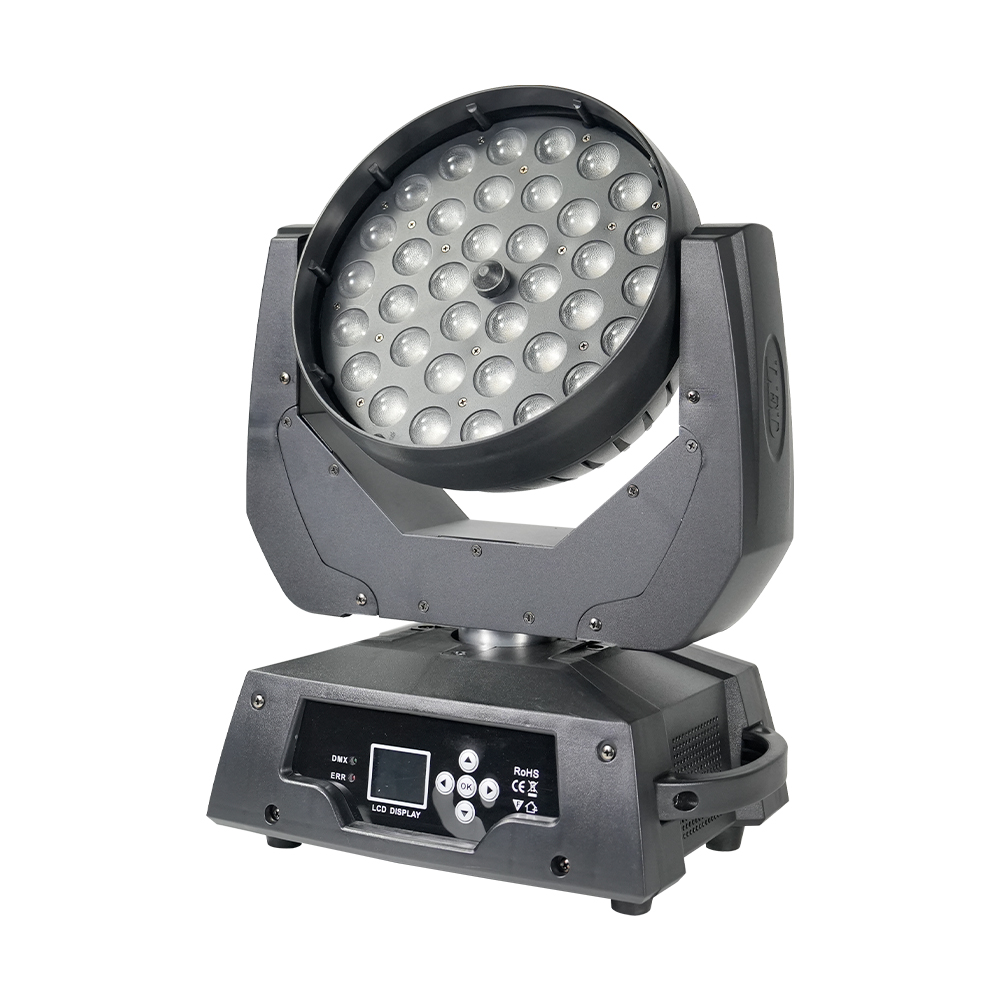

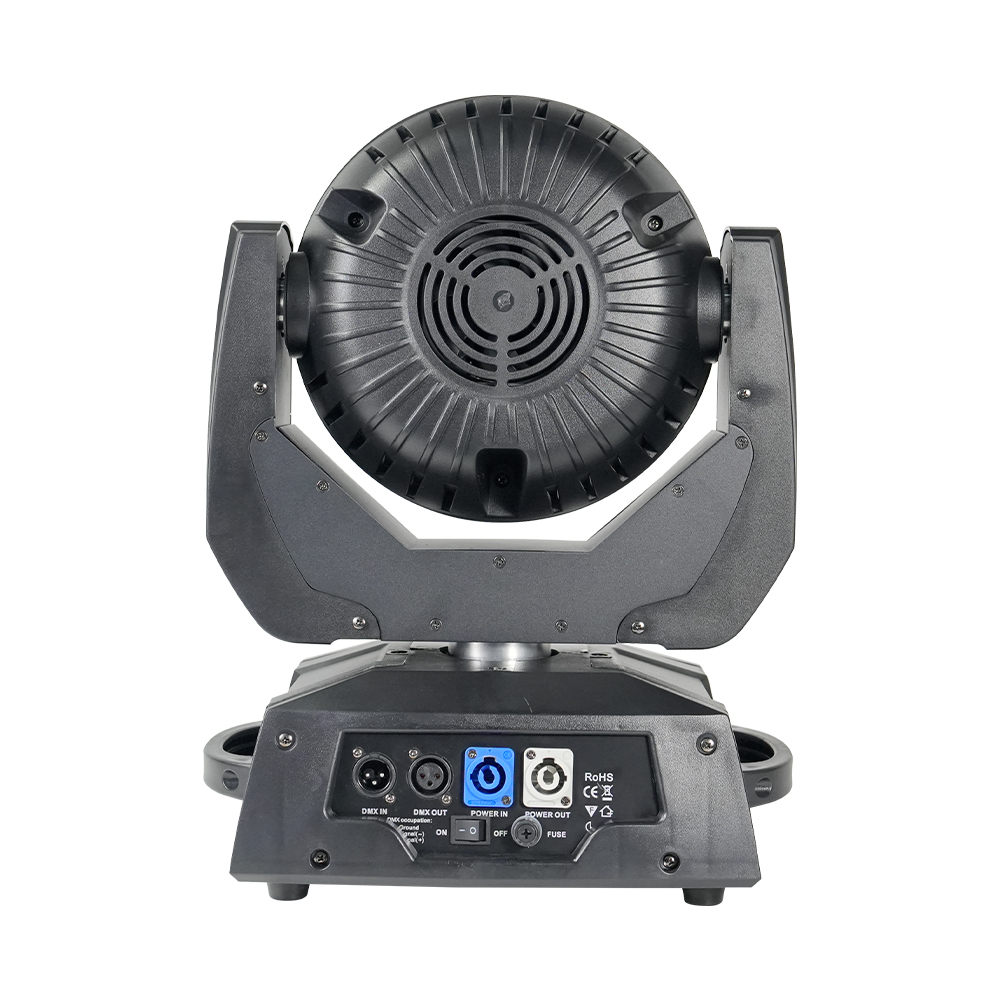

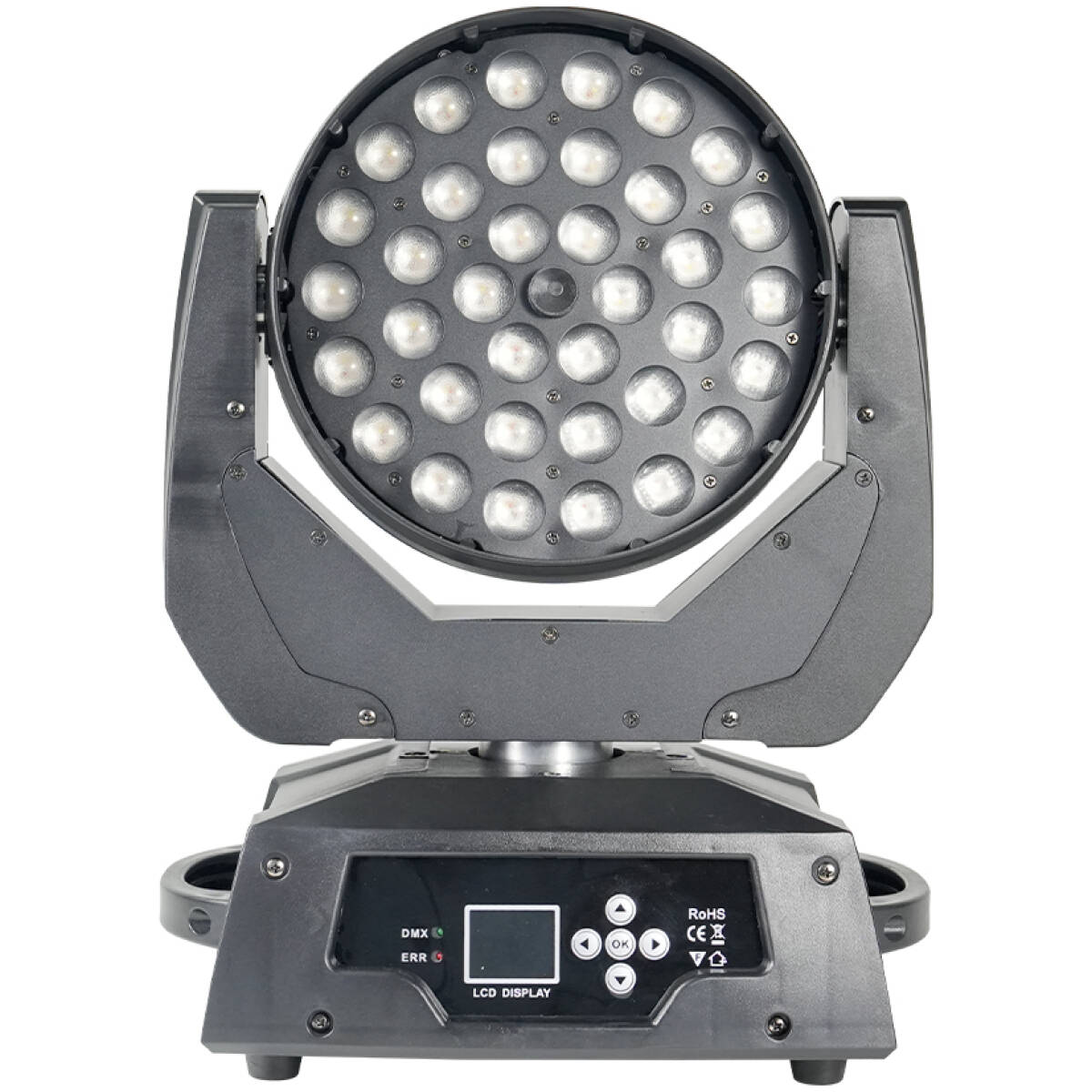

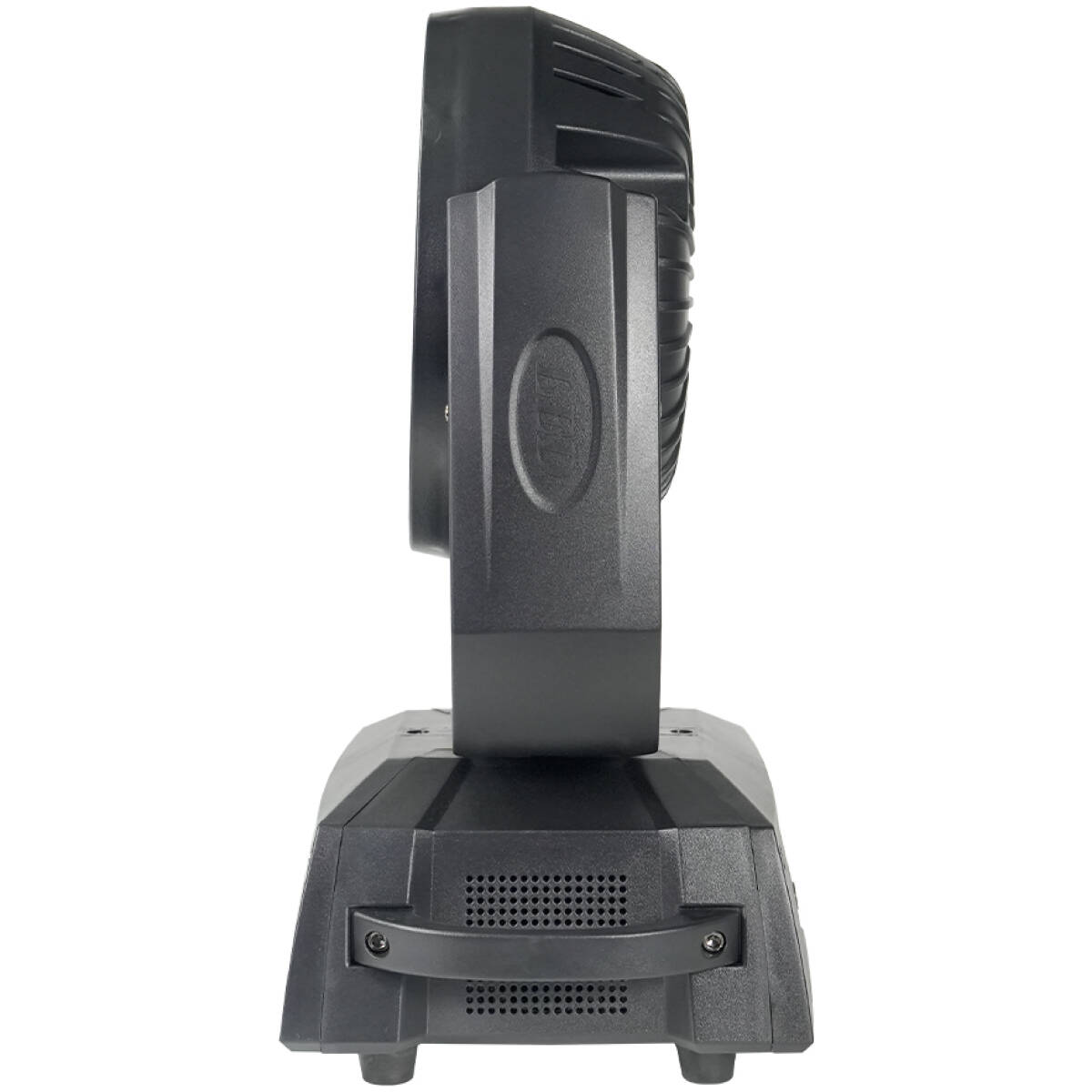

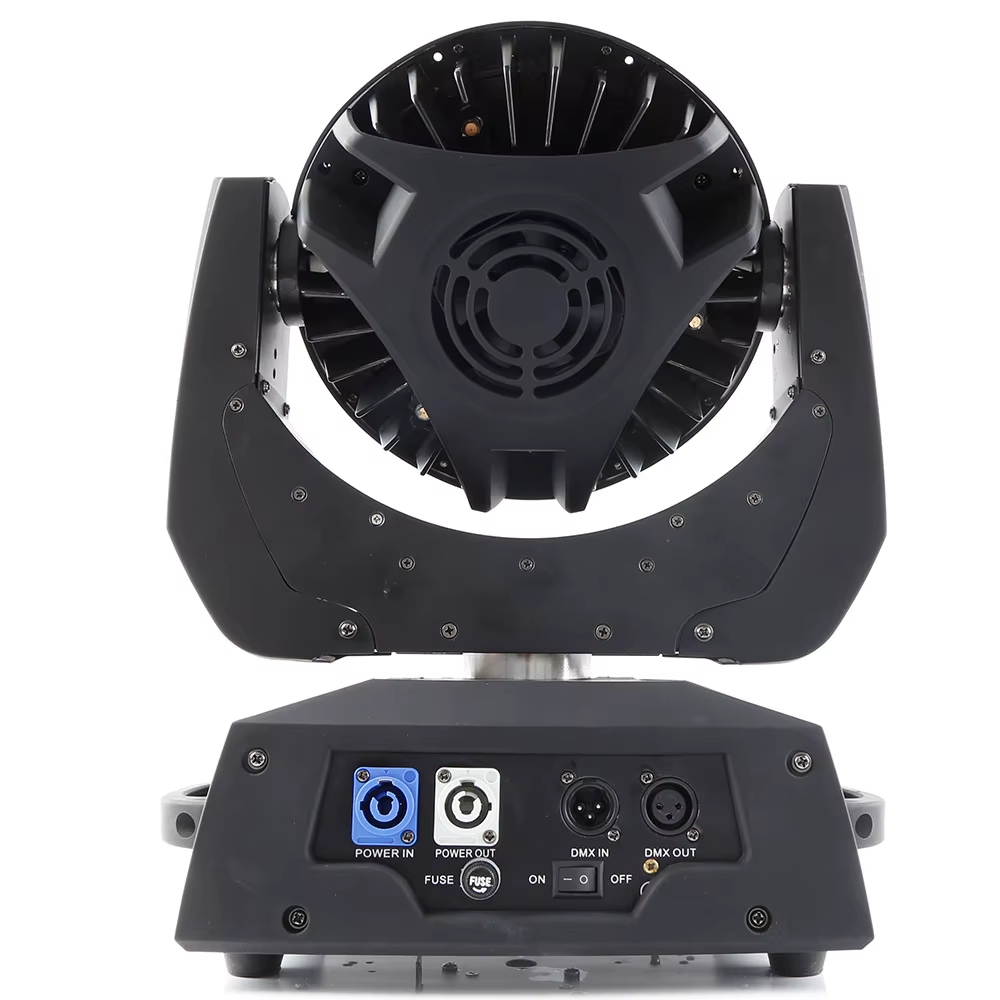

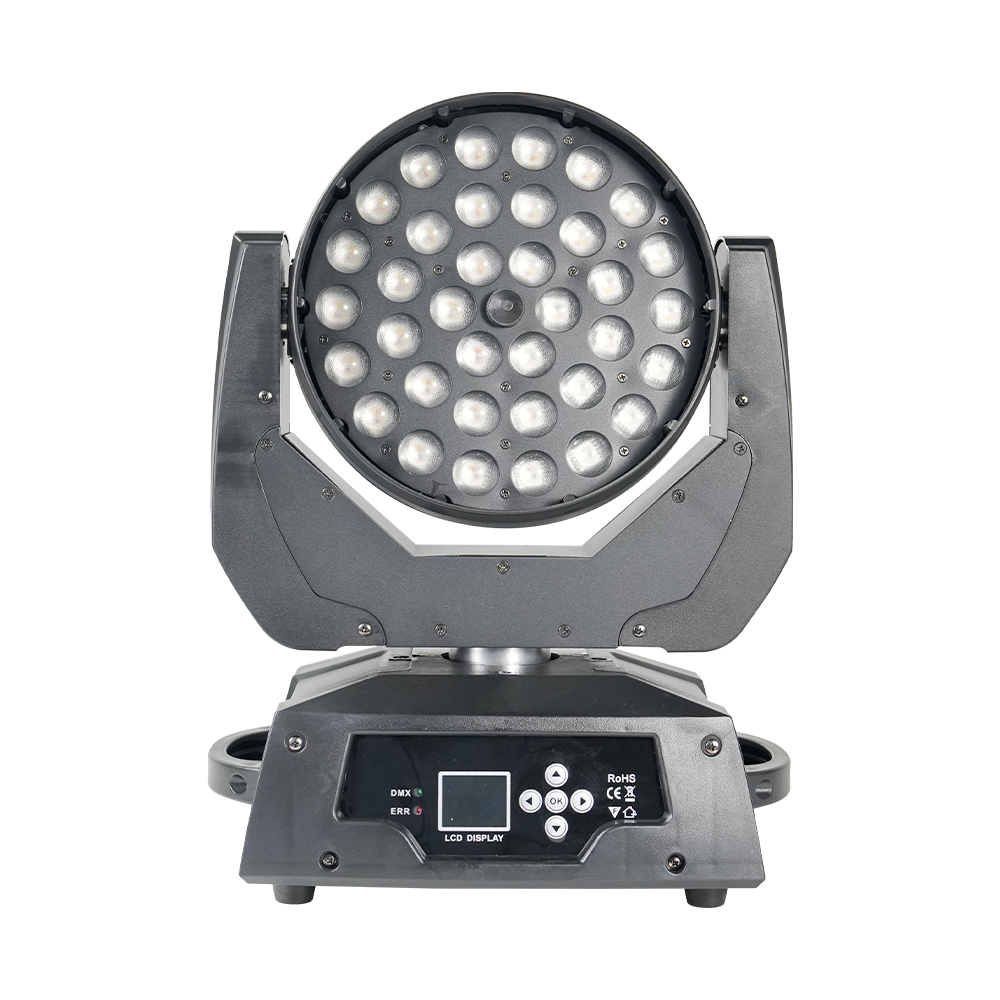

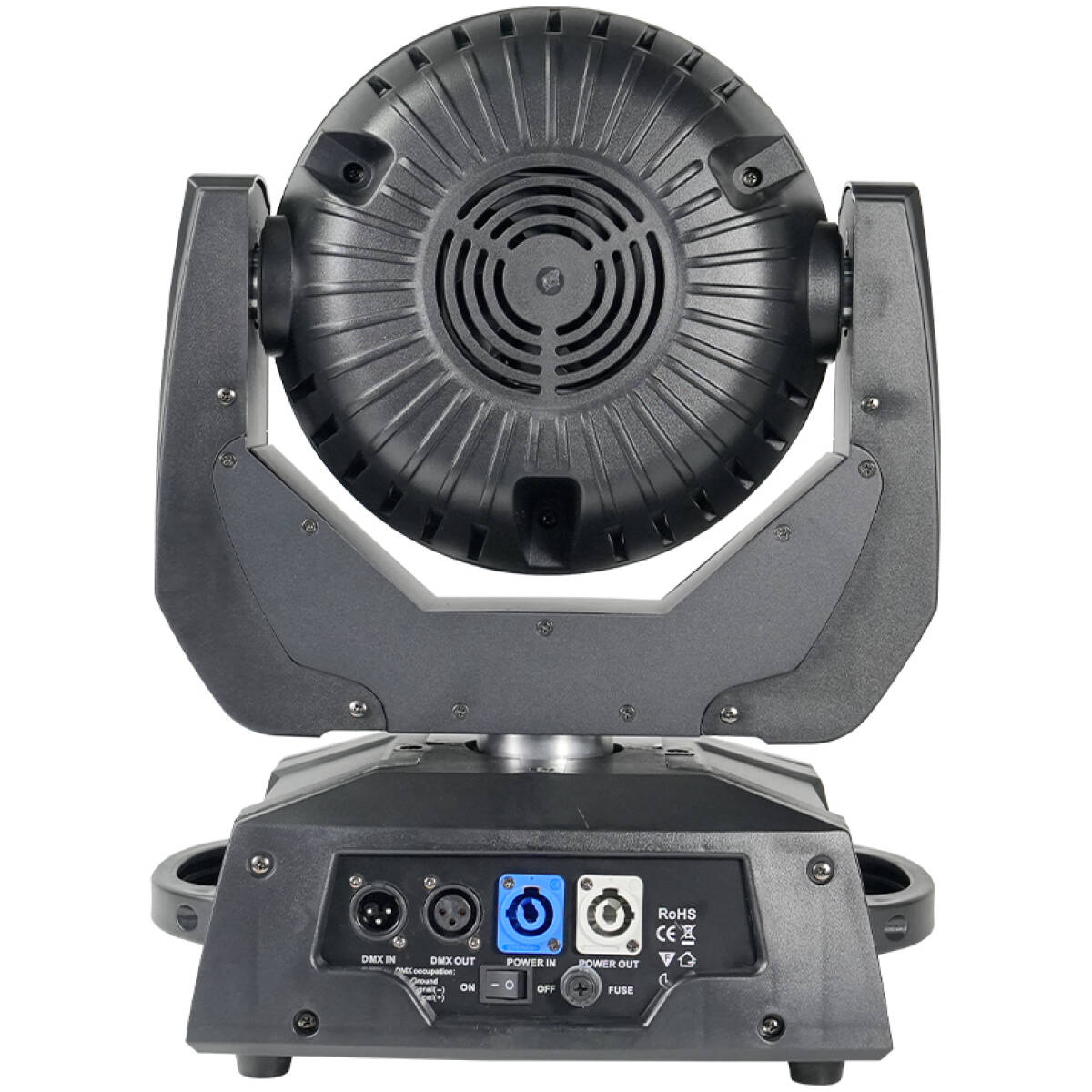

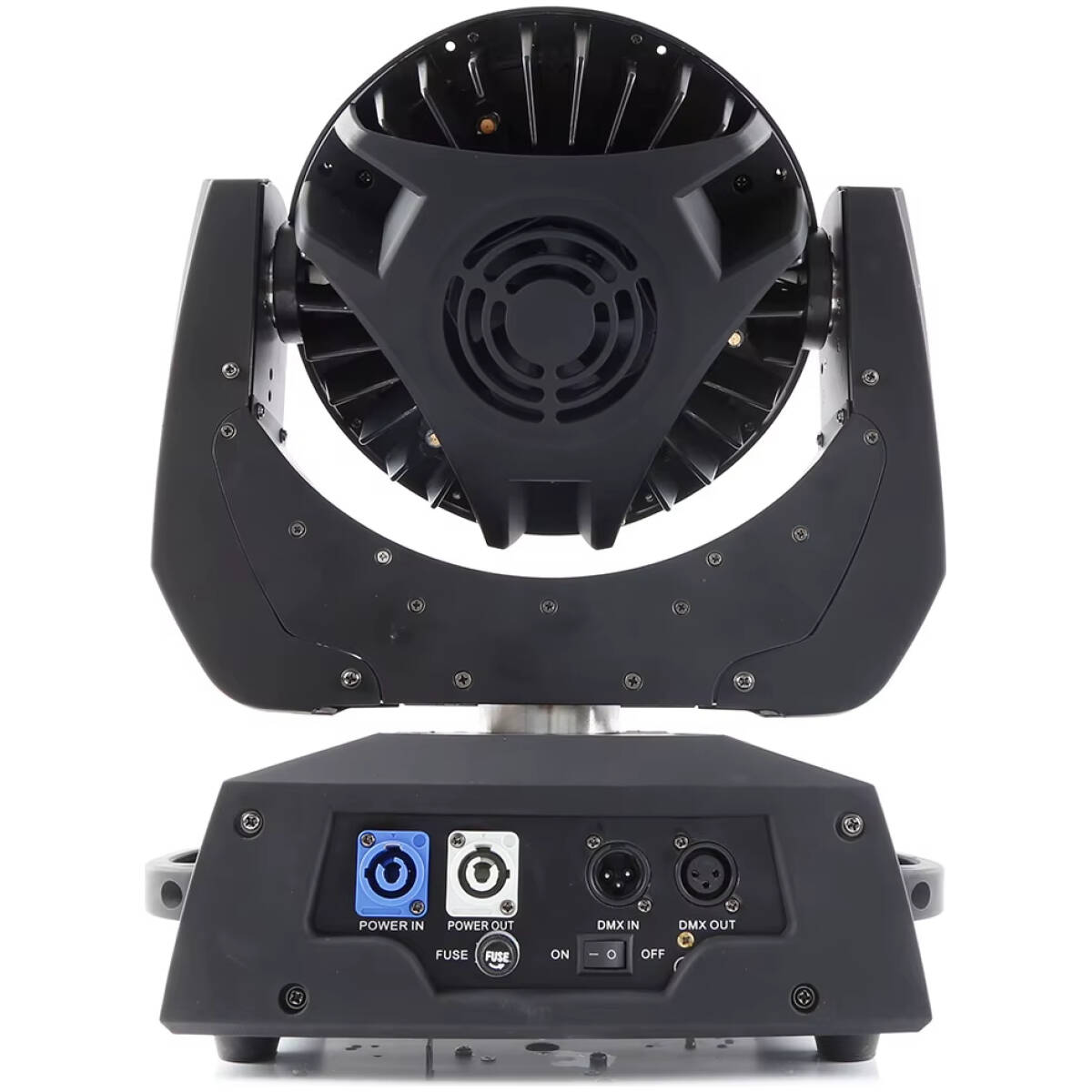

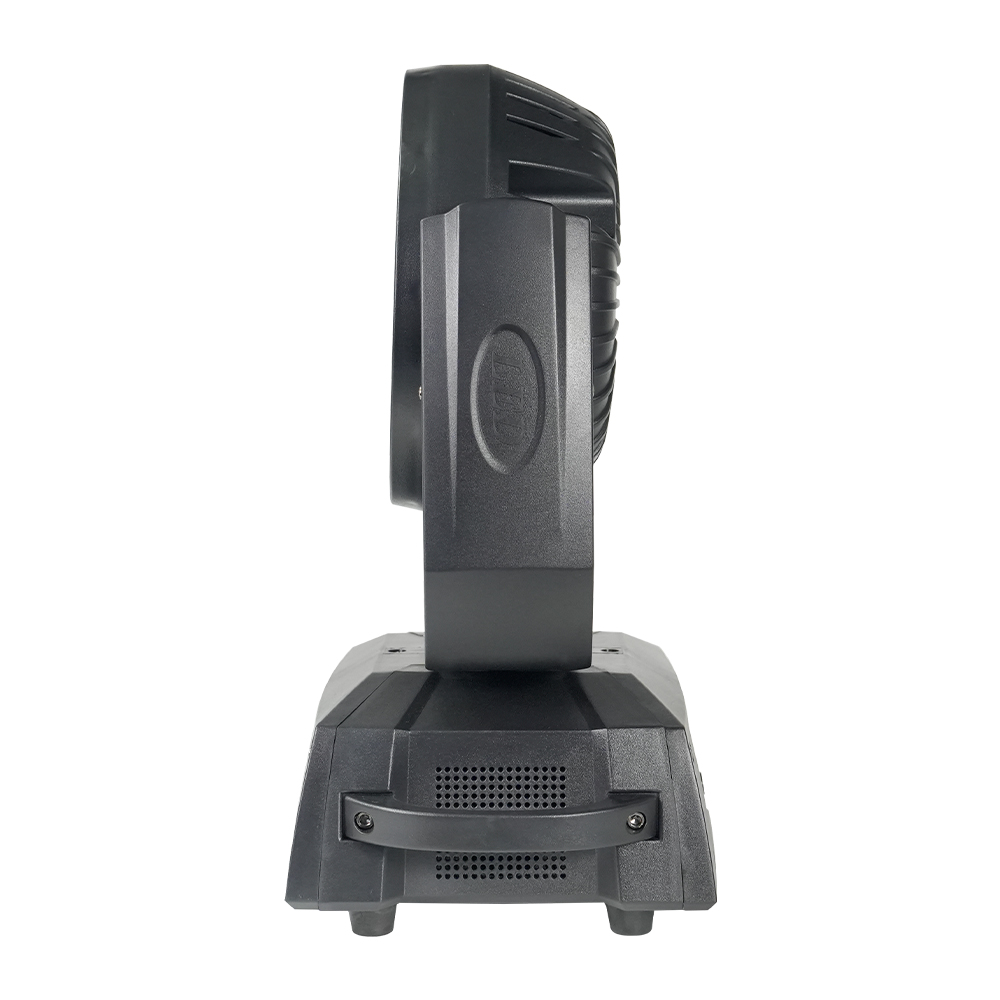

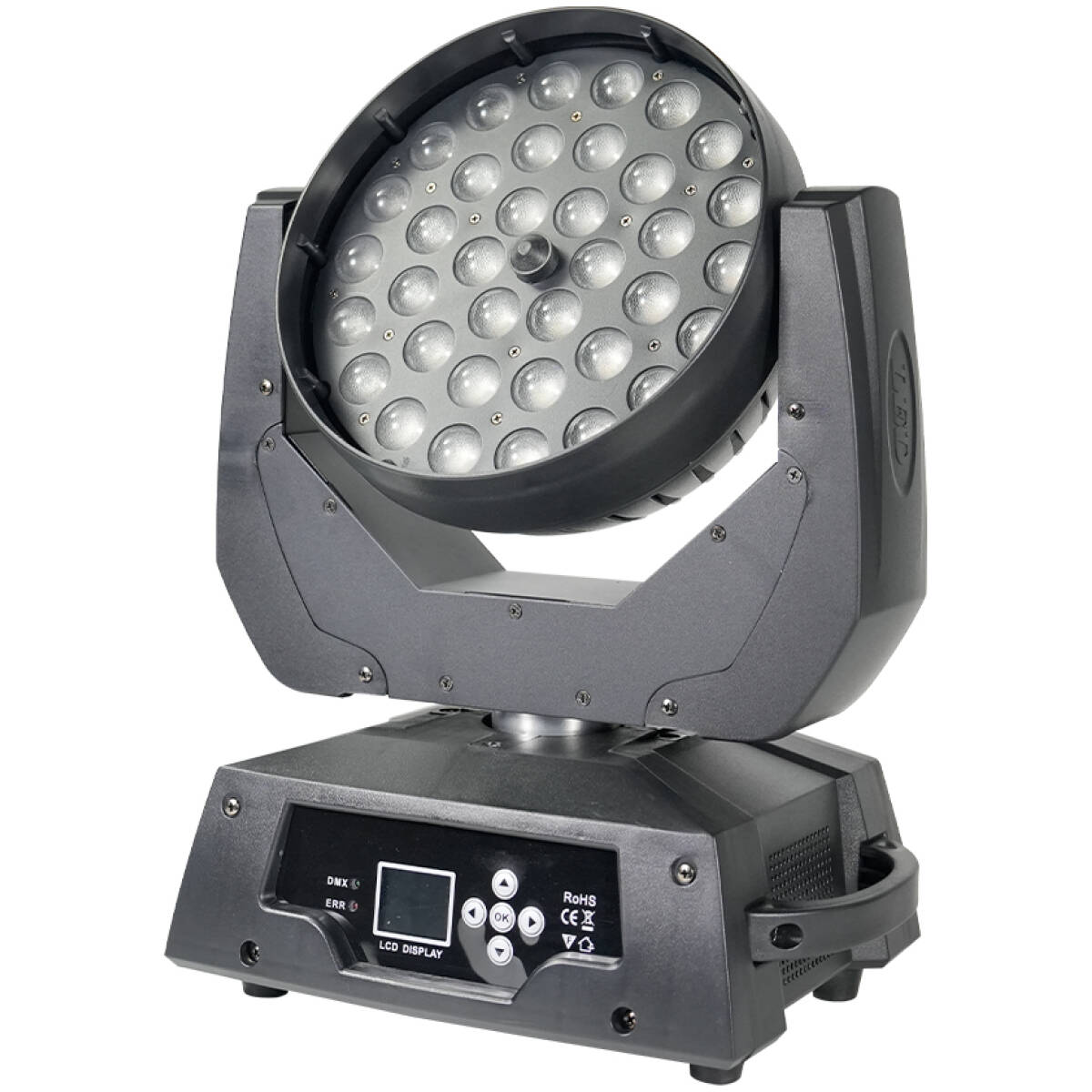

The Imix Falcon 540 is a high-performance moving head wash light designed for stages, concerts, clubs, and events. Featuring 36 advanced 15W RGBW 4-in-1 LEDs, it delivers vibrant colors, smooth transitions, and crisp white light—all in one powerful 360W fixture. With DMX512 control, motorized zoom, and 640° pan / 280° tilt movement, the Falcon 540 brings dynamic lighting to any production.
Key Features
Brilliant RGBW Color Performance
✔ 36 x 15W 4-in-1 RGBW LEDs – Rich, saturated colors with deep mixing
✔ 16.7 million color combinations – Smooth gradients and dramatic effects
✔ 0-100% dimming & adjustable strobe (1-25Hz)
Precision Movement & Zoom
✔ 640° horizontal / 280° vertical rotation – Full coverage for stages and venues
✔ Motorized zoom (10.5°–30°) – Adjust beam spread for wash or spot effects
✔ Fast, silent motor response – Ideal for live performances
Flexible Control Options
✔ DMX512 (13/15 channel modes) – Professional lighting control
✔ Auto & Master/Slave modes – Synchronize multiple units effortlessly
✔ Sound-Active Mode – Reacts to music with adjustable sensitivity
Professional Build & Safety
✔ Lightweight (8kg) yet durable – Easy rigging and transport
✔ Safety chain mounts included – Secure installation for overhead use
✔ IP20 rated – Indoor use only (keep away from moisture)
✔ Easy setup – DMX addressing (001-512) and intuitive controls
Technical Specifications
-
Power: 360W
-
LEDs: 36 × 15W RGBW (4-in-1)
-
Beam Angle: 10.5°–30° (adjustable zoom)
-
Pan/Tilt: 640° / 280°
-
Control: DMX512, Auto, Sound-Active
-
Modes: 13/15 channel DMX
-
Dimming & Strobe: 0-100%, 1-25Hz
-
Voltage: 100V-240V, 50/60Hz
-
Weight: 8kg (17.6 lbs)
