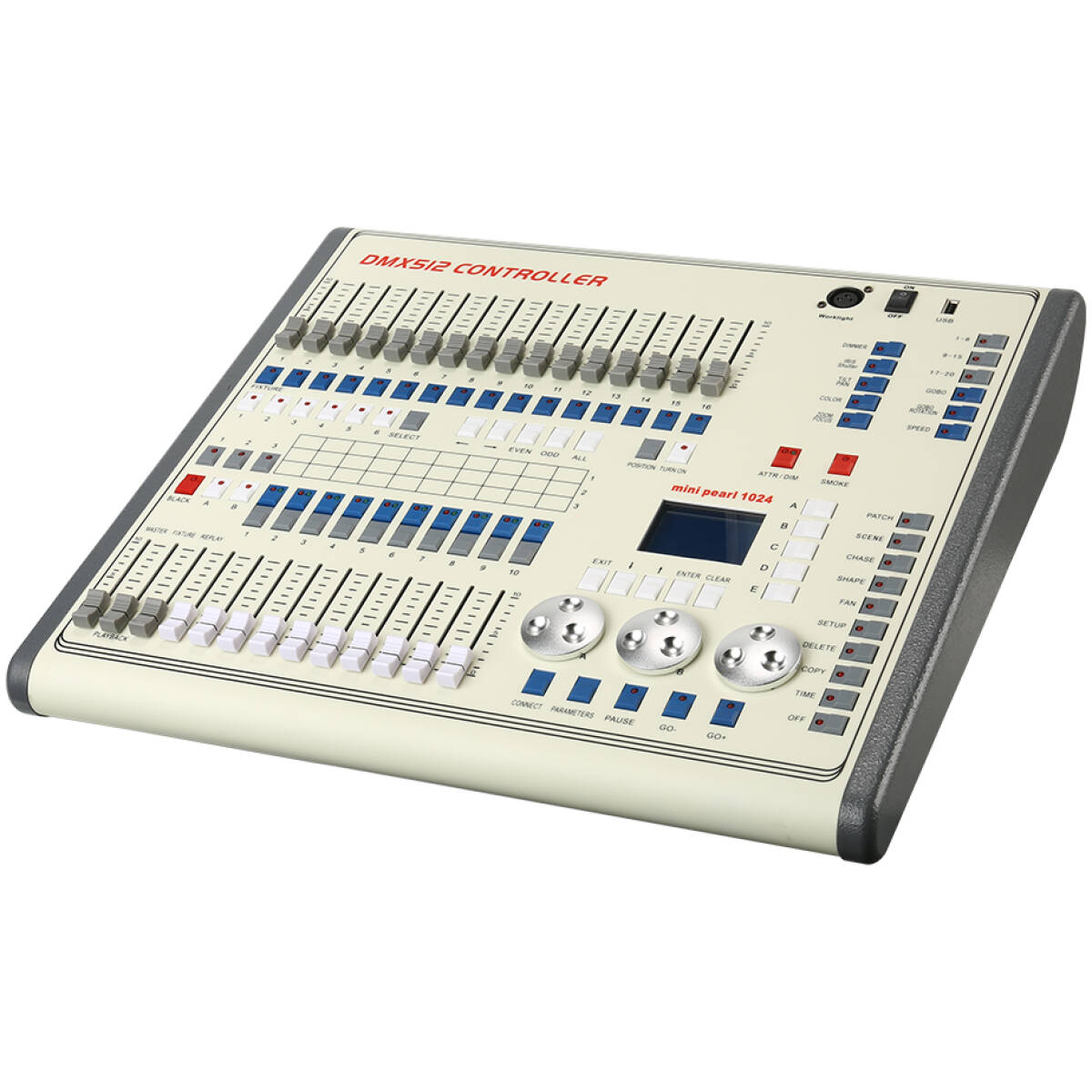

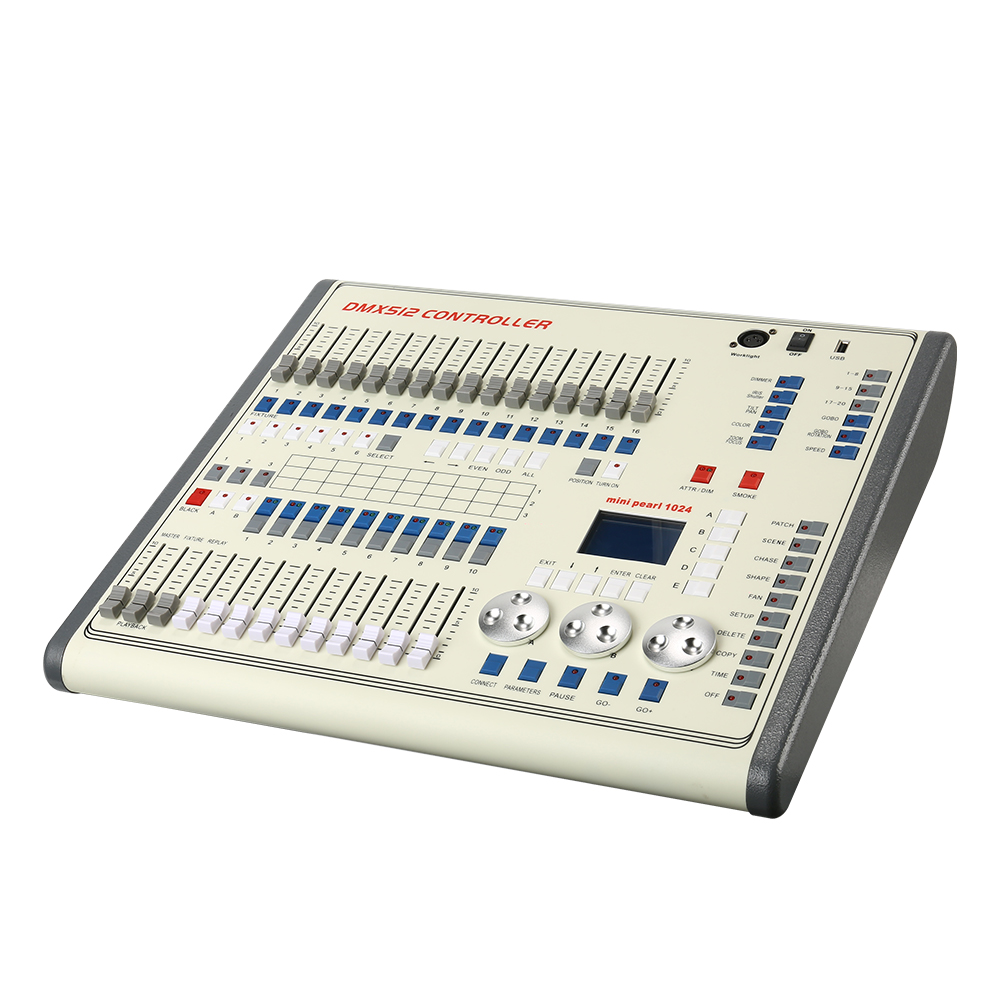

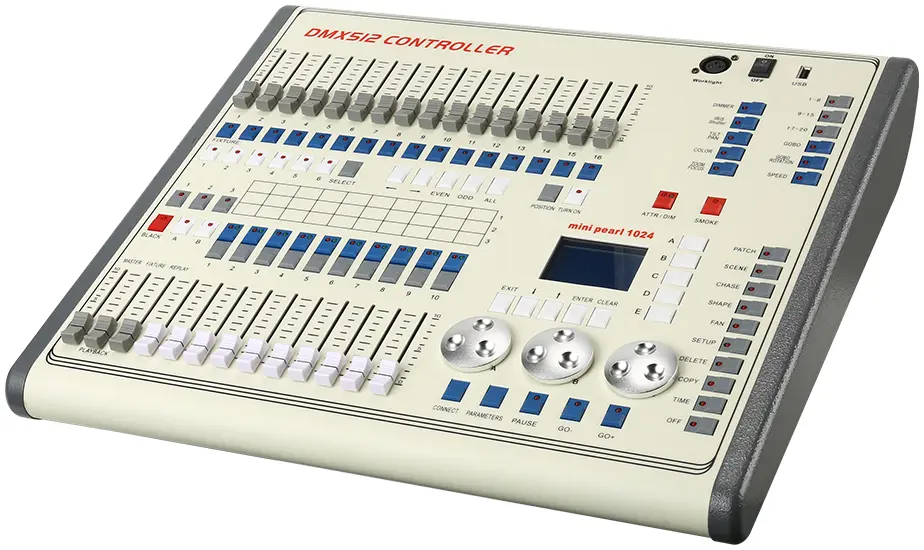

Imix Mini 1024 Pearl DMX Controller

The Imix Mini 1024 Pearl is a compact yet powerful DMX512 controller designed for stage lighting, events, and live performances. With 1024 channels, 96-fixture capacity, and Avolite Pearl R20 library support, it delivers intuitive control over moving heads, LED fixtures, and effects. Features include 60 programmable scenes, 5 simultaneous shape generators, and USB connectivity for seamless show management.

Key Features

✅ 1024 DMX Channels – Control up to 96 fixtures (40 primary + 40 fine-tune channels each)
✅ Avolite Pearl R20 Library – Pre-loaded fixture profiles for quick setup
✅ 60 Scenes + 600 Steps per Chase – Store and recall complex lighting sequences
✅ 5 Simultaneous Shape Effects – Pan/tilt circles, RGB rainbows, dimmer waves, and more
✅ USB Memory Support – Save/load shows and update fixture libraries (FAT32 format)
✅ Intuitive Workflow – Dedicated attribute sliders, fan mode, and HTP/LTP fade controls
✅ Compact & Portable – Ideal for touring and small-to-medium venues

Technical Specifications

Control Capabilities

1. Fixture Patching

• Assign DMX addresses (001-512) manually or via auto-calculation

• Repatch fixtures without losing programming

• Swap pan/tilt channels for sideways-mounted fixtures

2. Advanced Effects

• Shape Generator: Create dynamic movements (circles, rainbows, pulses)

• Fan Mode: Spread values across fixtures for gradient effects

• HTP/LTP Fading: Precise control over dimmer and non-dimmer channels

3. Scene & Chase Programming

• 60 Scenes: Store looks with customizable fade times (In/Out, LTP slope)

• 600-Step Chases: Build complex sequences with step timing controls

• Global Time Adjustment: Sync speed across all playbacks

4. Real-Time Control

• 16 Sliders: Adjust attributes or fixture levels on the fly

• 2 Encoder Wheels: Fine-tune values (color, position, gobo)

• Flash Buttons: Instant strobe/effect triggers

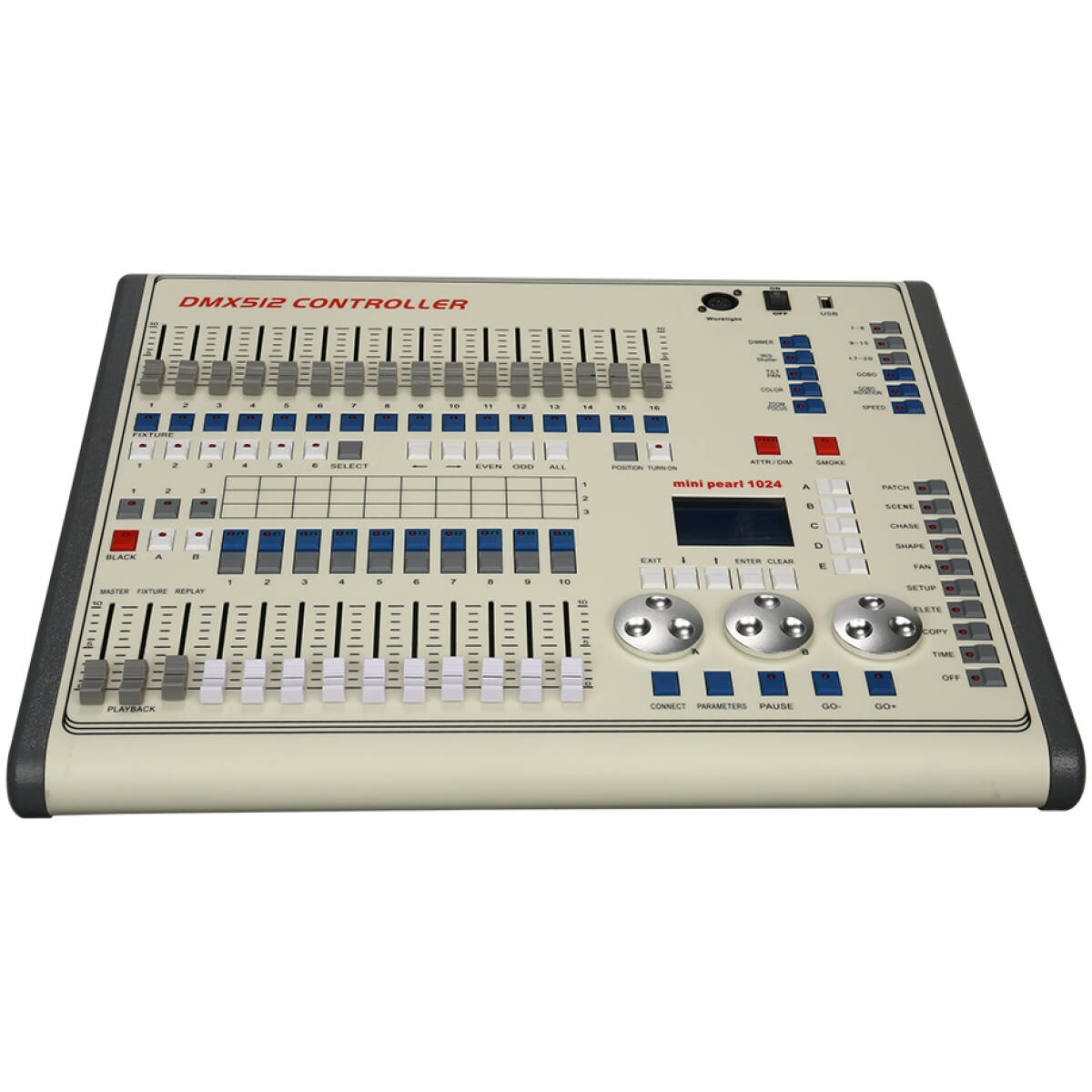

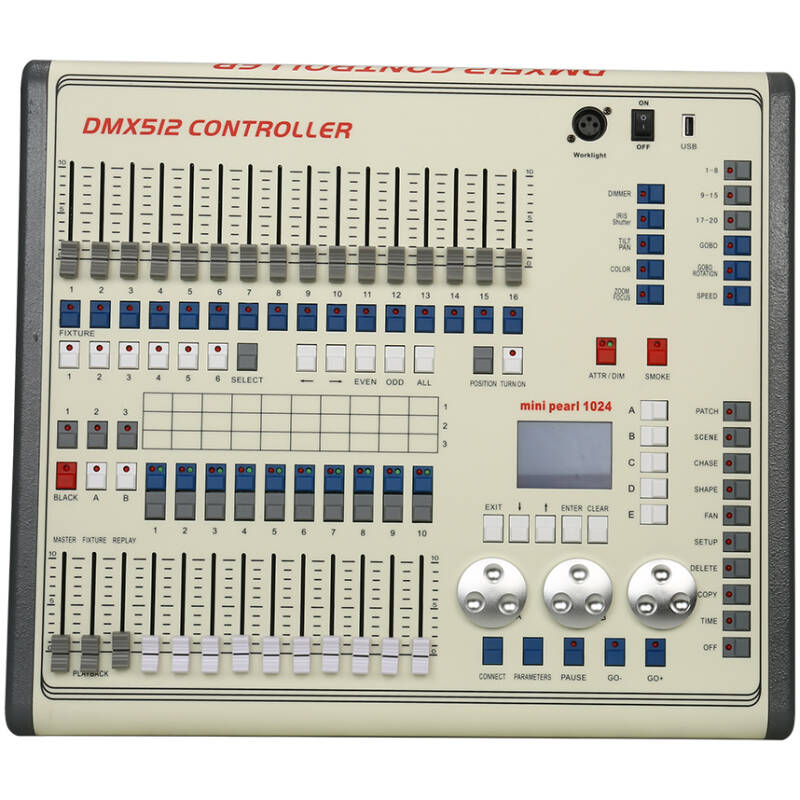

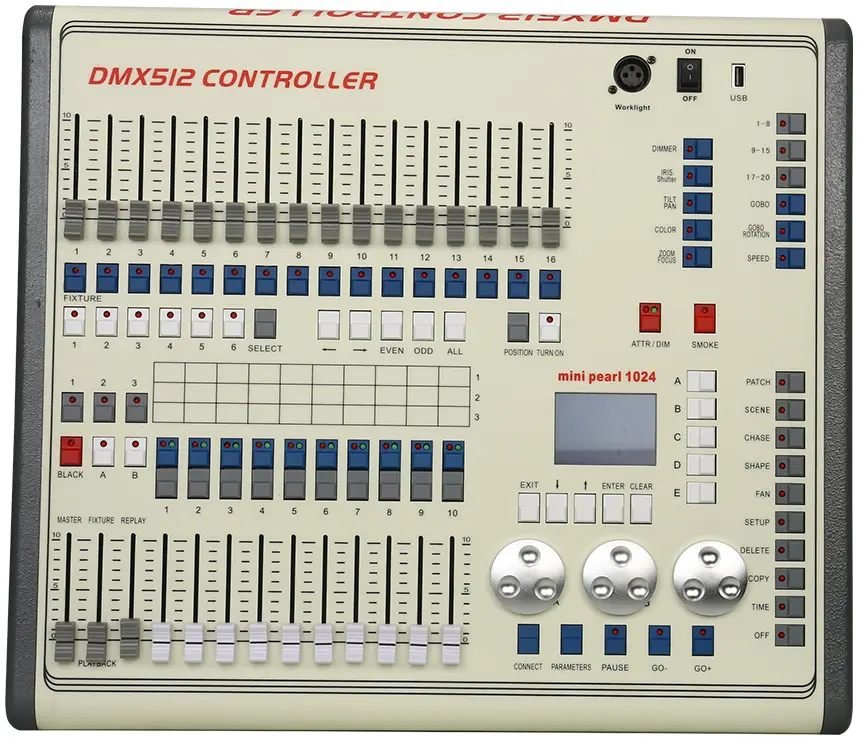

Front Panel Layout

1. Fixture Area: 16 buttons + sliders (6 pages for 96 fixtures)

2. Playback Area: 10 scene/swop buttons, 10 flash buttons, 5 page keys

3. Attribute Control: 8 buttons + 3 banks for quick parameter access

4. Function Keys: Patch, shape, fan mode, and utilities

5. LCD Menu: Navigate libraries, scenes, and set

Package Includes:

• 1 × IMIX Mini 1024 Pearl Controller

• Power Cable

• User Manual

• Personality Builder Software CD (for custom fixture profiles)
