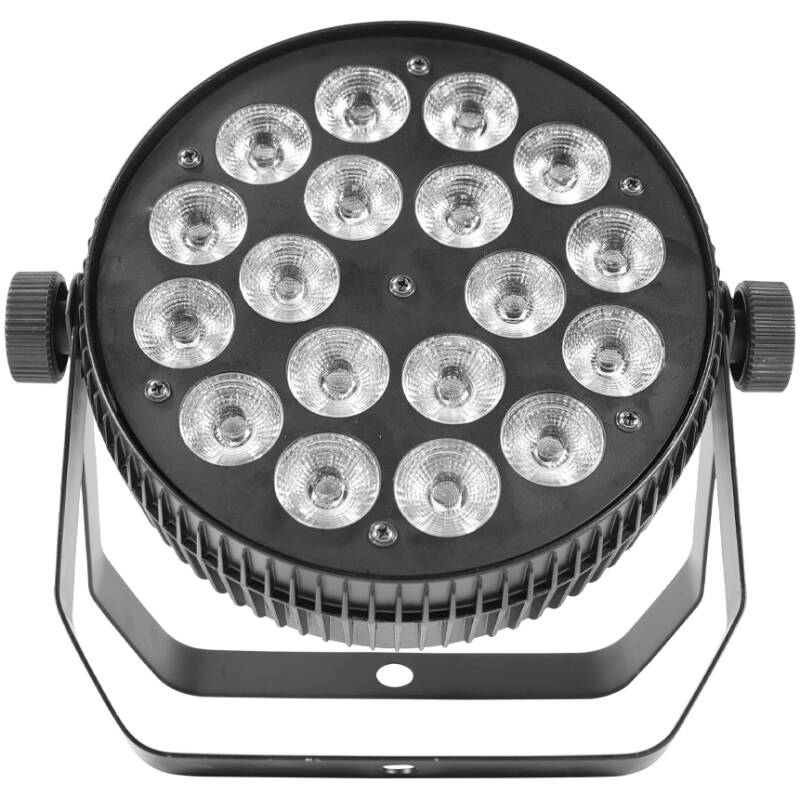

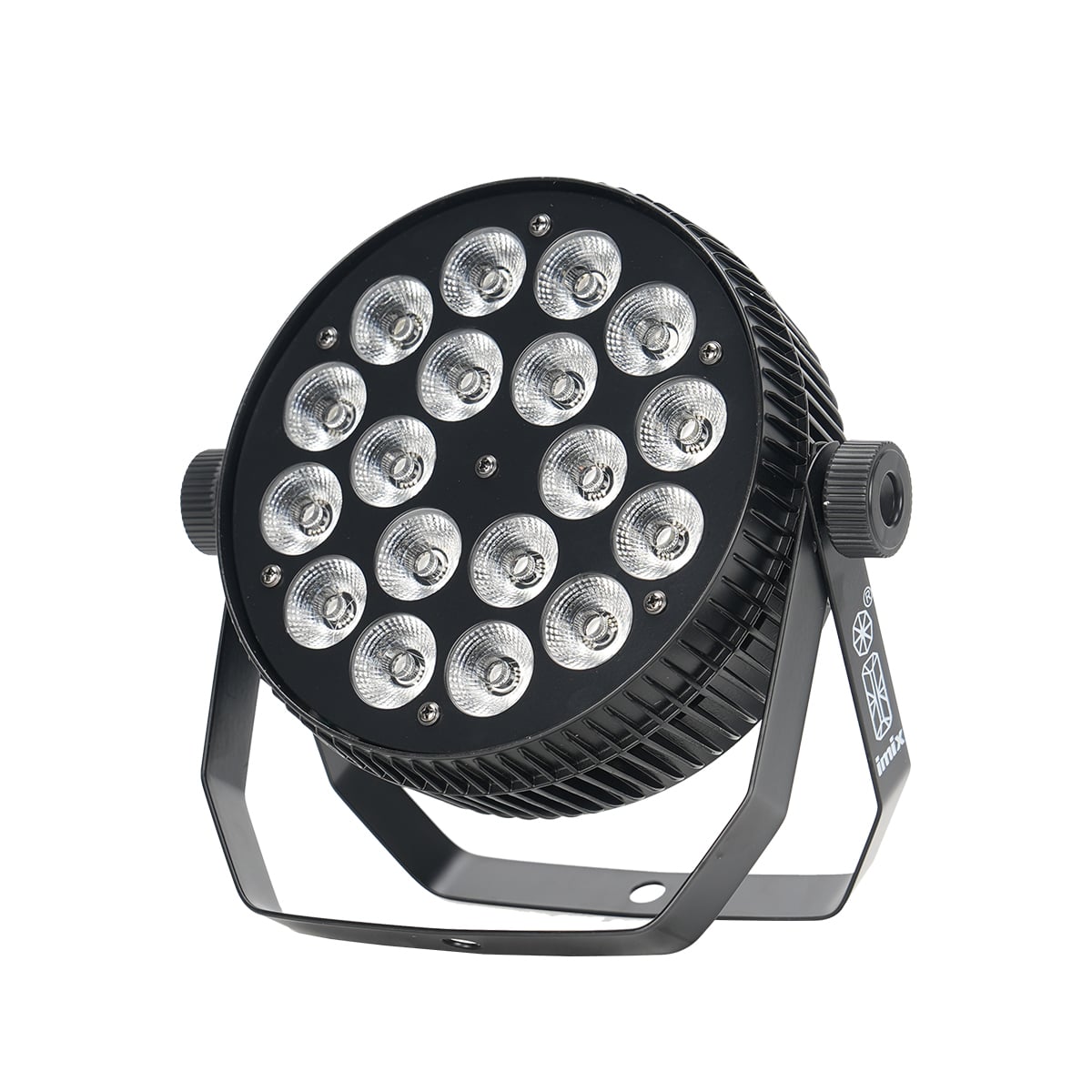

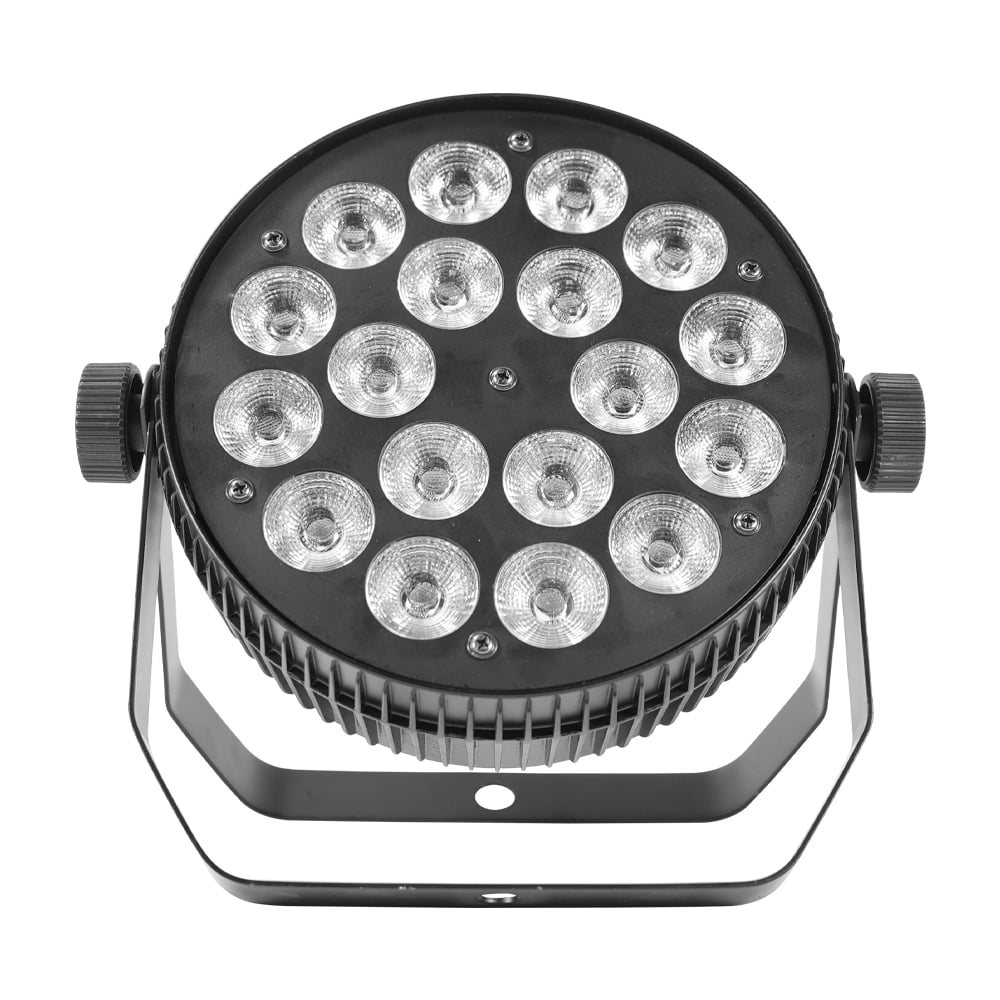

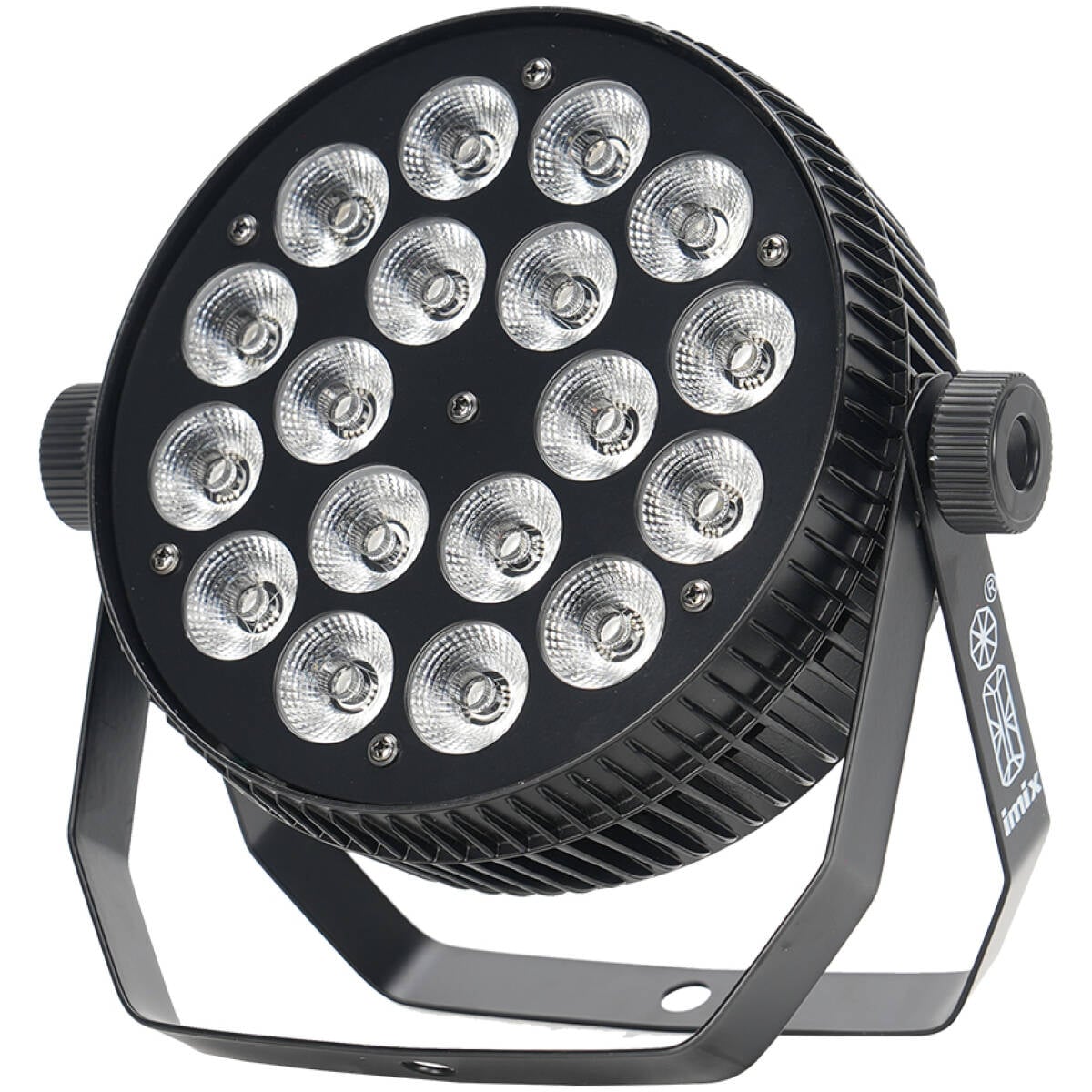

The IMIX PAR 18×10 RGBW is a high-output LED wash light featuring 18x10W 4-in-1 RGBW LEDs for vibrant color mixing. With multiple DMX modes, sound activation, and smooth dimming, it’s ideal for stage lighting, DJ setups, and architectural washes. The ultra-flat design (ISPCSâ„¢-IBM) ensures wide, even coverage.
Key Features
✅ 180W RGBW Output – 18x10W 4-in-1 LEDs (16.7 million colors)
✅ 3 DMX Control Modes – 8CH, 6CH, and 4CH configurations
✅ Sound-Activated Mode – Sync to music via built-in microphone
✅ Smooth Effects – Pulse, gradient, and strobe (0-20Hz)

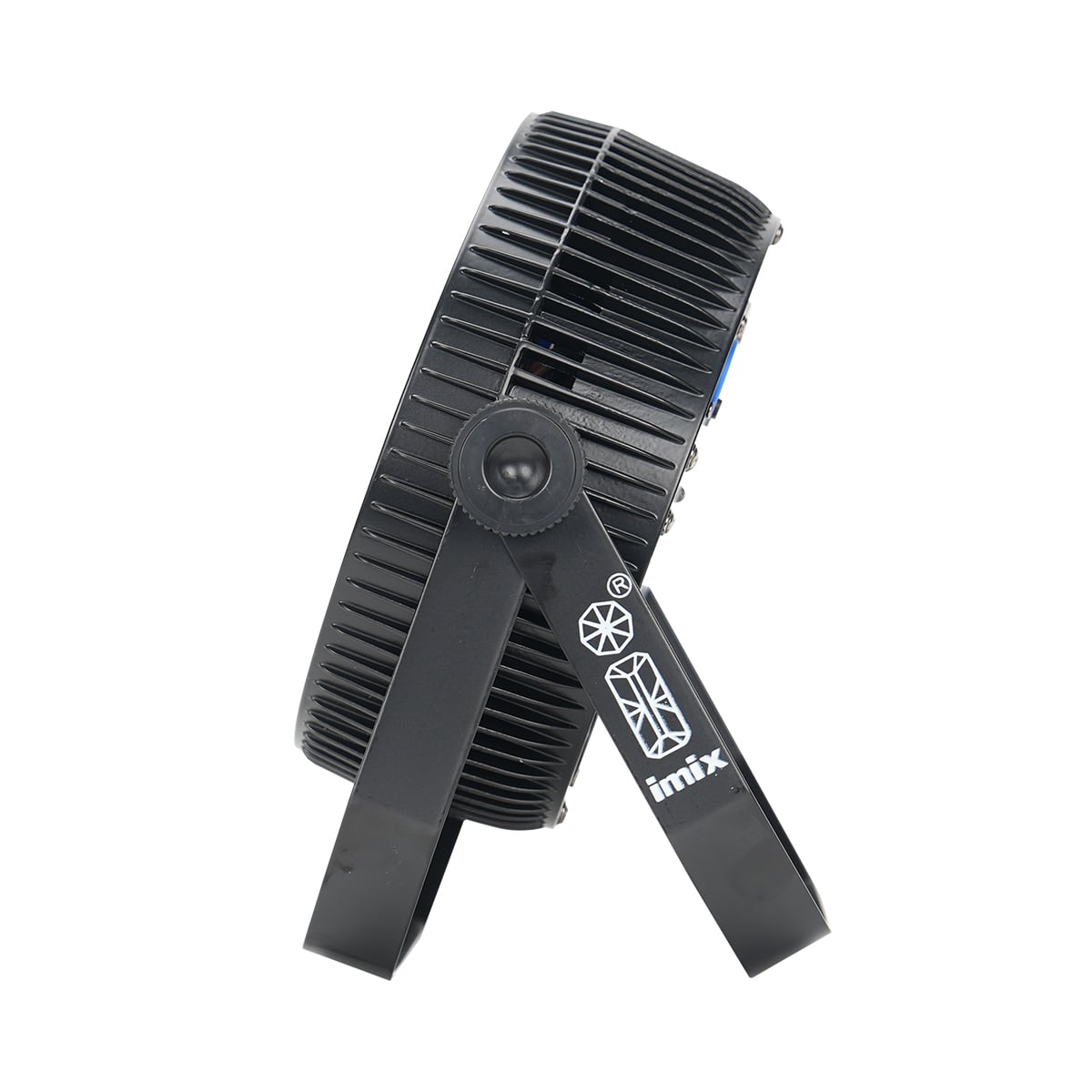

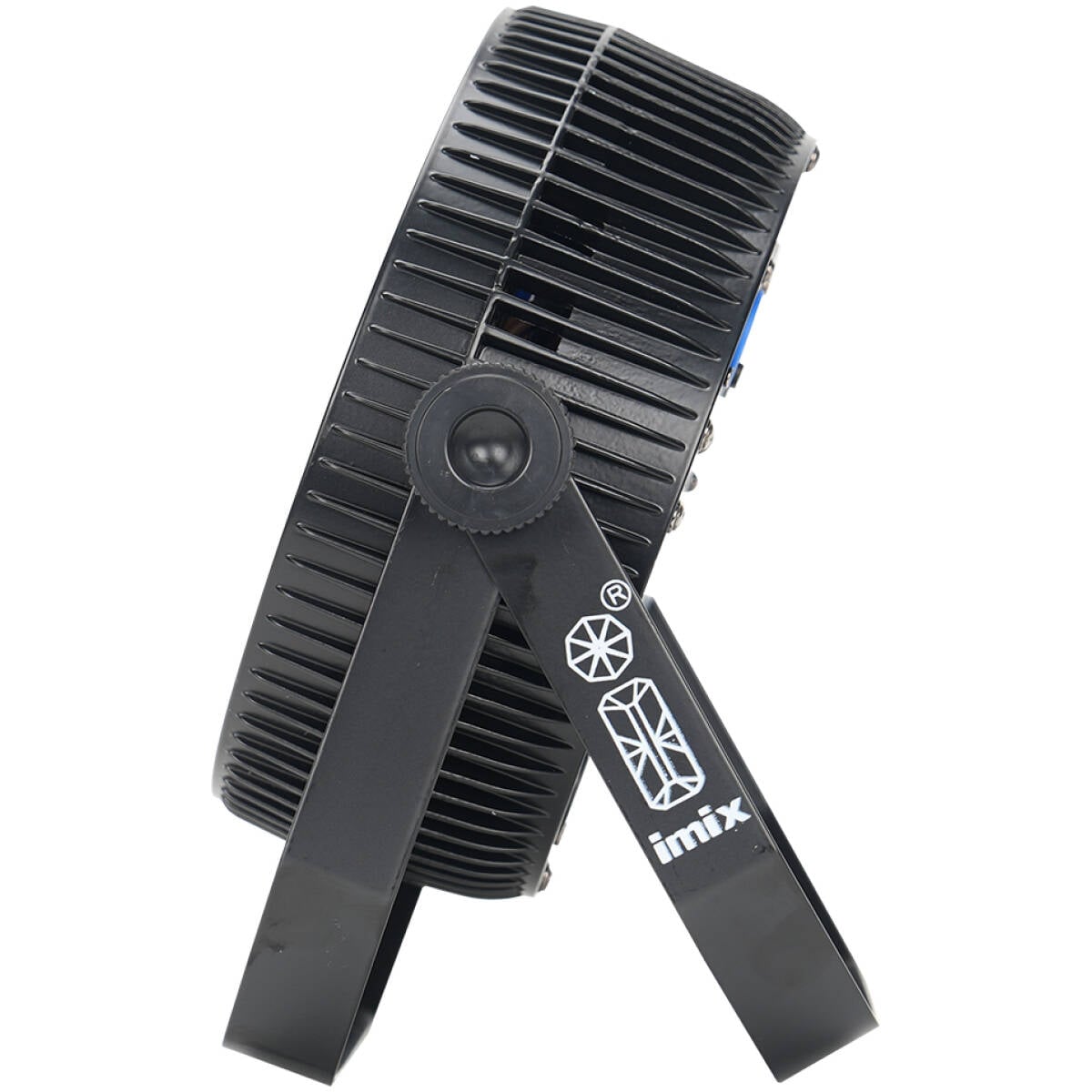

✅ Ultra-Thin Housing – Compact design for versatile mounting
Technical Specifications
| Category | Details |
|---|---|
| LEDs | 18 × 10W RGBW (4-in-1) |
| Power | 180W |
| Voltage | AC 85-265V (global) |
| Control | DMX512 (8/6/4CH), sound-activated, master/slave |
| Beam Angle | Wide flood (specific degrees not stated) |
| Dimming | 0-100% smooth dimming |
| Strobe | 0-20Hz adjustable |
| Display | LCD menu for settings |
DMX Channel Tables
8CH Mode (Default)
| CH | Function | Value Range | Effect |
|---|---|---|---|
| 1 | Master Dimming | 0-255 | 0-100% brightness |
| 2 | Strobe | 0-255 | Speed: Slow → Fast (0-20Hz) |
| 3 | Built-in Programs | 0-255 | Auto color/gobo sequences |
| 4 | Program Speed | 0-255 | Adjusts auto mode speed |
| 5-8 | RGBW Intensity | 0-255 each | Red/Green/Blue/White control |
6CH Mode
| CH | Function |
|---|---|
| 1 | Master Dimming |
| 2-5 | RGBW Intensity |
| 6 | Strobe |
4CH Mode (Simple Control)
| CH | Function |
|---|---|
| 1-4 | RGBW Intensity |

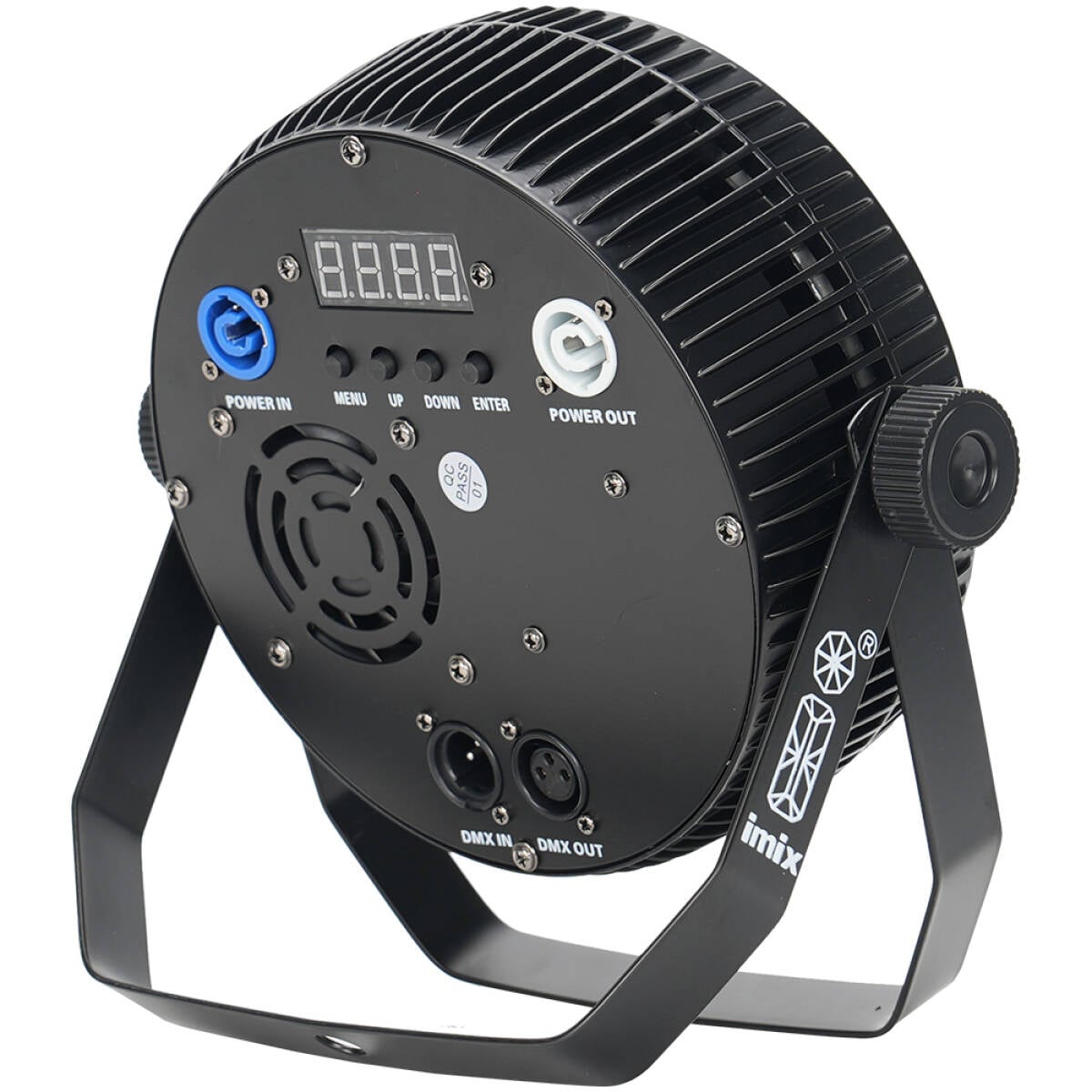

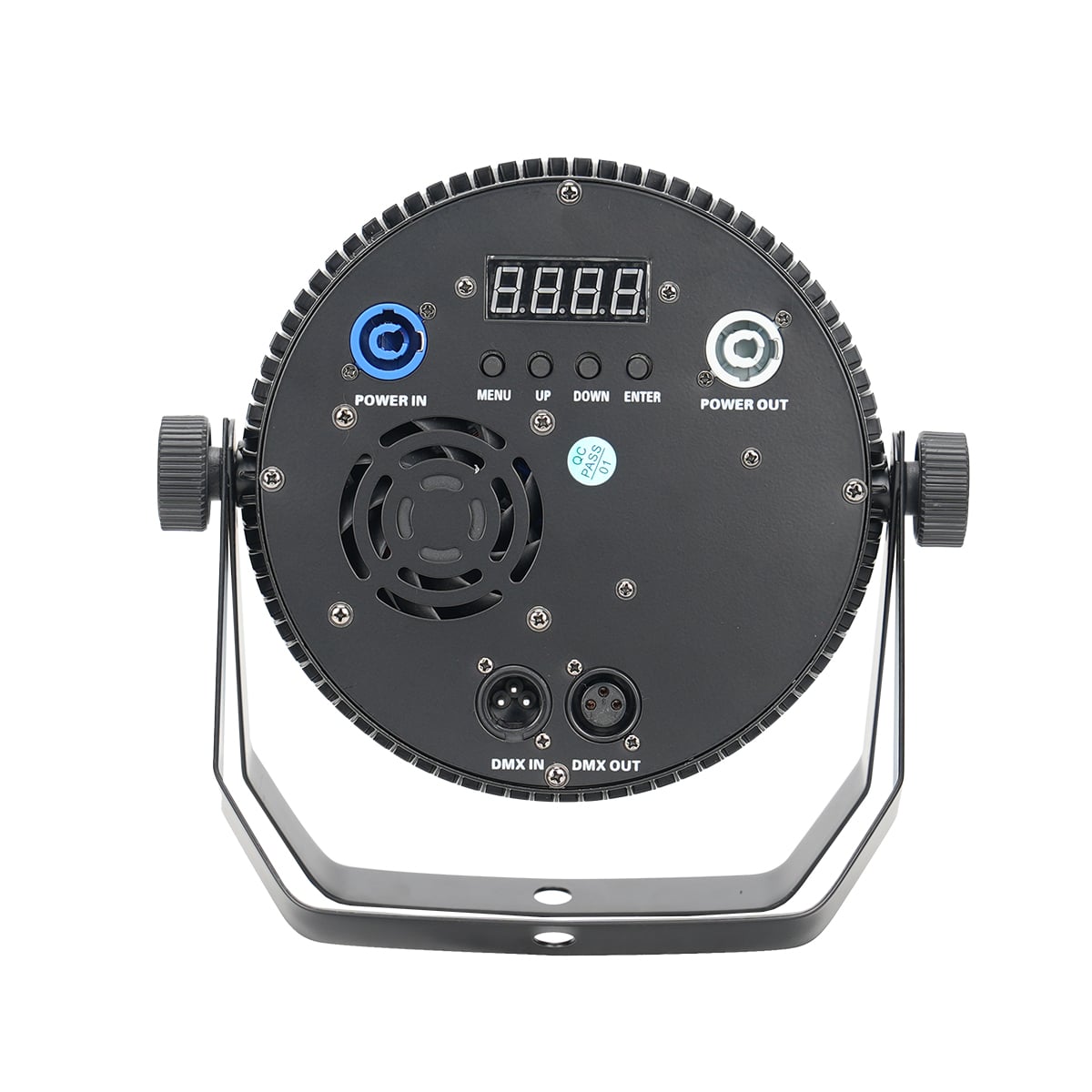

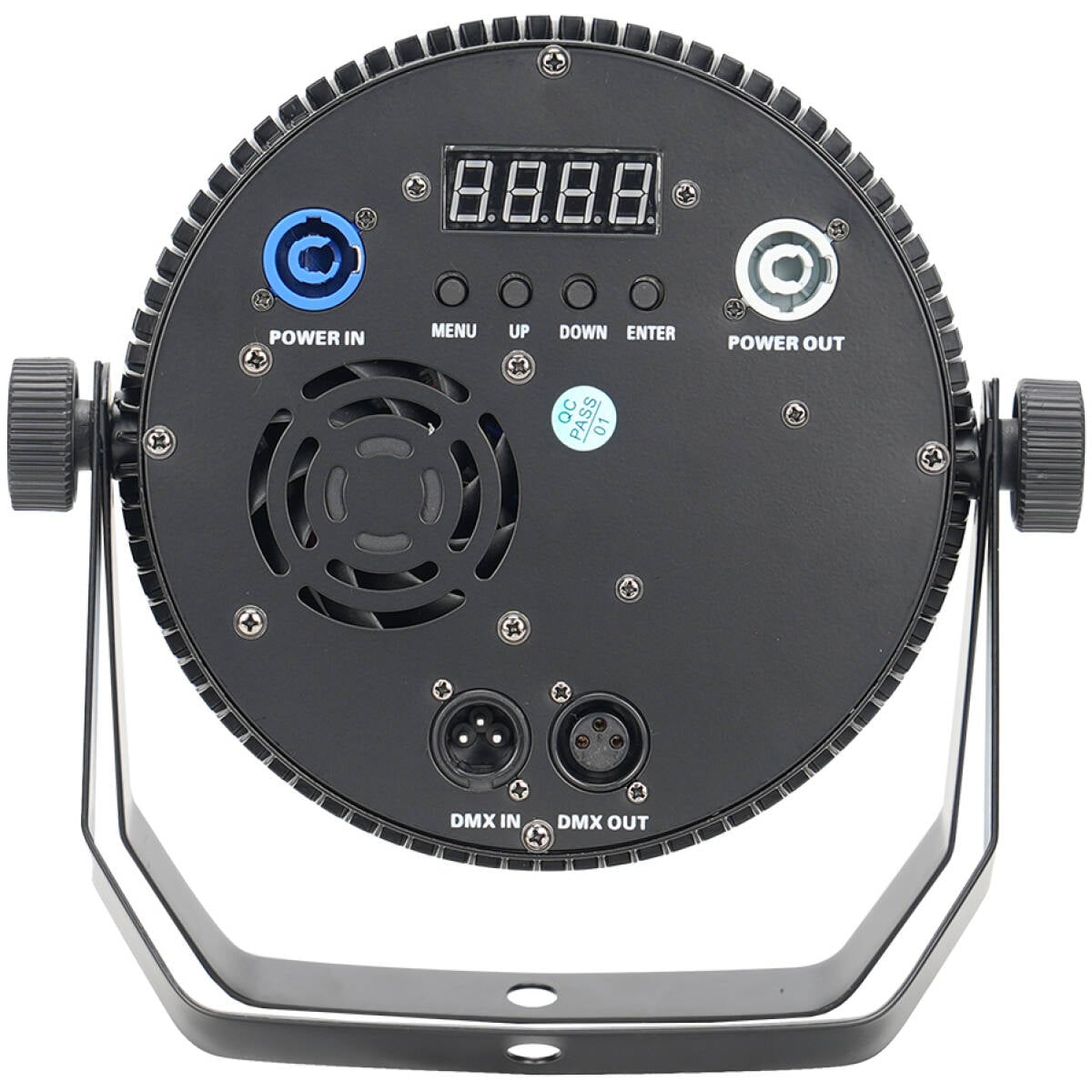

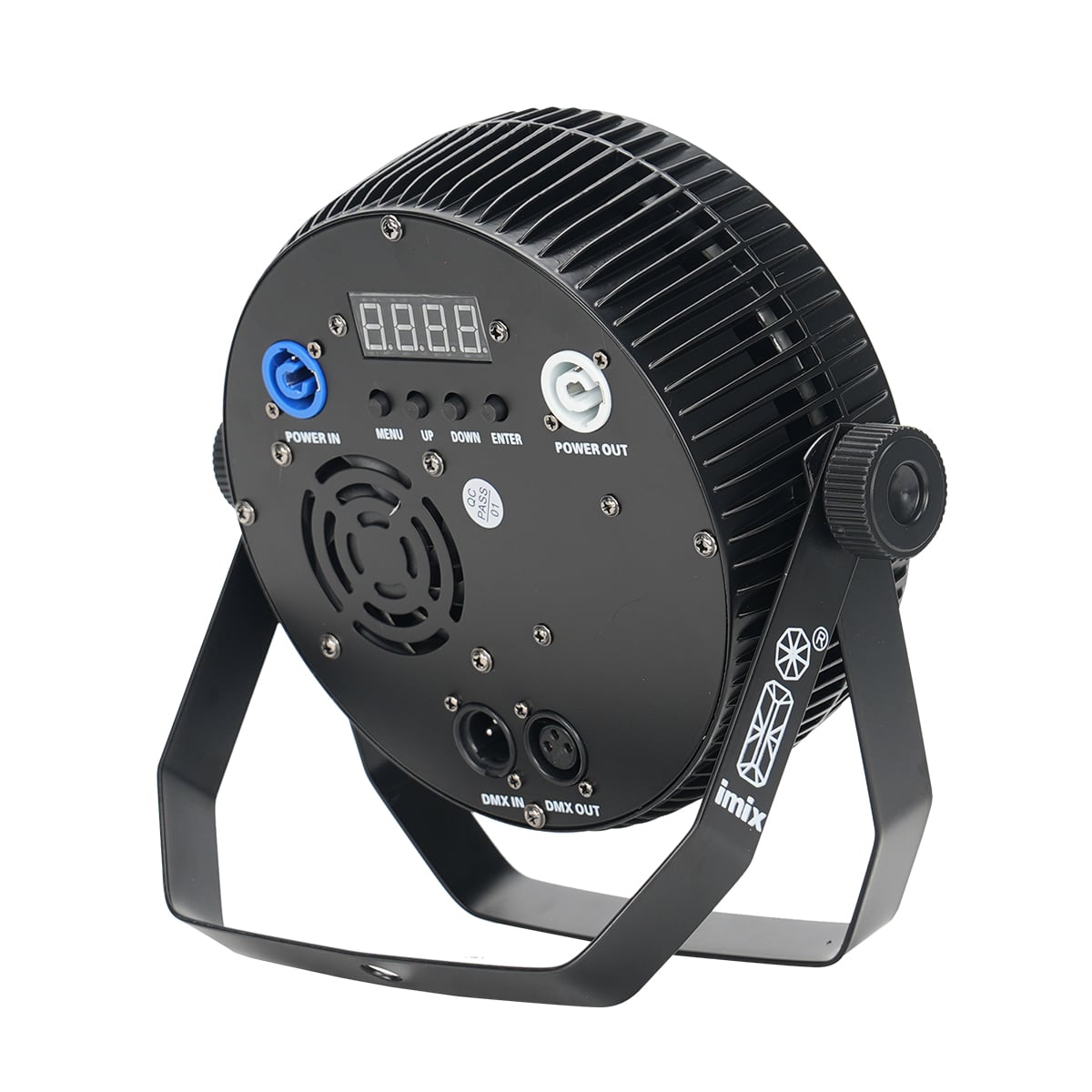

Menu System
Key Functions
-
MENU: Cycle through settings
-
UP/DOWN: Adjust values
-
ENTER: Confirm selection
Programmable Settings
| Parameter | Range | Description |
|---|---|---|
A001 |
001-512 | DMX address |
FF00 |
00-49 | Pulse speed (slow → fast) |
FE00 |
00-49 | Gradient speed (slow → fast) |
R/G/B/W |
000-255 | Individual color intensity |
SOLU3 |
000-255 | Sound sensitivity (for audio mode) |
Safety & Usage Notes
⚠Indoor Use Only – Not waterproof (avoid humid environments)
⚠Eye Safety – Avoid direct exposure to LEDs
⚠Ventilation – Ensure 30cm clearance for heat dissipation
⚠Voltage – Use only 85-265V AC power
