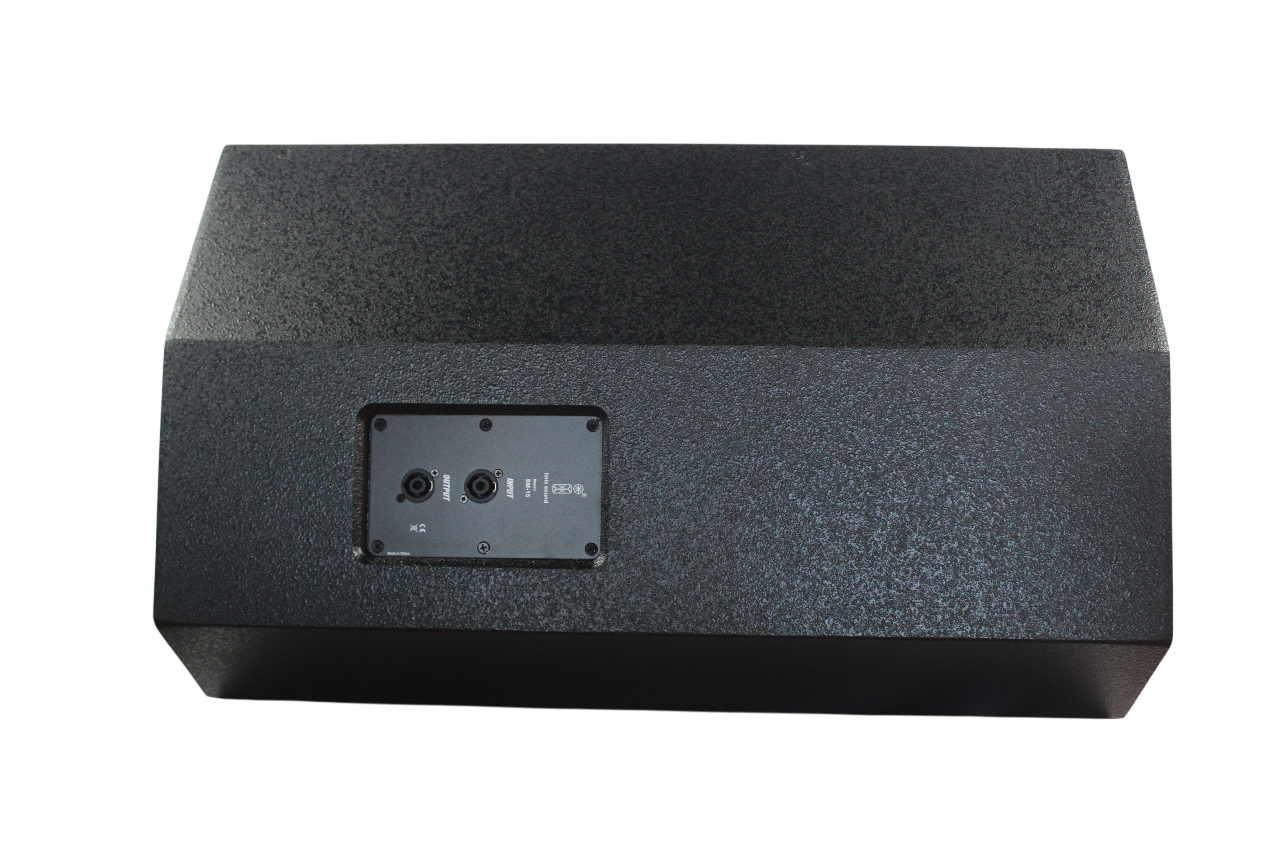

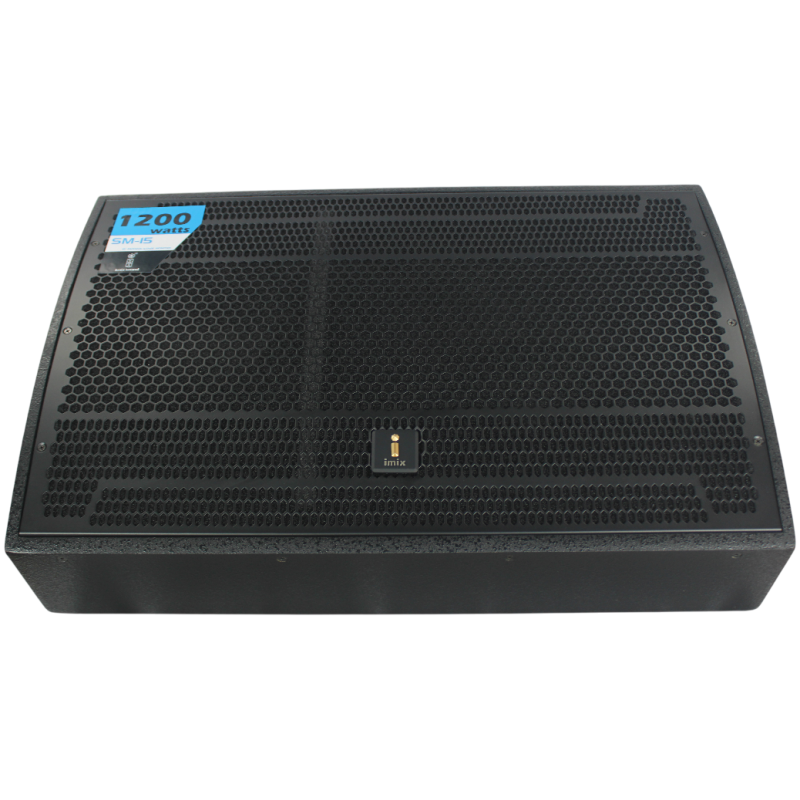

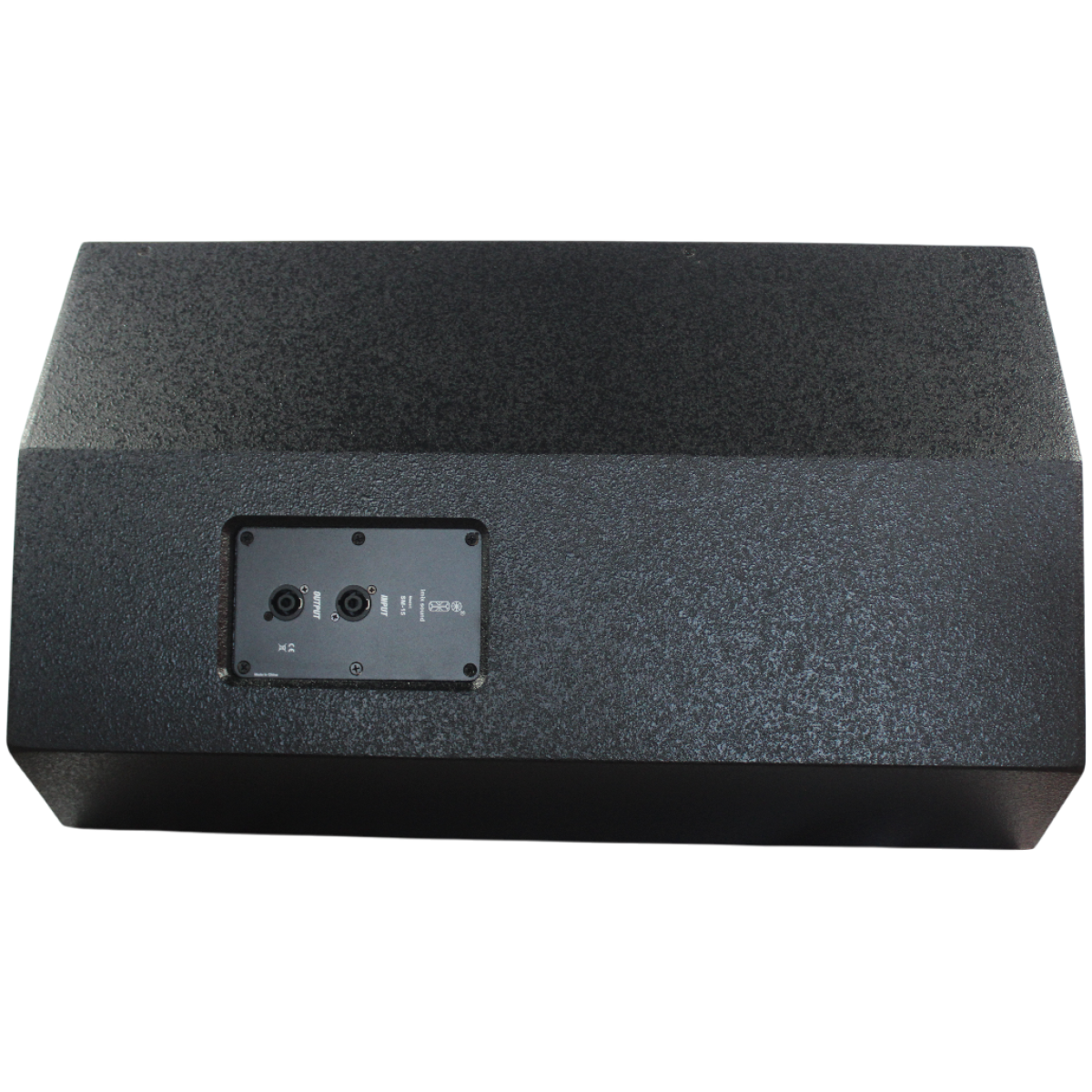

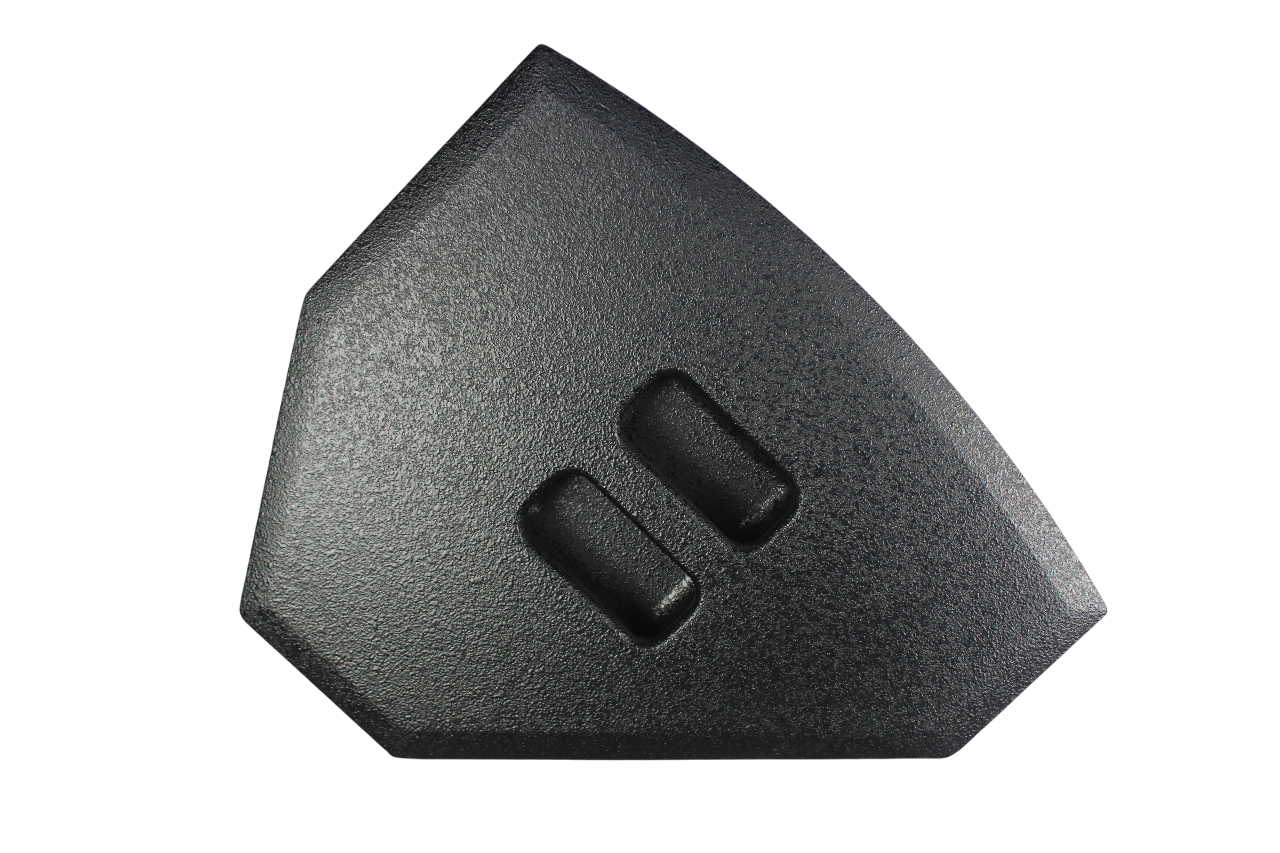

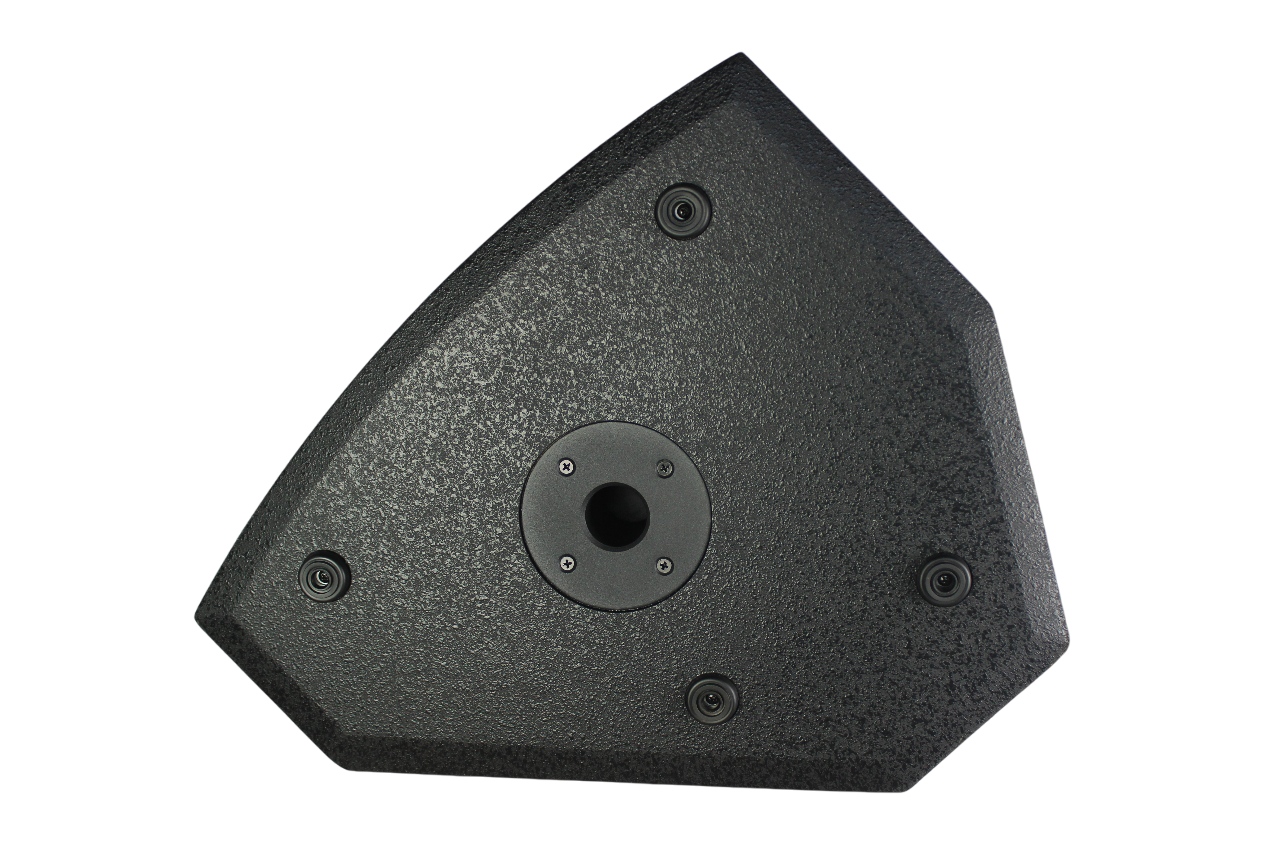

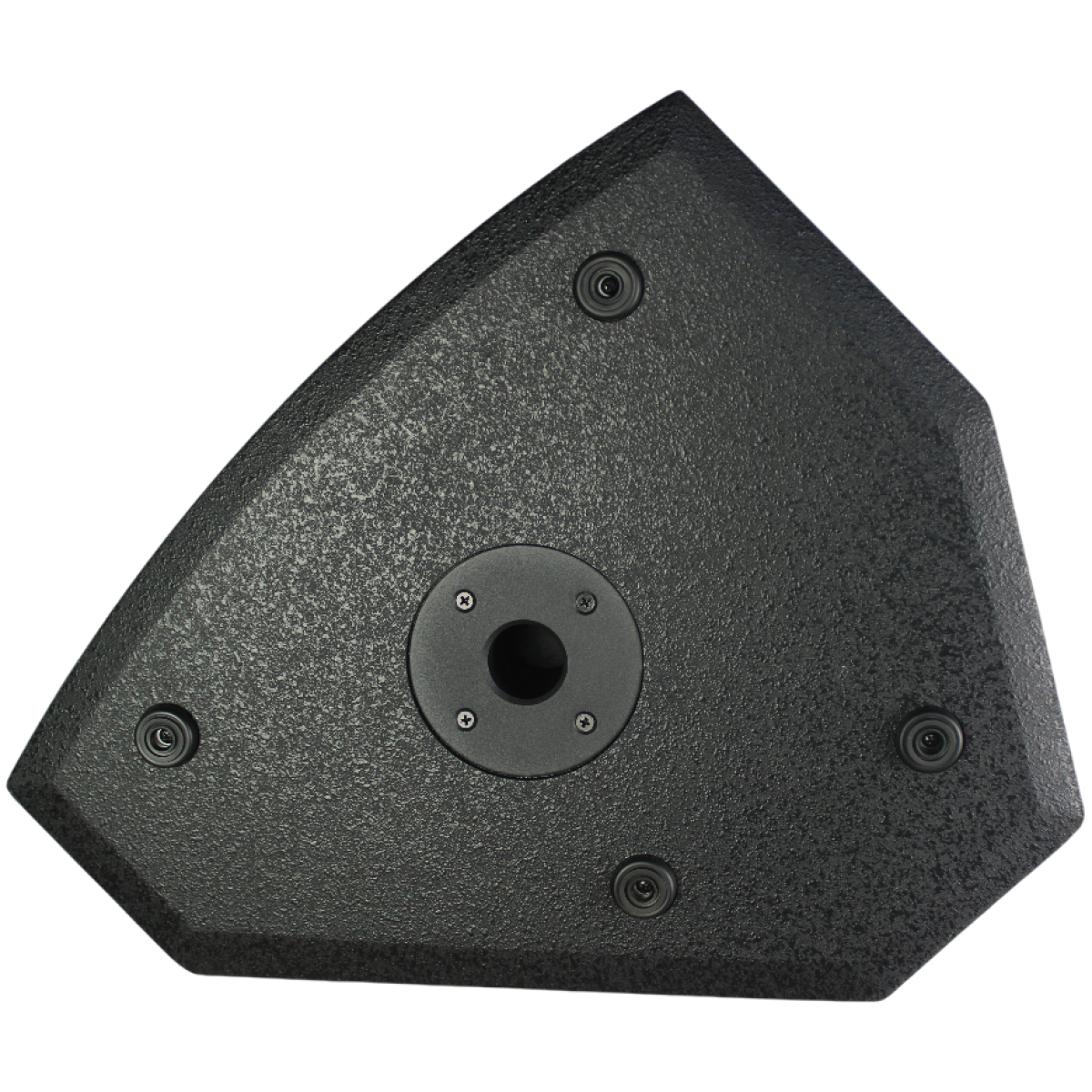

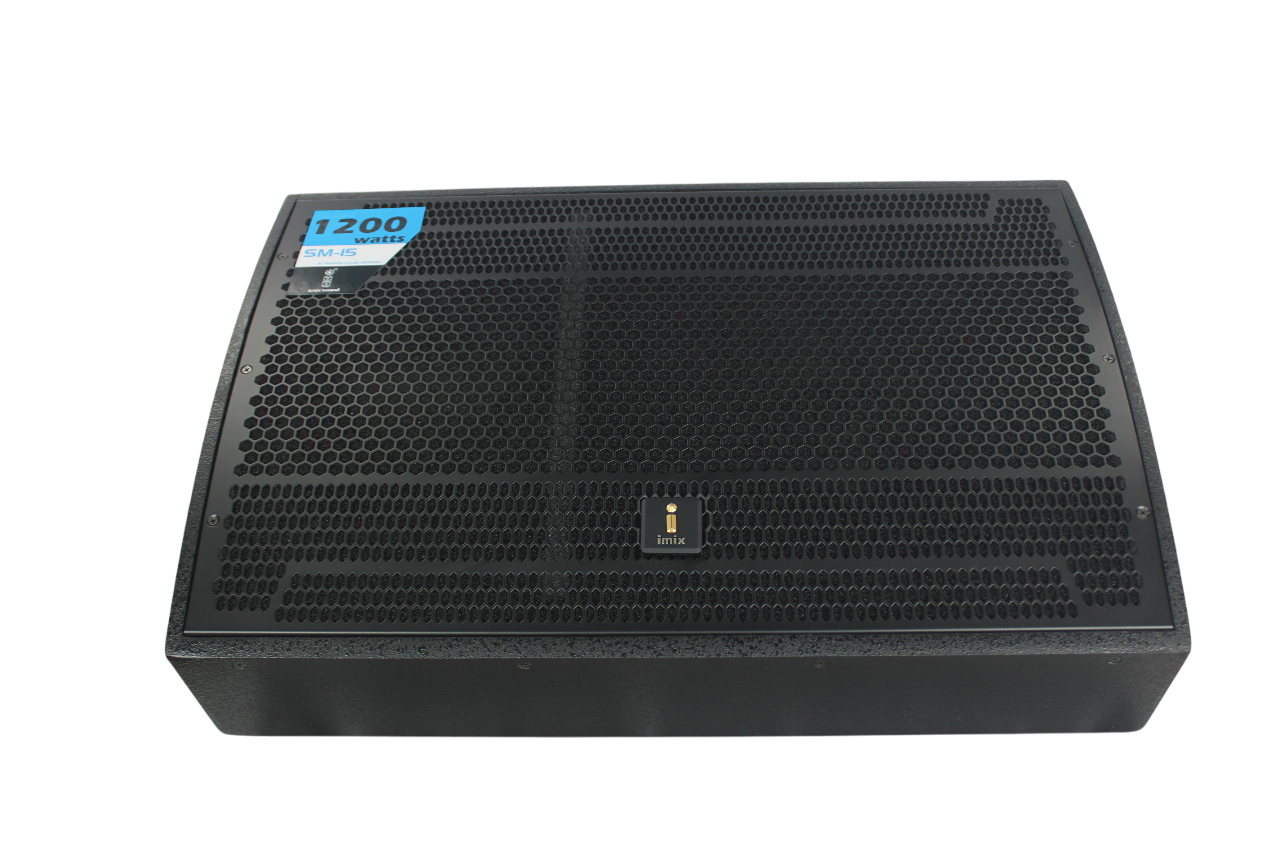

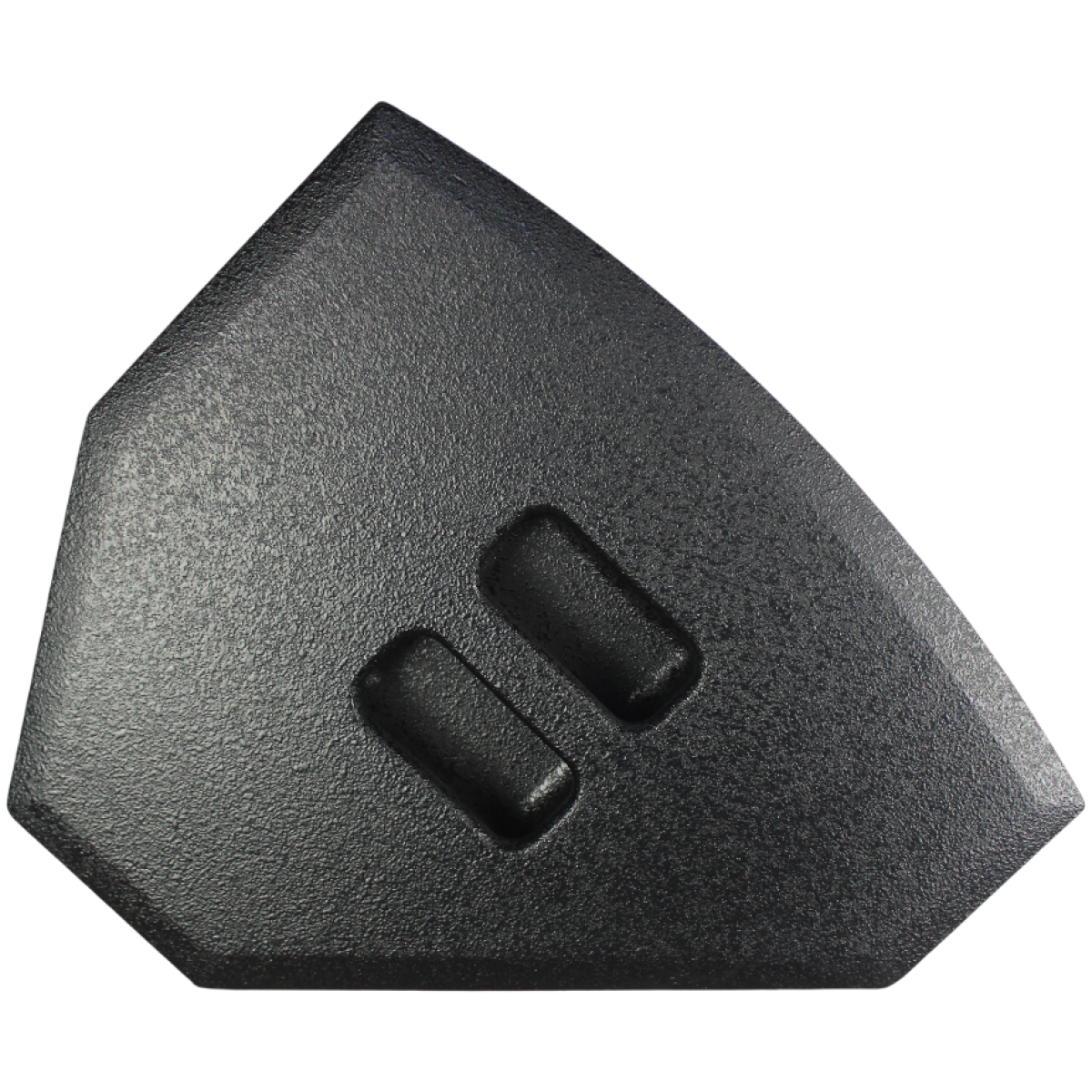

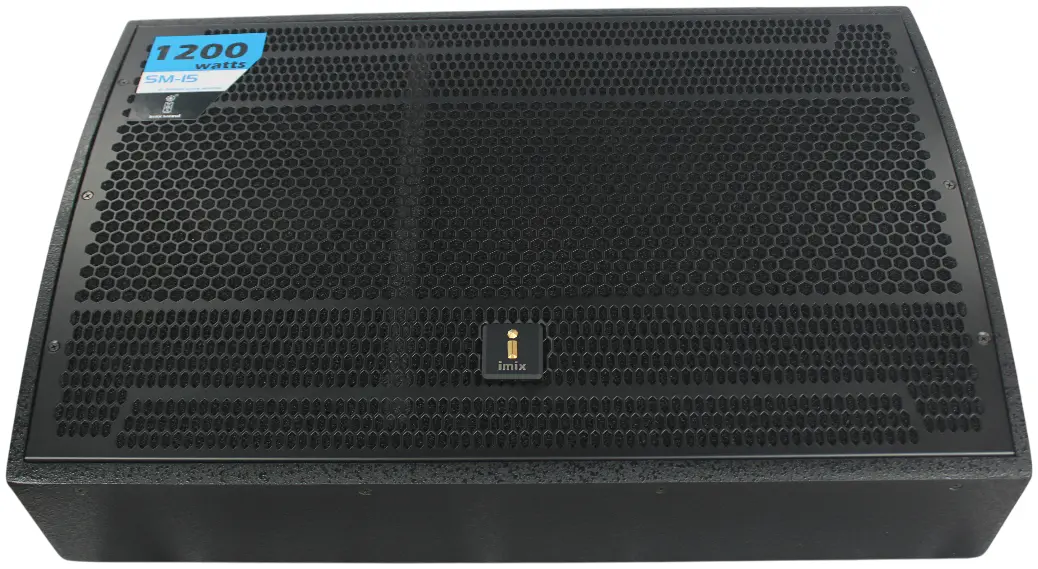

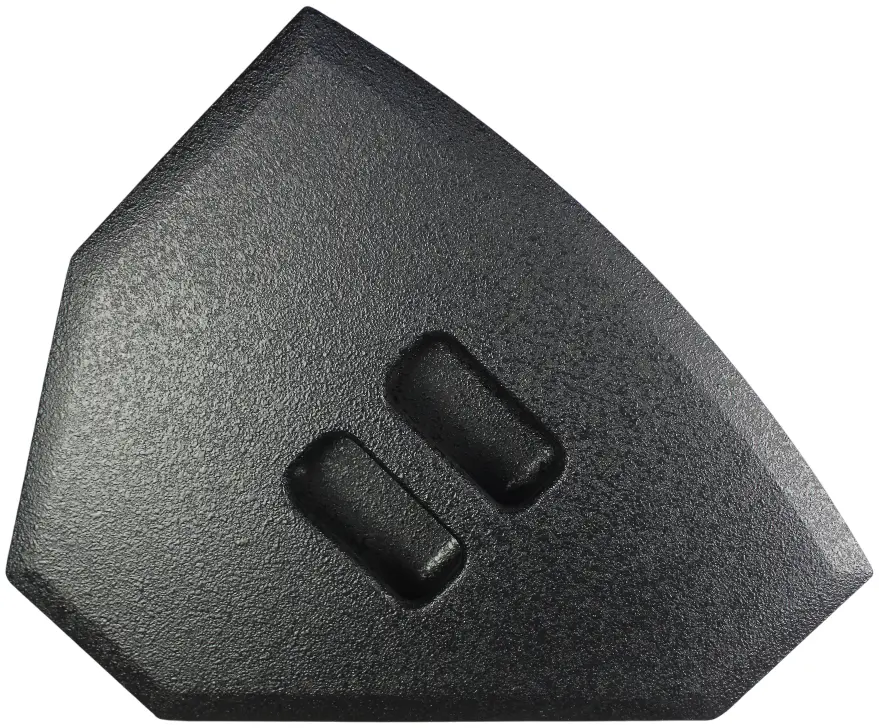

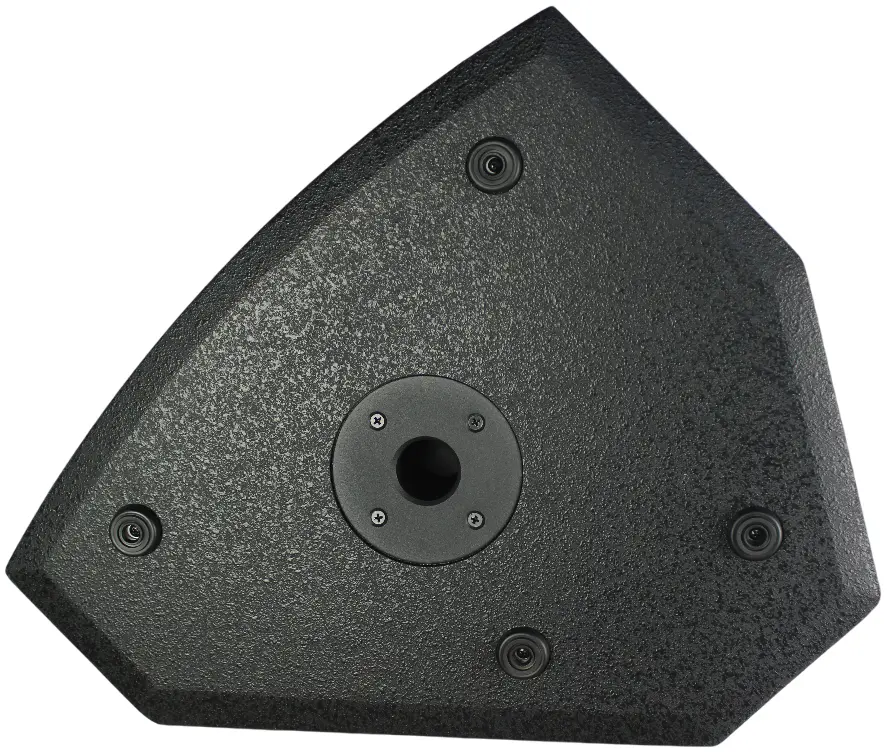

Imix SM-15 15″ 1200W Passive Speaker

Key Features:

• 15″ 2-Way Active Speaker – powerful full-range system for live and studio sound.

• 15″ Woofer with 2,5″ Voice Coil, 60oz Magnet – deep and punchy bass response.

• 1.75″ Titanium Compression Driver – delivers bright and detailed high frequencies.

• Powerful 1200W Output – strong amplification for large rooms and events.

• Frequency Response: 45 Hz – 20 kHz for balanced, full-range sound.

• XLR Inputs & Outputs:

  • XLR Mic Input

  • XLR Line Input

  • XLR Line Out for daisy-chaining additional speakers

• Speakon Output (8 Ω) – powers an additional passive speaker.

• Voltage: AC 230 V / 50 Hz

• Rugged Enclosure: road-ready build for portable and fixed installations.

Control Panel Overview:

1. XLR Input – connect microphones or line-level devices.

2. XLR Output – link to additional powered speakers or mixers.

3. Master Level Control – overall output level adjustment.

4. Treble Control – adjust high-frequency response.

5. Mid Control – adjust midrange tones.

6. Bass Control – enhance or reduce low-end frequencies.

7. Speakon Output – connect to a passive speaker (8 Ω).

8. AC Input – main power connector (230 V AC / 50 Hz).

9. Power Switch – ON/OFF control.

Safety & Operating Instructions:

• Power Supply:

  • Ensure the main power matches the rated AC 230 V / 50 Hz before connecting.

  • Unplug during thunderstorms or when unused for long periods.

• External Connections:

  • Use only insulated, properly rated power and signal cables.

  • Never remove covers or attempt internal servicing—high voltages are present inside.

• Protective Ground:

  • Always connect the speaker to a grounded outlet to prevent electric shock.

• Operating Conditions:

  • Do not expose to moisture, rain, or liquids.

  • Keep away from heat sources and ensure ventilation openings are not blocked.

• Fuse Protection:

  • Replace only with the specified fuse type.

  • Never short-circuit the fuse holder or bypass safety mechanisms.

• Handling:

  • Disconnect power before moving the unit.

  • Handle carefully to avoid damage to internal components.

• Symbols:

  • ⚡ Hazardous Voltage – Risk of electric shock.

  • 🔺 Caution – Important operating instructions.

  • ~ AC Mains – Alternating current connection.
