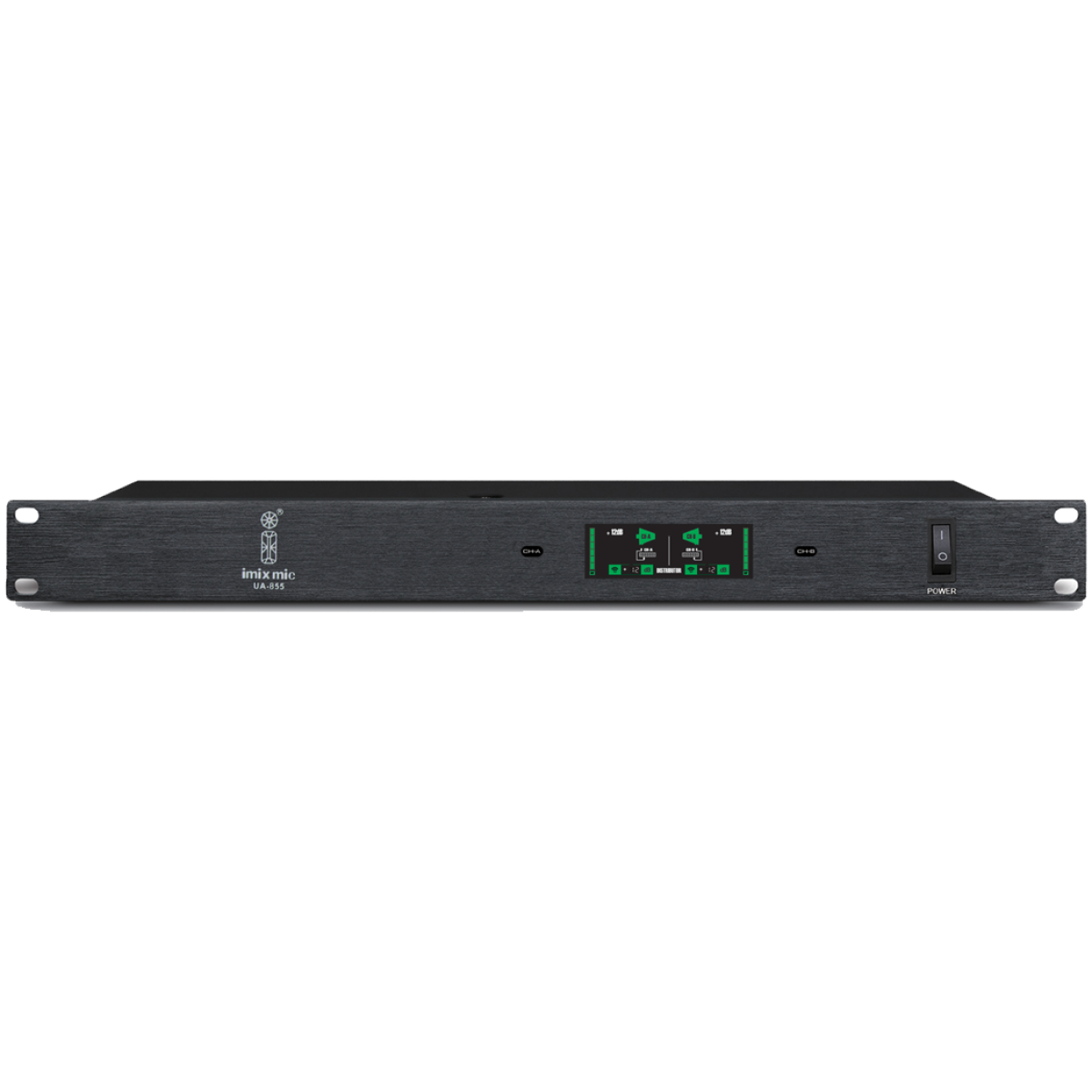

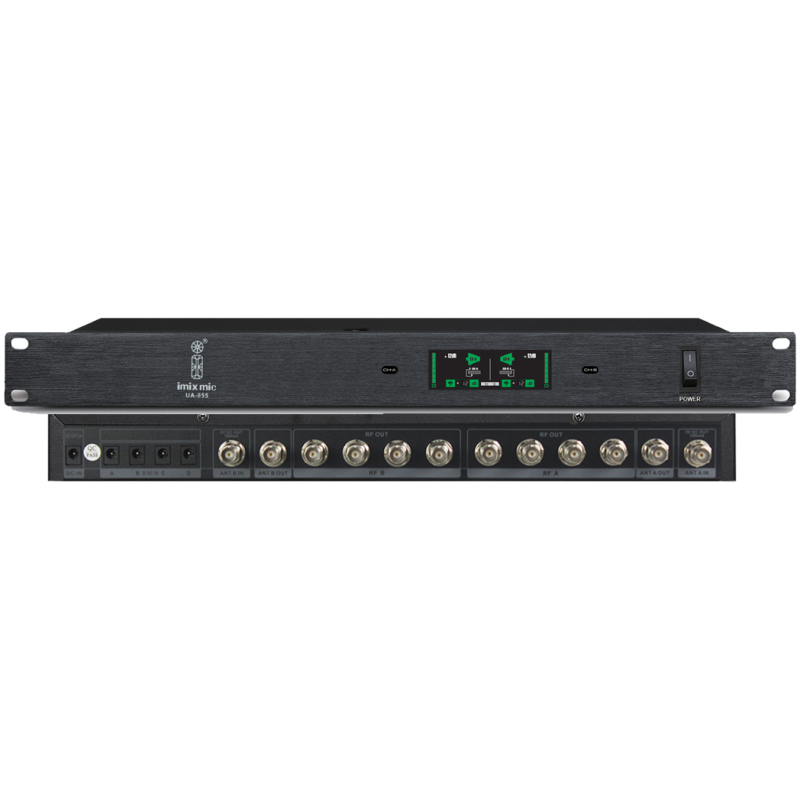

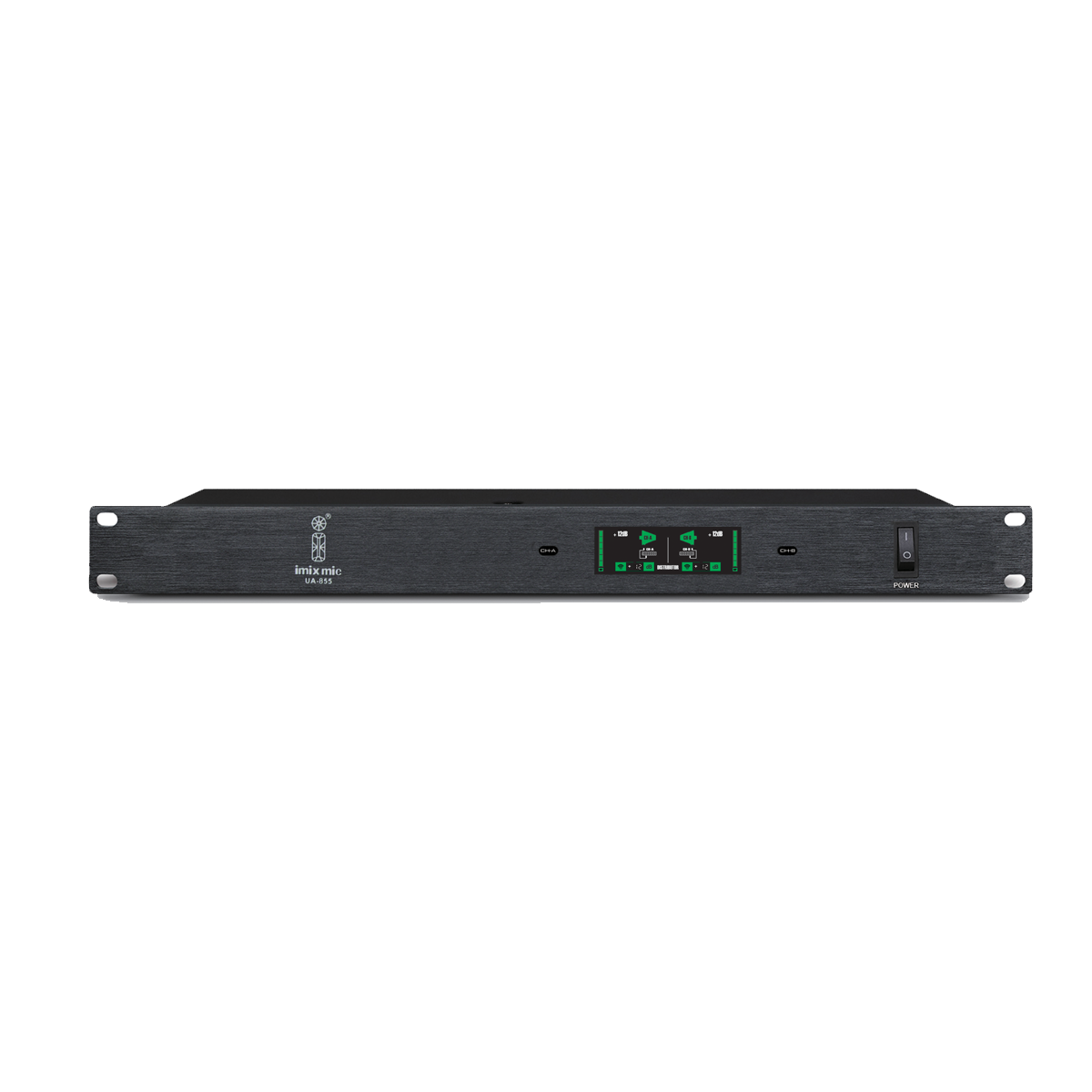

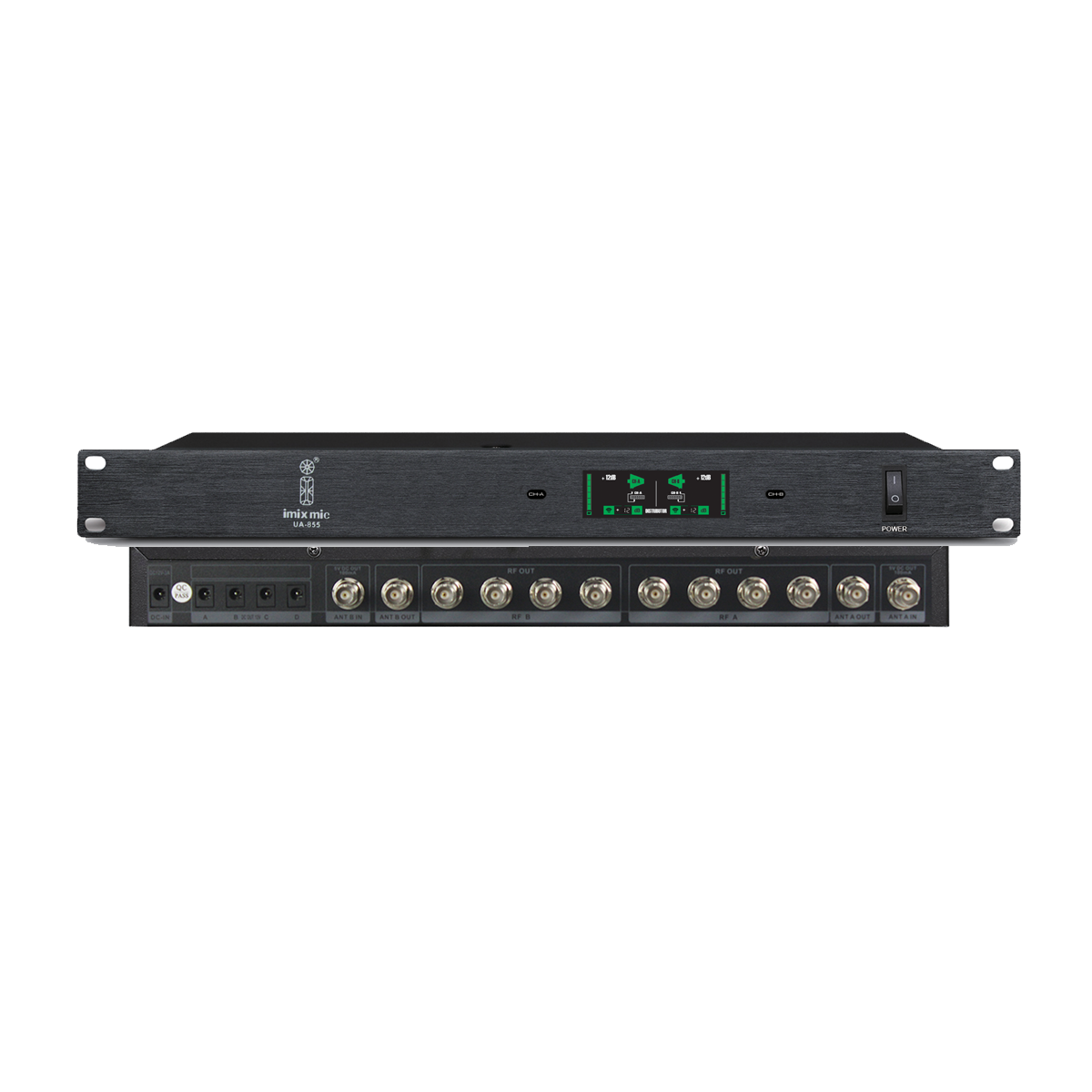

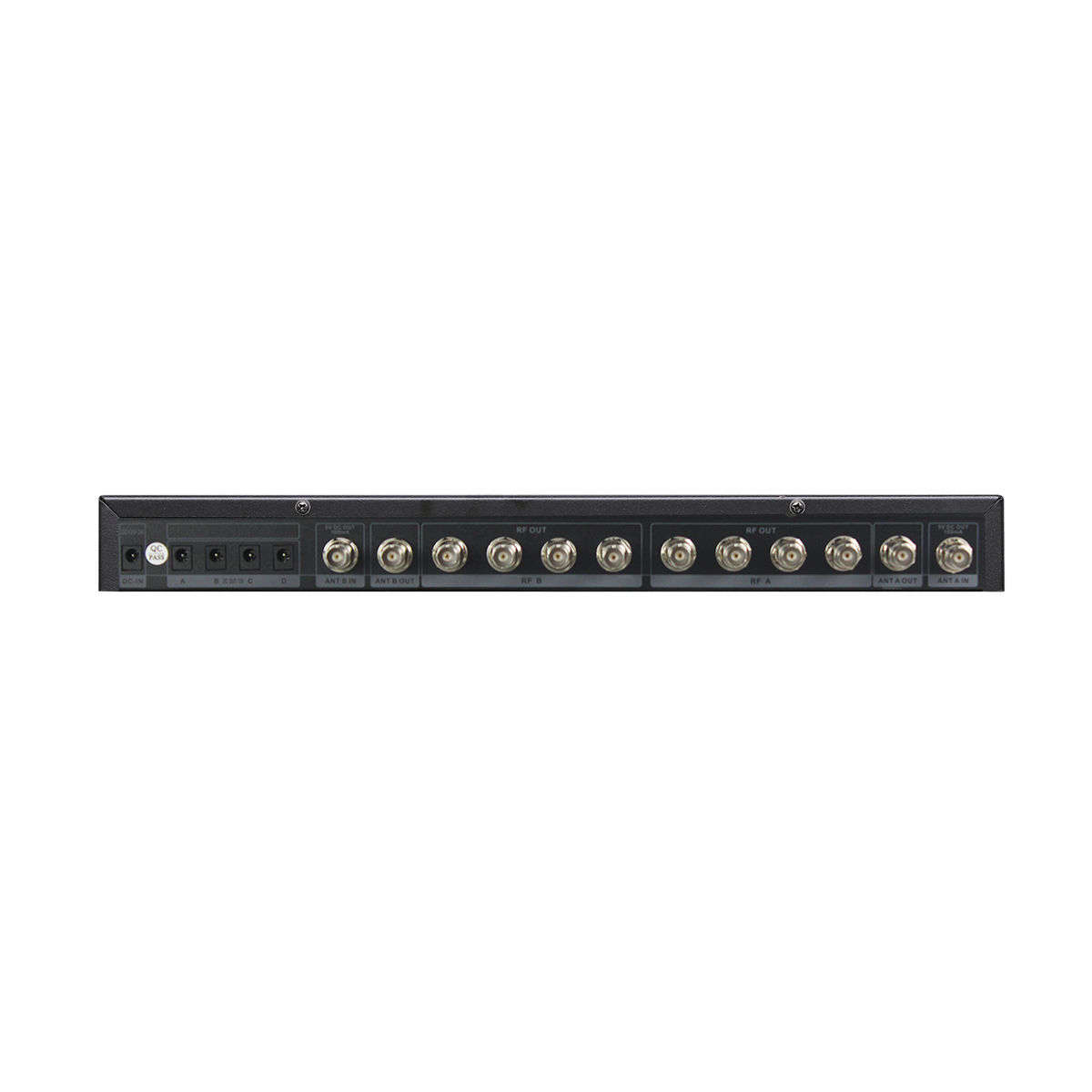

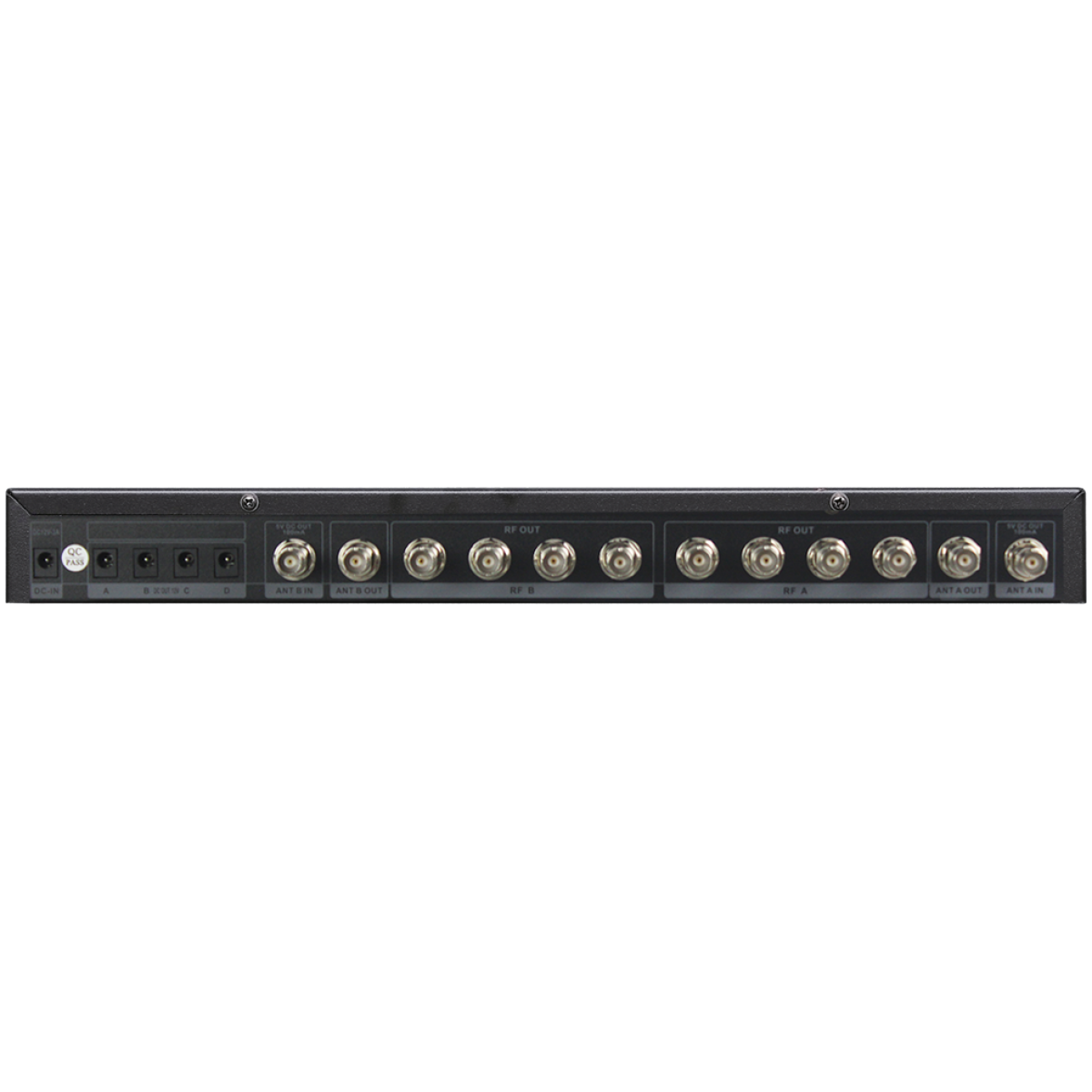

Imix UA-855 Frequency Booster For Wireless Mics

Product Specifications

Antenna Splitter

• Frequency Range: 450~950 MHz

• RF Output Gain: 1 dB ±1 dB

• Output Third-Order Intermodulation Intercept Point: +14 dBm

• Noise Index: < 2 dB

• System Impedance: 50 Ω

• Antenna Input Connector Power Supply: 5V / 80 mA DC

• Output Power Supply: 12V / 1000 mA DC per channel

• Power Supply: 110~220V AC, 50/60 Hz

• Connector: BNC

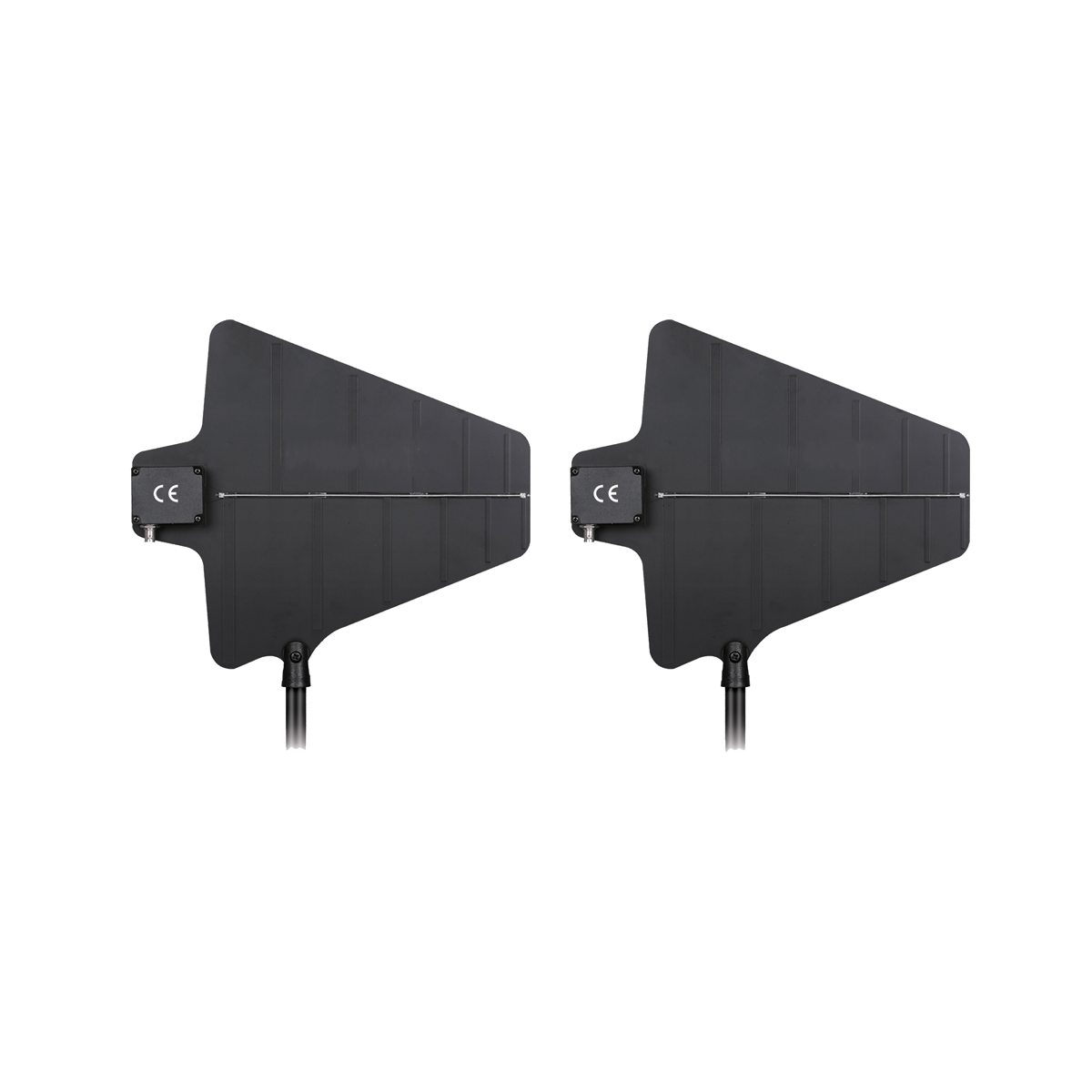

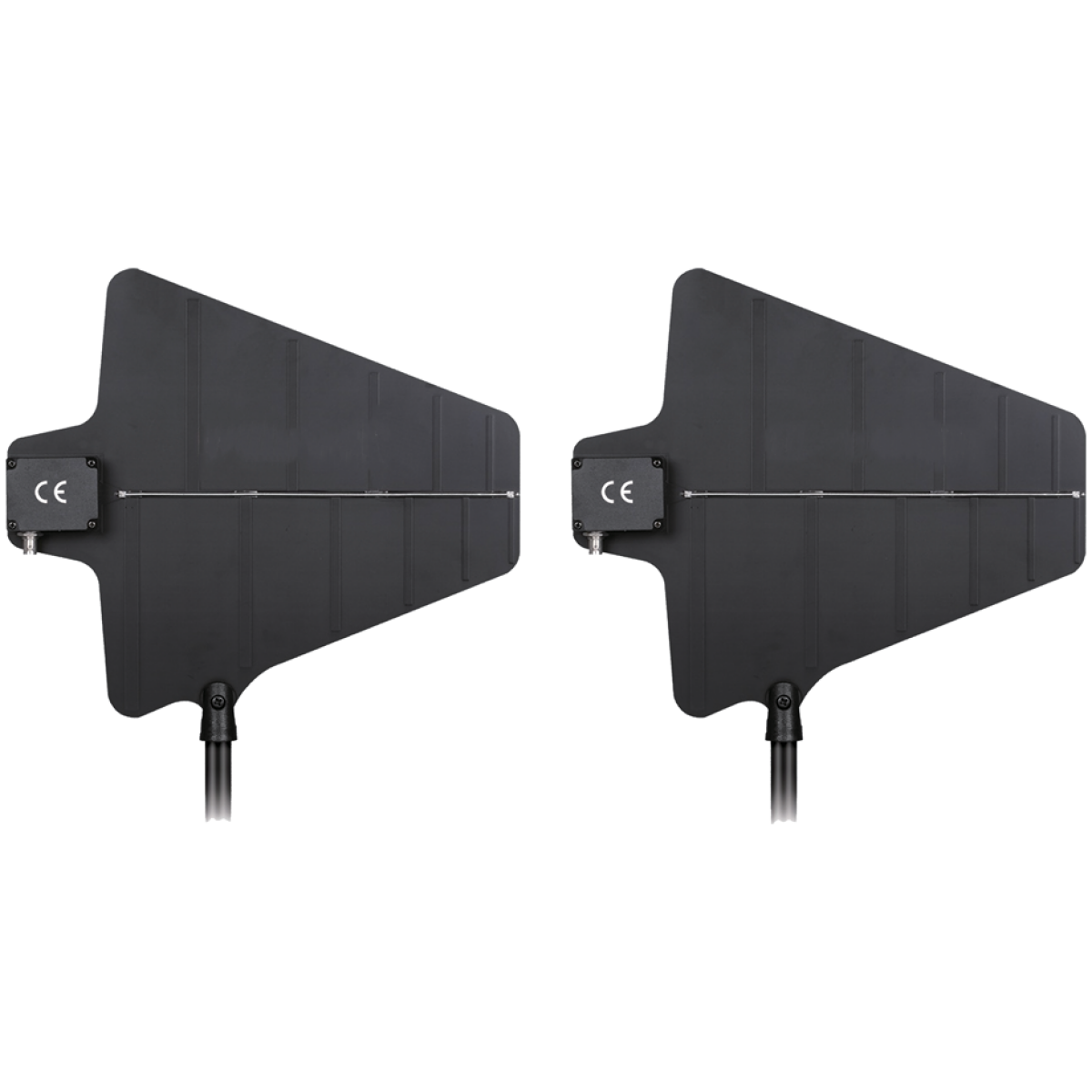

Directional Antenna

• Frequency Range: 450~950 MHz

• 3dB Beam Width: 90° (Vertical), 120° (Horizontal)

• System Impedance: 50 Ω

• Amplification Gain: 15 dB ±1 dB

• Noise Index: < 2 dB

• Output Third-Order Intermodulation Intercept Point: +14 dBm

• Power Supply: 5~8V / 80 mA DC

• Connector: BNC
