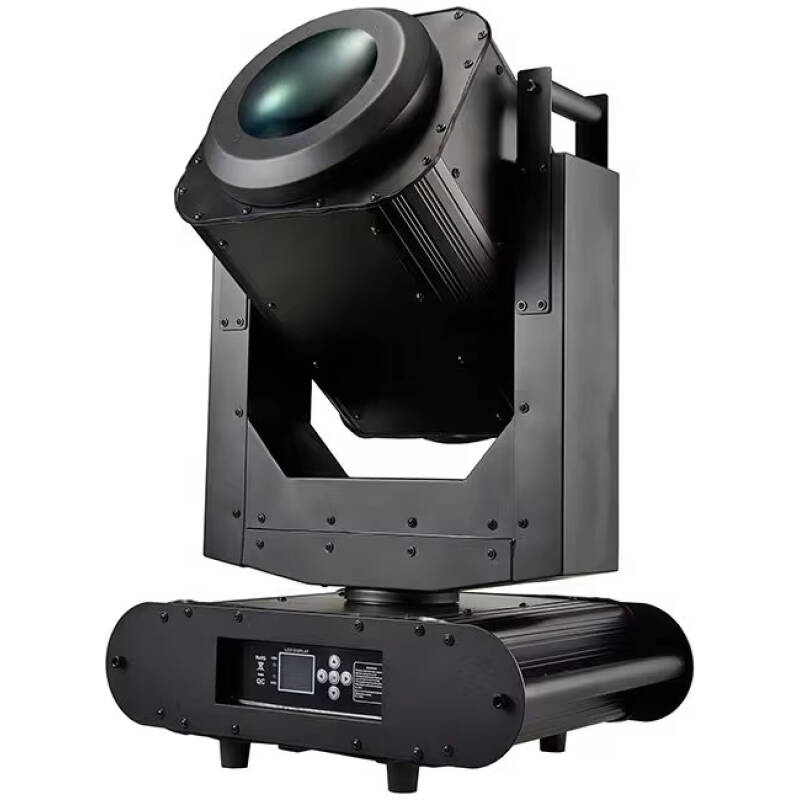

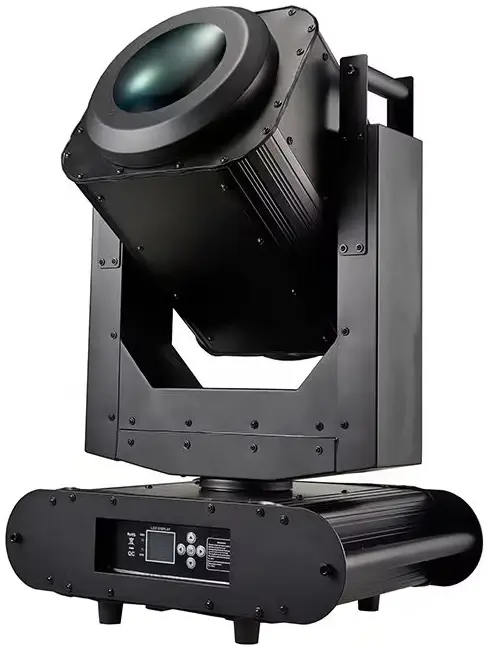

The Imix Zenith Beam is a high-power 350W IP65-rated moving head designed for outdoor and challenging environments. Featuring 17 gobo patterns, dual rotating prisms, and electronic focus (1.9°-3°), it delivers intense beams with full 540° pan / 270° tilt movement. The LCD touch panel and DMX512 control (20 channels) make it ideal for stage shows, festivals, and architectural lighting.
Key Features
✅ 350W High-Output LED – Bright, long-lasting beams
✅ IP65 Waterproof – Withstands rain and dust for outdoor use
✅ 17 Gobo Patterns + 3 Glass Gobos – Project intricate designs
✅ Dual Rotating Prisms – 8-facet + 16-facet for dimensional effects
✅ 1.9°-3° Zoom – Ultra-narrow to medium beam angles
✅ LCD Touch Control – Easy menu navigation and DMX addressing
✅ Auto-Error Correction – Magnetic detection for gobo/color wheels
Technical Specifications
| Category | Details |
|---|---|
| Light Source | 350W LED (90,000+ hours lifespan) |
| Beam Angle | 1.9°–3° adjustable zoom |
| Movement | 540° pan / 270° tilt |
| Optics | Yilong precision lens + electronic focus |
| Effects | 17 gobos, 2 prisms (8/16-facet), color wheel, strobe (0-20Hz) |
| Control | DMX512 (20 channels), LCD touch panel |
| Protection | IP65 waterproof (suitable for outdoor use) |
| Housing | Full PV+ fiber plastic shell (patented design) |
| Weight | 28kg |
| Power | AC 100-240V, 50/60Hz |
DMX Channel Table (20 Channels)
| CH | Function | Value Range | Effect |
|---|---|---|---|
| 1 | Color Wheel | 0-255 | 13 colors + rainbow effect |
| 2 | Strobe | 0-255 | 0-20Hz strobe |
| 3 | Dimming | 0-255 | 0-100% brightness |
| 4 | Gobo Wheel | 0-255 | 17 static gobos + shake effect |
| 5/7 | Prism Insertion (1 & 2) | 0-127: Off, 128-255: On | Engage/disengage prisms |
| 6/8 | Prism Rotation (1 & 2) | 0-255 | Speed/position control |
| 10 | Focus | 0-255 | 1.9° (narrow) to 3° (wide) |
| 11-14 | Pan/Tilt + Fine Adjust | 0-255 | 540° pan / 270° tilt |
| 16 | Lamp Control | 101-255: On, 10-100: Off | Power management |
| 18-20 | Timing Controls | 0-255 | Color/gobo speed adjustment |
Safety & Operation Notes
⚠ Outdoor Use – IP65 rated but avoid direct heavy rain exposure
⚠ High Surface Temp (40-80°C) – Keep 100cm clearance from flammable materials
⚠ DMX Signal – Blue indicator confirms active signal reception
⚠ Reset Procedure – Hold “OK” on touchscreen for 5 seconds to cancel reset
Menu System
Main Interface
-
DMX Address (S12 default)
-
X/Y Reversal – Adjust for inverted fixtures
-
Linear Color Wheel – Smooth transitions
-
Factory Reset – Restore default settings
Manual Mode
-
System Diagnostics – Error logs, sensor monitoring
-
DMX Monitoring – Real-time signal check
-
Language/Screen – Chinese/English toggle
