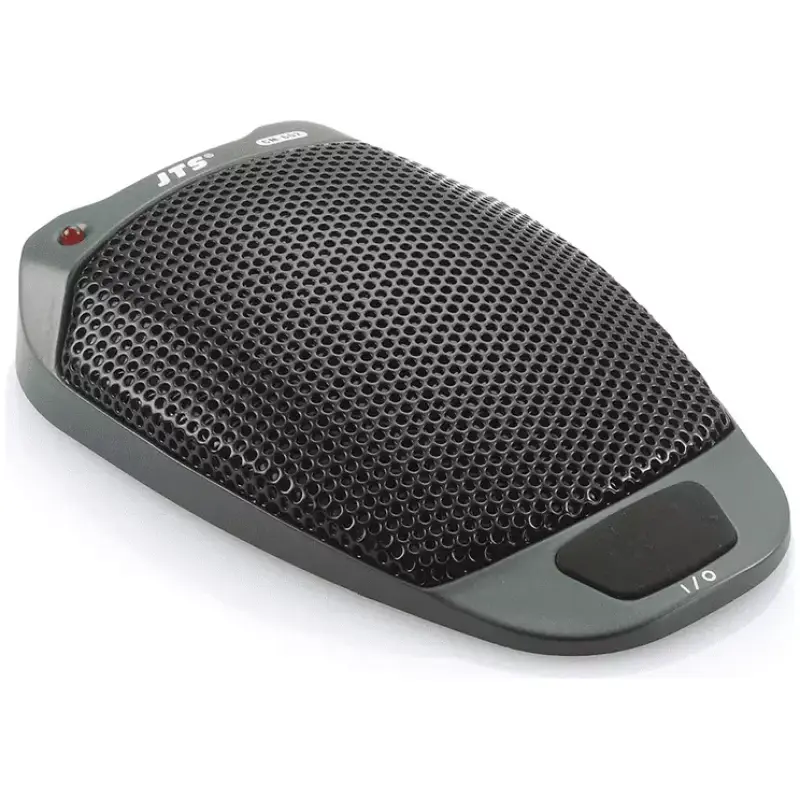

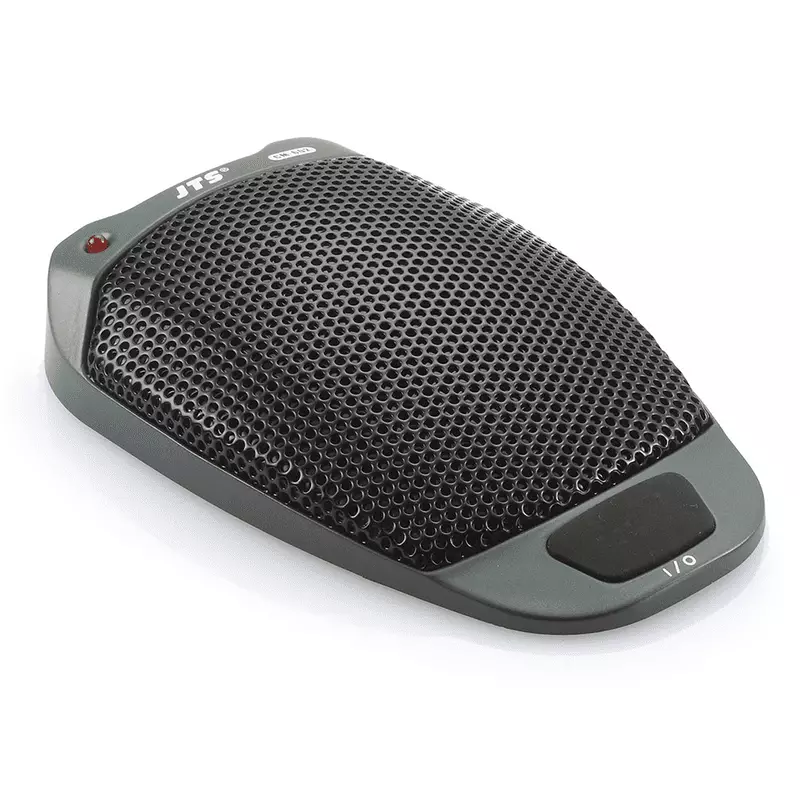

Jts Cm – 601 BOUNDARY MIC

The CM-601 is a semi-cardiod Electret boundary microphone. features Configurable push-button (Push To Talk, Push To Mute or switching function) Standby LED. Elastic cartridge suspension for preventing impact sound and structure-borne noise. For theatrical performances, discussions, conferences and in churches. Requires Phantom power supply DC 48 V. Supplied With 6 m connection cable, 3-pole XLR

Features:

• The CM-601 is designed for conference, house of worship, and theater applications
• The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule
• The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF,PUSH TO TALK and PUSH TO MUTE three modes
• The precisely calculated circuit plus tailored capsule response ensure transparent sound quality
• Internal shock mount minimizes mechanical noise

Specifications:

• Frequency response: 30Hz – 12kHz
• S/N Ratio: 67dB

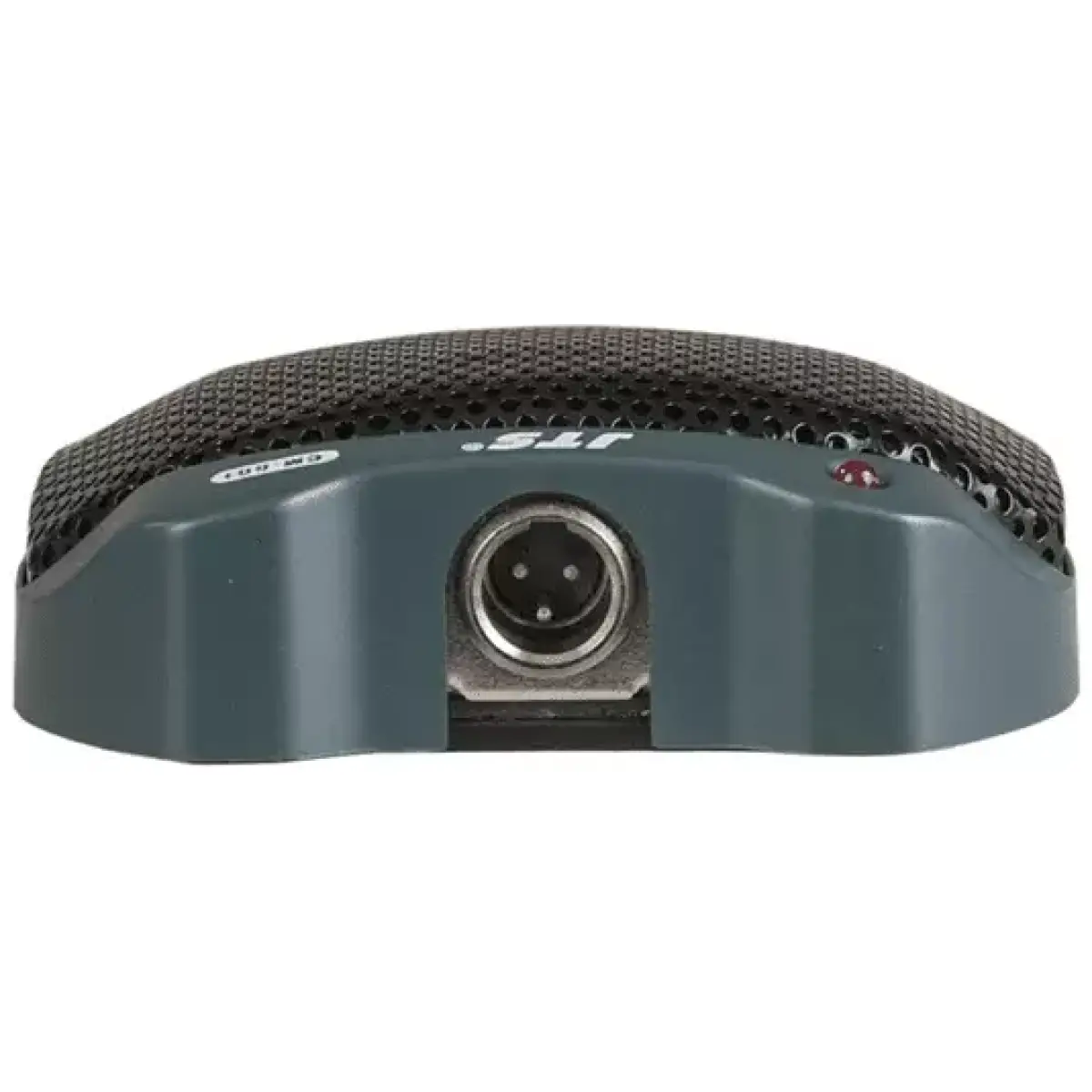

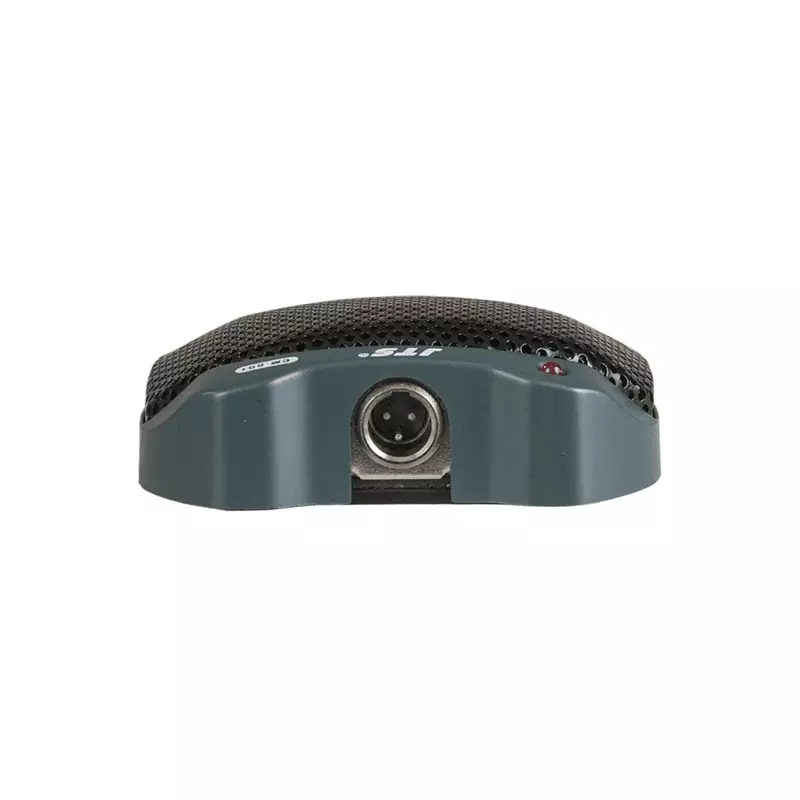

• Output Connector: 3 Pin Male Mini XLR
• Power Supply: 12-52V DC Phantom Power
• Microphone Type: Electret Condenser
• Current Consumption: ≤6mA
• Directional Pattern: Half-Cardioid
• Low Frequency Roll-Off: 80Hz – 120Hz
• Impedance: 100Ω
• Sensitivity (at 1kHz): 53±3 dB* (2.23mV) 0dB
• Max SPL for 1% THD: 125dB

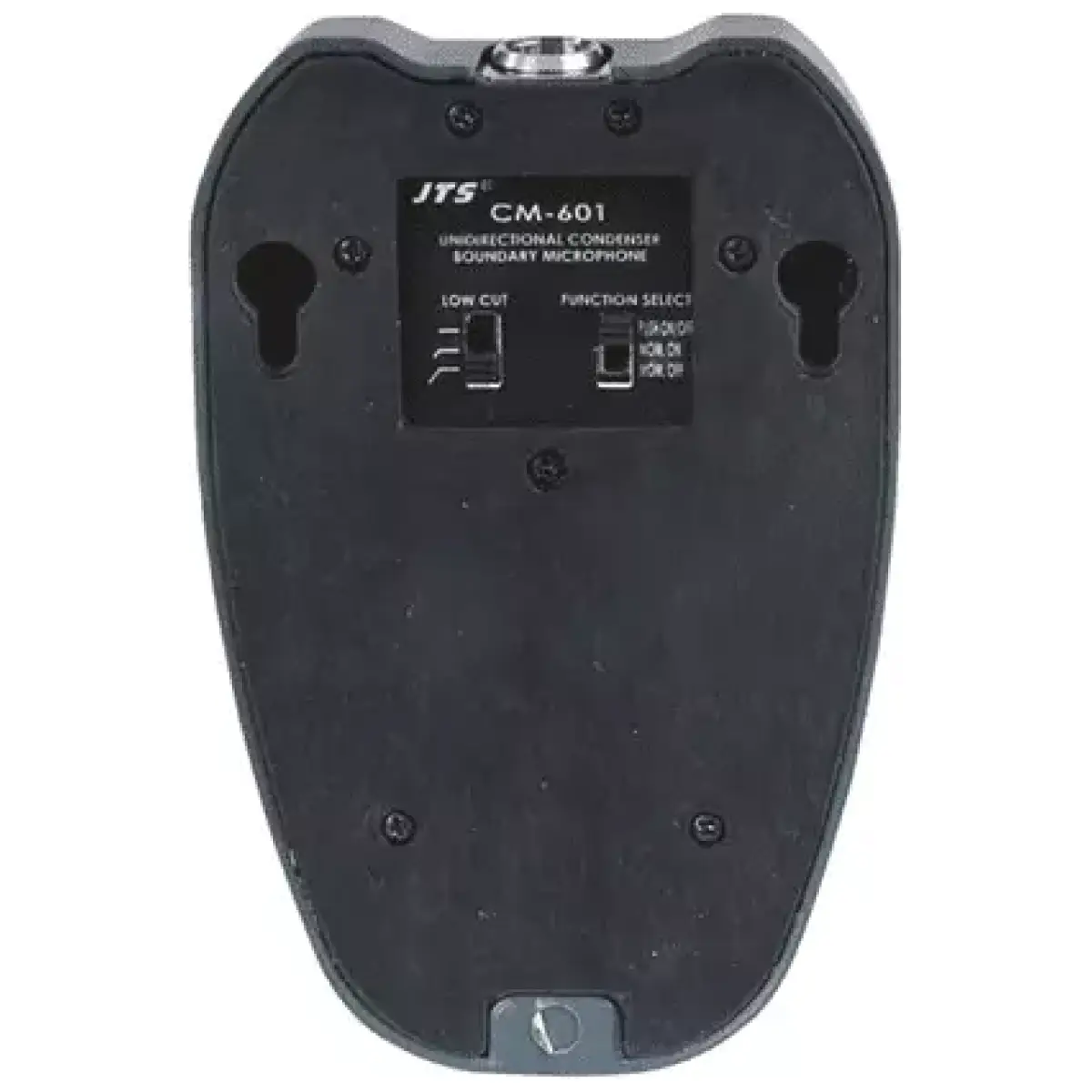

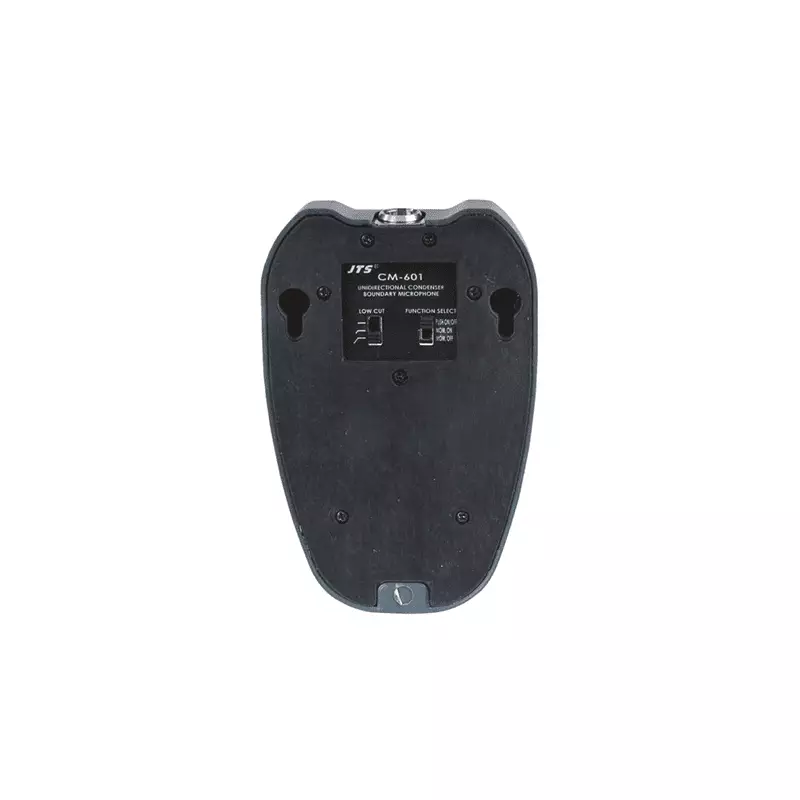

• Switches: Push Control On/Off, Function Selection Push On/Off, Momentary On/Off, Low Cut Selection
