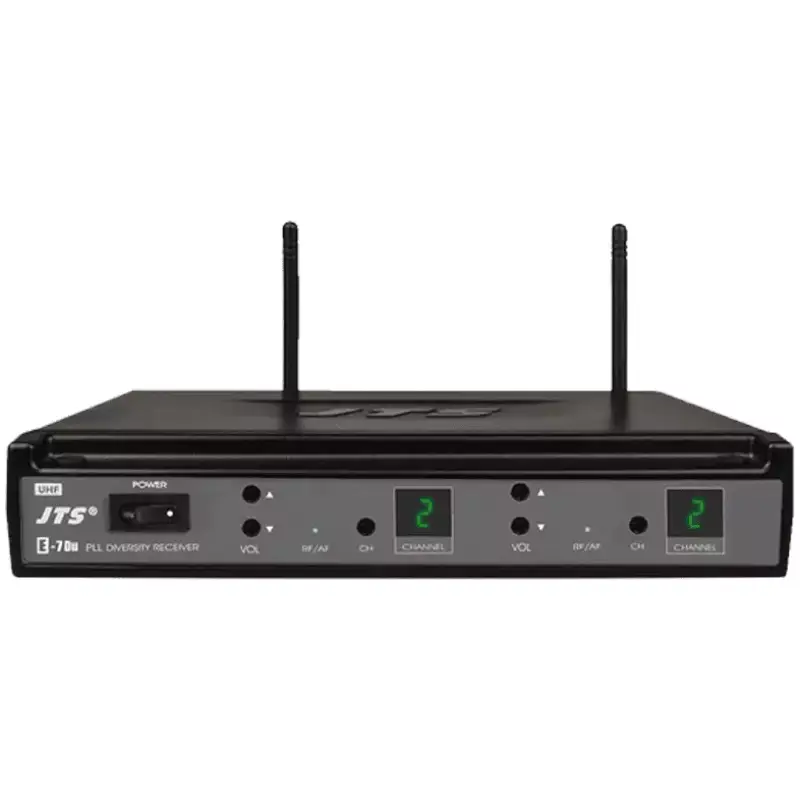

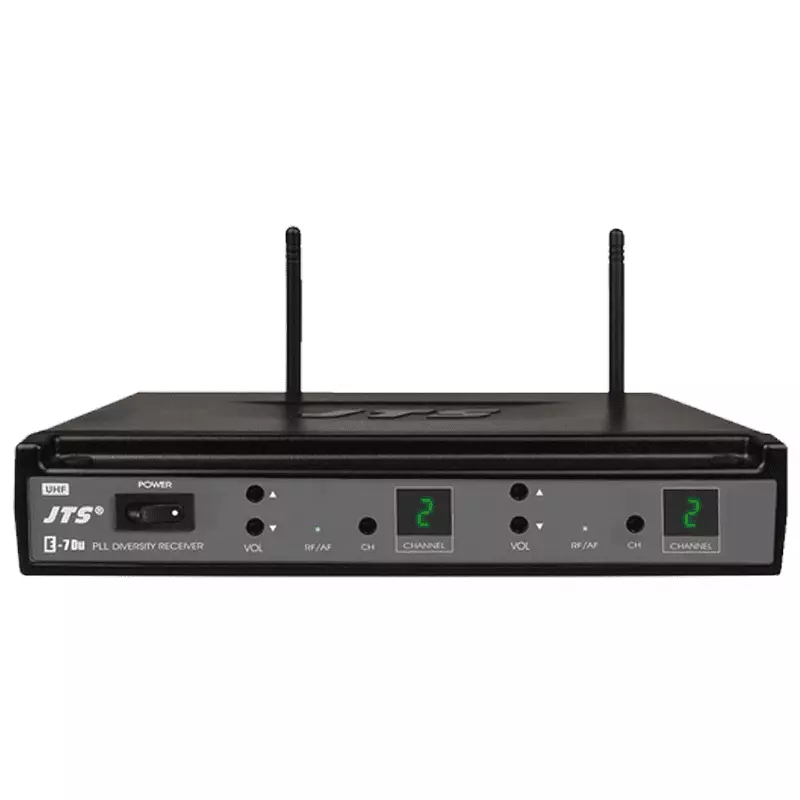

Jts E – 7DU Dual Receiver Diversity Uhf 518 – 542MHZ

The E-7Du wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The system is of very affordable price.

Features:

• <div class="tge txteinmitpkt">
• 2-channel diversity UHF PLL receiver E-7DU
• Hand-held UHF PLL condenser transmitter
• Carrier frequency range: 504-542 MHz
• For specifications, please refer to the individual items
• </div>

Specifications:

• Frequency Preparation: PLL Synthesized Control
• Carrier Frequency Range: 470~960 MHz
• S/N Ratio: >100dB
• T.H.D.: <0.6%@1KHz
• Display: Contents Channel, RF/AF Status
• Controls: Power On/Off, Channel Selecting, Audio Level
• Audio Output Level: -15dB
• AF Output Impedance: 600Ω
• Squelch: Pilot Tone & Noise Mute
• Operation Voltage: 12V 150mA (E-7R) / 12V 250mA (E-7Du)
• Output Connector: 1 Ø6.3mm balanced phone jack
• Dimension: (mm) 210mm(W)* 40mm(H)* 170mm(D)
