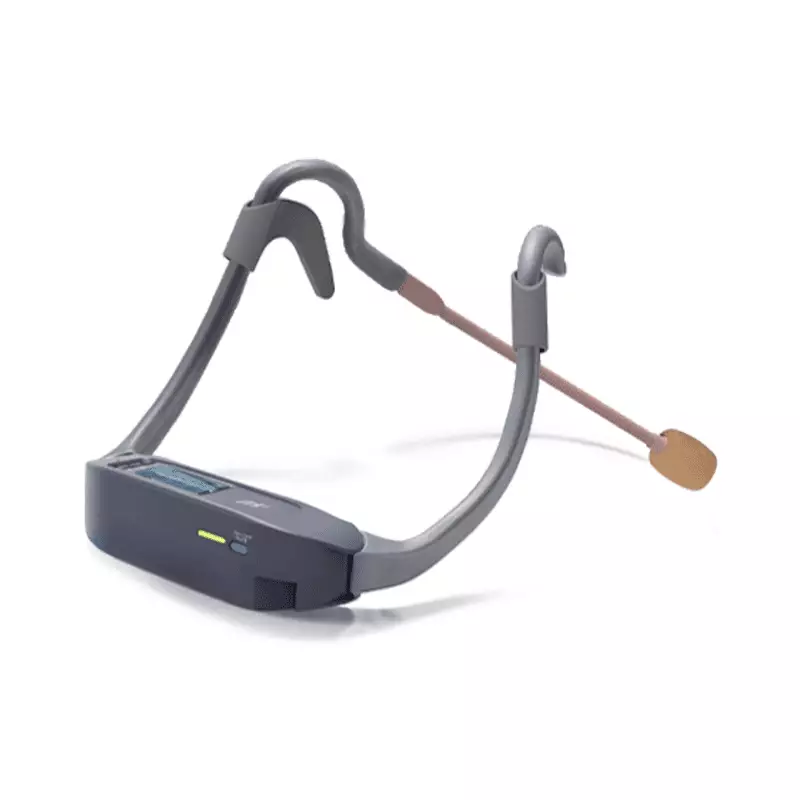

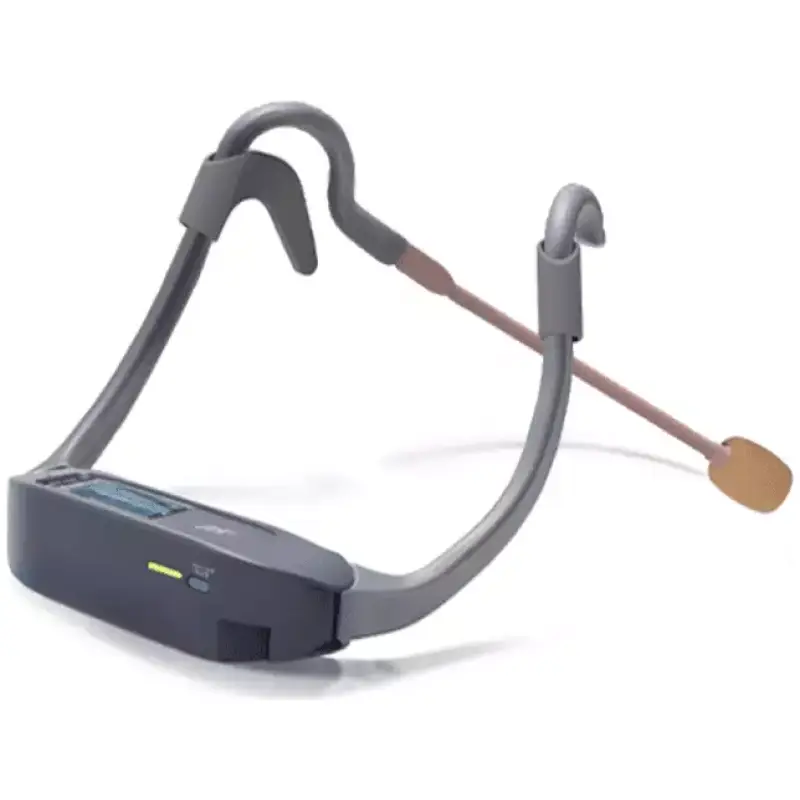

Jts Hw – 3 Universal Uhf Headset Microphone 614 – 650 Mhz

Single Ear-hook Sub-miniature Omni-directional Microphone

Features:

• Sub-miniature headset transmitter
• Ergonomic design creates lighter and more comfortable wearing experience
• Up tp 81 preset selectable channels
• Designed with LCD display
• Powered by one AAA battery for over 8 working hours
• Over 60 meter of stable operation distance
• High signal to noise ratio
• Standby function provided for stable wireless link
• Available in black

Specifications:

• Frequency Preparation: PLL Synthesized Control
• Carrier Frequency Range: 470~960 MHz
• RF Outputs Maximum: 10mW
• Stability Frequency: ±10KHz
• Frequency Deviation: ±48KHz
• Display: LCD
• Dual 7-Segment Display: Channel
• Spurious Emissions: <-50 dBC
• Function Power: ON/OFF, Mute, Channel, Group, Sensitivity, Key Lock
• Audio FR: 50~17,000 Hz
• Controls Power: On/Off, Mute, Channel
• Battery: AM4, AAA 1.5V Alkaline x1 or MiNH Rechargeable Battery x1
• Dimension: 30.5mm(W)*28(H)*95mm(D)
• Selectable Frequencies: Group (MAX) : 9 , Channel (MAX) : 9
• Type: Condenser
• Sensitivity (1KHz): 62±3 dB x (0.8mV) x 0dB=1V /μbar
