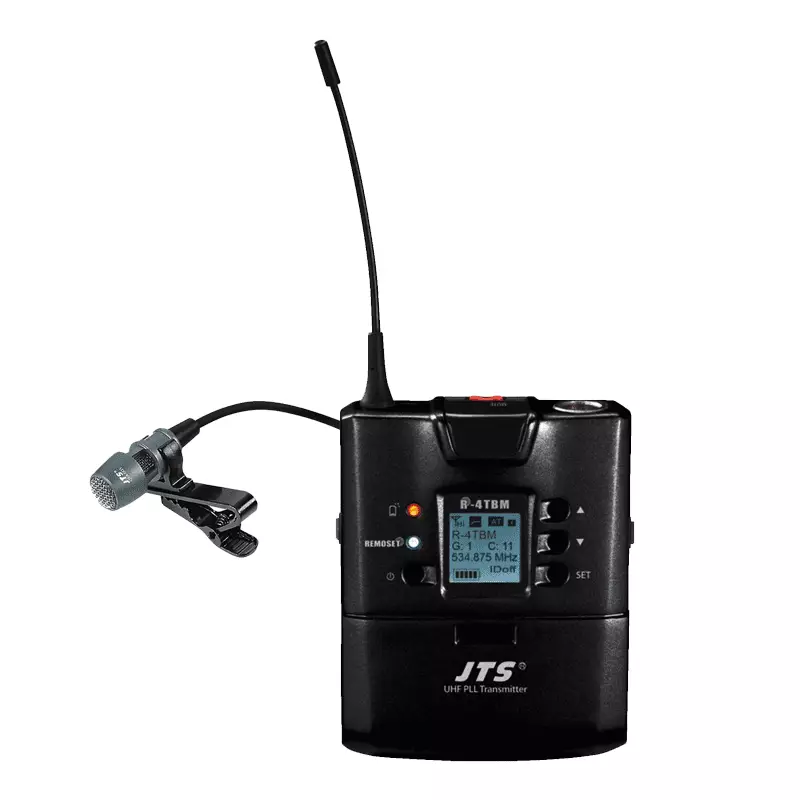

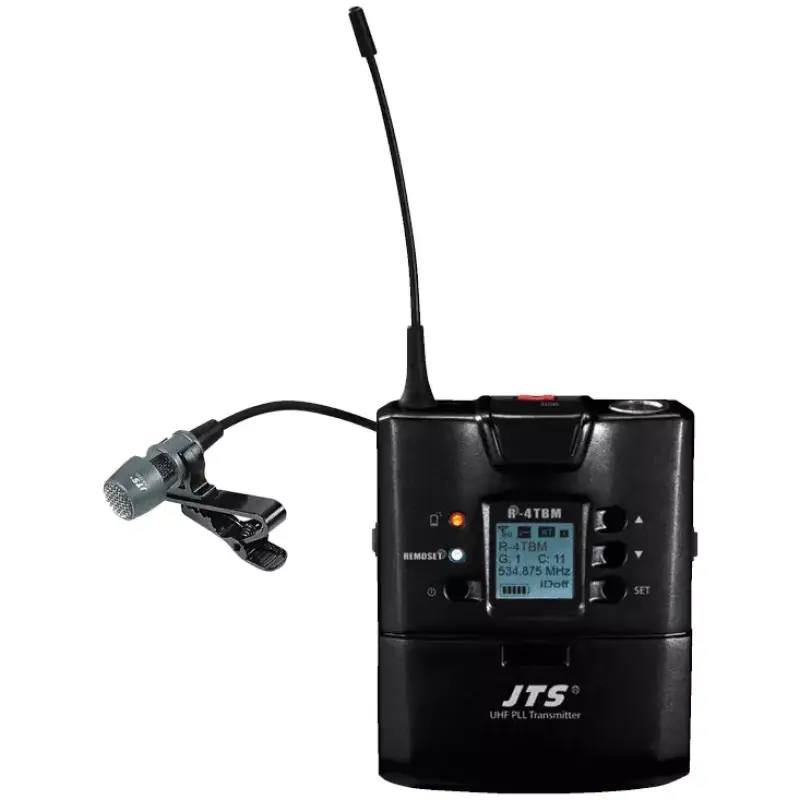

Jts R – 4TBM+CM – 501 Replacement Bodypack Microphone Diversity Uhf 614 – 650 Mhz

Features:

• Suitable for combination with a headband microphone or an instrument microphone with 4-pole mini XLR connector
• Bandwidth: 36 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1,441 selectable individual frequencies
• REMOSET technology for receiver/transmitter synchronisation
• Adjustable sensitivity (±15 dB)
• Lock function
• 6-level display for indicating battery status and low battery alert, backlit LCD
• Switchable transmitting power

Specifications:

• Description: pocket transmitter
• Carrier frequency range: 530-542 MHz
• Audio frequency range: 50-18,000 Hz
• Channels: 1
• Operating time: 20 h
• Admiss. ambient temp.: 0-40 °C
• Transmitting power: 10/50 mW
• Power supply transmitter: 2 x batt. AA size (not supplied)
• Width transmitter: 62 mm
• Height transmitter: 80 mm
• Depth transmitter: 23 mm
• Weight transmitter: 95 g
• Connections transmitter: 4-pole mini XLR
