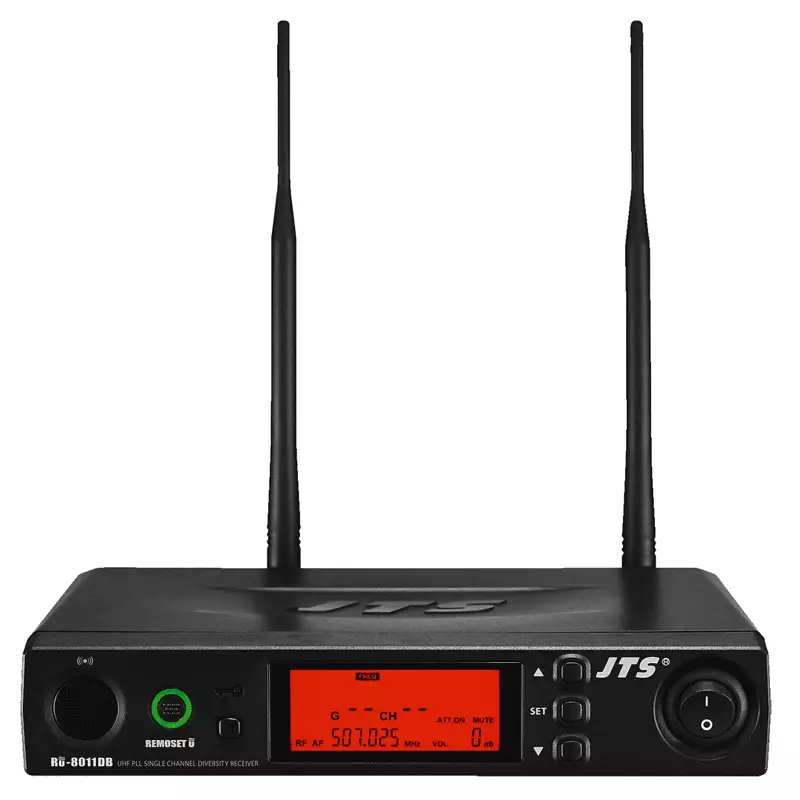

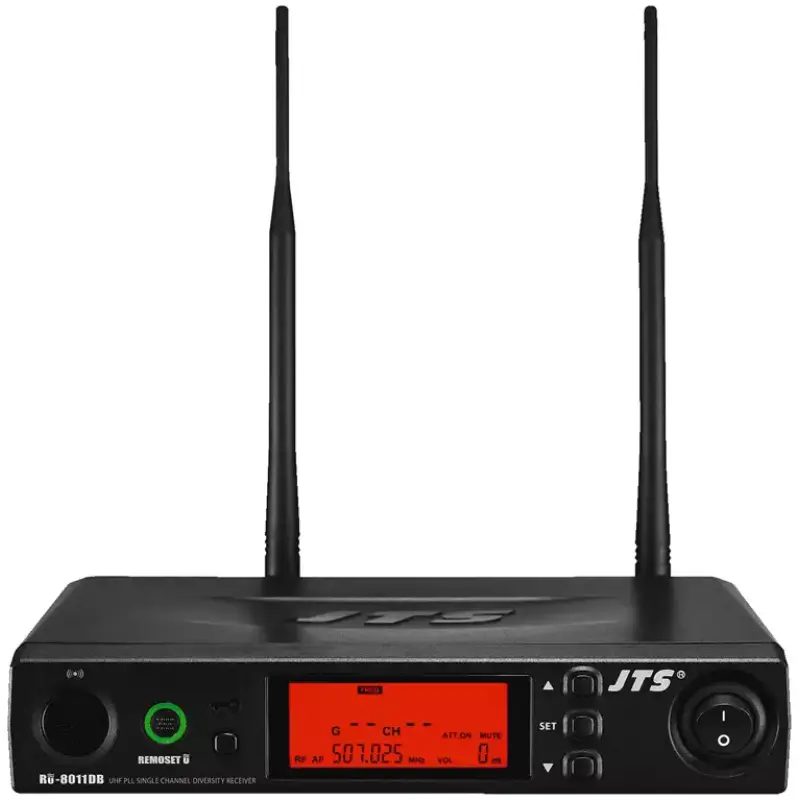

Jts Ru – 8011DB Single Receiver Diversity Uhf 614 – 650 Mhz

This product is a full feature version of RU-8011D / RU-8011DT. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

Features:

• Bandwidth: 36 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1,441 selectable individual frequencies
• REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
• Removable antennas (BNC connection)
• Auto-scan function
• Pilot tone squelch and noise mute
• Backlit display with status indications, e.g. group/channel, frequency, battery, antenna A/B, RF receiving level, AF audio level
• XLR output (bal.) and 6.3 mm jack output (unbal.)

Specifications:

• Frequency Setting: REMOSET U
• Receiving Mode: Antenna Diversity
• Bandwidth: 36 MHz
• S/N Ratio: >105 dB(A)
• Total Harmonic Distortion (T.H.D): <0.6% @ 1 kHz
• Sensitivity: -95 dBm, S/N > 80 dB
• Rejection Ratio: >80 dB
• Frequency Response: 50 Hz ~ 16 kHz ±2 dB
• Antenna Type: BNC Socket
• Antenna Booster Power: DC 12~15V / 100 mA
• Display: LCD (shows Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume)
• Controls: Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuation (XLR), Frequency Scan (ON/OFF)
• Audio Output Impedance: 600 Ω
• Squelch: Pilot Tone & Noise Mute
• Output Connector: 1 balanced XLR and 1 Ø6.3mm unbalanced
• Power Supply: DC 12~15V / 300 mA
• Dimensions: 212.3 mm (W) × 38.3 mm (H) × 144 mm (D)
• Notes: Actual product specifications may vary depending on region
