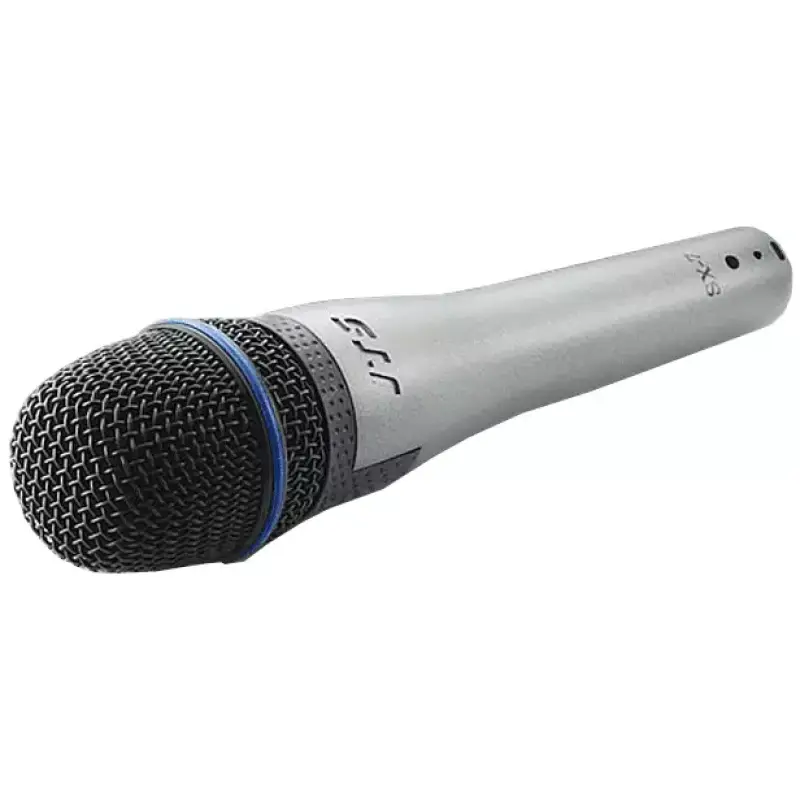

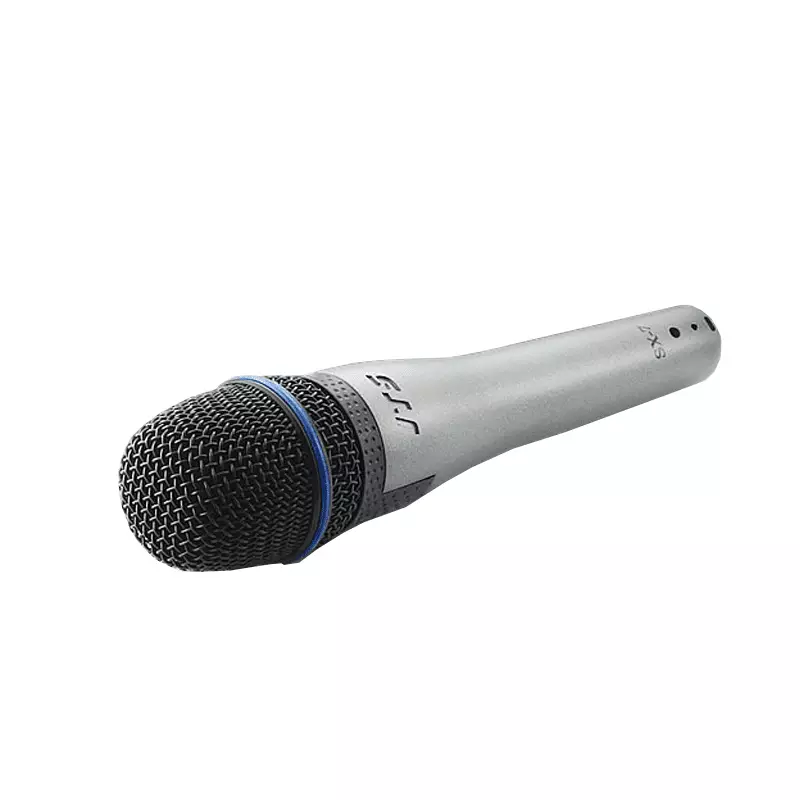

Jts – Sx – 7 Dynamic Vocal Microphone No Switch

The SX performance series is designed with JTS newest capsule SAM-8LN. The capsule is machined and assembled on solid steel bar for maximum accuracy and therefore acoustic characters. The precise engineering assures outstanding performance. The smooth frequency response across the full spectrum and accurate directional character provide maximum gain before feedback. The advanced mechanical design minimizes handling noise. The SX series is ideal for large venue. The SX-7/SX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make SX-7/SX-7S ideal for vocal, drums, guitar amplifiers and other instruments.

Specifications:

• Type: Moving Coil Dynamic
• Frequency Response: 50~16,500 Hz
• Polar Pattern: Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
• Sensitivity(at 1,000Hz): 77dB*(0.14mV)*0dB=1V/μbar
• Impedance: 250Ω
• Phasing: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Connector: Three-pin professional audio connector (male XLR type)
• Case: Metallic enamel-painted die cast metal body with hardened, Matte-finished steel grille
