Features & Highlights

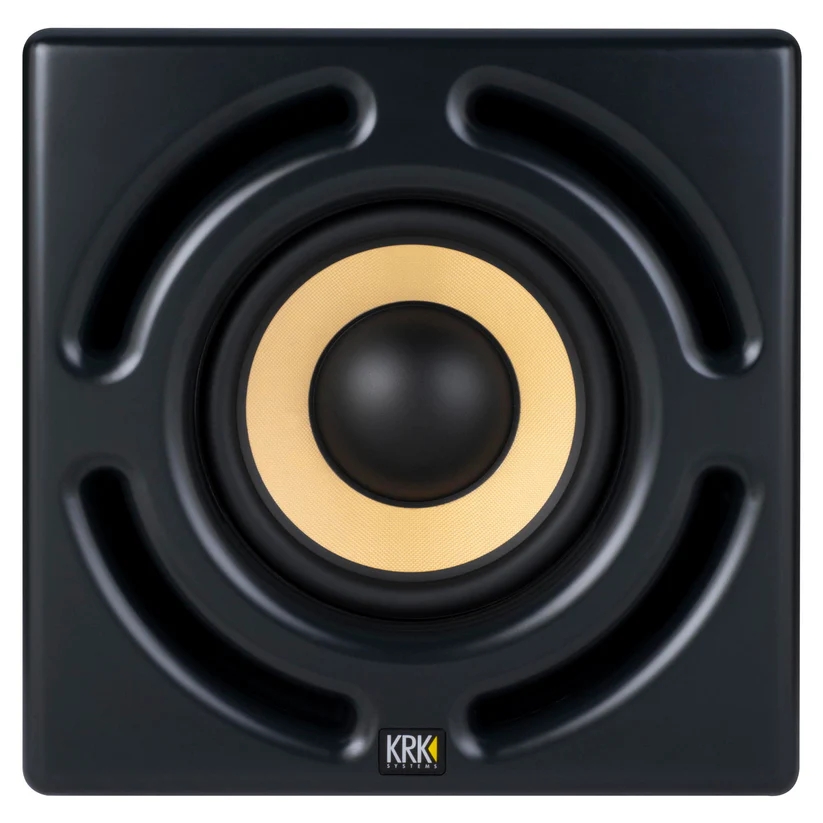

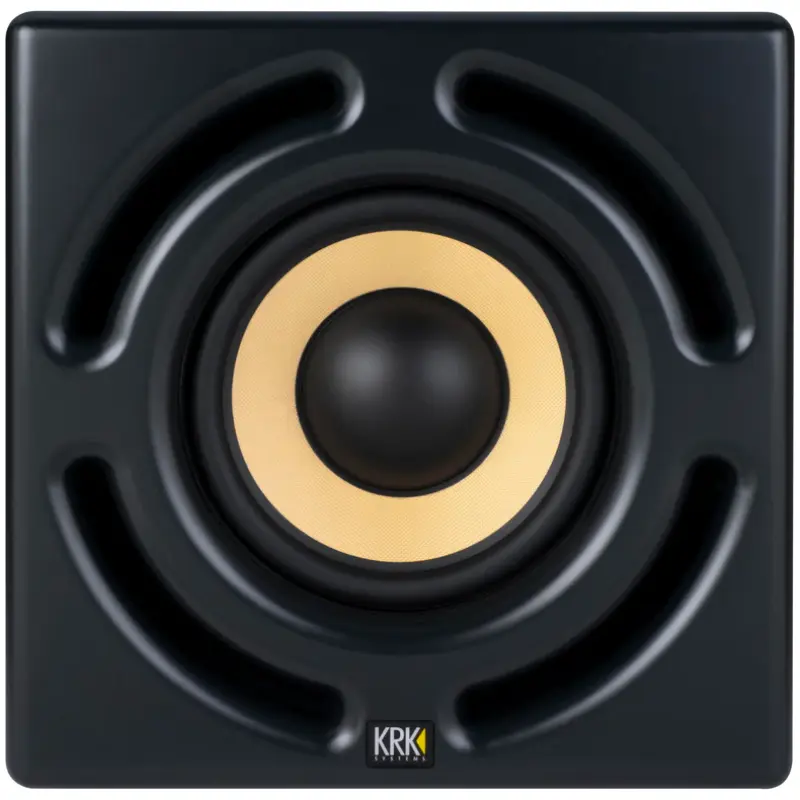

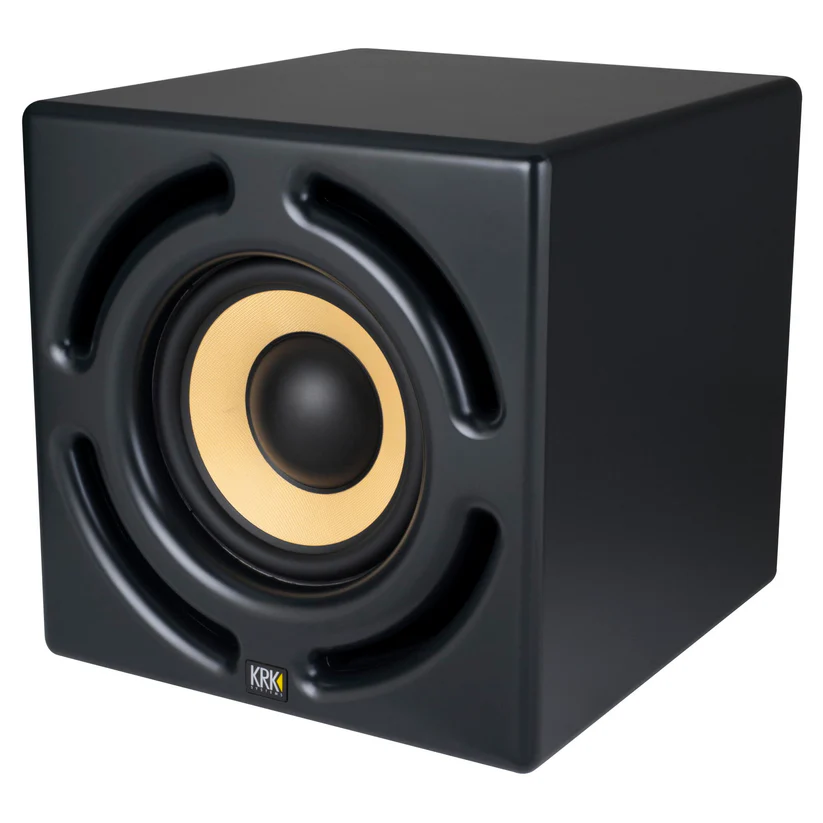

- 12″ Woven Kevlar® High Performance Woofer
- Bass Extension to 29Hz with a Max SPL of 123 dB
- Quad-vented, Front-firing Bass Port
- 400W Class A-B Power
- 92 dB Signal to Noise Ratio

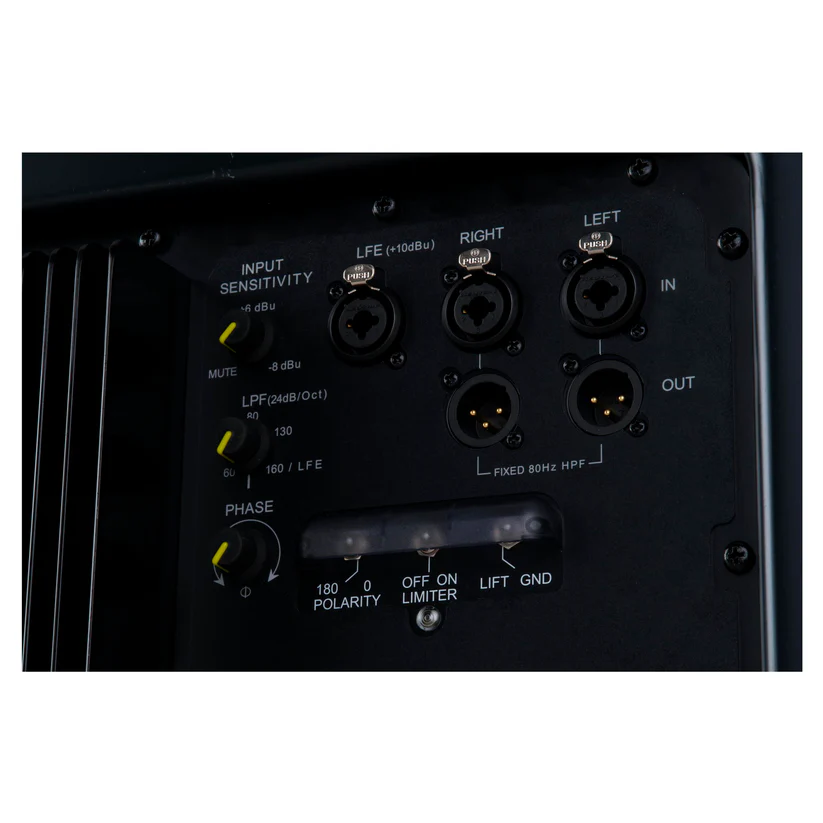

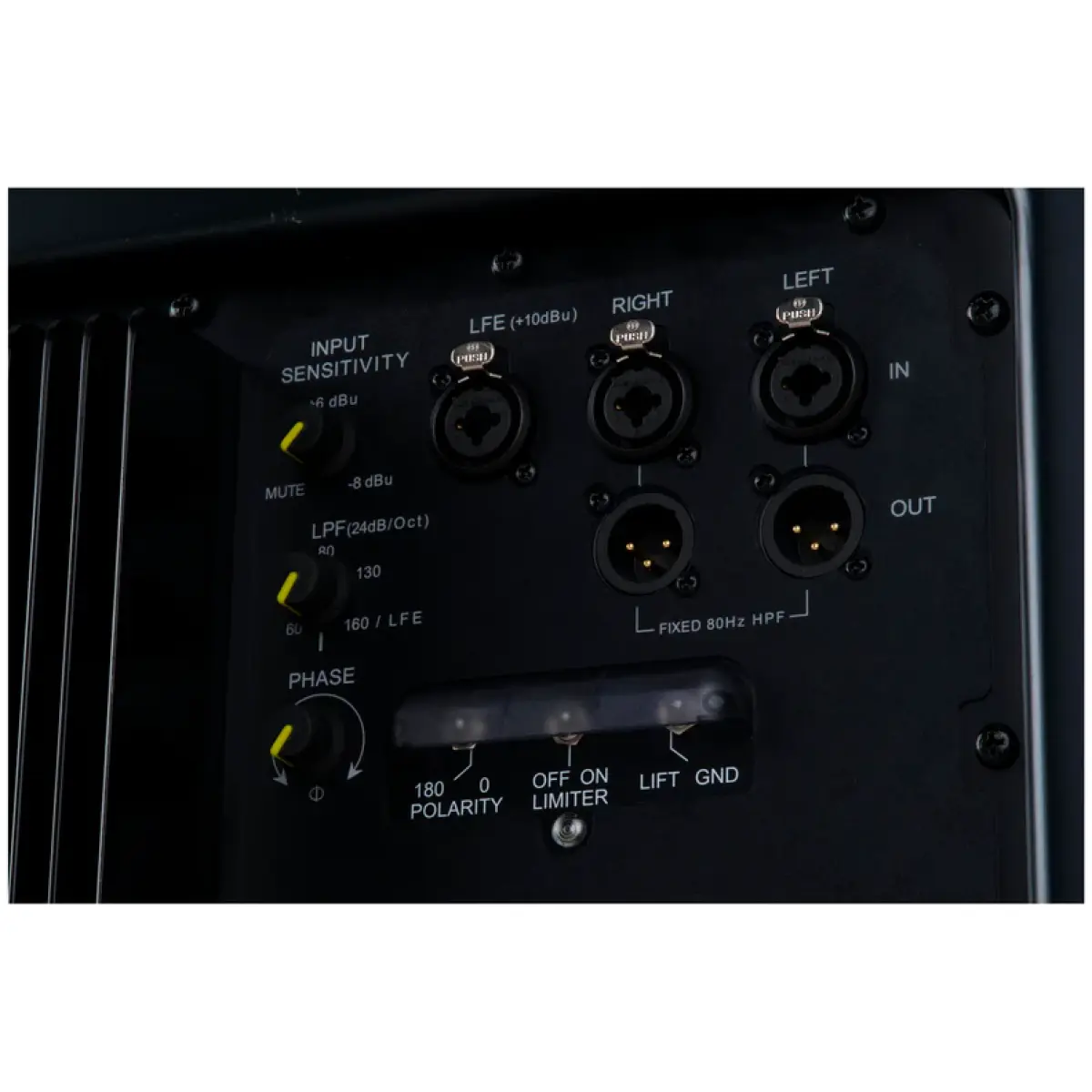

- Combo XLR-1/4″” TRS Inputs with XLR Outputs
- Dedicated LFE Channel with Combo XLR-1/4″ TRS Input
- Sweepable Crossover Control
- Bypass Foot Control included

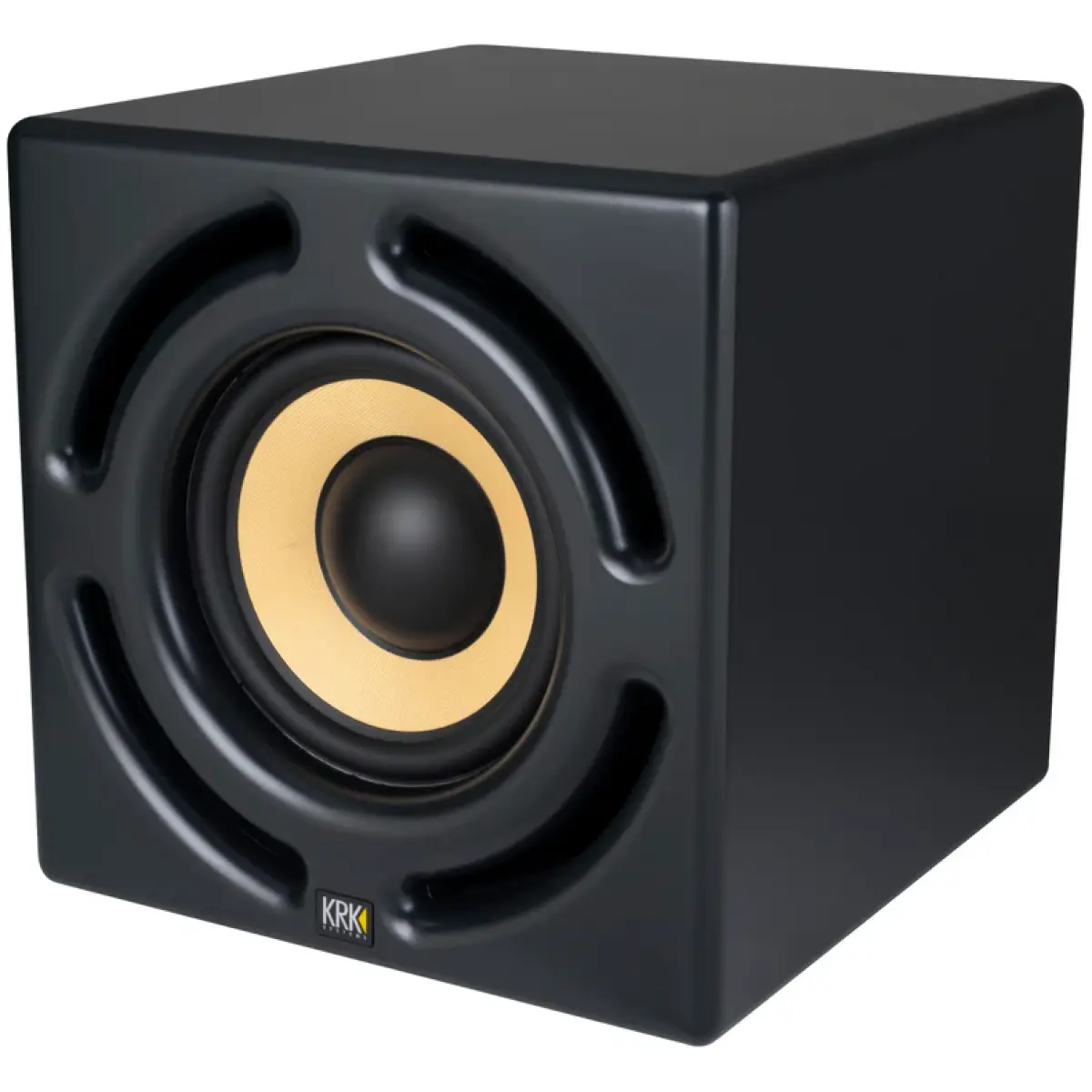

- Reinforced MDF Enclosure
Specifications
-
- Configuration: Front Loaded, Vented Subwoofer
- System Type: Active Subwoofer
- Low-Frequency Transducer: 12″ Woven Kevlar® High Performance Woofer
- Frequency Response: 29.2Hz – 160Hz (L/R inputs), 29.1Hz – 211Hz (LFE input)
- Max Peak SPL: 123 dB
- Amplifier: Class A/B
- Power Output (Continous): 400 Watts @ 1% THD+N @ 100Hz
- Signal to Noise Ratio: 92 dB
- Amplifier Distortion (THD + N): ≤ 0.1% @-3dB Of Max Power Output 20Hz-200Hz
- Input Impedance: 10 KΩ Balanced or Unbalanced
- Ground Lift: On/Off
- HPF Bypass: With Footswitch Only
-
- Footswitch: Included
- Indicators: Power, Protection, Limiter

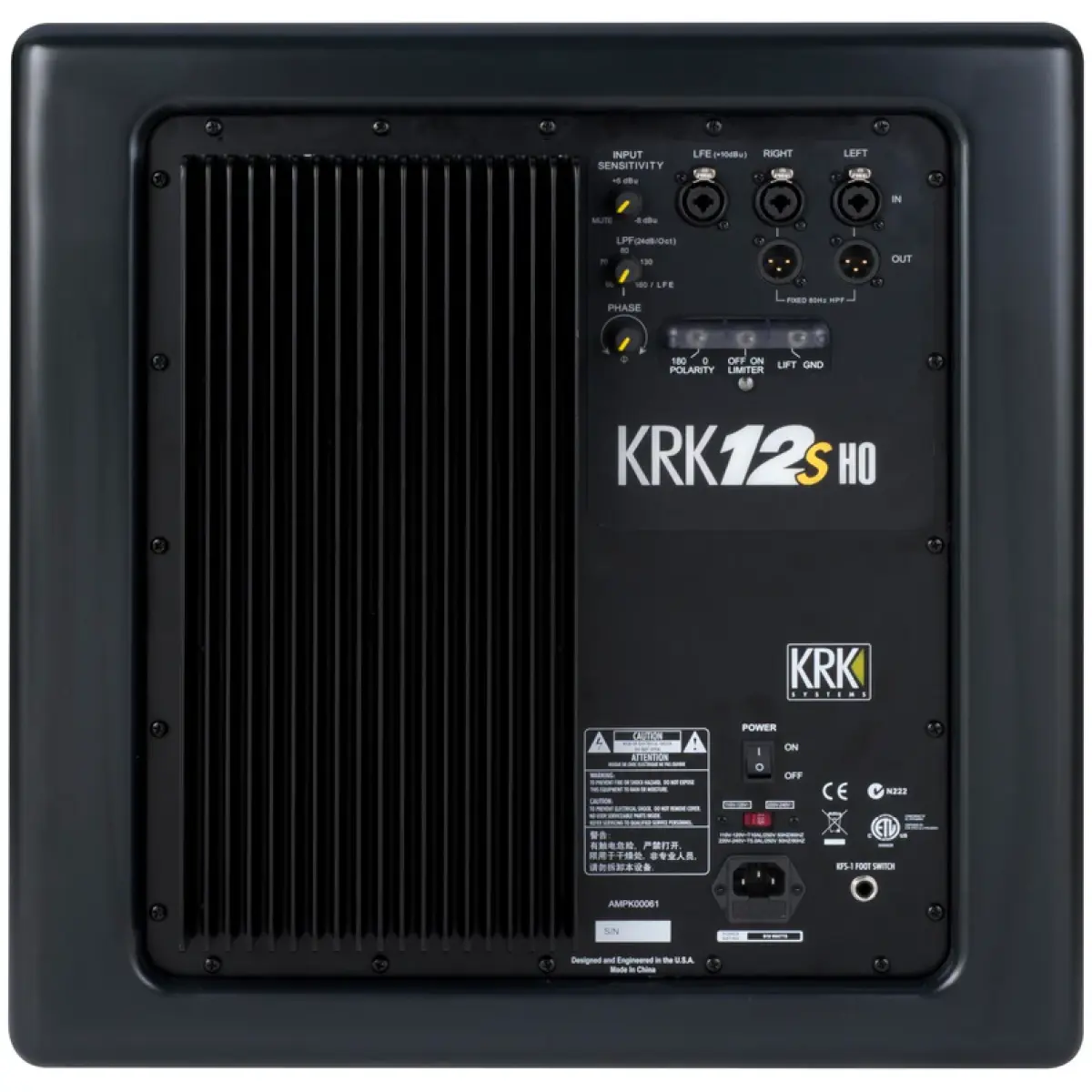

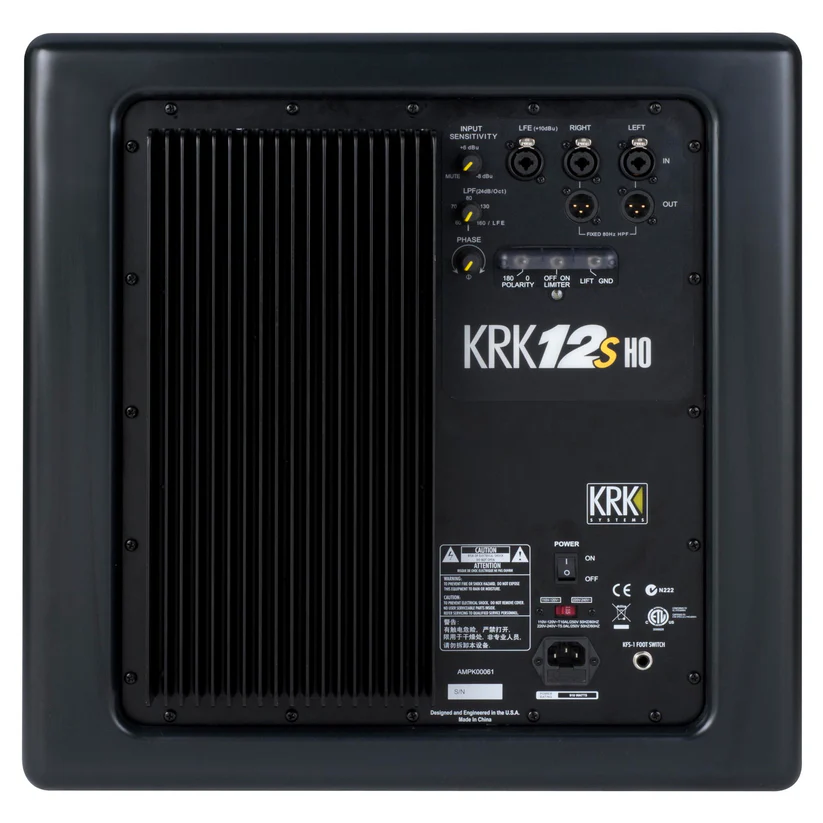

- Input Connectors: Balanced XLR for Left & Right inputs
- LFE Input: Balanced XLR
- Output Connectors: Balanced XLR for Left & Right
- AC Power Input: Selectable 110V-120V / 220V0240V
- Enclosure: 18mm & 36mm Reinforced MDF
- Finish: Textured Paint
- Hardware: N/A
- Dimensions (H x W x D): 20″ (508 mm) X 20″ (508 mm) X 22.48″ (571mm)
- Weight: 109.7 lb. (49.7 kg)
