Specifications
-

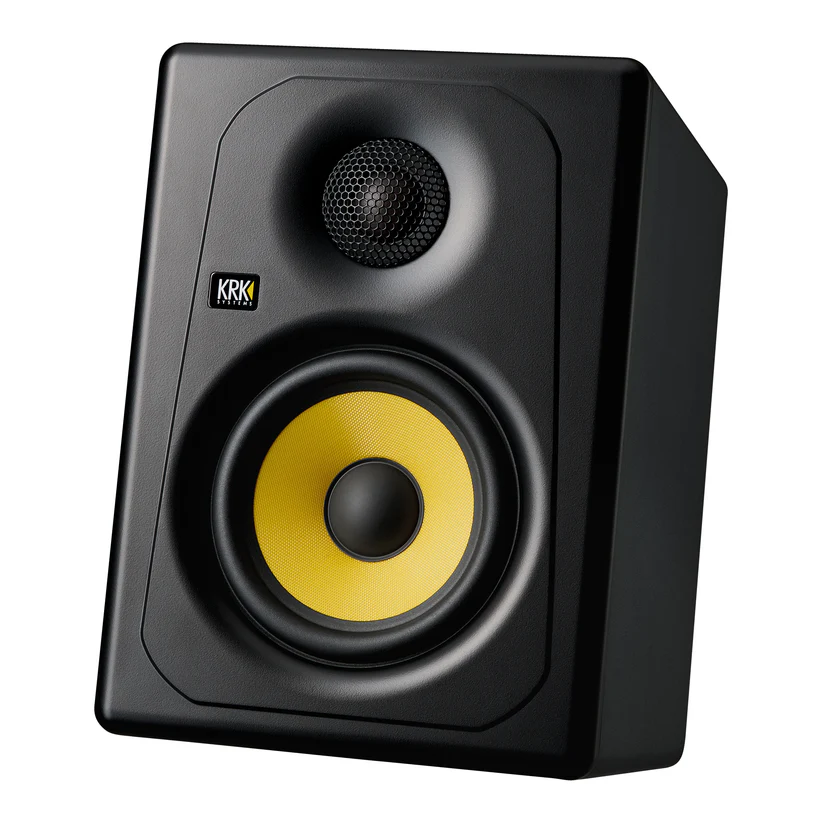

- Configuration: 2-Way Bass Reflex
- System Type: Active Studio Monitor
- Low-Frequency Driver: Woofer, 5-inch, woven glass fiber composite cone, ferrite magnet
- High-Frequency Driver: Tweeter, 1”, Textile Dome, neodymium magnet
- Frequency Response (+/- 3dB): 58Hz – 40kHz
- LF Frequency Range (-10 dB): 46Hz
- Crossover Frequency: 2.56 kHz
- Amplifier Configuration: Bi-amplified: LF Class D, HF Class A/B
- LF Amp Power Output: 45 Watts
- HF Amp Power Output: 15 Watts
- Total Power: 60 Watts
- Total Dynamic Power Output: 128 Watts
- Max SPL: 105 dB
- Coverage Angles: 135° Horizontal x 90° Vertical

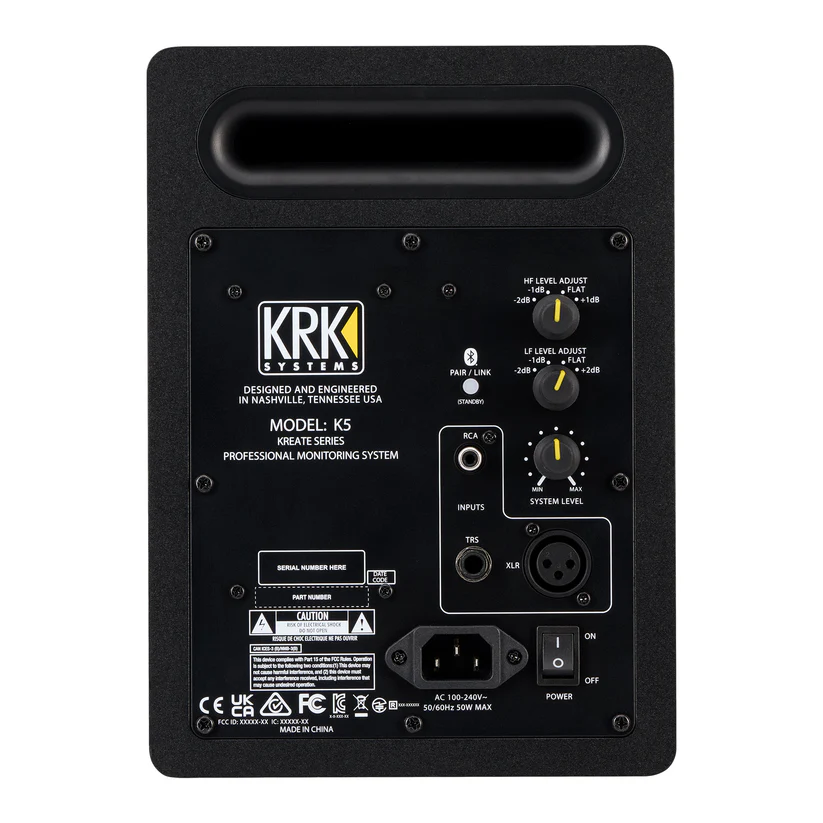

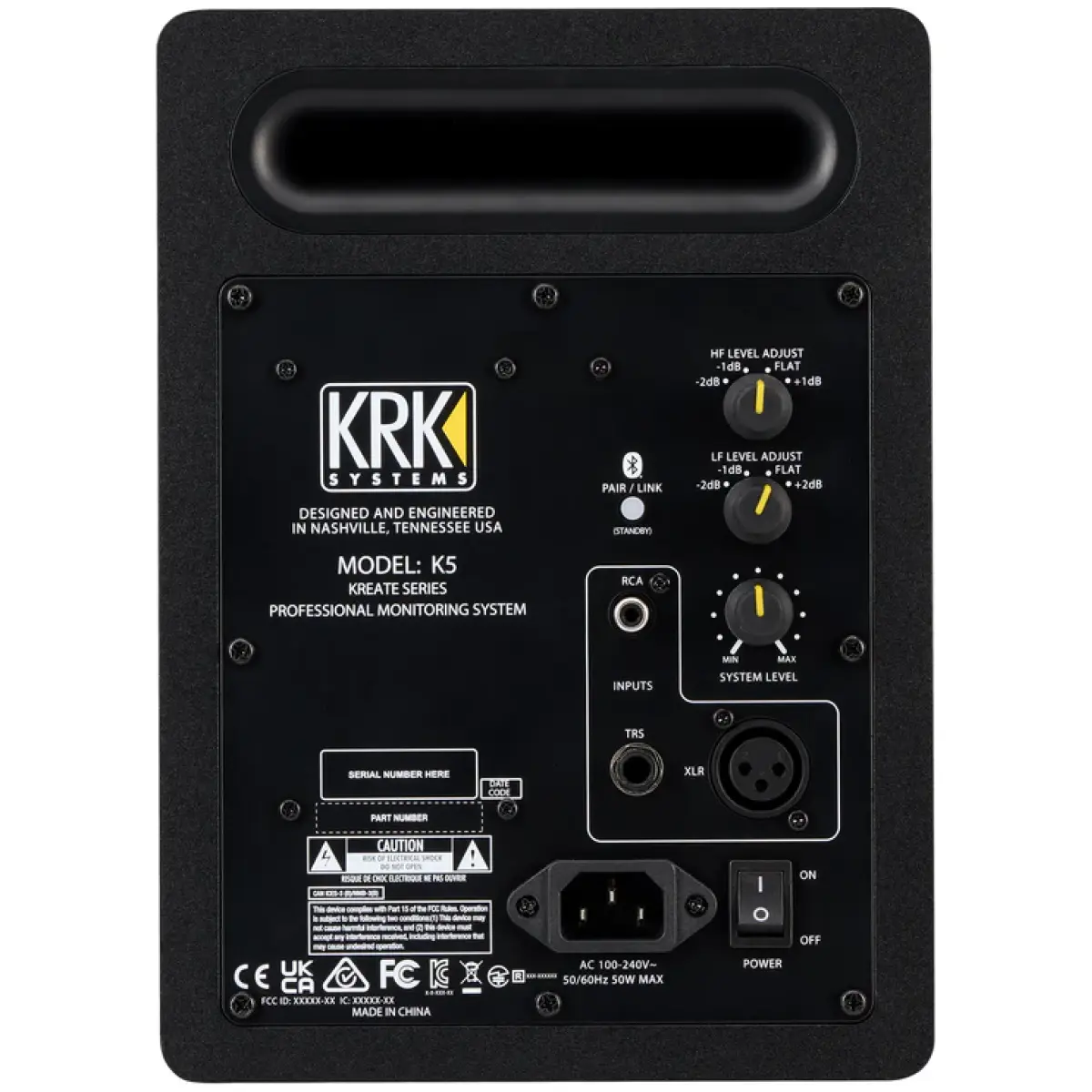

- Analog Audio Inputs: Balanced XLR, 1/4″ TRS Combo / Unbalanced RCA
- Wireless Input: Bluetooth® Classic 5.3 TWS A2DP
-
- SNR (Signal to Noise Ratio): >94dB
- AC Input Voltage: 100 – 240VAC (+/- 10%), 50/60Hz
- Fuse Type: T4AL/250V – Not user serviceable
- Enclosure Construction: PVC Vinyl Wrapped MDF
- Baffle Construction: MDF with reinforced High Impact Polystyrene faceplate
- Product Dimensions (ea.) (H x W x D): 10.20″ (259mm) x 7.28″ (185mm) x 9″ (229mm)
- Packaged Dimensions (H x W x D): 14.75″ (375mm) x 12″ (305mm) x 10.5″ (267mm)
- Product Weight: 9.5 lbs. (4.3 Kg.)
- Packaged Weight: 11.5 lbs. (5.2 Kg.)
