Specifications
-
- Configuration: 2-Way Bass Reflex
- System Type: Active Studio Monitor
- Low-Frequency Driver: Woofer, 8-inch, woven glass fiber composite cone, ferrite magnet
- High-Frequency Driver: Tweeter, 1”, Textile Dome, neodymium magnet
- Frequency Response (+/- 3dB): 48Hz – 40kHz
- LF Frequency Range (-10 dB): 40Hz
- Crossover Frequency: 2.5 kHz
- Amplifier Configuration: Bi-amplified: LF Class D, HF Class A/B
- LF Amp Power Output: 80 Watts
- HF Amp Power Output: 20 Watts
- Total Power: 100 Watts
- Total Dynamic Power Output: 210 Watts
- Max SPL: 111 dB
- Coverage Angles: 135° Horizontal x 90° Vertical

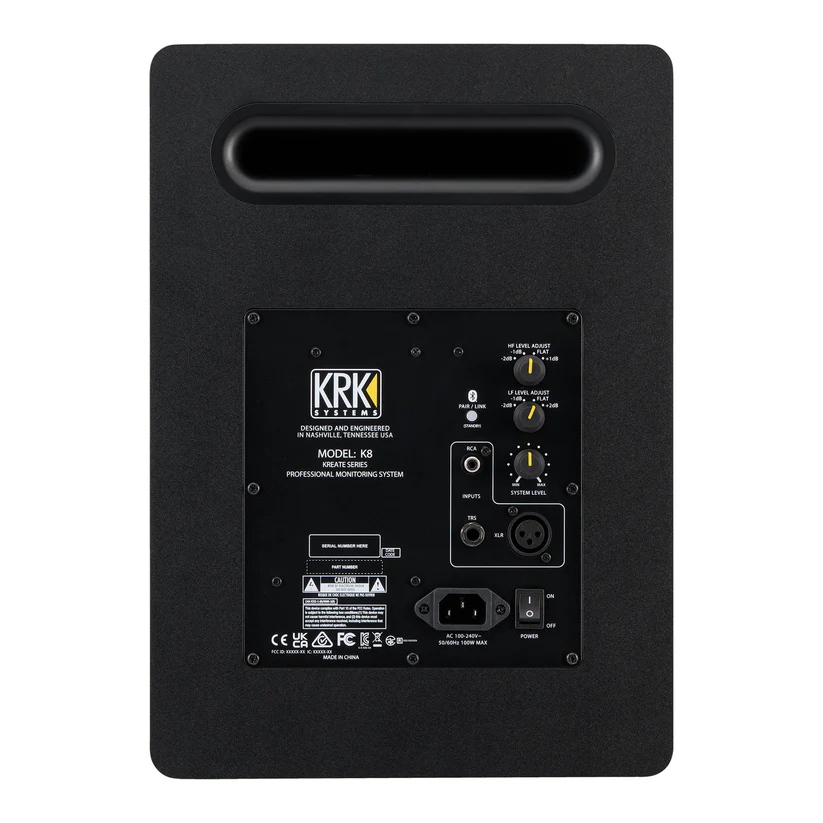

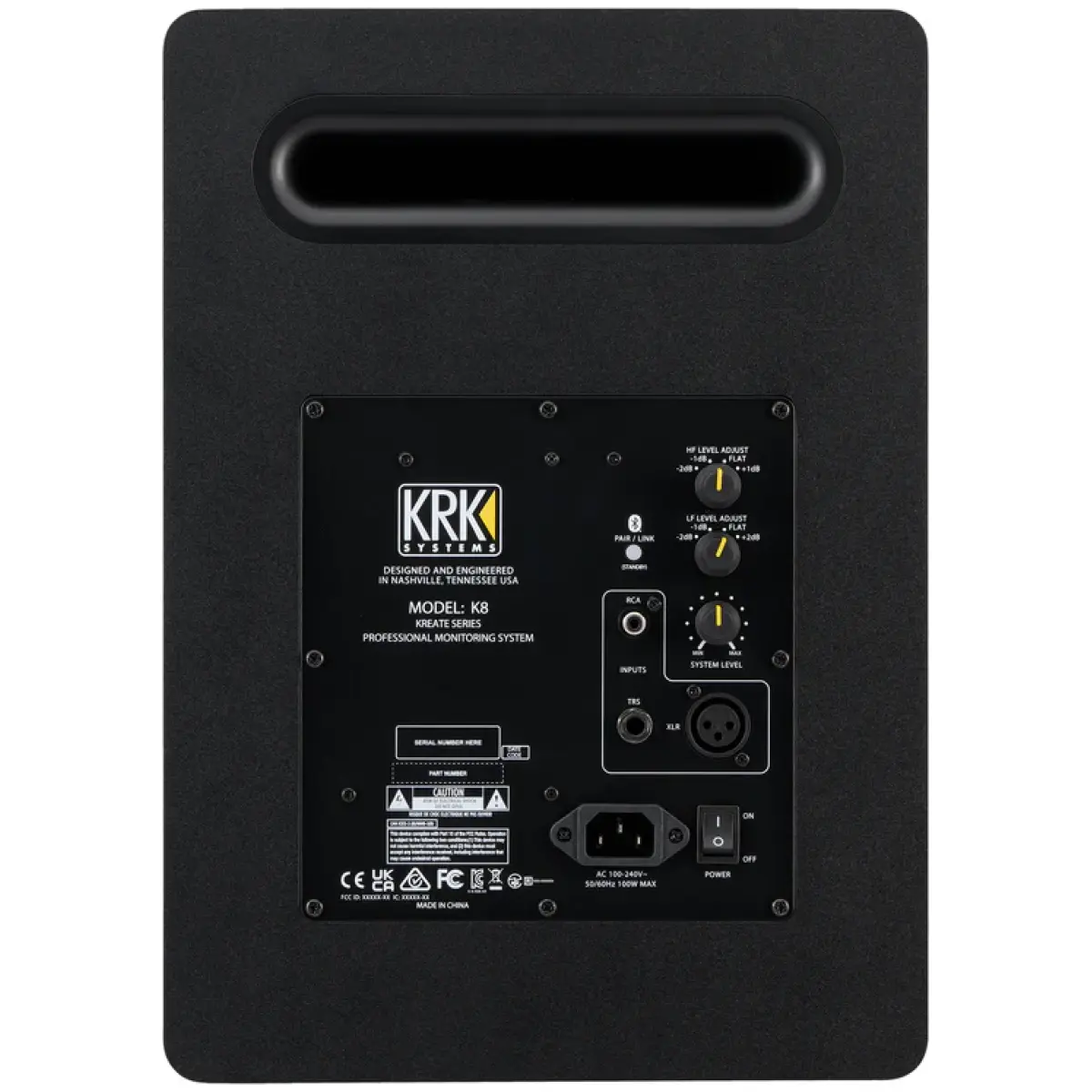

- Analog Audio Inputs: Balanced XLR, 1/4″ TRS Combo / Unbalanced RCA
- Wireless Input: Bluetooth® Classic 5.3 TWS A2DP
-
- SNR (Signal to Noise Ratio): >94dB

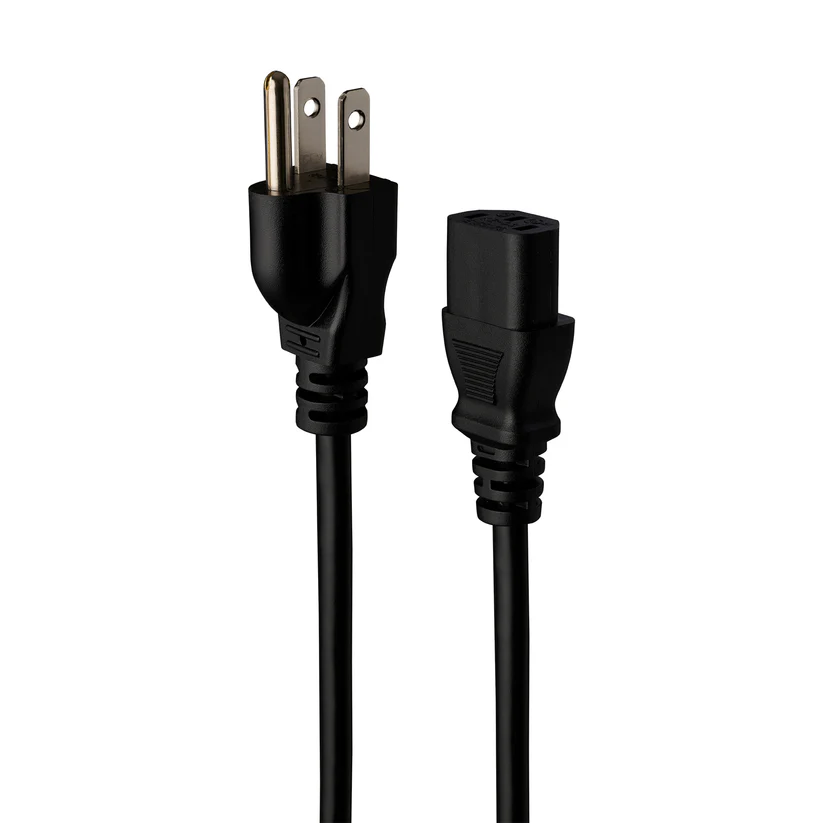

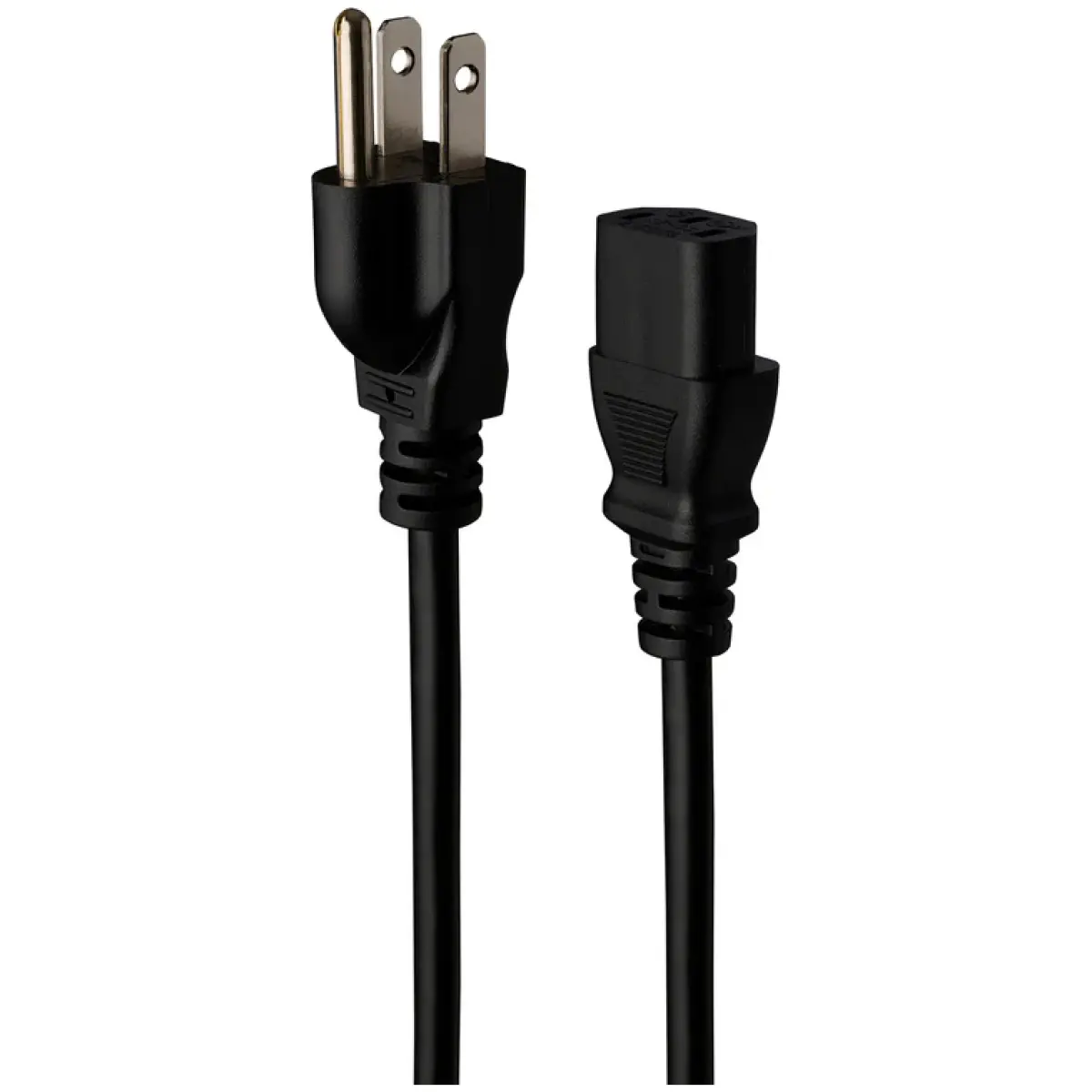

- AC Input Voltage: 100 – 240VAC (+/- 10%), 50/60Hz
- Fuse Type: T6.3AL/250V – Not user serviceable
- Enclosure Construction: PVC Vinyl Wrapped MDF
- Baffle Construction: MDF with reinforced High Impact Polystyrene faceplate
- Product Dimensions (ea.) (H x W x D): 15.28″ (388mm) x 10.83″ (275mm) x 11.98″ (304mm)
- Packaged Dimensions (H x W x D): 19.75″ (502mm) x 15.75″ (400mm) x 13.3″ (343mm)
- Product Weight: 20.5 lbs. (9.3 Kg.)
- Packaged Weight: 25 lbs. (11.3 Kg.)
