Features & Highlights
- 10″ glass aramid composite woofer
- Bass extension to 27Hz with a max SPL of 117.2 dB
- Footswitch control enables/disables sub and crossover filter (footswitch not included)
- Redesigned cabinet with a lower profile and front-firing bass port
- Powerful, lightweight Class D amplification
- Optimized four-position crossover control
- Universal connectivity: XLR, 1/4″ TRS, and RCA inputs and outputs
- Polarity and input sensitivity controls
- Ground lift switch prevents ground loops
Specifications
-
- Configuration: Front Loaded, Vented Subwoofer
- System Type: Active Subwoofer
- Low-Frequency Transducer: 10″ Glass Aramid Composite Woofer
- Frequency Response: 30Hz – 110Hz
- Max Peak SPL: 117.2 dB
- Amplifier: Class D
- Power Output (Continous): 160 Watts @ 1% THD+N @ 44Hz
- Signal to Noise Ratio: 92 dB
- Amplifier Distortion (THD + N): ≤ 0.12% @-3dB Of Max Power Output 31Hz-110Hz
- Input Impedance: 9.4 KΩ Balanced, 9.2 KΩ Unbalanced
- Ground Lift: On/Off
- HPF Bypass: With Footswitch Only
-
- Footswitch: Optional
- Indicators: Power/Standby

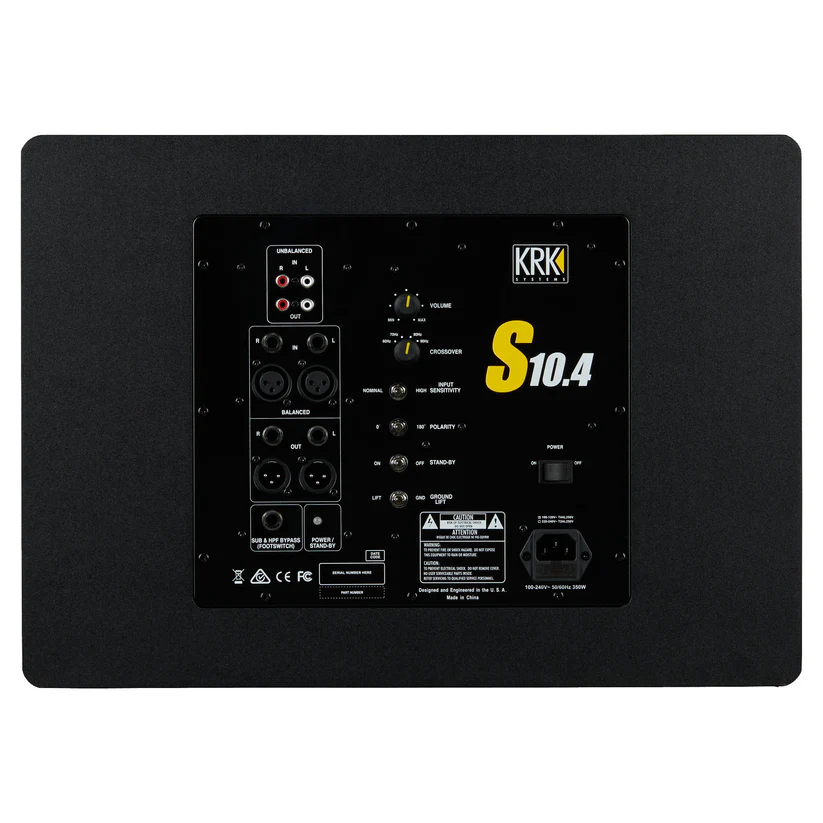

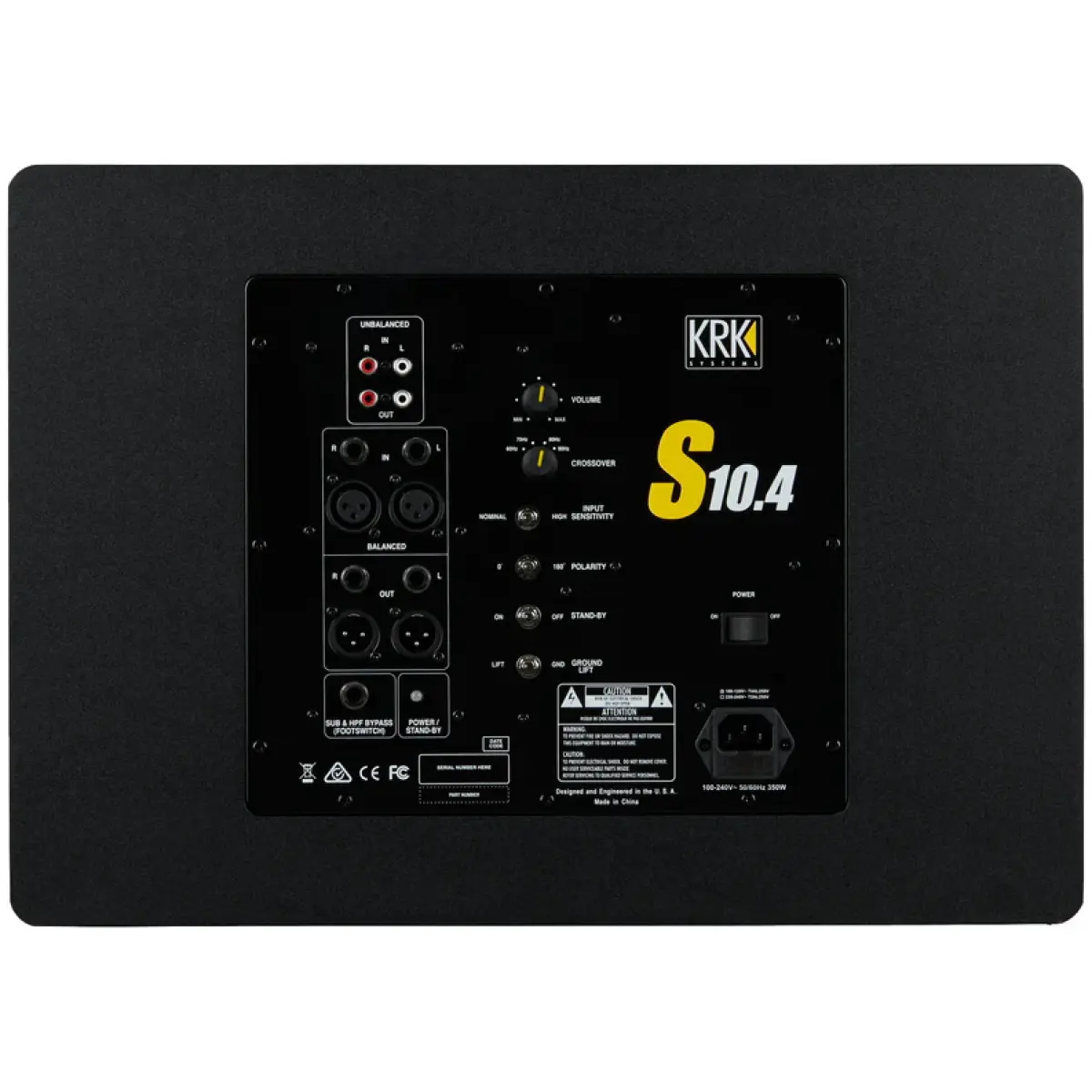

- Input Connectors: XLR L/R, 1/4″ TRS L/R, RCA L/R, 1/4″ Footswitch
- LFE Input: N/A
- Output Connectors: XLR L/R, 1/4″ TRS L/R, RCA L/R
- AC Power Input: 100VAC-240VAC
- Enclosure: 15 mm and 18 mm Reinforced MDF
- Finish: Black Vinyl Wrap, Baffle – Black Paint
- Hardware: EVA Isolation Pad
- Dimensions (H x W x D): (H x W x D): 13.4375″ (341 mm) x 18.875″ (479 mm) x 12.1875″ (310 mm)
- Weight: 35 lb. (15.88 kg.)
