Features & Highlights
- 8″ glass aramid composite woofer
- Bass extension to 29Hz with a max SPL of 112.8 dB
- Footswitch control enables/disables sub and crossover filter (footswitch not included)
- Redesigned cabinet with a lower profile and front-firing bass port
- Powerful, lightweight Class D amplification
- Optimized four-position crossover control
- Universal connectivity: XLR, 1/4″ TRS, and RCA inputs and outputs
- Polarity and input sensitivity controls
- Ground lift switch prevents ground loops
Specifications
-
- Configuration: Front Loaded, Vented Subwoofer
- System Type: Active Subwoofer
- Low-Frequency Transducer: 8″ Glass Aramid Composite Woofer
- Frequency Response: 34.5Hz – 133Hz
- Max Peak SPL: 112.8 dB
- Amplifier: Class D
- Power Output (Continuous): 109 Watts @ 1% THD+N @ 46Hz
- Signal to Noise Ratio: 92 dB
- Amplifier Distortion (THD + N): ≤ 0.1% @-3dB Of Max Power Output 35Hz-133Hz
- Input Impedance: 9.4 KΩ Balanced, 9.2 KΩ Unbalanced
- Ground Lift: On/Off
- HPF Bypass: With Footswitch Only
- Footswitch: Optional
-
- Indicators: Power/Standby

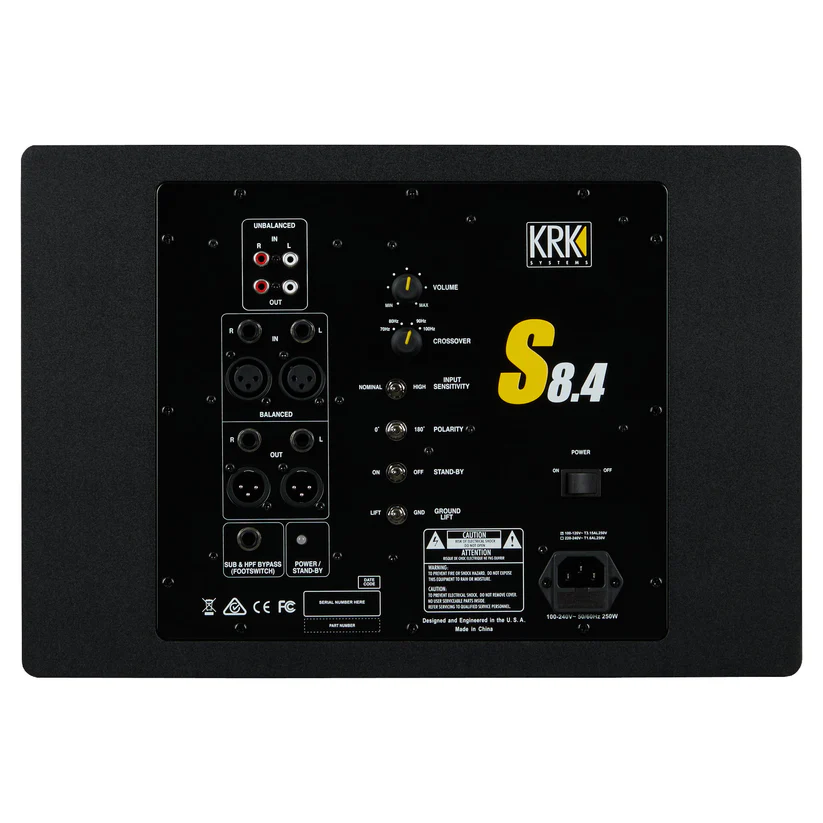

- Input Connectors: XLR L/R, 1/4″ TRS L/R, RCA L/R, 1/4″ Footswitch
- LFE Input: N/A
- Output Connectors: XLR L/R, 1/4″ TRS L/R, RCA L/R
- AC Power Input: 100VAC-240VAC
- Enclosure: 15 mm and 18 mm Reinforced MDF
- Finish: Black Vinyl Wrap, Baffle – Black Paint
- Hardware: EVA Isolation Pad
- Dimensions (H x W x D): (H x W x D): 11″ (279 mm) x 16.125″ (410 mm) x 11.5″ (292 mm)
- Weight: 26.5 lb. (12 kg.)
