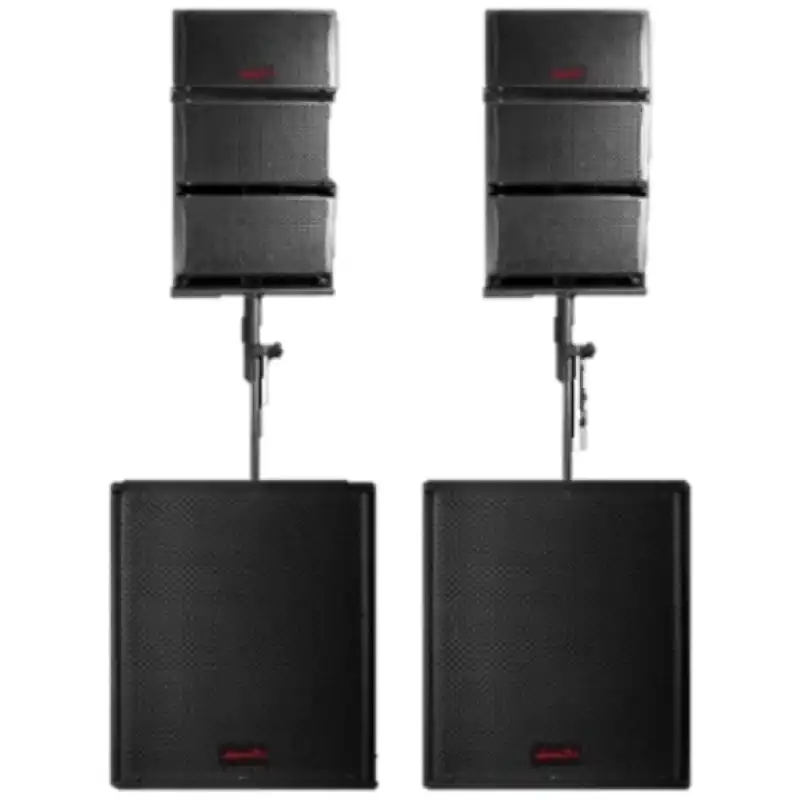

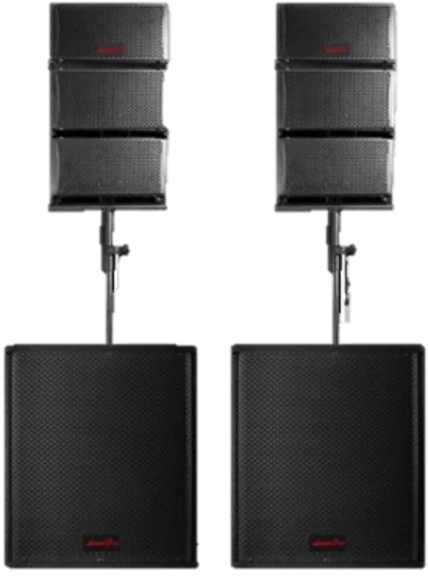

Lane Pro Array X-18.2.2 Speaker Combo

The Lane Pro Array X-18.2.2 is a high-output active PA speaker combo designed for DJs, churches, schools, event companies, and general sound reinforcement. Featuring dual 18-inch active subwoofers paired with four 8-inch satellite tops (two per side), the system delivers deep bass, wide coverage, and clear high-frequency projection. With built-in Class-D amplification, DSP processing, multiple input options, and rugged construction, the X-18.2.2 provides a complete plug-and-play sound system for indoor and outdoor events.

Key Features

• Complete dual-stack PA speaker system

• Includes:
  • 2 × 18″ Active Subwoofers
  • 4 × 8″ Satellite Speakers (2 per stack)
  • 2 × Pole Mounts

• High-power Class-D amplifier modules

• DSP presets (Music / Live / Speech / Flat) depending on batch

• Wide-coverage dual-8” top speakers

• Deep, powerful bass from 18″ active subs

• Built-in 2-channel mixer on subwoofers

• Bluetooth audio streaming (batch dependent)

• Plug-and-play design with fast setup

• Rugged cabinets with steel grille protection

• Ideal for DJs, weddings, churches, schools, corporate events, and outdoor functions

Technical Specifications

Subwoofers (x2)

Driver: 18″ high-efficiency woofer
Amplifier Type: Class-D active
Power Output: approx. 300–500 W RMS / 1000 W peak per sub (varies by batch)
Frequency Response: approx. 40 Hz – 150 Hz
Inputs: XLR/Jack combo (Mic/Line), RCA stereo
Outputs: XLR link out
DSP Modes: Music, Live, Speech, Flat (common variants)

Satellite Speakers (x4)

Configuration: Dual 8″ LF + 1″ HF compression driver
Frequency Range: approx. 80 Hz – 18 kHz
Dispersion: Wide horizontal coverage
Mounting: Standard 35 mm pole socket
