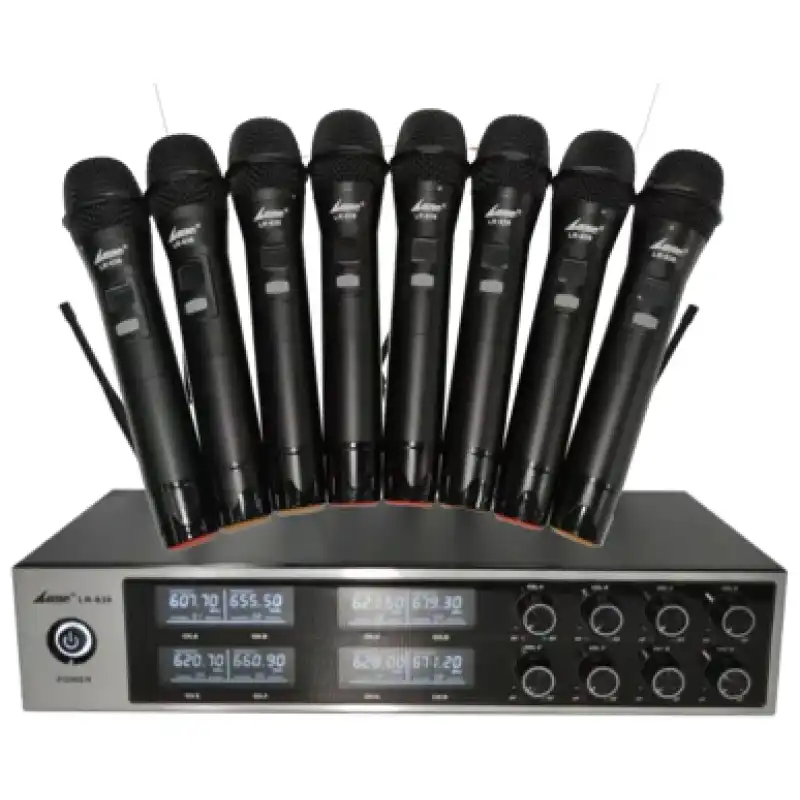

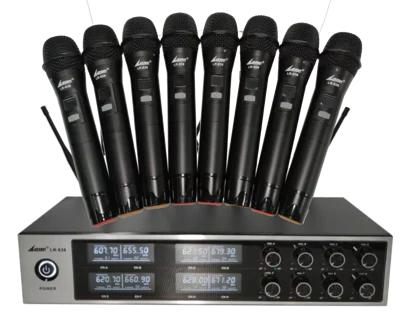

Lane Pro LR638 Wireless Handheld 8 Microphone Set

The Lane LR-638 is a Wireless Microphone Set.

FEATURES

• 8 Handheld Microphones
• 8 Channel Receiver
• Variable Frequency

SPECIFICATIONS

Receiver

• Frequency Range:  610 – 690 MHz
• Receive Distance:  50m
• Receiving Mode:  Secondary Superheterodyne Frequency Conversion
• Antenna Impedance:  50 Ohms
• Maximum Frequency Deviation:  75Khz
• De-Emphasis:  12 Us.
• Frequency Stability:  10.002%
• Receiving Sensitivity:  <-105dBm
• Signal-to-Noise Ratio:  279dB
• T.H.D:  <5%
• Frequency Response:  50Hz – 16KHz
• Power Consumption:  5W
• Power:  External Power Adaptor
• Receive Distance:  50m

Transmitter

• Frequency Range:  610 – 690 MHz
• Transmit Mode:  Wireless Micropower
• Antenna Impedance:  500
• Modulation Mode:  FM
• Maximum Frequency Deviation:  75Khz
• Pre-Emphasis:  12 Us.
• Input Impedance:  600 Ohms
• Signal-to-Noise Ratio:  >-70dB
• T.H.D:  <55%
• Frequency Response:  50Hz – 16KHz
• Power Consumption:  Approx. 120mA
• Power:  1.5V X2 AA
